Sayfa 3-70 - Isuzu EPC

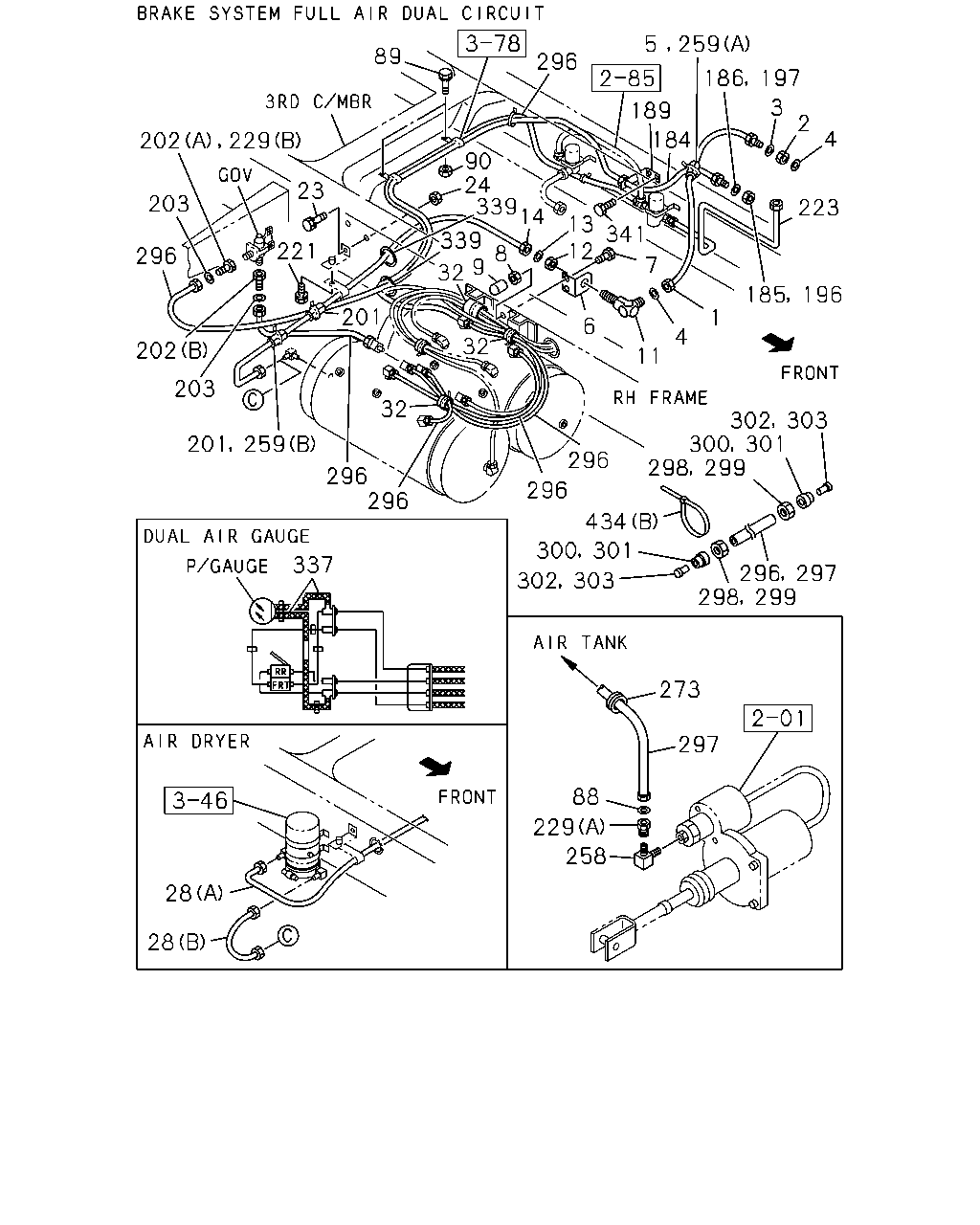

3-70 — BRAKE PIPING; AIR,AIR MASTER (#1260) — 862 parça

5 259 89 296 186 197 3 189 2 90 24 339 14 4 184 202 23 203 223 13 12 341 221 339 9 32 8 296 7 185 196 201 1 6 4 32 202 11 203 32 302 300 298 201 259 296 296 296 296 434 300 301 337 296 298 302 303 273 297 88 229 258 28 28 299 297 299 301 303 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-07806-420-1	01	1	9306-9310		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=390	0-07806-390-1	01	1	9311-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=420	0-07806-420-1	01	1	9505-		●
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9202-	●
2	NUT; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	01	1	9202-		●
2	NUT; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M22	9-09111-422-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	9202-	●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) ID=22.5	9-09150-522-0	01	1	9202-9312		●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9202-	●
4	GASKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
5	SLEEVE; FLEX HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●
5	SLEEVE; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9202-9504	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9202-9504		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47476-057-1	01	1	9202-9504		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9505-	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47476-057-1	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47477-109-0	01	1	9306-9504		●
6	BRACKET; FLEX HOSE,AIR TANK ZF T/M<X9E>	1-47477-109-0	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L)	1-53497-333-2	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9212-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9212-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9202-9204		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9202-	●	●
9	CAP; BOLT,FLEX HOSE 6SA1 STD ENG(06L)	1-21489-059-0	01	1	9202-	●	●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9202-9504	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9202-9504		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-09654-202-1	01	1	9202-9504		●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9505-	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9505-		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-09654-202-1	01	1	9505-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ZF T/M<X9E> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
11	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
12	NUT; UNION M22	9-09111-422-0	01	1	9202-9305	●
12	NUT; UNION ISUZU M/T<X9A> AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION M22	9-09111-422-0	01	1	9306-9504	●
12	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION M22	9-09111-422-0	01	1	9505-	●
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION ZF T/M<X9E> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9202-9305	●
13	WASHER; LK,UNION ISUZU M/T<X9A> AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9306-9312	●
13	WASHER; LK,UNION 6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ISUZU M/T<X9A> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9202-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=872	1-47491-949-0	01	1	9202-9208		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=659	1-47491-984-1	01	1	9202-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-49112-603-0	01	1	9505-		●
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
24	NUT; BRKT,AIR PIPE M8	9-09110-408-0	01	1	9202-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=1220 SERVICED BY L=1450	1-47437-984-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=636 SERVICED BY L=660	1-49111-438-0	01	1	9209-9406		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=636 SERVICED BY L=660	1-49111-438-0	01	1	9407-		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=609	1-47491-950-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1021	1-47497-477-0	01	1	9209-		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1850	1-47494-374-0	01	1	9202-9305		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-258-0	01	1	9306-9306		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-281-0	01	1	9307-		●
28	PIPE; AIR,AIR DRYER 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=567	1-47491-981-0	01	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-	●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6HE1 STD ENG(46L) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●
88	GASKET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-		●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
90	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9202-	●
90	NUT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9202-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-9305	●	●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9306-9504	●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9505-	●
184	HOSE; FLEX,AIR GOV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=490	0-07030-490-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> L=490	0-07030-490-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L) L=350	1-09363-518-0	01	1	9202-		●
185	NUT; FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-09840-280-0	02	1	9202-	●	●
185	NUT; FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
186	WASHER; LK,FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=12.2	9-09150-512-0	02	1	9202-9312	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9312		●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L)	1-47465-193-0	01	1	9202-9305	●	●
189	BRACKET; FLEX HOSE	1-47465-193-0	01	1	9306-	●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-193-0	01	1	9306-		●
196	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9202-	●	●
197	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312	●	●
201	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-	●
201	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
202	ADAPTER (A) L=30	1-09650-373-0	01	1	9202-	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=30	1-09650-373-0	01	1	9202-		●
202	ADAPTER (B) L=36	1-09660-550-0	02	1	9202-	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=36	1-09660-550-0	02	1	9202-		●
203	GASKET; ADAPTER,GOV ID=11 OD=18	9-09572-510-0	02	1	9202-	●
203	GASKET; ADAPTER,GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9202-		●
221	BOLT; BRKT 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
221	BOLT; BRKT 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205		●
223	PIPE; AIR,MAG VLV TO CONT CYL L=550	1-47484-125-0	01	1	9202-	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	1-47484-125-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=552 SERVICED BY L=600	1-47426-345-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=1370	1-47426-354-0	01	1	9306-		●
229	ADAPTER; NYLON TUBE (A) M14 & PT1/4	9-48319-149-0	01	1	9202-	●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) M14 & PT1/4	9-48319-149-0	01	1	9202-		●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B)	1-09650-373-0	01	1	9202-9504	●	●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B)	1-09650-373-0	01	1	9505-		●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF T/M<X9E> (B)	1-09650-373-0	01	1	9505-		●
258	CONNECTOR; NYLON TUBE 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
273	GROMMET ISUZU M/T<X9A> ID=19 OD=23 T=18	9-09956-130-1	01	1	9202-	●
296	TUBE; NYLON ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-		●
296	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
296	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-		●
297	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
298	NUT; SLEEVE OD=3/8"	1-09660-557-0	AR	1	9202-	●
298	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9202-		●
298	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9202-	●
298	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	AR	1	9202-		●
299	NUT; SLEEVE OD=3/8"	1-09660-557-0	AR	1	9202-	●
299	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9202-		●
300	SLEEVE; TUBE 3/8 INCH	1-09666-060-0	AR	1	9202-	●
300	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 3/8 INCH	1-09666-060-0	AR	1	9202-		●
300	SLEEVE; TUBE 1/2 INCH	1-09666-061-0	AR	1	9202-	●
300	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1/2 INCH	1-09666-061-0	AR	1	9202-		●
301	SLEEVE; TUBE 3/8 INCH	1-09666-060-0	AR	1	9202-	●
301	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 3/8 INCH	1-09666-060-0	AR	1	9202-		●
302	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9202-	●
302	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	AR	1	9202-		●
302	RING; INSERT OD=3/8"	1-09669-108-0	AR	1	9202-	●
302	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9202-		●
303	RING; INSERT OD=3/8"	1-09669-108-0	AR	1	9202-	●
303	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9202-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=850	0-07210-850-0	01	1	9202-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=850	0-07210-850-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9202-		●
339	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●
339	GROMMET; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-		●
339	GROMMET; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=35 T=17	9-09956-256-1	01	1	9202-		●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06),6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
341	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
341	BOLT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28010-820-0	06	1	9202-9204		●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	06	1	9205-		●
434	CLIP ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (A) ID=13 H=50 L=25	1-09700-529-0	01	1	9202-		●
434	CLIP 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	03	1	9202-		●
434	CLIP 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	04	1	9202-		●
434	CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	9202-		●

296 257 256 14 296 339 417 1 434 296 255 184 296 28 14 21 296 137 1 369 33 296 184 296 12 13 296 89 296 223 90 259 237 18 16 12 13 1 17 179 180 262 184 172 176 268 266 33 369 178 176 154 155 21 154 267 28 1 221 163 163 262 172 296 184 137 35 154 296 222 296 296 434 257 256 172 155 255 177 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-07806-420-1	01	1	9306-9310		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=390	0-07806-390-1	01	1	9311-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=420	0-07806-420-1	01	1	9505-		●
12	NUT; UNION M22	9-09111-422-0	01	1	9202-9305	●
12	NUT; UNION ISUZU M/T<X9A> AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION M22	9-09111-422-0	01	1	9306-9504	●
12	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION M22	9-09111-422-0	01	1	9505-	●
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION ZF T/M<X9E> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9202-9305	●
13	WASHER; LK,UNION ISUZU M/T<X9A> AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9306-9312	●
13	WASHER; LK,UNION 6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ISUZU M/T<X9A> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9202-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=872	1-47491-949-0	01	1	9202-9208		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=659	1-47491-984-1	01	1	9202-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-49112-603-0	01	1	9505-		●
16	UNION; AIR PIPE 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	9202-		●
16	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09233-315-1	01	1	9202-		●
17	NUT; UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-		●
17	NUT; UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09111-422-0	01	1	9202-		●
18	WASHER; LK,UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9312		●
18	WASHER; LK,UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=22.5	9-09150-522-0	01	1	9202-9312		●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=489	1-47491-982-0	01	1	9202-		●
21	PIPE; AIR,UNION TO AIR DRYER ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=540	1-49111-093-0	01	1	9306-		●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=1220 SERVICED BY L=1450	1-47437-984-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=636 SERVICED BY L=660	1-49111-438-0	01	1	9209-9406		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=636 SERVICED BY L=660	1-49111-438-0	01	1	9407-		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=609	1-47491-950-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1021	1-47497-477-0	01	1	9209-		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1850	1-47494-374-0	01	1	9202-9305		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-258-0	01	1	9306-9306		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-281-0	01	1	9307-		●
28	PIPE; AIR,AIR DRYER 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=567	1-47491-981-0	01	1	9202-		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47494-376-0	01	1	9202-9204		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47495-229-0	01	1	9205-		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-377-0	01	1	9202-9204		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47495-230-0	01	1	9205-		●
33	PIPE; AIR,UNION TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-47493-216-0	01	1	9202-		●
35	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-9204		●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
90	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9202-	●
90	NUT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9202-		●
137	HOSE; FLEX,AIR PRESSURE GAGE ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> L=410	0-07020-410-0	01	1	9202-		●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-47486-409-0	01	1	9202-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 STD ENG(46L) L=384	1-47493-247-0	01	1	9202-		●
155	GASKET; AIR PIPE 6HE1 STD ENG(46L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
155	GASKET; AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
155	GASKET; AIR PIPE 6HE1 STD ENG(46L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
163	BRACKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9202-9208		●
163	BRACKET; AIR PIPE 6HE1 STD ENG(46L) (C)	1-47475-601-0	01	1	9202-9204		●
163	BRACKET; AIR PIPE 6HE1 STD ENG(46L) (D)	1-47475-427-1	01	1	9205-		●
163	BRACKET; AIR PIPE 6SA1TC ENG(28L) (B) L=50	1-47475-299-2	02	1	9306-		●
172	PIPE; AIR,GOV TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47491-975-0	01	1	9202-9208		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47494-378-0	01	1	9202-9204		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47495-231-0	01	1	9205-		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-379-1	01	1	9202-9204		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47495-232-0	01	1	9205-		●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=334 SERVICED BY L=350	1-47426-341-0	01	1	9202-9208		●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=484 SERVICED BY L=500	1-47426-343-0	01	1	9209-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) L=520	1-47493-249-0	01	1	9202-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (B) L=634	1-47493-250-0	01	1	9202-		●
177	PIPE; AIR,UNION TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1232 SERVICED BY L=1370	1-47434-390-0	01	1	9202-		●
178	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 2WAY	1-09654-059-1	01	1	9202-9208		●
178	UNION; AIR PIPE 6HE1 STD ENG(46L) M12 ELBOW	9-09225-206-1	01	1	9202-		●
178	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 ELBOW	9-09225-206-1	01	1	9202-		●
179	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99111-412-0	01	1	9202-9208		●
179	NUT; UNION 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
179	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9208		●
180	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9208		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9208		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9209-9312		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9209-9312		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-9305	●	●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9306-9504	●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9505-	●
184	HOSE; FLEX,AIR GOV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=490	0-07030-490-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> L=490	0-07030-490-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L) L=350	1-09363-518-0	01	1	9202-		●
221	BOLT; BRKT 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
221	BOLT; BRKT 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1116 SERVICED BY L=1250	1-47434-389-0	01	1	9202-		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL L=550	1-47484-125-0	01	1	9202-	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	1-47484-125-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=552 SERVICED BY L=600	1-47426-345-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=1370	1-47426-354-0	01	1	9306-		●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF T/M<X9E>	1-49114-348-0	01	1	9505-		●
237	PIPE; AIR,FLEX HOSE TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49111-092-0	01	1	9306-		●
237	PIPE; AIR,FLEX HOSE TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-375-0	01	1	9202-9305		●
237	PIPE; AIR,FLEX HOSE TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-49111-280-0	01	1	9306-		●
255	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9202-9211		●
255	UNION; NYLON TUBE 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9202-9211		●
255	UNION; NYLON TUBE 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9212-		●
255	UNION; NYLON TUBE 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9212-		●
256	NUT; PIPE UNION 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-312-0	01	1	9202-		●
256	NUT; PIPE UNION 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12	9-99110-312-0	01	1	9202-		●
257	WASHER; LK,UNION 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312		●
257	WASHER; LK,UNION 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312		●
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=946 SERVICED BY L=1100	1-47434-387-0	01	1	9202-9205		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=950	1-47495-709-0	01	1	9206-9208		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1890 SERVICED BY L=2000	1-47434-395-0	01	1	9209-9211		●
262	PIPE; AIR,UNION TO FLEX ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1849 SERVICED BY L=2000	1-47426-359-0	01	1	9212-		●
262	PIPE; AIR,UNION TO FLEX ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1804 SERVICED BY L=1820	1-47426-358-0	01	1	9306-		●
262	PIPE; AIR,UNION TO FLEX 6HE1 STD ENG(46L) L=330 SERVICED BY L=350	1-47426-341-0	01	1	9202-		●
266	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW	9-09225-206-1	01	1	9202-9208		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9202-9208		●
266	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5	9-09223-306-1	01	1	9209-		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9209-		●
267	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9202-		●
267	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
268	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9312		●
268	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9312		●
296	TUBE; NYLON ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-		●
296	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
296	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-		●
339	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●
339	GROMMET; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-		●
339	GROMMET; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=35 T=17	9-09956-256-1	01	1	9202-		●
369	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M22	9-09233-315-1	01	1	9202-		●
369	UNION; AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09235-215-1	01	1	9202-		●
417	GROMMET; NYLON TUBE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=19 OD=23 T=24	1-09332-103-0	02	1	9202-		●
434	CLIP ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (A) ID=13 H=50 L=25	1-09700-529-0	01	1	9202-		●
434	CLIP 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	03	1	9202-		●
434	CLIP 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	04	1	9202-		●
434	CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	9202-		●

154 242 163 155 154 171 171 168 172 28 28 176 266 339 267 268 243 171 172 244 245 168 266 92 267 268 92 14 172 336 328 337 337 434 325 137 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9202-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=872	1-47491-949-0	01	1	9202-9208		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=659	1-47491-984-1	01	1	9202-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-49112-603-0	01	1	9505-		●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=1220 SERVICED BY L=1450	1-47437-984-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=636 SERVICED BY L=660	1-49111-438-0	01	1	9209-9406		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=636 SERVICED BY L=660	1-49111-438-0	01	1	9407-		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=609	1-47491-950-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1021	1-47497-477-0	01	1	9209-		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1850	1-47494-374-0	01	1	9202-9305		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-258-0	01	1	9306-9306		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-281-0	01	1	9307-		●
28	PIPE; AIR,AIR DRYER 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=567	1-47491-981-0	01	1	9202-		●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-483-0	01	1	9209-		●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47497-489-0	01	1	9209-9211		●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47499-817-0	01	1	9212-		●
137	HOSE; FLEX,AIR PRESSURE GAGE ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> L=410	0-07020-410-0	01	1	9202-		●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-47486-409-0	01	1	9202-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 STD ENG(46L) L=384	1-47493-247-0	01	1	9202-		●
155	GASKET; AIR PIPE 6HE1 STD ENG(46L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
155	GASKET; AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
155	GASKET; AIR PIPE 6HE1 STD ENG(46L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
163	BRACKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9202-9208		●
163	BRACKET; AIR PIPE 6HE1 STD ENG(46L) (C)	1-47475-601-0	01	1	9202-9204		●
163	BRACKET; AIR PIPE 6HE1 STD ENG(46L) (D)	1-47475-427-1	01	1	9205-		●
163	BRACKET; AIR PIPE 6SA1TC ENG(28L) (B) L=50	1-47475-299-2	02	1	9306-		●
168	GASKET; AIR PIPE,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47491-976-0	01	1	9202-9208		●
171	PIPE; AIR,GOV TO AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47497-494-0	01	1	9209-		●
171	PIPE; AIR,GOV TO AIR DRYER ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-49111-100-0	01	1	9306-		●
172	PIPE; AIR,GOV TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47491-975-0	01	1	9202-9208		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47494-378-0	01	1	9202-9204		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47495-231-0	01	1	9205-		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-379-1	01	1	9202-9204		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47495-232-0	01	1	9205-		●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=334 SERVICED BY L=350	1-47426-341-0	01	1	9202-9208		●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=484 SERVICED BY L=500	1-47426-343-0	01	1	9209-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) L=520	1-47493-249-0	01	1	9202-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (B) L=634	1-47493-250-0	01	1	9202-		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1028 SERVICED BY L=1250	1-47434-410-0	01	1	9202-9208		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=860 SERVICED BY L=1000	1-47437-956-0	01	1	9209-9212		●
242	PIPE; AIR,AIR TANK TO UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=860 SERVICED BY L=1000	1-47426-386-0	01	1	9301-		●
242	PIPE; AIR,AIR TANK TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=855	1-49111-097-0	01	1	9306-		●
243	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-116-1	01	1	9202-		●
243	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-488-1	01	1	9306-		●
244	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99111-414-0	01	1	9202-		●
245	WASHER; LK,UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9202-9312		●
266	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW	9-09225-206-1	01	1	9202-9208		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9202-9208		●
266	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5	9-09223-306-1	01	1	9209-		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9209-		●
267	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9202-		●
267	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
268	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9312		●
268	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9312		●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=810	1-47483-116-0	01	1	9202-		●
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-194-1	01	1	9202-		●
335	SEAL; UNION EXC. DUAL AIR GAUGE<UG2>	1-79998-236-0	01	1	9202-		●
336	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9202-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=850	0-07210-850-0	01	1	9202-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=850	0-07210-850-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9202-		●
339	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●
339	GROMMET; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-		●
339	GROMMET; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=35 T=17	9-09956-256-1	01	1	9202-		●
434	CLIP ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (A) ID=13 H=50 L=25	1-09700-529-0	01	1	9202-		●
434	CLIP 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	03	1	9202-		●
434	CLIP 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	04	1	9202-		●
434	CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B) L=250	1-09707-126-0	01	1	9202-		●

302 300 298 300 301 296 298 302 303 9 8 5 4 6 4 11 2 3 12 1 7 13 89 90 189 184 186 185 296 296 223 255 203 202 341 190 214 202 203 299 297 299 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-07806-420-1	01	1	9306-9310		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=390	0-07806-390-1	01	1	9311-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=420	0-07806-420-1	01	1	9505-		●
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9202-	●
2	NUT; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	01	1	9202-		●
2	NUT; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M22	9-09111-422-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	9202-	●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) ID=22.5	9-09150-522-0	01	1	9202-9312		●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9202-	●
4	GASKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
5	SLEEVE; FLEX HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●
5	SLEEVE; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9202-9504	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9202-9504		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47476-057-1	01	1	9202-9504		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9505-	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47476-057-1	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47477-109-0	01	1	9306-9504		●
6	BRACKET; FLEX HOSE,AIR TANK ZF T/M<X9E>	1-47477-109-0	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L)	1-53497-333-2	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9212-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9212-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9202-9204		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9202-	●	●
9	CAP; BOLT,FLEX HOSE 6SA1 STD ENG(06L)	1-21489-059-0	01	1	9202-	●	●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9202-9504	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9202-9504		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-09654-202-1	01	1	9202-9504		●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9505-	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9505-		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-09654-202-1	01	1	9505-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ZF T/M<X9E> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
11	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
12	NUT; UNION M22	9-09111-422-0	01	1	9202-9305	●
12	NUT; UNION ISUZU M/T<X9A> AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION M22	9-09111-422-0	01	1	9306-9504	●
12	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION M22	9-09111-422-0	01	1	9505-	●
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION ZF T/M<X9E> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9202-9305	●
13	WASHER; LK,UNION ISUZU M/T<X9A> AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9306-9312	●
13	WASHER; LK,UNION 6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ISUZU M/T<X9A> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
90	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9202-	●
90	NUT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9202-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-9305	●	●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9306-9504	●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9505-	●
184	HOSE; FLEX,AIR GOV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=490	0-07030-490-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> L=490	0-07030-490-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L) L=350	1-09363-518-0	01	1	9202-		●
185	NUT; FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-09840-280-0	02	1	9202-	●	●
185	NUT; FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
186	WASHER; LK,FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=12.2	9-09150-512-0	02	1	9202-9312	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9312		●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L)	1-47465-193-0	01	1	9202-9305	●	●
189	BRACKET; FLEX HOSE	1-47465-193-0	01	1	9306-	●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-193-0	01	1	9306-		●
190	BOLT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
190	BOLT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-9305		●
190	BOLT; FLEX HOSE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
202	ADAPTER (A) L=30	1-09650-373-0	01	1	9202-	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=30	1-09650-373-0	01	1	9202-		●
202	ADAPTER (B) L=36	1-09660-550-0	02	1	9202-	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=36	1-09660-550-0	02	1	9202-		●
203	GASKET; ADAPTER,GOV ID=11 OD=18	9-09572-510-0	02	1	9202-	●
203	GASKET; ADAPTER,GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9202-		●
214	NUT; UNION,AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> M12	9-99110-312-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL L=550	1-47484-125-0	01	1	9202-	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	1-47484-125-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=552 SERVICED BY L=600	1-47426-345-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=1370	1-47426-354-0	01	1	9306-		●
255	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9202-9211		●
255	UNION; NYLON TUBE 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9202-9211		●
255	UNION; NYLON TUBE 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9212-		●
255	UNION; NYLON TUBE 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2>	1-09660-545-0	01	1	9212-		●
296	TUBE; NYLON ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-		●
296	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
296	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-		●
297	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
298	NUT; SLEEVE OD=3/8"	1-09660-557-0	AR	1	9202-	●
298	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9202-		●
298	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9202-	●
298	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	AR	1	9202-		●
299	NUT; SLEEVE OD=3/8"	1-09660-557-0	AR	1	9202-	●
299	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9202-		●
300	SLEEVE; TUBE 3/8 INCH	1-09666-060-0	AR	1	9202-	●
300	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 3/8 INCH	1-09666-060-0	AR	1	9202-		●
300	SLEEVE; TUBE 1/2 INCH	1-09666-061-0	AR	1	9202-	●
300	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1/2 INCH	1-09666-061-0	AR	1	9202-		●
301	SLEEVE; TUBE 3/8 INCH	1-09666-060-0	AR	1	9202-	●
301	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 3/8 INCH	1-09666-060-0	AR	1	9202-		●
302	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9202-	●
302	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	AR	1	9202-		●
302	RING; INSERT OD=3/8"	1-09669-108-0	AR	1	9202-	●
302	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9202-		●
303	RING; INSERT OD=3/8"	1-09669-108-0	AR	1	9202-	●
303	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9202-		●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06),6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
341	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
341	BOLT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28010-820-0	06	1	9202-9204		●
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	06	1	9205-		●

138 139 9 190 3 12 13 8 2 5 32 14 6 7 189 421 11 184 186 185 4 1 243 171 244 245 154 28 16 21 17 127 242 176 18 266 268 250 126 217 184 237 267 1 262 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-07806-420-1	01	1	9306-9310		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=390	0-07806-390-1	01	1	9311-		●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=420	0-07806-420-1	01	1	9505-		●
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9202-	●
2	NUT; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	01	1	9202-		●
2	NUT; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M22	9-09111-422-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	9202-	●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) ID=22.5	9-09150-522-0	01	1	9202-9312		●
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9202-	●
4	GASKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	01	1	9202-		●
5	SLEEVE; FLEX HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●
5	SLEEVE; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9202-9504	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9202-9504		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47476-057-1	01	1	9202-9504		●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9505-	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47476-057-1	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47477-109-0	01	1	9306-9504		●
6	BRACKET; FLEX HOSE,AIR TANK ZF T/M<X9E>	1-47477-109-0	01	1	9505-		●
6	BRACKET; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L)	1-53497-333-2	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9212-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9212-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L) M8X30 FLANGE	0-28080-830-0	02	1	9205-9211	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9202-9204		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9202-	●	●
9	CAP; BOLT,FLEX HOSE 6SA1 STD ENG(06L)	1-21489-059-0	01	1	9202-	●	●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9202-9504	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9202-9504		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-09654-202-1	01	1	9202-9504		●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9505-	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9505-		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-09654-202-1	01	1	9505-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-9504		●
11	UNION; AIR PIPE ZF T/M<X9E> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
11	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9505-		●
12	NUT; UNION M22	9-09111-422-0	01	1	9202-9305	●
12	NUT; UNION ISUZU M/T<X9A> AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-9305		●
12	NUT; UNION M22	9-09111-422-0	01	1	9306-9504	●
12	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9306-9504		●
12	NUT; UNION M22	9-09111-422-0	01	1	9505-	●
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22	9-09111-422-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9202-9305		●
12	NUT; UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> M20	9-99111-420-0	01	1	9306-9504		●
12	NUT; UNION ZF T/M<X9E> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9505-		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9202-9305	●
13	WASHER; LK,UNION ISUZU M/T<X9A> AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9305		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9306-9312	●
13	WASHER; LK,UNION 6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ISUZU M/T<X9A> ID=22.5	9-09150-522-0	01	1	9306-9312		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9202-9305		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9306-9504		●
13	WASHER; LK,UNION ZF T/M<X9E> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
13	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9505-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9202-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=872	1-47491-949-0	01	1	9202-9208		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=659	1-47491-984-1	01	1	9202-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-49112-603-0	01	1	9505-		●
16	UNION; AIR PIPE 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	9202-		●
16	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09233-315-1	01	1	9202-		●
17	NUT; UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-		●
17	NUT; UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09111-422-0	01	1	9202-		●
18	WASHER; LK,UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9312		●
18	WASHER; LK,UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=22.5	9-09150-522-0	01	1	9202-9312		●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=489	1-47491-982-0	01	1	9202-		●
21	PIPE; AIR,UNION TO AIR DRYER ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=540	1-49111-093-0	01	1	9306-		●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=1220 SERVICED BY L=1450	1-47437-984-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) L=636 SERVICED BY L=660	1-49111-438-0	01	1	9209-9406		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=636 SERVICED BY L=660	1-49111-438-0	01	1	9407-		●
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=609	1-47491-950-0	01	1	9202-9208		●
28	PIPE; AIR,AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1021	1-47497-477-0	01	1	9209-		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1850	1-47494-374-0	01	1	9202-9305		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-258-0	01	1	9306-9306		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-281-0	01	1	9307-		●
28	PIPE; AIR,AIR DRYER 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=567	1-47491-981-0	01	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-	●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6HE1 STD ENG(46L) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ZF T/M<X9E> L=846 SERVICED BY L=900	1-47426-349-0	01	1	9306-		●
127	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> M12 L=40	9-09223-006-1	01	1	9210-		●
138	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9202-		●
139	WASHER; LK,FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312		●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-47486-409-0	01	1	9202-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 STD ENG(46L) L=384	1-47493-247-0	01	1	9202-		●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47491-976-0	01	1	9202-9208		●
171	PIPE; AIR,GOV TO AIR DRYER ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-47497-494-0	01	1	9209-		●
171	PIPE; AIR,GOV TO AIR DRYER ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-49111-100-0	01	1	9306-		●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=334 SERVICED BY L=350	1-47426-341-0	01	1	9202-9208		●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=484 SERVICED BY L=500	1-47426-343-0	01	1	9209-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) L=520	1-47493-249-0	01	1	9202-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (B) L=634	1-47493-250-0	01	1	9202-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-9305	●	●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9306-9504	●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> L=410	0-07030-410-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9505-	●
184	HOSE; FLEX,AIR GOV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=490	0-07030-490-0	01	1	9306-9504		●
184	HOSE; FLEX,AIR GOV ZF T/M<X9E> L=490	0-07030-490-0	01	1	9505-		●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L) L=350	1-09363-518-0	01	1	9202-		●
185	NUT; FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-09840-280-0	02	1	9202-	●	●
185	NUT; FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
186	WASHER; LK,FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=12.2	9-09150-512-0	02	1	9202-9312	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9312		●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L)	1-47465-193-0	01	1	9202-9305	●	●
189	BRACKET; FLEX HOSE	1-47465-193-0	01	1	9306-	●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-193-0	01	1	9306-		●
190	BOLT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
190	BOLT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-9305		●
190	BOLT; FLEX HOSE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
217	PIPE; VAC,UNION TO MAG VLV 6SA1TC ENG(28L) L=1526 SERVICED BY L=1620	1-47426-356-0	01	1	9306-		●
223	PIPE; AIR,MAG VLV TO CONT CYL L=550	1-47484-125-0	01	1	9202-	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	1-47484-125-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=552 SERVICED BY L=600	1-47426-345-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=1370	1-47426-354-0	01	1	9306-		●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF T/M<X9E>	1-49114-348-0	01	1	9505-		●
237	PIPE; AIR,FLEX HOSE TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49111-092-0	01	1	9306-		●
237	PIPE; AIR,FLEX HOSE TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-375-0	01	1	9202-9305		●
237	PIPE; AIR,FLEX HOSE TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-49111-280-0	01	1	9306-		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1028 SERVICED BY L=1250	1-47434-410-0	01	1	9202-9208		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=860 SERVICED BY L=1000	1-47437-956-0	01	1	9209-9212		●
242	PIPE; AIR,AIR TANK TO UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=860 SERVICED BY L=1000	1-47426-386-0	01	1	9301-		●
242	PIPE; AIR,AIR TANK TO UNION ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=855	1-49111-097-0	01	1	9306-		●
243	UNION; AIR PIPE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-116-1	01	1	9202-		●
243	UNION; AIR PIPE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-488-1	01	1	9306-		●
244	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99111-414-0	01	1	9202-		●
245	WASHER; LK,UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9202-9312		●
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=1490 SERVICED BY L=1620	1-47434-392-0	01	1	9202-9203		●
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=1482 SERVICED BY L=1620	1-47434-392-0	01	1	9204-9205		●
250	PIPE; AIR,UNION TO FLEX HOSE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=1520 SERVICED BY L=1620	1-47434-392-0	01	1	9206-		●
250	PIPE; AIR,UNION TO FLEX HOSE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1862 SERVICED BY L=2000	1-47426-359-0	01	1	9306-		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=946 SERVICED BY L=1100	1-47434-387-0	01	1	9202-9205		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=950	1-47495-709-0	01	1	9206-9208		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1890 SERVICED BY L=2000	1-47434-395-0	01	1	9209-9211		●
262	PIPE; AIR,UNION TO FLEX ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1849 SERVICED BY L=2000	1-47426-359-0	01	1	9212-		●
262	PIPE; AIR,UNION TO FLEX ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1804 SERVICED BY L=1820	1-47426-358-0	01	1	9306-		●
262	PIPE; AIR,UNION TO FLEX 6HE1 STD ENG(46L) L=330 SERVICED BY L=350	1-47426-341-0	01	1	9202-		●
266	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW	9-09225-206-1	01	1	9202-9208		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9202-9208		●
266	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5	9-09223-306-1	01	1	9209-		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9209-		●
267	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9202-		●
267	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
268	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9312		●
268	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9312		●
421	NUT; BRKT 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-9305		●

197 257 320 337 196 319 229 137 296 201 32 32 259 259 297 88 229 258 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	SLEEVE; RUBBER,AIR PIPE ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-	●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6HE1 STD ENG(46L) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●
88	GASKET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-		●
91	BRACKET; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-550-1	01	1	9202-		●
137	HOSE; FLEX,AIR PRESSURE GAGE ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> L=410	0-07020-410-0	01	1	9202-		●
196	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9202-	●	●
197	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312	●	●
201	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-	●
201	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
229	ADAPTER; NYLON TUBE (A) M14 & PT1/4	9-48319-149-0	01	1	9202-	●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) M14 & PT1/4	9-48319-149-0	01	1	9202-		●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B)	1-09650-373-0	01	1	9202-9504	●	●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (B)	1-09650-373-0	01	1	9505-		●
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF T/M<X9E> (B)	1-09650-373-0	01	1	9505-		●
257	WASHER; LK,UNION 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312		●
257	WASHER; LK,UNION 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9202-9312		●
258	CONNECTOR; NYLON TUBE 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
296	TUBE; NYLON ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ORANGE 3/8" L=30000	1-09368-247-0	AR	1	9202-		●
296	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
296	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-		●
297	TUBE; NYLON YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-	●
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW 3/8" L=30000	1-09368-250-0	AR	1	9202-		●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9202-		●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9202-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=850	0-07210-850-0	01	1	9202-	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=850	0-07210-850-0	01	1	9202-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9202-		●

357 251 251 223 250 272 262 178 179 180 357 251 223 250 272 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 2WAY	1-09654-059-1	01	1	9202-9208		●
178	UNION; AIR PIPE 6HE1 STD ENG(46L) M12 ELBOW	9-09225-206-1	01	1	9202-		●
178	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 ELBOW	9-09225-206-1	01	1	9202-		●
179	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99111-412-0	01	1	9202-9208		●
179	NUT; UNION 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
179	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9208		●
180	WASHER; LK,UNION 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9208		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9208		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9209-9312		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9209-9312		●
223	PIPE; AIR,MAG VLV TO CONT CYL L=550	1-47484-125-0	01	1	9202-	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	1-47484-125-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=552 SERVICED BY L=600	1-47426-345-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=1370	1-47426-354-0	01	1	9306-		●
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=1490 SERVICED BY L=1620	1-47434-392-0	01	1	9202-9203		●
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=1482 SERVICED BY L=1620	1-47434-392-0	01	1	9204-9205		●
250	PIPE; AIR,UNION TO FLEX HOSE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=1520 SERVICED BY L=1620	1-47434-392-0	01	1	9206-		●
250	PIPE; AIR,UNION TO FLEX HOSE ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1862 SERVICED BY L=2000	1-47426-359-0	01	1	9306-		●
251	PIPE; AIR,UNION TO MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> (B) L=1698 SERVICED BY L=1820	1-47434-394-0	01	1	9202-9208		●
251	PIPE; AIR,UNION TO MAG VLV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> (B) L=2072 SERVICED BY L=2350	1-47434-397-0	01	1	9209-		●
251	PIPE; AIR,UNION TO MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (B) L=1551 SERVICED BY L=1700	1-47434-393-0	01	1	9202-9208		●
251	PIPE; AIR,UNION TO MAG VLV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (B) L=1924 SERVICED BY L=2200	1-47434-396-0	01	1	9209-		●
251	PIPE; AIR,UNION TO MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (B) L=1679 SERVICED BY L=1820	1-47434-394-0	01	1	9202-9208		●
251	PIPE; AIR,UNION TO MAG VLV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> (B) L=2053 SERVICED BY L=2350	1-47434-397-0	01	1	9209-		●
251	PIPE; AIR,UNION TO MAG VLV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> EXC. DUAL AIR GAUGE<UG2> (A) L=1318	1-47491-970-0	01	1	9202-		●
251	PIPE; AIR,UNION TO MAG VLV ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> (A) L=2786	1-47491-971-0	01	1	9202-		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=946 SERVICED BY L=1100	1-47434-387-0	01	1	9202-9205		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=950	1-47495-709-0	01	1	9206-9208		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1890 SERVICED BY L=2000	1-47434-395-0	01	1	9209-9211		●
262	PIPE; AIR,UNION TO FLEX ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1849 SERVICED BY L=2000	1-47426-359-0	01	1	9212-		●
262	PIPE; AIR,UNION TO FLEX ZF T/M<X9E> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1804 SERVICED BY L=1820	1-47426-358-0	01	1	9306-		●
262	PIPE; AIR,UNION TO FLEX 6HE1 STD ENG(46L) L=330 SERVICED BY L=350	1-47426-341-0	01	1	9202-		●
272	PIPE; AIR,MAG VLV TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=888 SERVICED BY L=1000	1-47434-386-0	01	1	9202-9203		●
272	PIPE; AIR,MAG VLV TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> L=889 SERVICED BY L=1000	1-47434-386-0	01	1	9204-9205		●
272	PIPE; AIR,MAG VLV TO UNION ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> L=802	1-47495-711-0	01	1	9206-		●
357	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1225 SERVICED BY L=1370	1-47434-390-0	01	1	9202-9208		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
