Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#12599) — 386 parça

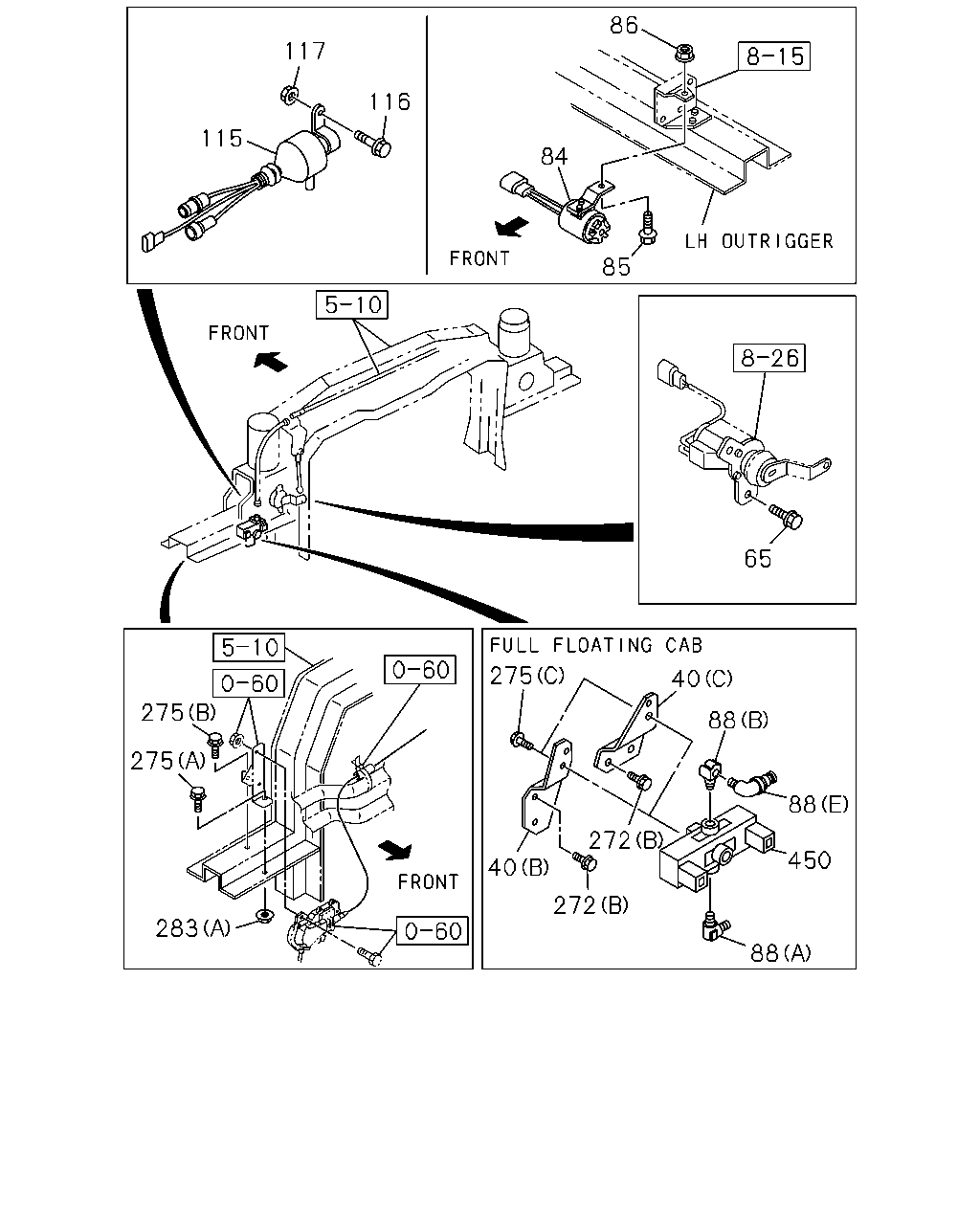

34 714 272 34 261 275 275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/4	9-99204-513-0	01	1	0105-		●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X14 FLANGE	0-28080-814-0	01	1	0105-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (A) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28690-825-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28660-825-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A)	1-82569-277-2	01	1	0105-	●	●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0506	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0506	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0506	●	●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602		●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-		●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
284	BOLT; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0105-	●	●

34 261 89 285 210 602 34 284 210 34 89 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0105-	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-82563-872-1	01	1	0105-		●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-		●
210	WASHER; PL,BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-		●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-		●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-82569-266-0	02	1	0105-		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/4	9-99204-513-0	01	1	0105-		●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
284	BOLT; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
285	NUT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0602		●
285	NUT; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0602		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0602		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE	0-91150-106-0	01	1	0105-0602		●
285	NUT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-		●
285	NUT; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE	0-91180-106-0	01	1	0603-		●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-		●
602	GASKET; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=16.8	9-09565-117-0	01	1	0105-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-	●	●

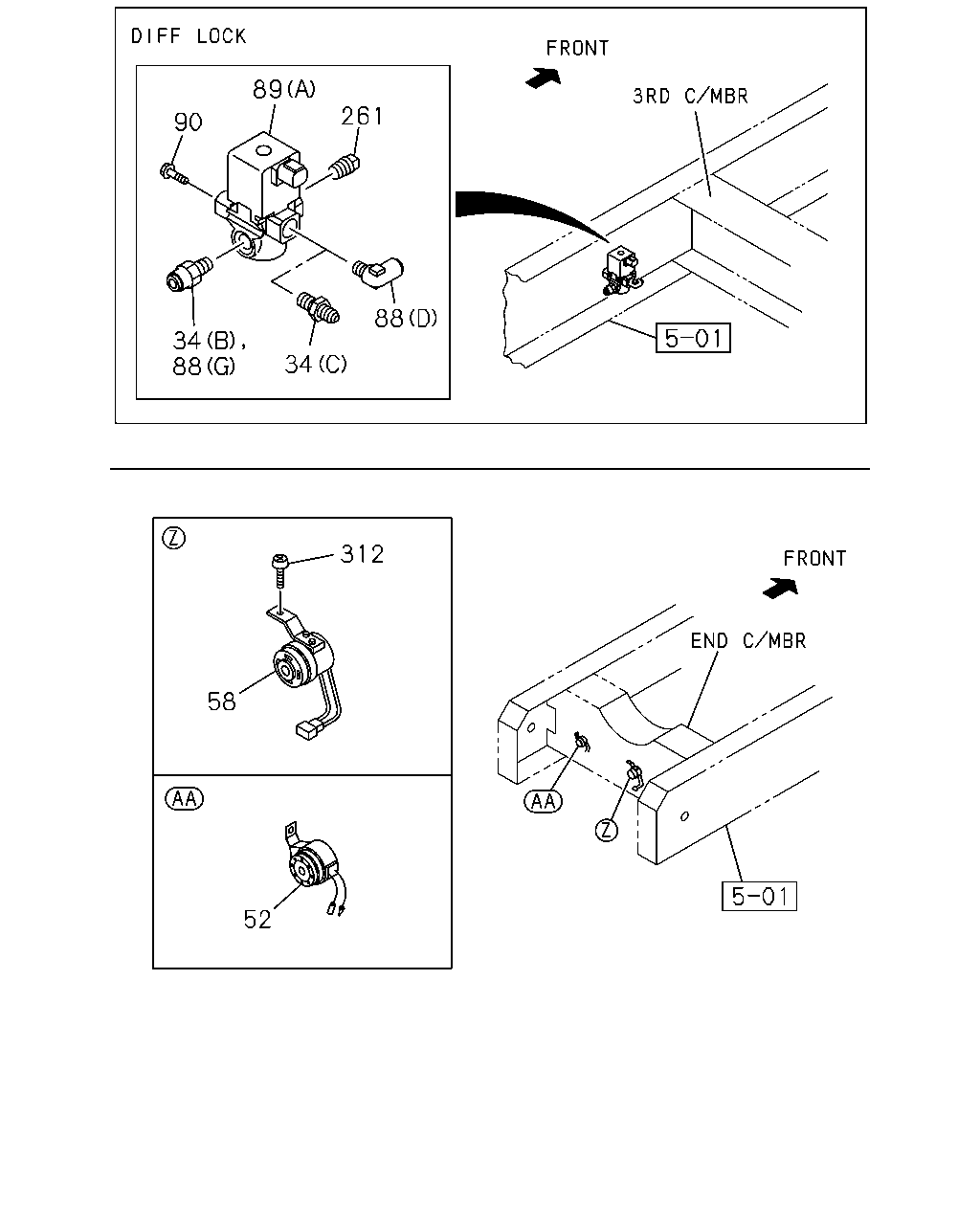

89 261 90 88 34 34 88 312 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO	1-83460-088-1	01	1	0105-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (H) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0206	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-0206	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0207-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0105-	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-82563-872-1	01	1	0105-		●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/4	9-99204-513-0	01	1	0105-		●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-	●	●

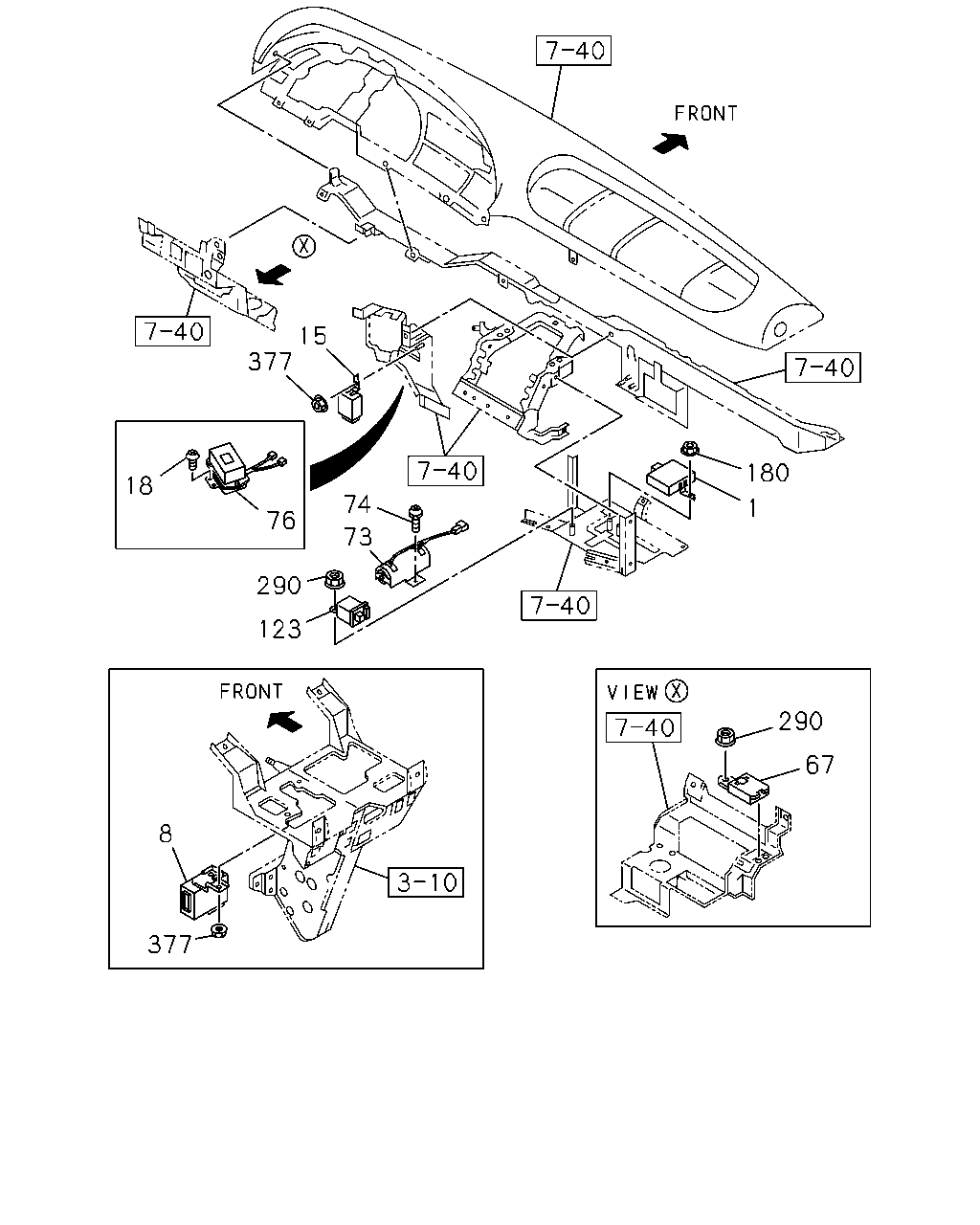

15 377 76 74 18 73 290 123 180 1 290 67 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-1	01	1	0105-	●	●
8	RELAY; WIPER DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)	1-83316-002-4	01	1	0105-	●	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-	●	●
18	SCREW; TIMER INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	03	1	0105-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. W-SERIES ENG<1A2>	1-83460-051-1	01	1	0105-	●	●
67	BUZZER; ENG OVERRUN W-SERIES ENG<1A2>	1-83460-051-1	01	1	0105-	●	●
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	0105-	●	●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0105-	●	●
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	0105-	●	●
123	RELAY; HTR INTAKE HEATER<SL2>	8-94128-857-0	02	1	0105-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> EXC. W-SERIES ENG<1A2> M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
290	NUT W-SERIES ENG<1A2> M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> EXC. W-SERIES ENG<1A2> M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
290	NUT W-SERIES ENG<1A2> M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
290	NUT INTAKE HEATER<SL2> M6 FLANGE	0-91150-106-0	02	1	0105-0602	●	●
290	NUT INTAKE HEATER<SL2> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-	●	●

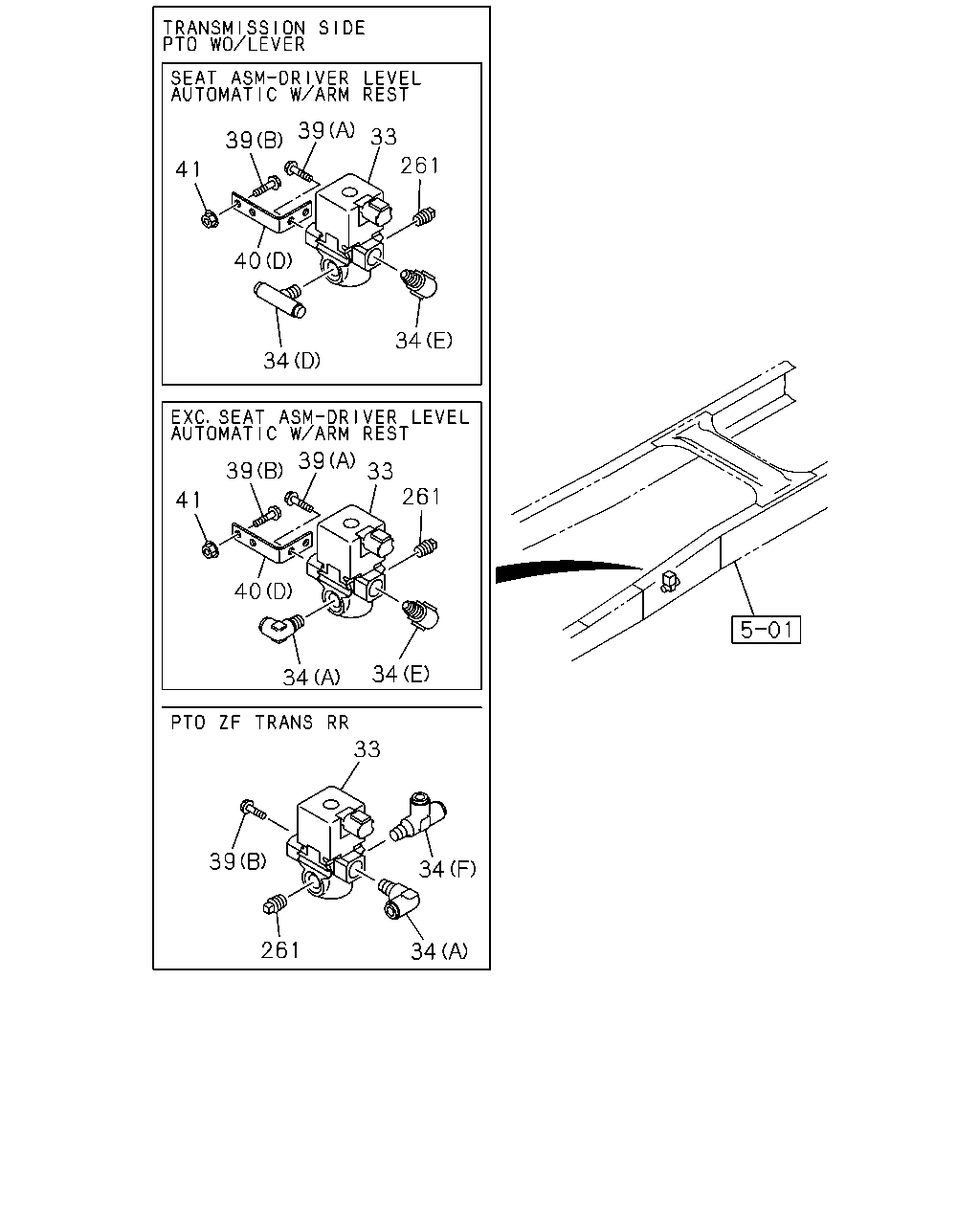

41 39 39 33 261 40 34 34 33 261 39 39 41 40 34 34 33 34 39 261 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
40	BRACKET; MAG VLV CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-53458-380-0	01	1	0105-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0110	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0105-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/4	9-99204-513-0	01	1	0105-		●

117 116 115 86 84 85 65 40 88 275 88 450 272 40 272 88 283 275 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-53458-380-0	01	1	0105-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0110	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0105-	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0105-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (H) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0206	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-0206	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0207-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X14 FLANGE	0-28080-814-0	01	1	0105-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (A) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28690-825-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28660-825-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0506	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0506	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0506	●	●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0507-0602		●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-		●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-	●	●

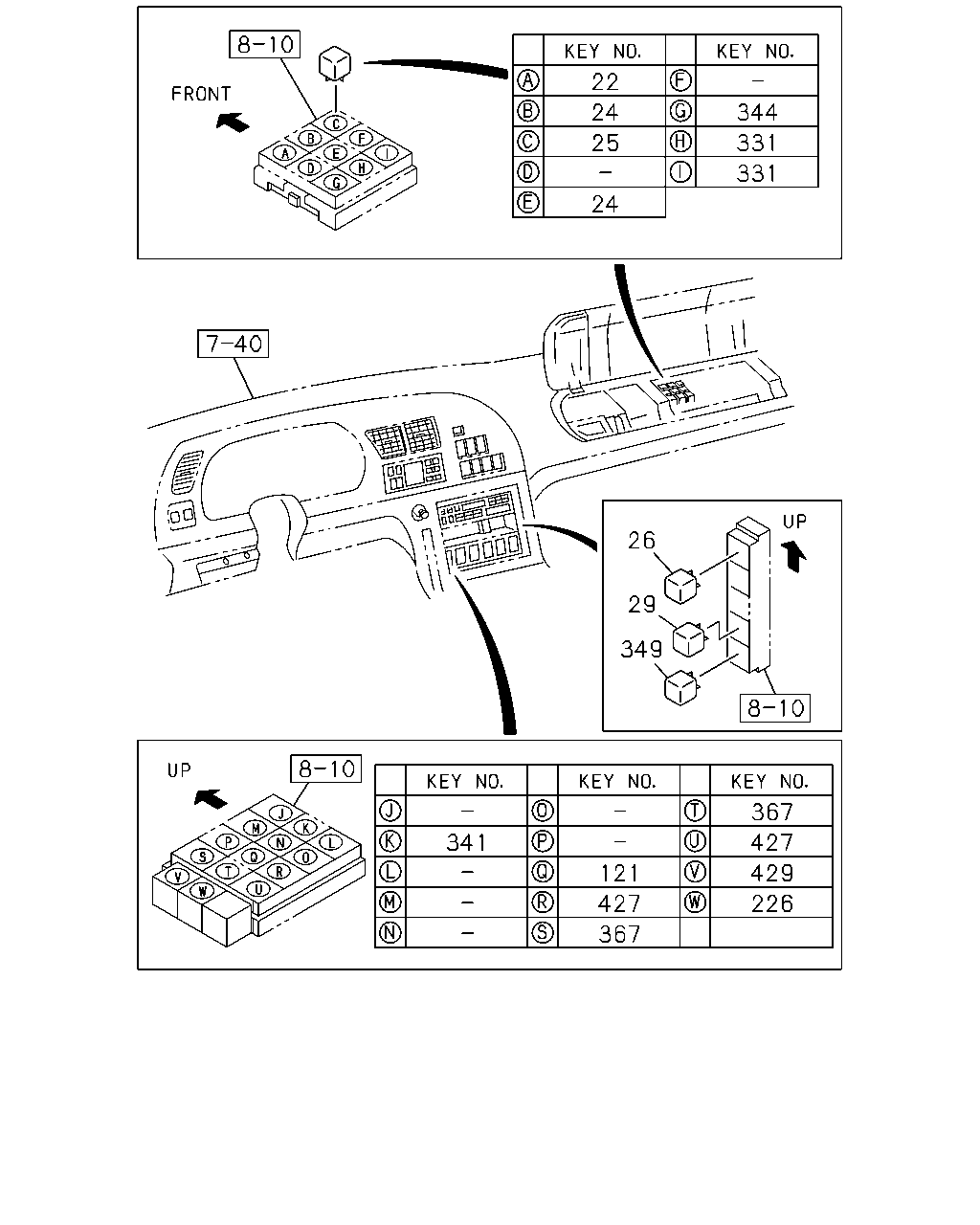

22 24 25 24 344 331 331 26 29 349 341 121 427 367 367 427 429 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111	●	●
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-	●	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN ELECTRICAL HORN(WB7) 24V 12.5A JIDECO	8-97062-815-1	01	1	0109-0111	●	●
29	RELAY; HORN ELECTRICAL HORN(WB7) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
121	RELAY; PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-	●	●
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-	●	●
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-	●	●
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-	●	●
367	RELAY; NEUTRAL 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A MATSUSHITA	8-97173-035-1	02	1	0105-		●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111	●	●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-	●	●

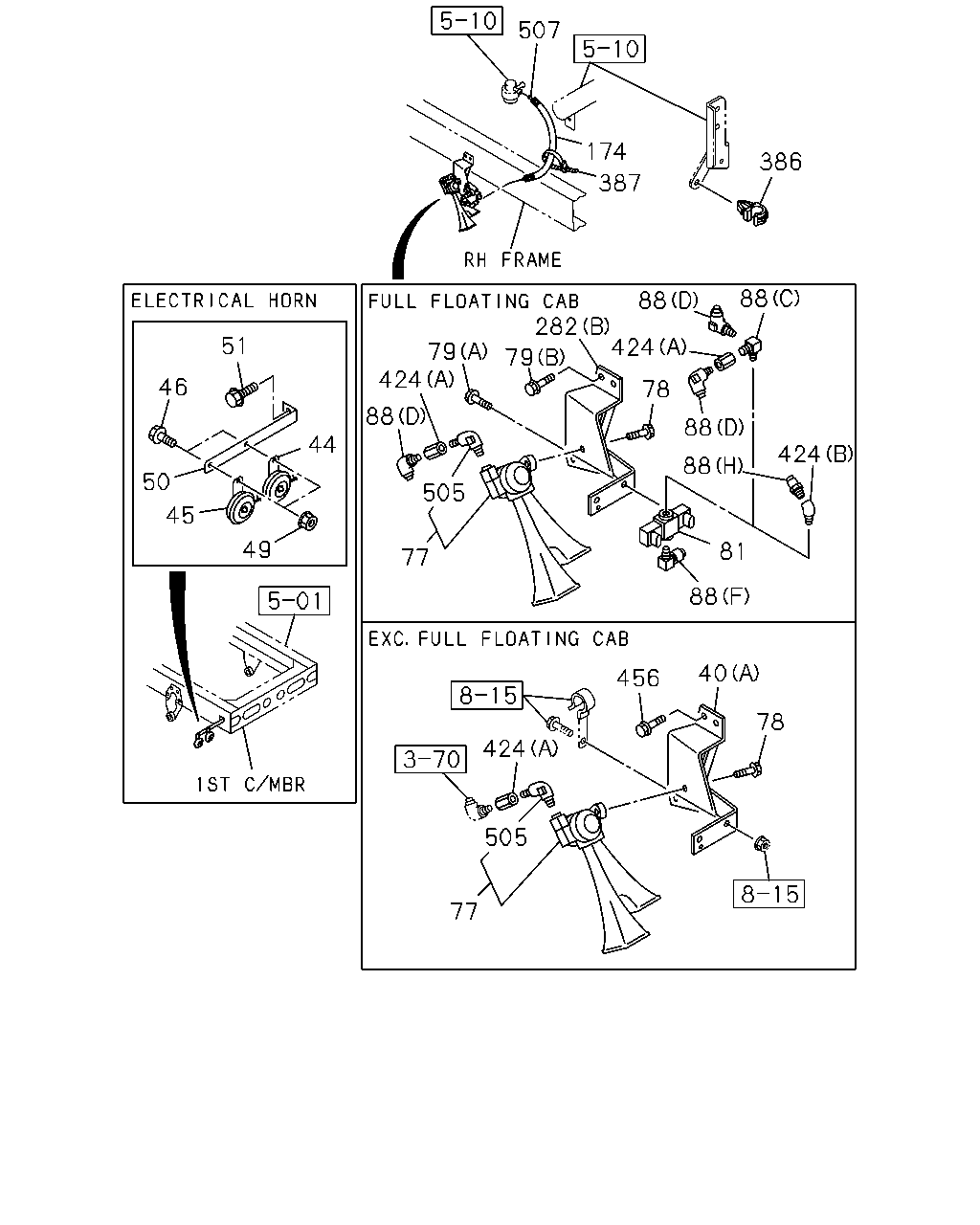

507 174 387 386 51 46 44 49 45 50 88 88 282 79 79 424 424 88 78 505 77 88 88 424 81 88 456 40 78 424 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-53458-380-0	01	1	0105-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0110	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0105-	●	●
44	HORN; HIGH NOTE ELECTRICAL HORN(WB7)	1-83410-061-1	01	1	0109-	●	●
45	HORN; LOW NOTE ELECTRICAL HORN(WB7)	1-83410-062-1	01	1	0109-	●	●
46	BOLT; HORN TO BODY ELECTRICAL HORN(WB7) M8X25 FLANGE	0-28680-825-0	02	1	0109-0512	●	●
46	BOLT; HORN TO BODY ELECTRICAL HORN(WB7) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
49	NUT; HORN TO BODY ELECTRICAL HORN(WB7) M8 FLANGE	0-91150-108-0	02	1	0109-0602	●	●
49	NUT; HORN TO BODY ELECTRICAL HORN(WB7) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
50	BRACKET; HORN ELECTRICAL HORN(WB7)	1-53458-901-0	01	1	0107-	●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512	●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-2	01	1	0105-0108	●	●
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. ELECTRICAL HORN(WB7)	1-83430-039-3	01	1	0109-	●	●
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0105-0108	●	●
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), ELECTRICAL HORN(WB7),CHINA EQUIPMENT(YT2)	1-83430-041-2	01	1	0109-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0108	●	●
78	BOLT; AIR HORN EXC. ELECTRICAL HORN(WB7) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512	●	●
78	BOLT; AIR HORN EXC. ELECTRICAL HORN(WB7) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (H) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0206	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-0206	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0207-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0207-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0108	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0110-	●	●
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=620 SERVICED BY L=800	1-83129-031-1	01	1	0105-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A)	1-82569-277-2	01	1	0105-	●	●
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0207-	●	●
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0105-0206	●	●
424	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (B) R1/4 & RC1/4	1-09664-211-0	02	1	0207-	●	●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-0206	●	●
424	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0207-	●	●
424	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0207-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0110	●	●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0105-0110	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-0108	●	●
505	JOINT; AIR HORN EXC. ELECTRICAL HORN(WB7)	1-83439-006-0	01	1	0109-	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0108	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-0212	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0212	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
