8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#12598) — 10 parça

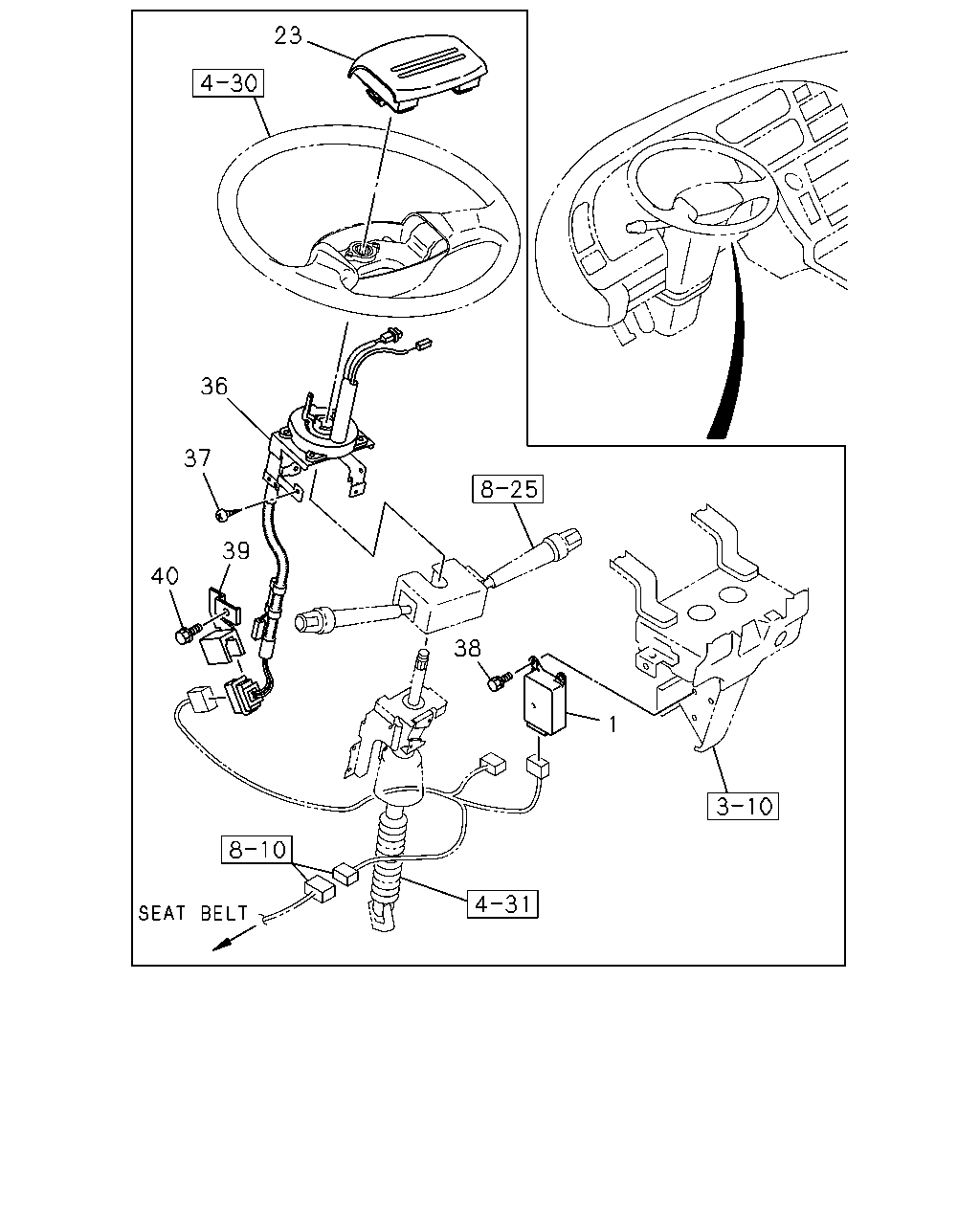

çizim 81329
23 36 37 39 40 38 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-80190-069-0 01 1 0105-0110 ● ●
1 CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-80190-087-0 01 1 0111-0309 ● ●
1 CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-80190-120-0 01 1 0310-0404 ● ●
1 CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-80190-131-1 01 1 0405- ● ●
23 AIR BAG UNIT
AIR BAG(TFQ) 		1-75630-003-6 01 1 0105- ● ●
36 COIL; SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82698-074-3 01 1 0105- ● ●
37 SCREW; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0105- ● ●
38 BOLT; CONT UNIT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6X18 W/PL WASHER 		8-97105-796-1 03 1 0105- ● ●
39 HOLDER; CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82699-955-1 01 1 0105- ● ●
40 BOLT; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0105- ● ●
