8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#12597) — 56 parça

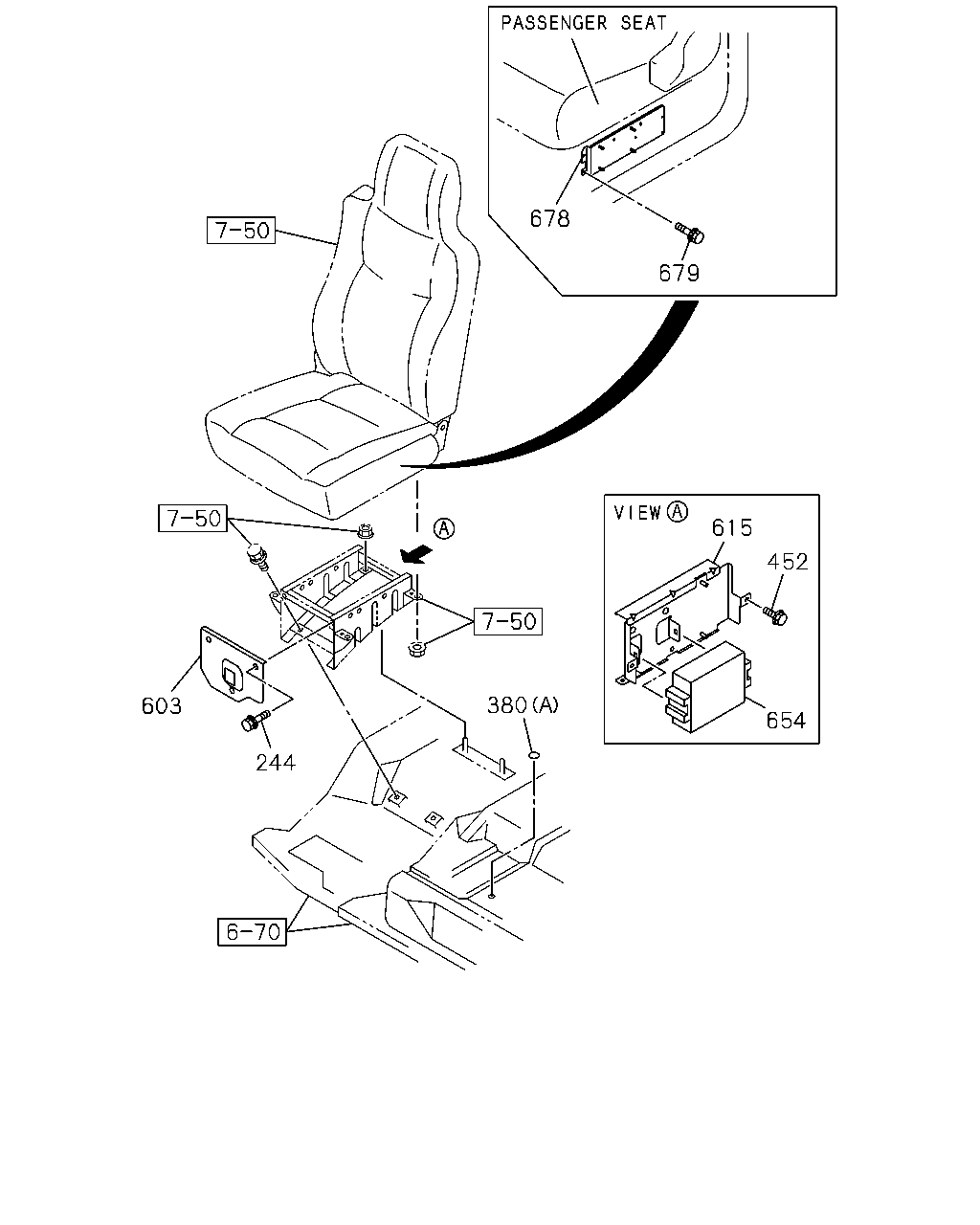

çizim 24246
678 679 615 452 654 380 244 603
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105- ● ●
452 BOLT; BRKT
ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
603 COVER; CONT UNIT,SEAT STAND 1-75557-497-1 01 1 0105- ● ●
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-491-0 01 1 0105-0304 ● ●
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-514-0 01 1 0305- ● ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0112- ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) 		1-80150-044-1 01 1 0105-0111 ● ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0112- ● ●
678 BRACKET; BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) 		1-75557-500-1 01 1 0105-0208 ● ●
678 BRACKET; BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> 		1-75557-500-1 01 1 0209- ● ●
679 BOLT; BRKT,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-0208 ● ●
679 BOLT; BRKT,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0209- ● ●

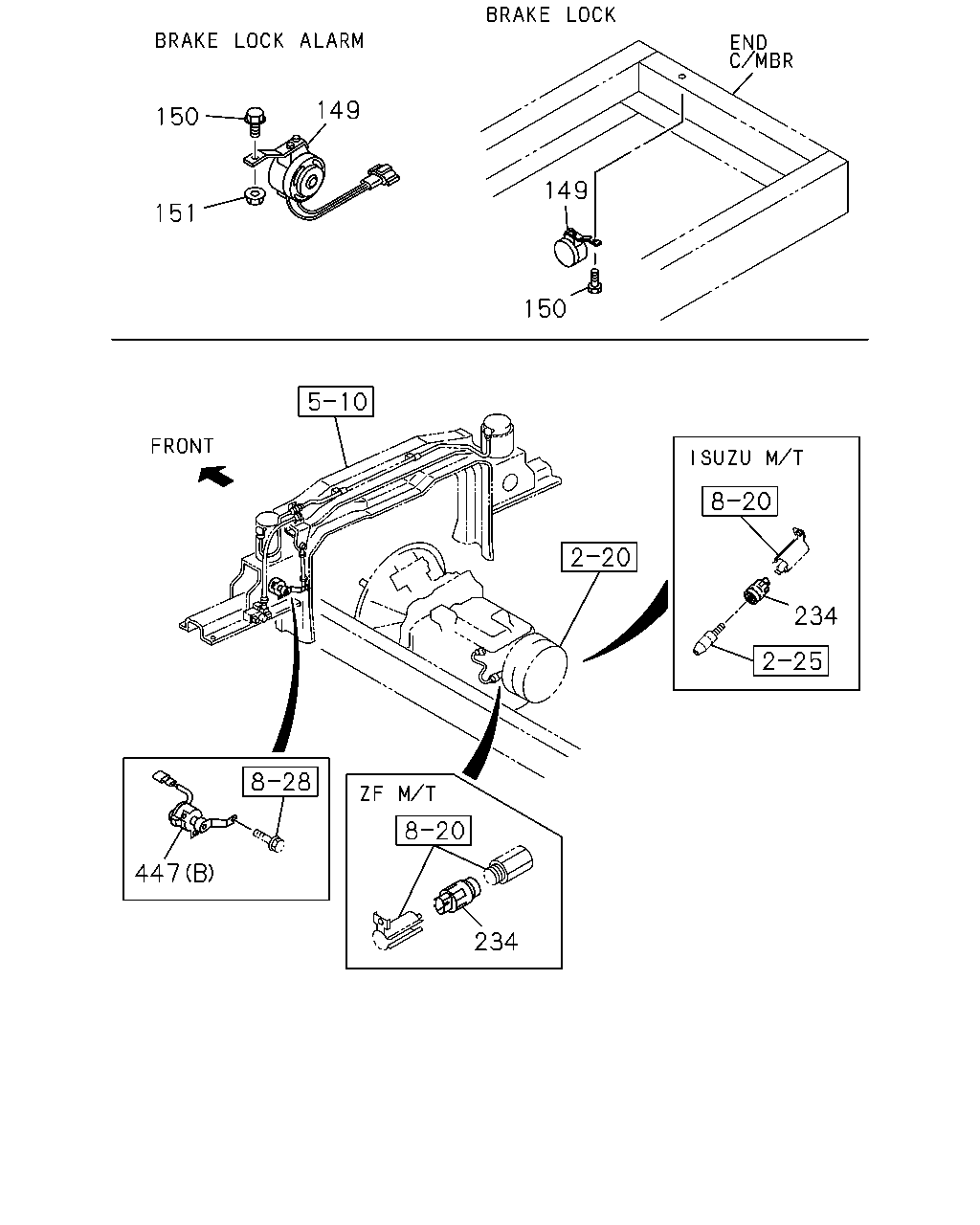

çizim 79570
150 151 149 149 150 234 234 447
BalonParca AdiParca NoAdetTipApplied Date A B
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) METRO 		1-83460-095-1 01 1 0105-0404 ● ●
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) 		1-83460-104-0 01 1 0405- ● ●
150 BOLT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X35 FLANGE 		0-28681-035-0 01 1 0105-0512 ● ●
150 BOLT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ●
151 NUT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE 		0-91150-210-0 01 1 0105-0602 ● ●
151 NUT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0105-0202 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0105- ● ●

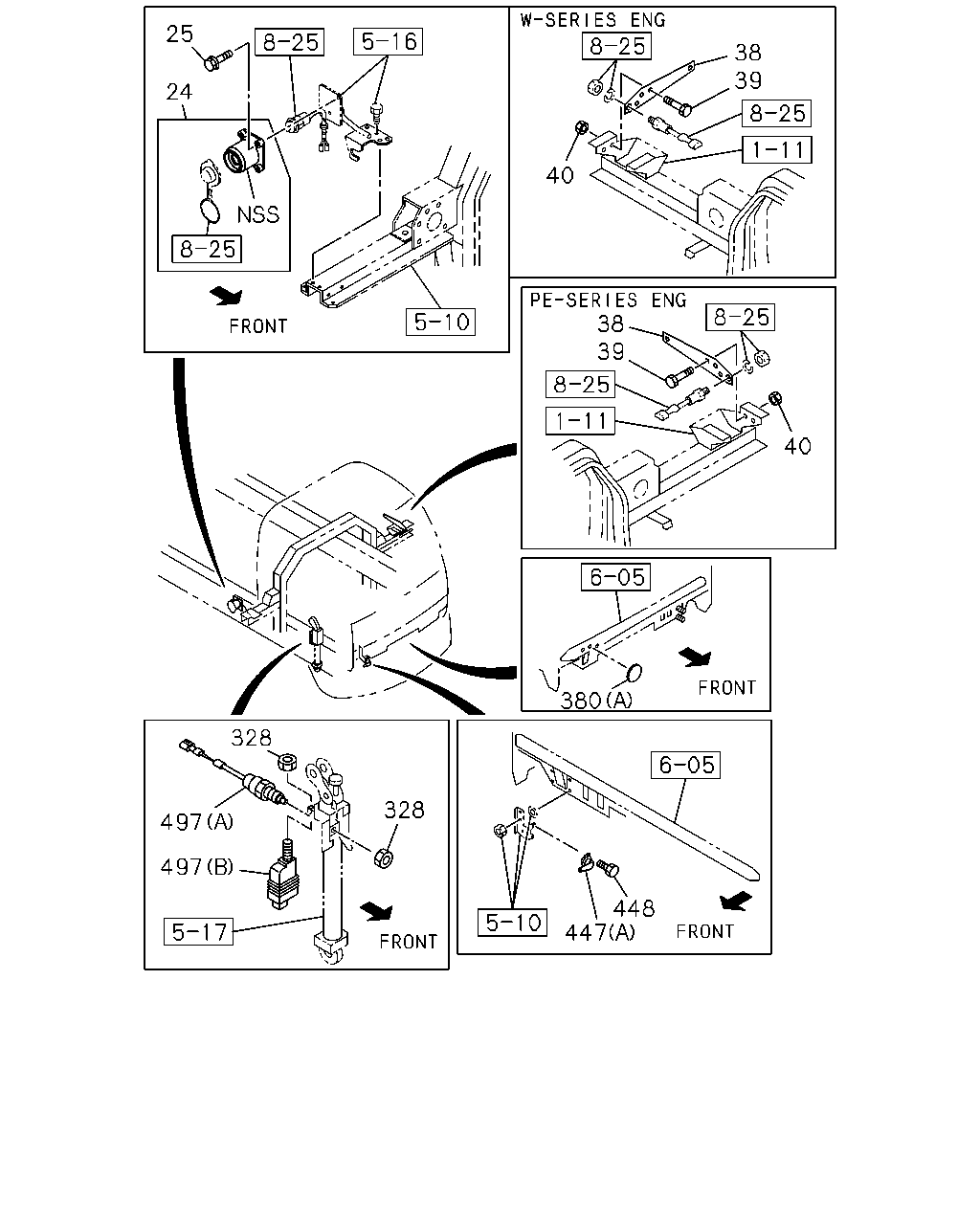

çizim 80560
25 24 38 39 40 38 39 40 380 448 447 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0105- ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0105-0512 ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28050-616-0 02 1 0601- ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0105- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
328 NUT
M16 		9-99111-416-0 02 1 0105-0512 ● ●
328 NUT
M16 		0-91111-516-0 02 1 0601- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0105- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0407 ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0408- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0105- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0105- ● ●

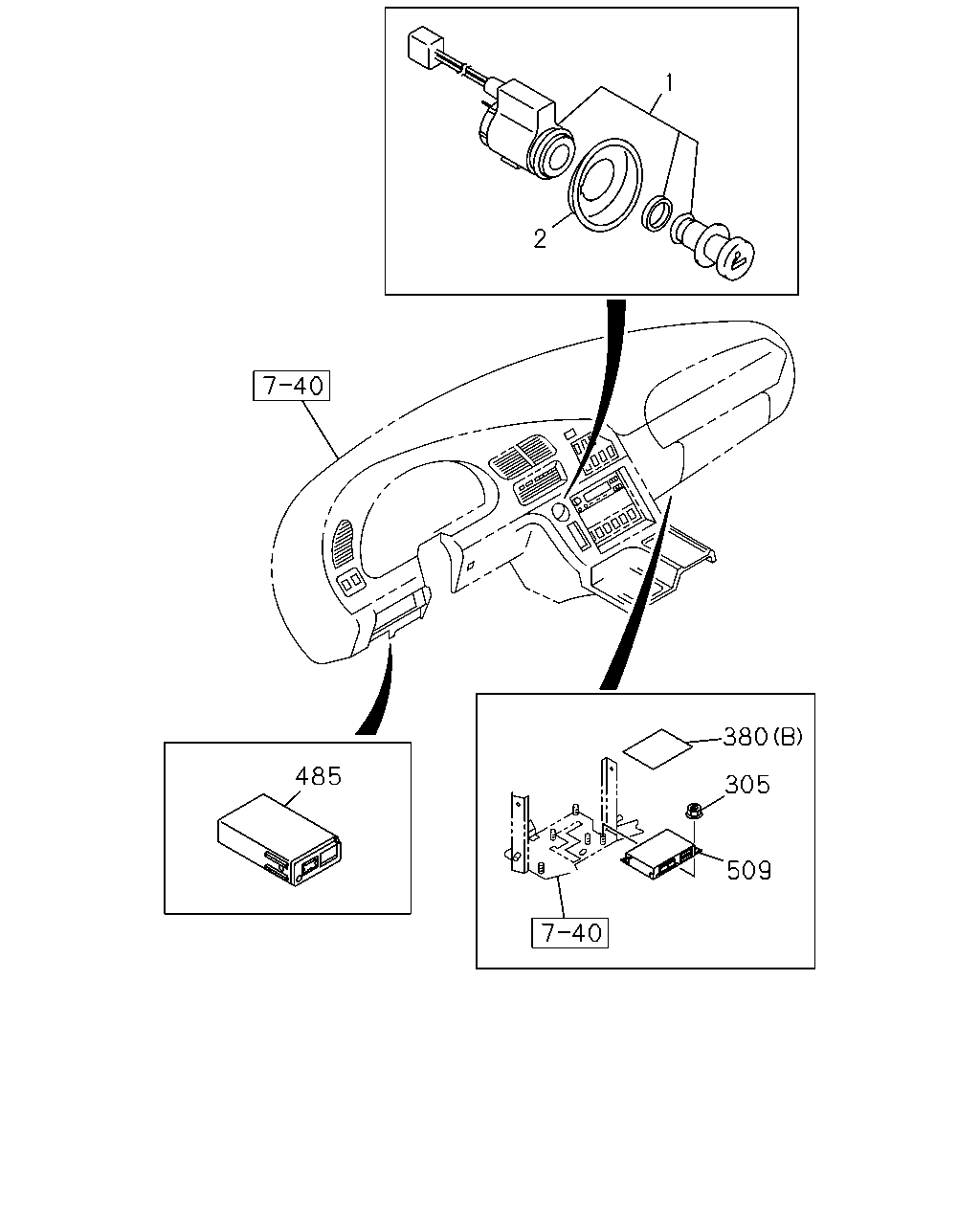

çizim 80869
1 2 485 380 305 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0105-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0105- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0105-0402 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0105- ● ●
