8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#12596) — 57 parça

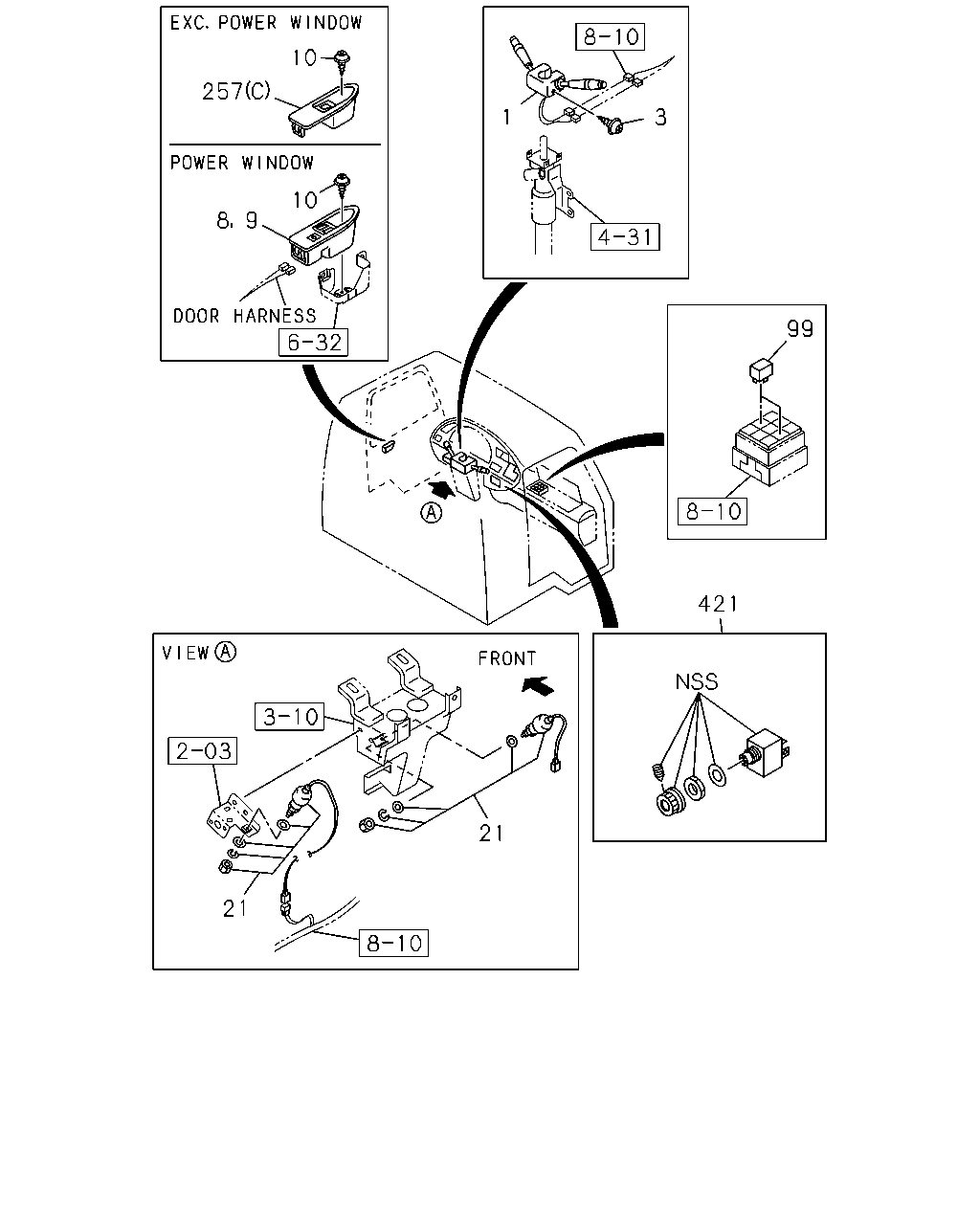

çizim 24247
10 257 10 9 8 1 3 99 421 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-572-0 01 1 0105-0312 ● ●
1 SWITCH; COMB
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-742-1 01 1 0401- ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-655-0 01 1 0105-0309 ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-705-0 01 1 0310- ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-654-0 01 1 0105-0309 ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-704-0 01 1 0310- ● ●
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-647-0 01 1 0105-0312 ● ●
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-734-0 01 1 0401- ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82360-573-0 01 1 0105-0312 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82360-743-1 01 1 0401- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-648-0 01 1 0105-0312 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-735-0 01 1 0401- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0105- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-3 01 1 0105- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 0105- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0105- ● ●
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-3 01 1 0105- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0105- ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111 ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105- ● ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 0105- ● ●

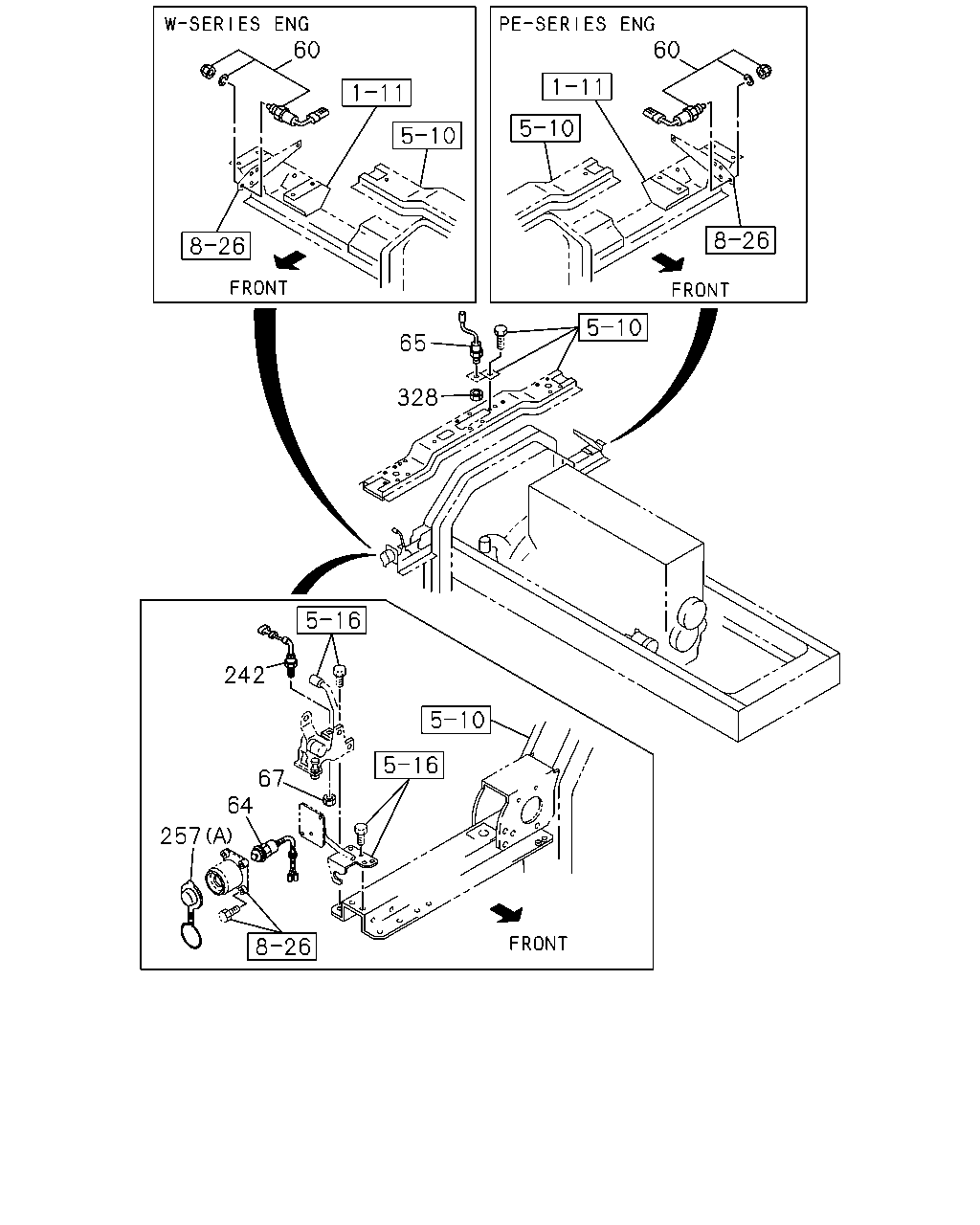

çizim 79715
60 60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0105- ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 0105- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0105- ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 0105- ● ●
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 01 1 0105- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105- ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0105-0512 ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0601- ● ●

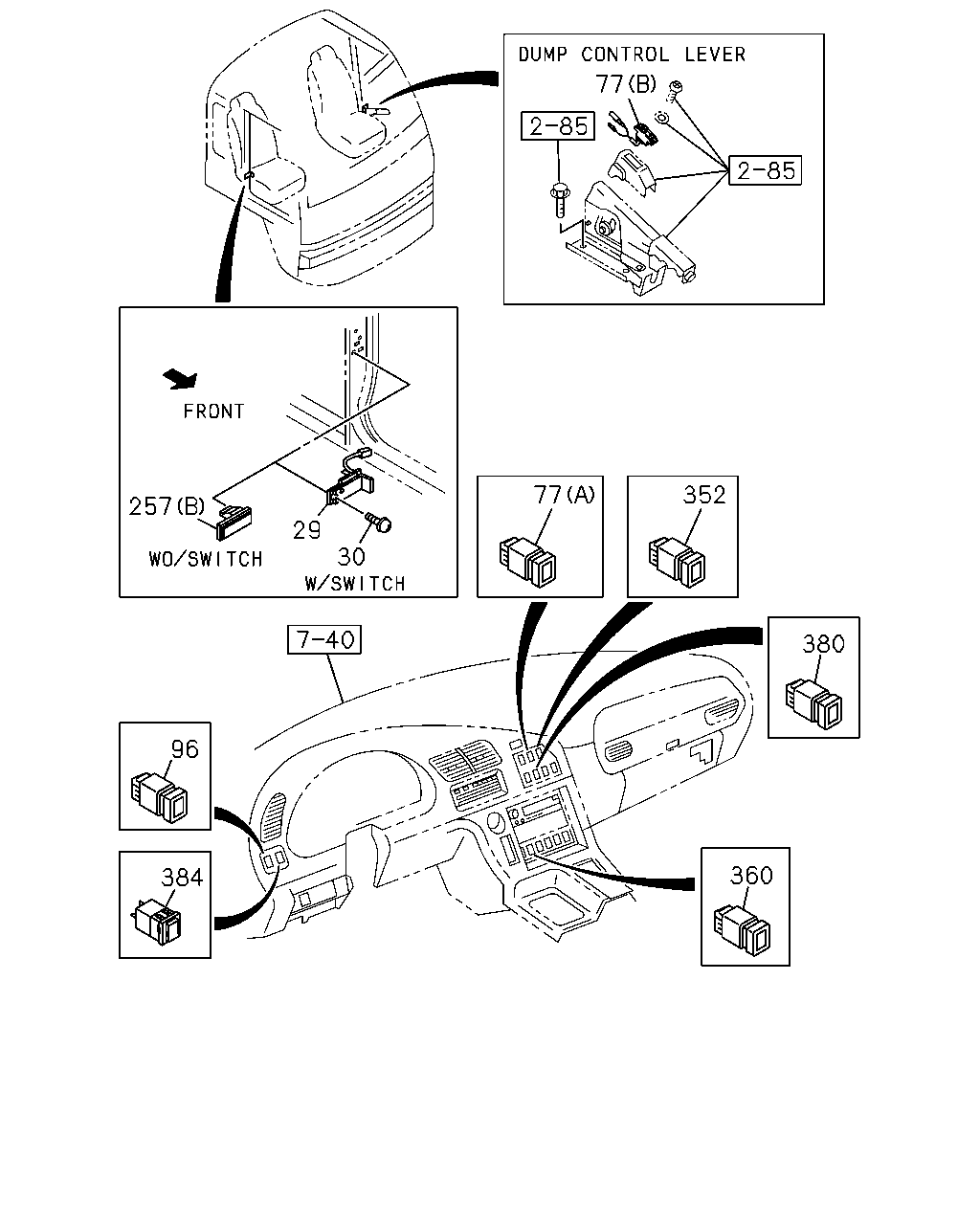

çizim 80870
77 257 29 30 77 352 380 96 384 360
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0105- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0105- ● ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0105- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0105-0303 ● ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0105-0303 ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0304- ● ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0304- ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 0304- ●
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-676-0 01 1 0105- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105- ● ●
352 SWITCH ASM; BRK LK
POWER BRAKE LOCK SYSTEM(J50) 		1-82340-425-0 01 1 0105- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0105- ● ●
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82340-405-0 01 1 0105- ● ●
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-82350-213-1 01 1 0105- ● ●
