8-20 — METER CABLE (#12594) — 9 parça

çizim 23782

150 15 91

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	15	CLIP; BAND,HARNESS PE-SERIES ENG<1A0> ID=6 H=25 L=21	1-09700-432-0	01	1	0105-	●	●
	91	CLIP; BAND PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) L=250	1-09707-126-0	01	1	0105-0105	●	●
	91	CLIP; BAND GOVERNOR CONTROL<W69> PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) L=250	1-09707-126-0	01	1	0105-0105		●
	91	CLIP; BAND PE-SERIES ENG<1A0> L=250	1-09707-126-0	01	1	0105-	●	●
	91	CLIP; BAND PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) L=140	5-09707-031-1	01	1	0105-	●	●
	132	SENSOR; SPD,SPEEDOMETER PE-SERIES ENG<1A0>	1-83127-115-0	01	1	0105-0109	●	●

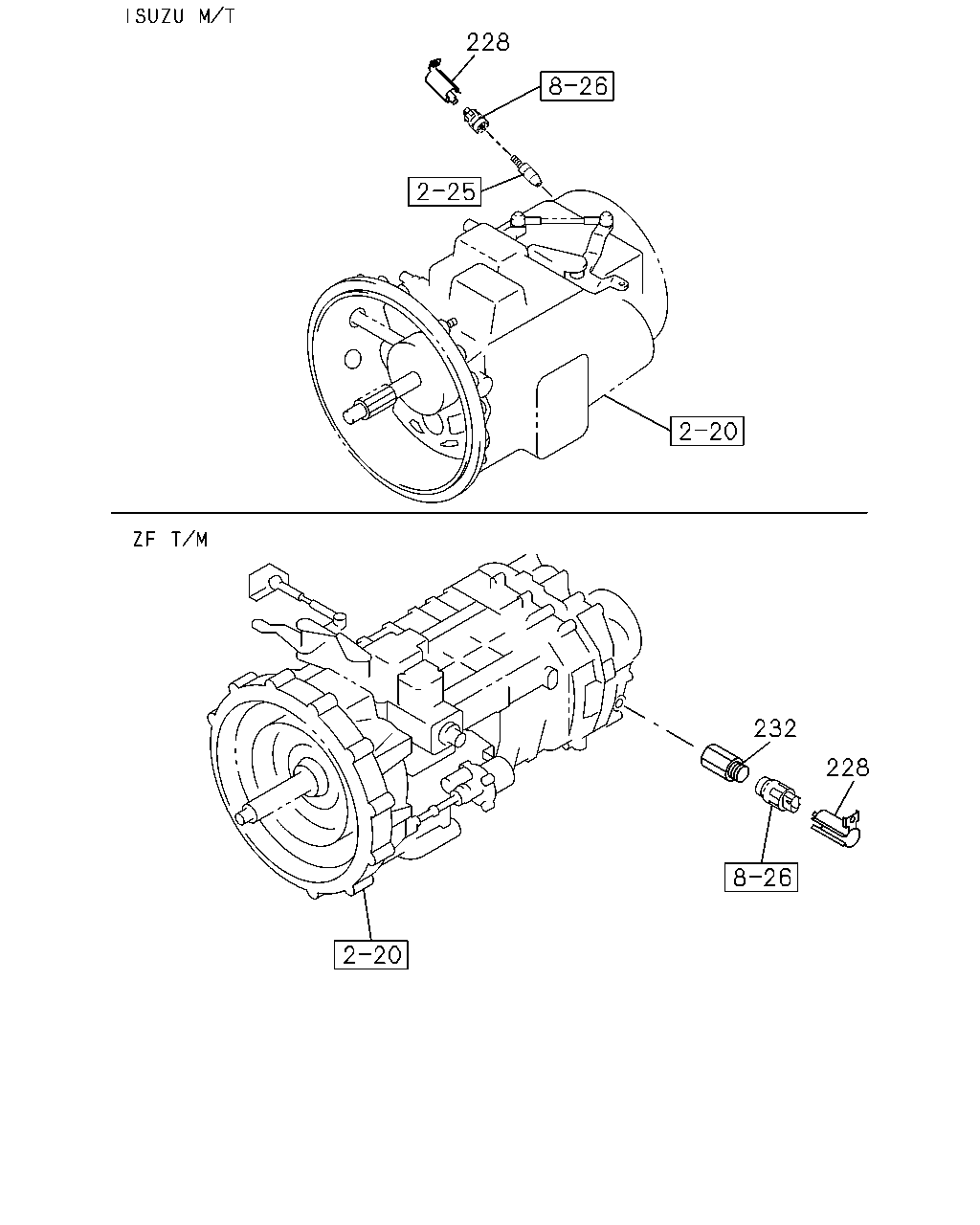

çizim 81322

228 228 232

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	132	SENSOR; SPD,SPEEDOMETER PE-SERIES ENG<1A0>	1-83127-115-0	01	1	0105-0109	●	●
	228	PROTECTOR; SENSOR	8-97168-308-0	01	1	0105-	●	●
	232	ADAPTER; SPEED SENSOR ZF M/T<X9E>	1-80249-006-0	01	1	0105-	●	●
