◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#12593) — 875 parça

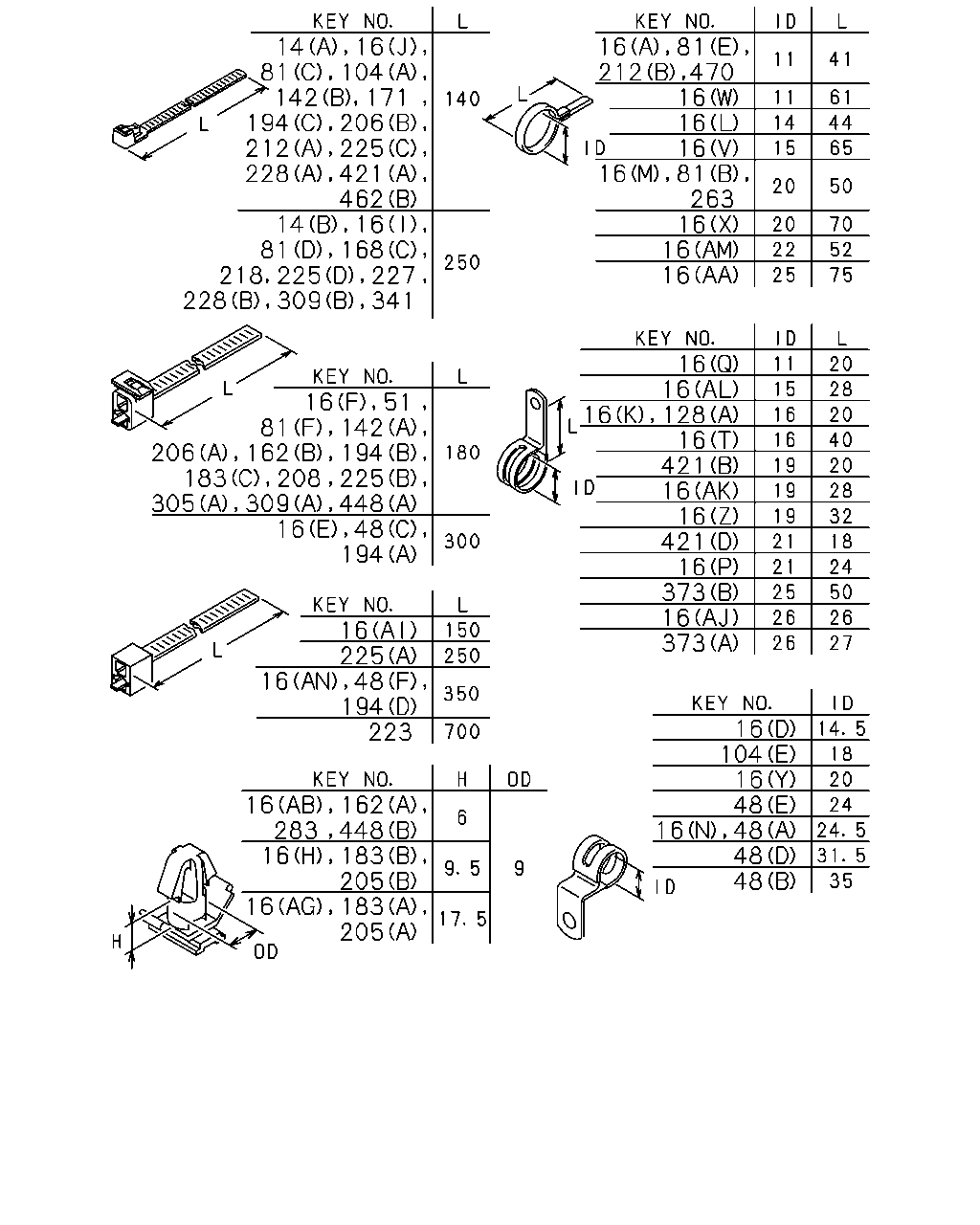

çizim 22046
14 16 81 104 142 171 206 194 225 212 421 228 462 341 309 228 227 225 218 168 81 14 16 448 309 305 225 208 183 194 162 206 142 81 51 16 194 48 16 223 194 16 48 225 16 205 16 183 205 183 16 448 283 16 162 16 81 212 470 16 16 16 263 81 16 16 16 16 16 16 128 16 16 421 16 16 421 16 373 16 373 16 104 16 48 48 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
PE-SERIES ENG<1A0> (B) L=250 		5-09707-030-1 02 1 0105- ● ●
14 CLIP; BAND,HARNESS
PE-SERIES ENG<1A0> (A) L=140 		5-09707-031-1 04 1 0105- ● ●
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) (A) L=140 		5-09707-031-1 01 1 0105-0211 ● ●
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) (A) L=140 		5-09707-031-1 01 1 0212- ● ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> (A) L=140 		5-09707-031-1 01 1 0212- ●
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-0305 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0306- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (R) ID=11 H=30 L=17 		1-09700-113-0 01 1 0212- ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) ID=11 L=16 		9-09525-025-0 01 1 0212- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. CHINA GB VAR1<JAC>,PARKING BRAKE VALVE LEVER TYPE<W48> (W) ID=11 L=61 		1-09700-484-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>, PARKINGBRAKE VALVE LEVER TYPE<W48> (W) ID=11 L=61 		1-09700-484-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CHINA GBVAR1<JAC>,PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=11 L=41 		1-09700-403-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CHINA GBVAR1<JAC>,CHINA GB VAR2<JAY>,PARKING BRAKE VALVELEVER TYPE<W48> (A) ID=11 L=41 		1-09700-403-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 07 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (AM) ID=22 L=52 		9-09917-431-0 02 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 08 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 08 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 08 1 0207-0211 ● ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 08 1 0207-0211 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 08 1 0212- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 08 1 0212- ●
16 CLIP; HARNESS
ZF M/T<X9E> PE-SERIES ENG<1A0> (K) ID=16 L=20 		9-09525-535-0 02 1 0108- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0108-0205 ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AI) L=150 		1-09707-145-1 01 1 0105- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 02 1 0105- ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 02 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 02 1 0112- ●
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T> (AB) OD=9 H=6 		1-09709-178-0 02 1 0105-0106 ●
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (AB) OD=9 H=6 		1-09709-178-0 02 1 0105-0106 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-0203 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (AB) OD=9 H=6 		1-09709-178-0 03 1 0204- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0204- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 17 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 06 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 06 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 14 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 14 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 17 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 11 1 0112- ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 02 1 0105-0111 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 11 1 0112- ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (AA) ID=25 L=75 		1-09701-275-0 02 1 0105-0111 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (AA) ID=25 L=75 		1-09701-275-0 02 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=11 L=61 		1-09700-484-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 02 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 02 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 02 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 02 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 03 1 0105- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 13 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 12 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 15 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (X) ID=20 L=70 		1-09700-485-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 04 1 0105-0111 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (X) ID=20 L=70 		1-09700-485-0 04 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 04 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 13 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 06 1 0112- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0112- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 03 1 0105- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0105- ● ●
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105- ● ●
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107- ● ●
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 0105-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0105-0504 ● ●
16 CLIP; HARNESS
(AN) L=350 		1-09707-183-0 03 1 0505- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0105-0505 ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0105-0209 ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 02 1 0210- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0210- ● ●
16 CLIP; HARNESS
(AE) ID=7-10 		8-94472-578-0 01 1 0105- ● ●
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0105- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0105-0107 ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 03 1 0105-0107 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0108-0109 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0108-0109 ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 03 1 0108-0109 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 02 1 0112- ● ●
16 CLIP; HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (AJ) ID=26 L=26 		1-09701-236-0 01 1 0107- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0105-0211 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0212-0401 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0212-0401 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0402- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0402- ●
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> (AB) OD=9 H=6 		1-09709-178-0 01 1 0105- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0105- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (P) ID=21 L=24 		1-09701-201-0 02 1 0105- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (AB) OD=9 H=6 		1-09709-178-0 05 1 0105-0106 ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0107- ● ●
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (AB) OD=9 H=6 		1-09709-178-0 02 1 0107- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0105-0203 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0105-0203 ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0204-0209 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0204-0209 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0204-0209 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0210-0303 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0210-0303 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0304- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (I) L=250 		5-09707-030-1 01 1 0304- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (Q) ID=11 L=20 		9-09525-035-0 01 1 0105- ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (F) L=180 		1-09707-162-1 01 1 0105-0505 ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (F) L=180 		1-09707-162-1 02 1 0506- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0506- ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (J) L=140 		5-09707-031-1 01 1 0105-0205 ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-0205 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0105-0205 ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (J) L=140 		5-09707-031-1 01 1 0206- ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0206- ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0206- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0206- ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) OD=9 H=9.5 		1-09709-179-0 01 1 0105- ● ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AC) L=20 		1-09987-246-2 04 1 0105- ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105 ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (AK) ID=19 L=28 		9-09525-856-0 01 1 0106- ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0107 ● ●
16 CLIP; HARNESS
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0108-0205 ● ●

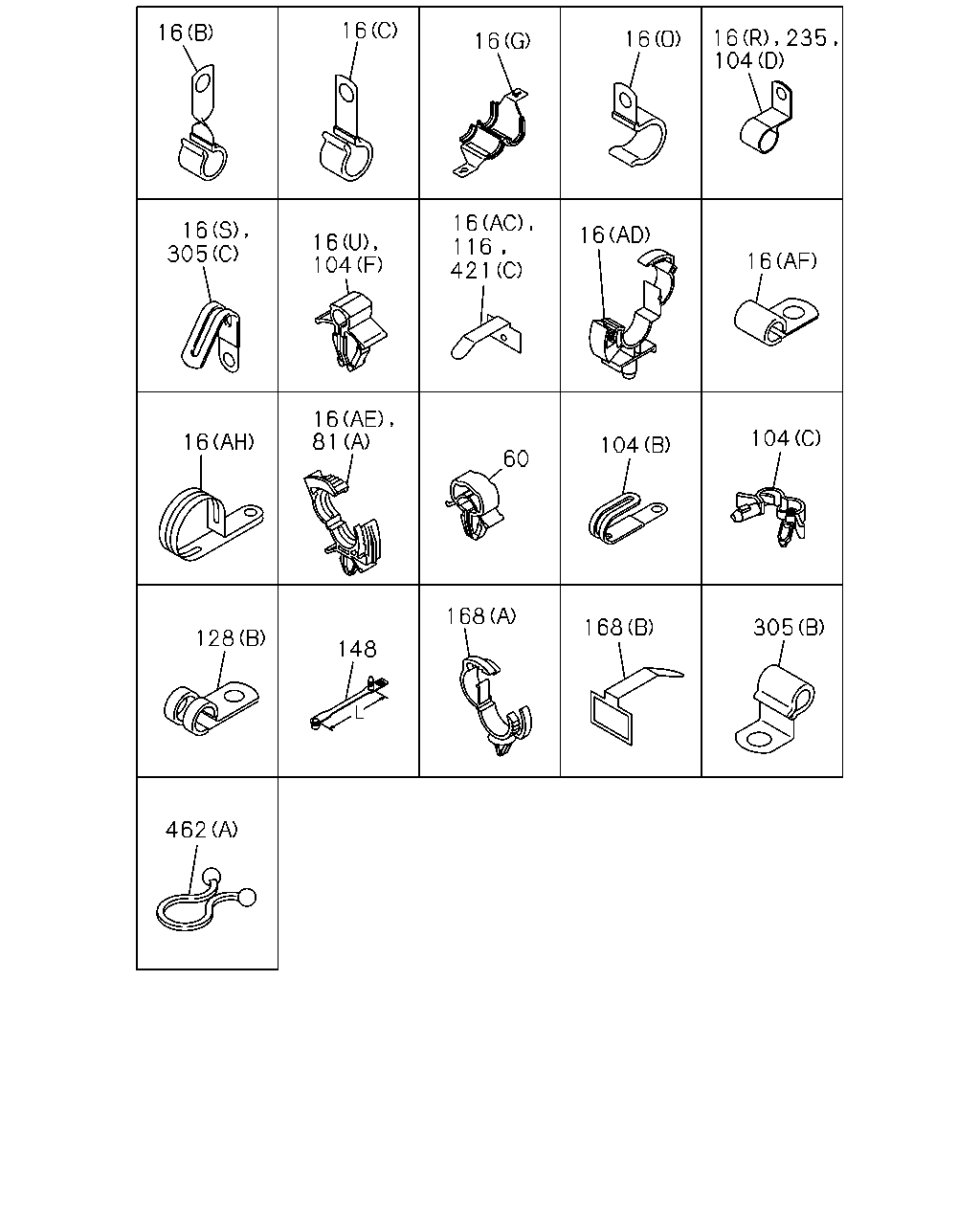

16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0206- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (AB) OD=9 H=6 		1-09709-178-0 06 1 0105-0106 ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (AL) ID=15 L=28 		1-09701-216-0 01 1 0107- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ●
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0107 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0107 ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (M) ID=20 L=50 		9-09917-430-0 01 1 0108-0111 ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) PE-SERIES ENG<1A0> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (O) 		8-94403-348-0 01 1 0105- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-0111 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0112- ●
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0105-0203 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> W-SERIES ENG<1A2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0204- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0105- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0105-0105 ● ●
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0105-0105 ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107 ● ●
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (K) ID=16 L=20 		9-09525-535-0 01 1 0108- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> W-SERIES ENG<1A2> (K) ID=16 L=20 		9-09525-535-0 01 1 0108- ● ●
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (S) L=36 		8-94224-891-1 01 1 0105-0107 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) L=36 		8-94224-891-1 01 1 0108- ● ●
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0105-0205 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (T) ID=16 L=40 		9-09525-576-0 01 1 0206- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AF) ID=11 L=20 		9-09525-032-0 01 1 0105- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (AH) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (AH) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403 ● ●
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (AH) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404- ● ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (AH) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (M) ID=20 L=50 		9-09917-430-0 02 1 0105-0109 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (M) ID=20 L=50 		9-09917-430-0 03 1 0112- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0112- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0112- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 03 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 15 1 0105- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 06 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 12 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 12 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 15 1 0105- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (X) ID=20 L=70 		1-09700-485-0 03 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0207- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (E) L=300 		1-09707-001-1 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (E) L=300 		1-09707-001-1 01 1 0112-0504 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (AN) L=350 		1-09707-183-0 01 1 0505- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (E) L=300 		1-09707-001-1 02 1 0105-0504 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (AN) L=350 		1-09707-183-0 02 1 0505- ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 04 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 12 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 12 1 0112- ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 06 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 04 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 04 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 17 1 0105- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 08 1 0105-0109 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 10 1 0110-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 12 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 12 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 08 1 0105-0109 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 10 1 0110-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 04 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 17 1 0105- ●
48 CLIP; FRAME HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105- ● ●
48 CLIP; FRAME HARNESS
PE-SERIES ENG<1A0> (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105- ● ●
48 CLIP; FRAME HARNESS
PE-SERIES ENG<1A0> (E) ID=24 H=40 L=24 		1-09701-243-0 06 1 0105-0106 ● ●
48 CLIP; FRAME HARNESS
PE-SERIES ENG<1A0> (E) ID=24 H=40 L=24 		1-09701-243-1 03 1 0107- ● ●
48 CLIP; FRAME HARNESS
PE-SERIES ENG<1A0> (E) ID=24 H=40 L=24 		1-09701-243-1 03 1 0107- ● ●
48 CLIP; FRAME HARNESS
PE-SERIES ENG<1A0> (C) L=300 		1-09707-001-1 10 1 0105-0504 ● ●
48 CLIP; FRAME HARNESS
PE-SERIES ENG<1A0> (F) L=350 		1-09707-183-0 10 1 0505- ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105- ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105- ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105- ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (D) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105- ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (C) L=300 		1-09707-001-1 02 1 0105-0504 ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (F) L=350 		1-09707-183-0 02 1 0505- ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (C) L=300 		1-09707-001-1 06 1 0105-0504 ● ●
48 CLIP; FRAME HARNESS
W-SERIES ENG<1A2> (F) L=350 		1-09707-183-0 06 1 0505- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105- ● ●
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=20 L=50 		9-09917-430-0 04 1 0105- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (E) ID=11 L=41 		1-09700-403-0 05 1 0105- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (E) ID=11 L=41 		1-09700-403-0 04 1 0105- ● ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 0105- ● ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 0105- ● ●
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) L=180 		1-09707-162-1 02 1 0105- ● ●
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (F) L=180 		1-09707-162-1 02 1 0105- ● ●
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105- ● ●
142 CLIP; HARNESS,ENG
W-SERIES ENG<1A2> (B) L=140 		5-09707-031-1 01 1 0111- ● ●
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0105- ● ●
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) L=180 		1-09707-162-1 02 1 0105- ● ●
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (B) L=180 		1-09707-162-1 01 1 0105- ● ●
162 CLIP; SW HARNESS
EXC. CAB UP +110MM<TGG> (A) OD=9 H=6 		1-09709-178-0 01 1 0105- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109 ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105- ● ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105- ● ●
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) L=180 		1-09707-162-1 01 1 0105- ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) OD=9 H=17.5 		1-09709-181-0 01 1 0105- ●
183 CLIP; CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) OD=9 H=9.5 		1-09709-179-0 01 1 0105- ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505- ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0105-0106 ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0112 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0112 ● ●
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (B) L=180 		1-09707-162-1 01 1 0201-0305 ● ●
194 CLIP; BAND
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) (B) L=180 		1-09707-162-1 01 1 0201-0305 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-0305 ● ●
194 CLIP; BAND
6WA1 TC-C(55L) EXC. RLD GOVERNOR(SD7),EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0306- ● ●
194 CLIP; BAND
PE-SERIES ENG<1A0> (B) L=180 		1-09707-162-1 01 1 0306- ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306- ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0105-0112 ● ●
194 CLIP; BAND
ELECTRONIC GOV RED4(Q4F) (C) L=140 		5-09707-031-1 01 1 0201-0305 ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0201-0305 ● ●
194 CLIP; BAND
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 01 1 0306- ● ●
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140 		5-09707-031-1 01 1 0306- ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306- ● ●
194 CLIP; BAND
INTAKE HEATER<SL2> PE-SERIES ENG<1A0> (C) L=140 		5-09707-031-1 02 1 0105- ● ●
194 CLIP; BAND
PE-SERIES ENG<1A0> (A) L=300 		1-09707-001-1 03 1 0105-0504 ● ●
194 CLIP; BAND
PE-SERIES ENG<1A0> (D) L=350 		1-09707-183-0 03 1 0505- ● ●
205 CLIP; BACK LAMP HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) OD=9 H=17.5 		1-09709-181-0 01 1 0105- ● ●
205 CLIP; BACK LAMP HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=9 H=9.5 		1-09709-179-0 01 1 0105- ● ●
206 CLIP; FUEL TANK HARNESS
W-SERIES ENG<1A2> (A) L=180 		1-09707-162-1 01 1 0105- ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 0105- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112- ● ●
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0112- ● ●
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7) EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0208- ● ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> L=700 		1-09707-190-0 01 1 0105- ● ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=140 		5-09707-031-1 02 1 0109-0109 ● ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=250 		5-09707-030-1 02 1 0110- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105- ● ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 01 1 0105- ● ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250 		1-09707-126-0 01 1 0105- ● ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=180 		1-09707-162-1 01 1 0105- ● ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=180 		1-09707-162-1 01 1 0105- ● ●
225 CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (B) L=180 		1-09707-162-1 01 1 0105- ● ●
227 CLIP; FOG LAMP HARNESS
FOG LAMP REAR<NHD> L=250 		5-09707-030-1 01 1 0210- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) L=140 		5-09707-031-1 06 1 0105- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) L=250 		5-09707-030-1 02 1 0105- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-0305 ● ●
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105- ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0105- ● ●
305 CLIP; ENG HARNESS
PE-SERIES ENG<1A0> (C) L=36 		8-94224-891-1 02 1 0105- ● ●
305 CLIP; ENG HARNESS
10PE1S(60L) EXC. GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-0109 ● ●
305 CLIP; ENG HARNESS
10PE1N(61L) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-0109 ● ●
305 CLIP; ENG HARNESS
10PE1H(68L) (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-0109 ● ●
305 CLIP; ENG HARNESS
10PE1S(60L) EXC. TAMPER PROOF INJ PUMP SET<W44> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0110- ● ●
305 CLIP; ENG HARNESS
10PE1N(61L),10PE1H(68L) (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0110- ● ●
305 CLIP; ENG HARNESS
10PE1S(60L) GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 0105- ●
305 CLIP; ENG HARNESS
10PE1N(61L) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 0105- ●
309 CLIP; HARNESS,HAND BRAKE CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) L=250 		5-09707-030-1 01 1 0202- ●
309 CLIP; HARNESS,HAND BRAKE CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=180 		1-09707-162-1 01 1 0105- ● ●
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105- ● ●
373 CLIP; BAND,GEN HARNESS
PE-SERIES ENG<1A0> (A) ID=26 L=27 		1-09701-006-0 02 1 0105- ● ●
373 CLIP; BAND,GEN HARNESS
PE-SERIES ENG<1A0> (B) ID=25 L=50 		1-09701-019-0 01 1 0105- ● ●
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0105-0207 ● ●
421 CLIP; FLOOR HARNESS
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (C) L=20 		1-09987-246-2 05 1 0105- ● ●
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) (C) L=20 		1-09987-246-2 05 1 0105- ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0105- ● ●
421 CLIP; FLOOR HARNESS
W-SERIES ENG<1A2> (B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105 ● ●
421 CLIP; FLOOR HARNESS
W-SERIES ENG<1A2> (D) ID=21 L=28 		1-09700-673-1 02 1 0106- ● ●
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105- ● ●
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106 ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105- ● ●
çizim 23306
423 219 294 515 340 294 219 515 64 133 255 119 516 133 358 38 38 150 304 242 38 239 38 88 150 242 38 242 313 313 38 38 38 38 242 313 38 38 38 242 139 313 242 524
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0403 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0403 ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0205 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0206-0512 ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0206-0512 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28680-830-0 07 1 0110-0512 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (G) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512 ● ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (G) M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28680-830-0 07 1 0107-0107 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106 ● ●
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0105- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105- ● ●
38 BOLT; CLIP,HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (G) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0112 ● ●
38 BOLT; CLIP,HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (L) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512 ● ●
38 BOLT; CLIP,HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (L) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) M8X20 FLANGE 		0-28080-820-0 06 1 0105-0512 ● ●
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) M8X20 FLANGE 		0-28050-820-0 06 1 0601- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (H) M5X8 		0-20800-508-0 01 1 0105- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (I) M6X16 FLANGE 		0-28680-616-0 02 1 0105-0512 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (I) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0201-0205 ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 04 1 0206-0512 ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28680-830-0 10 1 0105-0106 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28680-830-0 03 1 0107-0107 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28680-830-0 10 1 0108-0109 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28680-830-0 03 1 0110-0512 ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (K) M8X30 FLANGE 		0-28650-830-0 07 1 0601- ● ●
38 BOLT; CLIP,HARNESS
PE-SERIES ENG<1A0> (J) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105- ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (E) M6X8 		0-20800-608-0 01 1 0105- ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (F) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512 ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (F) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (K) M8X30 FLANGE 		0-28680-830-0 09 1 0105-0512 ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (K) M8X30 FLANGE 		0-28650-830-0 09 1 0601- ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112 ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112 ● ●
38 BOLT; CLIP,HARNESS
W-SERIES ENG<1A2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0205 ● ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0205 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0205 ● ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0512 ● ●
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (K) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0108 ● ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (K) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0403 ● ●
64 SCREW; CLIP
6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105- ● ●
64 SCREW; CLIP
6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105- ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512 ●
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
150 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X12 W/LK WASHER 		0-50040-812-0 02 1 0212-0401 ●
150 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE REGULATION ECE<TDV> EXC. CHINA GB VAR2<JAY> (B) M8X12 W/LK WASHER 		0-50040-812-0 02 1 0402-0512 ●
150 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X12 W/LK WASHER 		0-50540-812-0 02 1 0601- ●
150 BOLT; CLIP
6WF1 TC-C(1B8) (A) M6X12 FLANGE 		0-28080-612-0 01 1 0105-0512 ● ●
150 BOLT; CLIP
6WF1 TC-C(1B8) (A) M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0206-0602 ● ●
219 NUT
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 02 1 0206-0602 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 03 1 0206-0602 ● ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91180-108-0 10 1 0603- ● ●
219 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 12 1 0108-0602 ● ●
219 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91180-108-0 12 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0107 ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0108-0110 ● ●
219 NUT
(B) M10X1.5 FLANGE M10 FLANGE 		0-91250-210-0 01 1 0105-0110 ● ●
219 NUT
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B) M10X1.25 FLANGE M10 FLANGE 		0-91150-210-0 01 1 0105-0106 ● ●
219 NUT
EXC. ZF M/T<X9E> (B) M10X1.25 FLANGE M10 FLANGE 		0-91150-210-0 01 1 0105-0106 ● ●
219 NUT
EXC. ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0205 ● ●
219 NUT
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MAP5T M/T(Y4J) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0205 ● ●
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-0305 ● ●
219 NUT
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MAP5T M/T(Y4J) (B) M10 FLANGE 		0-91150-210-0 01 1 0206-0305 ● ●
219 NUT
MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91150-210-0 01 1 0306-0602 ● ●
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0306-0602 ● ●
219 NUT
MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 13 1 0105-0106 ● ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 03 1 0107-0110 ● ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 03 1 0111-0205 ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0205 ● ●
219 NUT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602 ● ●
219 NUT
ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602 ●
219 NUT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
219 NUT
ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 09 1 0105-0106 ● ●
219 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107 ● ●
219 NUT
PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107 ● ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 10 1 0108-0602 ● ●
219 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105 ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105- ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (C) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (C) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
PE-SERIES ENG<1A0> (D) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105- ● ●
242 BOLT; BRKT,HARNESS
W-SERIES ENG<1A2> (B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512 ● ●
242 BOLT; BRKT,HARNESS
W-SERIES ENG<1A2> (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
W-SERIES ENG<1A2> (E) M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512 ● ●
242 BOLT; BRKT,HARNESS
W-SERIES ENG<1A2> (E) M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (F) M8X18 FLANGE 		0-28080-818-0 04 1 0105- ● ●
242 BOLT; BRKT,HARNESS
EXC. CAB UP +110MM<TGG> (F) M8X18 FLANGE 		0-28080-818-0 04 1 0105- ● ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105- ● ●
294 NUT
MAL5 M/T<X9F>,MAG6 M/T<X9T> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0106 ●
294 NUT
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0106 ●
294 NUT
ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0602 ● ●
294 NUT
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0602 ● ●
294 NUT
ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
294 NUT
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
294 NUT
ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105 ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105 ● ●
294 NUT
ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105 ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105 ● ●
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105 ●
294 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205 ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205 ● ●
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205 ●
294 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602 ● ●
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602 ●
294 NUT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
294 NUT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (A) M8 FLANGE 		0-91150-108-0 02 1 0105-0205 ● ●
294 NUT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (A) M8 FLANGE 		0-91150-108-0 02 1 0206-0602 ● ●
294 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91150-108-0 02 1 0206-0602 ● ●
294 NUT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
294 NUT
W-SERIES ENG<1A2> (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
304 BOLT; ENG HARNESS CLIP
10PE1S(60L) EXC. GOVERNOR CONTROL<W69> M10X16 W/LK WASHER 		1-09033-012-0 06 1 0105-0109 ● ●
304 BOLT; ENG HARNESS CLIP
10PE1N(61L) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M10X16 W/LK WASHER 		1-09033-012-0 06 1 0105-0109 ● ●
304 BOLT; ENG HARNESS CLIP
10PE1H(68L) M10X16 W/LK WASHER 		1-09033-012-0 06 1 0105-0109 ● ●
304 BOLT; ENG HARNESS CLIP
10PE1S(60L) EXC. TAMPER PROOF INJ PUMP SET<W44> M10X16 W/LK WASHER 		1-09033-012-0 06 1 0110- ● ●
304 BOLT; ENG HARNESS CLIP
10PE1N(61L),10PE1H(68L) M10X16 W/LK WASHER 		1-09033-012-0 06 1 0110- ● ●
304 BOLT; ENG HARNESS CLIP
10PE1S(60L) GOVERNOR CONTROL<W69> M10X16 W/LK WASHER 		1-09033-012-0 05 1 0105- ●
304 BOLT; ENG HARNESS CLIP
10PE1N(61L) ENGINE OIL TEMPERATURE GAUGE<UG3> M10X16 W/LK WASHER 		1-09033-012-0 05 1 0105- ●
313 BOLT; BRKT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0512 ● ●
313 BOLT; BRKT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ●
313 BOLT; BRKT
W-SERIES ENG<1A2> (B) M8X30 FLANGE 		0-28680-830-0 02 1 0206-0512 ● ●
313 BOLT; BRKT
W-SERIES ENG<1A2> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
313 BOLT; BRKT
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512 ●
313 BOLT; BRKT
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) W-SERIES ENG<1A2> (C) M12X16 		0-28181-216-0 01 1 0107-0108 ● ●
313 BOLT; BRKT
ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105 ● ●
313 BOLT; BRKT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105 ● ●
313 BOLT; BRKT
W-SERIES ENG<1A2> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0205 ● ●
313 BOLT; BRKT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0205 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0205 ● ●
313 BOLT; BRKT
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8X30 FLANGE 		0-28680-830-0 01 1 0206-0211 ● ●
313 BOLT; BRKT
PE-SERIES ENG<1A0> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0206-0211 ● ●
313 BOLT; BRKT
PE-SERIES ENG<1A0> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512 ● ●
313 BOLT; BRKT
PE-SERIES ENG<1A0> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
340 NUT; HARNESS CAB TO FRAME
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91150-108-0 01 1 0212-0602 ● ●
340 NUT; HARNESS CAB TO FRAME
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
340 NUT; HARNESS CAB TO FRAME
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8 FLANGE 		0-91150-108-0 01 1 0105-0211 ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211 ● ●
340 NUT; HARNESS CAB TO FRAME
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91150-108-0 02 1 0212-0602 ● ●
340 NUT; HARNESS CAB TO FRAME
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105- ● ●
515 NUT; BRKT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
515 NUT; BRKT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
515 NUT; BRKT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
515 NUT; BRKT
PE-SERIES ENG<1A0> (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
515 NUT; BRKT
W-SERIES ENG<1A2> (B) M10 		9-09110-510-0 02 1 0105-0512 ● ●
515 NUT; BRKT
W-SERIES ENG<1A2> (B) M10 		0-91110-510-0 02 1 0601- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
çizim 80502
530 510 503 503 178 178 178 178 1 224 185 1 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) ID=38.1 L=50 		5-09360-835-0 01 1 0212- ● ●
1 SLEEVE; RUBBER
ELECTRONIC GOV RED4(Q4F) (C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0201- ● ●
1 SLEEVE; RUBBER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=6 L=30 		5-09360-352-0 01 1 0105- ● ●
5 GUIDE; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=360 		1-82699-476-1 01 1 0105-0403 ● ●
5 GUIDE; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> L=360 		1-82699-476-1 01 1 0404- ● ●
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=360 		1-82699-476-1 01 1 0404- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0105- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-0304 ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-0304 ● ●
178 GROMMET; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0305- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0305- ● ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105- ● ●
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 0105- ● ●
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-0106 ●
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0107- ● ●
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0212- ●
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> (A) 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105- ● ●
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82690-666-0 01 1 0105- ● ●
503 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-82690-666-0 01 1 0105- ●
510 GROMMET; SCREW
6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105- ● ●
510 GROMMET; SCREW
6WA1 TC-C(55L) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208- ● ●
530 SEAL; HARNESS
ELECTRONIC GOV RED4(Q4F) 180X40 		1-72498-019-0 06 1 0105- ● ●
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105- ● ●
530 SEAL; HARNESS
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> 180X40 		1-72498-019-0 01 1 0105- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0105- ● ●
530 SEAL; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) 180X40 		1-72498-019-0 04 1 0105- ● ●
çizim 80905
53 53 53 53 312 312 342 312 312 324 335 312 312 312 342 334 334 324 375 375 375 342
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> (B) 		1-82699-895-0 01 1 0105- ● ●
53 BRACKET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +110MM<TGG> (B) 		1-82699-916-0 01 1 0105- ● ●
53 BRACKET; HARNESS
EXC. CAB UP +110MM<TGG> (C) 		1-82699-826-0 01 1 0105- ● ●
53 BRACKET; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (D) 		1-82699-239-0 02 1 0105- ● ●
53 BRACKET; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (A) 		1-82699-592-2 01 1 0105- ● ●
312 BRACKET; CLIP HARNESS
W-SERIES ENG<1A2> (C) 		1-82698-358-0 02 1 0206- ● ●
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (E) 		1-82699-304-0 01 1 0106- ●
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) W-SERIES ENG<1A2> (F) 		1-47477-902-0 01 1 0107-0108 ● ●
312 BRACKET; CLIP HARNESS
MAL5 M/T<X9F> (A) 		1-47477-840-0 01 1 0105-0106 ●
312 BRACKET; CLIP HARNESS
MAL5 M/T<X9F>,MAP5 M/T<Y9F> (A) 		1-47477-840-0 01 1 0105-0106 ●
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> W-SERIES ENG<1A2> (G) 		1-82699-425-0 01 1 0107- ● ●
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> W-SERIES ENG<1A2> (C) 		1-82698-358-0 01 1 0105-0105 ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0105-0105 ● ●
312 BRACKET; CLIP HARNESS
W-SERIES ENG<1A2> (C) 		1-82698-358-0 01 1 0106-0205 ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0106-0205 ● ●
312 BRACKET; CLIP HARNESS
PE-SERIES ENG<1A0> (C) 		1-82698-358-0 01 1 0206- ● ●
312 BRACKET; CLIP HARNESS
PE-SERIES ENG<1A0> (B) 		1-82699-348-0 01 1 0105- ● ●
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> (D) 		1-47478-769-0 01 1 0105- ● ●
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (D) 		1-47477-156-2 01 1 0105-0109 ● ●
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (D) 		1-47479-342-0 01 1 0110- ● ●
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82698-258-0 01 1 0105-0106 ●
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82699-996-1 01 1 0107- ●
334 BRACKET
PE-SERIES ENG<1A0> (A) 		1-53458-706-2 01 1 0105- ● ●
334 BRACKET
W-SERIES ENG<1A2> (B) 		1-53458-709-1 01 1 0105- ● ●
335 BRACKET; CONNECTOR
MAL5 M/T<X9F>,MAG6 M/T<X9T> 		1-82699-425-0 01 1 0105- ●
335 BRACKET; CONNECTOR
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> 		1-82699-425-0 01 1 0105- ●
342 BRACKET; HARNESS CAB MTG
PE-SERIES ENG<1A0> (A) 		1-82698-358-0 01 1 0105- ● ●
342 BRACKET; HARNESS CAB MTG
PE-SERIES ENG<1A0> (B) 		1-82699-625-0 01 1 0105- ● ●
342 BRACKET; HARNESS CAB MTG
W-SERIES ENG<1A2> EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0105- ● ●
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> W-SERIES ENG<1A2> (C) 		1-82698-224-0 01 1 0105- ● ●
375 BRACKET; AC GEN HARNESS CLIP
PE-SERIES ENG<1A0> (A) 		1-47476-393-0 01 1 0105- ● ●
375 BRACKET; AC GEN HARNESS CLIP
PE-SERIES ENG<1A0> (B) 		1-82699-199-0 01 1 0105- ● ●
375 BRACKET; AC GEN HARNESS CLIP
W-SERIES ENG<1A2> (C) 		1-82699-182-0 01 1 0105- ● ●
çizim 81327
462 305 168 168 148 128 104 104 60 81 16 16 16 16 421 116 16 104 16 305 16 235 104 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-0305 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0306- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (R) ID=11 H=30 L=17 		1-09700-113-0 01 1 0212- ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) ID=11 L=16 		9-09525-025-0 01 1 0212- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. CHINA GB VAR1<JAC>,PARKING BRAKE VALVE LEVER TYPE<W48> (W) ID=11 L=61 		1-09700-484-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>, PARKINGBRAKE VALVE LEVER TYPE<W48> (W) ID=11 L=61 		1-09700-484-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CHINA GBVAR1<JAC>,PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=11 L=41 		1-09700-403-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CHINA GBVAR1<JAC>,CHINA GB VAR2<JAY>,PARKING BRAKE VALVELEVER TYPE<W48> (A) ID=11 L=41 		1-09700-403-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 07 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (AM) ID=22 L=52 		9-09917-431-0 02 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 08 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 08 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 08 1 0207-0211 ● ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 08 1 0207-0211 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 08 1 0212- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 08 1 0212- ●
16 CLIP; HARNESS
ZF M/T<X9E> PE-SERIES ENG<1A0> (K) ID=16 L=20 		9-09525-535-0 02 1 0108- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0108-0205 ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AI) L=150 		1-09707-145-1 01 1 0105- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 02 1 0105- ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 02 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 02 1 0112- ●
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T> (AB) OD=9 H=6 		1-09709-178-0 02 1 0105-0106 ●
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (AB) OD=9 H=6 		1-09709-178-0 02 1 0105-0106 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-0203 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (AB) OD=9 H=6 		1-09709-178-0 03 1 0204- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0204- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 17 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 06 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 06 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 14 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 14 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 17 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 11 1 0112- ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 02 1 0105-0111 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 11 1 0112- ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (AA) ID=25 L=75 		1-09701-275-0 02 1 0105-0111 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (AA) ID=25 L=75 		1-09701-275-0 02 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=11 L=61 		1-09700-484-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 02 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 02 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 02 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 02 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 03 1 0105- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 13 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 12 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 15 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (X) ID=20 L=70 		1-09700-485-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 04 1 0105-0111 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (X) ID=20 L=70 		1-09700-485-0 04 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 04 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 13 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 06 1 0112- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0112- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 03 1 0105- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0105- ● ●
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105- ● ●
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107- ● ●
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 0105-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0105-0504 ● ●
16 CLIP; HARNESS
(AN) L=350 		1-09707-183-0 03 1 0505- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0105-0505 ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0105-0209 ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 02 1 0210- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0210- ● ●
16 CLIP; HARNESS
(AE) ID=7-10 		8-94472-578-0 01 1 0105- ● ●
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0105- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0105-0107 ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 03 1 0105-0107 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0108-0109 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0108-0109 ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 03 1 0108-0109 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 02 1 0112- ● ●
16 CLIP; HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106 ● ●
16 CLIP; HARNESS
CAB UP +110MM<TGG> W-SERIES ENG<1A2> (AJ) ID=26 L=26 		1-09701-236-0 01 1 0107- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0105-0211 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0212-0401 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0212-0401 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0402- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (AG) OD=9 H=17.5 		1-09709-181-0 01 1 0402- ●
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> (AB) OD=9 H=6 		1-09709-178-0 01 1 0105- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0105- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (P) ID=21 L=24 		1-09701-201-0 02 1 0105- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (AB) OD=9 H=6 		1-09709-178-0 05 1 0105-0106 ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0107- ● ●
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T>,MAP5 M/T<Y9F> (AB) OD=9 H=6 		1-09709-178-0 02 1 0107- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0105-0203 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0105-0203 ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0204-0209 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0204-0209 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0204-0209 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0210-0303 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0210-0303 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (I) L=250 		5-09707-030-1 01 1 0304- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (I) L=250 		5-09707-030-1 01 1 0304- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304- ● ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (Q) ID=11 L=20 		9-09525-035-0 01 1 0105- ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (F) L=180 		1-09707-162-1 01 1 0105-0505 ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (F) L=180 		1-09707-162-1 02 1 0506- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0506- ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (J) L=140 		5-09707-031-1 01 1 0105-0205 ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-0205 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0105-0205 ● ●
16 CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50) (J) L=140 		5-09707-031-1 01 1 0206- ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0206- ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0206- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0206- ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) OD=9 H=9.5 		1-09709-179-0 01 1 0105- ● ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AC) L=20 		1-09987-246-2 04 1 0105- ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105 ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (AK) ID=19 L=28 		9-09525-856-0 01 1 0106- ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0107 ● ●
16 CLIP; HARNESS
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0108-0205 ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0206- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-0111 ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (AB) OD=9 H=6 		1-09709-178-0 06 1 0105-0106 ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (AL) ID=15 L=28 		1-09701-216-0 01 1 0107- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0105-0111 ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 01 1 0112- ●
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0107 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0107 ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (M) ID=20 L=50 		9-09917-430-0 01 1 0108-0111 ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) PE-SERIES ENG<1A0> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0112- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (O) 		8-94403-348-0 01 1 0105- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-0111 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-0111 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0112- ●
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0105-0203 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> W-SERIES ENG<1A2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0204- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0105- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0105-0105 ● ●
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0105-0105 ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107 ● ●
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (K) ID=16 L=20 		9-09525-535-0 01 1 0108- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> W-SERIES ENG<1A2> (K) ID=16 L=20 		9-09525-535-0 01 1 0108- ● ●
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (S) L=36 		8-94224-891-1 01 1 0105-0107 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) L=36 		8-94224-891-1 01 1 0108- ● ●
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0105-0205 ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (T) ID=16 L=40 		9-09525-576-0 01 1 0206- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AF) ID=11 L=20 		9-09525-032-0 01 1 0105- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (AH) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (AH) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403 ● ●
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (AH) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404- ● ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (AH) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (M) ID=20 L=50 		9-09917-430-0 02 1 0105-0109 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 03 1 0110-0111 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (M) ID=20 L=50 		9-09917-430-0 03 1 0112- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0112- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0112- ● ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 03 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 15 1 0105- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 06 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 01 1 0112- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 12 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 12 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 15 1 0105- ●
16 CLIP; HARNESS
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (X) ID=20 L=70 		1-09700-485-0 03 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0112-0206 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0207- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (X) ID=20 L=70 		1-09700-485-0 05 1 0207- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (E) L=300 		1-09707-001-1 01 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (E) L=300 		1-09707-001-1 01 1 0112-0504 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (AN) L=350 		1-09707-183-0 01 1 0505- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (E) L=300 		1-09707-001-1 02 1 0105-0504 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (AN) L=350 		1-09707-183-0 02 1 0505- ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 04 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 12 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 12 1 0112- ●
16 CLIP; HARNESS
PE-SERIES ENG<1A0> (X) ID=20 L=70 		1-09700-485-0 06 1 0105-0111 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 04 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (M) ID=20 L=50 		9-09917-430-0 04 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (V) ID=15 L=65 		1-09700-466-0 17 1 0105- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 08 1 0105-0109 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (W) ID=11 L=61 		1-09700-484-0 10 1 0110-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (W) ID=11 L=61 		1-09700-484-0 06 1 0112-0211 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 12 1 0212-0401 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> (W) ID=11 L=61 		1-09700-484-0 12 1 0402- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 08 1 0105-0109 ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 10 1 0110-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=11 L=41 		1-09700-403-0 04 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (L) ID=14 L=44 		9-09917-427-0 17 1 0105- ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306- ● ●
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=20 L=50 		9-09917-430-0 04 1 0105- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (E) ID=11 L=41 		1-09700-403-0 05 1 0105- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (E) ID=11 L=41 		1-09700-403-0 04 1 0105- ● ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 0105- ● ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 0105- ● ●
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) L=180 		1-09707-162-1 02 1 0105- ● ●
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (F) L=180 		1-09707-162-1 02 1 0105- ● ●
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105- ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-0112 ● ●
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201- ● ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0105-0112 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201- ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 		1-09987-246-2 06 1 0201- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109 ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-0106 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=10 H=25 L=20 		1-09700-519-0 01 1 0107- ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0105- ● ●
305 CLIP; ENG HARNESS
PE-SERIES ENG<1A0> (C) L=36 		8-94224-891-1 02 1 0105- ● ●
305 CLIP; ENG HARNESS
10PE1S(60L) EXC. GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-0109 ● ●
305 CLIP; ENG HARNESS
10PE1N(61L) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-0109 ● ●
305 CLIP; ENG HARNESS
10PE1H(68L) (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-0109 ● ●
305 CLIP; ENG HARNESS
10PE1S(60L) EXC. TAMPER PROOF INJ PUMP SET<W44> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0110- ● ●
305 CLIP; ENG HARNESS
10PE1N(61L),10PE1H(68L) (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0110- ● ●
305 CLIP; ENG HARNESS
10PE1S(60L) GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 0105- ●
305 CLIP; ENG HARNESS
10PE1N(61L) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 0105- ●
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0105-0207 ● ●
421 CLIP; FLOOR HARNESS
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (C) L=20 		1-09987-246-2 05 1 0105- ● ●
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) (C) L=20 		1-09987-246-2 05 1 0105- ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0105- ● ●
421 CLIP; FLOOR HARNESS
W-SERIES ENG<1A2> (B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105 ● ●
421 CLIP; FLOOR HARNESS
W-SERIES ENG<1A2> (D) ID=21 L=28 		1-09700-673-1 02 1 0106- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
