◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#12592) — 491 parça
çizim 20532
13 199
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
INTAKE HEATER<SL2> (A) 		1-82639-272-0 01 1 0105- ● ●
13 HARNESS; ENG
W-SERIES ENG<1A2> (B) 		1-82640-553-4 01 1 0105- ● ●
199 HARNESS; STARTER
PE-SERIES ENG<1A0> 		1-82640-733-2 01 1 0105- ●
199 HARNESS; STARTER
PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9> 		1-82640-733-2 01 1 0105- ●
199 HARNESS; STARTER
W-SERIES ENG<1A2> 		1-82640-734-1 01 1 0105- ●
199 HARNESS; STARTER
W-SERIES ENG<1A2> EXC. FIRE TRUCK<RA9> 		1-82640-734-1 01 1 0105- ●
199 HARNESS; STARTER
FIRE TRUCK<RA9> PE-SERIES ENG<1A0> 		1-82640-735-2 01 1 0105- ●
199 HARNESS; STARTER
FIRE TRUCK<RA9> W-SERIES ENG<1A2> 		1-82641-115-1 01 1 0105- ●

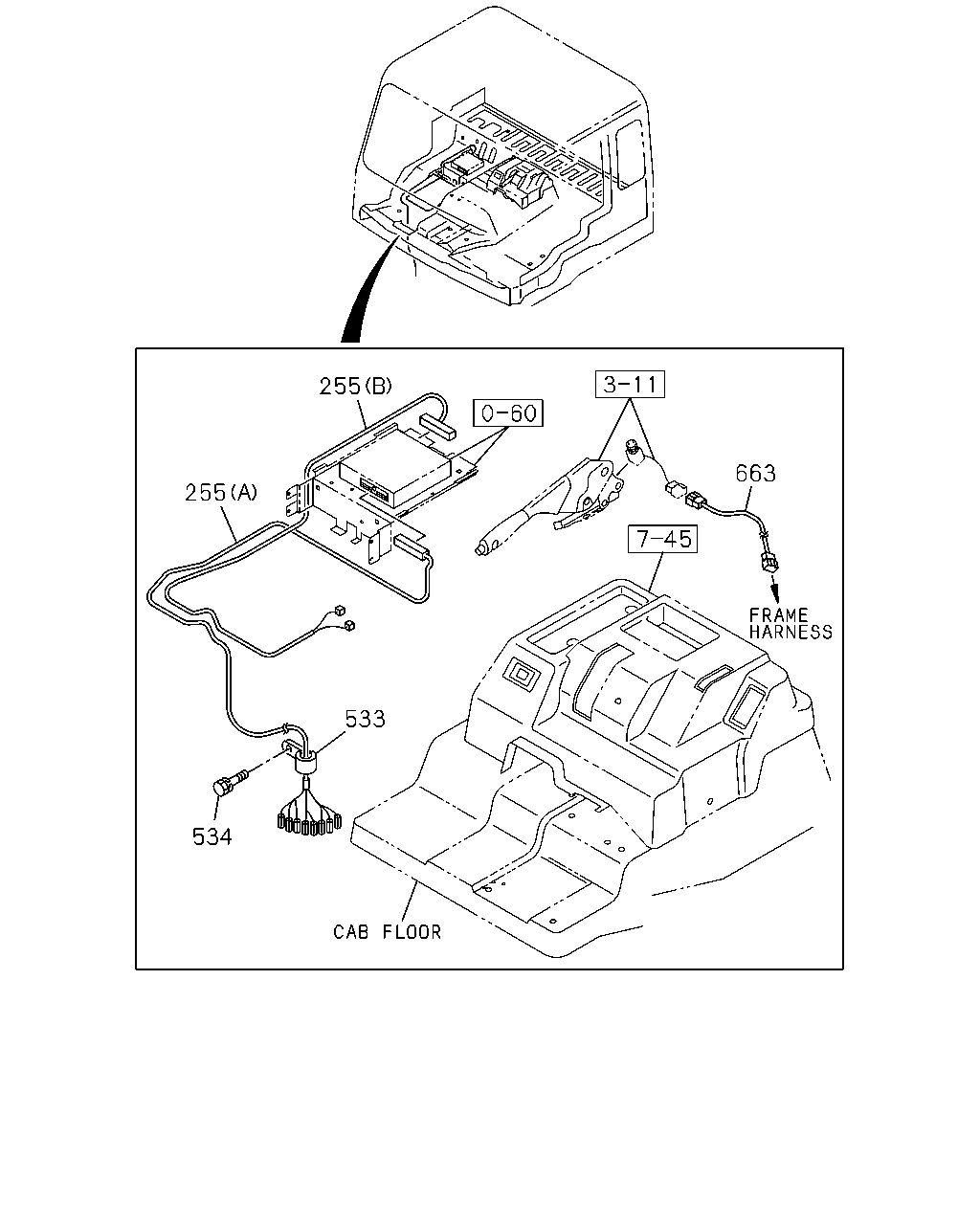

çizim 22045
663 255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date A B
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (B) 		1-82660-381-2 01 1 0105- ● ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82660-375-2 01 1 0105- ● ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-385-2 01 1 0105- ● ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) CAB UP +110MM<TGG> (A) 		1-82660-378-2 01 1 0105- ● ●
533 CLIP
W-SERIES ENG<1A2> ID=19 L=32 		1-09701-235-0 02 1 0105-0109 ● ●
533 CLIP
W-SERIES ENG<1A2> ID=21 L=24 		8-94176-807-1 02 1 0110- ● ●
534 BOLT
W-SERIES ENG<1A2> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105- ● ●
663 HARNESS; EXTENSION,RR WHEEL PARKING
WHEEL BASE 4500MM(45W) CHINA GB VAR1<JAC> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> 		1-82676-867-0 01 1 0212-0401 ●
663 HARNESS; EXTENSION,RR WHEEL PARKING
WHEEL BASE 4500MM(45W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> 		1-82676-867-0 01 1 0402- ●

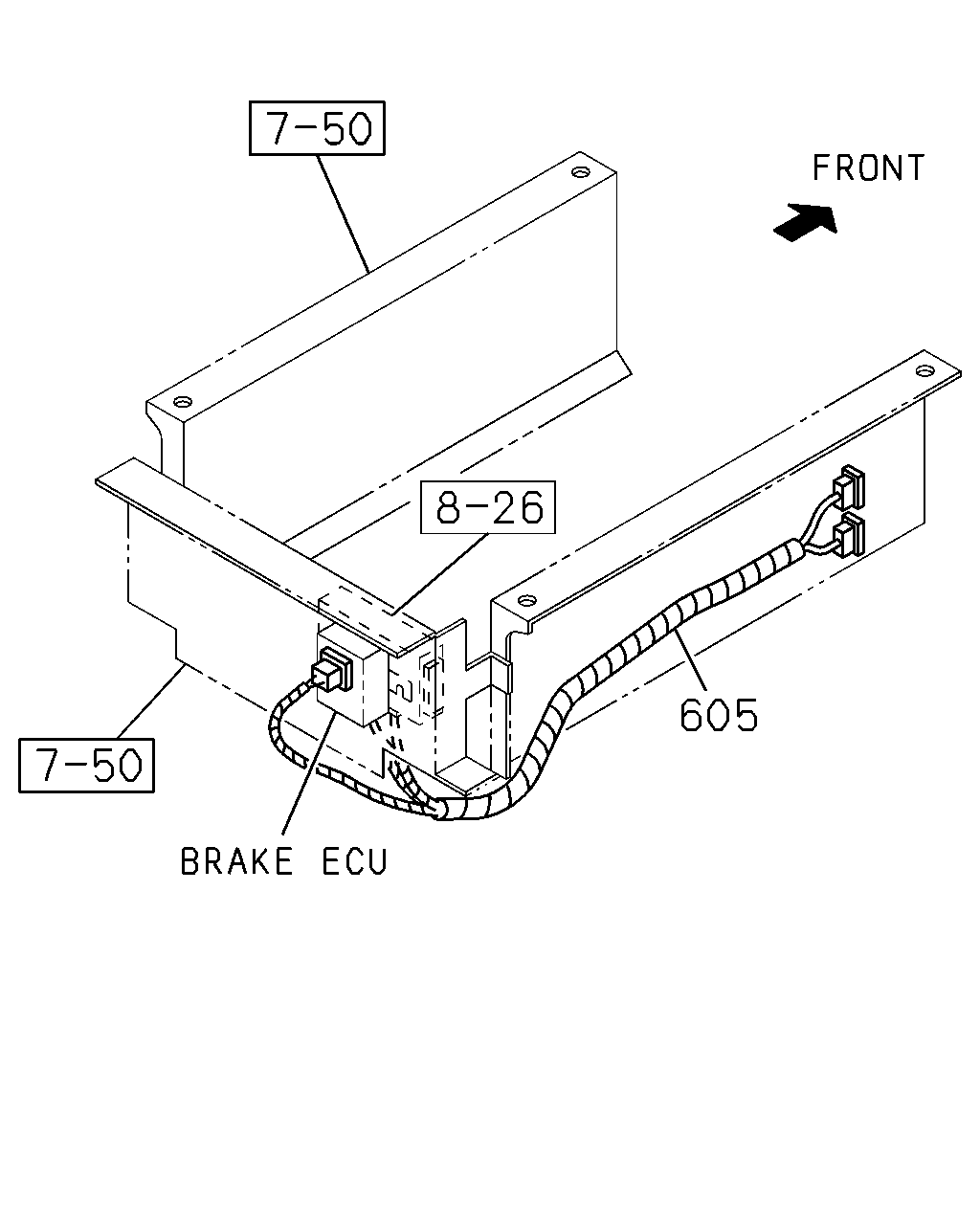

çizim 22145
605
BalonParca AdiParca NoAdetTipApplied Date A B
605 HARNESS; SEAT
ELECTRONIC GOV RED4(Q4F) 		1-82660-400-1 01 1 0105- ● ●
çizim 22638
189 189
BalonParca AdiParca NoAdetTipApplied Date A B
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82673-735-0 06 1 0105- ●
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) L=890 		1-82636-373-0 01 1 0105- ● ●
189 HARNESS; EXT
POWER BRAKE LOCK SYSTEM(J50) (C) 		1-82673-238-0 01 1 0105- ● ●
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82673-735-0 08 1 0105- ●

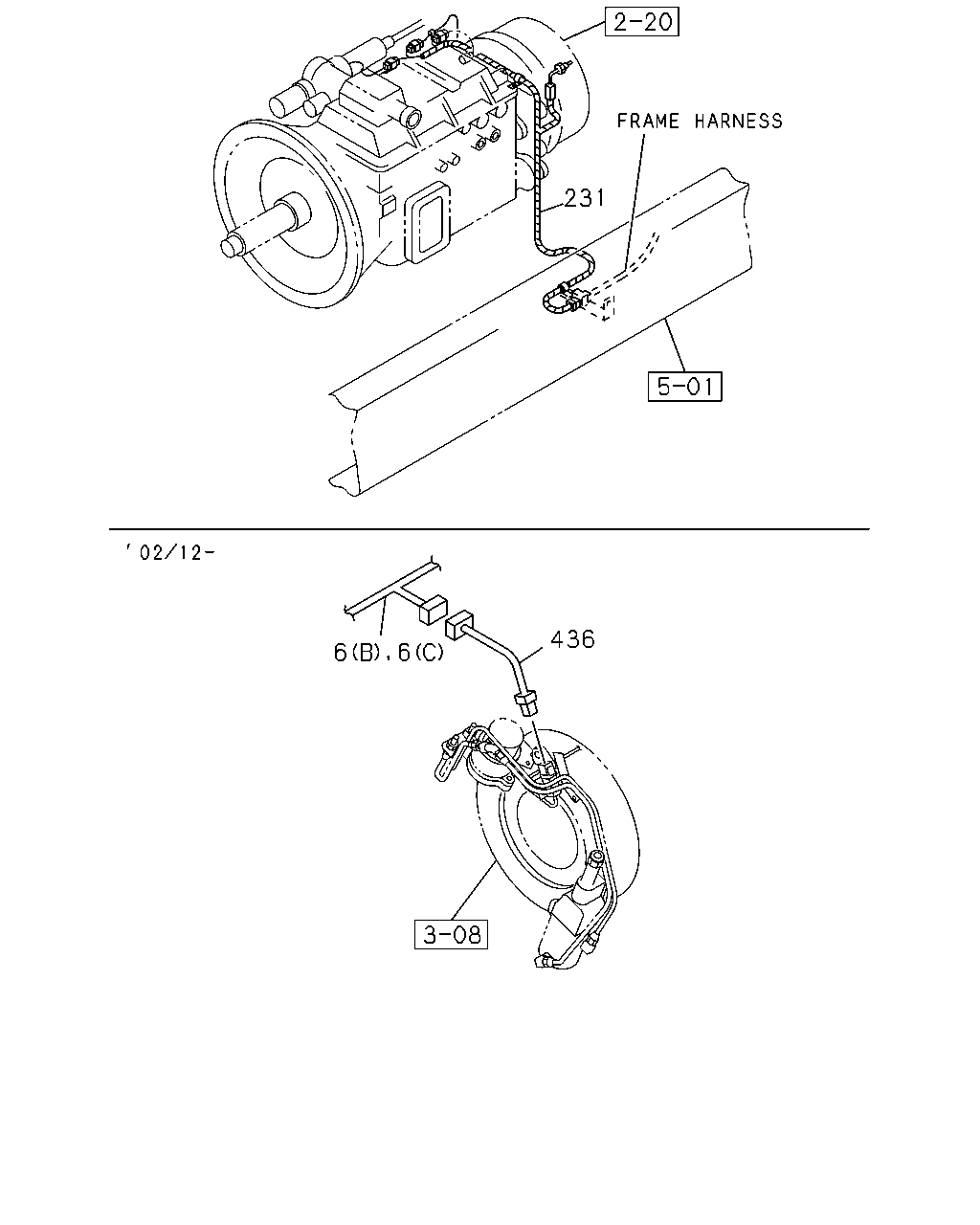

çizim 22770
231 436 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-925-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-926-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-927-1 01 1 0207- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-780-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-781-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-782-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-783-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-784-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ZF M/T<X9E> (B) FRAME 		1-82674-785-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-946-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-947-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-948-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-949-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-950-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-951-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-952-5 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (B) FRAME 		1-82674-952-6 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-953-6 01 1 0105- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-945-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-034-5 01 1 0109- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-087-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-086-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-834-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-835-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-836-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-844-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-845-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-843-2 01 1 0105- ● ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-789-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-790-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-791-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-792-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-793-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-794-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-964-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82675-035-5 01 1 0109- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-965-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-966-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-967-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-968-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-969-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-970-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-971-4 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (C) FRONT FRAME 		1-82674-971-5 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-972-5 01 1 0105- ●
231 HARNESS; TRANS
ISUZU M/T<X9A> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82671-661-1 01 1 0105-0106 ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82671-661-1 01 1 0107- ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-849-1 01 1 0105- ● ●
231 HARNESS; TRANS
POWER BRAKE LOCK SYSTEM(J50) ISUZU M/T<X9A> PE-SERIES ENG<1A0> 		1-82671-663-1 01 1 0105- ● ●
231 HARNESS; TRANS
POWER BRAKE LOCK SYSTEM(J50) ISUZU M/T<X9A> W-SERIES ENG<1A2> 		1-82674-851-1 01 1 0105- ● ●
231 HARNESS; TRANS
ZF M/T<X9E> W-SERIES ENG<1A2> 		1-82674-852-0 01 1 0105-0107 ● ●
231 HARNESS; TRANS
ZF M/T<X9E> W-SERIES ENG<1A2> 		1-82675-056-0 01 1 0108- ● ●
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> W-SERIES ENG<1A2> 		1-82674-850-1 01 1 0105- ●
436 HARNESS; RETARDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82675-610-0 01 1 0212- ●

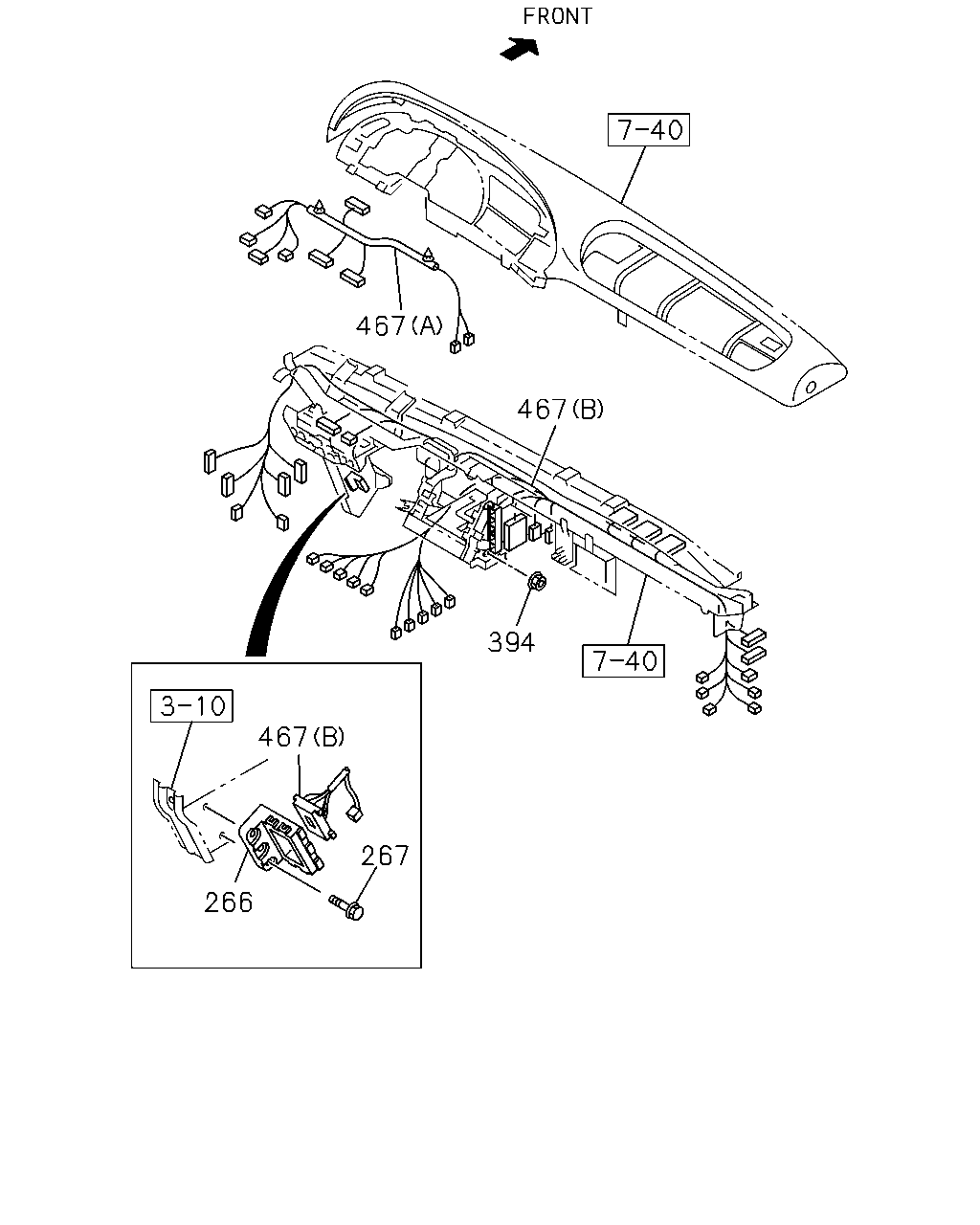

çizim 22789
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0105- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0105- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-0602 ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82662-583-0 01 1 0409- ● ●
467 HARNESS; FACIA
(A) UPPER 		1-82629-927-1 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2> (B) LOWER 		1-82660-412-3 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-439-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-527-3 01 1 0109- ● ●
467 HARNESS; FACIA
DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-413-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) LOWER 		1-82660-436-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER 		1-82660-437-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-433-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-435-4 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-434-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) LOWER 		1-82660-438-4 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER 		1-82660-472-6 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS> (B) LOWER 		1-82660-473-6 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-474-7 01 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-469-6 01 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-471-6 01 1 0105-0408 ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-471-7 01 1 0409- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-470-6 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-409-3 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-410-3 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-411-3 01 1 0105- ● ●
467 HARNESS; FACIA
PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-414-3 01 1 0105- ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-440-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-528-3 01 1 0109- ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-441-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-529-4 01 1 0109- ● ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2> (B) LOWER 		1-82660-418-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-451-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-539-3 01 1 0109- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-419-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) LOWER 		1-82660-415-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-416-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-417-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS>, DELUXECAB(W14) (B) LOWER 		1-82660-420-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-453-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-541-4 01 1 0109- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-452-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-540-3 01 1 0109- ●

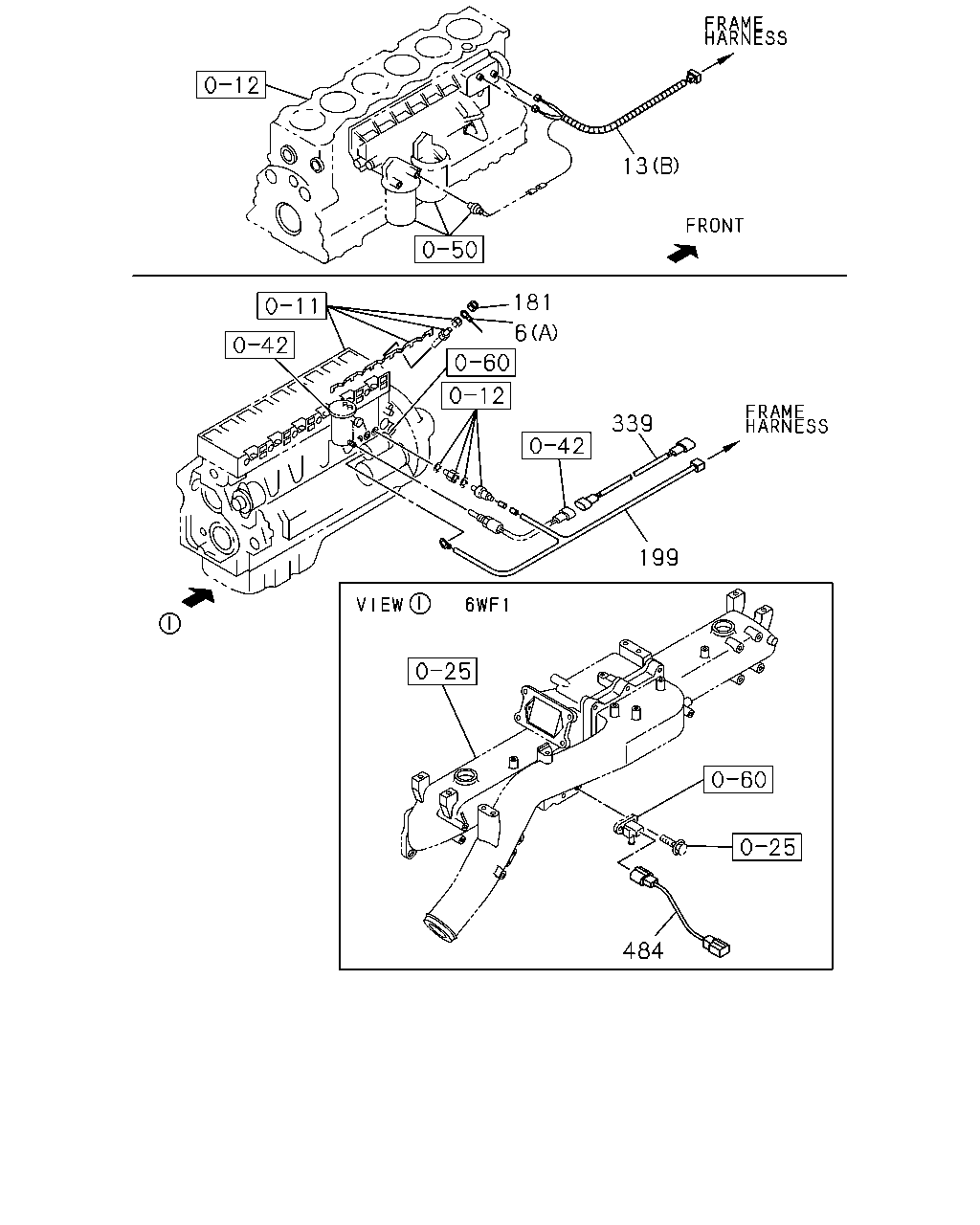

çizim 78368
13 181 6 339 199 484
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-925-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-926-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-927-1 01 1 0207- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-780-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-781-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-782-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-783-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-784-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ZF M/T<X9E> (B) FRAME 		1-82674-785-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-946-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-947-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-948-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-949-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-950-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-951-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-952-5 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (B) FRAME 		1-82674-952-6 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-953-6 01 1 0105- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-945-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-034-5 01 1 0109- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-087-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-086-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-834-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-835-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-836-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-844-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-845-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-843-2 01 1 0105- ● ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-789-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-790-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-791-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-792-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-793-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-794-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-964-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82675-035-5 01 1 0109- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-965-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-966-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-967-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-968-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-969-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-970-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-971-4 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (C) FRONT FRAME 		1-82674-971-5 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-972-5 01 1 0105- ●
13 HARNESS; ENG
INTAKE HEATER<SL2> (A) 		1-82639-272-0 01 1 0105- ● ●
13 HARNESS; ENG
W-SERIES ENG<1A2> (B) 		1-82640-553-4 01 1 0105- ● ●
181 NUT; GLOW PLUG HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> W-SERIES ENG<1A2> M4 FLANGE 		5-09440-007-0 01 1 0105- ● ●
199 HARNESS; STARTER
PE-SERIES ENG<1A0> 		1-82640-733-2 01 1 0105- ●
199 HARNESS; STARTER
PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9> 		1-82640-733-2 01 1 0105- ●
199 HARNESS; STARTER
W-SERIES ENG<1A2> 		1-82640-734-1 01 1 0105- ●
199 HARNESS; STARTER
W-SERIES ENG<1A2> EXC. FIRE TRUCK<RA9> 		1-82640-734-1 01 1 0105- ●
199 HARNESS; STARTER
FIRE TRUCK<RA9> PE-SERIES ENG<1A0> 		1-82640-735-2 01 1 0105- ●
199 HARNESS; STARTER
FIRE TRUCK<RA9> W-SERIES ENG<1A2> 		1-82641-115-1 01 1 0105- ●
339 HARNESS; EXT,FUEL
6WF1 TC-C(1B8) 		1-82641-316-0 01 1 0311- ● ●
484 HARNESS; BOOST SENSOR
6WF1 TC-C(1B8) 		1-82641-149-0 01 1 0105- ● ●

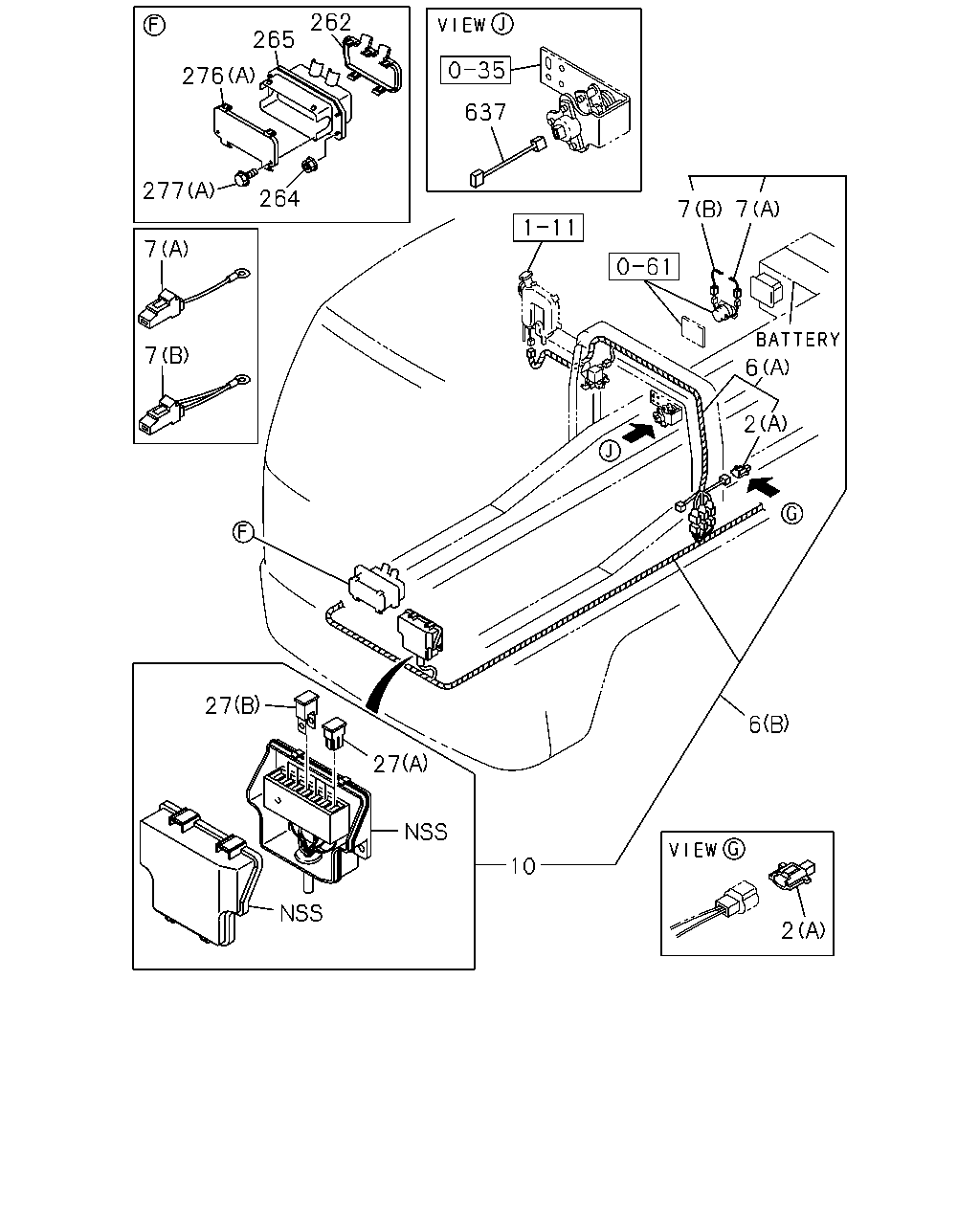

çizim 78953
262 265 276 277 264 7 7 7 7 637 6 2 6 2 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105-0105 ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-925-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-926-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-927-1 01 1 0207- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-780-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-781-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-782-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-783-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-784-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ZF M/T<X9E> (B) FRAME 		1-82674-785-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-946-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-947-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-948-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-949-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-950-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-951-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-952-5 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (B) FRAME 		1-82674-952-6 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-953-6 01 1 0105- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-945-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-034-5 01 1 0109- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-087-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-086-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-834-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-835-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-836-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-844-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-845-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-843-2 01 1 0105- ● ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-789-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-790-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-791-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-792-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-793-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-794-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-964-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82675-035-5 01 1 0109- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-965-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-966-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-967-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-968-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-969-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-970-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-971-4 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (C) FRONT FRAME 		1-82674-971-5 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-972-5 01 1 0105- ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-085-0 01 1 0105- ● ●
7 LINK ASM; FUSIBLE
(A) 60A BLUE 		1-82659-119-0 01 1 0105- ● ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) 		1-82510-467-0 01 1 0202-0210 ●
10 BOX; FUSE,HARNESS
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0211- ●
10 BOX; FUSE,HARNESS 1-82510-466-0 01 1 0105-0201 ● ●
10 BOX; FUSE,HARNESS
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82510-466-0 01 1 0202-0206 ●
10 BOX; FUSE,HARNESS
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> 		1-82510-466-0 01 1 0207-0210 ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0211- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 0105- ● ●
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 0105- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0105- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0105- ● ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) 		1-82699-475-2 01 1 0105- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0105-0512 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105- ● ●
637 HARNESS; EXT,S/SENSOR
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0207- ● ●
çizim 79026
186 201
BalonParca AdiParca NoAdetTipApplied Date A B
186 HARNESS; FUEL TANK
PE-SERIES ENG<1A0> 		1-82671-596-0 01 1 0105- ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82673-594-0 01 1 0105- ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) W-SERIES ENG<1A2> 		1-82639-362-2 01 1 0105- ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> 		1-82673-595-0 01 1 0105- ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82639-361-2 01 1 0105- ● ●

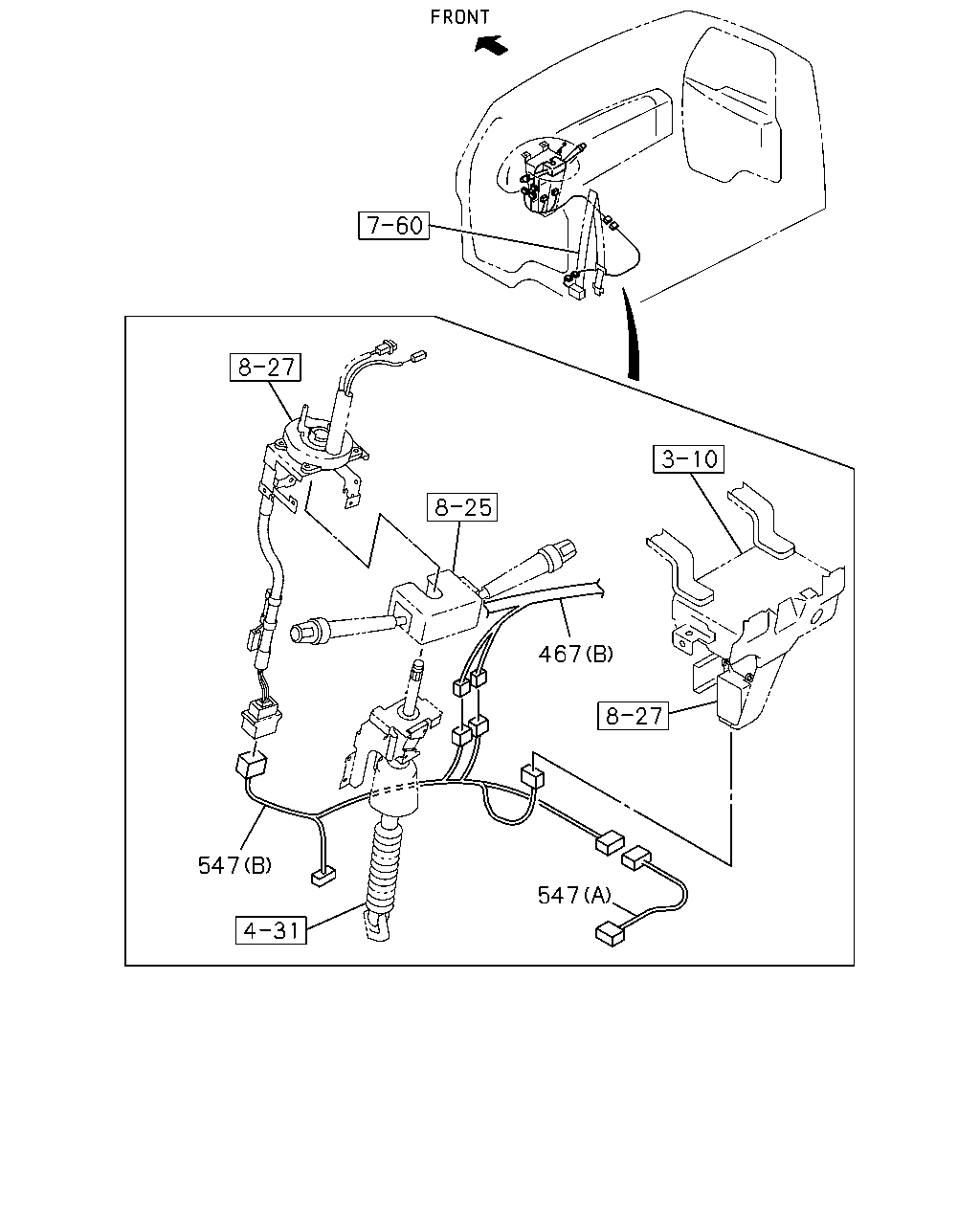

çizim 81262
467 547 547
BalonParca AdiParca NoAdetTipApplied Date A B

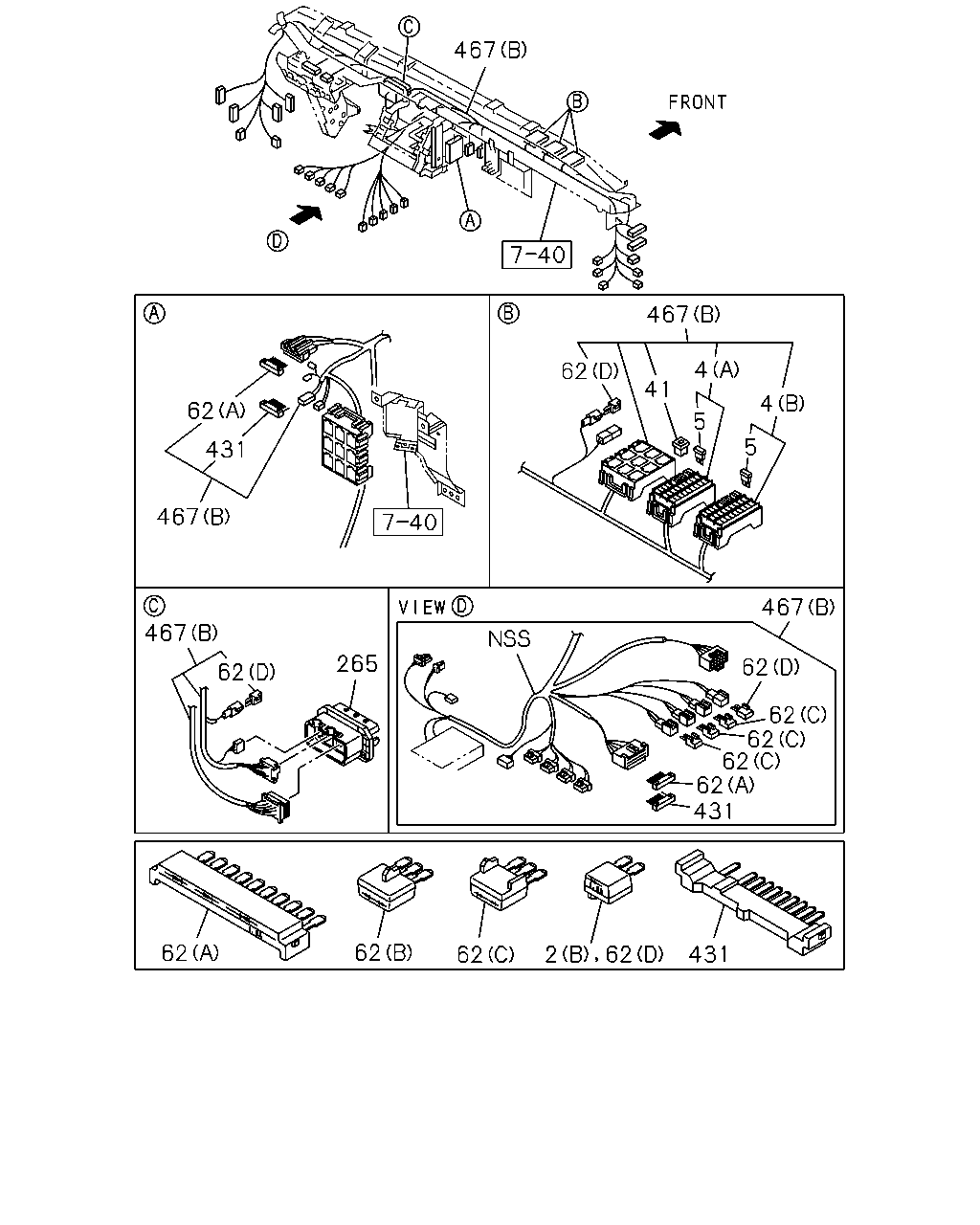

467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82662-583-0 01 1 0409- ● ●
467 HARNESS; FACIA
(A) UPPER 		1-82629-927-1 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2> (B) LOWER 		1-82660-412-3 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-439-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-527-3 01 1 0109- ● ●
467 HARNESS; FACIA
DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-413-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) LOWER 		1-82660-436-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER 		1-82660-437-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-433-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-435-4 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-434-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) LOWER 		1-82660-438-4 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER 		1-82660-472-6 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS> (B) LOWER 		1-82660-473-6 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-474-7 01 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-469-6 01 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-471-6 01 1 0105-0408 ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-471-7 01 1 0409- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-470-6 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-409-3 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-410-3 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-411-3 01 1 0105- ● ●
467 HARNESS; FACIA
PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-414-3 01 1 0105- ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-440-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-528-3 01 1 0109- ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-441-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-529-4 01 1 0109- ● ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2> (B) LOWER 		1-82660-418-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-451-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-539-3 01 1 0109- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-419-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) LOWER 		1-82660-415-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-416-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-417-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS>, DELUXECAB(W14) (B) LOWER 		1-82660-420-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-453-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-541-4 01 1 0109- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-452-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-540-3 01 1 0109- ●
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) 		1-82626-429-5 01 1 0105-0111 ● ●
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) 		1-82661-062-2 01 1 0112- ● ●
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (B) 		1-82628-251-0 01 1 0105- ● ●

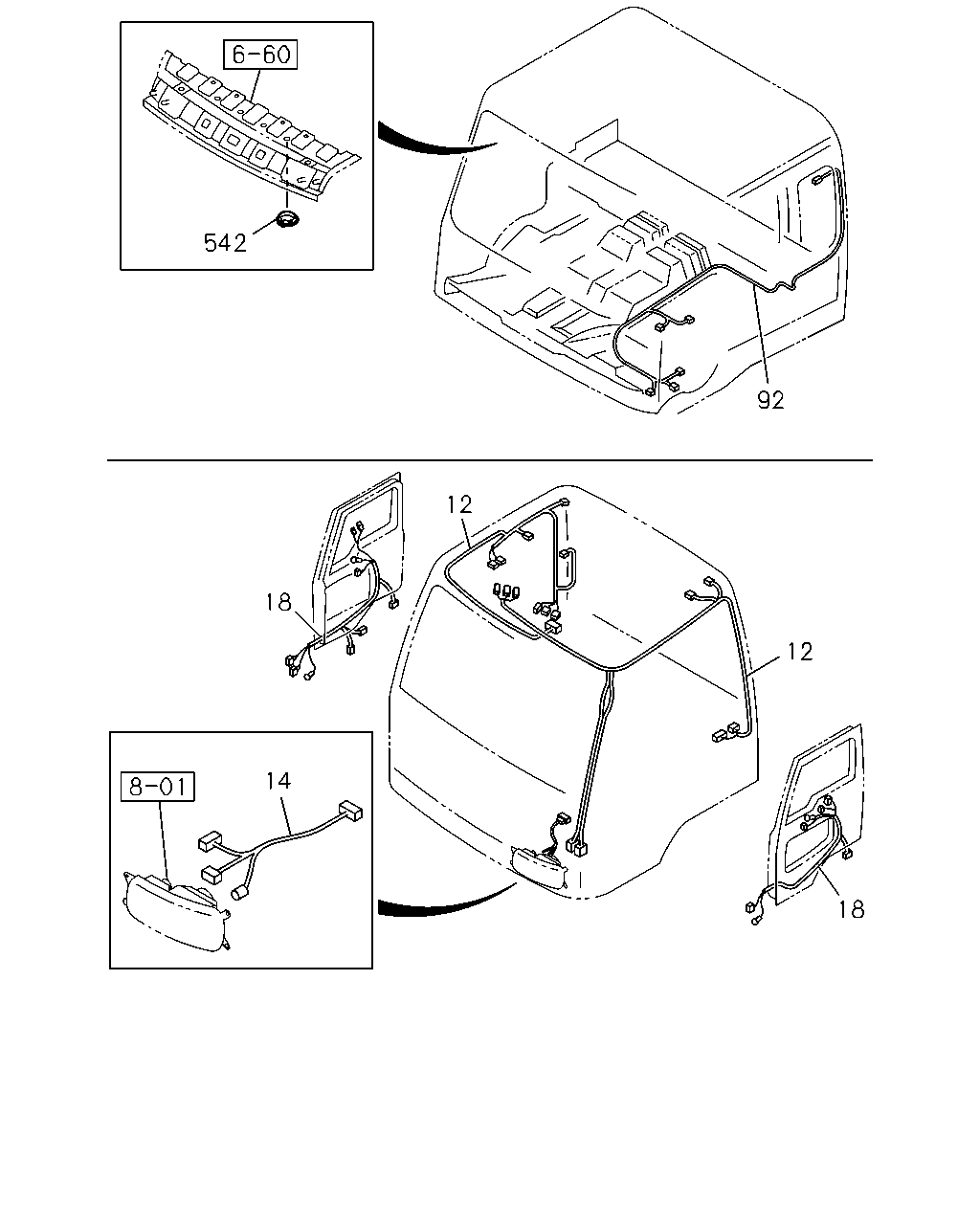

çizim 81352
542 92 12 18 12 18 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> 		1-82629-925-2 01 1 0105- ● ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> 		1-82629-924-2 01 1 0105- ● ●
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-82629-920-2 01 1 0105- ● ●
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-82629-921-2 01 1 0105- ● ●
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-82628-107-0 01 1 0105- ● ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82670-022-2 02 1 0105- ● ●
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> 		1-82625-150-2 02 1 0105- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82639-226-2 02 1 0105- ● ●
14 HARNESS; HEADLAMP
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82625-986-0 02 1 0105- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 0105- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0105- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105- ● ●
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) 		1-82660-397-3 01 1 0105- ● ●
92 HARNESS; FLOOR
PE-SERIES ENG<1A0> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82660-394-3 01 1 0105- ● ●
92 HARNESS; FLOOR
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED4(Q4F) 		1-82660-394-3 01 1 0105- ● ●
92 HARNESS; FLOOR
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> 		1-82660-395-3 01 1 0105- ● ●
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0105- ● ●

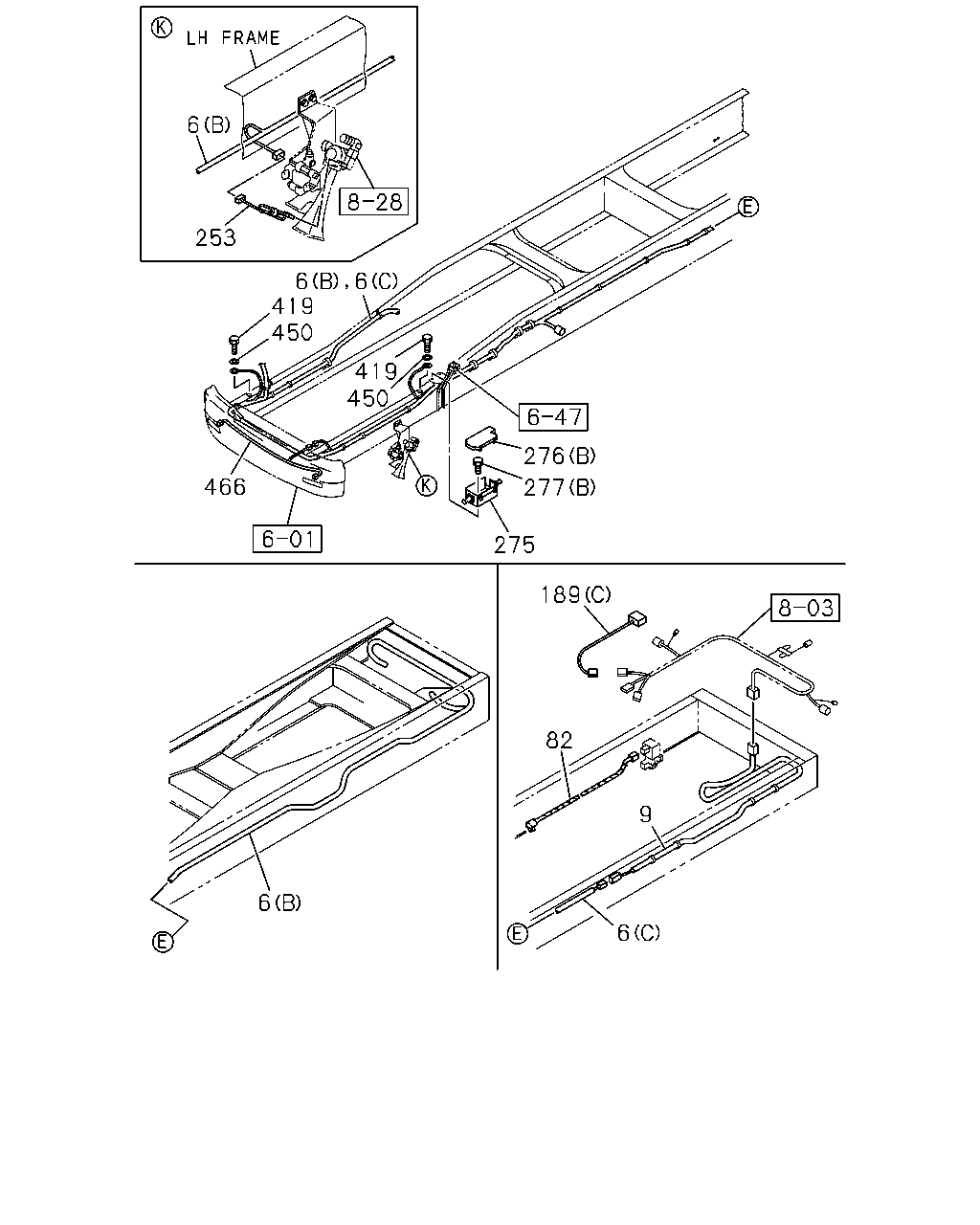

çizim 81687
6 253 419 6 6 450 450 419 466 276 277 275 189 82 9 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-925-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-926-1 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-927-1 01 1 0207- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-780-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-781-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-782-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) FRAME 		1-82674-783-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (B) FRAME 		1-82674-784-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTAKE HEATER<SL2> ZF M/T<X9E> (B) FRAME 		1-82674-785-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-946-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-947-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-948-6 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-949-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-950-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82674-951-6 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-952-5 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (B) FRAME 		1-82674-952-6 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-953-6 01 1 0105- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-945-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-034-5 01 1 0109- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-087-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-086-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-834-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-835-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-836-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-844-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-845-2 01 1 0105- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-843-2 01 1 0105- ● ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-789-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-790-2 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-791-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-792-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-793-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> INTAKE HEATER<SL2> (C) FRONT FRAME 		1-82674-794-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-964-0 01 1 0105-0108 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82675-035-5 01 1 0109- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-965-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-966-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-967-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-968-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-969-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) FRONT FRAME 		1-82674-970-5 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-971-4 01 1 0105-0206 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) (C) FRONT FRAME 		1-82674-971-5 01 1 0207- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (C) FRONT FRAME 		1-82674-972-5 01 1 0105- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) 		1-82673-584-0 01 1 0105- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) 		1-82673-585-0 01 1 0105- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> 		1-82675-931-0 01 1 0207-0211 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> 		1-82675-931-0 01 1 0212-0401 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> 		1-82675-931-0 01 1 0212-0401 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PARKING BRAKE VALVE LEVER TYPE<W48> PE-SERIES ENG<1A0> 		1-82675-931-0 01 1 0402- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) W-SERIES ENG<1A2> 		1-82675-931-0 01 1 0402- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) 		1-82639-356-3 01 1 0105-0206 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> 		1-82639-356-3 01 1 0207-0211 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82639-356-3 01 1 0207-0211 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. CHINA GB VAR1<JAC>,PARKING BRAKE VALVE LEVER TYPE<W48> 		1-82639-356-3 01 1 0212-0401 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82639-356-3 01 1 0212-0401 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>, PARKINGBRAKE VALVE LEVER TYPE<W48> 		1-82639-356-3 01 1 0402- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82639-356-3 01 1 0402- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 6300MM(63W) 		1-82674-461-0 01 1 0105- ●
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82673-735-0 06 1 0105- ●
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) L=890 		1-82636-373-0 01 1 0105- ● ●
189 HARNESS; EXT
POWER BRAKE LOCK SYSTEM(J50) (C) 		1-82673-238-0 01 1 0105- ● ●
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82673-735-0 08 1 0105- ●
253 HARNESS; EXT,HORN
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> EXC. ELECTRICAL HORN(WB7) 		1-82677-941-0 01 1 0405- ● ●
275 BOX ASM; FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-82699-474-1 01 1 0105- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0105- ● ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) 		1-82699-475-2 01 1 0105- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0105-0512 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0105- ● ●
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82639-227-3 01 1 0105- ● ●
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82639-227-3 01 1 0105- ● ●
466 HARNESS; BUMPER
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 0105- ● ●
çizim 82728
467 467 4 4 5 5 41 62 62 431 467 467 62 265 467 62 62 62 62 62 431 431 62 2 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105-0105 ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX21 25AX2 		1-82510-513-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX18 		1-82510-422-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) PE-SERIES ENG<1A0> (A) 7.5AX18 		1-82510-422-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX19 		1-82510-436-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) 15AX19 		1-82510-436-0 01 1 0105- ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 0105- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0105- ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0105- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0105- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0105- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0105- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0105- ● ●
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0105- ● ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0105- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105- ● ●
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82662-583-0 01 1 0409- ● ●
467 HARNESS; FACIA
(A) UPPER 		1-82629-927-1 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2> (B) LOWER 		1-82660-412-3 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-439-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-527-3 01 1 0109- ● ●
467 HARNESS; FACIA
DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-413-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) LOWER 		1-82660-436-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER 		1-82660-437-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-433-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-435-4 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-434-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) LOWER 		1-82660-438-4 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER 		1-82660-472-6 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS> (B) LOWER 		1-82660-473-6 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-474-7 01 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-469-6 01 1 0105- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-471-6 01 1 0105-0408 ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-471-7 01 1 0409- ● ●
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-470-6 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9> (B) LOWER 		1-82660-409-3 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-410-3 01 1 0105- ● ●
467 HARNESS; FACIA
INTAKE HEATER<SL2> PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-411-3 01 1 0105- ● ●
467 HARNESS; FACIA
PE-SERIES ENG<1A0> EXC. FIRE TRUCK<RA9>,INTAKE HEATER<SL2>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-414-3 01 1 0105- ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-440-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-528-3 01 1 0109- ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-441-0 01 1 0105-0108 ● ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-529-4 01 1 0109- ● ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2> (B) LOWER 		1-82660-418-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-451-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-539-3 01 1 0109- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) LOWER 		1-82660-419-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) LOWER 		1-82660-415-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-416-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> INTAKE HEATER<SL2> PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-417-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> PE-SERIES ENG<1A0> EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS>, DELUXECAB(W14) (B) LOWER 		1-82660-420-3 01 1 0105- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-453-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-541-4 01 1 0109- ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-452-0 01 1 0105-0108 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-540-3 01 1 0109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
