Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#12589) — 335 parça

1 19 22 21 5 4 6 20 1 12 14 23 5 340 15 4 13 211 211 13 13 202 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-	●	●
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-133-0	01	1	0105-	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-133-0	01	1	0105-	●	●
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-132-0	01	1	0105-	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-132-0	01	1	0105-	●	●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82191-032-0	02	1	0105-	●	●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	0105-	●	●
5	BULB; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B) 24V 75/70W	1-82194-063-0	02	1	0105-	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) 24V 75/70W	1-82194-063-0	02	1	0105-	●	●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) OUTER 24V 75/70W	1-82193-006-0	02	1	0105-	●	●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) INNER 24V 70W	1-82193-007-0	02	1	0105-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-	●	●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER 24V 70W	1-82114-018-0	02	1	0105-	●	●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	0105-	●	●
12	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	0105-	●	●
12	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	0105-	●	●
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	0105-	●	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	0105-	●	●
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	0105-	●	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	0105-	●	●
14	CAP; BULB,LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	0105-	●	●
14	CAP; BULB,LAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	0105-	●	●
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-	●	●
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-	●	●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 70W	8-97203-926-0	02	1	0105-	●	●
18	SCREW; GEAR CASE EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	0105-	●	●
18	SCREW; GEAR CASE BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	0105-	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-	●	●
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-023-0	16	1	0105-	●	●
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-105-0	04	1	0105-	●	●
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-095-0	08	1	0105-	●	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	0105-	●	●
23	COVER; BULB,HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	0105-	●	●
202	GEAR UNIT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	0105-	●	●
202	GEAR UNIT; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	0105-	●	●
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	0105-0105	●	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	0105-0105	●	●
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	0105-	●	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	0105-	●	●
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	0105-0105	●	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	0105-0105	●	●
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	0105-	●	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	0105-	●	●
340	BULB; POSITION EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	0105-	●	●
340	BULB; POSITION BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	0105-	●	●

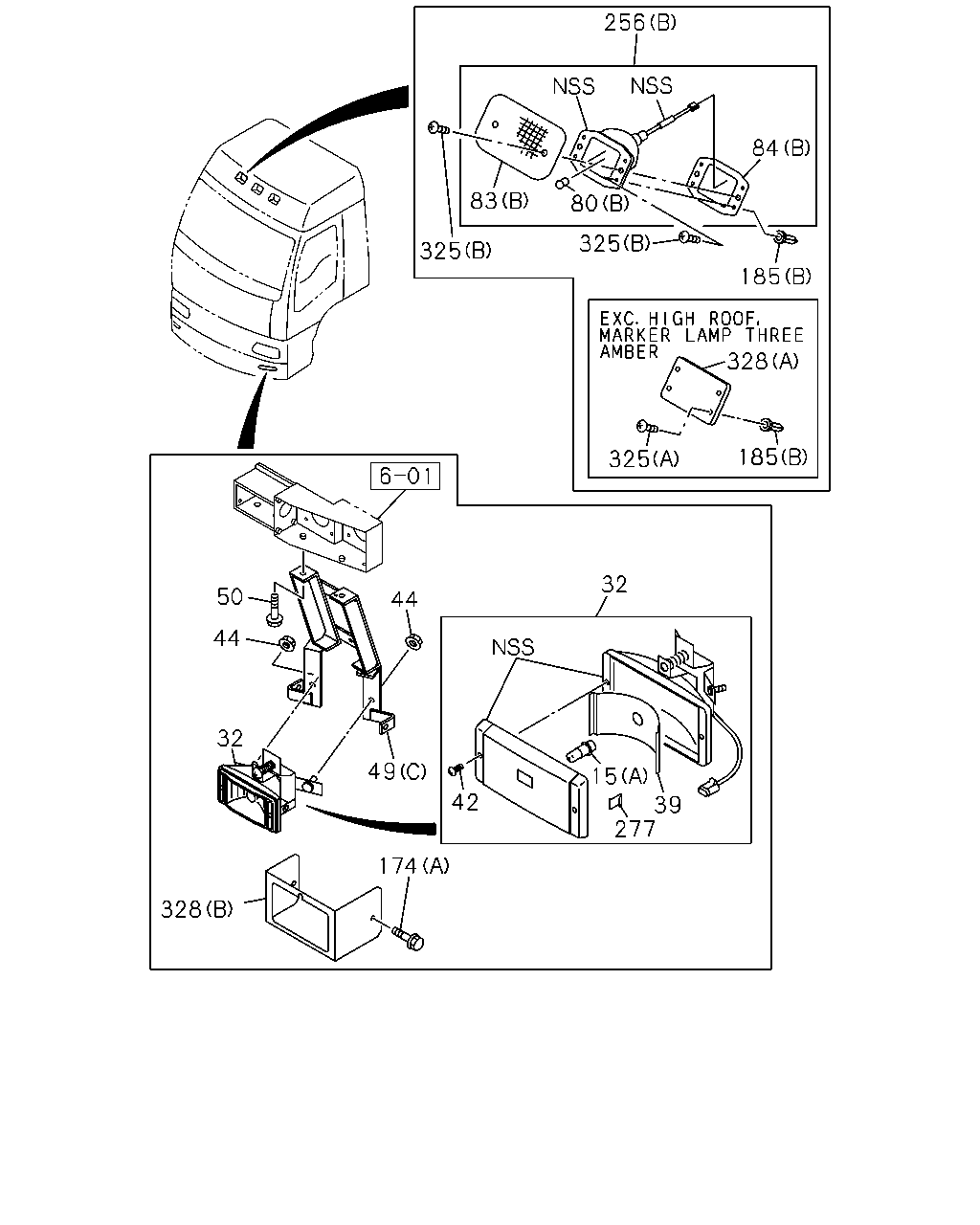

256 174 82 81 83 80 84 80 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 3W	1-82219-035-0	06	1	0105-	●
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0105-	●	●
80	BULB; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B) 24V 12W	9-82691-302-0	03	1	0105-	●	●
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 3W	1-82219-035-0	08	1	0105-		●
81	SEAT; SCREW LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	0105-	●	●
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	0105-	●	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-86830-320-0	03	1	0105-	●	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-321-0	03	1	0105-	●	●
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	0105-	●	●
83	LENS; MARKER LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-82215-068-0	03	1	0105-	●	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	0105-	●	●
84	GASKET; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	0105-	●	●
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	0105-	●	●
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-0305	●	●
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0306-	●	●
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0105-	●
256	LAMP; MARKER HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-82210-229-0	03	1	0105-	●	●
256	LAMP; MARKER HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-82210-230-0	03	1	0105-	●	●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-2	02	1	0105-	●	●
256	LAMP; MARKER MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-86830-170-0	03	1	0105-	●	●
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	08	1	0105-		●

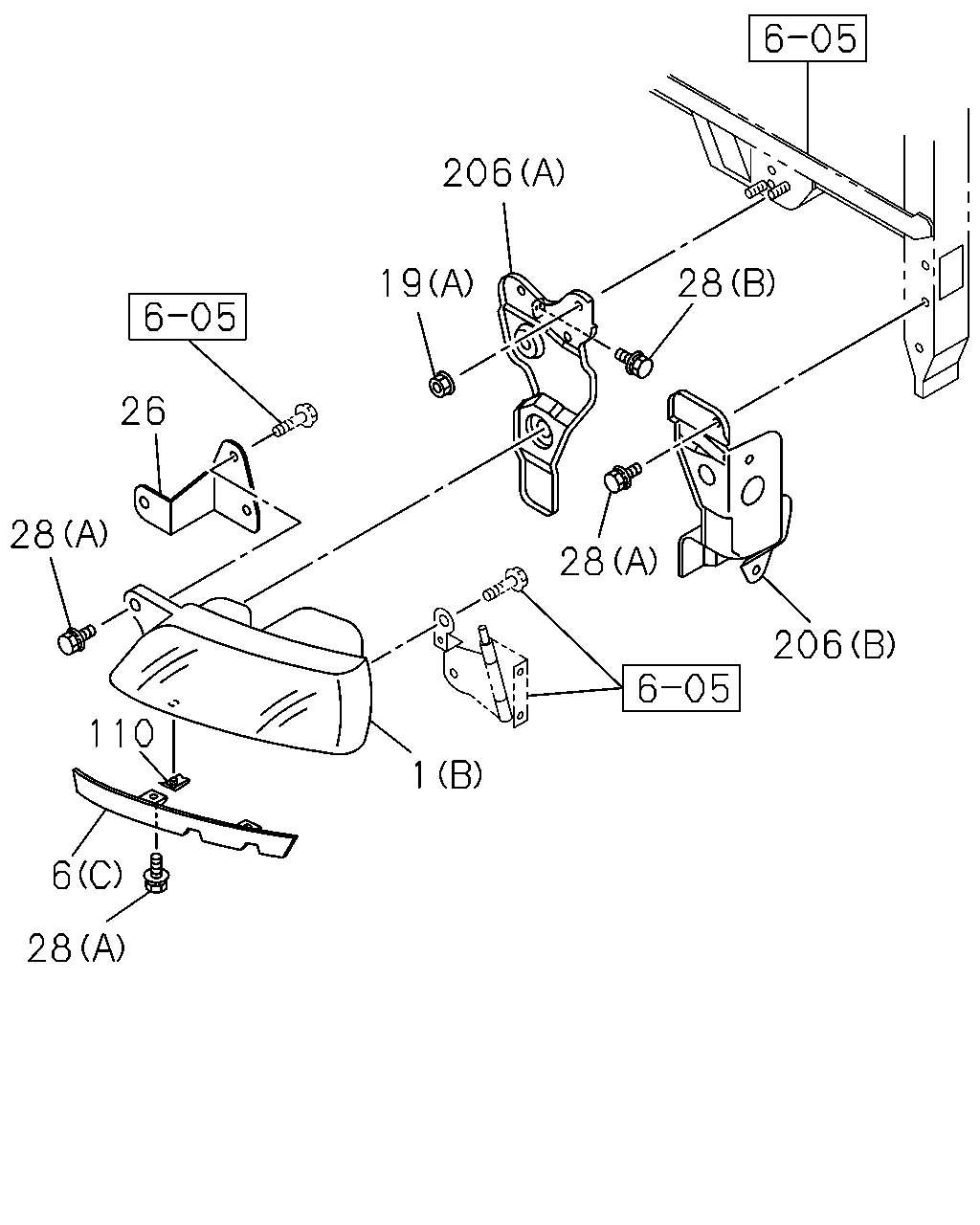

28 206 19 26 28 110 6 28 28 206 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-	●	●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER 24V 70W	1-82114-018-0	02	1	0105-	●	●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	0105-	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	0105-	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	0105-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-0512	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0105-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-1	04	1	0105-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-	●	●

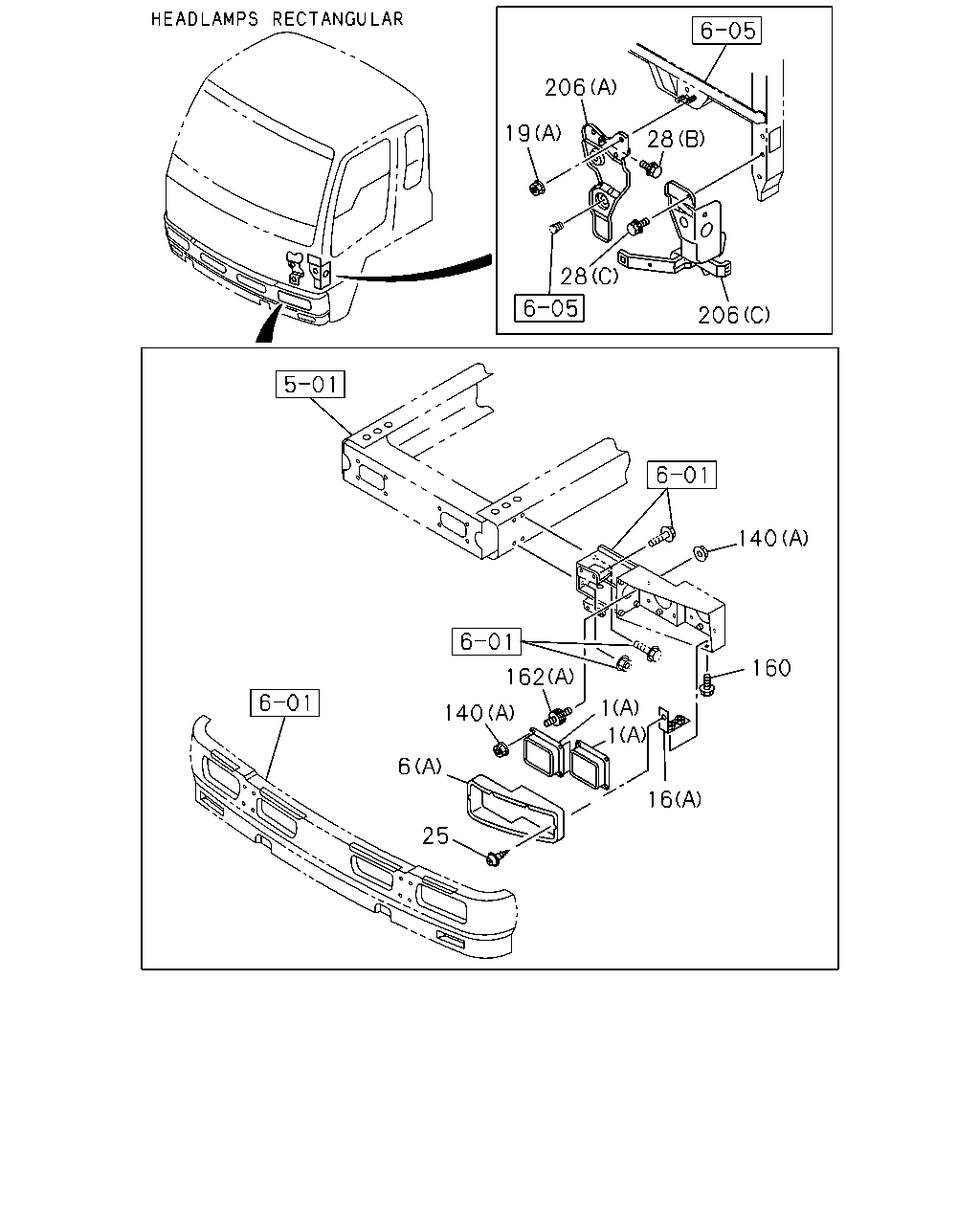

206 19 28 28 206 140 160 162 140 25 1 6 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-	●	●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER 24V 70W	1-82114-018-0	02	1	0105-	●	●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	0105-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-82117-119-2	01	1	0105-0206	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-155-2	02	1	0207-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-82117-120-2	01	1	0105-0206	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-82117-116-1	02	1	0105-0206	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-103-1	04	1	0105-	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-	●	●
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-09104-031-0	08	1	0105-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-0512	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0105-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M5 FLANGE	1-09984-170-0	12	1	0105-	●	●
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M8X16 FLANGE	0-28080-816-0	08	1	0105-0512	●	●
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M8X16 FLANGE	0-28050-816-0	08	1	0601-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-086-0	08	1	0105-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-304-1	16	1	0105-0403	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-166-0	16	1	0404-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-	●	●

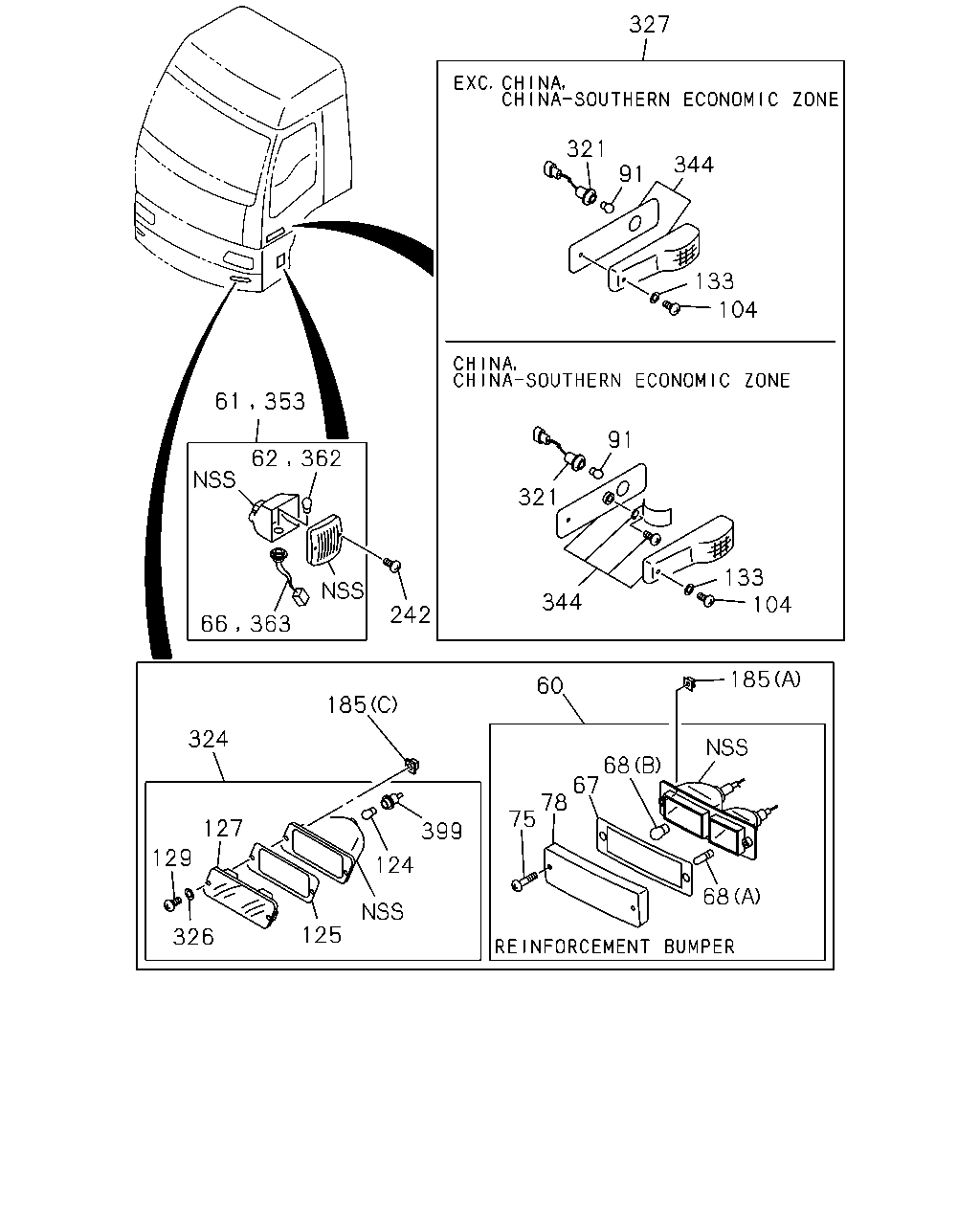

327 321 91 344 133 104 91 321 133 104 344 353 61 62 362 242 363 66 60 68 67 78 75 68 185 399 185 324 127 124 129 326 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	0105-	●	●
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	0105-	●	●
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	0105-	●	●
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	0105-	●	●
61	LAMP ASM; CORNERING CORNERING LAMP<TDS>	1-86830-247-2	01	1	0105-	●	●
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0105-	●	●
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	0105-	●	●
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0105-	●	●
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-297-0	01	1	0105-	●	●
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0105-	●	●
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	0105-	●	●
67	GASKET; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	0105-	●	●
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	0105-	●	●
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	0105-	●	●
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	0105-	●	●
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	0105-	●	●
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	0105-	●	●
75	SCREW; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	0105-	●	●
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	0105-	●	●
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	0105-	●	●
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	0105-	●	●
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	0105-	●	●
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	0105-	●	●
91	BULB; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	0105-	●	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0105-	●	●
124	BULB; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> 24V 21W	1-82194-036-0	02	1	0105-	●	●
125	GASKET; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-033-0	02	1	0105-	●	●
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-065-0	01	1	0105-	●	●
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-064-0	01	1	0105-	●	●
129	SCREW; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-026-0	04	1	0105-	●	●
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0105-0206	●	●
133	WASHER; PL,SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-150-0	02	1	0207-	●	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-	●	●
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (C) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-	●	●
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-	●	●
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0105-0207	●	●
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0208-	●	●
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	0105-0207	●	●
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	02	1	0208-	●	●
321	HARNESS; SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	0105-	●	●
321	HARNESS; SIDE FLASHER LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	0105-	●	●
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-203-1	01	1	0105-	●	●
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-202-1	01	1	0105-	●	●
326	WASHER; PL,FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-032-0	04	1	0105-	●	●
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-228-2	01	1	0105-	●	●
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-227-2	01	1	0105-	●	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	0105-	●	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	0105-	●	●
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	0105-	●	●
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	0105-	●	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	0105-	●	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	0105-	●	●
353	LAMP ASM; STEP EXC. CORNERING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	0105-	●	●
362	BULB; STEP LAMP EXC. CORNERING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	0105-	●	●
363	HARNESS; STEP LAMP EXC. CORNERING LAMP<TDS>	1-86830-296-0	01	1	0105-	●	●
399	SOCKET; TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-034-0	02	1	0105-	●	●

206 19 28 28 206 266 30 49 1 273 49 273 343 28 140 16 28 267 175 171 342 257 162 10 199 199 183 1 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-418-1	01	1	0510-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-0509	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-97609-417-1	01	1	0510-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-	●	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-	●	●
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	02	1	0105-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-82117-119-2	01	1	0105-0206	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-155-2	02	1	0207-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-82117-120-2	01	1	0105-0206	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-82117-116-1	02	1	0105-0206	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-103-1	04	1	0105-	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-0512	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0105-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
30	BOLT; STAY CAB UP +110MM<TGG> FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	0105-0207	●	●
30	BOLT; STAY CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	04	1	0208-0512	●	●
30	BOLT; STAY CAB UP +110MM<TGG> M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	0105-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	0105-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	0105-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-151-0	01	1	0105-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-152-0	01	1	0105-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M5 FLANGE	1-09984-170-0	12	1	0105-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-086-0	08	1	0105-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-304-1	16	1	0105-0403	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-166-0	16	1	0404-	●	●
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91150-106-0	02	1	0105-0602	●	●
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0105-0602	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	0603-	●	●
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5	9-09855-333-0	02	1	0105-	●	●
199	BUSHING BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	5-15549-001-1	04	1	0105-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-	●	●
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-	●	●
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	04	1	0105-0512	●	●
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-128-1	01	1	0105-0207	●	●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG>	1-82117-128-1	01	1	0208-	●	●
267	WASHER; PL,STAY BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=10.5 OD=22	9-09164-610-0	04	1	0207-	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28680-616-0	08	1	0105-0512	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28650-616-0	08	1	0601-	●	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-087-2	01	1	0105-	●	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-088-2	01	1	0105-	●	●
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82119-096-1	02	1	0105-	●	●

256 84 80 83 325 185 325 328 185 325 32 39 15 277 42 44 50 44 32 49 174 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-	●	●
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-	●	●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 70W	8-97203-926-0	02	1	0105-	●	●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-942-0	01	1	0105-0303	●	●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97353-955-1	01	1	0304-	●	●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-940-0	01	1	0105-0303	●	●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97353-954-1	01	1	0304-	●	●
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-929-0	02	1	0105-	●	●
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-931-0	04	1	0105-	●	●
44	NUT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5 CAP NUT	9-61167-090-0	02	1	0105-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	0105-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	0105-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	0105-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-151-0	01	1	0105-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-152-0	01	1	0105-	●	●
50	BOLT; BRKT,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
50	BOLT; BRKT,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 3W	1-82219-035-0	06	1	0105-	●
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0105-	●	●
80	BULB; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B) 24V 12W	9-82691-302-0	03	1	0105-	●	●
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 3W	1-82219-035-0	08	1	0105-		●
83	LENS; MARKER LAMP HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-86830-320-0	03	1	0105-	●	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-321-0	03	1	0105-	●	●
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	0105-	●	●
83	LENS; MARKER LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-82215-068-0	03	1	0105-	●	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	0105-	●	●
84	GASKET; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	0105-	●	●
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	0105-	●	●
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-0305	●	●
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0306-	●	●
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-	●	●
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (C) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-	●	●
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-	●	●
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0105-	●
256	LAMP; MARKER HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-82210-229-0	03	1	0105-	●	●
256	LAMP; MARKER HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-82210-230-0	03	1	0105-	●	●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-2	02	1	0105-	●	●
256	LAMP; MARKER MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-86830-170-0	03	1	0105-	●	●
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	08	1	0105-		●
277	CLIP; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-930-0	02	1	0105-	●	●
325	SCREW; SPD INDICATOR LAMP (A) M5X14 TAPPING	9-07066-514-0	12	1	0105-	●	●
325	SCREW; SPD INDICATOR LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0105-	●	●
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0105-	●	●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-134-0	01	1	0105-	●	●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-135-0	01	1	0105-	●	●
328	COVER; LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (A)	1-76217-122-1	03	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
