Sayfa 7-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶

7-60 — SEAT BELT (#12587) — 59 parça

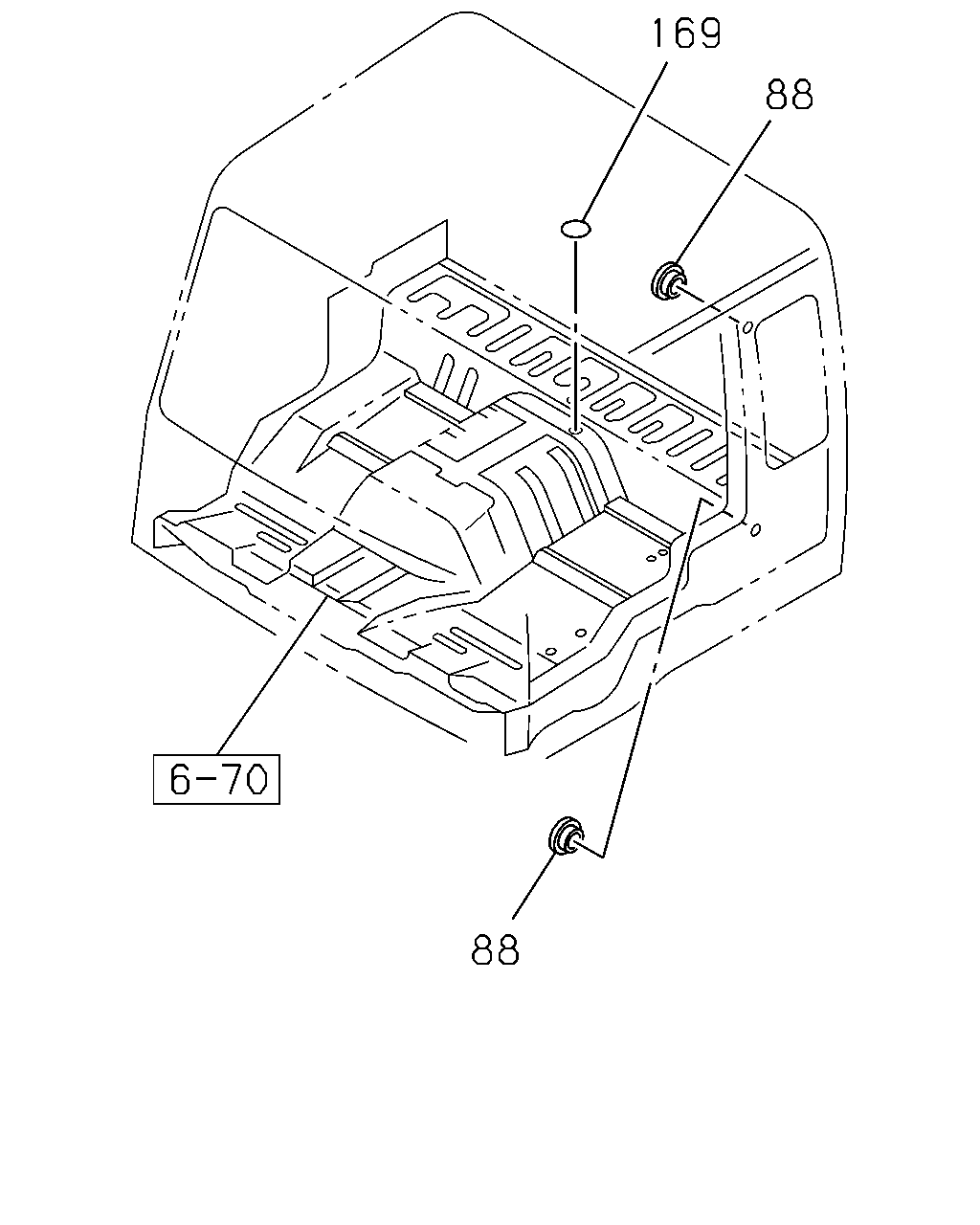

88 169 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	PLUG; HOLE EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6	8-94198-177-0	02	1	0105-	●	●
169	SEAL CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	01	1	0212-	●
169	SEAL EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK	1-76798-019-0	04	1	0105-	●	●

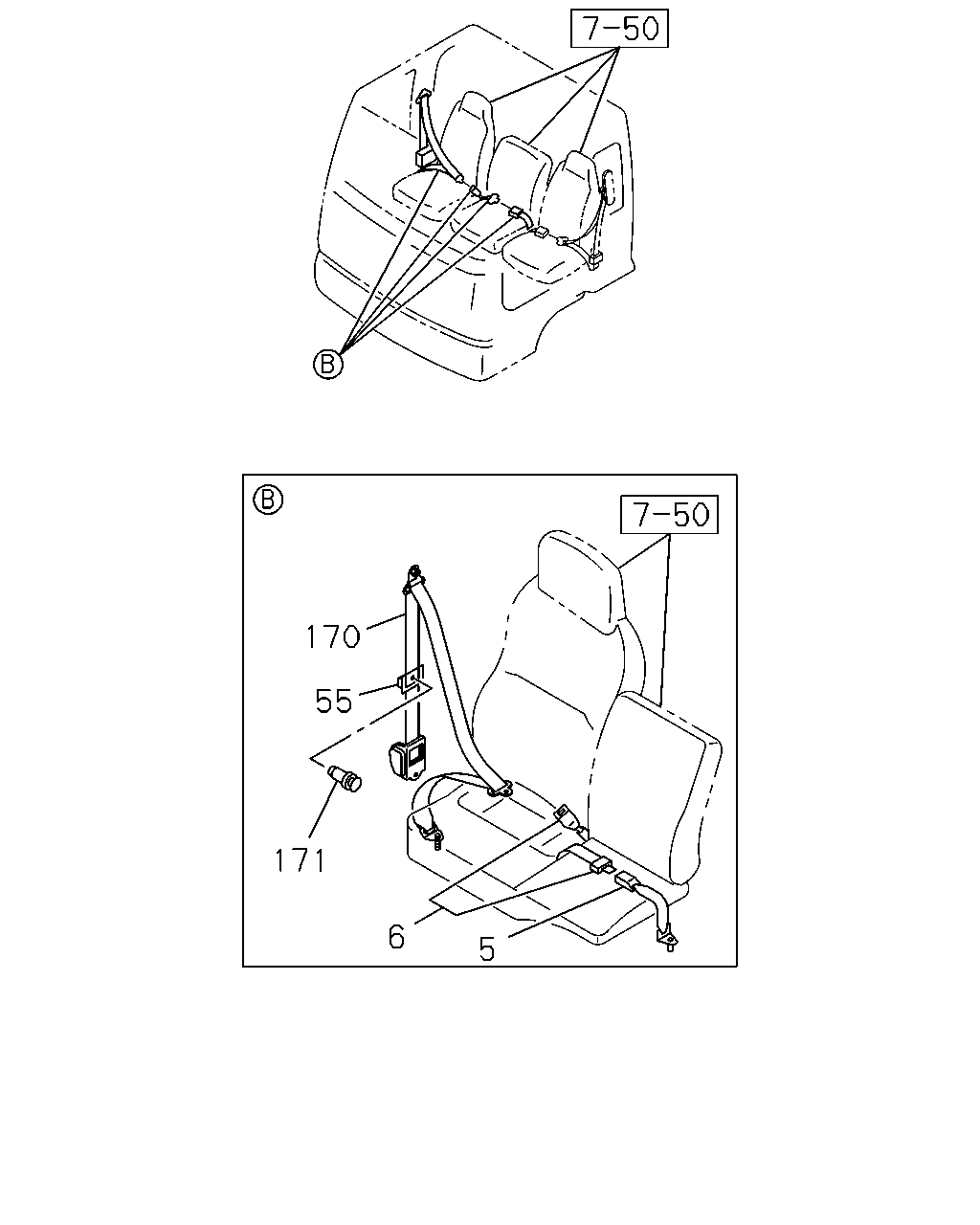

170 55 171 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75617-553-1	01	1	0105-0211	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75617-553-1	01	1	0212-	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CHINA GB VAR1<JAC> EXC. CENTER SEAT DELETE(SP9)	1-75616-092-0	01	1	0303-0401	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. CENTER SEAT DELETE(SP9)	1-75616-092-0	01	1	0402-0406	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. CENTER SEAT DELETE(SP9)	8-97382-652-0	01	1	0407-	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75618-915-2	01	1	0105-0301	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75618-915-3	01	1	0302-0302	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CENTER SEAT DELETE(SP9)	1-75618-915-3	01	1	0303-0401	●	●
6	BELT; CENTER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,CENTER SEAT DELETE(SP9)	1-75618-915-3	01	1	0402-	●	●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)	1-75617-556-0	02	1	0105-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CHINA GB VAR1<JAC> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75616-090-0	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75616-090-0	01	1	0402-0406	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	8-97382-648-0	01	1	0407-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9)	1-75618-911-1	01	1	0302-0302	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>	1-75616-091-0	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75616-091-1	01	1	0402-0406	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	8-97382-650-1	01	1	0407-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75618-936-3	01	1	0105-0302	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>	1-75618-936-3	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75618-936-3	01	1	0402-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN)	1-75618-912-3	01	1	0105-0302	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC>	1-75618-912-3	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75618-912-5	01	1	0402-	●	●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	0105-	●	●

55 171 2 3 55 2 3 2 3 55 4 171 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>	1-75616-089-0	01	1	0303-0401	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75616-089-1	01	1	0402-0406	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	8-97382-647-1	01	1	0407-	●	●
2	BELT; SEAT,TONGUE SIDE CHINA GB VAR1<JAC> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75616-090-0	01	1	0303-0401	●	●
2	BELT; SEAT,TONGUE SIDE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75616-090-0	01	1	0402-0406	●	●
2	BELT; SEAT,TONGUE SIDE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	8-97382-648-0	01	1	0407-	●	●
2	BELT; SEAT,TONGUE SIDE DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN)	1-75617-576-0	01	1	0105-0111	●	●
2	BELT; SEAT,TONGUE SIDE DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN)	1-75617-580-0	01	1	0112-	●	●
2	BELT; SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75618-936-3	01	1	0105-0302	●	●
2	BELT; SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>	1-75618-936-3	01	1	0303-0401	●	●
2	BELT; SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75618-936-3	01	1	0402-	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)	1-75618-909-3	01	1	0105-0302	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC>	1-75618-909-3	01	1	0303-0401	●	●
2	BELT; SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75618-909-5	01	1	0402-	●	●
3	BELT; SEAT,BUCKLE SIDE DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN)	1-75617-544-0	01	1	0105-	●	●
3	BELT; SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75618-914-0	01	1	0105-	●	●
4	BELT; PASSENGER SEAT,BUCKLE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9)	1-75618-911-1	01	1	0303-	●
55	GUIDE; SEAT BELT EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)	1-75617-556-0	02	1	0105-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CHINA GB VAR1<JAC> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75616-090-0	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75616-090-0	01	1	0402-0406	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	8-97382-648-0	01	1	0407-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9)	1-75618-911-1	01	1	0302-0302	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>	1-75616-091-0	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75616-091-1	01	1	0402-0406	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	8-97382-650-1	01	1	0407-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)	1-75618-936-3	01	1	0105-0302	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>	1-75618-936-3	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75618-936-3	01	1	0402-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN)	1-75618-912-3	01	1	0105-0302	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC>	1-75618-912-3	01	1	0303-0401	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-75618-912-5	01	1	0402-	●	●
171	CLIP; SEAT BELT GUIDE	1-09987-239-0	02	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
