Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#12586) — 316 parça

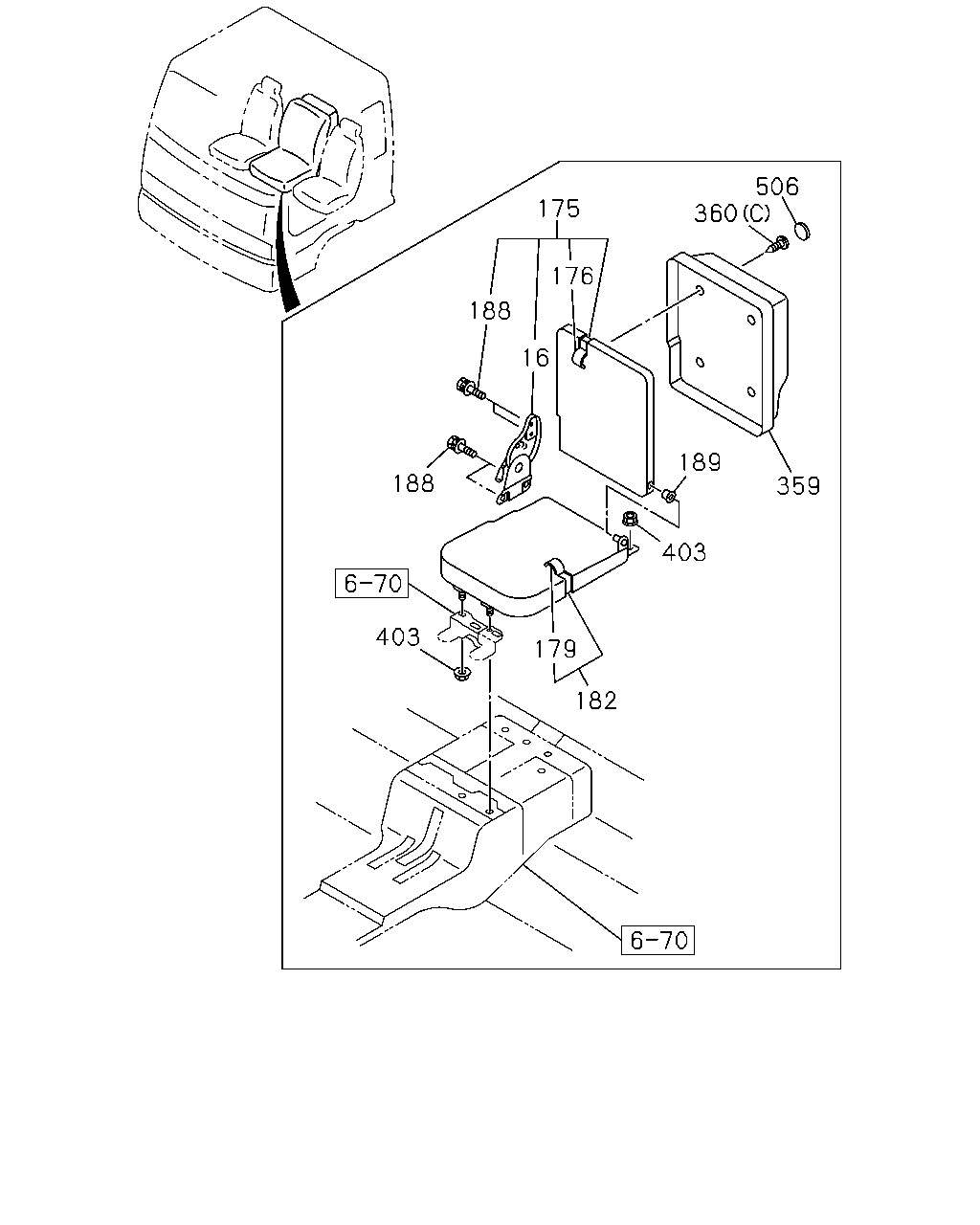

506 360 175 176 188 16 189 359 403 188 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING	1-75418-062-0	01	1	0105-0301	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9)	1-75418-062-1	01	1	0302-	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0302-		●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-258-0	01	1	0105-0301	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75207-258-2	01	1	0302-	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-856-0	01	1	0105-0301	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75026-856-2	01	1	0302-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-078-0	01	1	0105-0301	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75127-078-1	01	1	0302-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-710-0	01	1	0105-0301	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75116-710-1	01	1	0302-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-073-0	01	1	0105-0301	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75127-073-1	01	1	0302-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-127-0	01	1	0105-0301	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75127-127-1	01	1	0302-	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-305-0	01	1	0105-0301	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9)	1-75207-305-2	01	1	0302-	●	●
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-009-0	01	1	0105-0301	●	●
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9)	1-75207-009-2	01	1	0302-	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0105-0301	●	●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0302-	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0302-		●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0105-0301	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0302-	●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0302-		●

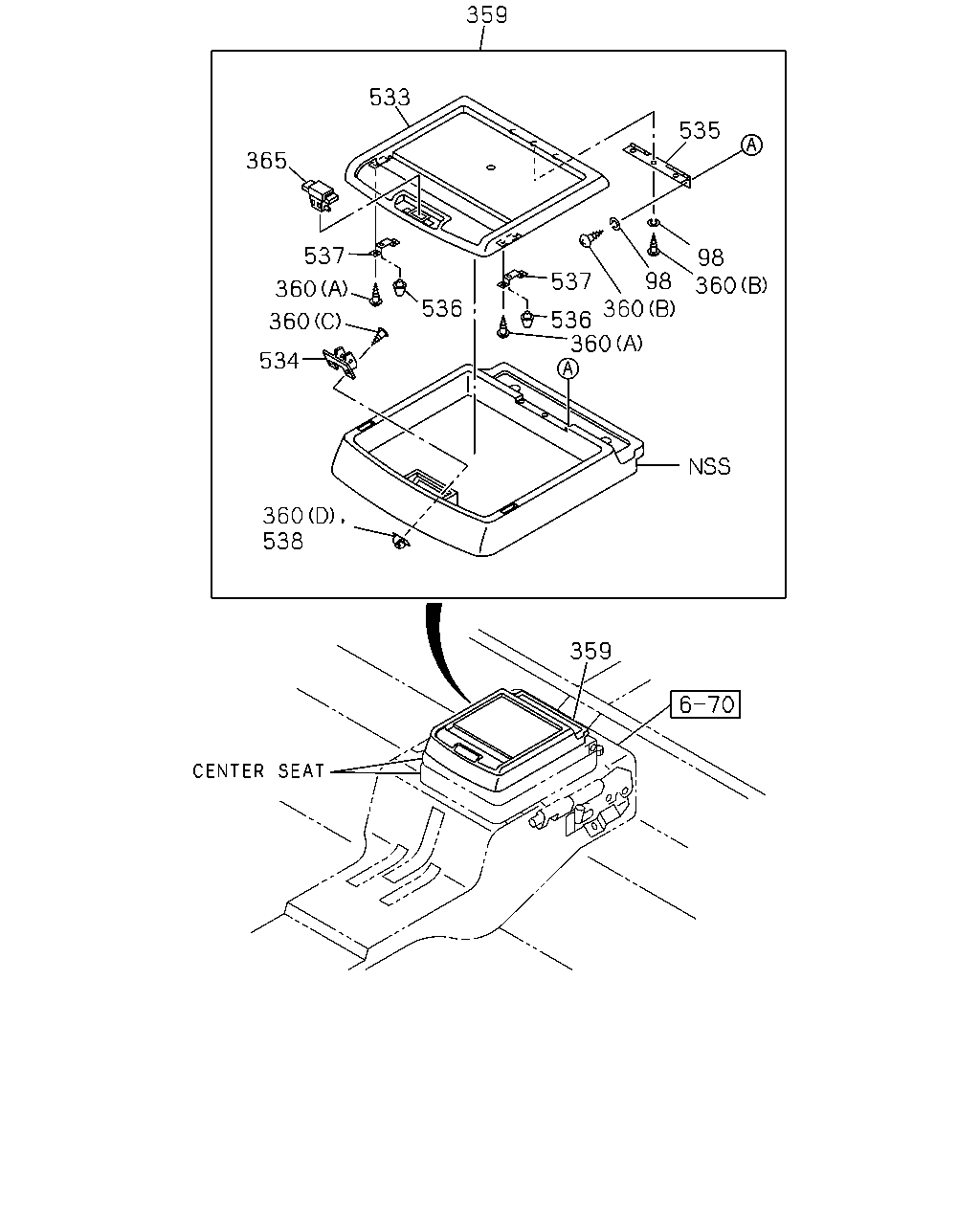

359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211	●	●
359	BOX; PARCEL	1-72538-275-0	01	1	0212-0301	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0302-	●
359	BOX; PARCEL	1-72538-275-3	01	1	0302-		●
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0302-0310	●
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0302-0310		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0302-	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0302-		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0105-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0302-	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0302-		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0302-0310	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0302-0310		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-		●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0302-0310	●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0302-0310		●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-504-1	04	1	0105-0206	●	●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0207-0211	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0212-0312	●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0212-0312		●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-	●
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-		●
506	CAP; PARCEL BOX	1-09983-164-0	04	1	0105-0211	●	●
506	CAP; PARCEL BOX	1-09983-180-0	04	1	0212-0301	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-2	04	1	0302-	●
506	CAP; PARCEL BOX	1-09983-180-2	04	1	0302-		●

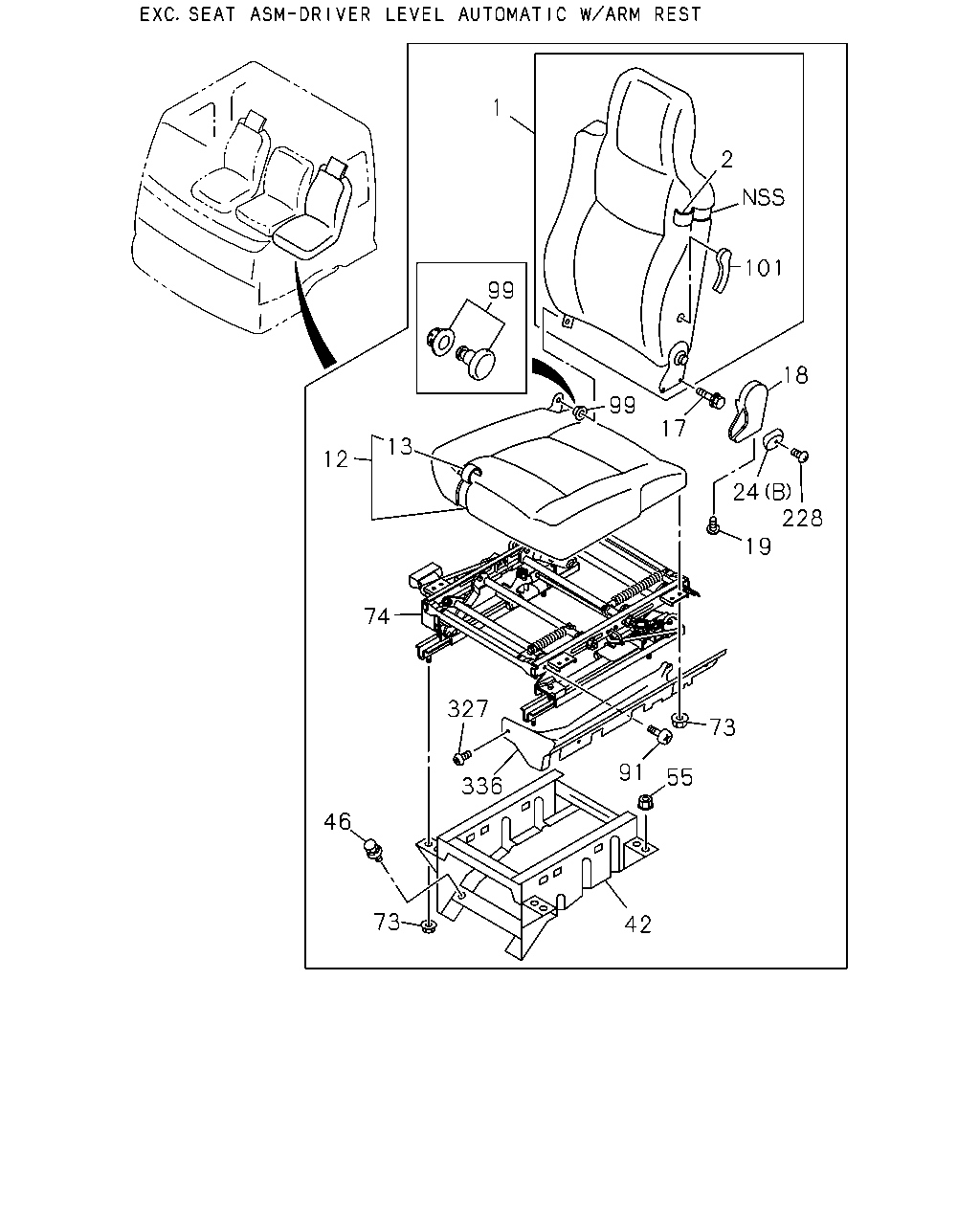

1 2 101 18 99 99 17 24 228 19 13 12 74 327 73 55 91 336 46 73 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-660-1	01	1	0401-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-289-3	01	1	0105-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-291-3	01	1	0105-	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-290-1	01	1	0105-0312	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DRIVER	1-75207-290-3	01	1	0401-	●	●
2	COVER; TRIM,FRT SEAT,BACK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-176-0	01	1	0401-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-115-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-117-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-116-0	01	1	0105-0312	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-75127-116-1	01	1	0401-	●	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) DRIVER	1-75207-288-2	01	1	0105-	●	●
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-006-2	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) DRIVER	1-75127-114-1	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-104-1	01	1	0105-	●	●
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT M8X20	8-97255-906-0	02	1	0105-	●	●
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT M8X20	8-97255-906-0	02	1	0105-	●	●
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT DARK GRAY	8-97859-018-0	01	1	0105-	●	●
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT DARK GRAY	8-97859-018-0	01	1	0105-	●	●
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0105-	●	●
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0105-	●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-75518-331-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	1-75518-331-1	01	1	0105-	●	●
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-	●	●
91	SCREW; SEAT ADJ COVER FABRIC SEAT W/RECLINING(SFQ) DRIVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-	●	●
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	8-97854-087-0	01	1	0105-	●	●
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ) DRIVER	8-97854-087-0	01	1	0105-	●	●
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	5-75190-138-0	01	1	0105-0312	●	●
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	5-75190-138-0	01	1	0105-0312	●	●
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DRIVER SEAT	5-75190-138-0	01	1	0401-	●	●
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	5-75190-138-0	01	1	0401-	●	●
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-	●	●
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-09987-273-0	01	1	0105-	●	●
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	1-09987-273-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-313-0	01	1	0105-	●	●

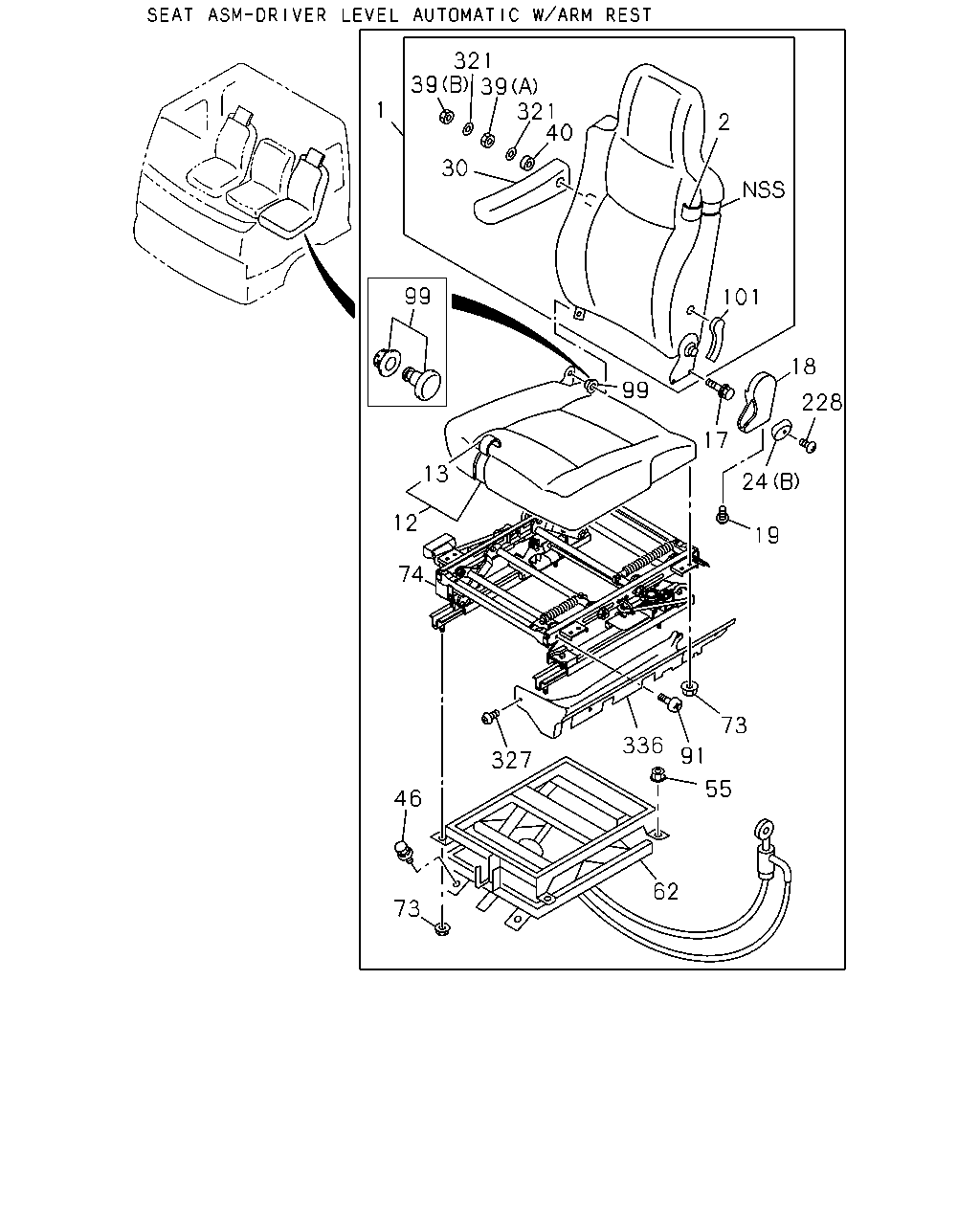

1 39 321 39 321 40 30 2 101 18 228 24 17 99 99 13 12 74 19 73 55 91 336 327 46 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-660-1	01	1	0401-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-289-3	01	1	0105-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-291-3	01	1	0105-	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-290-1	01	1	0105-0312	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DRIVER	1-75207-290-3	01	1	0401-	●	●
2	COVER; TRIM,FRT SEAT,BACK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-176-0	01	1	0401-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-115-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-117-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-116-0	01	1	0105-0312	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-75127-116-1	01	1	0401-	●	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) DRIVER	1-75207-288-2	01	1	0105-	●	●
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75207-006-2	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) DRIVER	1-75127-114-1	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-104-1	01	1	0105-	●	●
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT M8X20	8-97255-906-0	02	1	0105-	●	●
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT M8X20	8-97255-906-0	02	1	0105-	●	●
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT DARK GRAY	8-97859-018-0	01	1	0105-	●	●
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT DARK GRAY	8-97859-018-0	01	1	0105-	●	●
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0105-	●	●
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75127-120-1	01	1	0105-	●	●
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER SEAT M8	1-75147-657-0	01	1	0105-	●	●
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DRIVER SEAT M10	9-09110-410-0	01	1	0105-	●	●
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	8-94285-921-0	02	1	0105-	●	●
46	BOLT; STAND TO FLOOR DRIVER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-	●	●
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-75518-331-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	1-75518-331-1	01	1	0105-	●	●
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-	●	●
91	SCREW; SEAT ADJ COVER FABRIC SEAT W/RECLINING(SFQ) DRIVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-	●	●
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	8-97854-087-0	01	1	0105-	●	●
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ) DRIVER	8-97854-087-0	01	1	0105-	●	●
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	5-75190-138-0	01	1	0105-0312	●	●
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	5-75190-138-0	01	1	0105-0312	●	●
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DRIVER SEAT	5-75190-138-0	01	1	0401-	●	●
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	5-75190-138-0	01	1	0401-	●	●
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-	●	●
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT ID=10.5 OD=22	9-09160-610-0	01	1	0105-	●	●
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT ID=8.4 OD=22	9-09164-708-0	01	1	0105-	●	●
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-09987-273-0	01	1	0105-	●	●
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	1-09987-273-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-313-0	01	1	0105-	●	●

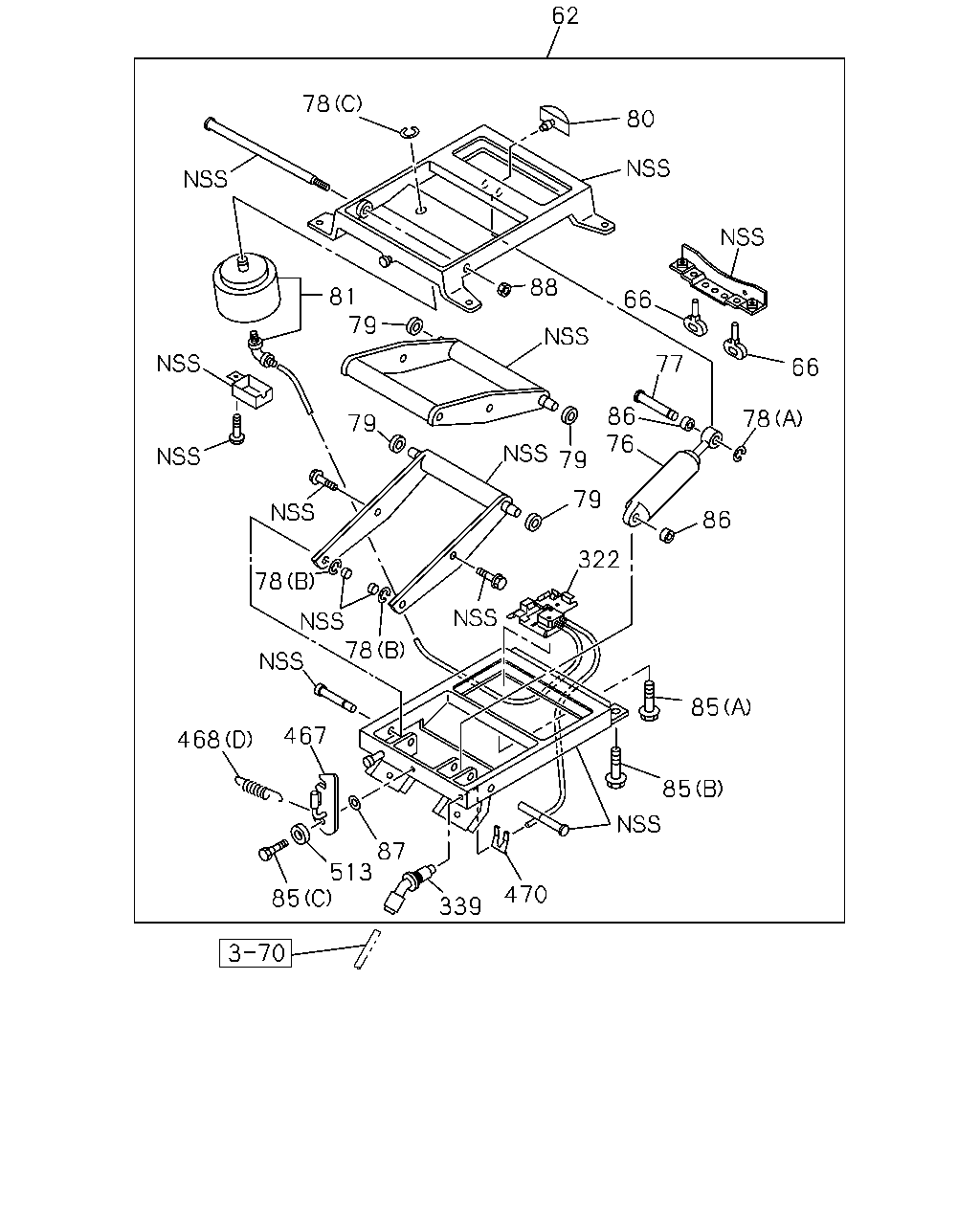

62 78 81 79 88 66 66 77 86 76 79 79 86 322 78 79 78 78 467 468 87 513 85 85 85 470 339 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0105-	●	●
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-	●	●
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0105-	●	●
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0406	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-	●	●
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-	●	●
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0105-	●	●
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0105-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0105-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0105-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-	●	●
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-	●	●
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-	●	●
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	0105-	●	●
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	0105-	●	●
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0105-	●	●
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	0105-	●	●
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-	●	●
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-	●	●

359 533 535 365 537 360 360 534 536 360 538 537 98 98 360 360 536 360 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-	●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-		●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0105-0211	●	●
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211	●	●
359	BOX; PARCEL	1-72538-275-0	01	1	0212-0301	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0302-	●
359	BOX; PARCEL	1-72538-275-3	01	1	0302-		●
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0302-0310	●
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0302-0310		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0302-	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0302-		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0105-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0302-	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0302-		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0302-0310	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0302-0310		●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-		●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0301	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0302-0310	●
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0302-0310		●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0105-0301	●	●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0302-	●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0302-		●
533	LID; PARCEL BOX	1-72538-194-2	01	1	0105-0211	●	●
533	LID; PARCEL BOX	1-72538-277-0	01	1	0212-0301	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-0	01	1	0302-	●
533	LID; PARCEL BOX	1-72538-277-0	01	1	0302-		●
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	0105-0301	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0302-	●
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	0302-		●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0105-0301	●	●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0302-	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0302-		●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0105-0301	●	●
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0302-	●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0302-		●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0105-0301	●	●
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0302-	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0302-		●
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-	●
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-		●

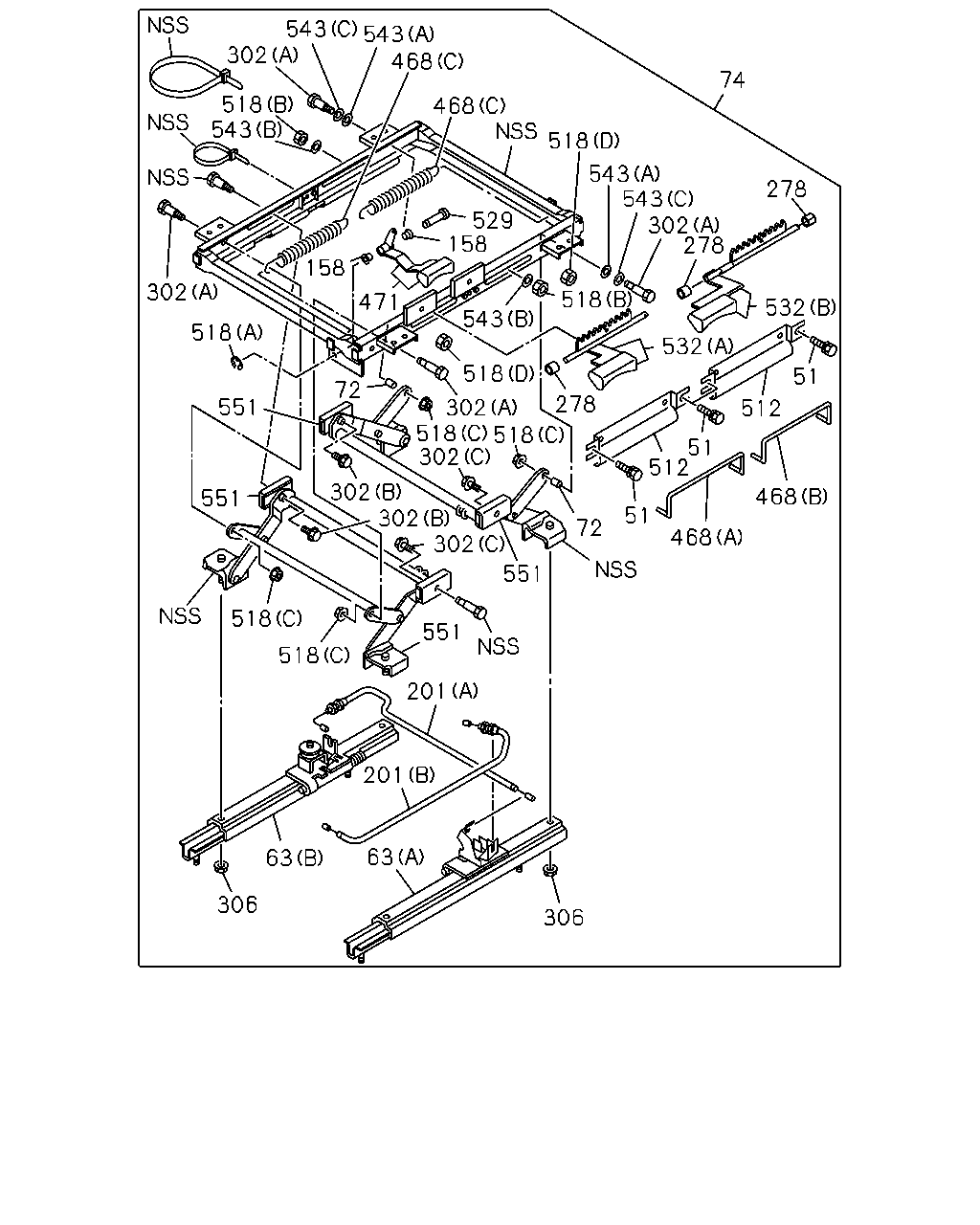

74 278 278 302 543 543 518 468 468 543 543 302 518 543 302 518 551 551 529 158 158 471 543 518 518 532 532 51 512 51 512 51 72 278 302 518 518 302 302 302 302 551 551 518 518 201 201 63 306 63 306 468 468 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	0105-	●	●
51	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-325-1	04	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-227-1	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-324-0	01	1	0105-	●	●
72	SPACER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-1	02	1	0105-	●	●
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-334-1	02	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER SEAT	1-75518-331-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) DRIVER SEAT	1-75518-331-1	01	1	0105-	●	●
158	BUSHING; LINK ARM EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0105-	●	●
158	BUSHING; LINK ARM FABRIC SEAT W/RECLINING(SFQ)	1-75518-209-0	02	1	0105-	●	●
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0105-	●	●
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (A) L=667	1-75518-288-0	01	1	0105-	●	●
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0105-	●	●
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (B) L=605	1-75518-289-1	01	1	0105-	●	●
278	COLLAR; FRT SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0105-	●	●
278	COLLAR; FRT SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-244-0	03	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-266-2	02	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-270-1	04	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-336-1	02	1	0105-	●	●
306	NUT; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0105-	●	●
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	06	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	0105-	●	●
471	LEVER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0105-	●	●
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-290-0	01	1	0105-	●	●
512	COVER; LEVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-1	02	1	0105-	●	●
512	COVER; LEVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-245-1	02	1	0105-	●	●
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-263-0	01	1	0105-	●	●
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-264-0	04	1	0105-	●	●
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-	●	●
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE	8-94152-886-0	04	1	0105-	●	●
529	PIN; LINK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0105-	●	●
529	PIN; LINK FABRIC SEAT W/RECLINING(SFQ)	1-75518-262-0	01	1	0105-	●	●
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0105-	●	●
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-221-0	01	1	0105-	●	●
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0105-	●	●
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-222-1	01	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-335-0	02	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0105-0312	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-337-0	02	1	0105-0312	●	●
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-75518-337-0	02	1	0401-0406	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-337-0	02	1	0401-0406	●	●
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (B) ID=6.4	9-09160-506-0	04	1	0105-	●	●
551	SLIDER; HEIGHT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0105-	●	●
551	SLIDER; HEIGHT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-265-0	04	1	0105-	●	●

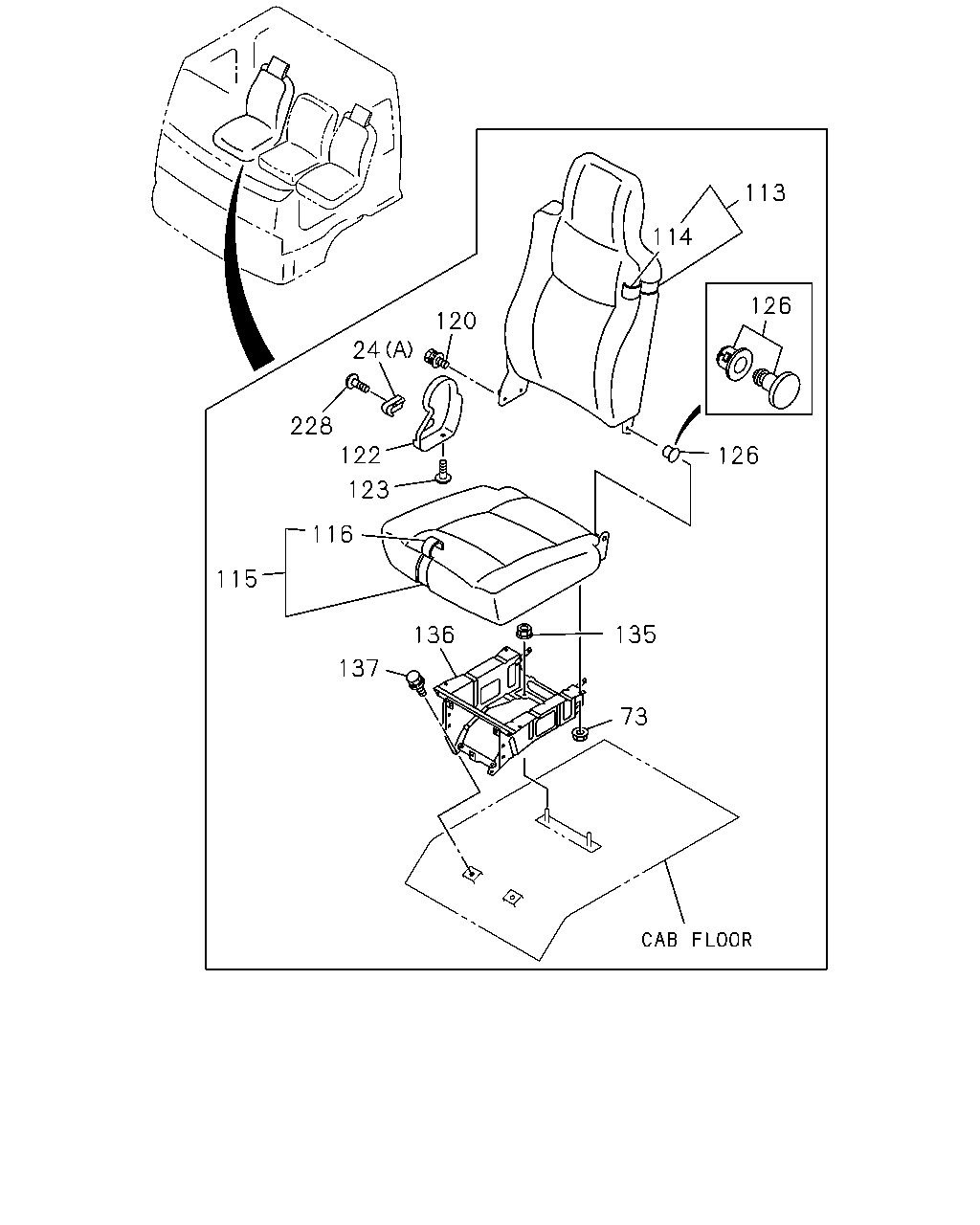

113 114 126 126 120 24 228 122 123 116 115 137 136 135 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) PASSENGER	1-75207-301-4	01	1	0105-	●	●
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ) PASSENGER	1-75026-728-0	01	1	0105-0105	●	●
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ) PASSENGER	1-75208-067-3	01	1	0106-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-125-1	01	1	0105-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-702-1	01	1	0105-	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-298-1	01	1	0105-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-367-1	01	1	0105-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-122-1	01	1	0105-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-133-1	01	1	0105-	●	●
120	BOLT; RECLINING ADJ PASSENGER SEAT M8X20	8-97255-906-0	02	1	0105-	●	●
122	COVER; ADJ,RECLINING PASSENGER SEAT DARK GRAY	8-97867-020-0	01	1	0105-	●	●
123	SCREW; COVER,RECLINING PASSENGER SEAT M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
126	BUSHING; HINGE,RECLINING PASSENGER SEAT	8-97854-087-0	01	1	0105-	●	●
135	NUT; SEAT STAND PASSENGER SEAT M10 FLANGE	1-09984-153-0	02	1	0105-	●	●
136	STAND; PASSENGER SEAT	1-75557-493-1	01	1	0105-0212	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0301-	●	●
137	BOLT; STAND PASSENGER SEAT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-	●	●
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
