◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#12585) — 12 parça

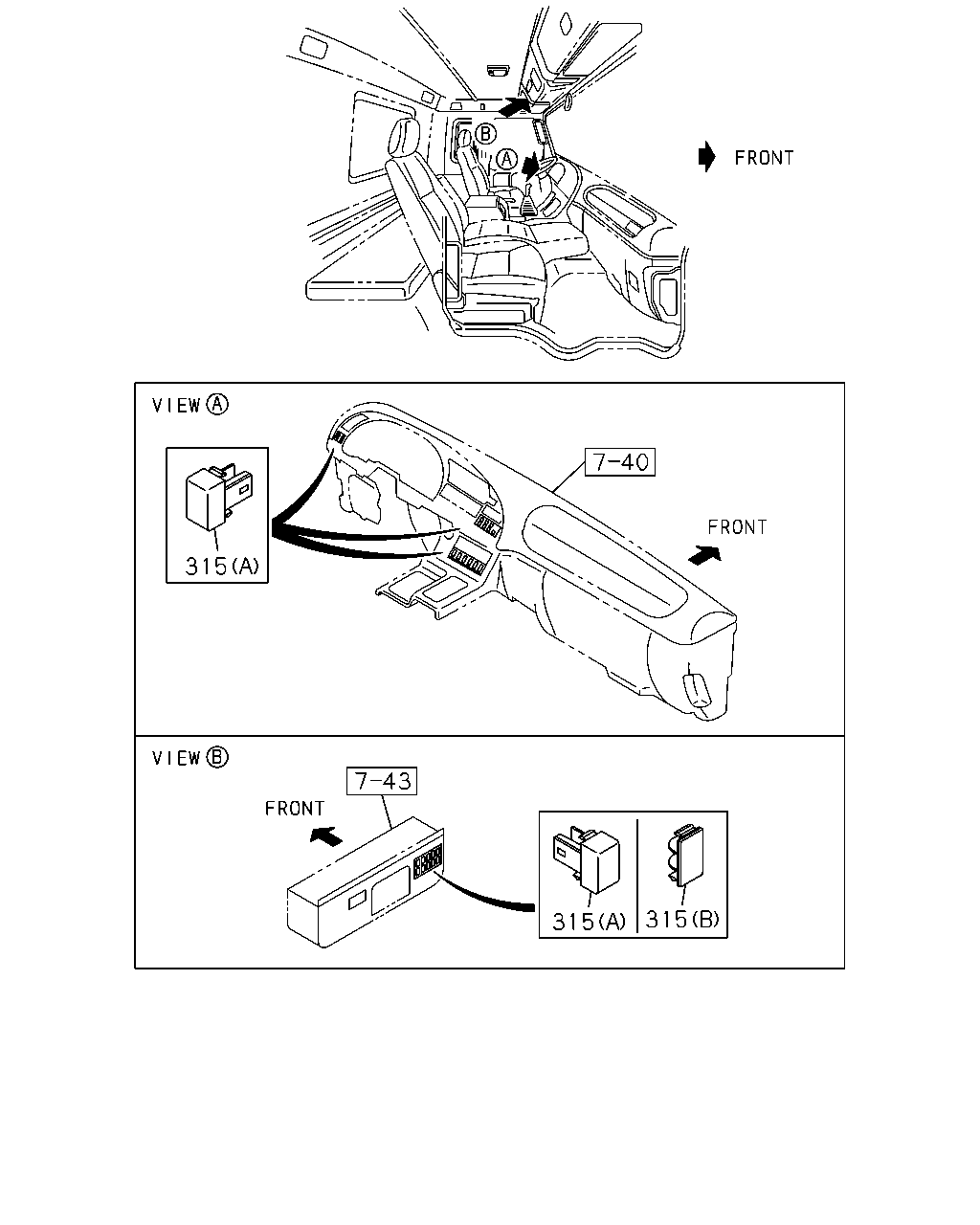

çizim 19817
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-97043-732-1 06 1 0205- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0105- ● ●
çizim 79590
116 37 36 296 317 242 250
BalonParca AdiParca NoAdetTipApplied Date A B
36 FASTENER; CENTER CONSOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) D8X13.5 		1-09987-248-1 02 1 0105- ● ●
37 SCREW; CONSOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 0105- ● ●
116 COVER; HOLE,CONSOLE,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-76337-461-0 02 1 0105- ● ●
242 TRAY ASM; CTR CONSOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-72537-214-0 01 1 0105- ● ●
250 GROMMET; CONSOLE BOX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0401- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0105-0312 ● ●
250 GROMMET; CONSOLE BOX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0401- ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0105-0303 ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0304- ● ●
317 CONSENT 1-82523-020-2 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
