Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#12584) — 164 parça

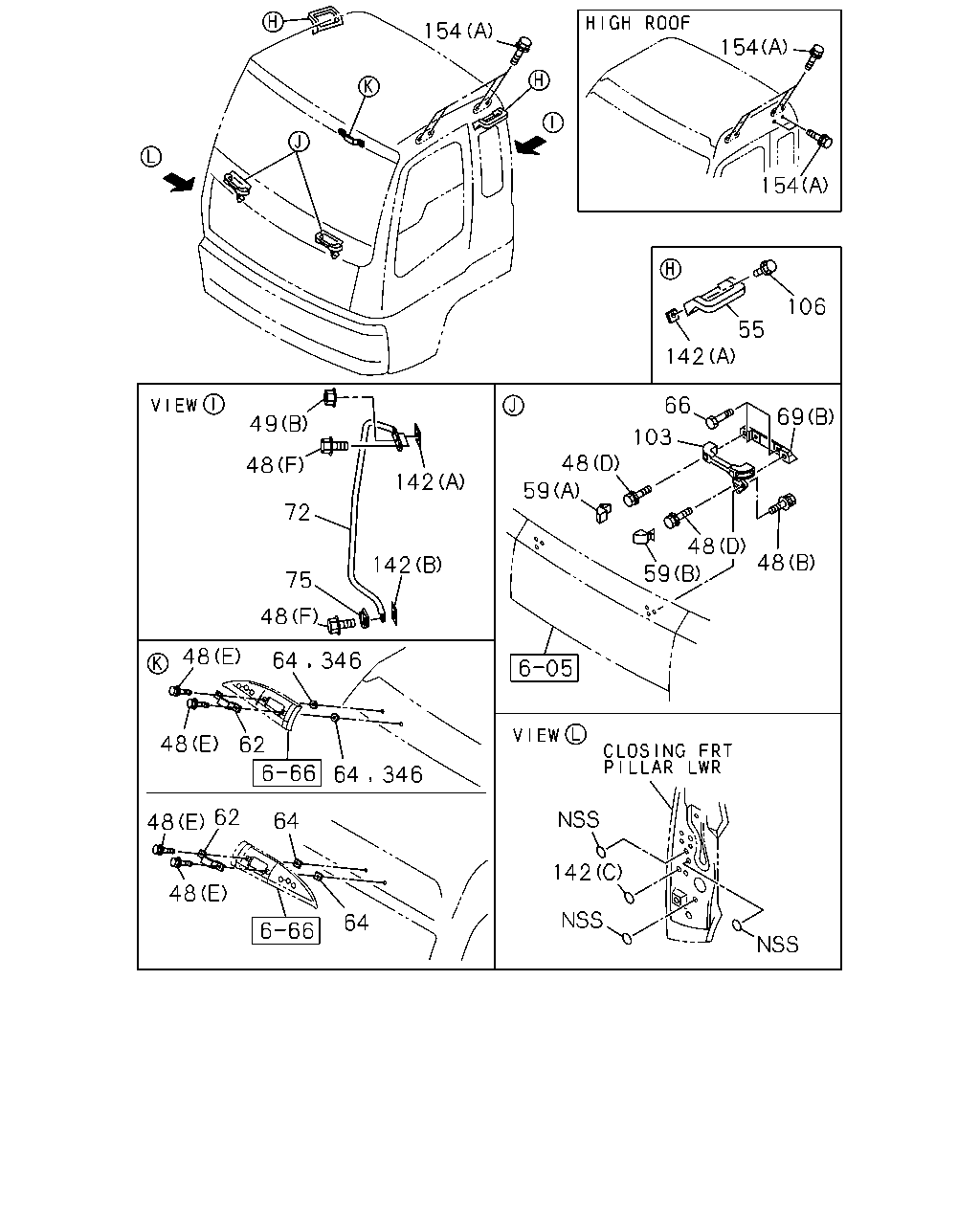

154 154 154 106 55 142 69 66 103 48 48 59 48 59 142 142 49 48 72 75 48 346 64 48 346 64 62 48 64 62 48 48 64 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-0411	●	●
48	BOLT; ASSIST GRIP BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●	●
48	BOLT; ASSIST GRIP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●	●
48	BOLT; ASSIST GRIP 6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> W-SERIES ENG<1A2> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	02	1	0105-0602	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-0110	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	0105-	●	●
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0105-	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0105-	●	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0105-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-0105	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0106-	●	●
64	SHEET; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0106-	●	●
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0106-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	0105-0110	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	0105-0110	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> PE-SERIES ENG<1A0>	1-71997-548-0	01	1	0105-0110	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> W-SERIES ENG<1A2>	1-71997-548-0	02	1	0105-0110	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-0411	●	●
103	GRIP; ASSIST,FRT PNL BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-71998-940-3	01	1	0412-	●	●
103	GRIP; ASSIST,FRT PNL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71998-940-3	01	1	0412-	●	●
103	GRIP; ASSIST,FRT PNL 6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71998-940-3	01	1	0412-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-0411	●	●
103	GRIP; ASSIST,FRT PNL BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-71998-939-3	01	1	0412-	●	●
103	GRIP; ASSIST,FRT PNL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71998-939-3	01	1	0412-	●	●
103	GRIP; ASSIST,FRT PNL 6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71998-939-3	01	1	0412-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0105-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (B)	1-71997-691-0	02	1	0105-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> W-SERIES ENG<1A2> (B)	1-71997-691-0	01	1	0105-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> W-SERIES ENG<1A2> (A) 25X25	8-94272-533-0	02	1	0105-0110	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-	●	●
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09985-344-0	02	1	0105-	●	●

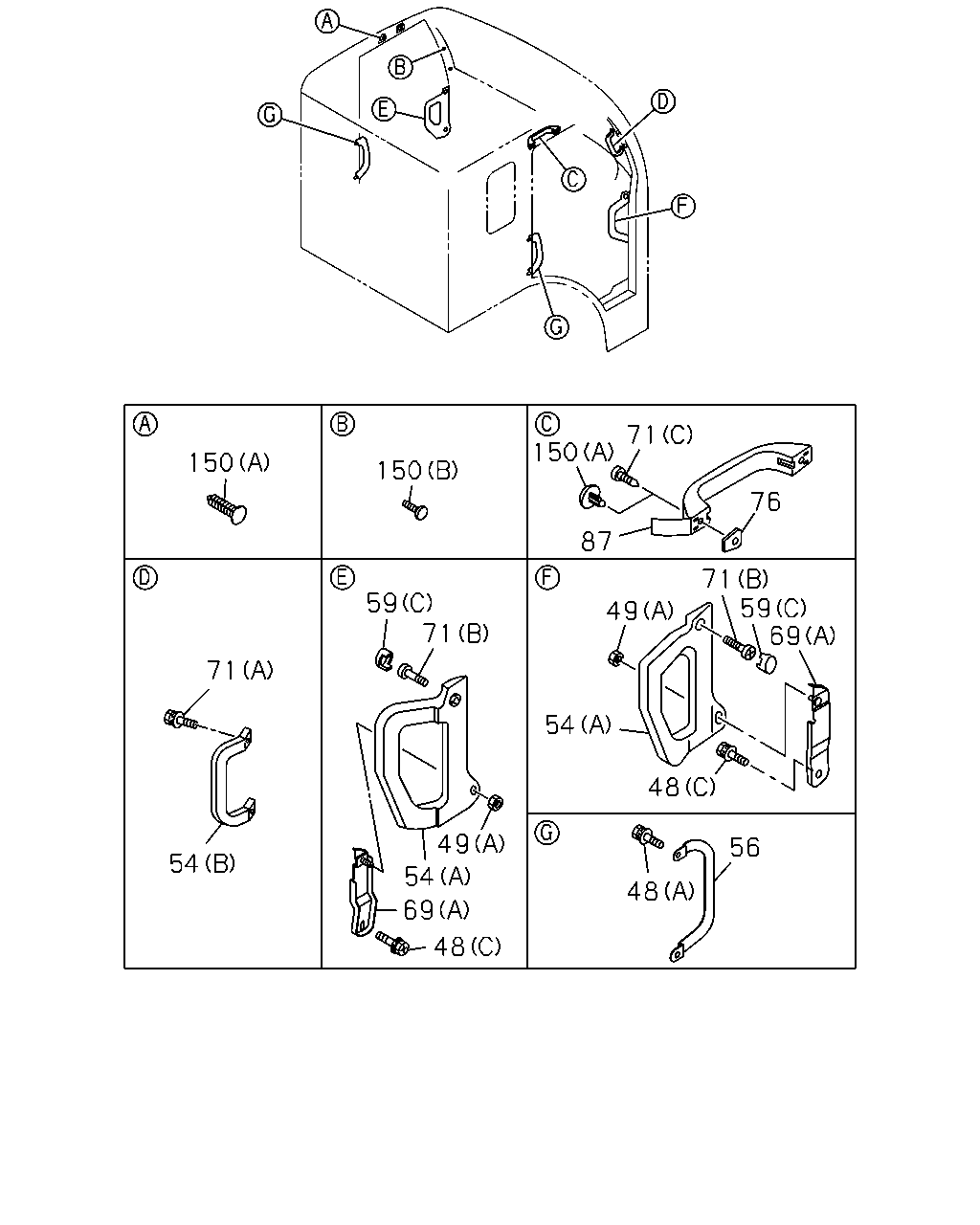

150 150 150 71 87 76 71 59 69 49 54 48 56 48 59 71 71 49 54 69 48 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-0411	●	●
48	BOLT; ASSIST GRIP BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●	●
48	BOLT; ASSIST GRIP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●	●
48	BOLT; ASSIST GRIP 6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> W-SERIES ENG<1A2> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	02	1	0105-0602	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-0110	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0105-0207	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0208-	●	●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	01	1	0105-0207	●	●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0208-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0105-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0207	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0301	●	●
71	SCREW EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0302-0310	●	●
71	SCREW EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0401	●	●
71	SCREW EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0402-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-0207	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0302-0401	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0402-	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0105-0301	●	●
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC> ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	04	1	0302-0401	●	●
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	04	1	0402-	●	●
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F>	1-73618-180-0	02	1	0105-0301	●	●
76	SPACER; ASSIST GRIP EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>	1-73618-180-0	02	1	0302-0401	●	●
76	SPACER; ASSIST GRIP EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F>	1-73618-180-0	02	1	0402-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-0301	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0302-0401	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0402-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. CHINA GB VAR1<JAC>,ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0302-0401	●	●
150	CLIP; ASSIST GRIP HOLE EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0402-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-0301	●	●
150	CLIP; ASSIST GRIP HOLE CHINA GB VAR1<JAC> EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0302-0401	●	●
150	CLIP; ASSIST GRIP HOLE CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0402-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-0207	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-	●	●

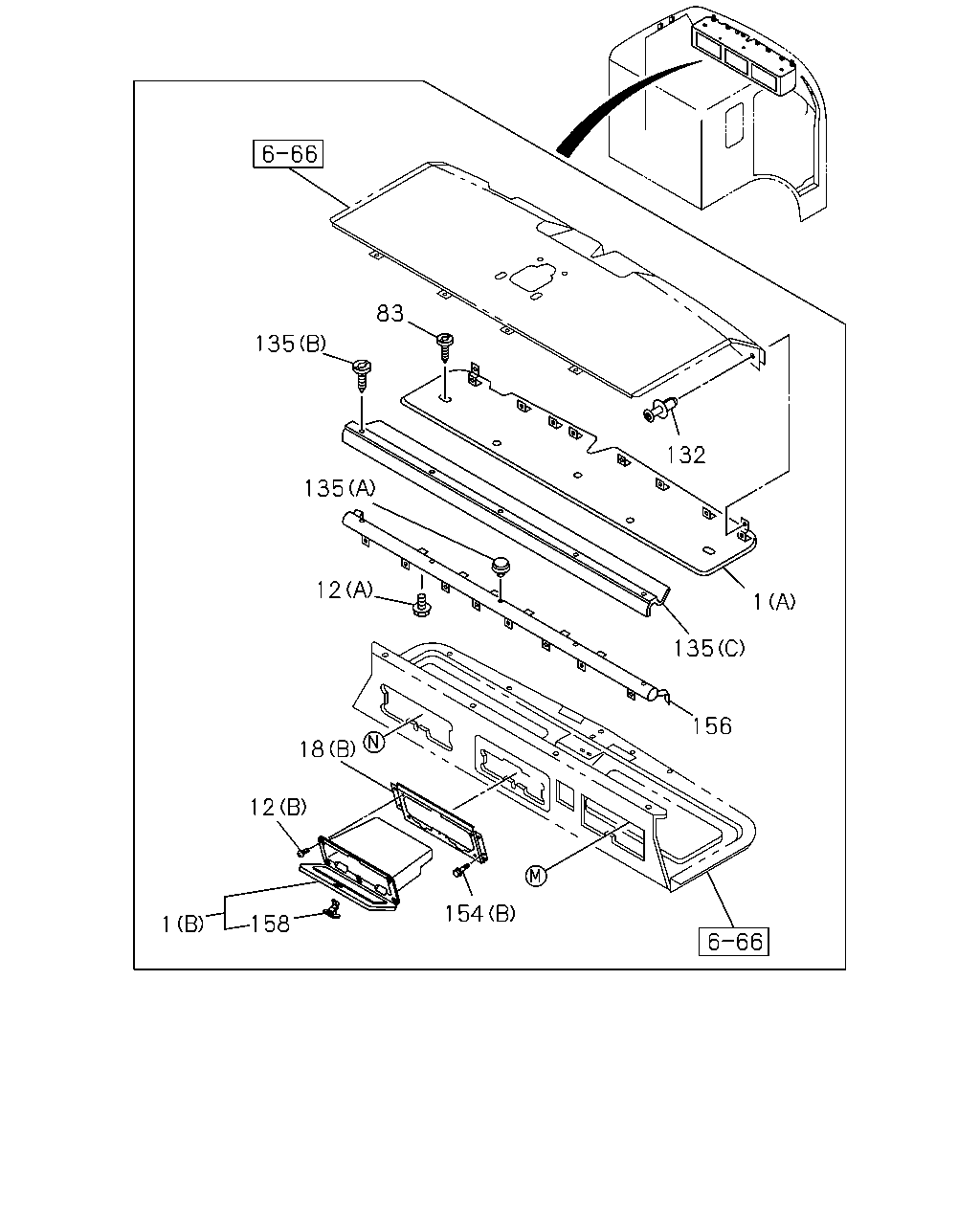

83 132 135 135 12 1 135 156 18 12 1 158 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72447-886-7	01	1	0105-	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-	●	●
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-	●	●
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-885-4	01	1	0105-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-	●	●
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-	●	●
158	LOCK; HEADER SHELF	1-72538-180-0	01	1	0105-	●	●

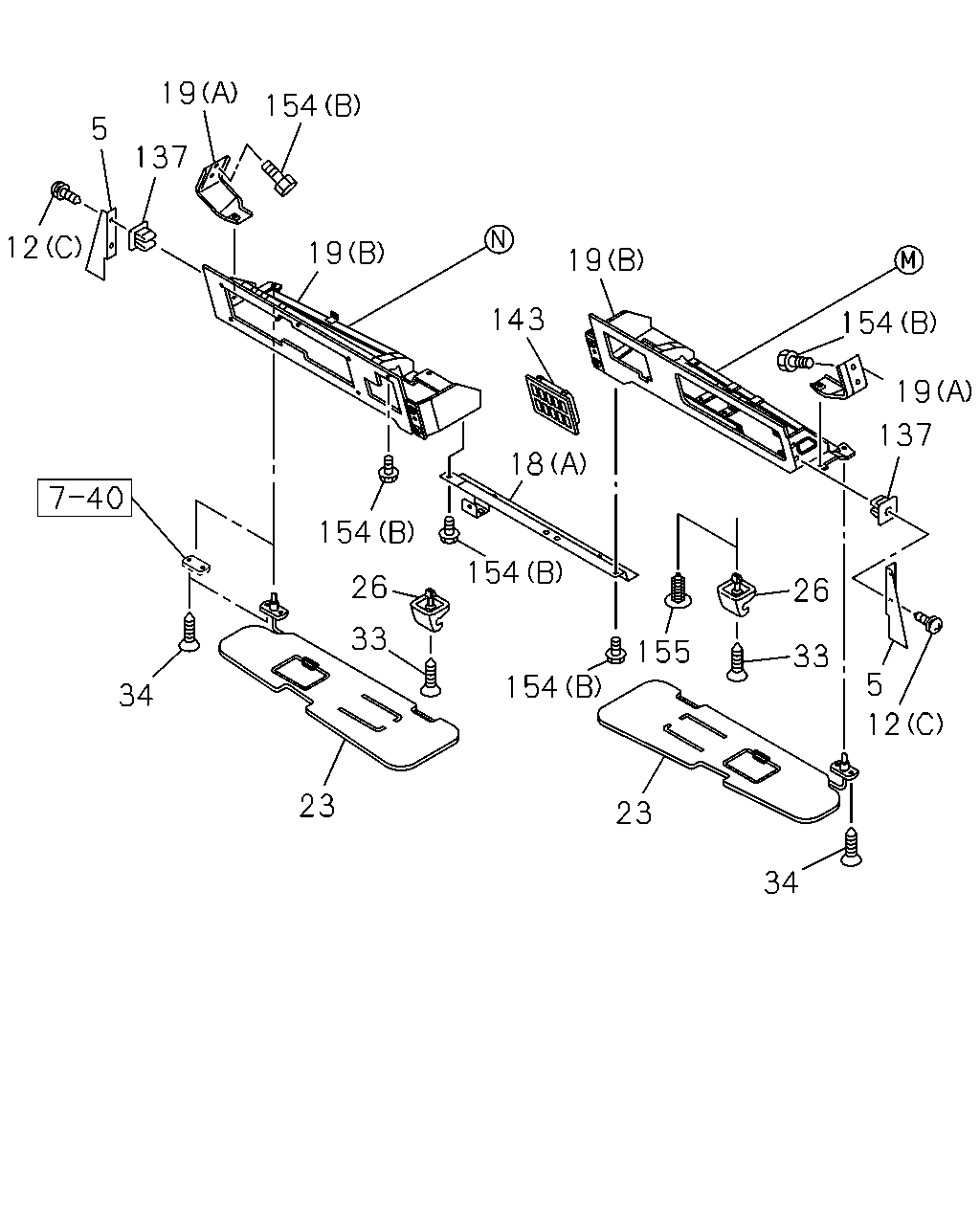

19 5 154 137 12 19 19 143 154 19 137 18 154 26 33 34 23 154 154 155 26 33 5 12 34 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0105-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0105-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0105-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-	●	●
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-	●	●
143	BEZEL	1-72447-768-2	01	1	0105-0211	●	●
143	BEZEL EXC. CHINA GB VAR1<JAC>	1-72447-768-2	01	1	0212-0401	●	●
143	BEZEL EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-72447-768-2	01	1	0402-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
