◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#12583) — 116 parça
çizim 22896
259 18 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0105- ● ●
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0105- ● ●

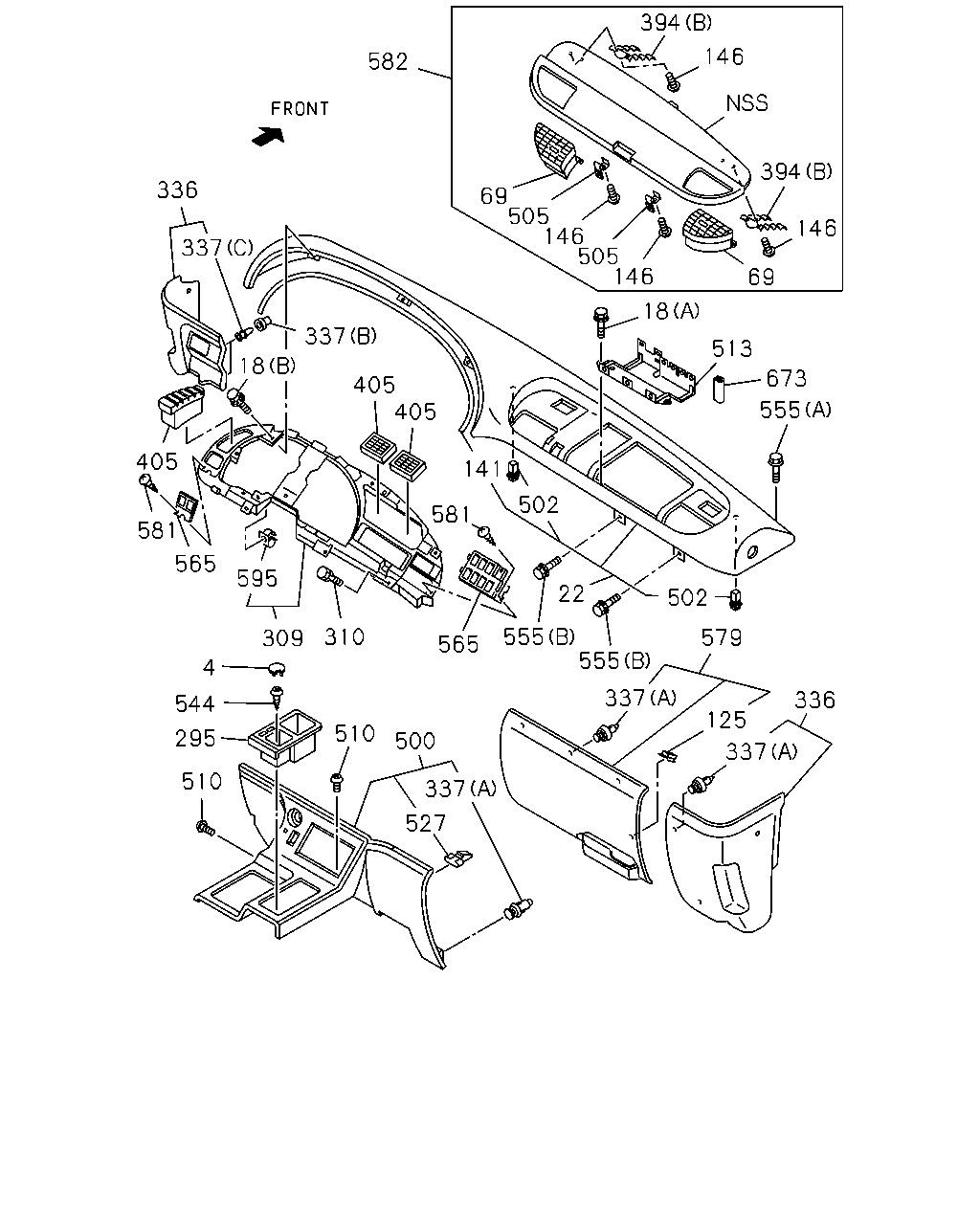

çizim 23756
394 146 394 146 69 146 505 146 505 69 582 18 513 673 555 336 337 337 18 405 405 141 502 581 22 505 579 336 337 125 337 555 555 565 405 581 565 595 309 310 4 544 295 510 510 500 337 527
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105- ● ●
22 PAD; INST 1-72317-351-2 01 1 0105- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0105- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0105- ● ●
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0309 ● ●
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105- ● ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0105- ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 0105- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0105- ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0105- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 0105- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0105- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407 ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0105- ● ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 0105- ● ●
500 CLUSTER; INST CENTER
INTAKE HEATER<SL2> 		1-72437-651-0 01 1 0105- ● ●
500 CLUSTER; INST CENTER
EXC. INTAKE HEATER<SL2> 		1-72437-642-1 01 1 0105- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0105- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0105- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105- ● ●
513 BRACKET; RELAY 8-97865-168-3 01 1 0105- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0105- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
565 BEZEL; SW PANEL 1-72418-021-1 01 1 0105- ● ●
565 BEZEL; SW PANEL 1-72418-020-1 01 1 0105- ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0105- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105- ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0105- ● ●
595 NUT; HOOK 1-72418-013-0 10 1 0105- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105- ● ●

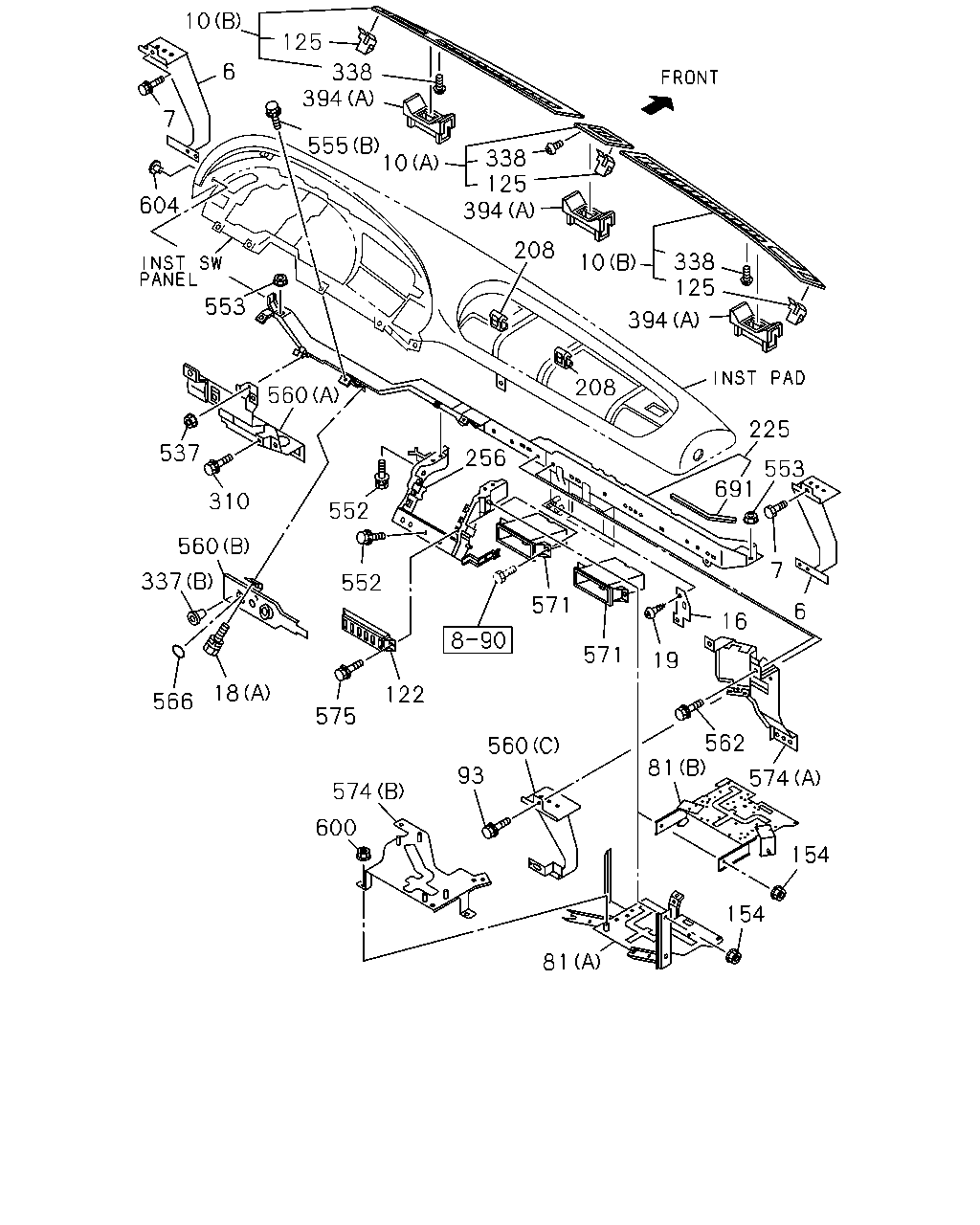

çizim 24181
81 154 154 574 81 562 600 574 93 560 575 122 18 566 337 560 552 552 310 537 571 571 19 16 6 7 691 553 225 208 256 560 553 604 7 6 10 394 125 338 10 208 394 125 338 10 555 394 338 125
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 0105- ● ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 0105- ● ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-592-1 01 1 0105- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0105- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0105- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-540-6 01 1 0105- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0105- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0105- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105- ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0105- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> (A) 		1-73907-416-8 01 1 0105- ● ●
81 BRACKET; ELEC CONT UNIT
EXC. INTAKE HEATER<SL2> (B) 		1-73907-648-4 01 1 0105- ● ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105- ● ●
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0309 ● ●
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602 ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105- ● ●
225 FRAME; FACIA 1-65671-727-5 01 1 0105- ● ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0105- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 0105- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0105- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0105-0208 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0309 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 22 1 0310-0405 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0406- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407 ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 0105- ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65681-160-0 01 1 0105- ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),INTAKE HEATER<SL2> (B) 		1-65681-043-2 01 1 0105- ● ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 0105- ● ●
560 BRACKET
INTAKE HEATER<SL2> (B) 		1-65671-742-1 01 1 0105- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0105-0208 ● ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0209- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0105- ● ●
574 PANEL; RELAY BOX
POWER BRAKE LOCK SYSTEM(J50) (B) 		1-73907-690-2 01 1 0510- ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 0105- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
600 NUT; PANEL
POWER BRAKE LOCK SYSTEM(J50) M6 FLANGE 		0-91150-106-0 03 1 0510-0602 ● ●
600 NUT; PANEL
POWER BRAKE LOCK SYSTEM(J50) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0105- ● ●
691 FINISHER; HARNESS PROTECTOR
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0105- ● ●
