◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#12580) — 73 parça
çizim 22527
181 181
BalonParca AdiParca NoAdetTipApplied Date A B
181 PLATE; CAUTION,AIR CLEANER
CAUTIONS PORTUGUESE<NAT> W-SERIES ENG<1A2> (B) 		1-85886-884-0 01 1 0105- ● ●
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> W-SERIES ENG<1A2> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTI ONS SPANISH<YN1> (B) 		1-85886-884-0 01 1 0105- ● ●
181 PLATE; CAUTION,AIR CLEANER
CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> W-SERIES ENG<1A2> (A) 		1-85886-796-1 01 1 0105- ● ●
181 PLATE; CAUTION,AIR CLEANER
W-SERIES ENG<1A2> EXC. CAUTIONS PORTUGUESE<NAT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A) 		1-85886-796-1 01 1 0105- ● ●
çizim 23557
48 60 58 58 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
48 PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4> 		1-85881-254-0 01 1 0105-0404 ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-537-0 01 1 0105- ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (D) 		1-85887-536-0 01 1 0105- ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (A) 		1-85887-535-0 01 1 0105- ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS PORTUGUESE<NAT> (A) 		1-85878-007-0 01 1 0105- ● ●
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0105- ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> (C) 		9-83999-419-0 01 1 0105- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0105- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0105- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0105- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 0105- ● ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0105- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0105- ● ●
çizim 23808
7 135 4 173 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
10PE1S(60L) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		9-83973-102-0 01 1 0105- ● ●
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) (A) 		1-85886-840-0 01 1 0105- ● ●
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) (A) 		1-85886-863-0 01 1 0105- ● ●
7 LABEL; EMISSION
10PE1N(61L) 		8-94391-418-0 01 1 0105- ● ●
135 PLATE; CAUTION,ENGINE
10PE1N(61L) 		1-85886-826-0 01 1 0105- ● ●
135 PLATE; CAUTION,ENGINE
10PE1S(60L),10PE1H(68L) 		1-85886-804-0 01 1 0105- ● ●
173 PLATE; CAUTION,FUEL FILTER
PE-SERIES ENG<1A0> 		1-85886-176-0 01 1 0105- ● ●

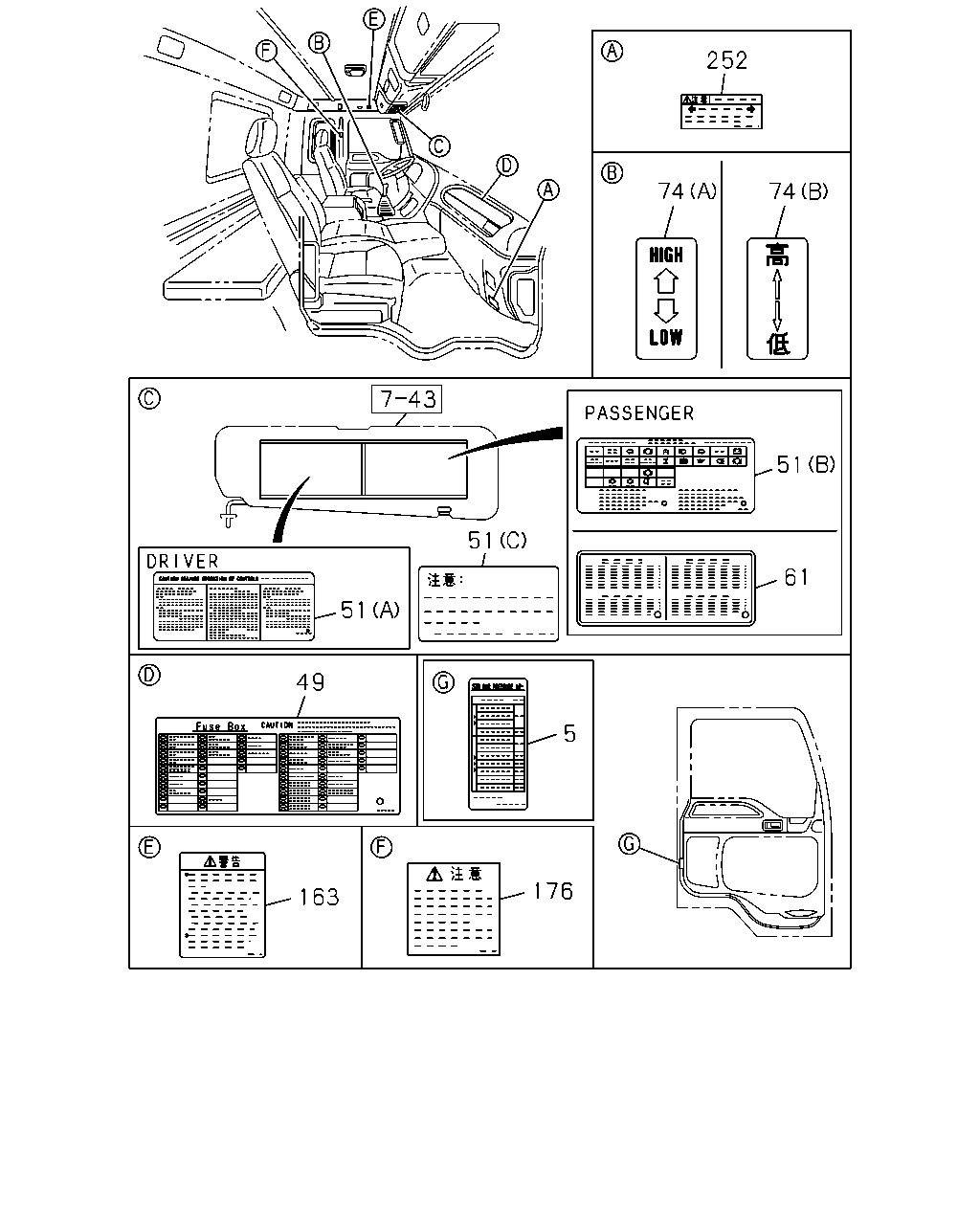

çizim 80642
252 74 74 51 61 51 51 49 5 176 163
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE 1-85880-763-0 01 1 0105-0105 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85880-764-0 01 1 0105-0405 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85880-780-0 01 1 0406-0410 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0411- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-331-0 01 1 0105- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-329-0 01 1 0105-0105 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-359-0 01 1 0106- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-330-0 01 1 0105- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-332-0 01 1 0105- ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0105- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-328-0 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
CHINA EQUIPMENT(YT2) (C) 		8-97606-278-0 01 1 0408- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-335-1 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-727-0 01 1 0105-0207 ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-85880-727-0 01 1 0208- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-334-1 01 1 0105-0207 ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-85878-334-1 01 1 0208- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (B) 		1-85878-336-1 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-333-1 01 1 0105- ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-725-0 01 1 0105- ● ●
61 PLATE; CAUTION,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) CAUTIONS CHINESE<SL7> 		1-85881-827-0 01 1 0105- ● ●
61 PLATE; CAUTION,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) EXC. CAUTIONS CHINESE<SL7> 		1-85881-645-0 01 1 0105- ● ●
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (B) 		1-85881-666-2 01 1 0105- ● ●
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A) 		1-85881-736-1 01 1 0105- ● ●
163 PLATE; NAME,AIR BAG
AIR BAG(TFQ) TAIWAN EQUIPMENT(WW5) 		1-85878-109-0 01 1 0105- ● ●
176 LABEL; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) TAIWAN EQUIPMENT(WW5) 		1-85878-108-0 01 1 0105- ● ●
252 PLATE; CAUTION,HARNESS
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-85878-515-0 01 1 0408- ● ●

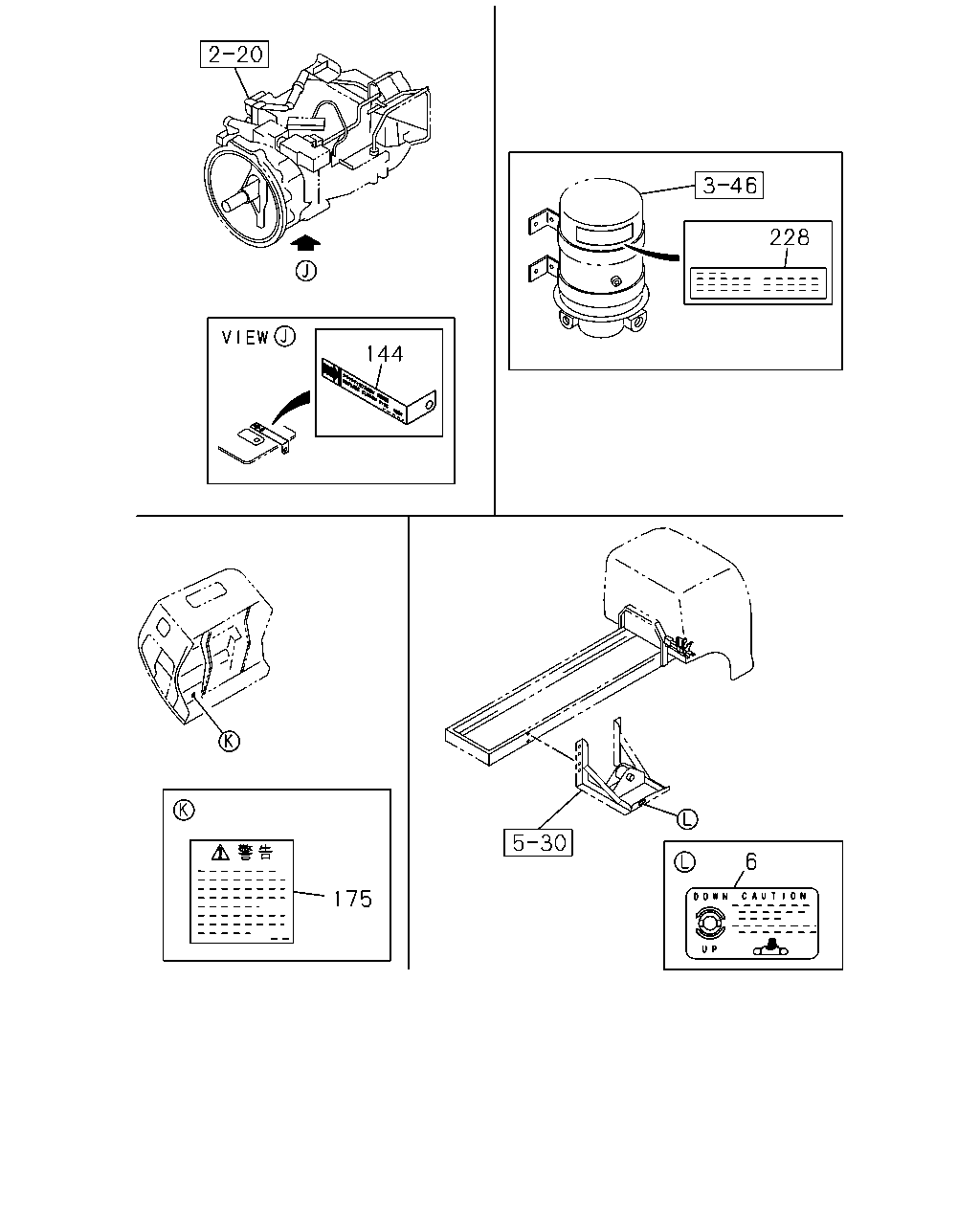

çizim 81078
144 228 175 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53639-045-0 01 1 0105- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-85883-114-0 01 1 0105- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-85883-113-0 01 1 0105- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-85883-108-0 01 1 0105- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,WHEEL 10STUD 9.00X22.5 168-14(NJT),CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0105- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53639-005-0 01 1 0105- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 02 1 0105- ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTI ONS SPANISH<YN1> 		1-53639-004-0 02 1 0105- ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		1-53639-005-0 02 1 0105- ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 02 1 0105- ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 02 1 0105- ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 02 1 0105- ●
144 PLATE; CAUTION,CLU
ZF M/T<X9E> 		1-85888-690-0 01 1 0105- ● ●
175 LABEL; STRG,AIR BAG
AIR BAG(TFQ) TAIWAN EQUIPMENT(WW5) 		1-85878-107-0 02 1 0105- ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0105- ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 0105- ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0105- ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 0105- ● ●
228 PLATE; CAUTION,AIR DRYER
CAUTIONS PORTUGUESE<NAT> AIR DRYER<PS7> 		1-85877-998-0 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
