6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#12577) — 36 parça

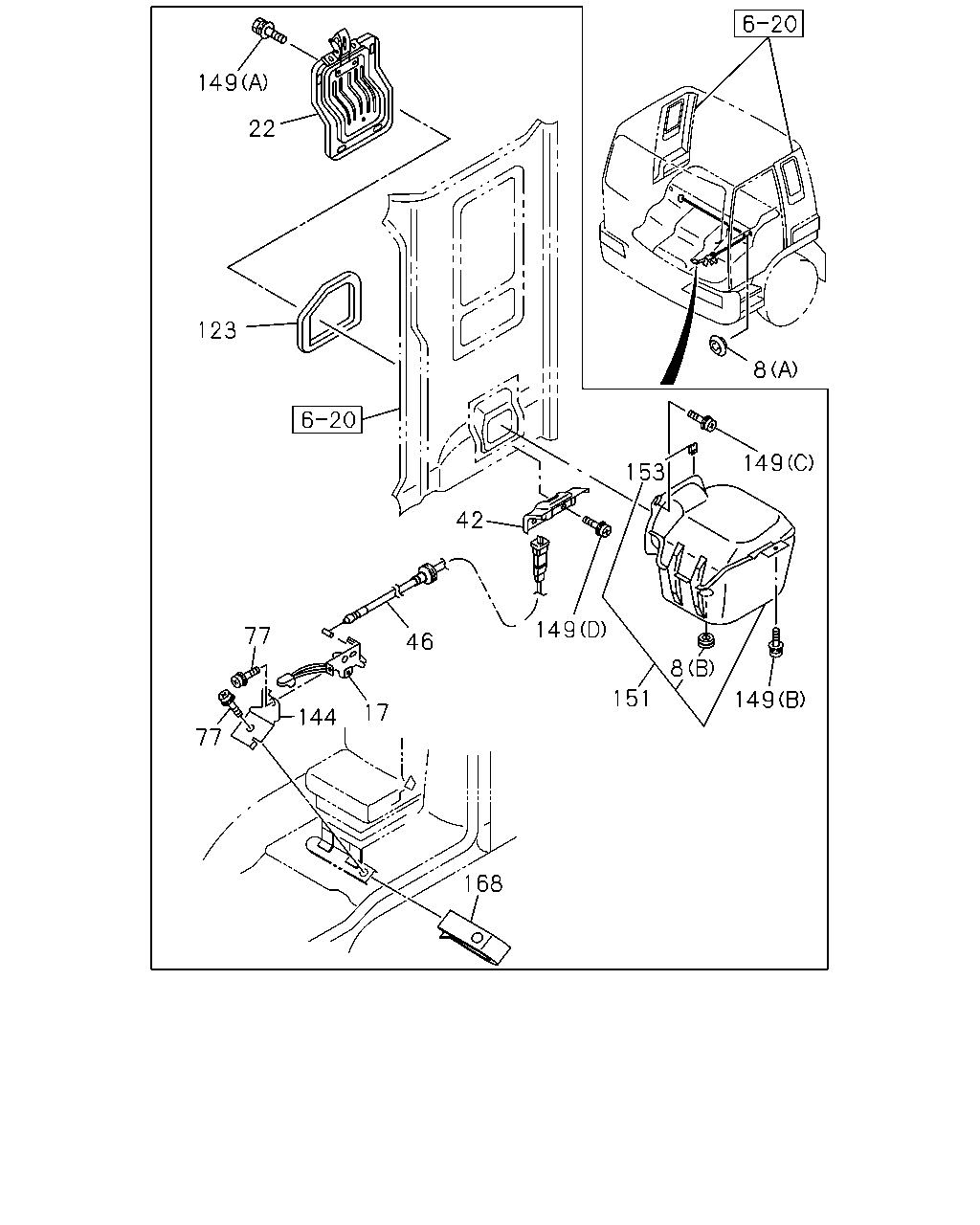

çizim 78952
22 149 123 8 149 153 149 42 46 77 77 17 144 151 168 8 149
BalonParca AdiParca NoAdetTipApplied Date A B
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 0105- ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) OD=44 		8-94279-727-0 01 1 0105- ● ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 0105- ● ●
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 0105- ● ●
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 0105- ● ●
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 0105- ● ●
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> W-SERIES ENG<1A2> L=886.5 		1-79517-007-0 01 1 0105- ● ●
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0105- ● ●
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-1 01 1 0105- ● ●
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-583-3 01 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0105- ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> PE-SERIES ENG<1A0> 		1-71797-064-1 01 1 0105- ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> W-SERIES ENG<1A2> 		1-71797-951-2 01 1 0105- ● ●
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> 		8-94279-056-0 02 1 0105- ● ●
168 NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-09984-156-0 01 1 0105- ● ●

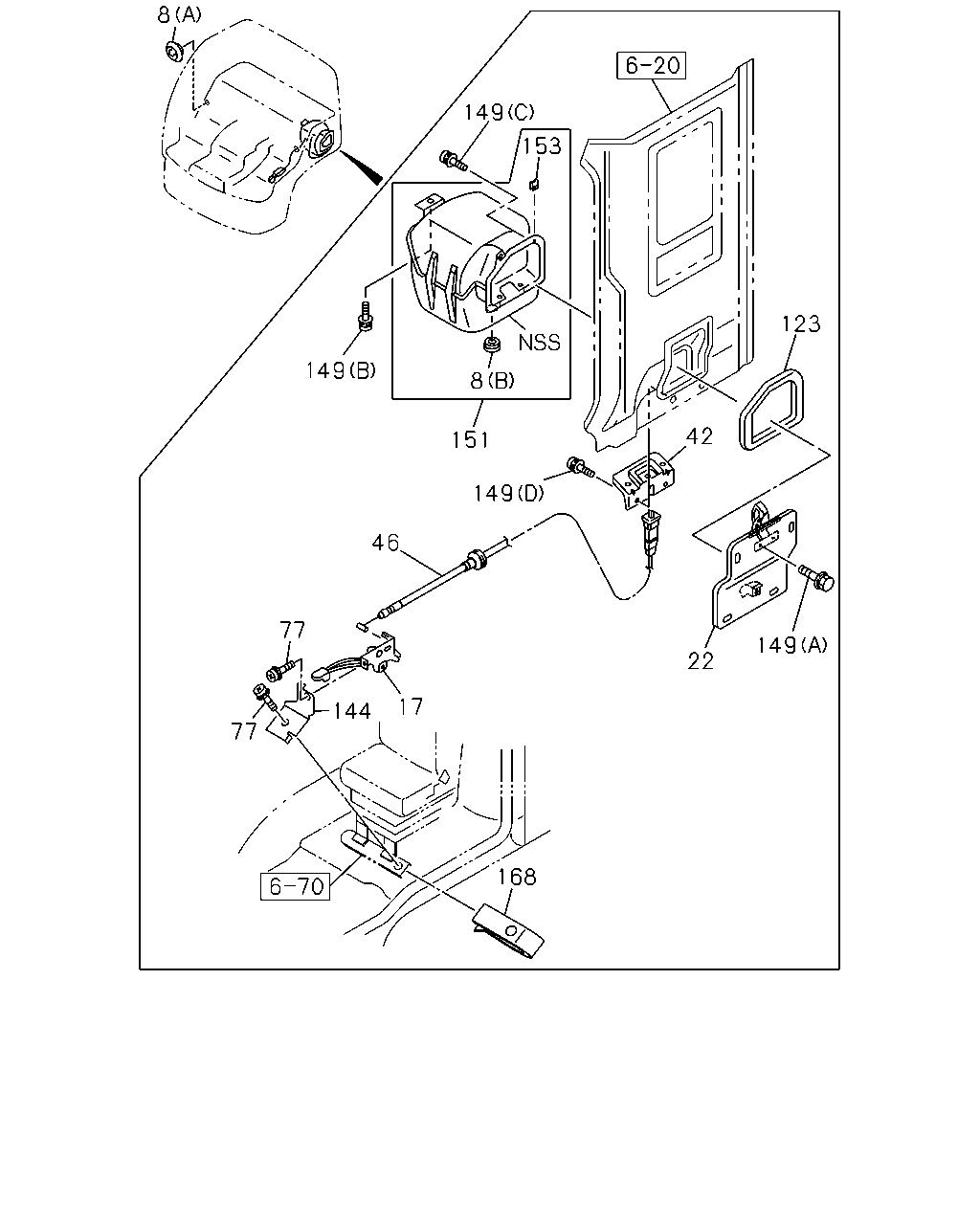

çizim 79608
8 149 153 8 151 149 149 46 77 144 17 77 168 22 123 149 42
BalonParca AdiParca NoAdetTipApplied Date A B
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 0105- ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) OD=44 		8-94279-727-0 01 1 0105- ● ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 0105- ● ●
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 0105- ● ●
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 0105- ● ●
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 0105- ● ●
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> W-SERIES ENG<1A2> L=886.5 		1-79517-007-0 01 1 0105- ● ●
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0105- ● ●
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-1 01 1 0105- ● ●
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-583-3 01 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0105- ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> PE-SERIES ENG<1A0> 		1-71797-064-1 01 1 0105- ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> W-SERIES ENG<1A2> 		1-71797-951-2 01 1 0105- ● ●
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> 		8-94279-056-0 02 1 0105- ● ●
168 NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-09984-156-0 01 1 0105- ● ●
