◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#12572) — 43 parça

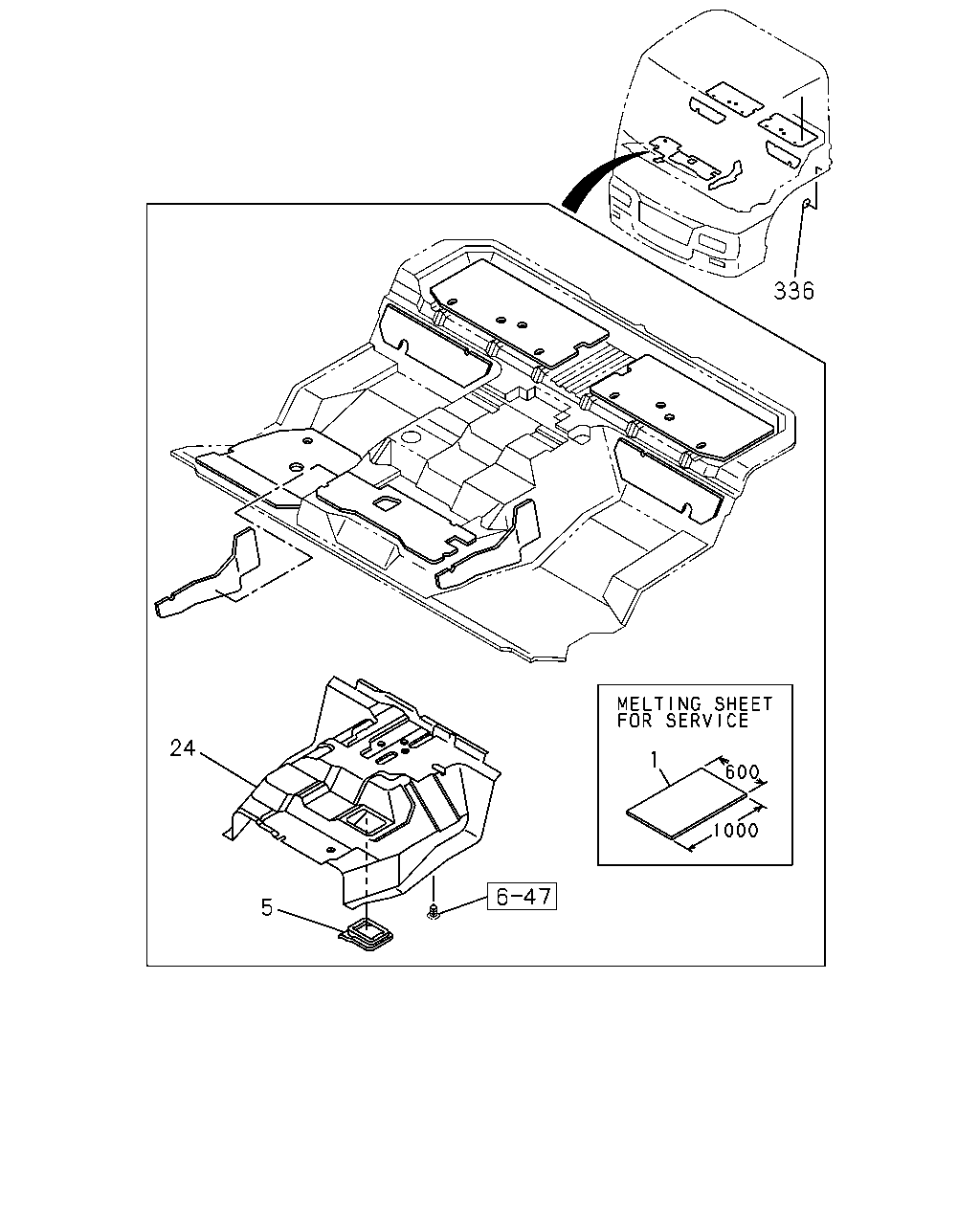

çizim 23217
336 5 24 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0105- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0105- ● ●
24 INSULATOR; HEAT,FRT
PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-71907-375-7 01 1 0105- ● ●
24 INSULATOR; HEAT,FRT
SPRING BRAKE(SU9) 		1-71907-373-4 01 1 0105-0206 ● ●
24 INSULATOR; HEAT,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-71907-373-7 01 1 0207- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0105- ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 0105-0206 ● ●
336 SEAL; FLOOR SIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 01 1 0207-0404 ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 01 1 0405- ●

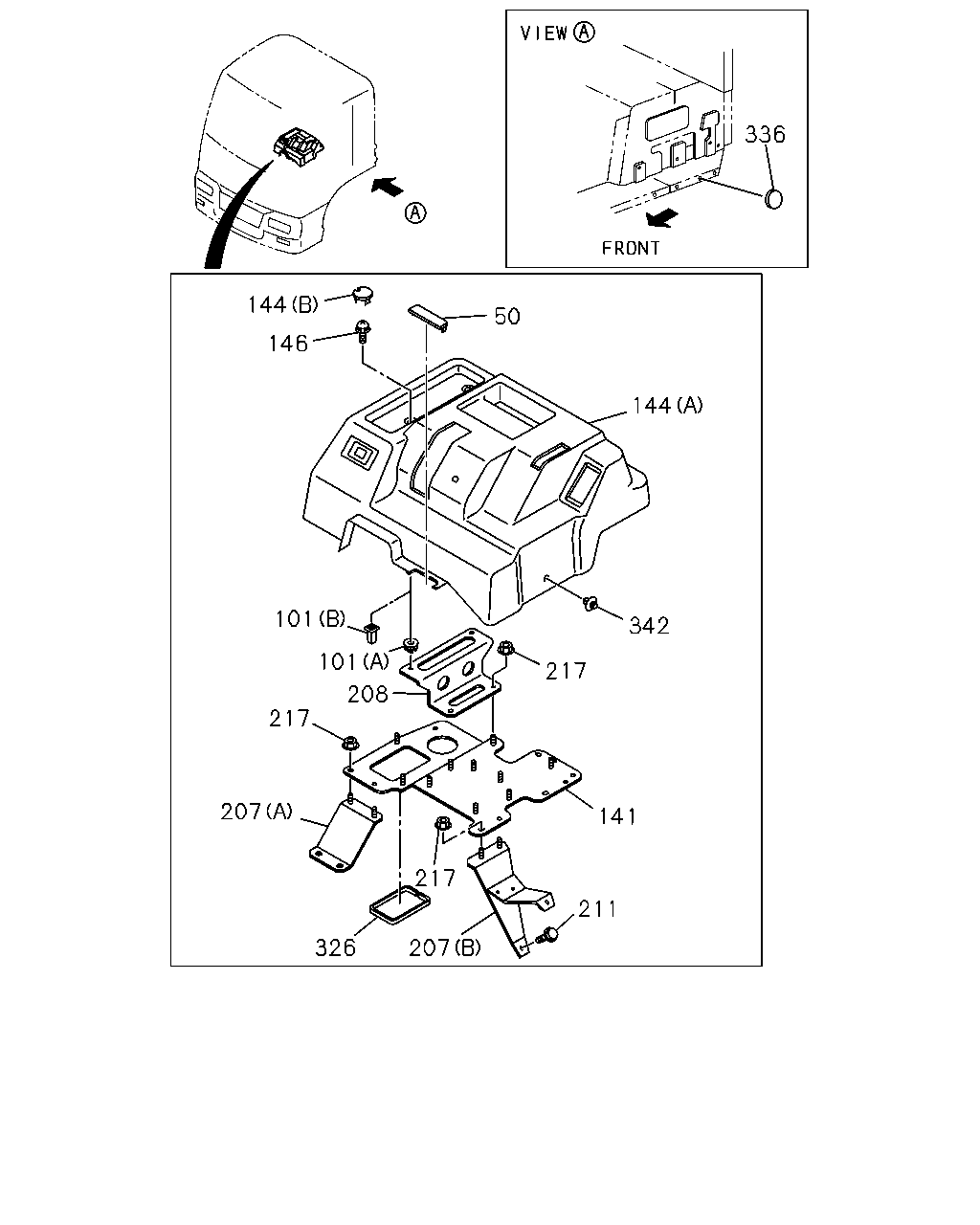

çizim 81652
336 144 146 144 50 342 217 101 101 208 217 207 326 217 207 211 141
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 0105- ● ●
101 GROMMET; SCREW,FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) D=7X7 L=7.5 		5-09983-007-0 02 1 0105- ● ●
101 GROMMET; SCREW,FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 0105- ● ●
141 HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79996-438-1 01 1 0105- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-368-2 01 1 0207- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (A) 		1-72417-386-0 01 1 0105-0206 ● ●
144 COVER; HAND BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-386-2 01 1 0207- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (B) 		1-76337-461-0 02 1 0105-0206 ● ●
144 COVER; HAND BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-76337-461-0 02 1 0207- ● ●
146 BOLT; COVER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 0105- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (A) 		1-79996-129-0 01 1 0105-0206 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-79996-129-1 01 1 0207- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (B) 		1-79996-130-0 01 1 0105-0206 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-79996-130-1 01 1 0207- ● ●
208 BRACKET ASM; COVER & BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79996-347-1 01 1 0105- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0207- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0207- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0207- ● ●
217 NUT
SPRING BRAKE(SU9) M8 FLANGE 		0-91150-108-0 06 1 0105-0206 ● ●
217 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 06 1 0207-0602 ● ●
217 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) 		1-79996-132-0 01 1 0105-0206 ● ●
326 SEAL; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79996-132-0 01 1 0207- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0105- ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 0105-0206 ● ●
336 SEAL; FLOOR SIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 01 1 0207-0404 ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 01 1 0405- ●
342 FASTENER
ANTI NOISE EQUIPMENT<SV9> D8X13.5 		1-09987-270-0 01 1 0105-0206 ● ●
342 FASTENER
ANTI NOISE EQUIPMENT<SV9> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-270-0 01 1 0207-0208 ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> D8X13.5 		1-09987-270-0 01 1 0207-0208 ● ●
342 FASTENER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D8X13.5 		1-09987-270-0 01 1 0209- ● ●
