6-75 — MAT AND CARPET (#12571) — 61 parça

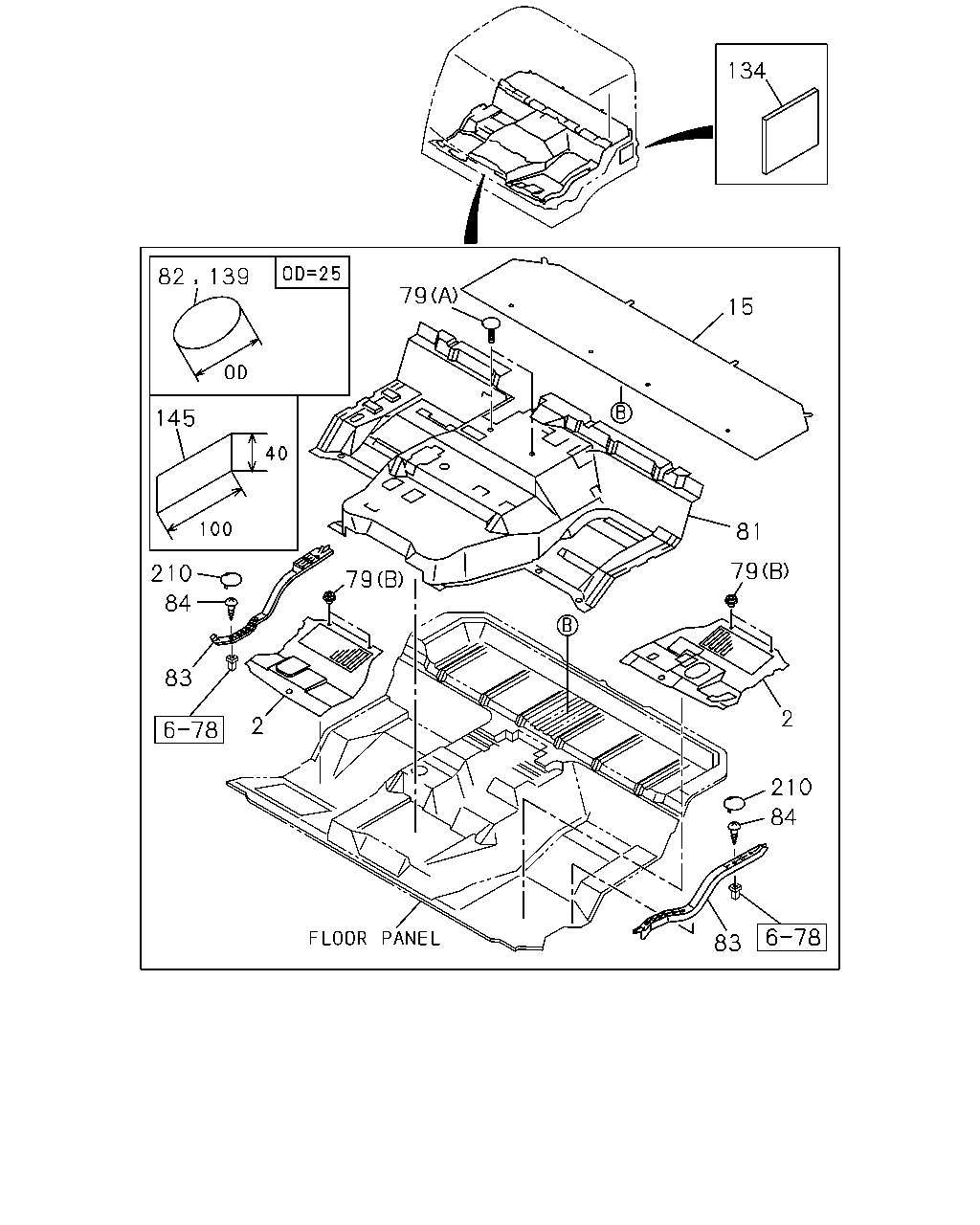

çizim 78280
15 134 82 139 79 145 210 83 84 79 2 83 210 84 2 81 79
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-655-0 01 1 0105-0112 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-787-1 01 1 0201- ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-654-0 01 1 0105-0112 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-785-1 01 1 0201- ● ●
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-831-1 01 1 0212- ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0105-0112 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-0 01 1 0201-0211 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>, CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 0212- ● ●
79 HOOK; MALE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) D6X23 BLACK 		1-09987-114-0 01 1 0208- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105-0207 ● ●
79 HOOK; MALE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) D6X23 BLACK 		1-09987-114-0 02 1 0208- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105- ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-830-2 01 1 0212- ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-656-1 01 1 0105-0112 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-812-3 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
SPRING BRAKE(SU9) EXC. DELUXE CARPET<BF2> 		1-73237-733-1 01 1 0105-0112 ● ●
81 MAT; FLOOR,CENTER
SPRING BRAKE(SU9) EXC. DELUXE CARPET<BF2> 		1-73237-813-0 01 1 0201-0206 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2> 		1-73237-813-0 01 1 0207-0211 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 0212- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 0105-0312 ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 02 1 0401- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 0105-0312 ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 0105-0402 ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA GB VAR1<JAC>,BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0403- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-0 01 1 0105- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105- ● ●

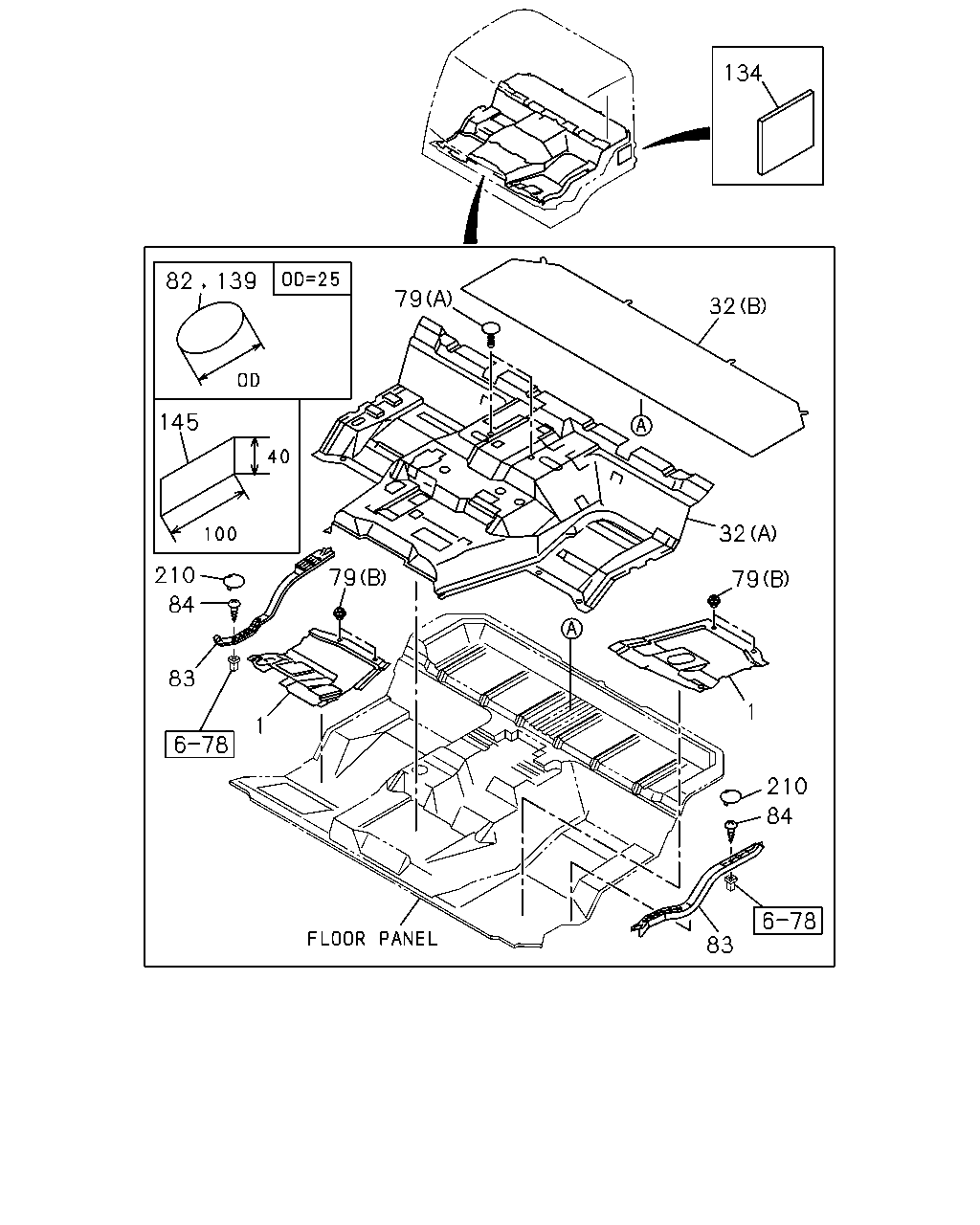

çizim 81394
32 134 79 82 139 145 210 83 84 79 1 32 1 79 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-716-0 01 1 0105-0404 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-866-1 01 1 0405- ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-715-0 01 1 0105-0404 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-865-1 01 1 0405- ● ●
32 CARPET; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> (A) 		1-73237-719-2 01 1 0105-0404 ● ●
32 CARPET; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> (A) 		1-73237-859-3 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-725-1 01 1 0105-0105 ● ●
32 CARPET; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> (A) 		1-73237-725-1 01 1 0105-0211 ● ●
32 CARPET; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-725-2 01 1 0212-0404 ● ●
32 CARPET; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-860-4 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0105-0211 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) (B) 		1-73237-720-0 01 1 0212-0212 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0301-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-1 01 1 0405- ● ●
79 HOOK; MALE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) D6X23 BLACK 		1-09987-114-0 01 1 0208- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105-0207 ● ●
79 HOOK; MALE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) D6X23 BLACK 		1-09987-114-0 02 1 0208- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 0105-0312 ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 02 1 0401- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 0105-0312 ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 0105-0402 ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA GB VAR1<JAC>,BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0403- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-0 01 1 0105- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105- ● ●
