◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#12570) — 46 parça

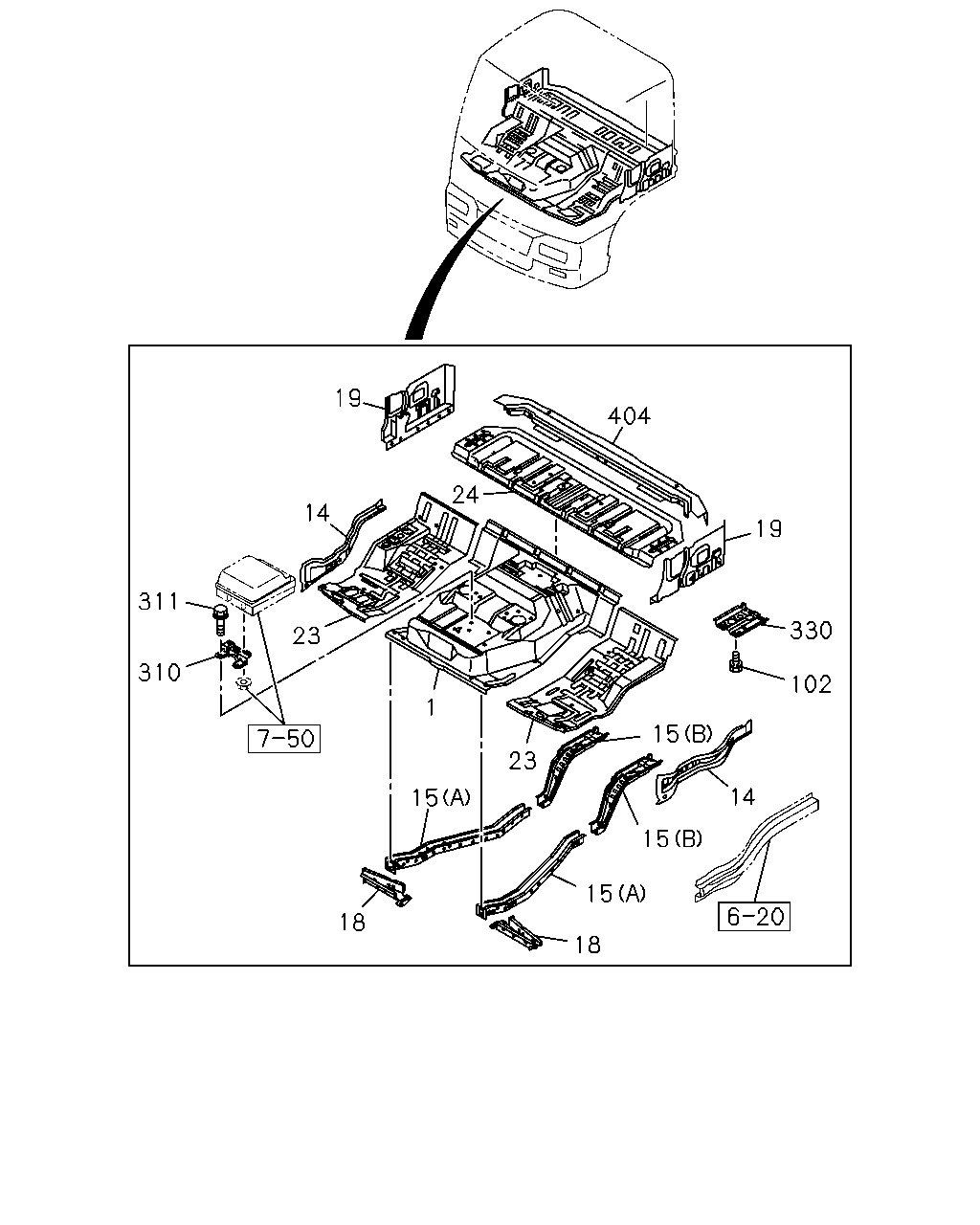

çizim 81651
330 19 404 19 24 14 23 1 310 311 23 15 18 15 15 102 14 15 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62172-625-6 01 1 0105- ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-614-5 01 1 0105- ● ●
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-627-5 01 1 0105- ● ●
14 PANEL; FLOOR SIDE,FRT
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62482-918-6 01 1 0105- ● ●
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> 		1-62482-918-6 01 1 0105- ● ●
14 PANEL; FLOOR SIDE,FRT
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62482-917-6 01 1 0105- ● ●
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> 		1-62482-917-6 01 1 0105- ● ●
15 FRAME; UNDER
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-62472-670-3 01 1 0105- ● ●
15 FRAME; UNDER
ISUZU M/T<X9A> (A) 		1-62472-670-3 01 1 0105- ● ●
15 FRAME; UNDER
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-62472-680-1 01 1 0105- ● ●
15 FRAME; UNDER
ISUZU M/T<X9A> (B) 		1-62472-680-1 01 1 0105- ● ●
15 FRAME; UNDER
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-62472-598-6 01 1 0105- ● ●
15 FRAME; UNDER
ISUZU M/T<X9A> (B) 		1-62472-598-6 01 1 0105- ● ●
15 FRAME; UNDER
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-62472-669-3 01 1 0105- ● ●
15 FRAME; UNDER
ISUZU M/T<X9A> (A) 		1-62472-669-3 01 1 0105- ● ●
18 FRAME; FLOOR,CENTER SIDE
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62483-105-5 01 1 0105- ● ●
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> 		1-62483-105-5 01 1 0105- ● ●
18 FRAME; FLOOR,CENTER SIDE
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62472-671-3 01 1 0105- ● ●
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> 		1-62472-671-3 01 1 0105- ● ●
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0105- ● ●
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0105- ● ●
19 PANEL; FLOOR SIDE,REAR
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62472-659-2 01 1 0105- ● ●
19 PANEL; FLOOR SIDE,REAR
ISUZU M/T<X9A> 		1-62472-659-2 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL(SV6) 		1-62172-803-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> ISUZU M/T<X9A> 		1-62172-803-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) ISUZU M/T<X9A> 		1-62172-803-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-800-0 01 1 0105- ● ●
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> 		1-62172-800-0 01 1 0105- ● ●
24 PANEL; BED PAN
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-540-9 01 1 0105- ● ●
24 PANEL; BED PAN
ISUZU M/T<X9A> 		1-62172-540-9 01 1 0105- ● ●
102 BOLT; FLOOR BOARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105- ● ●
102 BOLT; FLOOR BOARD
SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0206 ● ●
102 BOLT; FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0207- ● ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0105-0211 ● ●
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0212- ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0212- ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0211 ● ●
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0212- ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0212- ●
330 REINFORCEMENT; FLOOR
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-585-5 01 1 0105- ● ●
330 REINFORCEMENT; FLOOR
ISUZU M/T<X9A> 		1-62172-585-5 01 1 0105- ● ●
404 RAIL ASM; MTG,RR
ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62472-596-8 01 1 0105- ● ●
404 RAIL ASM; MTG,RR
ISUZU M/T<X9A> 		1-62472-596-8 01 1 0105- ● ●
