6-66 — HEAD LINING AND TRIM (#12569) — 97 parça

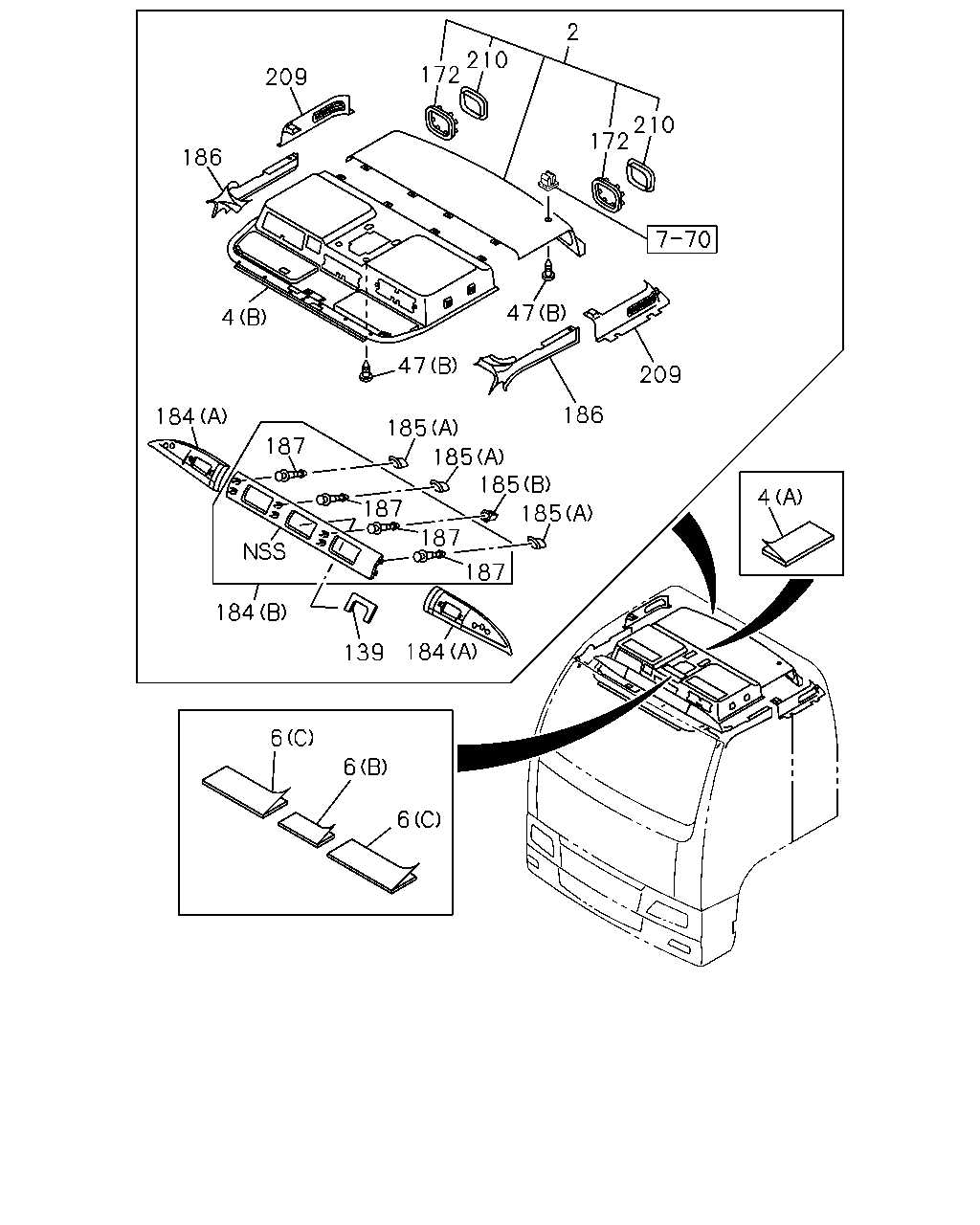

4 209 186 47 47 185 185 185 187 187 187 187 184 184 139 184 6 6 6 2 210 172 209 186 4 172 210 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINING; HD,ROOF RR SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73317-403-8	01	1	0105-	●	●
2	LINING; HD,ROOF RR EXC. SPEAKER SYSTEM 4 SPEAKER<NBV>,HIGH ROOF<S2F>	1-73317-402-8	01	1	0105-	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC> ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B)	1-73317-516-1	01	1	0212-0401	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B)	1-73317-516-3	01	1	0402-	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC> EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-517-1	01	1	0212-0401	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-517-3	01	1	0402-	●	●
4	LINING; ROOF,FRT (A)	1-73317-436-0	02	1	0105-	●	●
4	LINING; ROOF,FRT ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B)	1-73317-473-2	01	1	0105-0211	●	●
4	LINING; ROOF,FRT ROOM LAMP FLUORESCENT<NGG> EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F> (B)	1-73317-473-2	01	1	0212-0401	●	●
4	LINING; ROOF,FRT ROOM LAMP FLUORESCENT<NGG> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F> (B)	1-73317-473-4	01	1	0402-	●	●
4	LINING; ROOF,FRT EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-478-2	01	1	0105-0211	●	●
4	LINING; ROOF,FRT EXC. CHINA GB VAR1<JAC>,ROOM LAMP FLUORESCENT<NGG> ,HIGH ROOF<S2F> (B)	1-73317-478-2	01	1	0212-0401	●	●
4	LINING; ROOF,FRT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-478-4	01	1	0402-	●	●
6	SPACER; HD LINING HIGH ROOF<S2F> (A)	1-73317-434-2	02	1	0105-	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (B) 130X300	1-73317-435-2	01	1	0105-	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C)	1-73317-430-0	01	1	0105-0208	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C) 140X800	1-73317-429-0	01	1	0105-0208	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C) 140X800	1-73317-429-2	02	1	0209-	●	●
47	CLIP; HEADLINING CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY	1-73317-371-0	08	1	0212-0401	●	●
47	CLIP; HEADLINING CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY	1-73317-371-0	08	1	0402-	●	●
47	CLIP; HEADLINING (B) D5X14.7	1-09983-183-0	05	1	0105-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> (C) D8X13.5	1-09987-276-0	02	1	0105-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	36	1	0105-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> (A)	8-94313-458-0	08	1	0105-	●	●
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	11	1	0105-	●	●
47	CLIP; HEADLINING EXC. ROOM LAMP FLUORESCENT<NGG> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-	●	●
139	SEAL; ROOF MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F>	1-73318-562-0	03	1	0105-	●	●
172	RETAINER; HEAD LINING SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73317-450-0	02	1	0105-	●	●
172	RETAINER; HEAD LINING SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73317-448-0	01	1	0105-	●	●
172	RETAINER; HEAD LINING SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73317-449-0	01	1	0105-	●	●
184	ORNAMENT; ROOF CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-73317-452-1	01	1	0105-	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-388-0	01	1	0105-0111	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-409-2	01	1	0112-	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-73317-387-0	01	1	0105-0111	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-73317-408-2	01	1	0112-	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (B)	1-73318-626-0	01	1	0105-0111	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (B)	1-73318-660-3	01	1	0112-	●	●
184	ORNAMENT; ROOF MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-73318-590-0	01	1	0105-0111	●	●
184	ORNAMENT; ROOF MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-73317-406-1	01	1	0112-0112	●	●
184	ORNAMENT; ROOF MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-73317-405-1	01	1	0201-	●	●
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (A)	1-79198-012-0	06	1	0105-	●	●
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (B)	1-79198-013-0	02	1	0105-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-919-2	01	1	0105-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-918-2	01	1	0105-	●	●
187	PIN; ORNAMENT EXC. HIGH ROOF<S2F> D4.2X13	1-09983-161-0	08	1	0105-	●	●
209	COVER; GRILLE EXC. HIGH ROOF<S2F>	1-73347-866-3	01	1	0105-	●	●
209	COVER; GRILLE EXC. HIGH ROOF<S2F>	1-73347-865-3	01	1	0105-	●	●
210	GRILLE; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73996-208-1	02	1	0105-	●	●
210	GRILLE; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-886-1	01	1	0105-	●	●
210	GRILLE; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-885-1	01	1	0105-	●	●

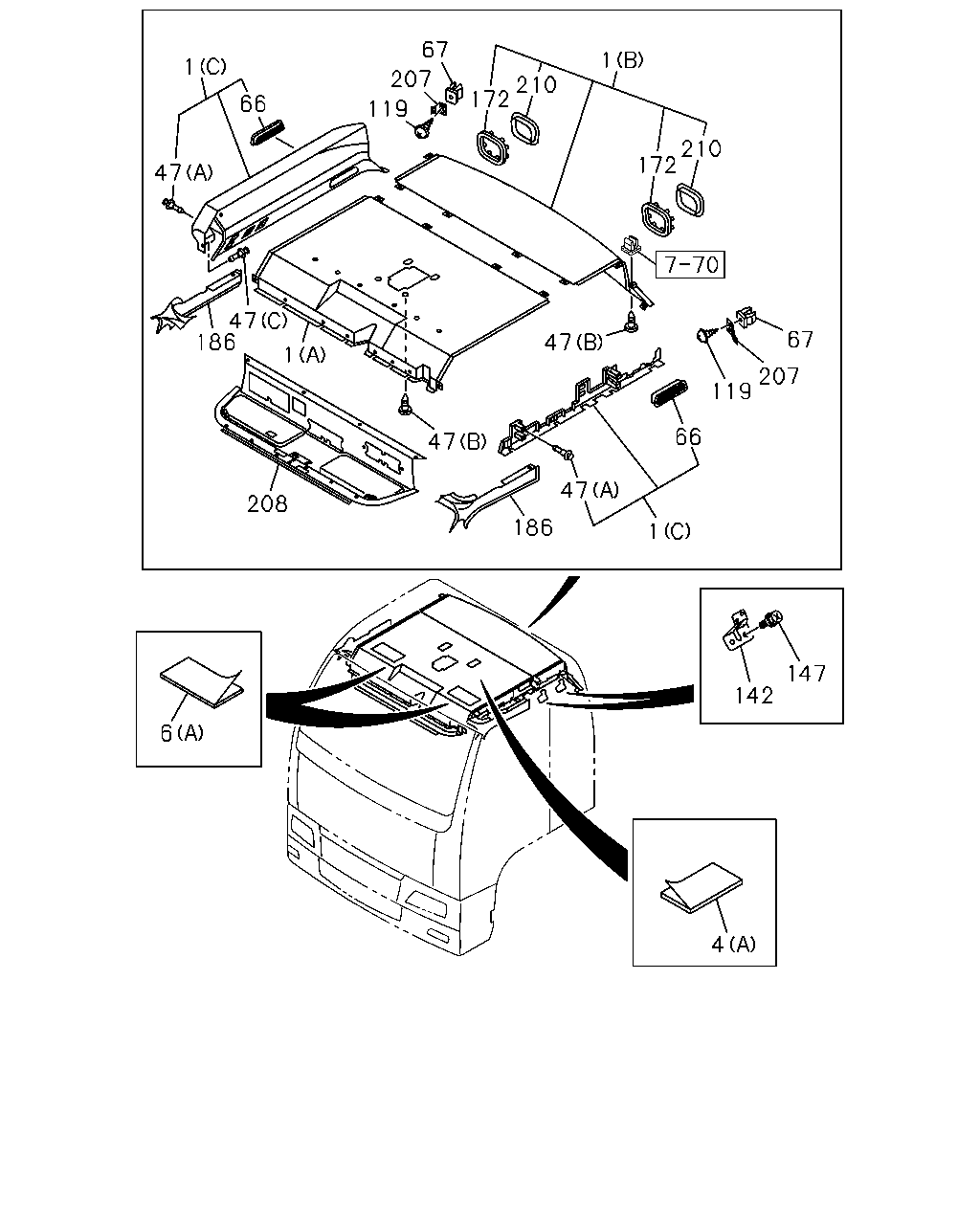

1 210 172 67 207 119 66 47 47 47 186 1 208 1 47 186 47 66 1 67 207 119 172 210 4 142 147 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HIGH ROOF<S2F> (C)	1-73317-420-5	01	1	0105-	●	●
1	LINING; HD HIGH ROOF<S2F> (C)	1-73317-419-5	01	1	0105-	●	●
1	LINING; HD HIGH ROOF<S2F> EXC. ROOM LAMP FLUORESCENT<NGG> (A)	1-73317-479-3	01	1	0105-	●	●
1	LINING; HD HIGH ROOF<S2F> EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B)	1-73317-418-7	01	1	0105-	●	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A)	1-73317-417-7	01	1	0105-	●	●
1	LINING; HD SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B)	1-73317-446-7	01	1	0105-	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC> ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B)	1-73317-516-1	01	1	0212-0401	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B)	1-73317-516-3	01	1	0402-	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC> EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-517-1	01	1	0212-0401	●	●
4	LINING; ROOF,FRT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-517-3	01	1	0402-	●	●
4	LINING; ROOF,FRT (A)	1-73317-436-0	02	1	0105-	●	●
4	LINING; ROOF,FRT ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B)	1-73317-473-2	01	1	0105-0211	●	●
4	LINING; ROOF,FRT ROOM LAMP FLUORESCENT<NGG> EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F> (B)	1-73317-473-2	01	1	0212-0401	●	●
4	LINING; ROOF,FRT ROOM LAMP FLUORESCENT<NGG> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F> (B)	1-73317-473-4	01	1	0402-	●	●
4	LINING; ROOF,FRT EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-478-2	01	1	0105-0211	●	●
4	LINING; ROOF,FRT EXC. CHINA GB VAR1<JAC>,ROOM LAMP FLUORESCENT<NGG> ,HIGH ROOF<S2F> (B)	1-73317-478-2	01	1	0212-0401	●	●
4	LINING; ROOF,FRT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B)	1-73317-478-4	01	1	0402-	●	●
6	SPACER; HD LINING HIGH ROOF<S2F> (A)	1-73317-434-2	02	1	0105-	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (B) 130X300	1-73317-435-2	01	1	0105-	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C)	1-73317-430-0	01	1	0105-0208	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C) 140X800	1-73317-429-0	01	1	0105-0208	●	●
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C) 140X800	1-73317-429-2	02	1	0209-	●	●
47	CLIP; HEADLINING CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY	1-73317-371-0	08	1	0212-0401	●	●
47	CLIP; HEADLINING CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY	1-73317-371-0	08	1	0402-	●	●
47	CLIP; HEADLINING (B) D5X14.7	1-09983-183-0	05	1	0105-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> (C) D8X13.5	1-09987-276-0	02	1	0105-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	36	1	0105-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> (A)	8-94313-458-0	08	1	0105-	●	●
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	11	1	0105-	●	●
47	CLIP; HEADLINING EXC. ROOM LAMP FLUORESCENT<NGG> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-	●	●
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-367-1	01	1	0105-	●	●
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-366-1	01	1	0105-	●	●
67	GROMMET; SCREW HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-	●	●
119	SCREW; BRKT HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0105-	●	●
142	BRACKET ASM; ROOF COVER HIGH ROOF<S2F>	1-61170-747-3	04	1	0105-	●	●
147	BOLT; SUPPORT BRKT HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER	8-94279-207-0	16	1	0105-	●	●
172	RETAINER; HEAD LINING SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73317-450-0	02	1	0105-	●	●
172	RETAINER; HEAD LINING SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73317-448-0	01	1	0105-	●	●
172	RETAINER; HEAD LINING SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73317-449-0	01	1	0105-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-919-2	01	1	0105-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-918-2	01	1	0105-	●	●
207	BRACKET; HEADLINING HIGH ROOF<S2F>	1-61170-835-0	01	1	0105-	●	●
207	BRACKET; HEADLINING HIGH ROOF<S2F>	1-61170-834-0	01	1	0105-	●	●
208	COVER; HEADER SHELF HIGH ROOF<S2F>	1-73317-477-3	01	1	0105-	●	●
210	GRILLE; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73996-208-1	02	1	0105-	●	●
210	GRILLE; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-886-1	01	1	0105-	●	●
210	GRILLE; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-885-1	01	1	0105-	●	●
