6-31 — FRONT DOOR GLASS AND REGULATOR (#12562) — 151 parça

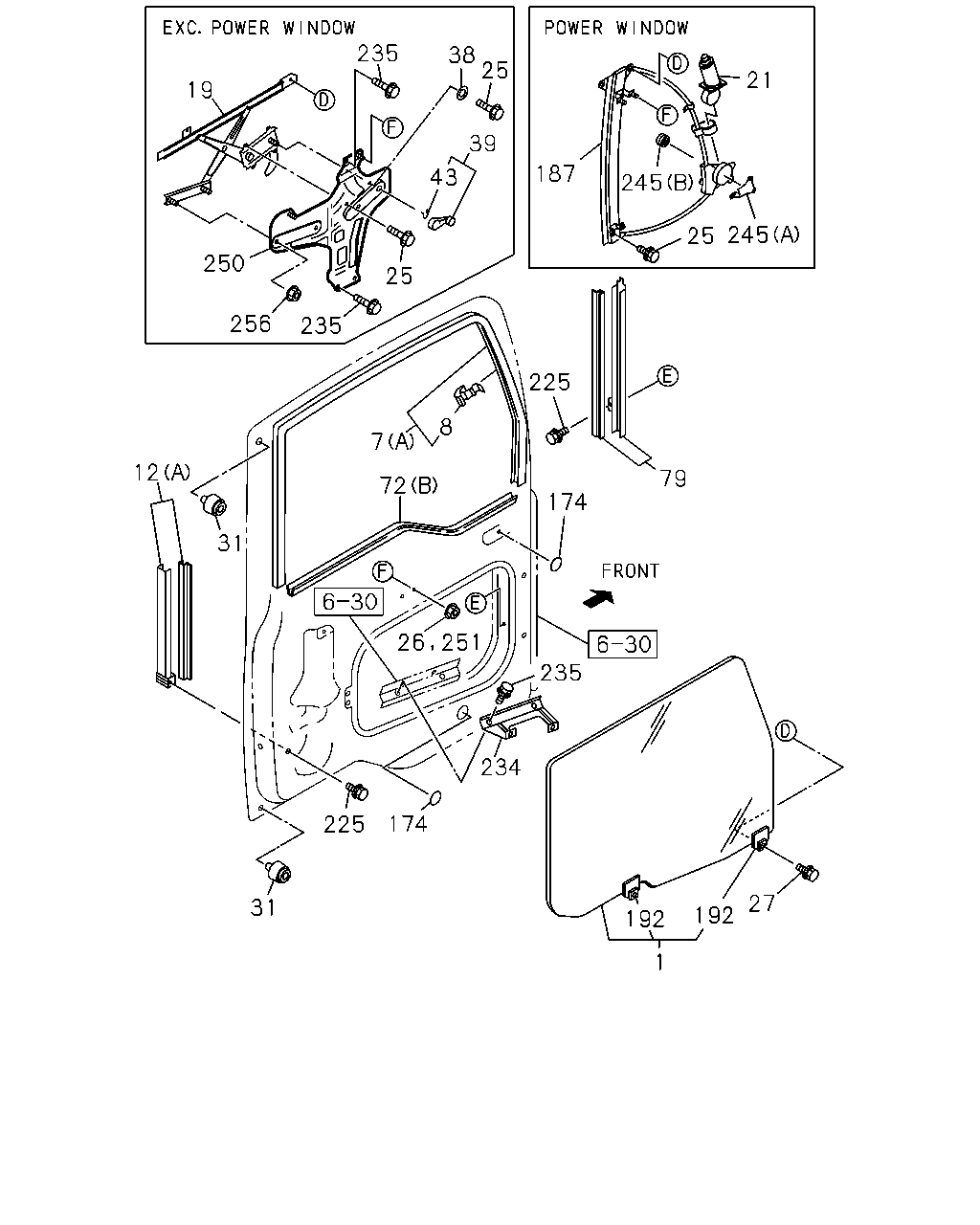

çizim 22719
27 192 192 1 234 235 251 26 174 225 31 31 12 72 7 225 8 174 79 245 25 245 187 21 25 38 39 43 235 25 235 256 250 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-2 01 1 0105- ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 0105- ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 0105- ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 0105- ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 0105- ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 0105- ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 0105- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0105- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-071-3 01 1 0105- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-070-3 01 1 0105- ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74338-036-0 01 1 0105- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 0105- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 0105- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0105- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0105- ● ●
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0105- ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0105-0405 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0105- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0105- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0105- ● ●
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0105- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 0105- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0105- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0105- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-3 01 1 0105- ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 0105-0212 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 16 1 0301- ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0105-0212 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 0105-0212 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 22 1 0301- ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 0105- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-3 01 1 0105- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-3 01 1 0105- ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0105- ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0105- ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 0105- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0105- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0105- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28050-616-0 08 1 0601- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0105- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0105- ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 0105- ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 0105- ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 0105- ● ●
256 NUT
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105- ● ●

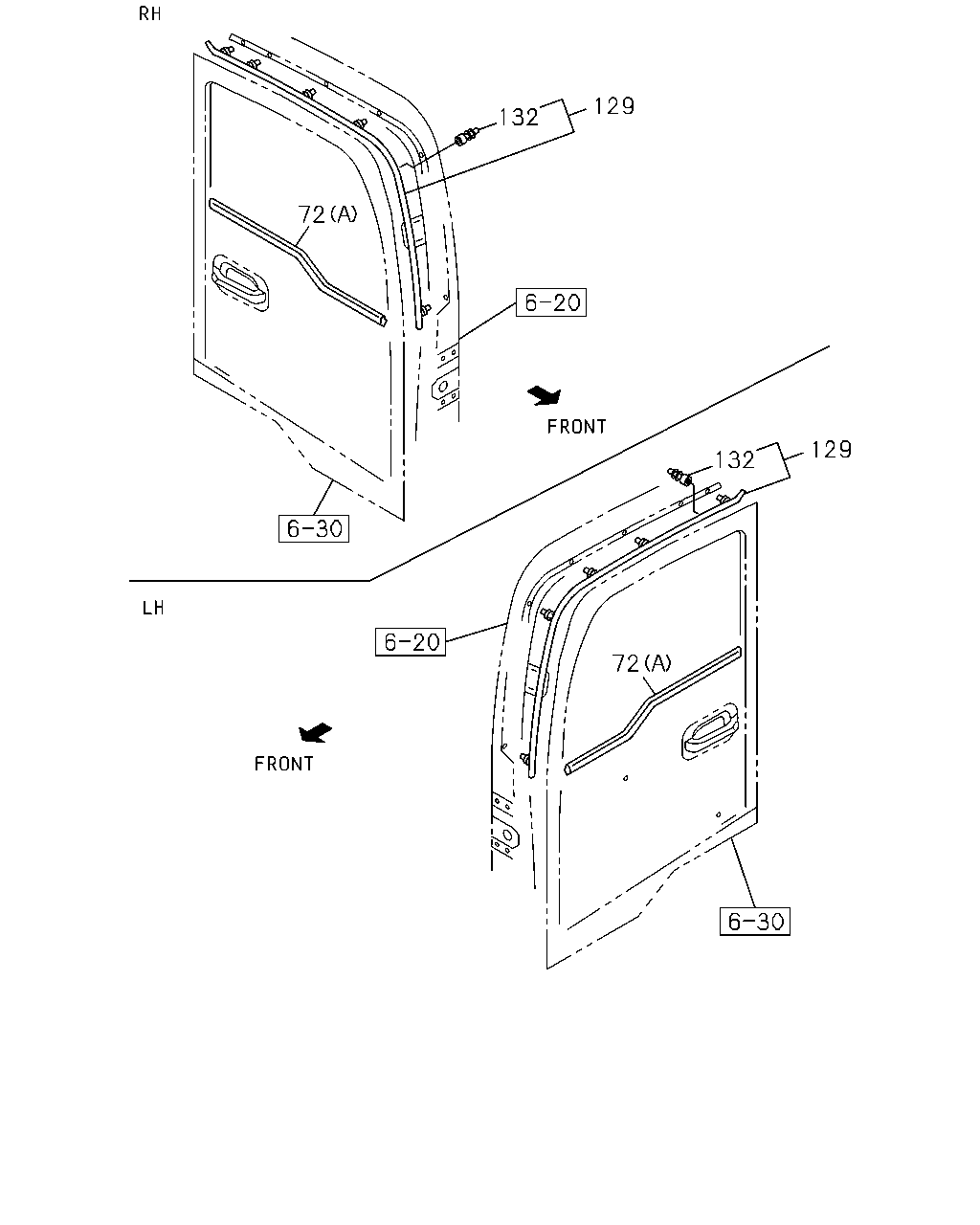

çizim 22720
132 129 72 132 129 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0105- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0105- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0105- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0105- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0105- ● ●

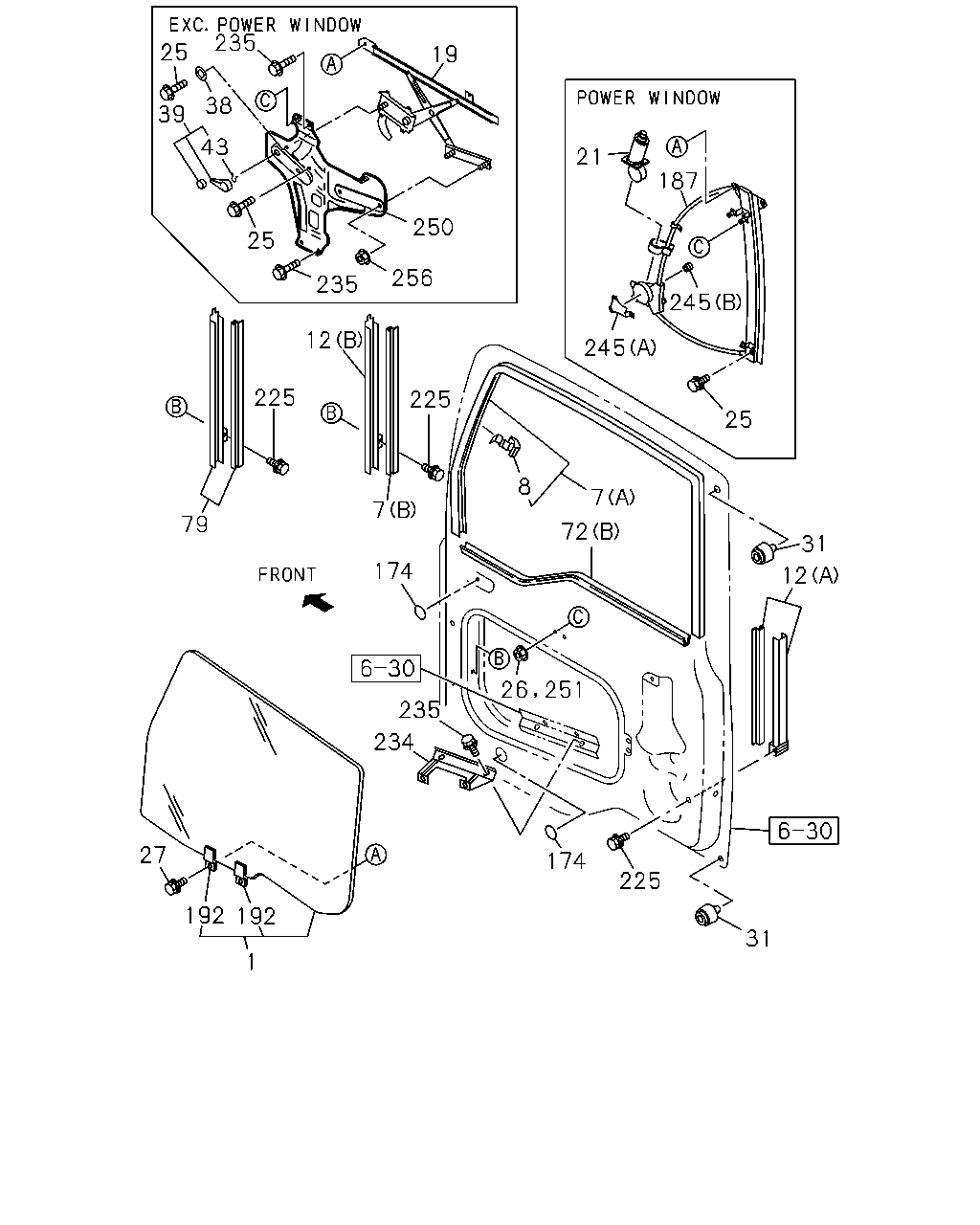

çizim 23697
21 19 187 245 245 25 7 72 8 225 12 225 79 174 7 31 12 26 251 174 225 31 234 235 192 1 192 27 25 250 256 235 38 235 25 39 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-2 01 1 0105- ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 0105- ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 0105- ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 0105- ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 0105- ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 0105- ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 0105- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0105- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-071-3 01 1 0105- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-070-3 01 1 0105- ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74338-036-0 01 1 0105- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 0105- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 0105- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0105- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0105- ● ●
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0105- ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0105-0405 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0105- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0105- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0105- ● ●
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0105- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 0105- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0105- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0105- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0105- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-3 01 1 0105- ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 0105-0212 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 16 1 0301- ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0105-0212 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 0105-0212 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 22 1 0301- ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 0105- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-3 01 1 0105- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-3 01 1 0105- ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0105- ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0105- ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 0105- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0105- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0105- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28050-616-0 08 1 0601- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0105- ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0105- ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 0105- ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 0105- ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 0105- ● ●
256 NUT
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105- ● ●

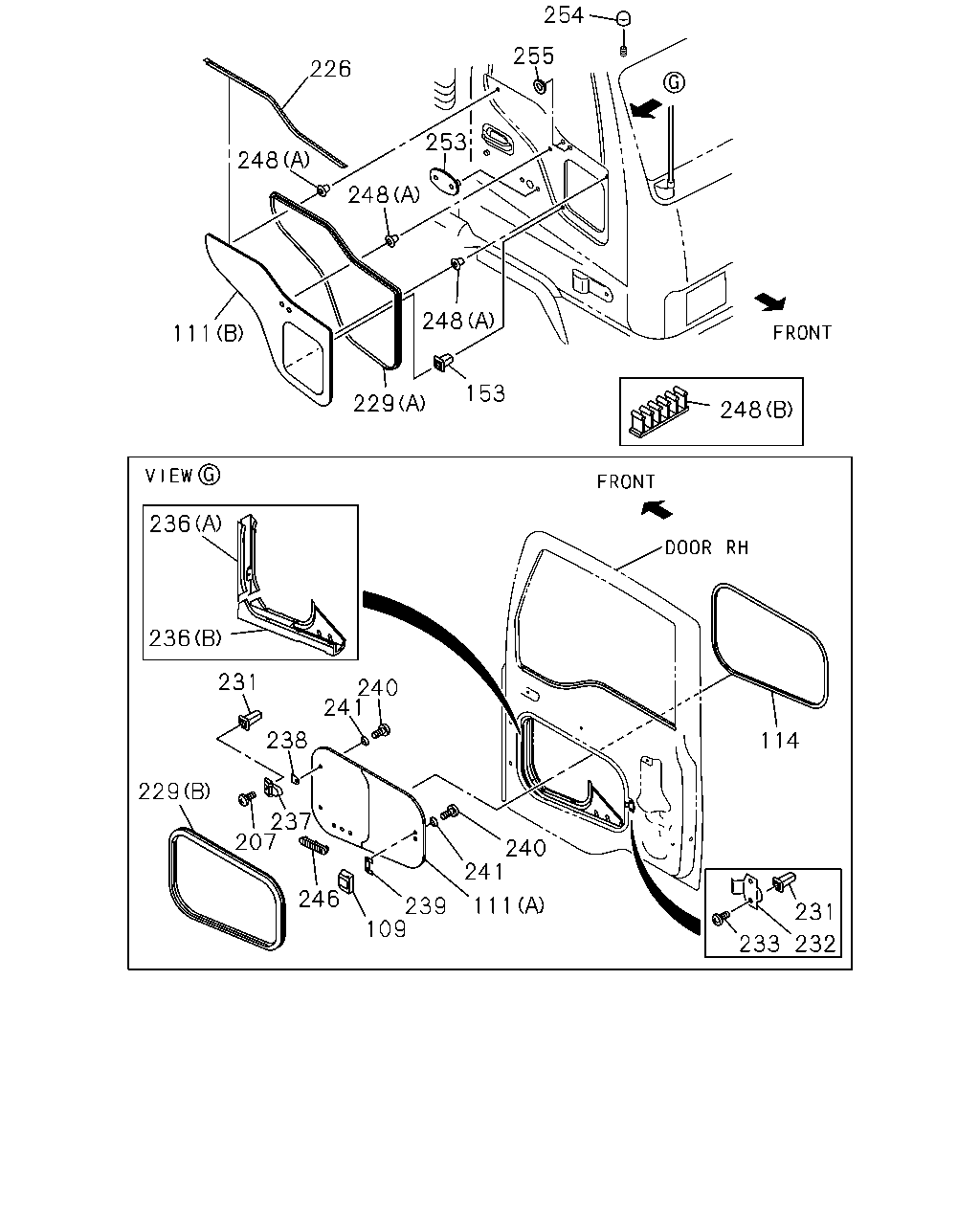

çizim 83206
248 248 153 229 111 248 248 226 253 255 254 114 236 236 231 240 241 238 229 237 207 246 239 109 240 241 111 231 232 233
BalonParca AdiParca NoAdetTipApplied Date A B
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 0105- ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) INNER 		8-97893-167-1 01 1 0105- ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) OUTER 		1-76148-081-3 01 1 0105- ● ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-037-2 01 1 0105- ● ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0105- ● ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0105- ● ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-1 01 1 0105- ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER 		1-76738-160-4 01 1 0105- ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER 		1-76738-161-1 01 1 0105- ● ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0105- ● ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 0105- ● ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0105- ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-2 01 1 0105- ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 0105- ● ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 0105- ● ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 0105- ● ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 0105- ● ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 0105- ● ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 0105- ● ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 0105- ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-072-0 01 1 0105- ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 03 1 0105- ● ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-97865-049-0 01 1 0105- ● ●
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		8-94276-413-1 02 1 0105- ● ●
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> OD=25 		8-94225-442-0 02 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
