◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#12561) — 32 parça

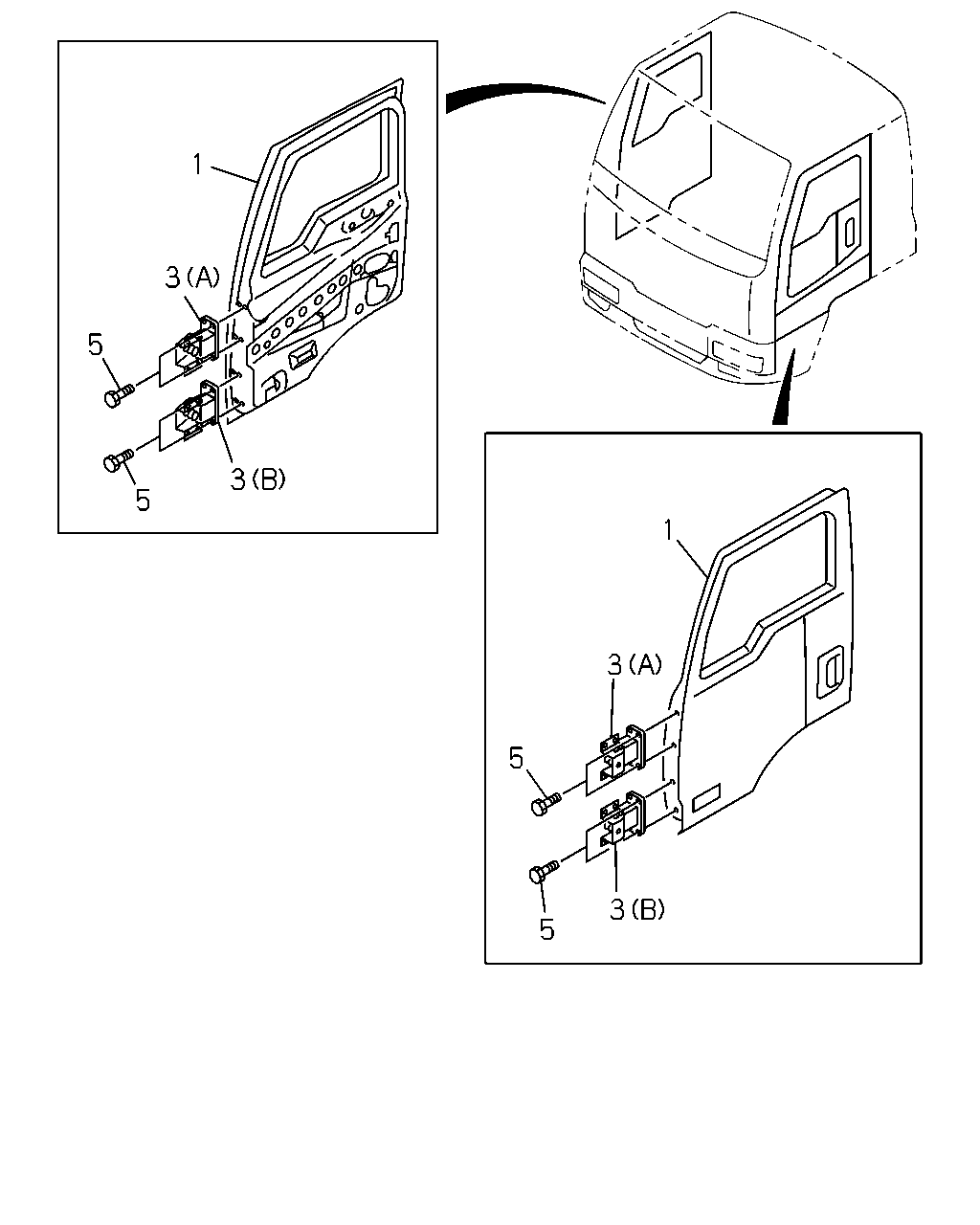

çizim 80629
1 3 5 5 3 5 3 3 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-2 01 1 0105- ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER 		1-64080-404-2 01 1 0105- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) 		1-64080-390-2 01 1 0105- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-388-0 01 1 0105-0207 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) 		1-64080-388-2 01 1 0208- ● ●
1 DOOR ASM; FRT,WO/TRIM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-64080-388-2 01 1 0208- ● ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-097-1 02 1 0208- ● ●
3 HINGE; DOOR FRT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-098-2 02 1 0208- ● ●
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER 		1-64780-088-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER 		1-64780-088-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER 		1-64780-088-3 01 1 0208- ● ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-3 01 1 0208- ● ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-3 01 1 0208- ● ●
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER 		1-64780-089-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER 		1-64780-089-2 01 1 0105-0207 ● ●
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER 		1-64780-089-3 01 1 0208- ● ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-3 01 1 0208- ● ●
3 HINGE; DOOR FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-3 01 1 0208- ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0105-0207 ● ●
5 BOLT; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0208- ● ●
5 BOLT; HINGE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0208- ● ●
5 BOLT; HINGE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0208- ● ●
5 BOLT; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-0207 ● ●
5 BOLT; HINGE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DOOR WITH UNDER VIEW WINDOW<YD8>,CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-0207 ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-0207 ● ●
5 BOLT; HINGE
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-0207 ● ●
5 BOLT; HINGE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0208- ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0208- ● ●
