6-05 — FRONT PANEL (#12558) — 272 parça

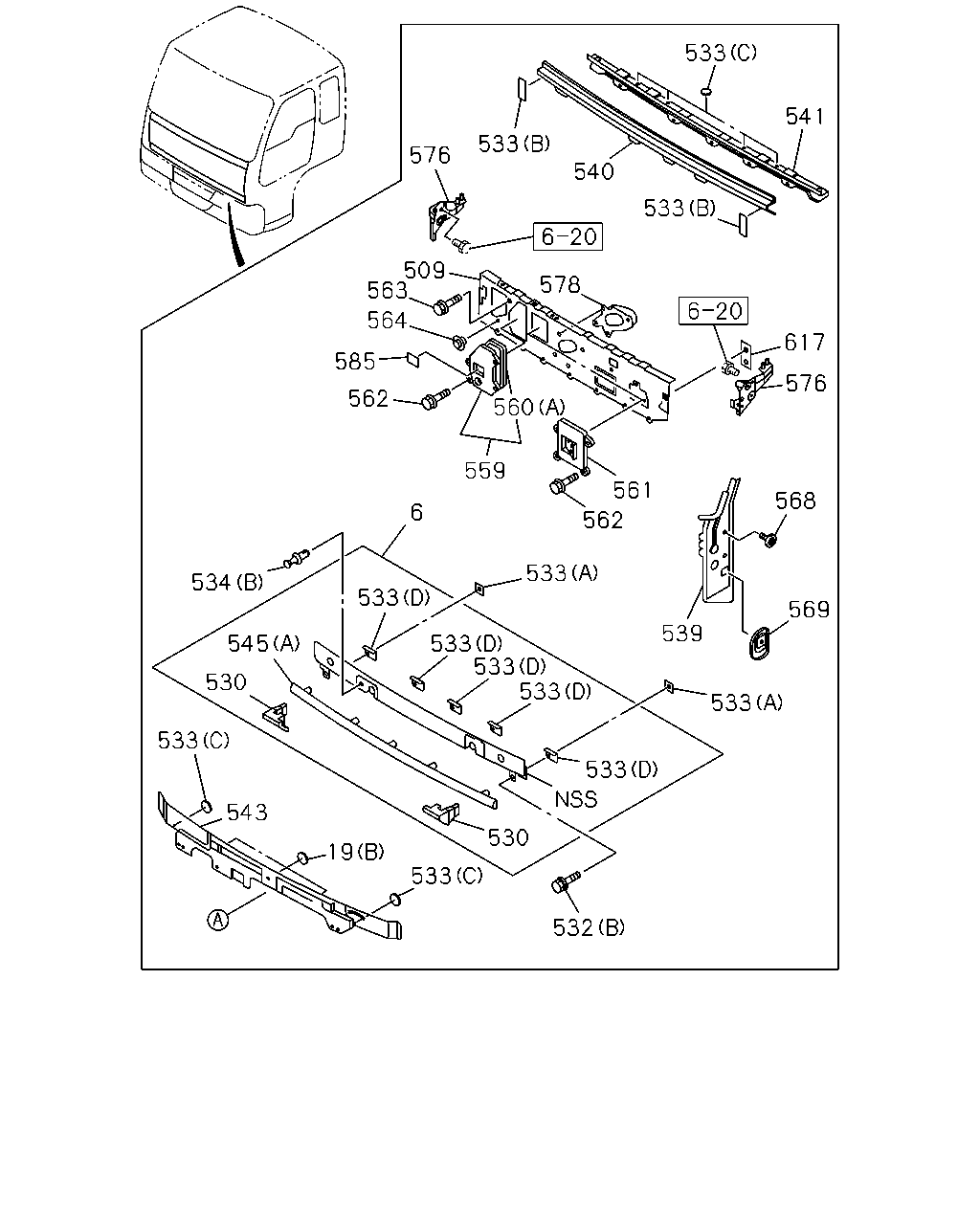

çizim 22840
533 540 533 541 533 578 509 563 564 585 560 562 559 561 562 568 576 617 569 539 533 6 534 533 545 530 533 533 533 533 533 533 530 532 533 19 543 576
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65472-551-3 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0105- ● ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-497-1 01 1 0105- ● ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 0105- ● ●
509 PANEL; DASH
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 0105- ● ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-62270-493-2 01 1 0105- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0105- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0105- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0105- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0105- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0105- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0105- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0105- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0105- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0105- ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 0105- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 0105- ● ●
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 0105- ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 0105- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-703-3 01 1 0105-0505 ● ●
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 0506- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0105-0411 ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0105- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0105- ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0105-0411 ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) L=63 		1-71998-963-2 01 1 0412- ● ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 0105- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0105- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0105-0411 ● ●
560 SEAL; COVER
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ● ●
560 SEAL; COVER
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0105- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0105-0411 ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0105-0411 ● ●
560 SEAL; COVER
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
560 SEAL; COVER
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 0105- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 0105-0202 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0203- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0105- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0105- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0105- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 0105- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 0105- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 0105- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0105- ● ●
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 0105- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0105- ● ●

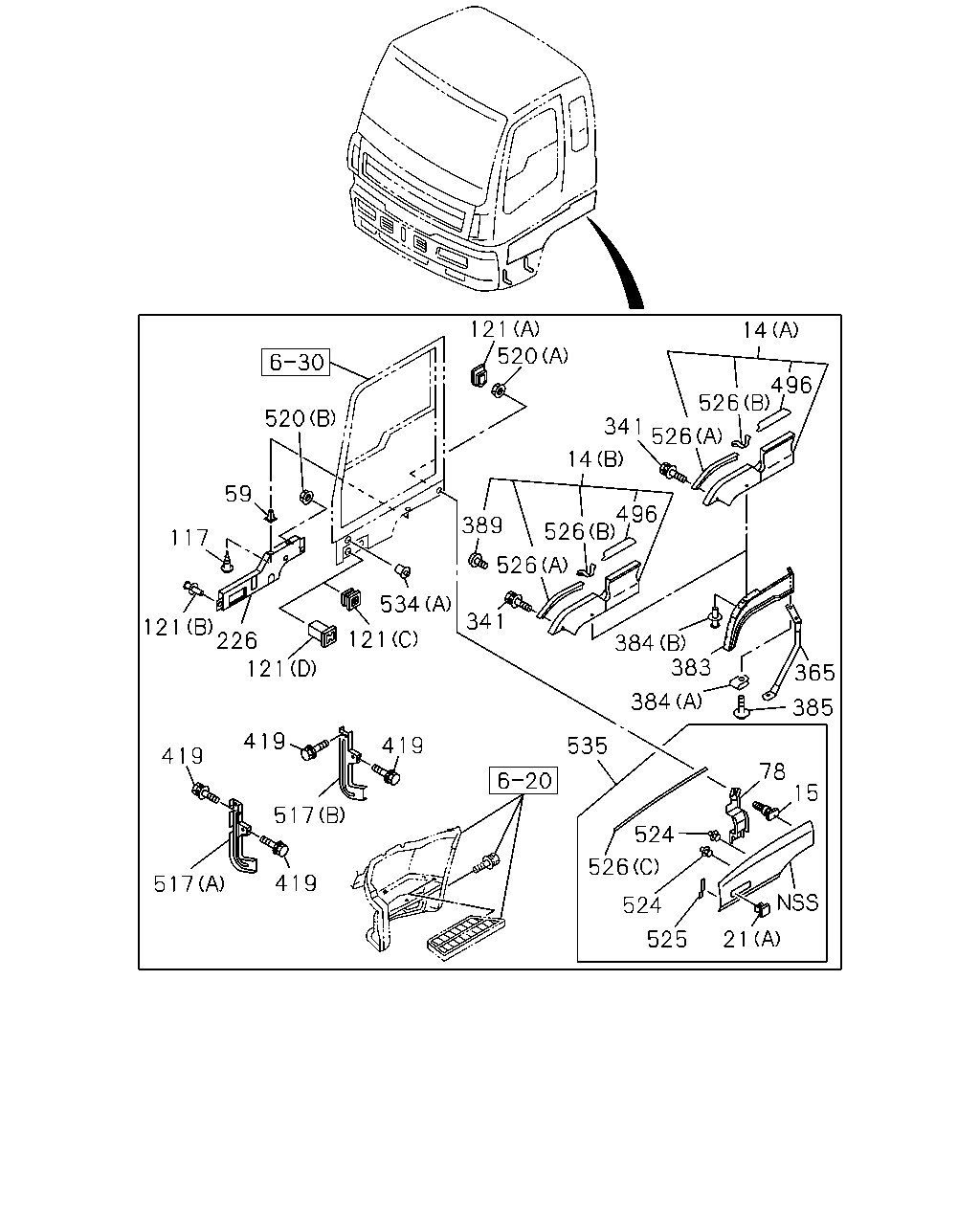

çizim 23583
525 524 526 21 15 78 524 535 384 365 385 383 384 526 14 341 526 526 496 14 496 389 341 526 534 121 121 226 121 117 59 520 121 520 419 419 419 517 419 517
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
(A) WHITE 		1-65472-453-0 01 1 0105-0503 ● ●
14 FENDER; FRT
(A) WHITE 		1-65472-452-0 01 1 0105-0503 ● ●
14 FENDER; FRT
(B) 		1-65472-875-6 01 1 0504- ● ●
14 FENDER; FRT
(B) 		1-65472-874-6 01 1 0504- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0105- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0105- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0105- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0105- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0105- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0105- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0105- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0105- ● ●
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0105- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0105- ● ●
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0105-0304 ● ●
121 GROMMET; FENDER
(D) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0305- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0105- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0105- ● ●
341 BOLT; FENDER TO COWL
EXC. SPRING BRAKE(SU9) M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0209-0503 ● ●
341 BOLT; FENDER TO COWL
SPRING BRAKE(SU9) M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0204-0503 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0504- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0105-0203 ● ●
341 BOLT; FENDER TO COWL
SPRING BRAKE(SU9) M6X16 W/LK&PL WASHER 		1-09980-492-0 17 1 0204-0503 ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 15 1 0504- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 0105- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 0105- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 0105- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 0105- ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 0105- ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 0105- ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 09 1 0105- ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) ID=6 		1-09987-266-0 04 1 0105- ● ●
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 11 1 0105- ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> M6X25 		1-65481-736-0 04 1 0105- ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0105- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 0105- ● ●
496 RUBBER; STEP 1-71998-861-2 01 1 0105- ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) 		1-65671-767-1 01 1 0110-0208 ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) 		1-65671-781-0 01 1 0209- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0105- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-747-4 01 1 0105-0109 ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) 		1-65671-747-4 01 1 0110-0208 ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) 		1-65671-778-0 01 1 0209- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0105- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0105- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0105- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0105- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0105- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0105-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER
(A) 		1-71998-900-3 02 1 0105-0211 ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0212- ● ●
526 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0105-0211 ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0212- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0105- ● ●
526 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0105-0211 ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0212- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0105- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0105- ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 0105-0210 ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 0105-0210 ● ●
535 FENDER; BLISTER 1-71267-294-0 01 1 0211- ● ●
535 FENDER; BLISTER 1-71267-293-0 01 1 0211- ● ●

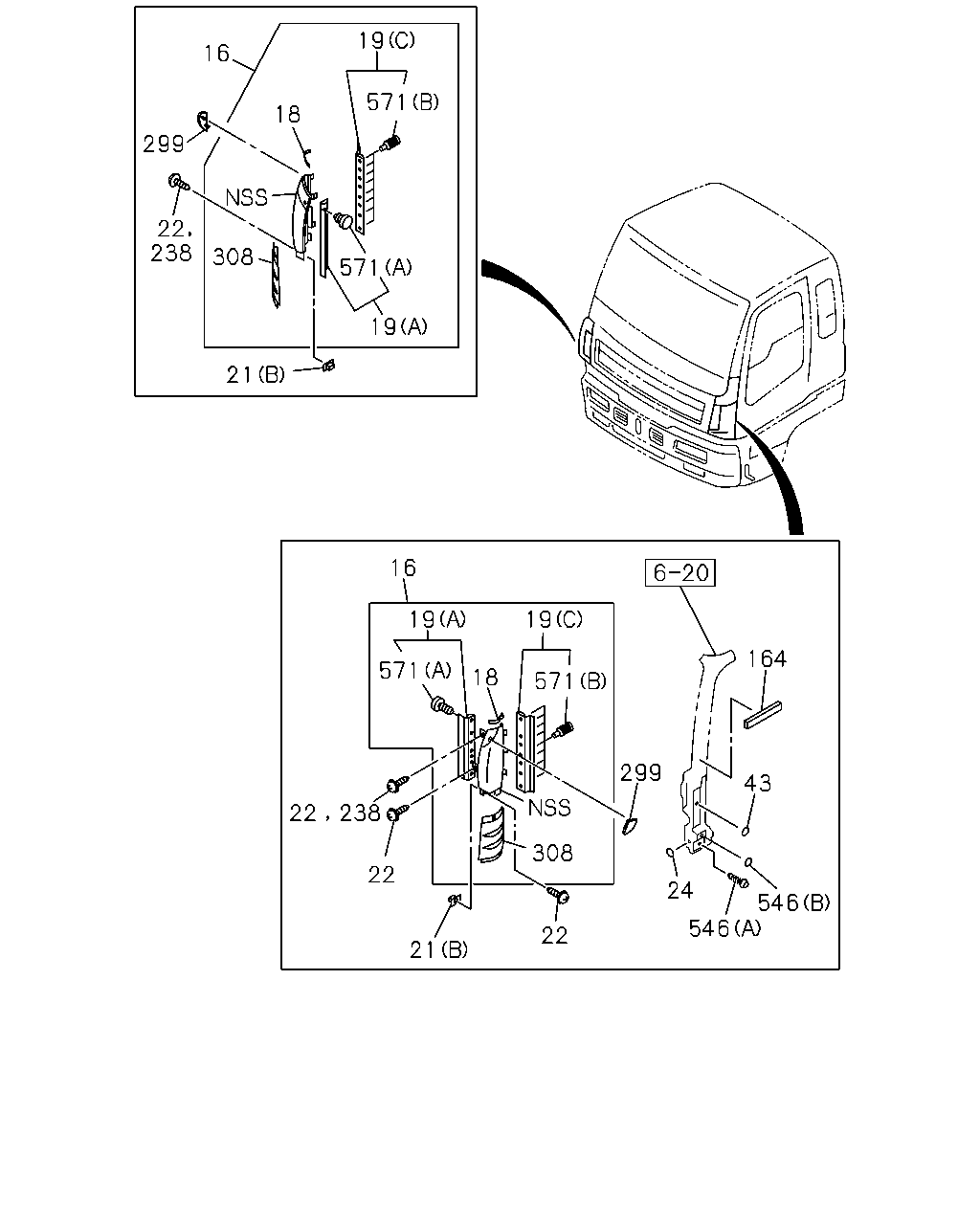

çizim 78922
43 164 299 24 546 546 22 308 571 19 18 19 16 571 238 22 22 21 19 571 21 308 22 238 299 18 16 571 19
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-649-2 01 1 0105- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-648-2 01 1 0105- ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 0105- ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 0105- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0105- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-5 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0105- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0105- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0105- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0105- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0105- ● ●
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0105- ● ●
22 SCREW; FRT PANEL SIDE
EXC. BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0105- ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 0105- ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 0105- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0105- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0105- ● ●
238 SCREW
BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0105- ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 0105- ● ●
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-995-1 01 1 0105- ● ●
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-569-1 01 1 0105- ● ●
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-568-1 01 1 0105- ● ●
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 0105- ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 AR 1 0105- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0105- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0105- ● ●

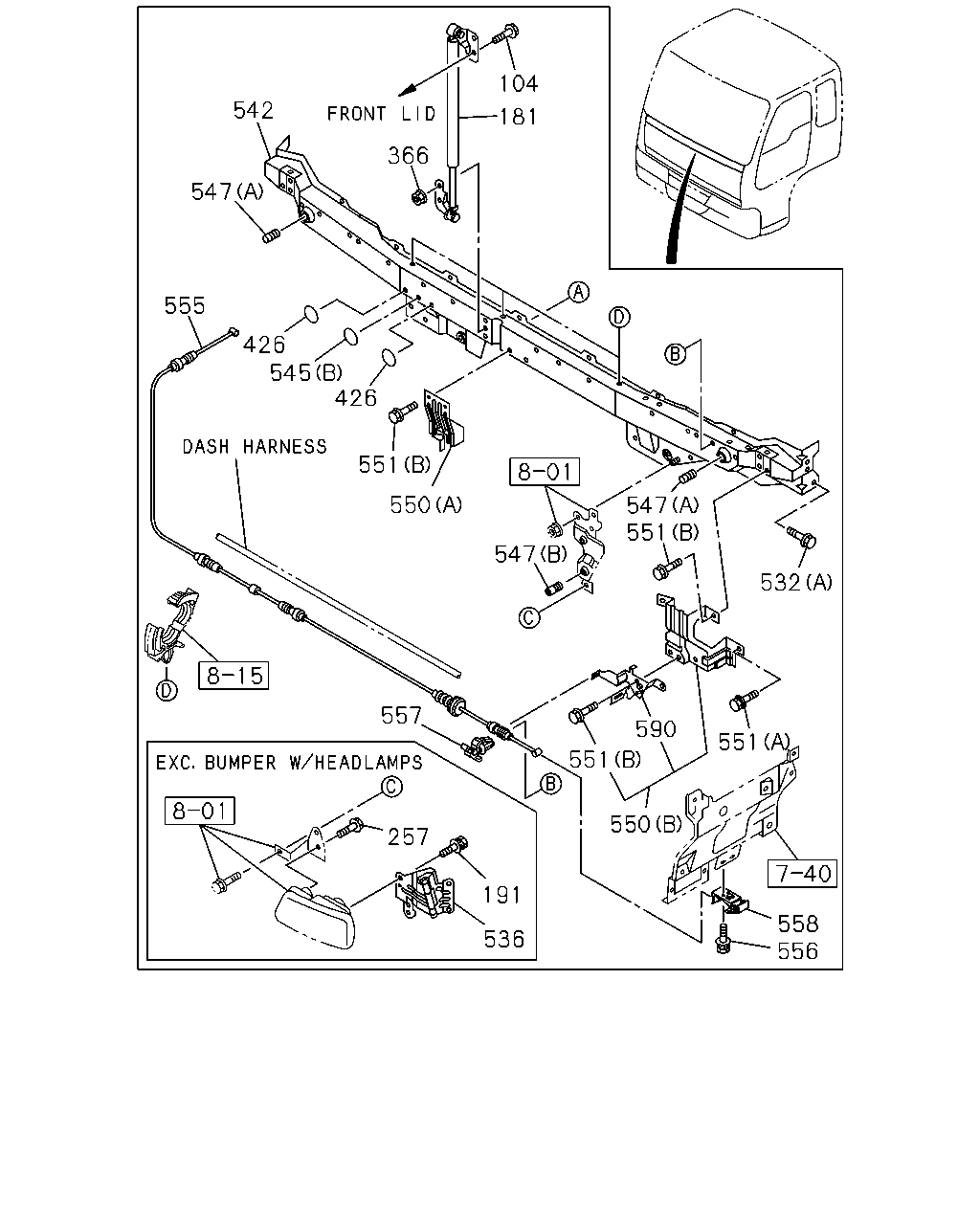

çizim 79593
542 104 366 181 555 545 426 551 426 550 532 551 557 590 551 551 550 558 556 536 191 257 547 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0105-0411 ● ●
104 BOLT; SUPPORT BAR
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0412- ● ●
104 BOLT; SUPPORT BAR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0412- ● ●
104 BOLT; SUPPORT BAR
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0412- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W),WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-864-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-71107-864-0 01 1 0501- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-71107-864-0 01 1 0501- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-864-0 01 1 0501- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0105-0411 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-71107-261-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-71107-261-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-261-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-71107-261-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-71107-261-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-261-0 01 1 0412-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-71107-261-0 01 1 0412-0412 ● ●
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0105-0308 ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0105- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 0105- ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0105- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0105- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105- ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 0105- ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 0105- ● ●
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 0105-0505 ● ●
542 RAIL; FRT MOUNTING 1-61470-722-0 01 1 0506- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0105-0411 ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0105- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0105- ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0105-0411 ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) L=63 		1-71998-963-2 01 1 0412- ● ●
547 RUBBER; CUSHION
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CAB UP +110MM<TGG> (C) L=1825 		1-71907-581-0 01 1 0207-0411 ● ●
547 RUBBER; CUSHION
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CAB UP +110MM<TGG> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) L=1825 		1-71907-581-0 01 1 0412- ● ●
547 RUBBER; CUSHION
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) L=1825 		1-71907-581-0 01 1 0412- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0105- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0105- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-013-1 01 1 0105- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-017-1 01 1 0105- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-016-1 01 1 0105- ● ●
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-006-2 01 1 0105- ● ●
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-015-1 01 1 0105- ● ●
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-014-1 01 1 0105- ● ●
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0105- ● ●
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0105- ● ●
551 BOLT; LOCK
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
555 CABLE; FRT LID
BUMPER W/HEADLAMPS<SLB> L=2612 		1-79347-008-1 01 1 0105- ● ●
555 CABLE; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> L=2782 		1-79347-006-2 01 1 0105- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0105- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 04 1 0105- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 0105- ● ●
590 LOCK; FRT LID 1-79318-007-5 01 1 0105- ● ●
590 LOCK; FRT LID 1-79318-006-3 01 1 0105- ● ●

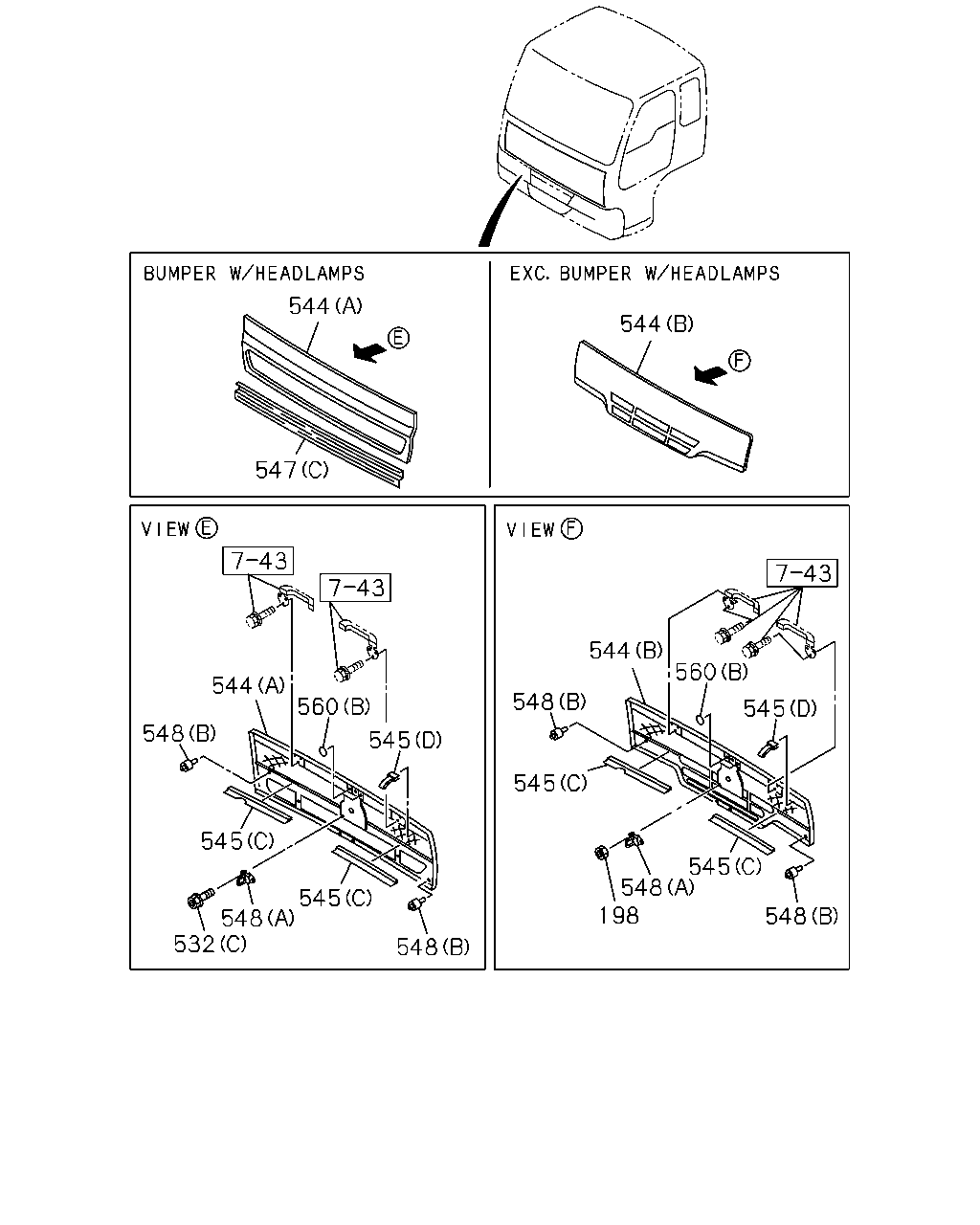

çizim 81288
545 560 544 548 545 548 198 545 548 548 545 548 532 545 545 560 544 548 547 544 544
BalonParca AdiParca NoAdetTipApplied Date A B
198 NUT; PANEL
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		8-94197-199-0 02 1 0105-0411 ● ●
198 NUT; PANEL
EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6 FLANGE 		8-94197-199-0 02 1 0412- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0105- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105- ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),DELUXE CAB(W14),CHINA EQUIPMENT(YT2) (A) 		1-71107-403-0 01 1 0105-0301 ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-71107-403-0 01 1 0105-0301 ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-71107-403-0 01 1 0302- ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-71107-403-0 01 1 0302- ● ●
544 LID; FRT
CHEV BRAND PACKAGE<PS2> BUMPER W/HEADLAMPS<SLB> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71107-404-0 01 1 0105- ● ●
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-71107-373-0 01 1 0105- ● ●
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2>,BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), DELUXE CAB(W14),CHINA EQUIPMENT(YT2) (B) 		1-71107-293-0 01 1 0105- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0105-0411 ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-71907-472-0 02 1 0412- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0105- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0105- ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0105-0411 ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) L=63 		1-71998-963-2 01 1 0412- ● ●
547 RUBBER; CUSHION
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CAB UP +110MM<TGG> (C) L=1825 		1-71907-581-0 01 1 0207-0411 ● ●
547 RUBBER; CUSHION
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CAB UP +110MM<TGG> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) L=1825 		1-71907-581-0 01 1 0412- ● ●
547 RUBBER; CUSHION
6WF1 TC-C(1B8) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) L=1825 		1-71907-581-0 01 1 0412- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0105- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0105- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 0105-0411 ● ●
548 STRIKER; FRT LID PANEL
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) 		1-79317-003-1 01 1 0412- ● ●
548 STRIKER; FRT LID PANEL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-79317-003-1 01 1 0412- ● ●
548 STRIKER; FRT LID PANEL
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-79317-003-1 01 1 0412- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 0105-0411 ● ●
548 STRIKER; FRT LID PANEL
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) 		1-79318-008-1 02 1 0412- ● ●
548 STRIKER; FRT LID PANEL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79318-008-1 02 1 0412- ● ●
548 STRIKER; FRT LID PANEL
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79318-008-1 02 1 0412- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0105- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0105-0411 ● ●
560 SEAL; COVER
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ● ●
560 SEAL; COVER
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0105- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0105-0411 ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0105-0411 ● ●
560 SEAL; COVER
BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
560 SEAL; COVER
6WF1 TC-C(1B8),10PE1N(61L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
