5-30 — SPARE TIRE CARRIER AND COVER (#12555) — 130 parça

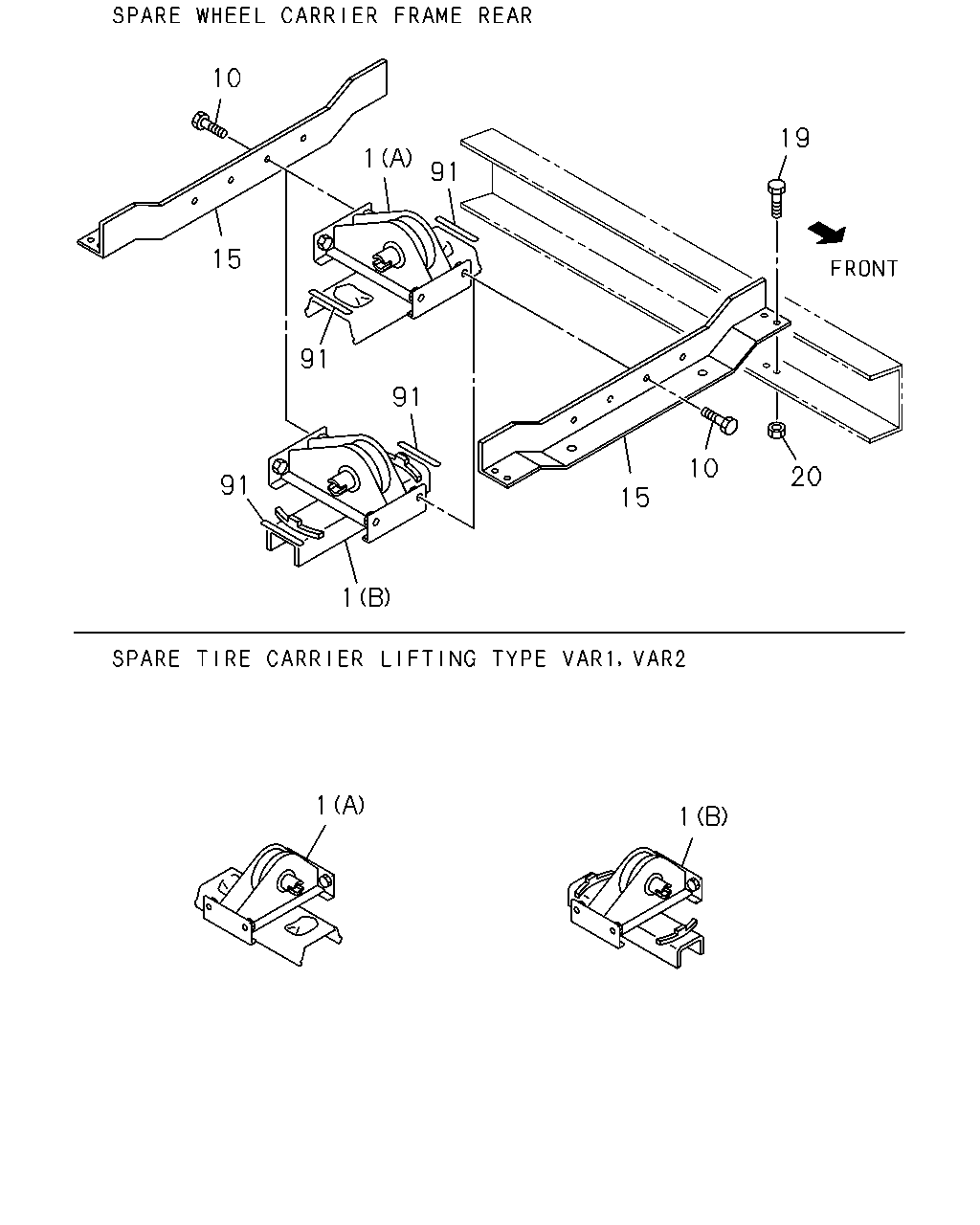

çizim 80634
20 10 15 91 91 15 10 1 91 19 1 91 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54) ,WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-208-1 01 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0205- ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204 ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0205- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0105-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0105-0512 ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 08 1 0601- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> 		1-53631-455-0 02 1 0105- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. DISC WHEEL AL<SDM> 		1-53631-395-1 02 1 0105- ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 0105-0208 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X35 FLANGE 		0-28081-035-0 08 1 0105-0208 ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 0209-0512 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00-20<97X>,RR TIRE 12.00-20<98X> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X35 FLANGE 		0-28081-035-0 08 1 0209-0512 ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28051-035-0 08 1 0601- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00-20<97X>,RR TIRE 12.00-20<98X> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X35 FLANGE 		0-28051-035-0 08 1 0601- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X25 FLANGE 		0-28081-025-0 08 1 0105-0512 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X25 FLANGE 		0-28051-025-0 08 1 0601- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 0105-0602 ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105- ●

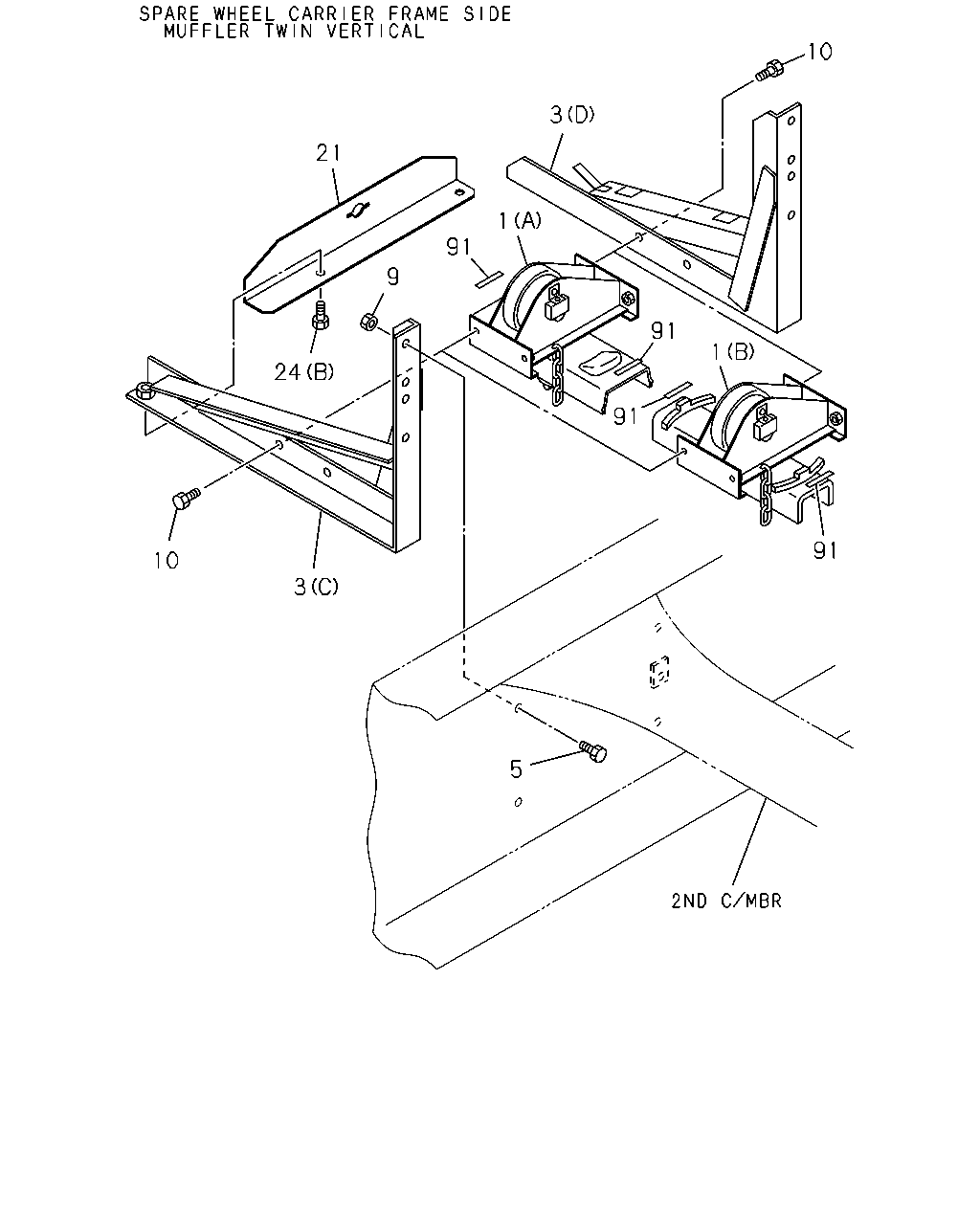

çizim 81499
3 10 1 91 9 21 91 91 1 91 5 3 10 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54) ,WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-208-1 01 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0205- ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204 ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0205- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53631-434-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (D) 		1-53631-388-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (C) 		1-53631-393-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (D) 		1-53631-389-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS> (A) 		1-53631-326-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS> (B) 		1-53631-325-1 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT),DISC WHEEL AL<SDM> (A) 		1-53631-324-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT),DISC WHEEL AL<SDM> (B) 		1-53631-323-1 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,DISC WHEEL AL<SDM> (A) 		1-53631-324-0 02 1 0105- ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,DISC WHEEL AL<SDM> (B) 		1-53631-323-1 02 1 0105- ●
5 BOLT; BRKT TO FRAME
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 0105-0512 ● ●
5 BOLT; BRKT TO FRAME
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 06 1 0601- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28681-240-0 04 1 0105-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28651-240-0 04 1 0601- ● ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12X40 FLANGE 		0-28681-240-0 08 1 0105-0512 ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12X40 FLANGE 		0-28651-240-0 08 1 0601- ●
9 NUT; BRKT TO FRAME
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 0105-0204 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 0205-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		9-99110-512-0 04 1 0205-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 04 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		0-91110-512-0 04 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		9-99110-512-0 04 1 0105-0204 ● ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12 		9-99110-512-0 08 1 0105-0512 ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12 		0-91110-512-0 08 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0105-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0105-0512 ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 08 1 0601- ●
21 BRACKET; SPARE TIRE HANGER
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 0105- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53631-428-0 01 1 0105- ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> 		1-53631-428-0 02 1 0105- ●
24 BOLT; SPARE TIRE
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 0105-0512 ● ●
24 BOLT; SPARE TIRE
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28651-225-0 02 1 0601- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M8X25 FLANGE 		0-28680-825-0 08 1 0105-0512 ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M8X25 FLANGE 		0-28650-825-0 08 1 0601- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105- ●

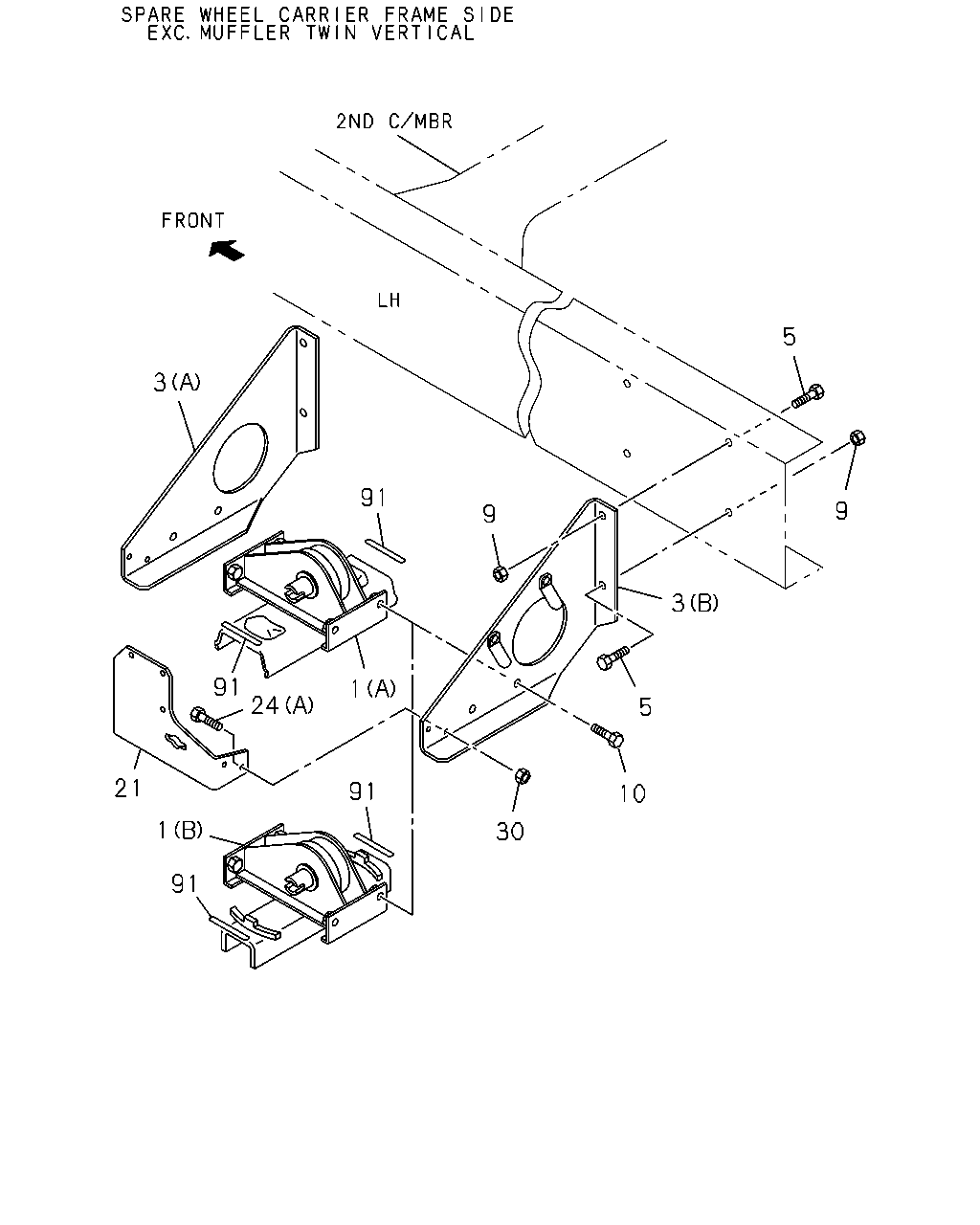

çizim 83209
9 5 3 91 9 3 5 10 30 1 24 91 91 1 91 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54) ,WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-208-1 01 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0205- ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204 ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0105-0204 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0205- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53631-434-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (D) 		1-53631-388-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (C) 		1-53631-393-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (D) 		1-53631-389-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS> (A) 		1-53631-326-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS> (B) 		1-53631-325-1 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT),DISC WHEEL AL<SDM> (A) 		1-53631-324-0 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT),DISC WHEEL AL<SDM> (B) 		1-53631-323-1 01 1 0105- ● ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,DISC WHEEL AL<SDM> (A) 		1-53631-324-0 02 1 0105- ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,DISC WHEEL AL<SDM> (B) 		1-53631-323-1 02 1 0105- ●
5 BOLT; BRKT TO FRAME
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 0105-0512 ● ●
5 BOLT; BRKT TO FRAME
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 06 1 0601- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28681-240-0 04 1 0105-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28651-240-0 04 1 0601- ● ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12X40 FLANGE 		0-28681-240-0 08 1 0105-0512 ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12X40 FLANGE 		0-28651-240-0 08 1 0601- ●
9 NUT; BRKT TO FRAME
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 0105-0204 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 0205-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		9-99110-512-0 04 1 0205-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 04 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		0-91110-512-0 04 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		9-99110-512-0 04 1 0105-0204 ● ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12 		9-99110-512-0 08 1 0105-0512 ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> M12 		0-91110-512-0 08 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0105-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0105-0512 ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 08 1 0601- ●
21 BRACKET; SPARE TIRE HANGER
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 0105- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53631-428-0 01 1 0105- ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> 		1-53631-428-0 02 1 0105- ●
24 BOLT; SPARE TIRE
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 0105-0512 ● ●
24 BOLT; SPARE TIRE
MUFFLER TWIN VERTICAL<NBS> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28651-225-0 02 1 0601- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M8X25 FLANGE 		0-28680-825-0 08 1 0105-0512 ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M8X25 FLANGE 		0-28650-825-0 08 1 0601- ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
30 NUT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 08 1 0105-0602 ●
30 NUT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 08 1 0603- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
