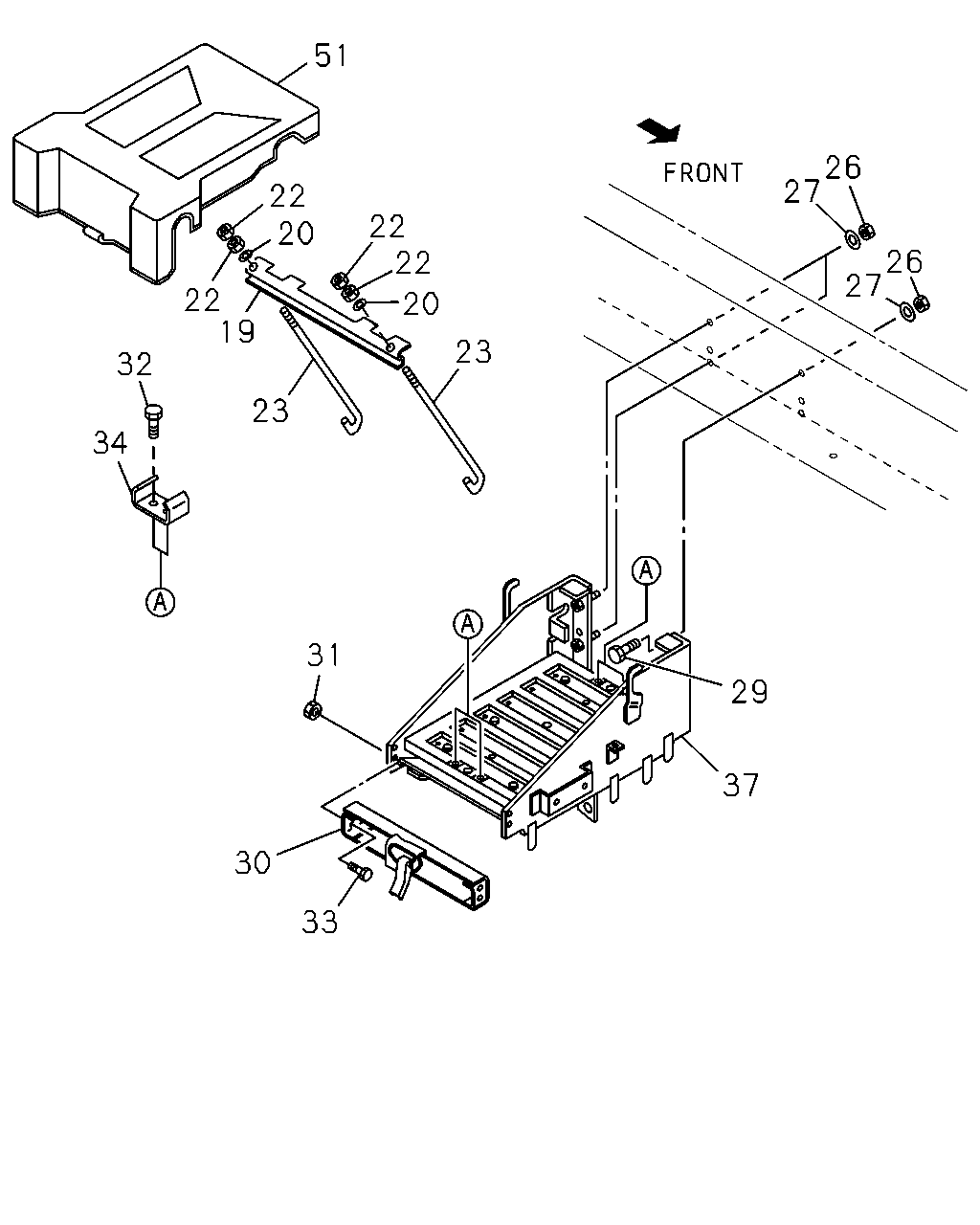

5-20 — BATTERY CARRIER (#12554) — 22 parça

26 26 27 27 29 37 31 30 33 23 23 20 22 22 22 22 32 34 19 20 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY	1-53618-039-2	01	1	0105-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	9-09164-708-0	02	1	0105-	●	●
22	NUT; STAY M8	9-09110-408-0	04	1	0105-0512	●	●
22	NUT; STAY M8	0-91110-508-0	04	1	0601-	●	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	0105-	●	●
26	NUT; BRKT M14	9-99110-514-0	02	1	0105-0305	●	●
26	NUT; BRKT M14	9-99110-514-0	04	1	0306-0512	●	●
26	NUT; BRKT M14	0-91110-514-0	04	1	0601-	●	●
27	WASHER; LK,BRKT ID=14.2	9-09150-514-0	04	1	0105-	●	●
29	BOLT; BRKT TO FRAME M14X40	0-20801-440-0	02	1	0105-0512	●	●
29	BOLT; BRKT TO FRAME M14X40	0-20851-440-0	02	1	0601-	●	●
30	PLATE; BATTERY	1-53619-086-0	01	1	0105-	●	●
31	NUT; PLATE M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
32	BOLT; PLATE TO SPACER EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
32	BOLT; PLATE TO SPACER EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
33	BOLT; PLATE TO BRKT M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
33	BOLT; PLATE TO BRKT M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
34	SPACER; BATTERY BRKT EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>	1-53619-084-0	02	1	0105-	●	●
37	BRACKET; BATTERY MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>	1-53610-130-0	01	1	0105-	●	●
37	BRACKET; BATTERY EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>	1-53610-131-1	01	1	0105-	●	●
51	COVER; BATTERY	1-53612-040-1	01	1	0105-	●	●
