5-16 — OIL PUMP; CAB TILT (#12552) — 139 parça

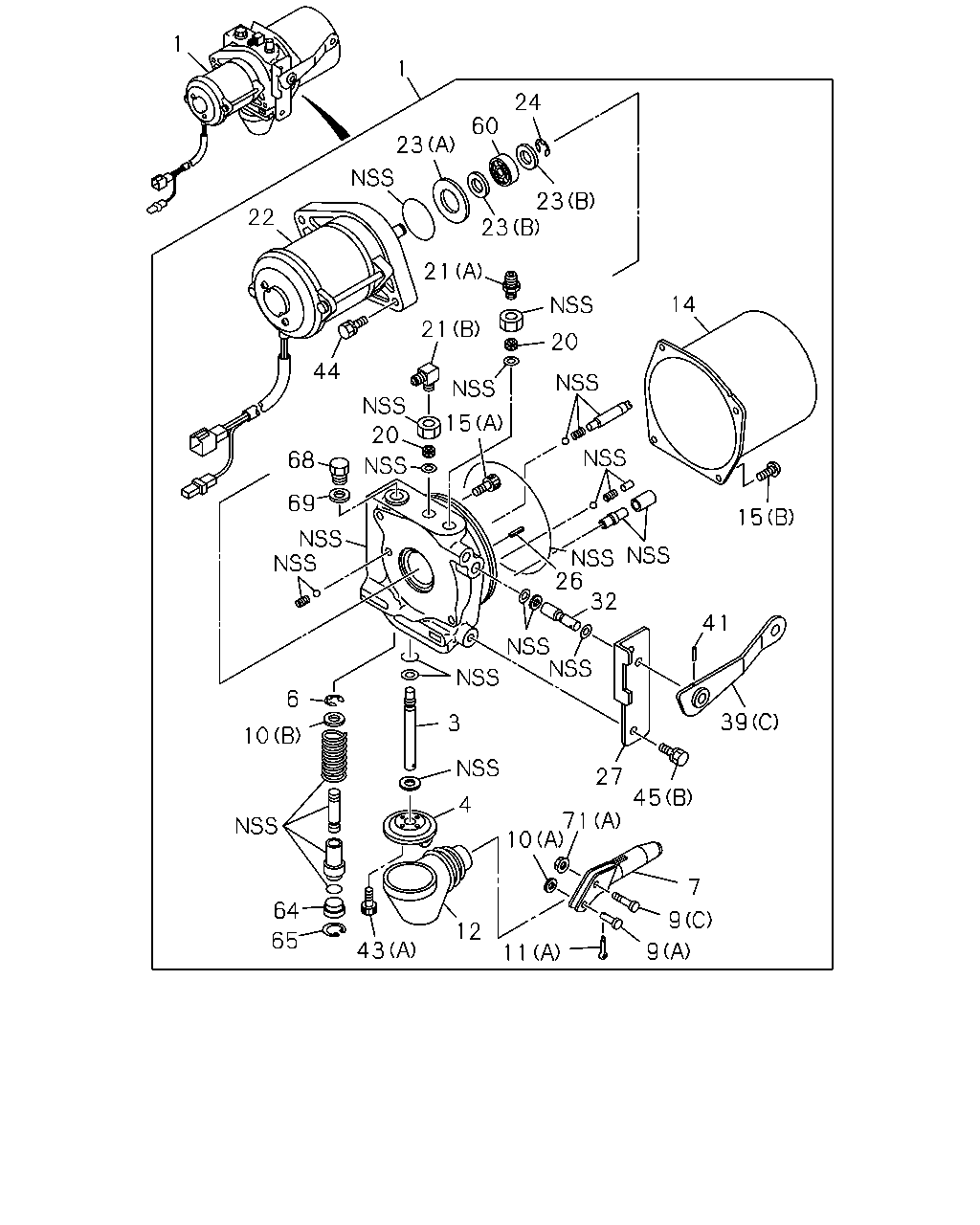

çizim 22693
14 15 41 39 45 27 71 10 7 9 9 11 12 43 64 65 4 3 6 10 32 26 69 68 44 21 20 15 20 21 23 23 24 60 23 1 22 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-965-0 01 1 0105- ● ●
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0105- ● ●
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-842-0 01 1 0105- ● ●
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-566-0 01 1 0105- ● ●
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-411-0 01 1 0105- ● ●
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-724-1 01 1 0105- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) L=27.7 		1-09987-141-0 02 1 0105- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-060-0 01 1 0105- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-844-0 01 1 0105- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 0105- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-561-0 01 1 0105- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		9-09160-708-0 02 1 0105- ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-058-0 01 1 0105- ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		9-08223-817-0 02 1 0105- ● ●
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-560-0 01 1 0105- ● ●
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-432-0 01 1 0105- ● ●
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (B) M5X8 		1-53458-005-0 04 1 0105- ● ●
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (A) M5X8 		1-53458-433-0 02 1 0105- ● ●
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 0105- ● ●
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53457-026-0 01 1 0105- ● ●
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> (A) M12 		1-53458-941-0 01 1 0105- ● ●
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-731-0 01 1 0105- ● ●
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 0105- ● ●
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 02 1 0105- ● ●
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 0105- ● ●
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 01 1 0105- ● ●
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-725-0 01 1 0105- ● ●
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-569-0 01 1 0105- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-723-0 01 1 0105- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-779-1 01 1 0105- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-872-0 01 1 0105- ● ●
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 0105- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M5X12 		1-53458-420-0 02 1 0105- ● ●
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 0105- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107 ● ●
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107 ● ●
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0105- ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0107 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-423-0 01 1 0105- ● ●
64 SLEEVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-572-0 01 1 0105- ● ●
65 RING; SNAP,SLEEVE
AUTO CAB TILT<WV2> 		1-53458-570-0 01 1 0105- ● ●
68 PLUG; FILLER
AUTO CAB TILT<WV2> 		1-53458-428-0 01 1 0105- ● ●
69 GASKET; FILLER PLUG
AUTO CAB TILT<WV2> 		1-53458-427-0 01 1 0105- ● ●
71 NUT; PUSH
AUTO CAB TILT<WV2> (A) 		1-53458-845-0 01 1 0105- ● ●
71 NUT; PUSH
AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0105- ● ●

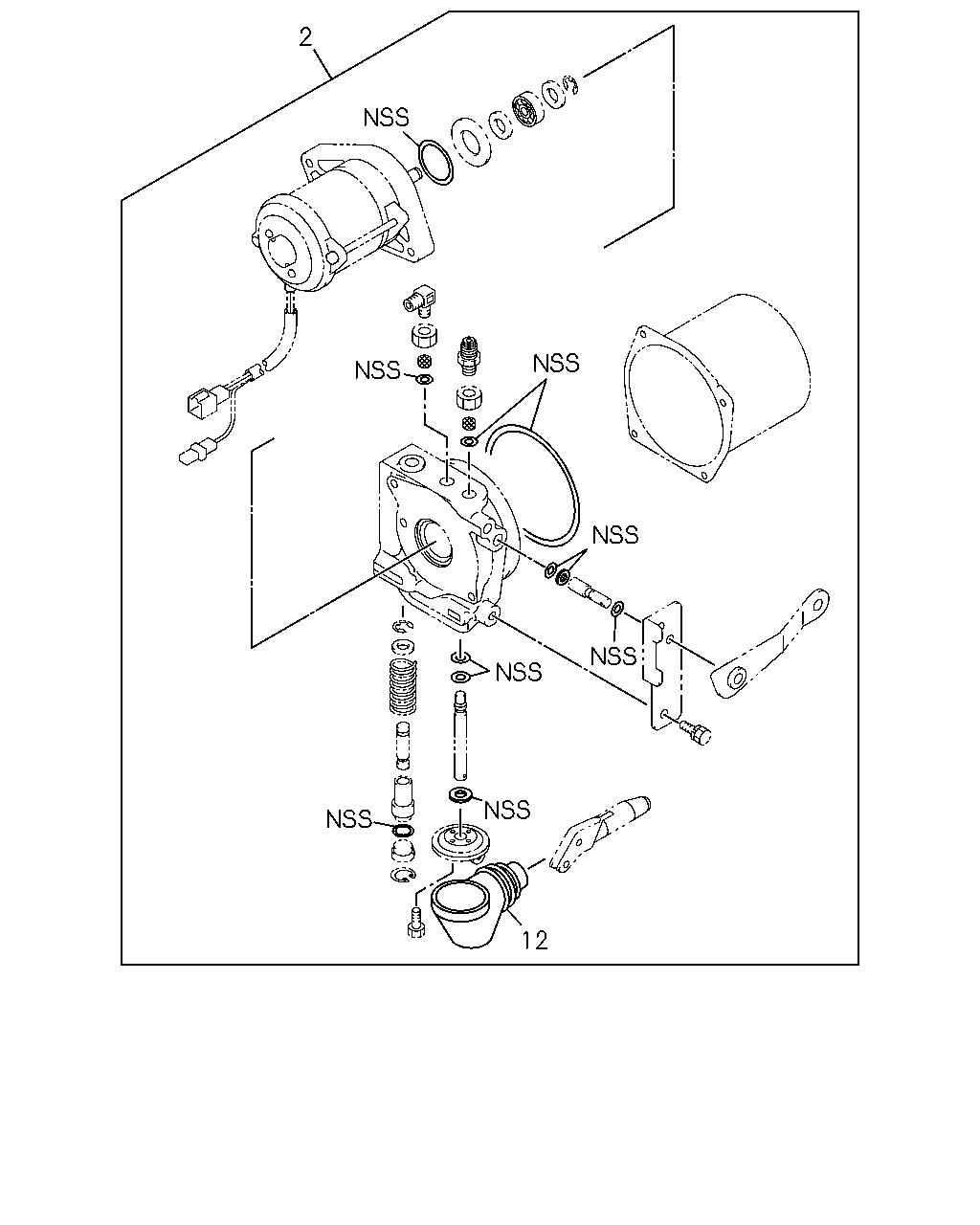

çizim 23582
2 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-058-0 01 1 0105- ● ●
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-560-0 01 1 0105- ● ●

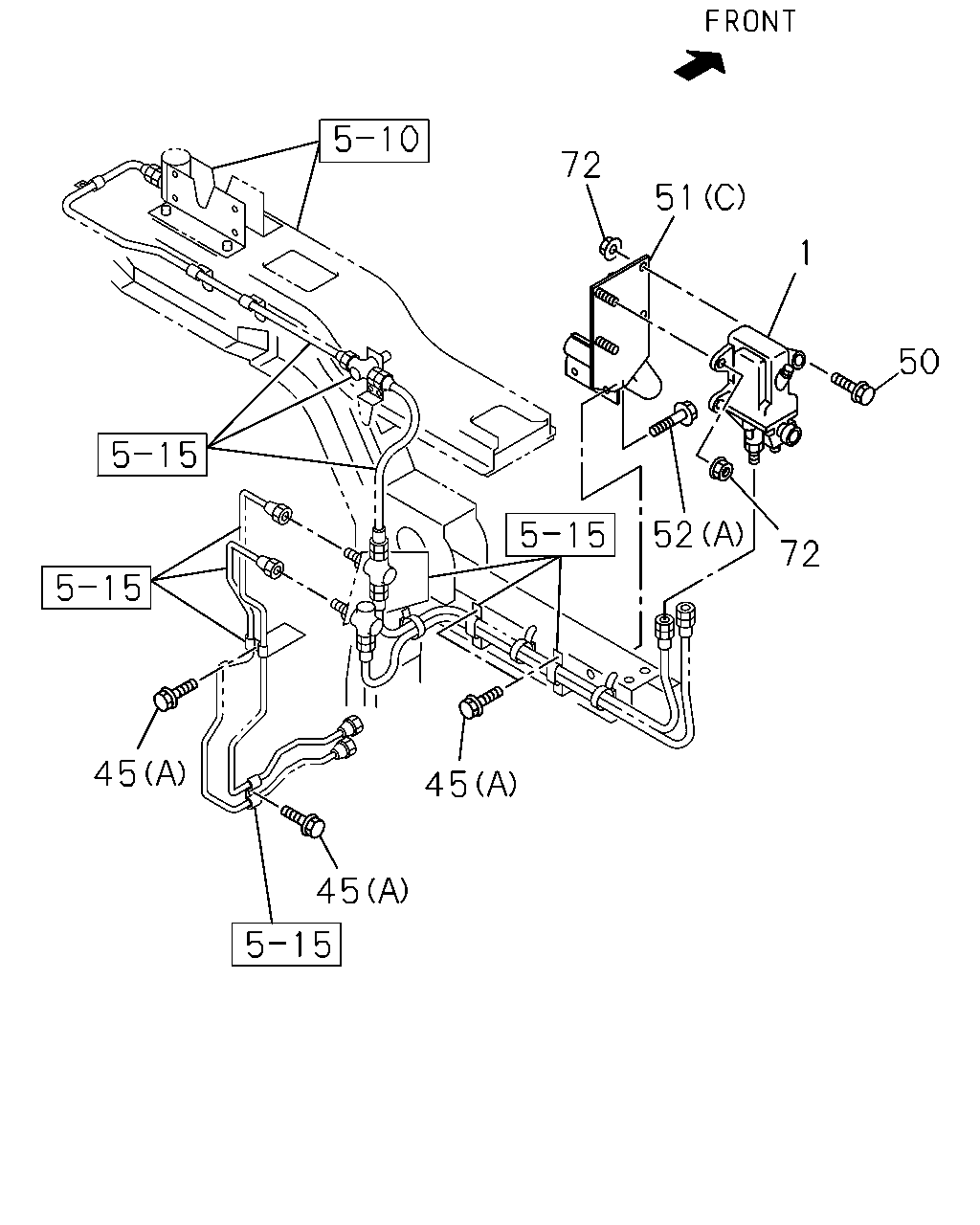

çizim 23696
1 51 72 50 72 52 45 45 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-965-0 01 1 0105- ● ●
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0105- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107 ● ●
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107 ● ●
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0105- ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0107 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28081-016-0 02 1 0105-0512 ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512 ● ●
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> W-SERIES ENG<1A2> (C) 		1-53457-023-0 01 1 0105- ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-666-0 01 1 0105- ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-781-0 01 1 0105- ● ●
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> (C) 		1-53458-974-0 01 1 0105-0105 ● ●
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> PE-SERIES ENG<1A0> (C) 		1-53458-974-0 01 1 0105- ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105- ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M10X25 FLANGE 		0-28681-025-0 02 1 0105-0512 ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
52 BOLT; BRKT
MANUAL CAB TILT<SHK>,AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ●
52 BOLT; BRKT
MANUAL CAB TILT<SHK>,AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
72 NUT; OIL PUMP
MANUAL CAB TILT<SHK> M10 FLANGE 		0-91150-210-0 04 1 0105-0602 ● ●
72 NUT; OIL PUMP
MANUAL CAB TILT<SHK> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●

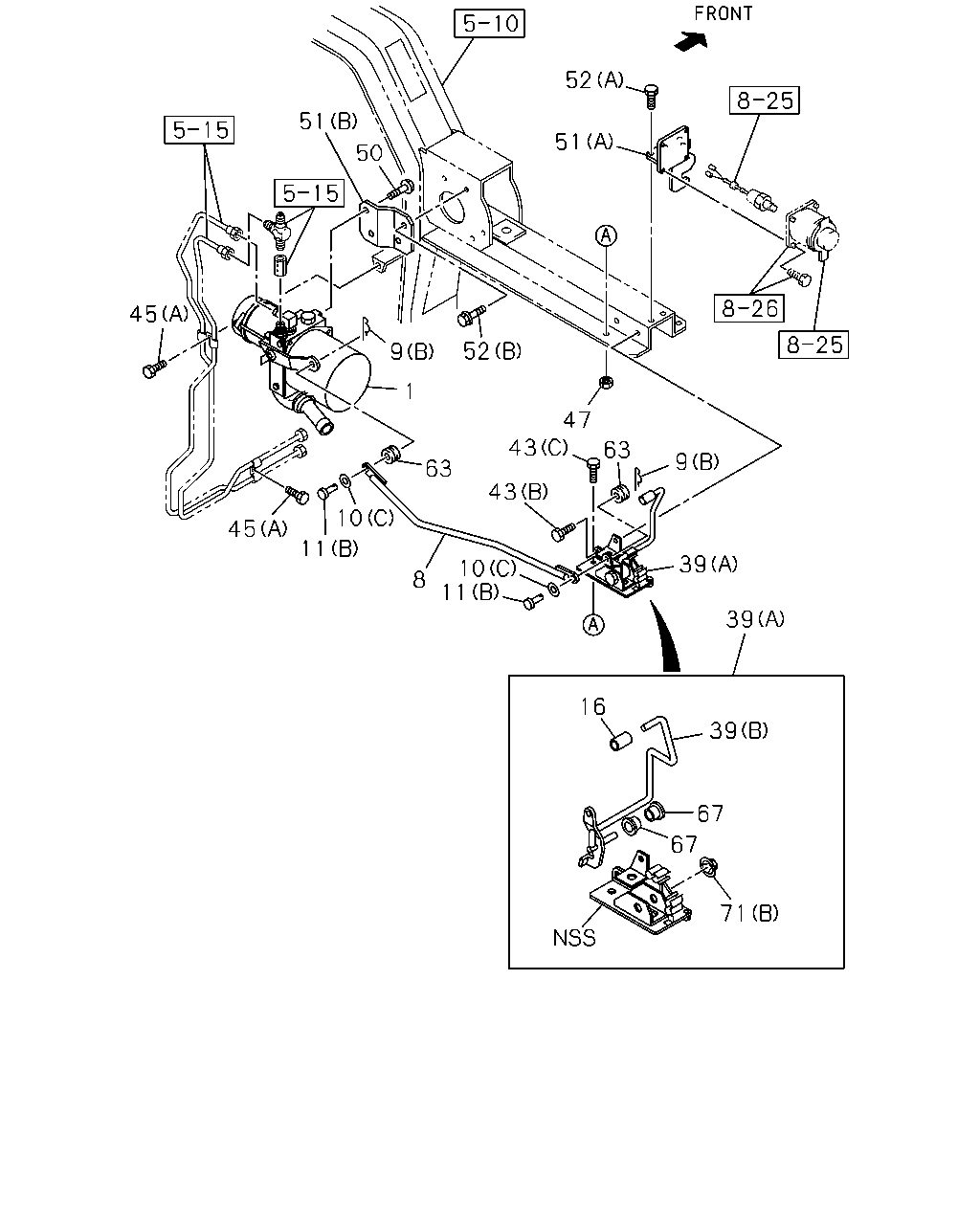

çizim 79592
71 67 39 16 67 39 39 9 63 47 43 43 63 10 11 8 10 11 45 1 9 52 51 52 51 50 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-965-0 01 1 0105- ● ●
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0105- ● ●
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-929-0 01 1 0105- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) L=27.7 		1-09987-141-0 02 1 0105- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-060-0 01 1 0105- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-844-0 01 1 0105- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 0105- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-561-0 01 1 0105- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		9-09160-708-0 02 1 0105- ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-058-0 01 1 0105- ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		9-08223-817-0 02 1 0105- ● ●
16 CAP
AUTO CAB TILT<WV2> ID=9.0 		8-94207-303-0 01 1 0105- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-723-0 01 1 0105- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-779-1 01 1 0105- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-872-0 01 1 0105- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M5X12 		1-53458-420-0 02 1 0105- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107 ● ●
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107 ● ●
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0105- ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0107 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512 ● ●
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
47 NUT; LEVER
AUTO CAB TILT<WV2> M10 FLANGE 		0-91150-210-0 01 1 0105-0602 ● ●
47 NUT; LEVER
AUTO CAB TILT<WV2> M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28081-016-0 02 1 0105-0512 ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512 ● ●
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> W-SERIES ENG<1A2> (C) 		1-53457-023-0 01 1 0105- ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-666-0 01 1 0105- ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-781-0 01 1 0105- ● ●
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> (C) 		1-53458-974-0 01 1 0105-0105 ● ●
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> PE-SERIES ENG<1A0> (C) 		1-53458-974-0 01 1 0105- ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105- ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M10X25 FLANGE 		0-28681-025-0 02 1 0105-0512 ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
52 BOLT; BRKT
MANUAL CAB TILT<SHK>,AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ●
52 BOLT; BRKT
MANUAL CAB TILT<SHK>,AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
63 GROMMET
AUTO CAB TILT<WV2> ID=10 OD=23 T=8 		1-09983-010-0 02 1 0105- ● ●
67 BUSHING
AUTO CAB TILT<WV2> T=6 OD=17.5 		9-33659-249-0 02 1 0105- ● ●
71 NUT; PUSH
AUTO CAB TILT<WV2> (A) 		1-53458-845-0 01 1 0105- ● ●
71 NUT; PUSH
AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
