◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#12551) — 199 parça

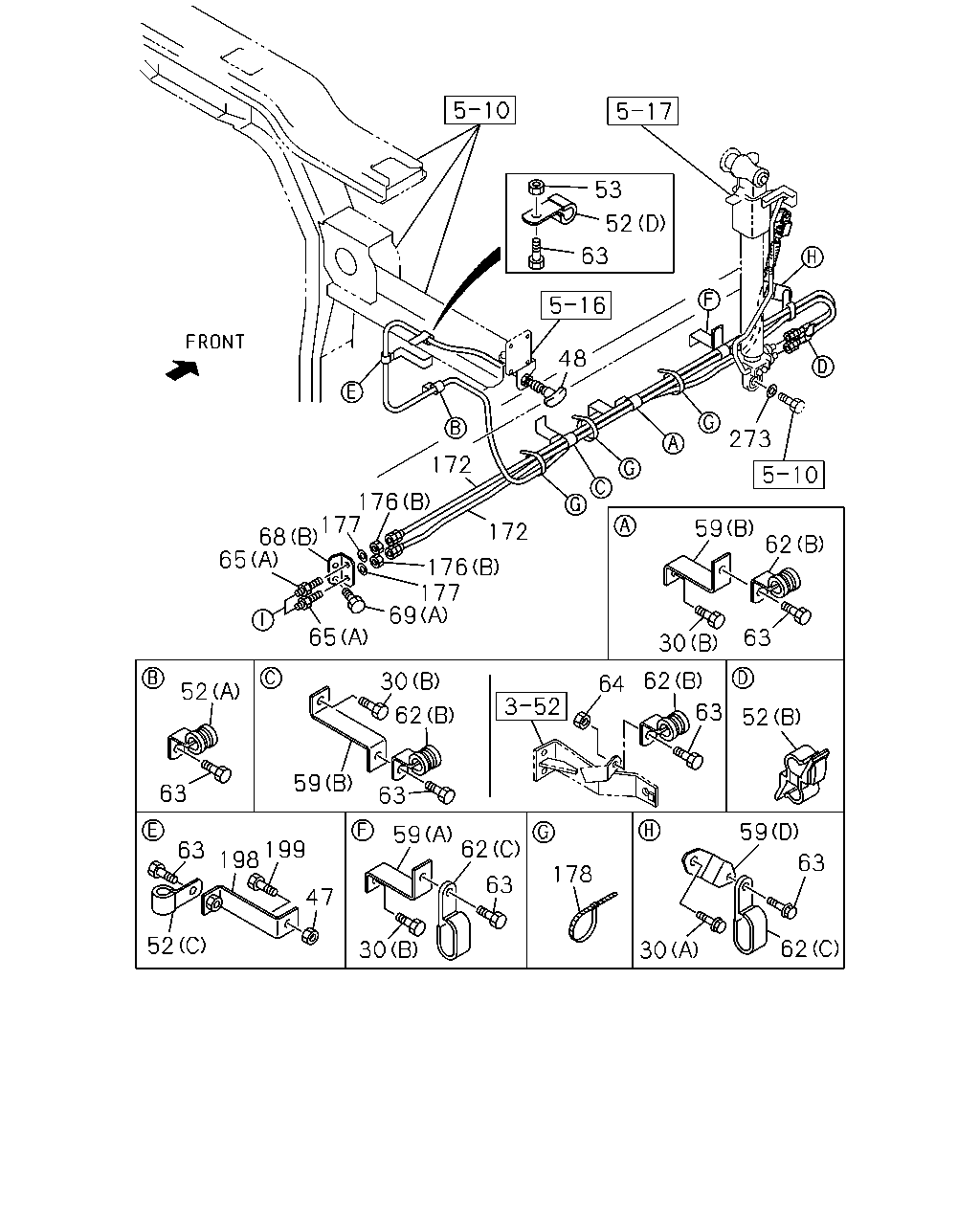

çizim 22839
53 63 52 48 172 273 172 176 176 177 68 65 177 69 65 59 30 63 62 52 63 62 64 30 62 63 59 52 63 199 198 63 47 52 62 63 59 30 178 59 63 62 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0105-0512 ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 0601- ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
47 NUT; BRKT
W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0105-0410 ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0105- ● ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0105- ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0105- ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0105- ● ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0105- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0105- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0105- ● ●
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=90 		1-82699-856-0 01 1 0105- ● ●
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=90 		1-82699-856-0 02 1 0105- ● ●
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (E) 		1-53458-915-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0105- ● ●
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (E) L=140 		5-09707-031-0 03 1 0105- ● ●
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0105- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0105-0512 ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 0601- ● ●
63 BOLT; CLIP
PE-SERIES ENG<1A0> M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
63 BOLT; CLIP
PE-SERIES ENG<1A0> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0105- ● ●
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0105- ● ●
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 0105- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0105- ● ●
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (C) 		1-53457-009-0 01 1 0105- ● ●
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512 ● ●
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0105- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
176 NUT; UNION
MANUAL CAB TILT<SHK> (B) M12 		9-09840-280-0 02 1 0105- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0105- ● ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0105- ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-1 01 1 0105-0108 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> L=140 		5-09707-031-1 02 1 0109-0506 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> L=140 		5-09707-031-1 02 1 0109-0506 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-1 02 1 0109-0506 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> L=140 		5-09707-031-1 02 1 0507- ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-1 02 1 0507- ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> L=140 		5-09707-031-1 02 1 0507- ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> W-SERIES ENG<1A2> L=140 		5-09707-031-1 02 1 0507- ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> L=140 		5-09707-031-1 02 1 0105-0108 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> L=140 		5-09707-031-1 02 1 0105-0108 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> L=140 		5-09707-031-1 03 1 0105-0506 ● ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> L=140 		5-09707-031-1 03 1 0507- ●
178 CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> L=140 		5-09707-031-1 03 1 0507- ●
198 BRACKET; CABLE
W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 0105-0410 ● ●
199 BOLT; BRKT
W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 01 1 0105-0410 ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0105- ● ●

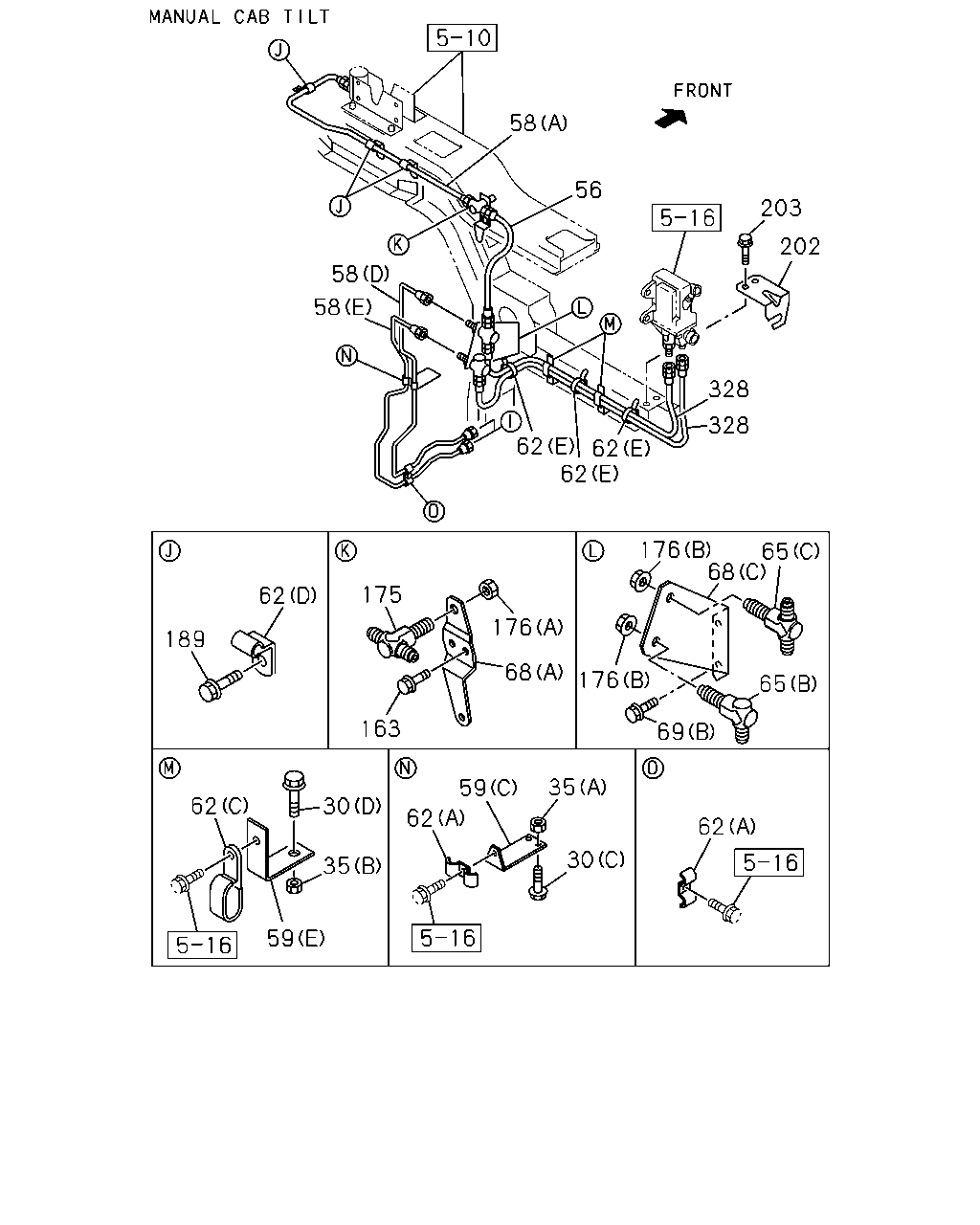

çizim 81138
62 35 30 59 62 30 35 59 62 163 176 68 175 62 189 176 65 68 176 65 69 328 328 202 203 56 58 58 58 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0105-0512 ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 0601- ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
35 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=400 		1-09365-060-0 01 1 0105- ● ●
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=300 		1-09365-059-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (B) L=1054 		1-49164-150-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (C) L=1006 		1-49165-034-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (D) 		1-49165-815-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (E) 		1-49165-816-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> AUTO CAB TILT<WV2> (B) L=964 		1-49164-287-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> AUTO CAB TILT<WV2> (C) 		1-49165-033-0 01 1 0105- ● ●
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0105- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0105- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0105- ● ●
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=90 		1-82699-856-0 01 1 0105- ● ●
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=90 		1-82699-856-0 02 1 0105- ● ●
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (E) 		1-53458-915-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0105- ● ●
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (E) L=140 		5-09707-031-0 03 1 0105- ● ●
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0105- ● ●
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0105- ● ●
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0105- ● ●
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 0105- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0105- ● ●
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (C) 		1-53457-009-0 01 1 0105- ● ●
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512 ● ●
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 0105- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
176 NUT; UNION
MANUAL CAB TILT<SHK> (B) M12 		9-09840-280-0 02 1 0105- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0105- ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0512 ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
202 BRACKET; CABLE END
MANUAL CAB TILT<SHK> 		1-53458-911-0 01 1 0105- ● ●
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
328 HOSE; OIL
MANUAL CAB TILT<SHK> 		1-09365-112-0 02 1 0105- ● ●

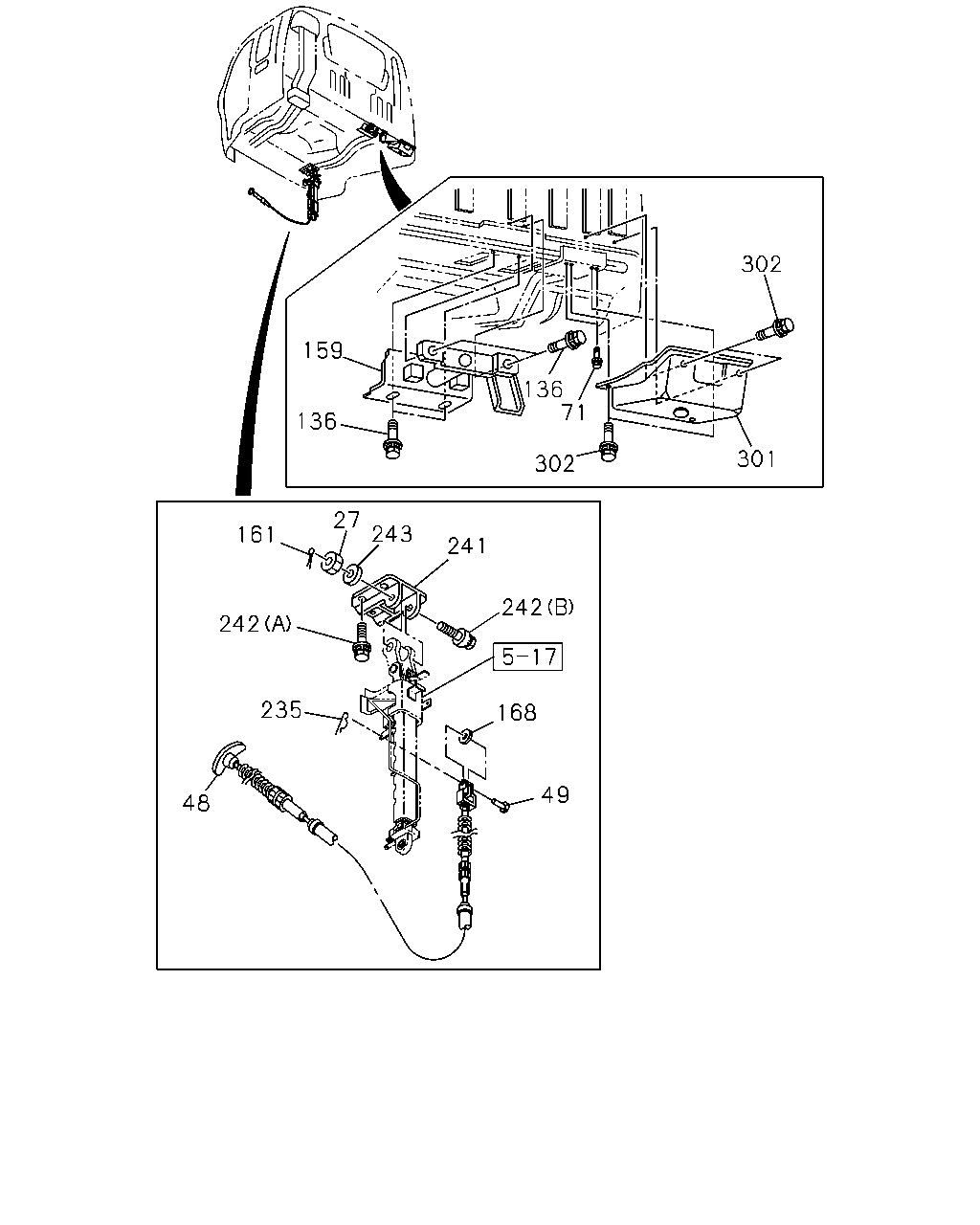

çizim 81330
301 302 302 71 136 136 159 243 27 241 242 168 49 235 242 161 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0105- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0105- ● ●
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0105- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 0105-0204 ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0205- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0105- ● ●
159 PIN 1-79717-627-1 01 1 0105- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0105- ● ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0105- ● ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0105- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-1 01 1 0105- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 0105- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0105- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0105- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0105- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 0105-0204 ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0205- ● ●

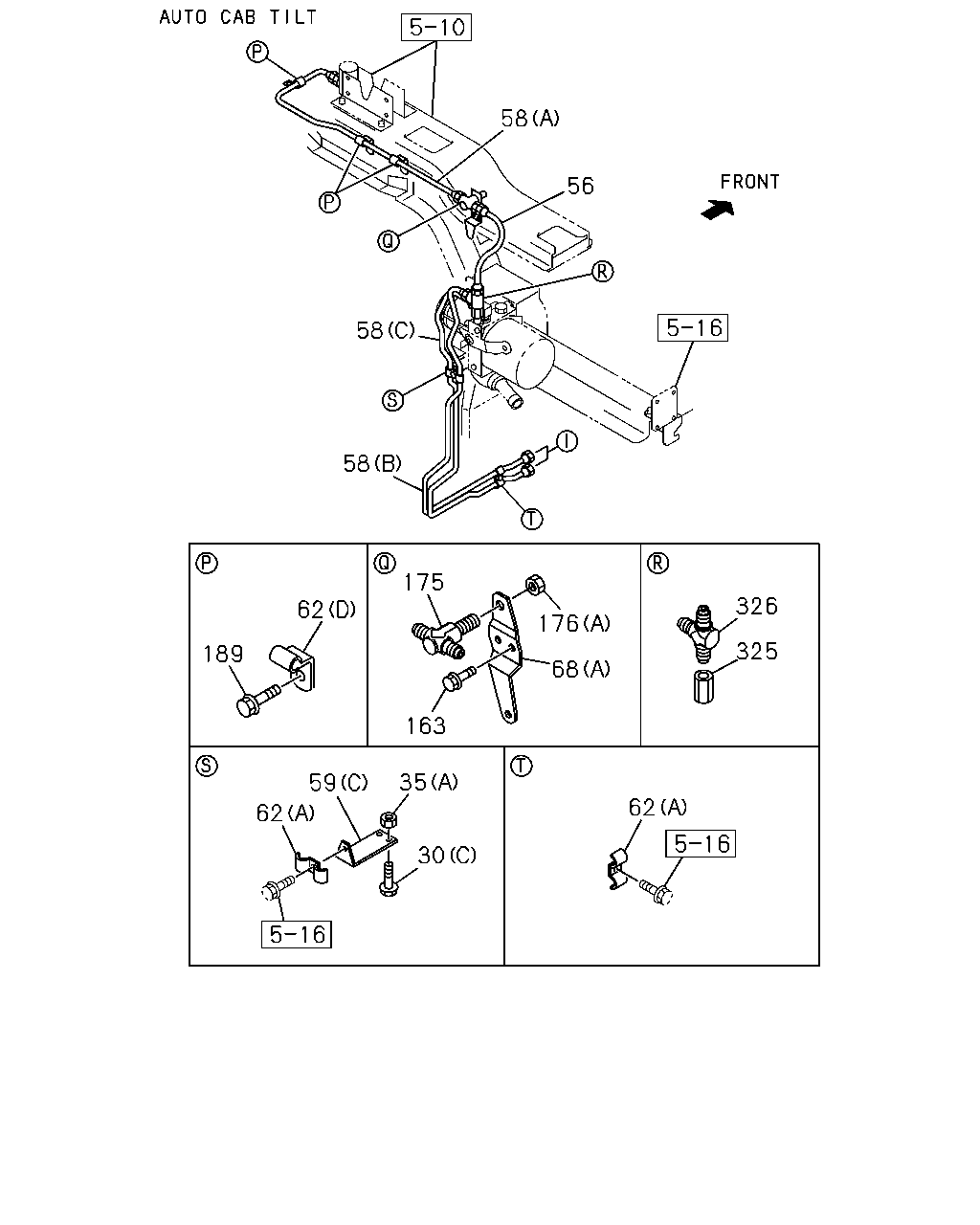

çizim 81395
62 325 326 176 68 175 163 62 189 35 30 59 62 58 58 56 58
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 0105-0512 ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 0601- ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512 ● ●
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512 ● ●
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
35 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=400 		1-09365-060-0 01 1 0105- ● ●
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=300 		1-09365-059-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (B) L=1054 		1-49164-150-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (C) L=1006 		1-49165-034-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (D) 		1-49165-815-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (E) 		1-49165-816-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> AUTO CAB TILT<WV2> (B) L=964 		1-49164-287-0 01 1 0105- ● ●
58 PIPE; OIL,POWER UNIT
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> AUTO CAB TILT<WV2> (C) 		1-49165-033-0 01 1 0105- ● ●
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0105- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0105- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 0105- ● ●
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=90 		1-82699-856-0 01 1 0105- ● ●
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=90 		1-82699-856-0 02 1 0105- ● ●
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (E) 		1-53458-915-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105- ● ●
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 0105- ● ●
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (E) L=140 		5-09707-031-0 03 1 0105- ● ●
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0105- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0105- ● ●
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 0105- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 0105- ● ●
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (C) 		1-53457-009-0 01 1 0105- ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 0105- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
176 NUT; UNION
MANUAL CAB TILT<SHK> (B) M12 		9-09840-280-0 02 1 0105- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0105- ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
189 BOLT; CLIP
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0512 ● ●
189 BOLT; CLIP
EXC. FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
325 ADAPTER; PUMP
AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105- ● ●
326 UNION; PUMP
AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
