Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#12550) — 474 parça

65 202 203 204 205 204 203 72 69 70 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0105-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0105-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0105-0301	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0105-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0105-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	0105-	●	●
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	0105-	●	●
202	NUT; S/ABS (B) M10	9-09110-410-0	04	1	0105-	●	●
202	NUT; S/ABS (C) M10	9-09111-410-0	06	1	0105-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	0105-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	0105-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0105-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0105-	●	●

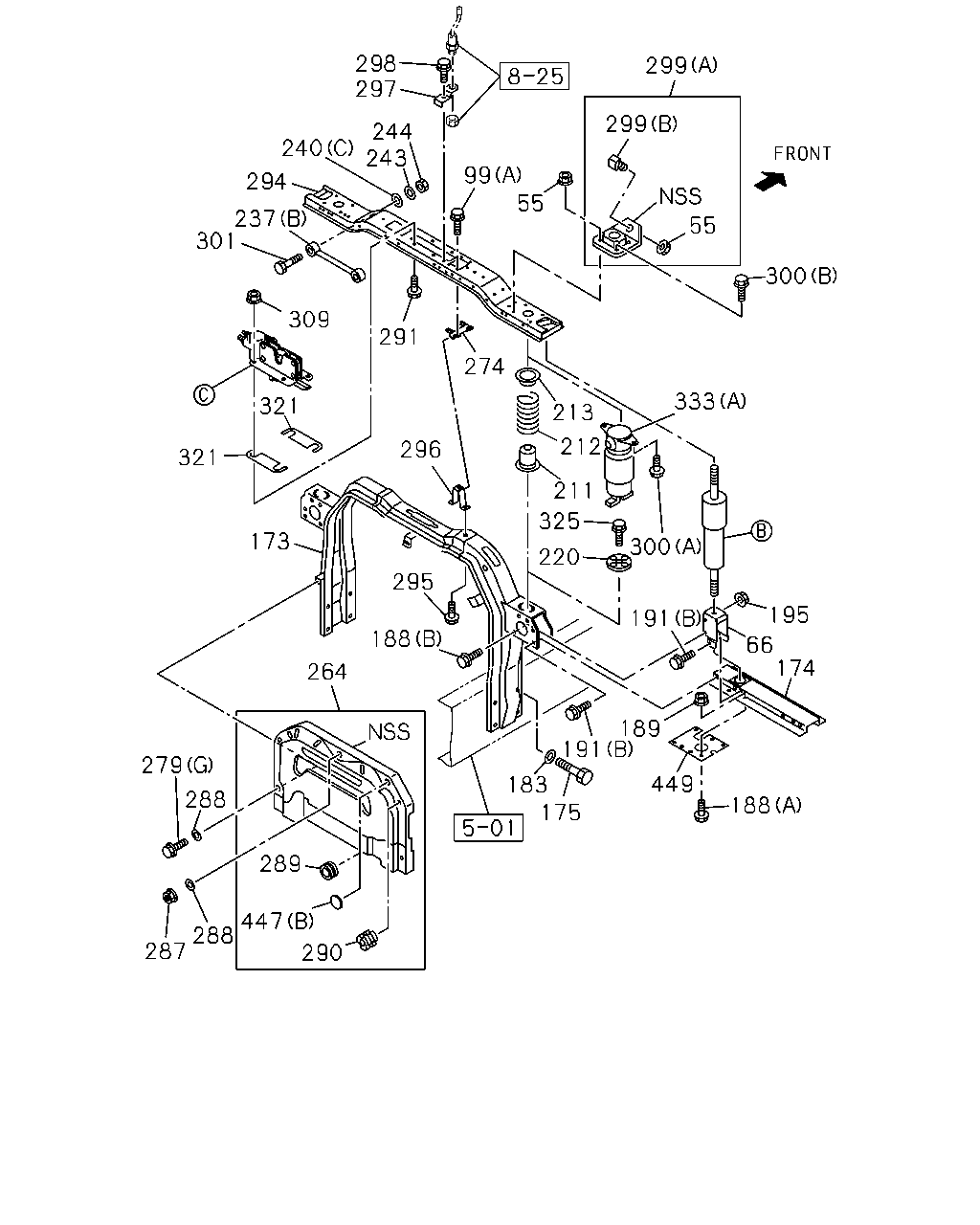

299 299 300 55 55 99 297 298 244 240 243 294 237 301 309 274 291 213 333 212 211 325 300 220 191 195 66 174 189 449 188 191 175 183 264 173 321 321 296 295 188 279 288 289 447 287 288 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	0105-	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	0105-	●	●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-632-2	01	1	0105-0506	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-632-2	01	1	0507-	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-632-2	01	1	0507-		●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-0506	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0507-	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0507-		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-0506	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0507-	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0507-		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-634-2	01	1	0105-0506	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-634-2	01	1	0507-	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53450-634-2	01	1	0507-		●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0105-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-635-2	01	1	0105-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0105-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0105-	●	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0105-0512	●	●
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0601-	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0105-	●	●
188	BOLT; OUTRIGGER (B) M10X25 FLANGE	0-28681-025-0	08	1	0105-0512	●	●
188	BOLT; OUTRIGGER (B) M10X25 FLANGE	0-28651-025-0	08	1	0601-	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (A) M10X20 FLANGE	0-28681-020-0	08	1	0105-0512	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (A) M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	0105-0602	●	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> (B) M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> (B) M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
191	BOLT; BRKT FIX FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
191	BOLT; BRKT FIX FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	0105-0602	●	●
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0105-	●	●
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0105-	●	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0105-	●	●
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0105-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0105-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0105-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0105-	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0105-0512	●	●
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0601-	●	●
264	PANEL; BACK MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-53193-819-1	01	1	0105-	●
264	PANEL; BACK MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-53193-390-2	01	1	0105-	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>	1-53193-618-1	01	1	0105-	●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>	1-53192-606-2	01	1	0105-	●	●
274	PIN	1-53458-996-0	01	1	0105-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> ID=8.4 OD=26	9-09164-808-0	04	1	0105-	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> ID=8.4 OD=26	9-09164-808-0	03	1	0105-	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> OD=40 T=4.8	9-09576-198-0	01	1	0105-0312	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> W-SERIES ENG<1A2> OD=40 T=4.8	9-09576-198-0	01	1	0401-	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-53459-702-1	04	1	0105-	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-53459-702-1	03	1	0105-	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0105-0512	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0105-0311	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0105-0311	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-	●	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0105-0512	●	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
296	STOPPER; UPR	1-53458-973-0	01	1	0105-	●	●
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0105-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0105-	●	●
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0105-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-	●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (A),(B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0105-	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0105-	●	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	0105-0602	●	●
309	NUT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0105-	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-	●	●
447	SEAL ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) OD=45 BLACK	1-76798-017-0	02	1	0401-	●	●
447	SEAL (A) OD=25 BLACK	1-76798-019-0	02	1	0105-0312	●	●
447	SEAL (A) OD=25 BLACK	1-76798-019-0	03	1	0401-	●	●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	02	1	0105-	●	●

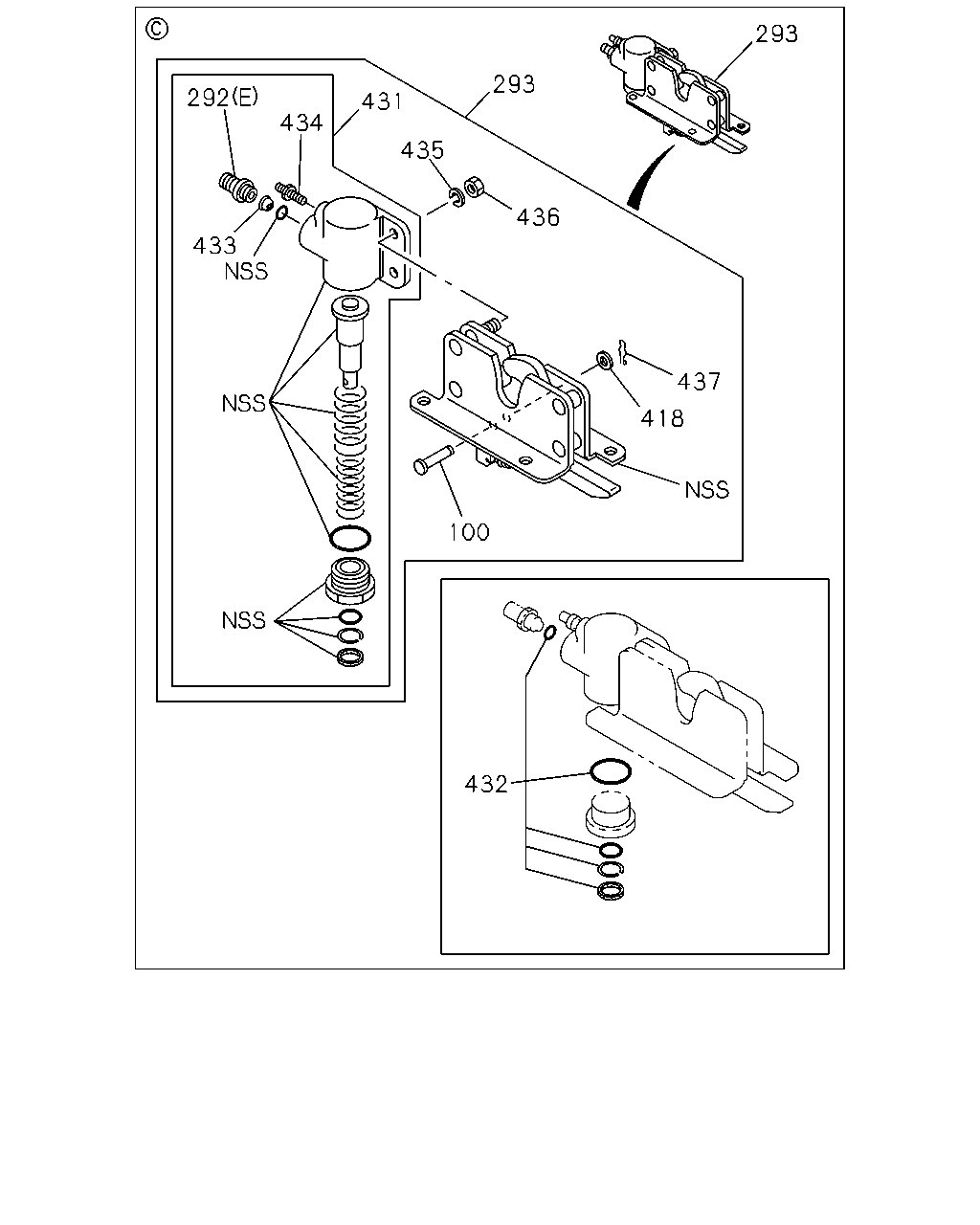

437 418 100 432 433 292 431 434 293 293 436 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-831-0	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0105-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	0105-	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0105-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0105-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	0105-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0105-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0105-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	0105-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	0105-	●	●

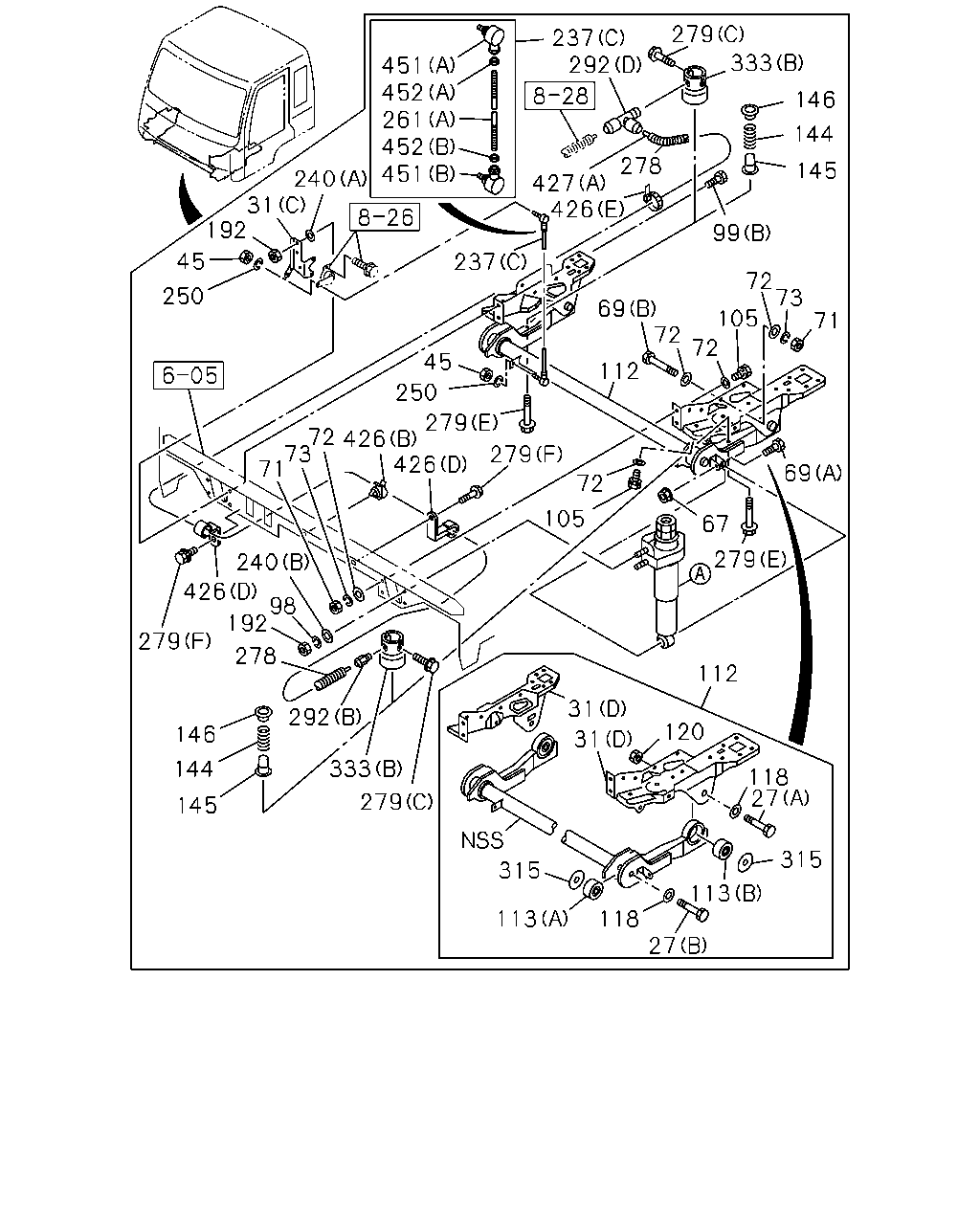

315 113 27 118 113 315 27 120 118 112 31 31 279 333 292 278 240 426 279 98 192 146 144 145 279 67 69 71 73 72 105 72 72 69 112 72 105 279 279 250 45 426 426 72 73 71 99 146 145 144 333 279 237 292 278 427 426 237 451 451 452 261 452 240 31 192 45 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0105-	●	●
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-0105	●	●
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0106-	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	0105-	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-0207	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-102-0	01	1	0208-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	0105-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0105-0512	●	●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0105-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0105-0301	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0105-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	0105-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0105-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0105-	●	●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	15	1	0105-	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-6	01	1	0105-	●	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-567-6	01	1	0105-	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0105-0111	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0105-0111	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A),(B)	1-53458-714-0	04	1	0112-	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0105-	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0105-0512	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0601-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0105-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0105-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0105-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0105-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0105-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0105-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0105-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-507-0	01	1	0105-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-514-0	01	1	0105-	●	●
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0105-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-	●	●
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (F) ID=7 L=20	9-09524-635-0	01	1	0105-	●	●
426	CLIP 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) ID=7 L=20	9-09524-635-0	02	1	0105-0108	●	●
426	CLIP 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (F) ID=7 L=20	9-09524-635-0	02	1	0109-	●	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-	●	●
427	TUBE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0105-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0105-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0105-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0105-0512	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-	●	●

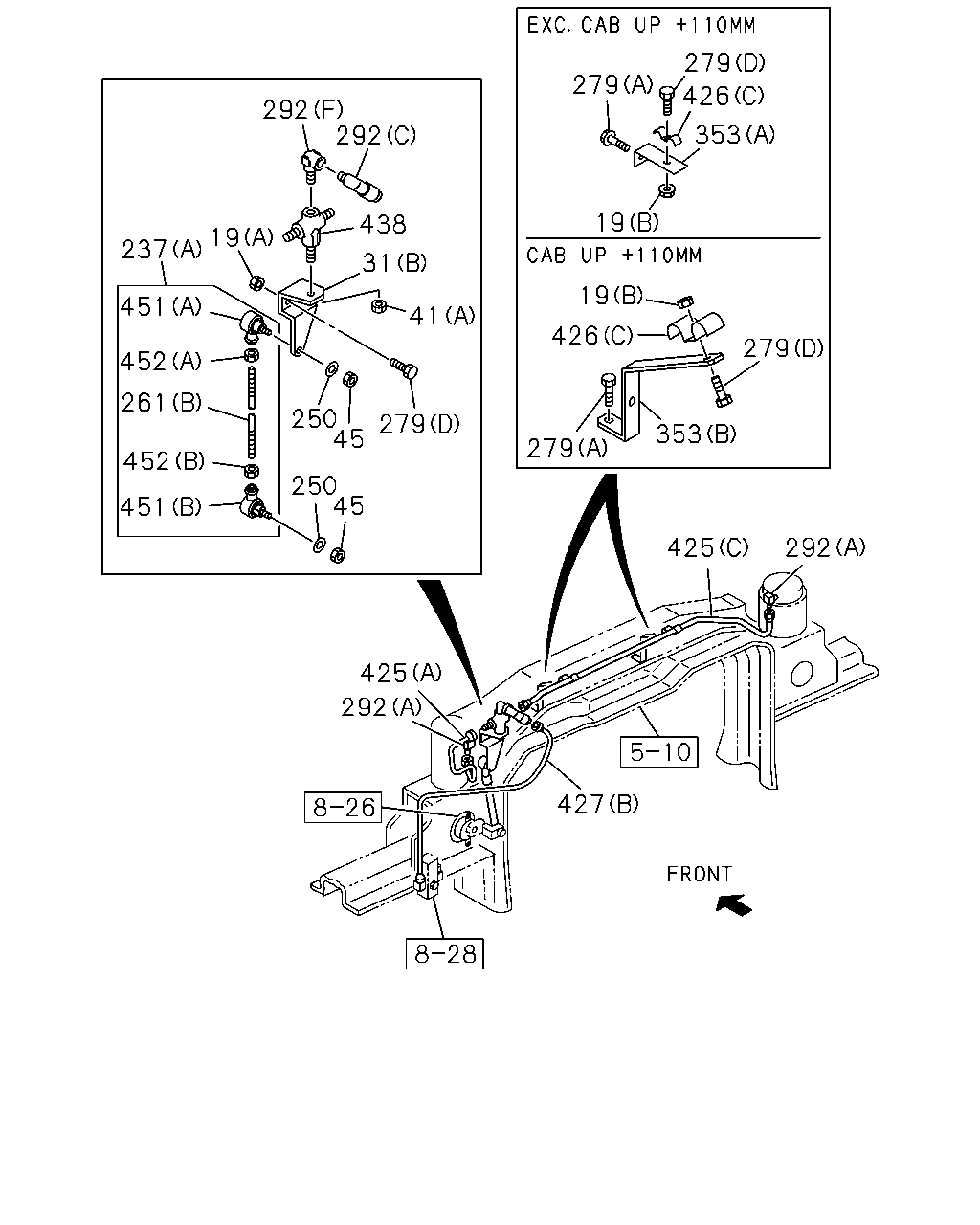

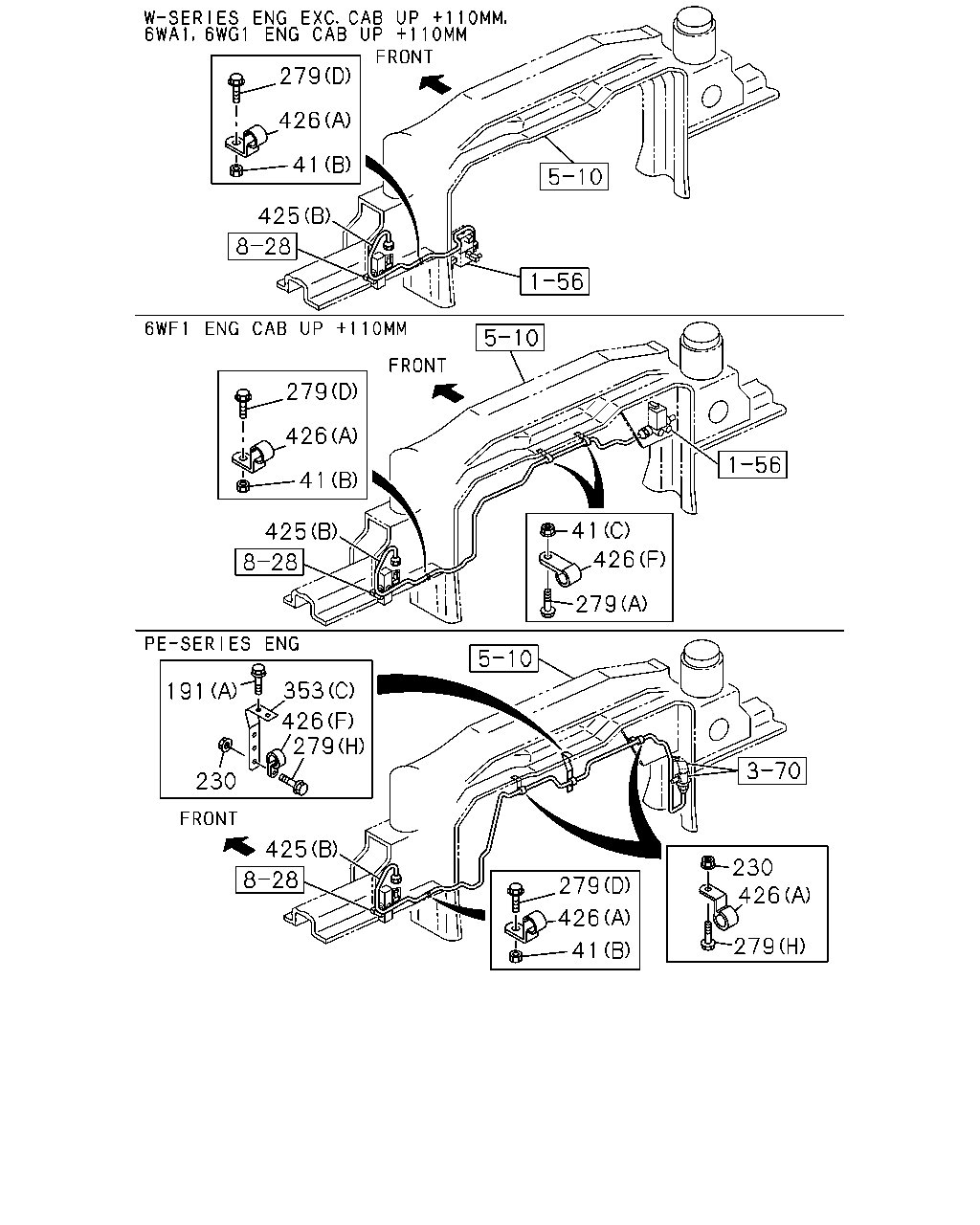

279 41 426 425 279 41 426 41 279 426 425 191 353 426 279 230 425 279 230 426 279 41 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
41	NUT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
41	NUT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> (B) M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> (B) M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
191	BOLT; BRKT FIX FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
191	BOLT; BRKT FIX FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
230	NUT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
230	NUT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
353	BRACKET CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-47478-230-0	02	1	0105-	●	●
353	BRACKET FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) L=55	1-47475-304-0	02	1	0105-	●	●
353	BRACKET FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (C)	1-47477-385-0	01	1	0105-	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) L=1376	1-49119-625-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=357	1-49121-862-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) L=1353	1-49116-898-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (B) L=2197	1-49116-145-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=776	1-49121-296-0	01	1	0105-	●	●
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	0105-0302	●	●
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=825	1-49124-057-0	01	1	0303-	●	●
425	PIPE ASM; AIR 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49122-929-0	01	1	0105-	●	●
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (F) ID=7 L=20	9-09524-635-0	01	1	0105-	●	●
426	CLIP 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) ID=7 L=20	9-09524-635-0	02	1	0105-0108	●	●
426	CLIP 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (F) ID=7 L=20	9-09524-635-0	02	1	0109-	●	●

140 137 136 137 136 141 93 447 411 411 410 411 410 411 279 21 345 12 1 30 30 12 345 279 31 21 12 30 17 12 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-306-1	01	1	0105-	●	●
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-275-1	01	1	0105-	●	●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	0105-	●	●
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	0105-	●	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	0105-0512	●	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	0-91110-516-0	01	1	0601-	●	●
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	0105-0512	●	●
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	0-91110-514-0	01	1	0601-	●	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M16X50 L=74	1-09300-117-0	01	1	0105-	●	●
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> (A) M14X48 L=75	1-09300-094-0	01	1	0105-	●	●
21	STUD; BRKT,CAB TILT TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> ISUZU M/T<X9A> (B) M10X20,M16X50 L=81	1-09029-069-0	02	1	0105-	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> M16X50	9-92061-650-0	05	1	0411-0512	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> M16X50	0-20951-650-0	05	1	0601-	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> M16X45	9-92061-645-0	10	1	0105-0410	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ZF M/T<X9E> M16X45	9-92061-645-0	10	1	0105-0410	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> M16X45	9-92061-645-0	05	1	0411-	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ZF M/T<X9E> M16X45	9-92061-645-0	05	1	0411-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> M14X45	9-92061-445-0	10	1	0105-	●	●
30	BOLT; CAB FRT FOOT TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> ISUZU M/T<X9A> M16X45	9-92061-645-0	08	1	0105-0410	●	●
30	BOLT; CAB FRT FOOT TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> ISUZU M/T<X9A> M16X45	9-92061-645-0	03	1	0411-	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	0105-	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-0207	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-102-0	01	1	0208-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	0105-	●	●
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	0105-	●	●
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	0105-0512	●	●
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28651-020-0	01	1	0601-	●	●
136	BRACKET; OIL CYL EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (A)	1-53458-653-0	01	1	0105-0105	●	●
136	BRACKET; OIL CYL EXC. FRONT SPOILER<VP1> (A)	1-53458-653-0	01	1	0105-	●	●
136	BRACKET; OIL CYL CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B)	1-53458-903-0	01	1	0105-0206	●	●
136	BRACKET; OIL CYL CAB UP +110MM<TGG> (B)	1-53458-903-0	01	1	0207-	●	●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0105-	●	●
140	NUT; BRKT M14	9-99110-514-0	02	1	0105-0512	●	●
140	NUT; BRKT M14	0-91110-514-0	02	1	0601-	●	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0105-0512	●	●
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0601-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
345	CAP; CAB	1-53458-336-3	02	1	0105-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0105-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-939-0	01	1	0105-	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0105-	●	●
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-0312	●	●
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0401-	●	●
447	SEAL ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) OD=45 BLACK	1-76798-017-0	02	1	0401-	●	●
447	SEAL (A) OD=25 BLACK	1-76798-019-0	02	1	0105-0312	●	●
447	SEAL (A) OD=25 BLACK	1-76798-019-0	03	1	0401-	●	●

279 279 426 19 353 279 19 426 353 279 425 292 427 292 425 279 41 31 438 292 292 19 237 451 452 452 261 250 250 45 45 451

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT FULL FLOATING CAB(W16) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
19	NUT FULL FLOATING CAB(W16) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
19	NUT FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	02	1	0105-0512	●	●
19	NUT FULL FLOATING CAB(W16) (B) M8	0-91110-508-0	02	1	0601-	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	0105-	●	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	0105-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-0207	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-102-0	01	1	0208-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	0105-	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
41	NUT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
41	NUT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0105-0512	●	●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0105-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-507-0	01	1	0105-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-514-0	01	1	0105-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (H) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
279	BOLT 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
353	BRACKET CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-47478-230-0	02	1	0105-	●	●
353	BRACKET FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) L=55	1-47475-304-0	02	1	0105-	●	●
353	BRACKET FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (C)	1-47477-385-0	01	1	0105-	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) L=1376	1-49119-625-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=357	1-49121-862-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) L=1353	1-49116-898-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (B) L=2197	1-49116-145-0	01	1	0105-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=776	1-49121-296-0	01	1	0105-	●	●
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	0105-0302	●	●
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=825	1-49124-057-0	01	1	0303-	●	●
425	PIPE ASM; AIR 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49122-929-0	01	1	0105-	●	●
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-	●	●
426	CLIP FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> (F) ID=7 L=20	9-09524-635-0	01	1	0105-	●	●
426	CLIP 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) ID=7 L=20	9-09524-635-0	02	1	0105-0108	●	●
426	CLIP 6WF1 TC-C(1B8) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (F) ID=7 L=20	9-09524-635-0	02	1	0109-	●	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-	●	●
427	TUBE FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-	●	●
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0105-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0105-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0105-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0105-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0105-0512	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-	●	●

202 205 204 203 202 201 203 204 294 203 173 205 66 204 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	0105-	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	0105-	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-632-2	01	1	0105-0506	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-632-2	01	1	0507-	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-632-2	01	1	0507-		●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-0506	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0507-	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0507-		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-0506	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0507-	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0507-		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-634-2	01	1	0105-0506	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-634-2	01	1	0507-	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53450-634-2	01	1	0507-		●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0105-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-635-2	01	1	0105-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0105-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0105-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0105-	●	●
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	0105-	●	●
202	NUT; S/ABS (B) M10	9-09110-410-0	04	1	0105-	●	●
202	NUT; S/ABS (C) M10	9-09111-410-0	06	1	0105-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	0105-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	0105-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0105-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0105-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0105-0311	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0105-0311	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
