◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#12549) — 143 parça

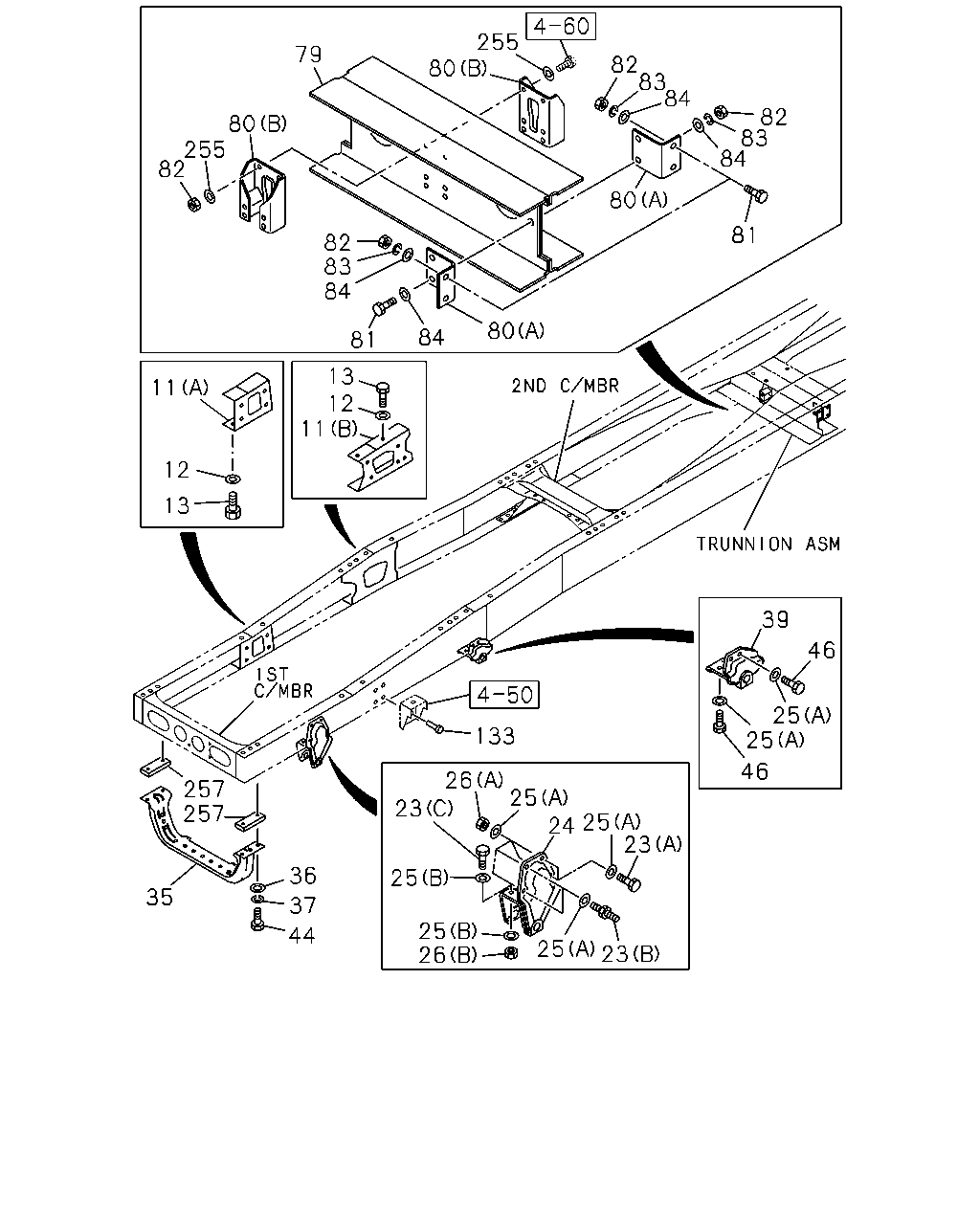

çizim 22691
23 25 24 25 26 23 25 25 26 25 23 25 46 39 25 46 80 84 81 84 83 82 80 255 82 79 255 80 82 84 83 82 83 84 80 81 133 13 12 11 13 12 36 37 44 257 257 35 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> MIXER TRUCK<RA2> (B) 		1-53239-081-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> SILENCER SINGLE VERTICAL<N28> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (B) 		1-53239-081-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) 		1-53239-081-0 01 1 0105-0206 ● ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (B) 		1-53239-081-0 01 1 0207- ● ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> MIXER TRUCK<RA2> (B) 		1-53239-082-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> SILENCER SINGLE VERTICAL<N28> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (B) 		1-53239-082-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) 		1-53239-082-0 01 1 0105-0206 ● ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (B) 		1-53239-082-0 01 1 0207- ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (A) 		1-53219-582-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (A) 		1-53219-582-0 01 1 0105-0105 ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> (A) 		1-53219-582-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (A) 		1-53219-582-0 01 1 0106- ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (A) 		1-53219-582-0 01 1 0106- ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (A) 		1-53219-583-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (A) 		1-53219-583-0 01 1 0105-0105 ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> (A) 		1-53219-583-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (A) 		1-53219-583-0 01 1 0106- ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (A) 		1-53219-583-0 01 1 0106- ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (B) 		1-53219-727-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53219-727-1 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (B) 		1-53219-727-1 01 1 0105-0105 ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> (B) 		1-53219-727-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (B) 		1-53219-727-1 01 1 0106- ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (B) 		1-53219-727-1 01 1 0106- ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (B) 		1-53219-728-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53219-728-1 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (B) 		1-53219-728-1 01 1 0105-0105 ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> (B) 		1-53219-728-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (B) 		1-53219-728-1 01 1 0106- ● ● ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,FRAME ENG MTG SEPARATE TYPE<SGM>, FRONT SPOILER<VP1> (B) 		1-53219-728-1 01 1 0106- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-777-1 01 1 0105- ● ● ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-778-1 01 1 0105- ● ● ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) 		1-53219-988-0 01 1 0105- ● ● ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) 		1-53219-990-1 01 1 0105- ● ● ● ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) 		1-53219-788-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B) 		1-53219-788-1 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) 		1-53219-789-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B) 		1-53219-789-1 01 1 0105- ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,CAB UP +110MM<TGG> (A) 		1-53219-471-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) 		1-53219-471-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (A) 		1-53219-471-0 01 1 0105- ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (A) 		1-53219-471-0 01 1 0105- ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,CAB UP +110MM<TGG> (A) 		1-53219-472-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) 		1-53219-472-1 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (A) 		1-53219-472-1 01 1 0105- ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (A) 		1-53219-472-1 01 1 0105- ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,MIXER TRUCK<RA2> ,CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,MIXER TRUCK<RA2> ,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B) 		1-53219-741-0 01 1 0105- ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B) 		1-53219-741-0 01 1 0105- ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,MIXER TRUCK<RA2> ,CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
SHORT CHASSIS & LHD(CXZ6MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,MIXER TRUCK<RA2> ,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B) 		1-53219-742-0 01 1 0105- ●
11 BRACKET; ENG MTG
LONG CHASSIS & LHD(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,FRONT SPOILER<VP1> (B) 		1-53219-742-0 01 1 0105- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 AR 1 0105- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 AR 1 0105-0512 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 AR 1 0601- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0105- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 AR 1 0105-0512 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 AR 1 0601- ● ● ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 AR 1 0105-0512 ● ● ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		0-20951-650-0 AR 1 0601- ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0105- ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0105- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 AR 1 0105- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 AR 1 0105- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 AR 1 0105-0512 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 AR 1 0601- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 AR 1 0105-0512 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 AR 1 0601- ● ● ● ●
35 MEMBER; UNDER 1-53174-214-2 01 1 0105- ● ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 AR 1 0105- ● ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 AR 1 0105- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-152-0 01 1 0105- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-153-0 01 1 0105- ● ● ● ●
44 BOLT; UNDER MBR
6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) M16X45 		9-92061-645-0 AR 1 0105- ● ● ● ●
44 BOLT; UNDER MBR
6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) M16X65 		9-91061-665-0 AR 1 0105- ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 AR 1 0105-0512 ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 AR 1 0601- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 AR 1 0105-0512 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 AR 1 0601- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0105-0206 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0207- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		1-53181-685-2 01 1 0105- ● ●
80 BRACKET; C/MBR
(B) 		1-53363-031-2 02 1 0105- ● ● ● ●
80 BRACKET; C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53167-288-1 04 1 0105- ● ● ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X55 		9-91066-455-0 AR 1 0105- ● ● ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X45 		9-92061-445-0 AR 1 0105- ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0105-0512 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 AR 1 0601- ● ● ● ●
83 WASHER; LK,BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ID=14.2 		9-09150-614-0 AR 1 0105- ● ● ● ●
84 WASHER; PL,BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ID=15 OD=26 		9-09164-514-0 AR 1 0105- ● ● ● ●
133 RIVET; BRKT
D13X40 PLATED TAPER END 		9-06771-340-0 06 1 0105- ● ● ● ●
133 RIVET; BRKT
D13X42 PLATED TAPER END 		9-06771-342-0 02 1 0105- ● ● ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 AR 1 0105- ● ● ● ●
257 SPACER; UNDER MBR
6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-53168-319-0 02 1 0105- ● ● ● ●

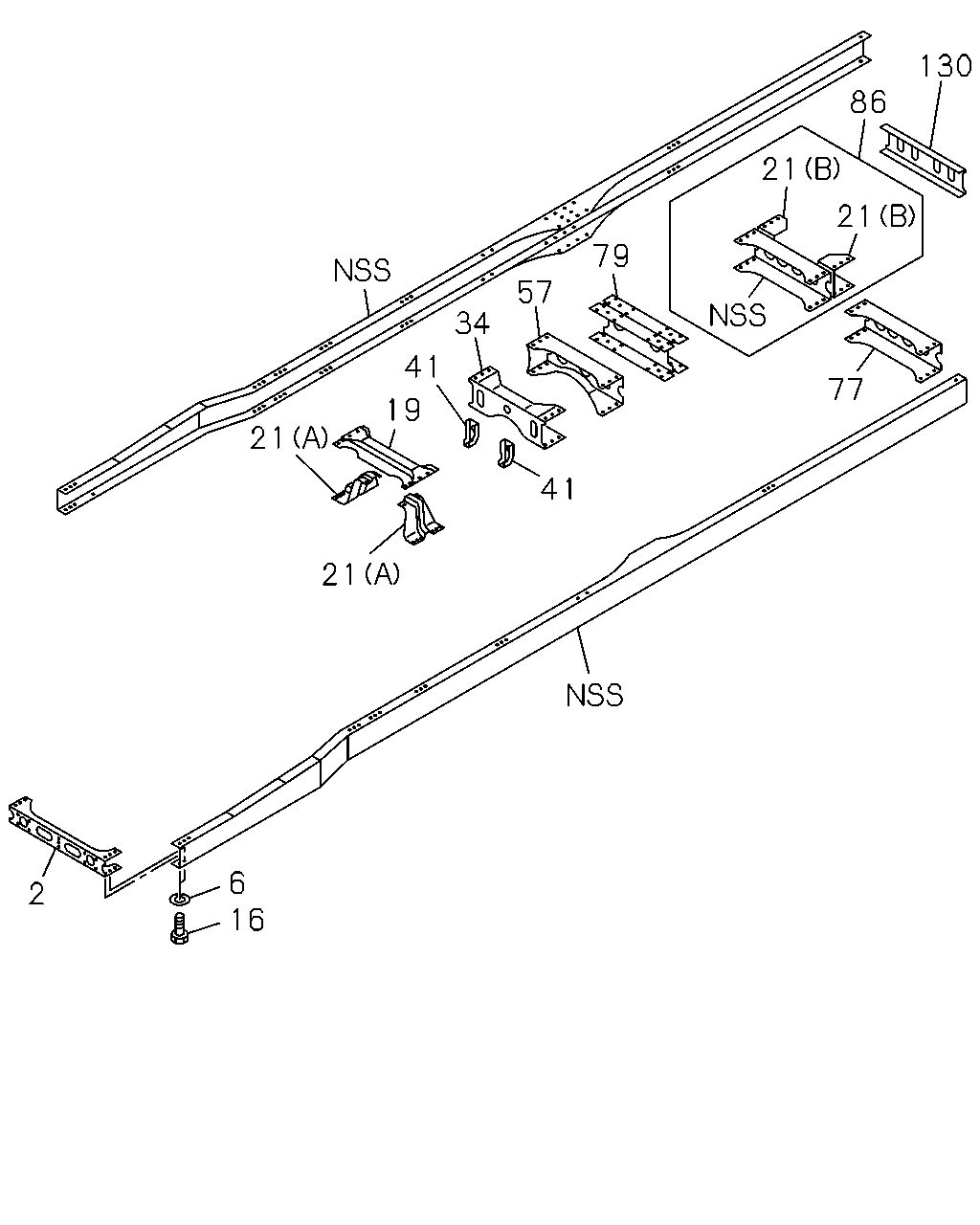

çizim 80207
130 86 21 77 21 79 57 34 41 19 41 21 21 6 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
EXC. CAB UP +110MM<TGG> 		1-53181-710-1 01 1 0105-0206 ● ● ● ●
2 MEMBER; CROSS,1ST
EXC. CAB UP +110MM<TGG> 		1-53181-710-1 01 1 0207- ● ● ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> 		1-53181-710-1 01 1 0207- ● ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> 		1-53181-526-4 01 1 0105-0105 ● ● ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-53181-526-4 01 1 0106- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 AR 1 0105-0112 ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-516-0 AR 1 0201- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 AR 1 0105-0512 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20851-640-0 AR 1 0601- ● ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0105- ● ● ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-208-0 02 1 0105- ● ● ● ●
21 GUSSET; 2ND CROSS
(B) 		1-53167-287-1 02 1 0105-0206 ● ● ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53167-287-2 02 1 0207- ● ● ● ●
34 MEMBER; CROSS,3RD
LONG CHASSIS & LHD(CXZ6MF) 		1-53181-645-1 01 1 0105- ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
LONG CHASSIS & LHD(CXZ6MF) PE-SERIES ENG<1A0> L=305 		1-53271-262-2 02 1 0105- ●
41 BRACKET; CENTER BRG,FRAME SIDE
LONG CHASSIS & LHD(CXZ6MF) L=305 		1-53271-262-2 02 1 0105- ●
41 BRACKET; CENTER BRG,FRAME SIDE
LONG CHASSIS & LHD(CXZ6MF) W-SERIES ENG<1A2> L=290 		1-53271-322-1 02 1 0105- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0105- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		1-53181-689-1 01 1 0105- ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0105-0206 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0207- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		1-53181-685-2 01 1 0105- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-134-0 01 1 0105-0206 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-134-0 01 1 0207- ● ● ● ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		1-53181-537-1 01 1 0105- ● ●
130 MEMBER; CROSS,END
LONG CHASSIS & LHD(CXZ6MF) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53171-876-3 01 1 0105- ● ●

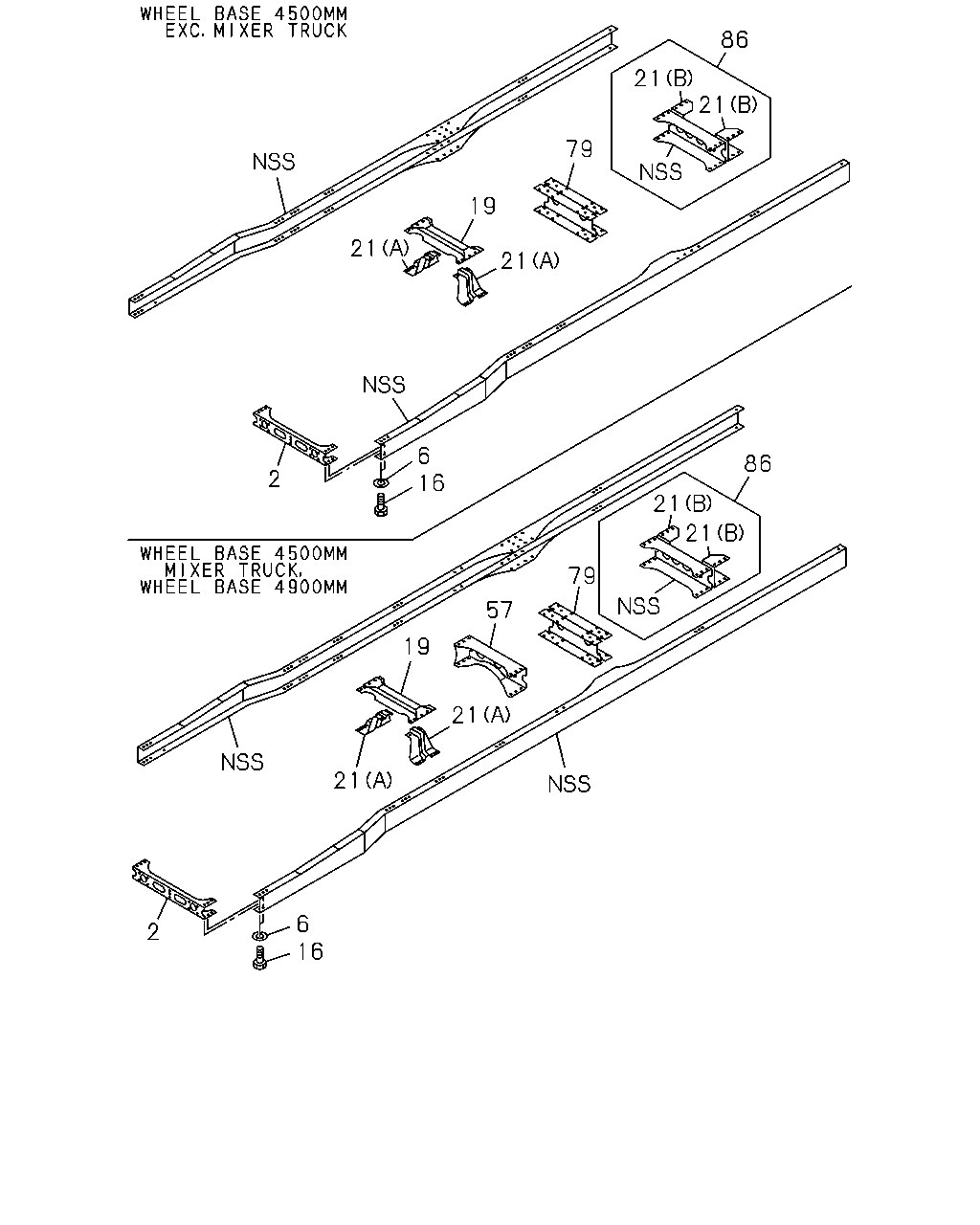

çizim 80236
86 21 79 21 19 21 21 2 6 16 86 21 21 79 57 19 21 21 6 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
EXC. CAB UP +110MM<TGG> 		1-53181-710-1 01 1 0105-0206 ● ● ● ●
2 MEMBER; CROSS,1ST
EXC. CAB UP +110MM<TGG> 		1-53181-710-1 01 1 0207- ● ● ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> 		1-53181-710-1 01 1 0207- ● ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> 		1-53181-526-4 01 1 0105-0105 ● ● ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-53181-526-4 01 1 0106- ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 AR 1 0105-0112 ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-516-0 AR 1 0201- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 AR 1 0105-0512 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20851-640-0 AR 1 0601- ● ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0105- ● ● ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-208-0 02 1 0105- ● ● ● ●
21 GUSSET; 2ND CROSS
(B) 		1-53167-287-1 02 1 0105-0206 ● ● ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53167-287-2 02 1 0207- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0105- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0105-0206 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0207- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		1-53181-685-2 01 1 0105- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-134-0 01 1 0105-0206 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-134-0 01 1 0207- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
