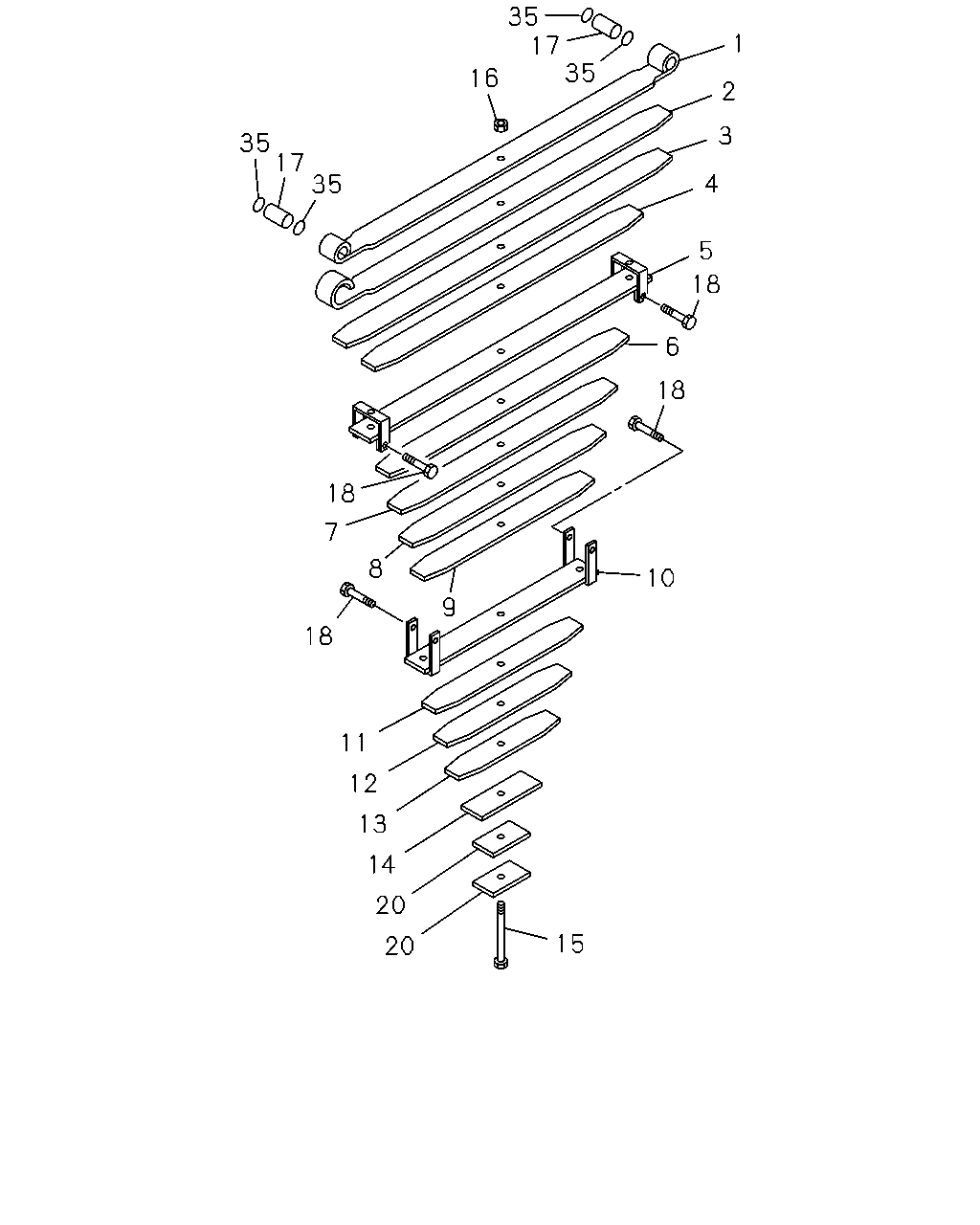

4-55 — FRONT LEAF SPRING (#12545) — 81 parça

10 15 20 14 12 11 20 13 18 9 8 18 7 18 6 18 5 4 3 2 1 35 17 35 16 35 17 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51131-798-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51131-799-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51131-800-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51132-798-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51132-799-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51132-800-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 9 LEAF, W/CLIP ASM PART: A = 1-51130-798-0	1-51133-798-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 9 LEAF, W/CLIP ASM PART: B = 1-51130-799-0	1-51133-799-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51133-800-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51134-798-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51134-799-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51134-800-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 9 LEAF, W/CLIP ASM PART: A = 1-51130-798-0	1-51135-798-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 9 LEAF, W/CLIP ASM PART: B = 1-51130-799-0	1-51135-799-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 14 LEAF, W/CLIP ASM PART: C = 1-51130-800-0	1-51135-800-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51136-798-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51136-799-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51136-800-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51137-798-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51137-799-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51137-800-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51138-798-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51138-799-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51138-800-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51139-798-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51139-799-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51139-800-0	01	1	-
10	SPRING; LEAF,NO 10,FRT 14 LEAF, W/CLIP ASM PART: C = 1-51130-800-0	1-51141-800-0	01	1	-
11	SPRING; LEAF,NO 11,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51142-800-0	01	1	-
12	SPRING; LEAF,NO 12,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51143-800-0	01	1	-
13	SPRING; LEAF,NO 13,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51144-800-0	01	1	-
14	SPRING; LEAF,NO 14,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51145-800-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-798-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: B = 1-51130-799-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: C = 1-51130-800-0	1-51156-358-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-798-0, B = 1-51130-799-0, C = 1-51130-800-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-798-0, B = 1-51130-799-0, C = 1-51130-800-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51130-798-0, B = 1-51130-799-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51130-800-0	1-09000-328-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-798-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51130-799-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: C = 1-51130-800-0	1-51177-107-0	02	1	-
35	SEAL; DUST ASM PART: A = 1-51130-798-0, B = 1-51130-799-0, C = 1-51130-800-0	1-51177-321-0	04	1	-

18 35 17 35 1 2 3 4 5 6 7 8 9 20 20 15 18 18 35 17 35 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51131-798-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51131-799-0	01	1	-
1	SPRING; LEAF,NO 1,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51131-800-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51132-798-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51132-799-0	01	1	-
2	SPRING; LEAF,NO 2,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51132-800-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 9 LEAF, W/CLIP ASM PART: A = 1-51130-798-0	1-51133-798-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 9 LEAF, W/CLIP ASM PART: B = 1-51130-799-0	1-51133-799-0	01	1	-
3	SPRING; LEAF,NO 3,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51133-800-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51134-798-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51134-799-0	01	1	-
4	SPRING; LEAF,NO 4,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51134-800-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 9 LEAF, W/CLIP ASM PART: A = 1-51130-798-0	1-51135-798-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 9 LEAF, W/CLIP ASM PART: B = 1-51130-799-0	1-51135-799-0	01	1	-
5	SPRING; LEAF,NO 5,FRT 14 LEAF, W/CLIP ASM PART: C = 1-51130-800-0	1-51135-800-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51136-798-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51136-799-0	01	1	-
6	SPRING; LEAF,NO 6,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51136-800-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51137-798-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51137-799-0	01	1	-
7	SPRING; LEAF,NO 7,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51137-800-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51138-798-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51138-799-0	01	1	-
8	SPRING; LEAF,NO 8,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51138-800-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: A = 1-51130-798-0	1-51139-798-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 9 LEAF ASM PART: B = 1-51130-799-0	1-51139-799-0	01	1	-
9	SPRING; LEAF,NO 9,FRT 14 LEAF ASM PART: C = 1-51130-800-0	1-51139-800-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-798-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: B = 1-51130-799-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: C = 1-51130-800-0	1-51156-358-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-798-0, B = 1-51130-799-0, C = 1-51130-800-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-798-0, B = 1-51130-799-0, C = 1-51130-800-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51130-798-0, B = 1-51130-799-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51130-800-0	1-09000-328-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-798-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51130-799-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: C = 1-51130-800-0	1-51177-107-0	02	1	-
35	SEAL; DUST ASM PART: A = 1-51130-798-0, B = 1-51130-799-0, C = 1-51130-800-0	1-51177-321-0	04	1	-
