4-50 — FRONT SUSPENSION (#12544) — 59 parça

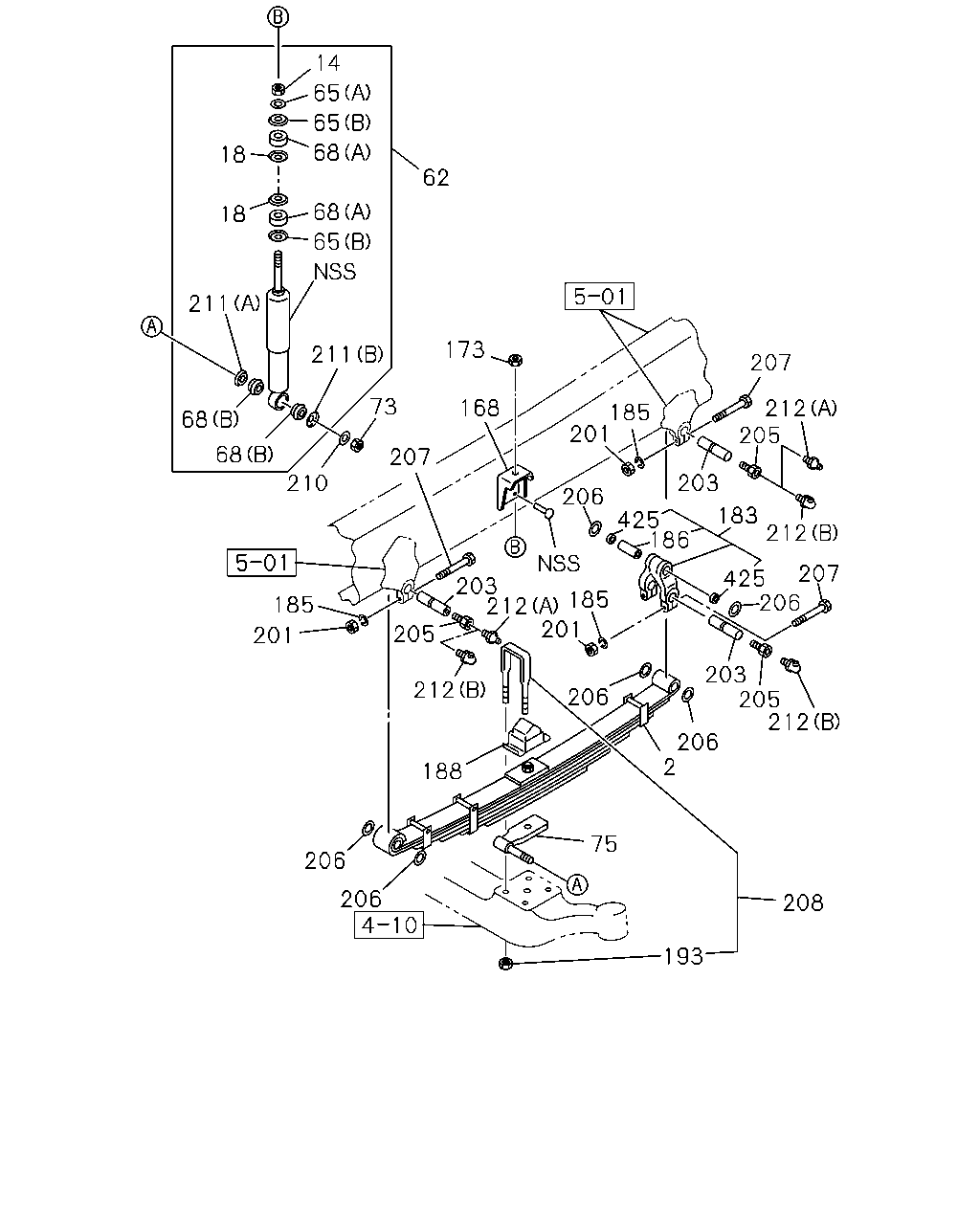

çizim 22203
208 193 75 206 206 188 212 205 206 206 2 212 205 203 206 212 425 207 183 203 186 425 201 206 185 205 212 207 185 201 212 203 185 201 207 168 173 73 211 210 68 68 211 65 68 68 65 65 14 18 18 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) CHINA EQUIPMENT(YT2) 14-LEAF 		1-51130-800-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) CHINA EQUIPMENT(YT2) 14-LEAF 		1-51130-800-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CHINA EQUIPMENT(YT2) 9-LEAF 		1-51130-799-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. CHINA EQUIPMENT(YT2) 9-LEAF 		1-51130-799-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 9-LEAF 		1-51130-798-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 9-LEAF 		1-51130-798-0 02 1 0105- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0105- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0105- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) CHINA EQUIPMENT(YT2) 		1-51630-512-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) CHINA EQUIPMENT(YT2) 		1-51630-512-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CHINA EQUIPMENT(YT2) 		1-51630-417-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51630-417-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) EXC. CHINA EQUIPMENT(YT2) 		1-51630-417-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-417-0 02 1 0105- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0105- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0105- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0105- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0105- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0105-0311 ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312- ● ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0105- ● ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0105- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0105- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0105-0512 ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601- ● ●
183 SHACKLE; FRT SUSP 1-51162-064-0 02 1 0105- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0105- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 02 1 0105- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) CHINA EQUIPMENT(YT2) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) CHINA EQUIPMENT(YT2) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CHINA EQUIPMENT(YT2) 		1-51172-086-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) EXC. CHINA EQUIPMENT(YT2) 		1-51172-086-0 02 1 0105- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0105-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0105-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0105- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0105- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0105- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0105-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) CHINA EQUIPMENT(YT2) L=270 		1-87870-327-1 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) CHINA EQUIPMENT(YT2) L=270 		1-87870-327-1 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CHINA EQUIPMENT(YT2) L=230 		1-87870-269-2 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-2 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) EXC. CHINA EQUIPMENT(YT2) L=230 		1-87870-269-2 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-2 04 1 0105- ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 0105- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0105- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0105- ● ●
212 NIPPLE; GREASE,ELBOW
PE-SERIES ENG<1A0> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 0105-0512 ● ●
212 NIPPLE; GREASE,ELBOW
PE-SERIES ENG<1A0> (B) PT1/8 ELBOW 		0-90301-610-0 06 1 0601- ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 0105-0512 ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 0105-0512 ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (B) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0105- ● ●
