Sayfa 4-40 - Isuzu EPC

4-40 — STEERING UNIT (#12542) — 114 parça

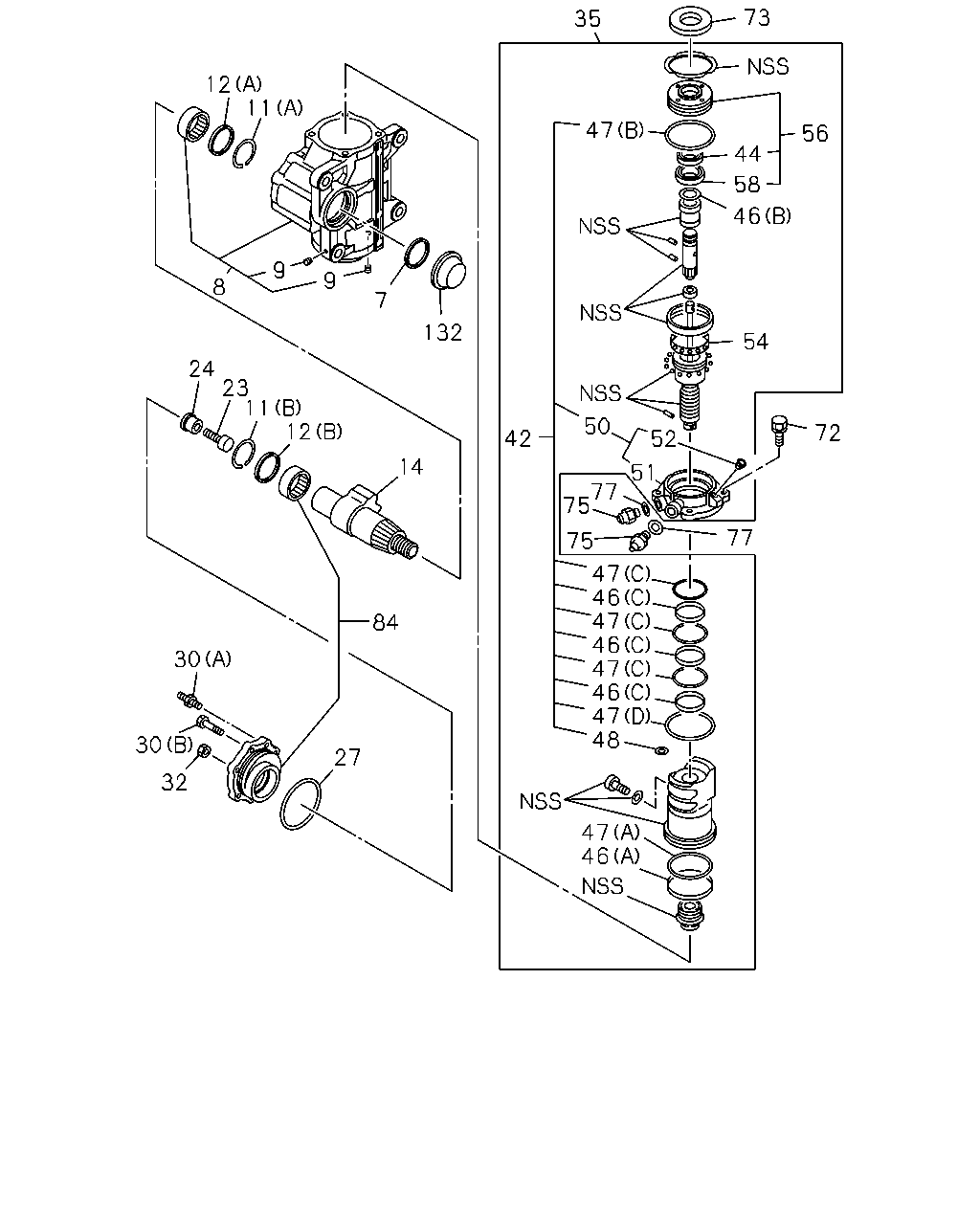

73 35 47 56 44 46 58 54 72 50 42 52 51 77 75 77 75 47 48 46 46 47 47 46 47 132 7 9 9 8 13 11 12 24 14 12 11 23 22 19 30 27 30 32 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-041-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44240-114-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44240-152-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-861-2, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-071-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-265-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44249-072-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, G = 1-44000-916-0	1-44321-032-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-0	1-44321-035-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44260-021-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-234-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44279-012-0	05	1	0202-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44569-103-0	05	1	-0201
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-007-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-0	1-44150-073-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-0	1-44150-084-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 1-44000-893-0	1-44150-101-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44150-103-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44560-080-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44560-076-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44561-020-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-114-0	01	1	-
75	CONNECTOR; HSG STRG UNIT M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-035-1	02	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	9-89970-787-0	02	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-227-0	01	1	-

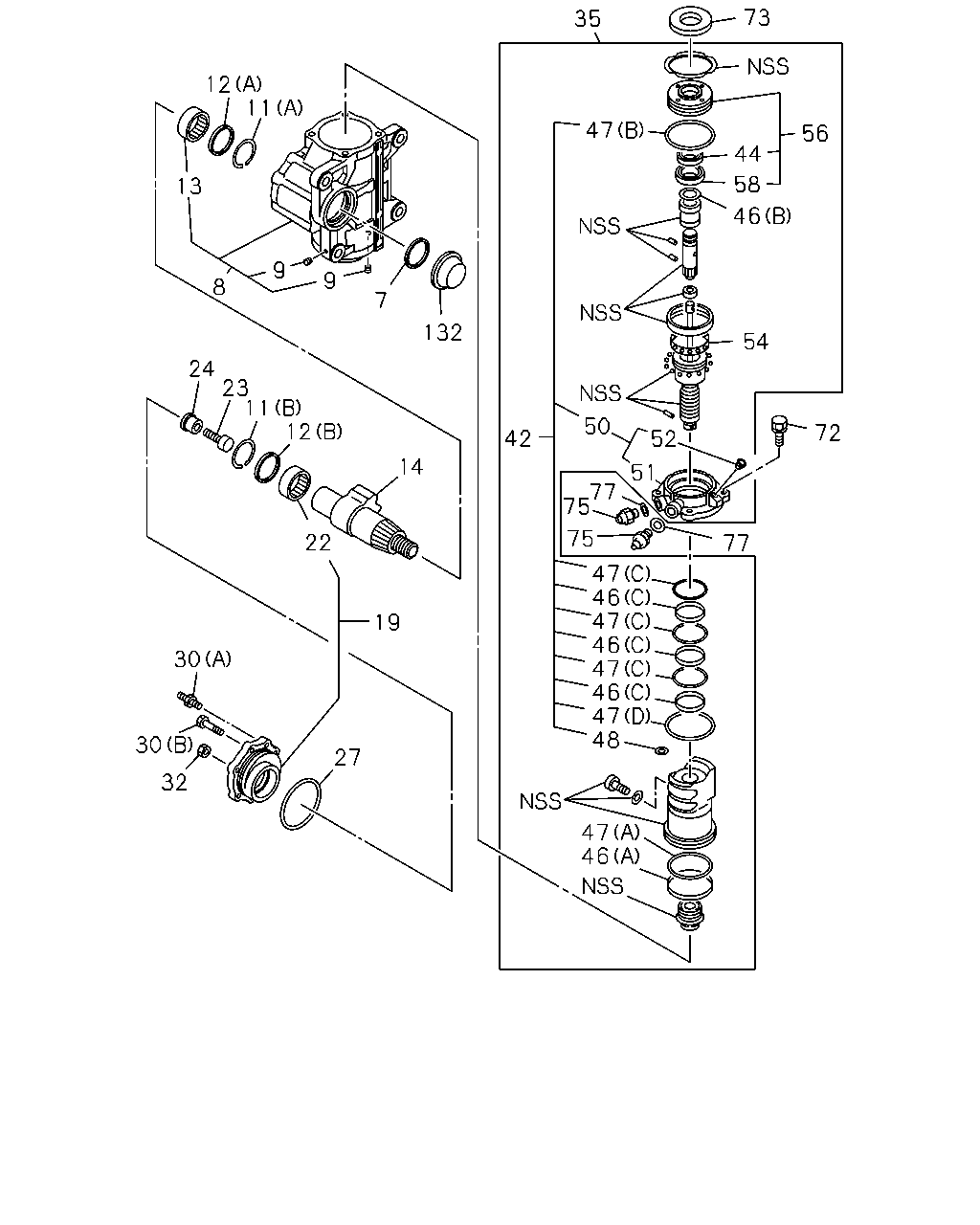

35 73 56 47 44 46 58 54 72 52 50 42 51 77 77 75 75 47 48 46 47 46 47 46 47 47 46 27 84 30 30 32 14 12 11 23 24 9 8 9 132 7 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-041-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44240-114-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44240-152-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-861-2, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-071-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-265-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, G = 1-44000-916-0	1-44321-032-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-0	1-44321-035-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44279-012-0	05	1	0202-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44569-103-0	05	1	-0201
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-007-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-0	1-44150-073-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-0	1-44150-084-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 1-44000-893-0	1-44150-101-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44150-103-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44560-080-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44560-076-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44561-020-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-114-0	01	1	-
75	CONNECTOR; HSG STRG UNIT M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-035-1	02	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	9-89970-787-0	02	1	-
84	COVER ASM; STRG UNIT ASM PART: E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44260-030-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-227-0	01	1	-

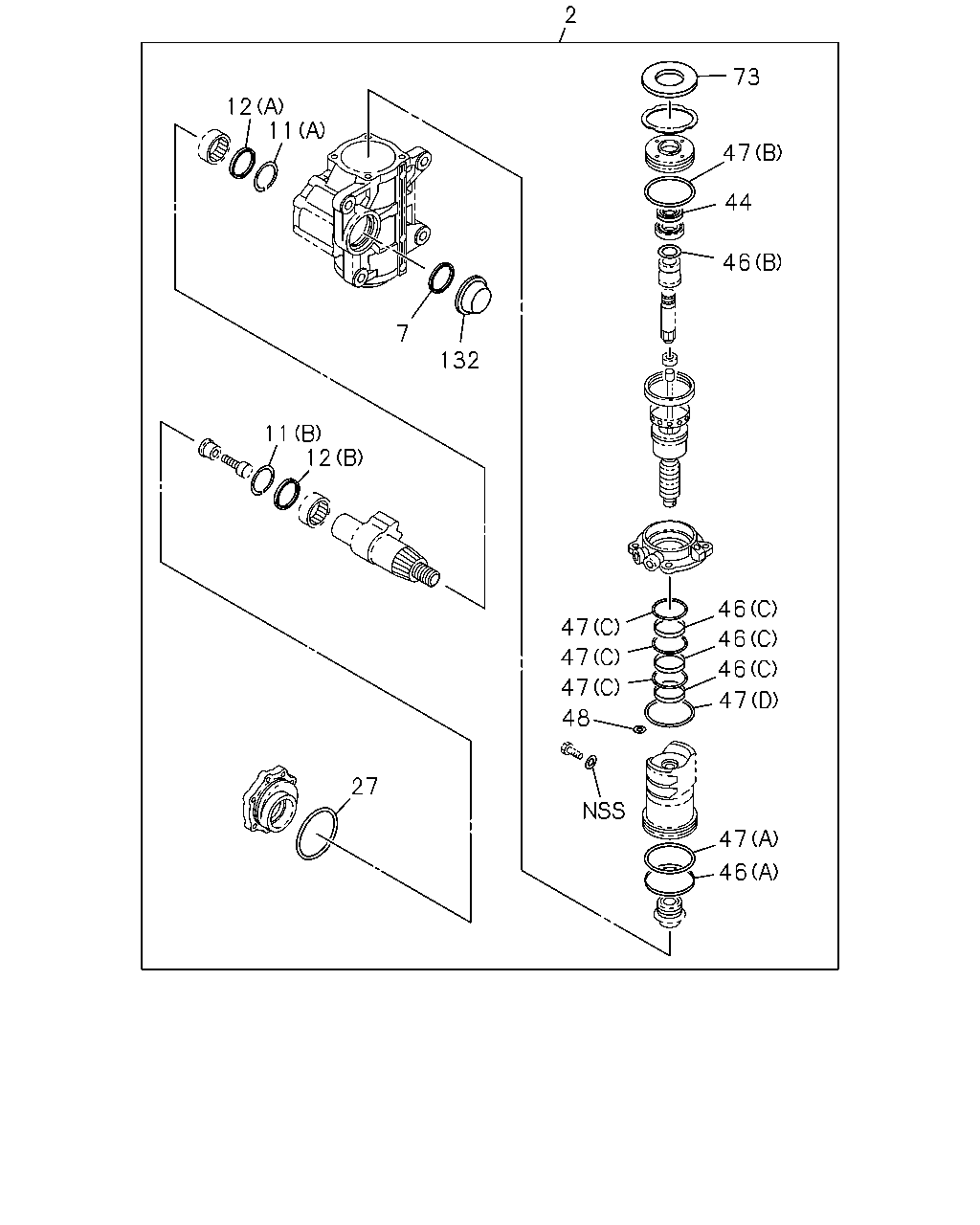

2 73 47 44 46 132 7 11 12 12 11 47 47 47 48 46 46 46 47 47 46 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-85574-052-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-85574-084-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-041-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-265-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-114-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-227-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
