Sayfa 4-35 - Isuzu EPC

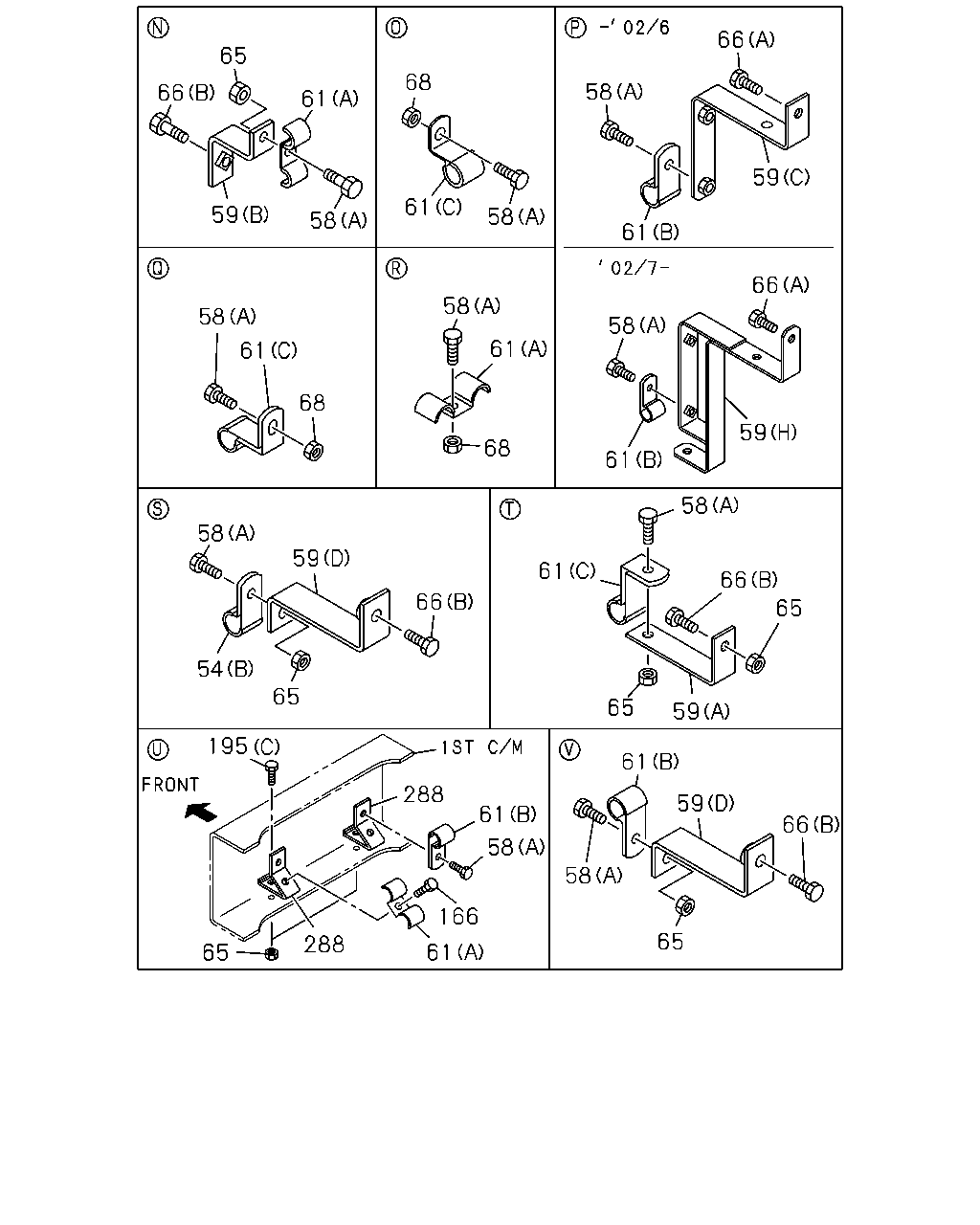

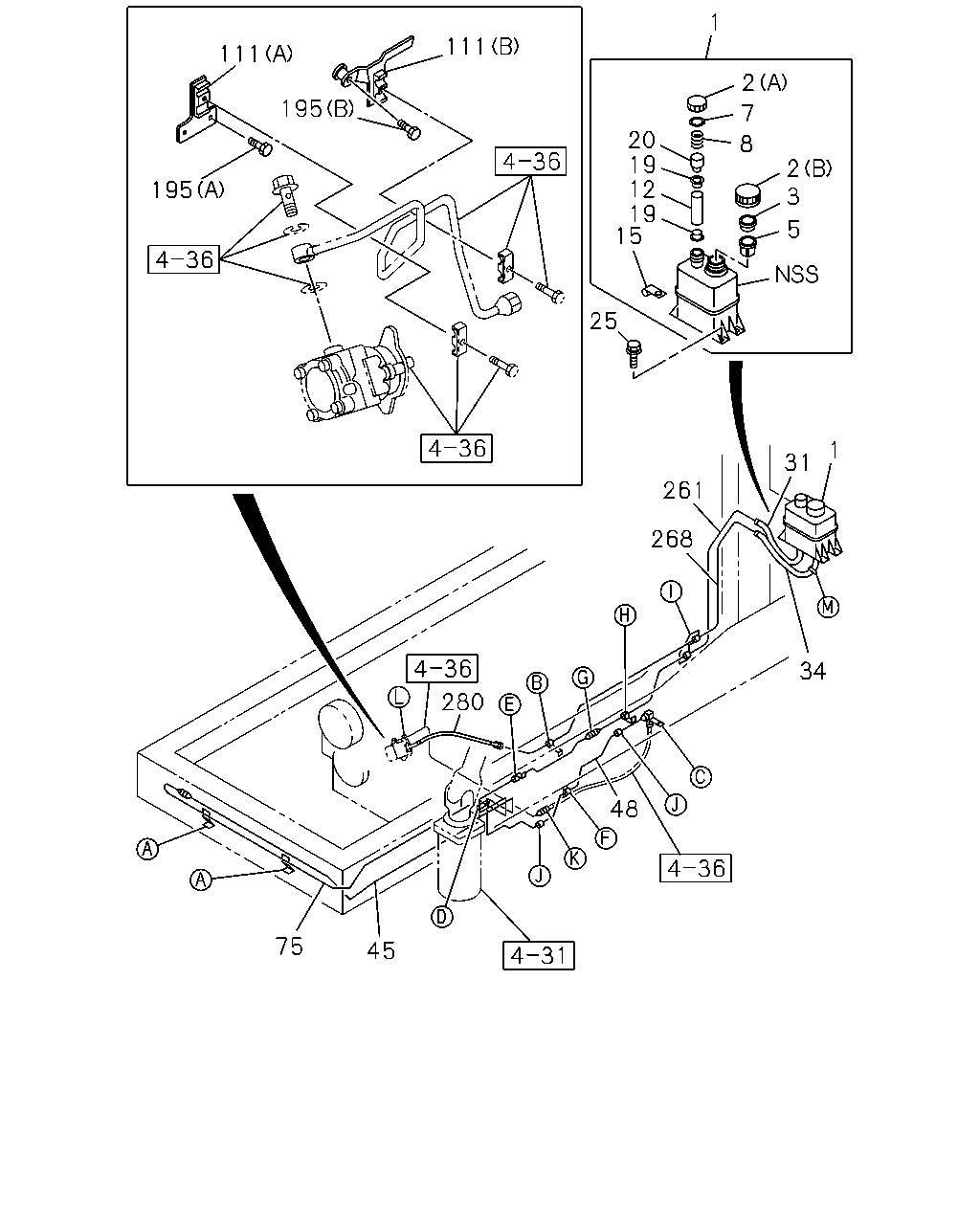

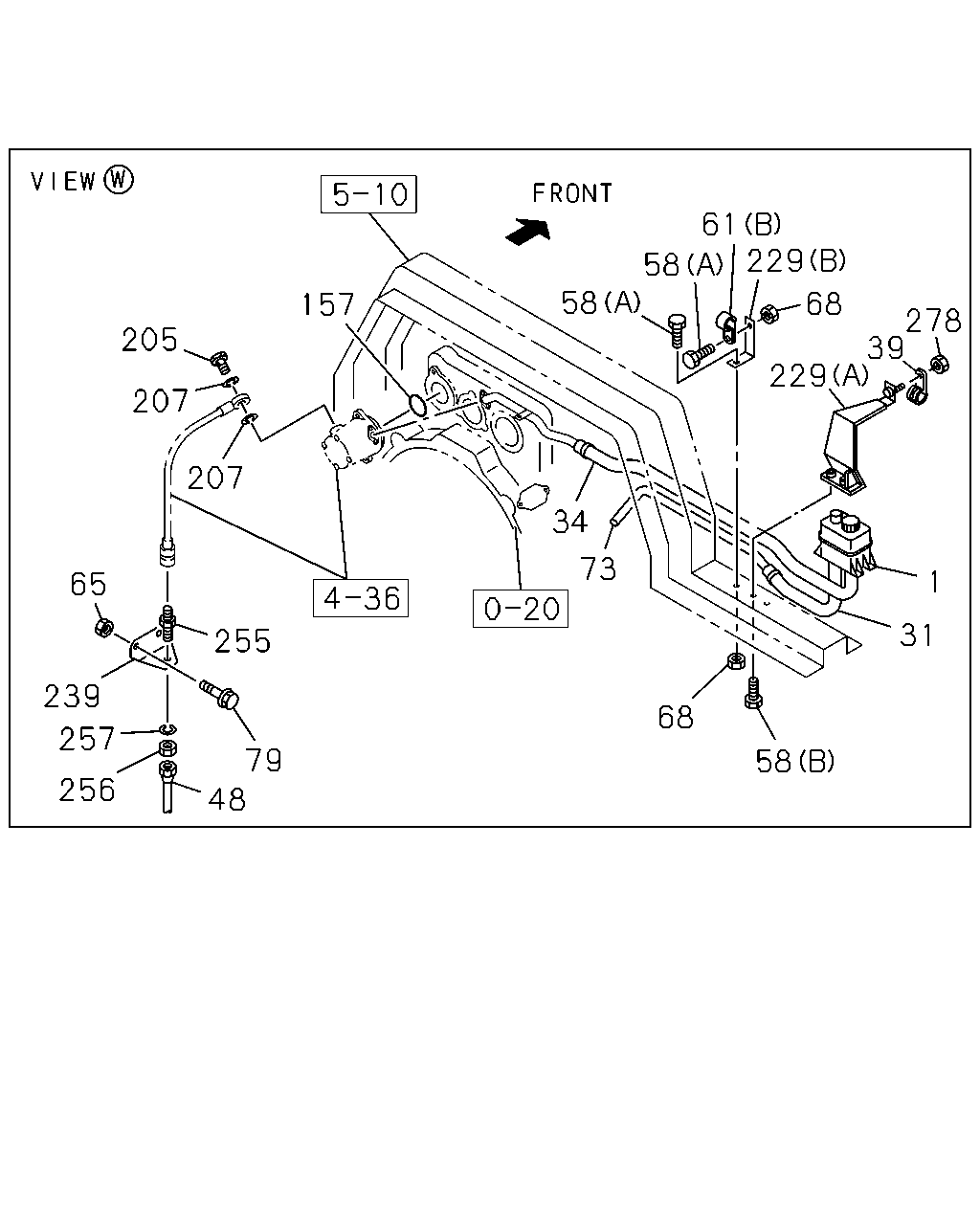

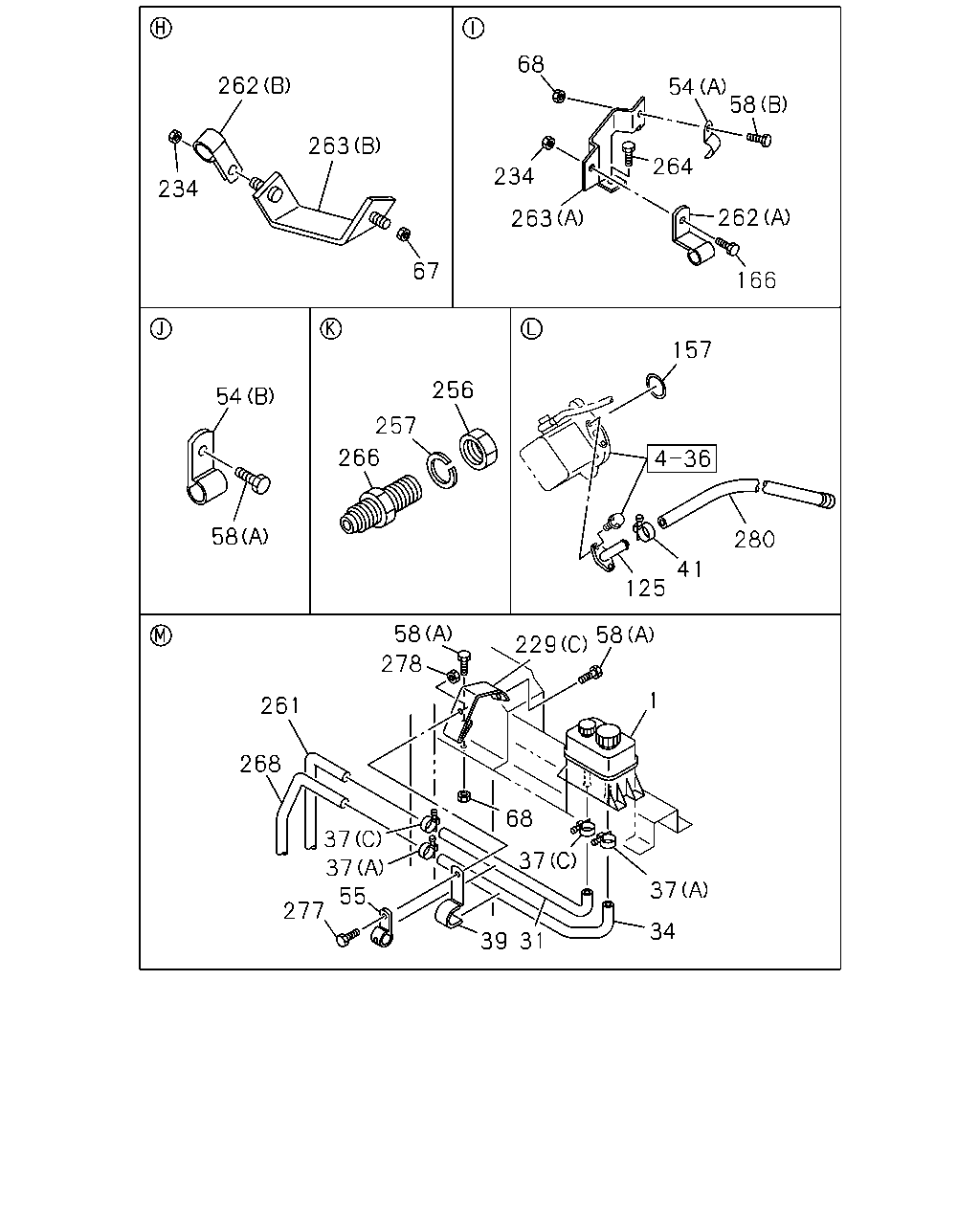

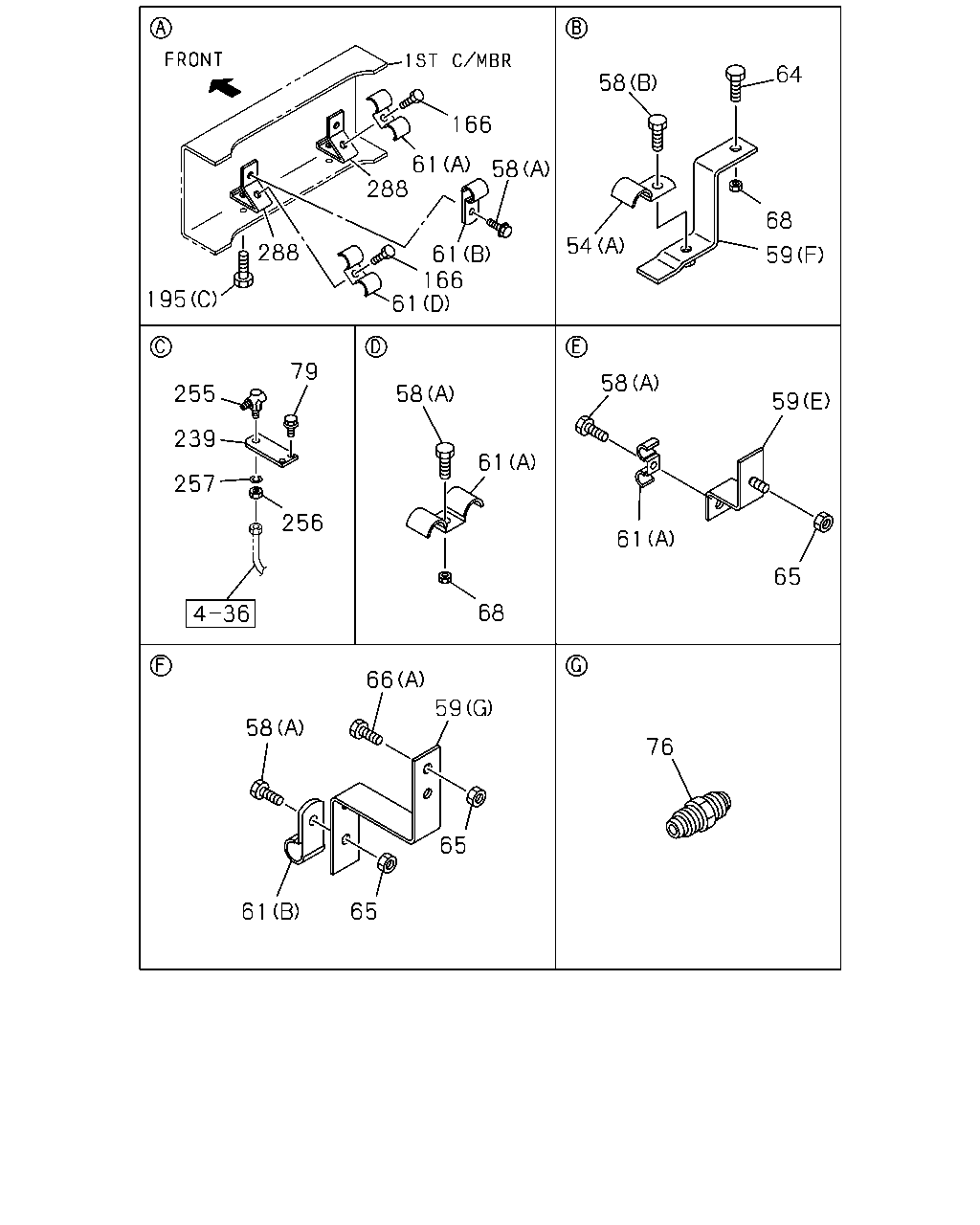

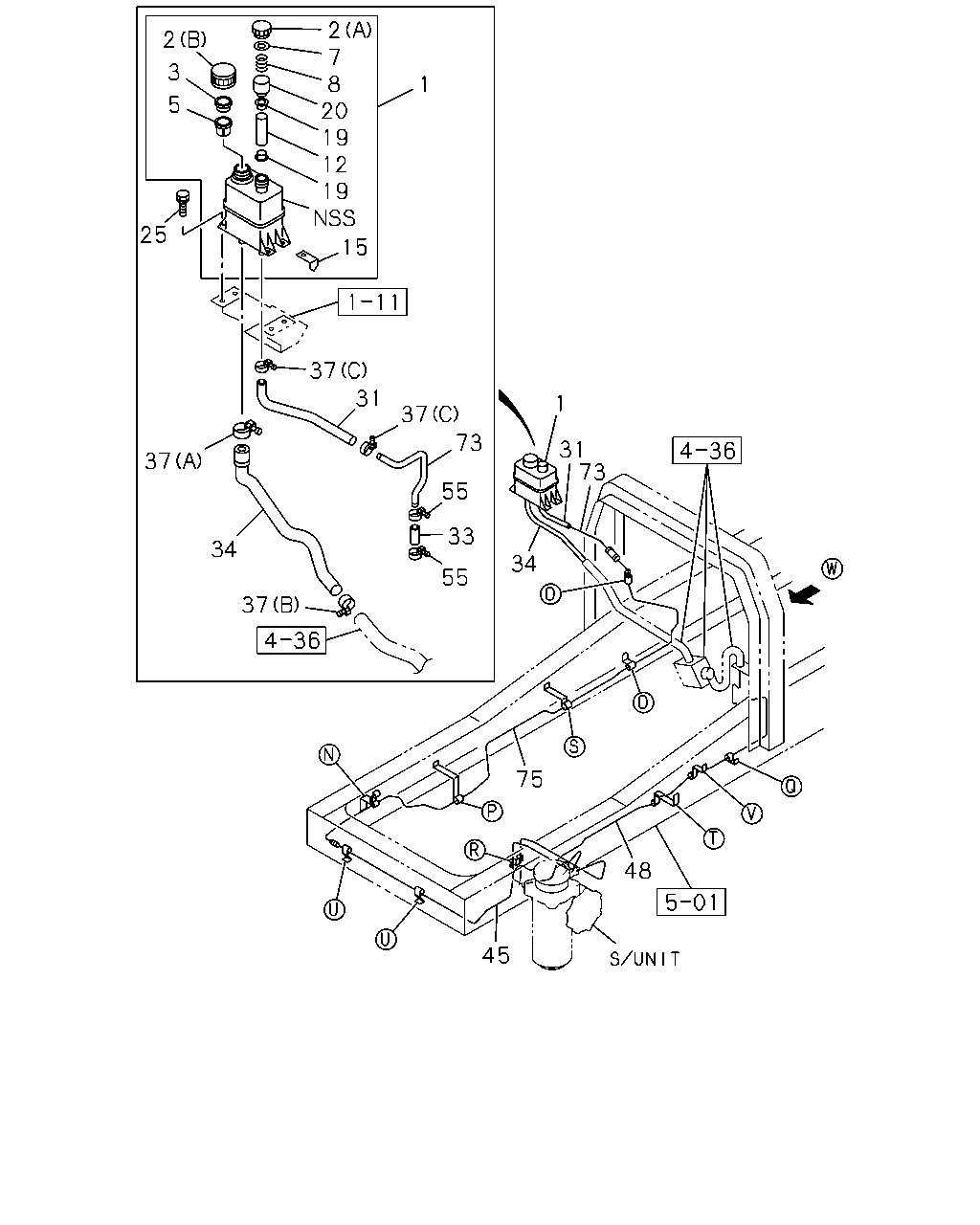

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#12540) — 440 parça

66 59 61 58 65 288 61 58 166 61 288 65 195 59 65 65 66 58 61 66 59 58 54 65 59 66 58 61 68 61 58 58 68 61 59 58 61 65 66 58 58 66 59 61 58 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
54	CLIP; OIL PIPE W-SERIES ENG<1A2> (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
59	BRACKET; CLIP,OIL PIPE ANTI NOISE EQUIPMENT<SV9> PE-SERIES ENG<1A0> EXC. TAIWAN EQUIPMENT(WW5) (C)	1-47477-434-0	01	1	0105-0206	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-47477-434-0	01	1	0105-0206	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (H)	1-47477-180-1	01	1	0207-	●	●
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (F)	1-47477-833-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A)	1-34656-009-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (B)	1-47475-881-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (G)	1-47475-963-1	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (E)	1-47477-235-0	01	1	0105-0106	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (E)	1-47477-669-1	01	1	0107-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (F)	1-47477-145-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE ANTI NOISE EQUIPMENT<SV9> PE-SERIES ENG<1A0> EXC. TAIWAN EQUIPMENT(WW5) (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE ANTI NOISE EQUIPMENT<SV9> PE-SERIES ENG<1A0> EXC. TAIWAN EQUIPMENT(WW5) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-	●	●

54 68 58 262 264 166 263 234 263 67 262 234 256 257 266 54 58 157 280 41 125 58 229 1 58 278 261 268 37 34 37 68 37 37 55 277 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (B) ID=32	1-09704-085-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (A) ID=38	9-09915-041-1	01	1	0105-	●	●
37	CLIP; HOSE,P/S W-SERIES ENG<1A2> (A) ID=38	9-09915-041-1	02	1	0105-	●	●
39	CLIP; FLEX HOSE PE-SERIES ENG<1A0> ID=31 L=35	1-09700-329-1	01	1	0105-	●	●
39	CLIP; FLEX HOSE W-SERIES ENG<1A2> ID=32 L=75	1-09700-702-0	01	1	0105-	●	●
41	CLIP; HOSE,P/S W-SERIES ENG<1A2> ID=38	9-09915-041-1	02	1	0105-	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
54	CLIP; OIL PIPE W-SERIES ENG<1A2> (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE PE-SERIES ENG<1A0> ID=28	9-09915-672-1	02	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE W-SERIES ENG<1A2> ID=28 L=30	1-09700-607-1	01	1	0105-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
67	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
67	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
125	CONNECTOR; P/S PUMP W-SERIES ENG<1A2>	1-13313-532-0	01	1	0105-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-0206	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0207-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (A)	1-21464-480-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (B)	1-21464-481-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG W-SERIES ENG<1A2> (C)	1-21464-407-1	01	1	0105-	●	●
234	NUT; PIPE CLIP,P/S W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
234	NUT; PIPE CLIP,P/S W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	0105-0512	●	●
256	NUT; UNION W-SERIES ENG<1A2> M22	9-09111-522-0	01	1	0105-0512	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION W-SERIES ENG<1A2> M22	0-91111-522-0	01	1	0601-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	9-09150-522-0	01	1	0105-	●	●
261	PIPE; OIL,UNION TO HOSE W-SERIES ENG<1A2> L=1031	1-21117-048-0	01	1	0105-	●	●
262	CLIP; P/S PIPE W-SERIES ENG<1A2> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
262	CLIP; P/S PIPE W-SERIES ENG<1A2> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
263	BRACKET; P/S PIPE W-SERIES ENG<1A2> (A)	1-47476-483-2	01	1	0105-	●	●
263	BRACKET; P/S PIPE W-SERIES ENG<1A2> (B)	1-47477-597-3	01	1	0105-	●	●
264	BOLT; PIPE BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
264	BOLT; PIPE BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
266	UNION; OIL PIPE,P/S W-SERIES ENG<1A2> M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1315	1-21116-855-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0105-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
280	HOSE; P/S OIL PUMP,INL W-SERIES ENG<1A2>	1-21115-865-0	01	1	0105-	●	●

48 45 75 73 31 1 34 73 37 31 37 55 55 33 34 37 37 15 1 7 2 5 3 25 8 19 12 19 20 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
33	HOSE; RUBBER,POWER STRG PE-SERIES ENG<1A0> L=80	1-09360-570-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (B) ID=32	1-09704-085-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (A) ID=38	9-09915-041-1	01	1	0105-	●	●
37	CLIP; HOSE,P/S W-SERIES ENG<1A2> (A) ID=38	9-09915-041-1	02	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION PE-SERIES ENG<1A0>	1-21116-847-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION W-SERIES ENG<1A2>	1-21116-848-0	01	1	0105-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-21116-186-0	01	1	0105-0108	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-21117-135-0	01	1	0109-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT PE-SERIES ENG<1A0> EXC. ZF M/T<X9E>	1-21116-349-0	01	1	0105-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-470-0	01	1	0105-0108	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21117-132-0	01	1	0109-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> PE-SERIES ENG<1A0>	1-21116-350-0	01	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE PE-SERIES ENG<1A0> ID=28	9-09915-672-1	02	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE W-SERIES ENG<1A2> ID=28 L=30	1-09700-607-1	01	1	0105-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE PE-SERIES ENG<1A0>	1-21115-014-1	01	1	0105-	●	●
75	PIPE; OIL,P/S,UNION TO UNION W-SERIES ENG<1A2>	1-21116-403-0	01	1	0105-0106	●	●
75	PIPE; OIL,P/S,UNION TO UNION W-SERIES ENG<1A2>	1-21117-075-0	01	1	0107-	●	●
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A>	1-21115-533-0	01	1	0105-0109	●	●
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A>	1-21117-152-0	01	1	0110-	●	●
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-21115-534-0	01	1	0105-	●	●

65 61 76 59 58 61 58 79 255 257 239 256 66 68 59 58 61 65 59 68 64 58 54 58 166 61 288 61 61 166 288 195 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
54	CLIP; OIL PIPE W-SERIES ENG<1A2> (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
59	BRACKET; CLIP,OIL PIPE ANTI NOISE EQUIPMENT<SV9> PE-SERIES ENG<1A0> EXC. TAIWAN EQUIPMENT(WW5) (C)	1-47477-434-0	01	1	0105-0206	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-47477-434-0	01	1	0105-0206	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (H)	1-47477-180-1	01	1	0207-	●	●
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (F)	1-47477-833-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A)	1-34656-009-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (B)	1-47475-881-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (G)	1-47475-963-1	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (E)	1-47477-235-0	01	1	0105-0106	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (E)	1-47477-669-1	01	1	0107-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (F)	1-47477-145-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
64	BOLT; CLIP BRKT W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
64	BOLT; CLIP BRKT W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE ANTI NOISE EQUIPMENT<SV9> PE-SERIES ENG<1A0> EXC. TAIWAN EQUIPMENT(WW5) (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE ANTI NOISE EQUIPMENT<SV9> PE-SERIES ENG<1A0> EXC. TAIWAN EQUIPMENT(WW5) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
76	UNION; OIL PIPE W-SERIES ENG<1A2> M22	9-09233-015-1	01	1	0105-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
79	BOLT; BRKT W-SERIES ENG<1A2> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
239	BRACKET; FLEX HOSE PE-SERIES ENG<1A0>	1-47478-471-0	01	1	0105-	●	●
239	BRACKET; FLEX HOSE W-SERIES ENG<1A2>	1-47476-679-4	01	1	0105-	●	●
255	UNION; FLEX HOSE PE-SERIES ENG<1A0> M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-	●	●
255	UNION; FLEX HOSE W-SERIES ENG<1A2> M22 & M22 ELBOW	1-09654-163-1	01	1	0105-	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	0105-0512	●	●
256	NUT; UNION W-SERIES ENG<1A2> M22	9-09111-522-0	01	1	0105-0512	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION W-SERIES ENG<1A2> M22	0-91111-522-0	01	1	0601-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	9-09150-522-0	01	1	0105-	●	●
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-	●	●

1 31 261 268 34 48 45 75 280 25 15 20 19 12 19 1 2 8 2 7 5 3 195 195 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION PE-SERIES ENG<1A0>	1-21116-847-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION W-SERIES ENG<1A2>	1-21116-848-0	01	1	0105-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-21116-186-0	01	1	0105-0108	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-21117-135-0	01	1	0109-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT PE-SERIES ENG<1A0> EXC. ZF M/T<X9E>	1-21116-349-0	01	1	0105-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-470-0	01	1	0105-0108	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21117-132-0	01	1	0109-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> PE-SERIES ENG<1A0>	1-21116-350-0	01	1	0105-	●	●
75	PIPE; OIL,P/S,UNION TO UNION W-SERIES ENG<1A2>	1-21116-403-0	01	1	0105-0106	●	●
75	PIPE; OIL,P/S,UNION TO UNION W-SERIES ENG<1A2>	1-21117-075-0	01	1	0107-	●	●
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A>	1-21115-533-0	01	1	0105-0109	●	●
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A>	1-21117-152-0	01	1	0110-	●	●
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-21115-534-0	01	1	0105-	●	●
111	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-13345-186-0	01	1	0105-	●	●
111	BRACKET; OIL PIPE W-SERIES ENG<1A2> (B)	1-13345-187-0	01	1	0105-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
261	PIPE; OIL,UNION TO HOSE W-SERIES ENG<1A2> L=1031	1-21117-048-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1315	1-21116-855-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0105-	●	●
280	HOSE; P/S OIL PUMP,INL W-SERIES ENG<1A2>	1-21115-865-0	01	1	0105-	●	●

278 1 31 58 68 73 34 58 58 61 68 229 207 157 205 207 65 255 79 48 256 239 257 229 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
39	CLIP; FLEX HOSE PE-SERIES ENG<1A0> ID=31 L=35	1-09700-329-1	01	1	0105-	●	●
39	CLIP; FLEX HOSE W-SERIES ENG<1A2> ID=32 L=75	1-09700-702-0	01	1	0105-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-21116-186-0	01	1	0105-0108	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-21117-135-0	01	1	0109-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT PE-SERIES ENG<1A0> EXC. ZF M/T<X9E>	1-21116-349-0	01	1	0105-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-470-0	01	1	0105-0108	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21117-132-0	01	1	0109-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> PE-SERIES ENG<1A0>	1-21116-350-0	01	1	0105-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE PE-SERIES ENG<1A0>	1-21115-014-1	01	1	0105-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
79	BOLT; BRKT W-SERIES ENG<1A2> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-0206	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0207-	●	●
205	BOLT; EYE,FLEX HOSE,P/S PE-SERIES ENG<1A0> M18X40	1-09675-153-0	01	1	0105-0305	●	●
205	BOLT; EYE,FLEX HOSE,P/S PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	0306-	●	●
207	GASKET; FLEX HOSE,P/S PUMP PE-SERIES ENG<1A0> ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-0305	●	●
207	GASKET; FLEX HOSE,P/S PUMP PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0306-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (A)	1-21464-480-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (B)	1-21464-481-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG W-SERIES ENG<1A2> (C)	1-21464-407-1	01	1	0105-	●	●
239	BRACKET; FLEX HOSE PE-SERIES ENG<1A0>	1-47478-471-0	01	1	0105-	●	●
239	BRACKET; FLEX HOSE W-SERIES ENG<1A2>	1-47476-679-4	01	1	0105-	●	●
255	UNION; FLEX HOSE PE-SERIES ENG<1A0> M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-	●	●
255	UNION; FLEX HOSE W-SERIES ENG<1A2> M22 & M22 ELBOW	1-09654-163-1	01	1	0105-	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	0105-0512	●	●
256	NUT; UNION W-SERIES ENG<1A2> M22	9-09111-522-0	01	1	0105-0512	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION W-SERIES ENG<1A2> M22	0-91111-522-0	01	1	0601-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	9-09150-522-0	01	1	0105-	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	01	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
