4-31 — STEERING COLUMN AND SHAFT (#12538) — 132 parça

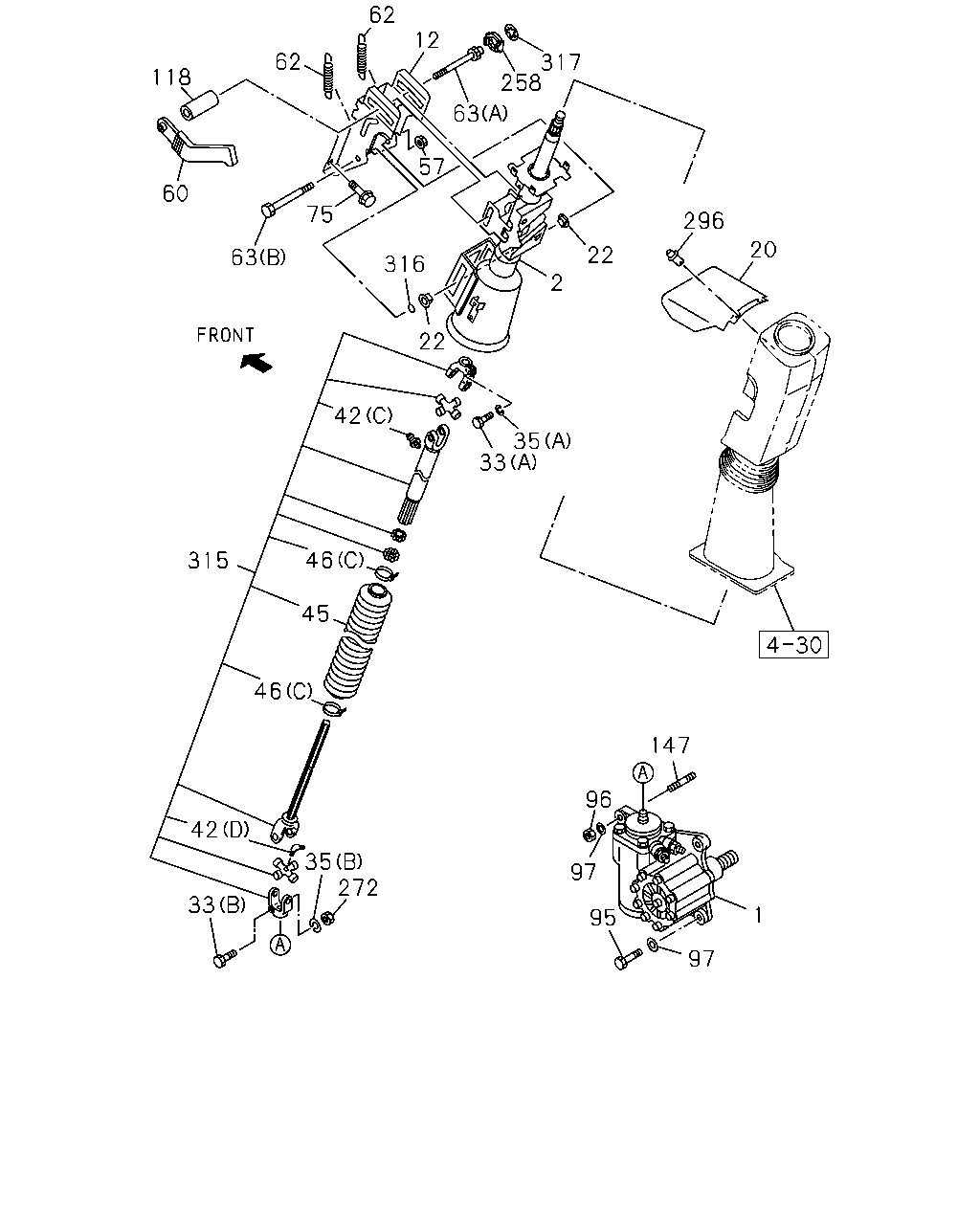

1 147 96 97 95 97 20 296 22 2 316 22 33 35 42 46 45 46 42 35 272 33 315 63 75 57 63 258 317 12 62 62 60 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. CHINA GB VAR1<JAC>	1-44000-893-0	01	1	0212-0302	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. CHINA GB VAR1<JAC>	1-44000-894-0	01	1	0303-0401	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-44000-916-0	01	1	0402-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-44000-861-2	01	1	0105-0211	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. CHINA GB VAR1<JAC>	1-44000-861-2	01	1	0212-0401	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-44000-915-0	01	1	0402-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-44000-866-1	01	1	0105-0211	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. CHINA GB VAR1<JAC>,STRG VARIABLE CONTROL<TFY>	1-44000-866-1	01	1	0212-0401	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,STRG VARIABLE CONTROL<TFY>	1-44000-914-0	01	1	0402-	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44130-740-0	01	1	0105-0510	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44130-783-0	01	1	0511-	●	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	0105-	●	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0105-	●	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0105-	●	●
22	BUSHING; STRG COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-165-0	02	1	0511-	●	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0105-	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0105-	●	●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44139-141-0	01	1	0105-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0105-	●	●
35	WASHER; LK,STRG SHAFT (B) ID=10.2	9-09150-810-0	01	1	0105-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44139-142-0	01	1	0105-	●	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0105-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (C) STRAIGHT	1-44135-375-0	01	1	0507-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (D) ELBOW	1-44135-376-0	01	1	0507-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) CAB UP +110MM<TGG> (A) M6 STRAIGHT	9-09031-006-0	01	1	0105-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) CAB UP +110MM<TGG> (B) PT1/8 ELBOW	9-09031-210-0	01	1	0105-0512	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) CAB UP +110MM<TGG> (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●
45	BOOT; STRG SHAFT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44139-138-0	01	1	0105-	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0105-	●	●
46	CLIP; BOOT AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44139-139-0	01	1	0105-0511	●	●
46	CLIP; BOOT AIR BAG(TFQ) CAB UP +110MM<TGG> (D)	8-98019-551-0	02	1	0512-	●	●
46	CLIP; BOOT AIR BAG(TFQ) CAB UP +110MM<TGG> (B)	1-44139-140-0	01	1	0105-0511	●	●
46	CLIP; BOOT EXC. AIR BAG(TFQ) (C)	1-44139-156-0	02	1	0105-	●	●
57	NUT; ADJ BOLT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-159-0	01	1	0105-	●	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0105-	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-155-0	01	1	0105-0111	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-160-0	01	1	0112-	●	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0105-	●	●
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	02	1	0105-0111	●	●
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	01	1	0112-	●	●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) CAB UP +110MM<TGG> (C)	1-44227-126-0	01	1	0105-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0105-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0105-	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	0105-0409	●	●
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0410-	●	●
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	0105-0512	●	●
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0601-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0105-	●	●
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-146-0	01	1	0105-0506	●	●
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-163-0	01	1	0507-	●	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0105-	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC EXC. AIR BAG(TFQ)	1-44227-147-0	01	1	0105-	●	●
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	0105-0512	●	●
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0601-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0105-	●	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ),CAB UP +110MM<TGG>	1-44135-343-0	01	1	0105-0506	●	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ),CAB UP +110MM<TGG>	1-44135-378-0	01	1	0507-	●	●
315	JOINT; SPLINE CAB UP +110MM<TGG> EXC. AIR BAG(TFQ)	1-44135-345-1	01	1	0105-	●	●
316	RING EXC. AIR BAG(TFQ)	1-44227-152-0	01	1	0105-	●	●
317	NUT; PUSH EXC. AIR BAG(TFQ)	1-44227-148-0	01	1	0105-	●	●

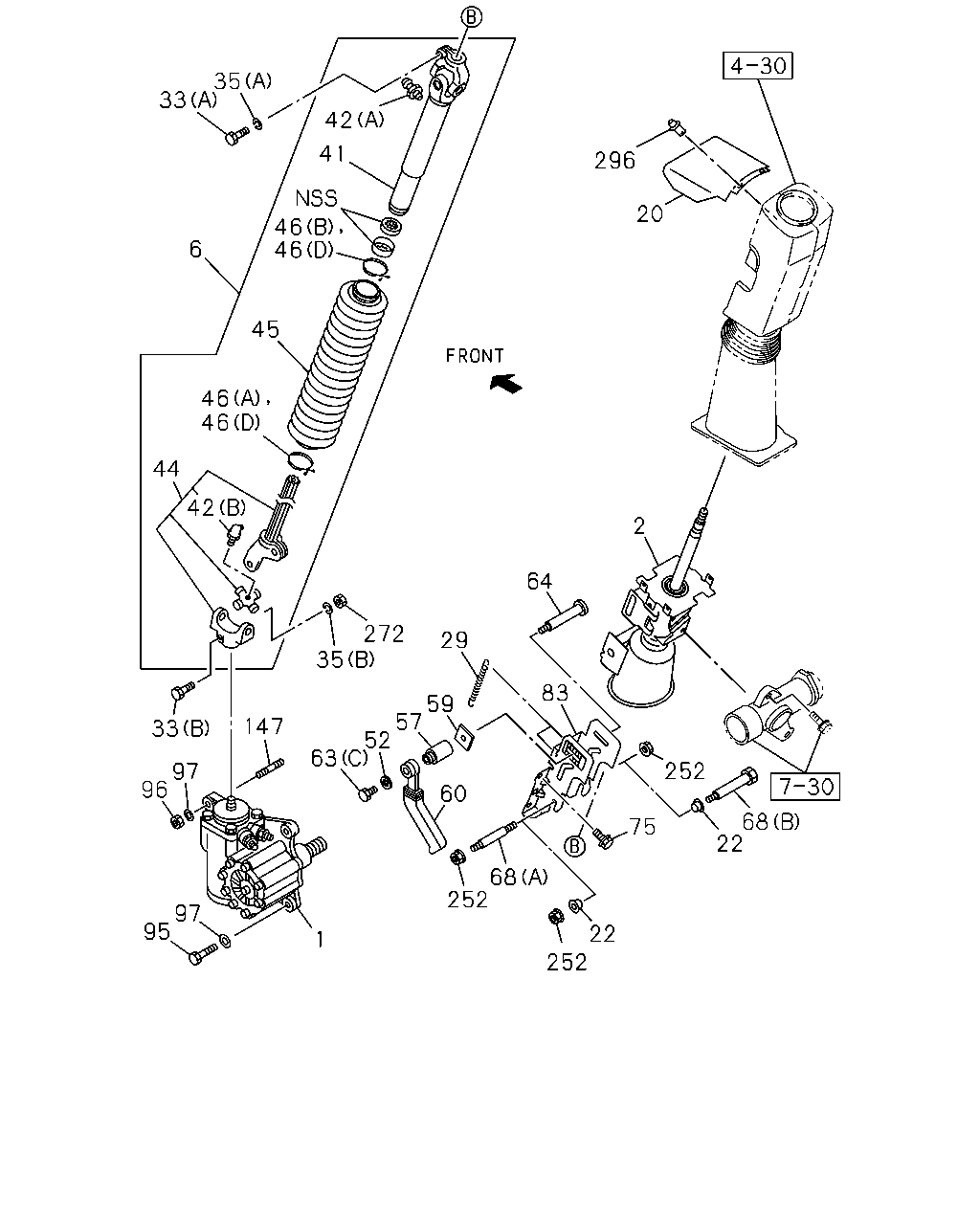

68 252 22 75 68 22 252 252 1 97 95 97 96 147 33 63 60 52 59 57 83 64 2 29 272 35 42 44 46 46 45 6 46 46 41 42 35 33 296 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. CHINA GB VAR1<JAC>	1-44000-893-0	01	1	0212-0302	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. CHINA GB VAR1<JAC>	1-44000-894-0	01	1	0303-0401	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-44000-916-0	01	1	0402-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-44000-861-2	01	1	0105-0211	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. CHINA GB VAR1<JAC>	1-44000-861-2	01	1	0212-0401	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-44000-915-0	01	1	0402-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-44000-866-1	01	1	0105-0211	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. CHINA GB VAR1<JAC>,STRG VARIABLE CONTROL<TFY>	1-44000-866-1	01	1	0212-0401	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,STRG VARIABLE CONTROL<TFY>	1-44000-914-0	01	1	0402-	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44130-740-0	01	1	0105-0510	●	●
2	SHAFT ASM; STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44130-783-0	01	1	0511-	●	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	0105-	●	●
6	SHAFT; STRG LWR AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44135-315-0	01	1	0105-0111	●	●
6	SHAFT; STRG LWR AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44135-354-0	01	1	0112-0511	●	●
6	SHAFT; STRG LWR AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44135-385-0	01	1	0512-	●	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0105-	●	●
22	BUSHING; STRG COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-165-0	02	1	0511-	●	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0105-	●	●
29	SPRING; COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-136-0	02	1	0105-0511	●	●
29	SPRING; COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-136-0	01	1	0512-	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0105-	●	●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44139-141-0	01	1	0105-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0105-	●	●
35	WASHER; LK,STRG SHAFT (B) ID=10.2	9-09150-810-0	01	1	0105-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44139-142-0	01	1	0105-	●	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0105-	●	●
41	YOKE; SLEEVE,STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44135-304-0	01	1	0105-0111	●	●
41	YOKE; SLEEVE,STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44135-359-0	01	1	0112-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (C) STRAIGHT	1-44135-375-0	01	1	0507-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (D) ELBOW	1-44135-376-0	01	1	0507-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) CAB UP +110MM<TGG> (A) M6 STRAIGHT	9-09031-006-0	01	1	0105-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) CAB UP +110MM<TGG> (B) PT1/8 ELBOW	9-09031-210-0	01	1	0105-0512	●	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) CAB UP +110MM<TGG> (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●
44	SHAFT; SPLINE,STRG AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44135-316-0	01	1	0105-	●	●
45	BOOT; STRG SHAFT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44139-138-0	01	1	0105-	●	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0105-	●	●
46	CLIP; BOOT AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44139-139-0	01	1	0105-0511	●	●
46	CLIP; BOOT AIR BAG(TFQ) CAB UP +110MM<TGG> (D)	8-98019-551-0	02	1	0512-	●	●
46	CLIP; BOOT AIR BAG(TFQ) CAB UP +110MM<TGG> (B)	1-44139-140-0	01	1	0105-0511	●	●
46	CLIP; BOOT EXC. AIR BAG(TFQ) (C)	1-44139-156-0	02	1	0105-	●	●
52	WASHER; PL,ADJ LEVER AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-154-0	01	1	0105-	●	●
57	NUT; ADJ BOLT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-159-0	01	1	0105-	●	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0105-	●	●
59	COLLAR; DIST,ADJ BOLT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-127-0	01	1	0105-	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-155-0	01	1	0105-0111	●	●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-160-0	01	1	0112-	●	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0105-	●	●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) CAB UP +110MM<TGG> (C)	1-44227-126-0	01	1	0105-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0105-	●	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0105-	●	●
64	BOLT; ADJ,PROTECTOR AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-156-0	01	1	0105-	●	●
68	PIN; TILT CENTER AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44227-158-0	01	1	0105-0308	●	●
68	PIN; TILT CENTER AIR BAG(TFQ) CAB UP +110MM<TGG> (A)	1-44227-161-0	01	1	0309-0510	●	●
68	PIN; TILT CENTER AIR BAG(TFQ) CAB UP +110MM<TGG> (B)	1-44227-164-0	01	1	0511-0511	●	●
68	PIN; TILT CENTER AIR BAG(TFQ) CAB UP +110MM<TGG> (B)	8-97163-920-1	01	1	0512-	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
83	BRACKET; TILT STRG UPR AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-157-0	01	1	0105-0511	●	●
83	BRACKET; TILT STRG UPR AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-166-0	01	1	0512-	●	●
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	0105-0409	●	●
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0410-	●	●
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	0105-0512	●	●
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0601-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0105-	●	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0105-	●	●
252	NUT; TILT CENTER BOLT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-135-0	02	1	0105-0510	●	●
252	NUT; TILT CENTER BOLT AIR BAG(TFQ) CAB UP +110MM<TGG>	1-44227-135-0	01	1	0511-	●	●
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	0105-0512	●	●
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0601-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0105-	●	●
