◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#12537) — 27 parça

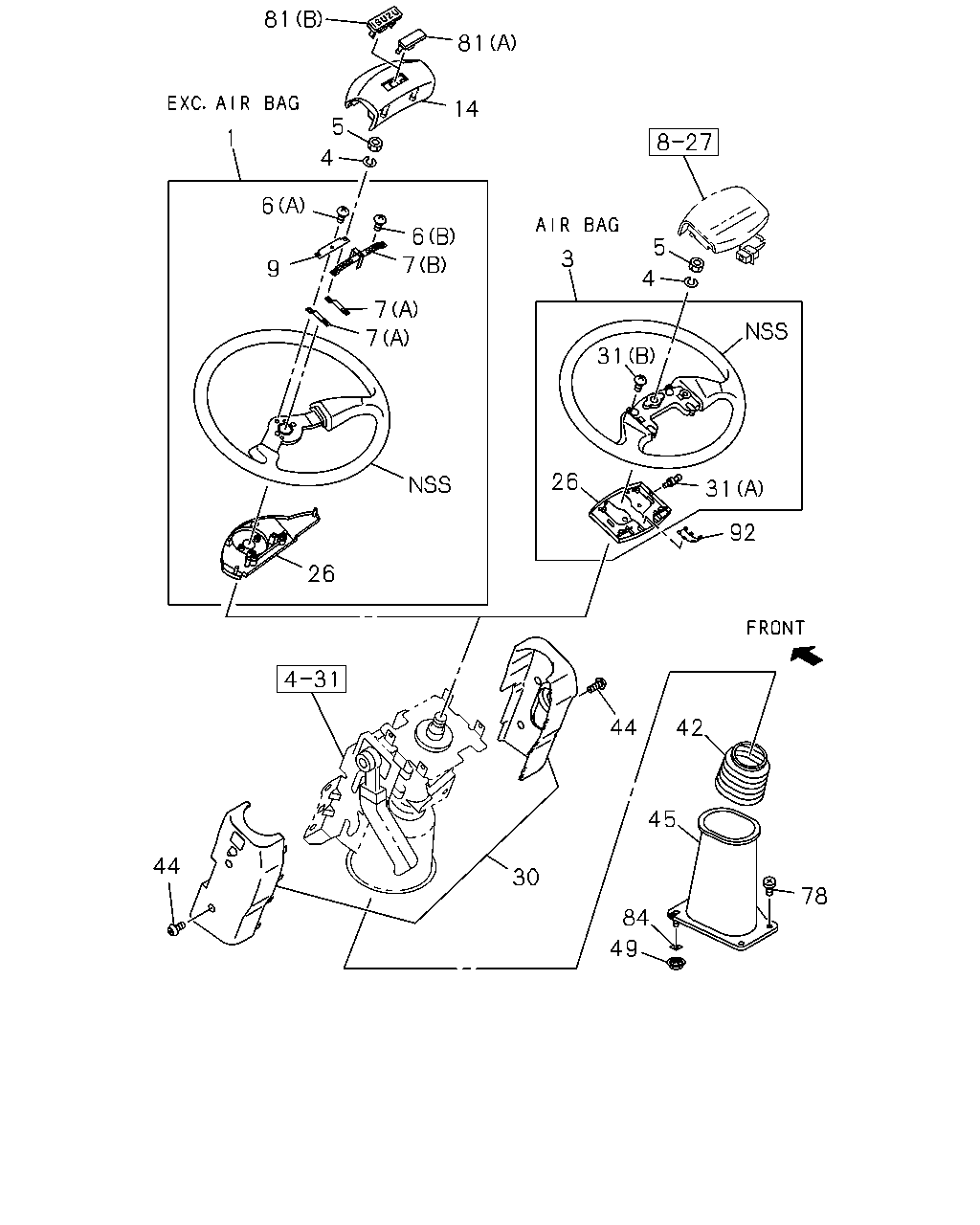

çizim 80800
5 4 3 81 14 81 5 4 6 9 6 7 7 7 26 26 92 31 31 42 44 45 78 84 49 30 44 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
EXC. AIR BAG(TFQ) 		1-44110-159-1 01 1 0105- ● ●
3 WHEEL; STRG
AIR BAG(TFQ) 		1-44110-166-2 01 1 0105- ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0105- ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 0105-0512 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (A) M4X10 		1-44129-034-0 01 1 0105- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (B) M4X16 		1-44129-036-0 04 1 0105- ● ●
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (A) 		1-44129-033-0 02 1 0105- ● ●
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (B) 		1-44129-037-0 01 1 0105- ● ●
9 PLATE; HORN CONTACT
EXC. AIR BAG(TFQ) 		1-44129-038-0 01 1 0105- ● ●
14 BUTTON; HORN,STRG WHEEL
EXC. AIR BAG(TFQ) 		1-44120-045-2 01 1 0105- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG(TFQ) 		1-44129-057-1 01 1 0105- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG(TFQ) 		1-44129-039-1 01 1 0105- ● ●
30 COWL; STEERING
AIR BAG LESS(TGK) 		1-79997-342-3 01 1 0105- ● ●
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-070-0 01 1 0105- ● ●
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (A) 		1-09169-005-0 02 1 0105- ● ●
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (B) M4X14 TAPPING 		9-07066-414-0 04 1 0105- ● ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0105- ● ●
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 0105-0302 ● ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303- ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0105- ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0105- ● ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0105- ● ●
81 EMBLEM; STRG WHEEL
CHEV BRAND PACKAGE<PS2> EXC. AIR BAG(TFQ) (A) 		1-76210-666-0 01 1 0105- ● ●
81 EMBLEM; STRG WHEEL
EXC. CHEV BRAND PACKAGE<PS2>,AIR BAG(TFQ) (B) 		1-76210-638-1 01 1 0105- ● ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0105- ● ●
92 LID; WHEEL COVER
AIR BAG(TFQ) 		1-44119-001-1 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
