◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#12532) — 71 parça

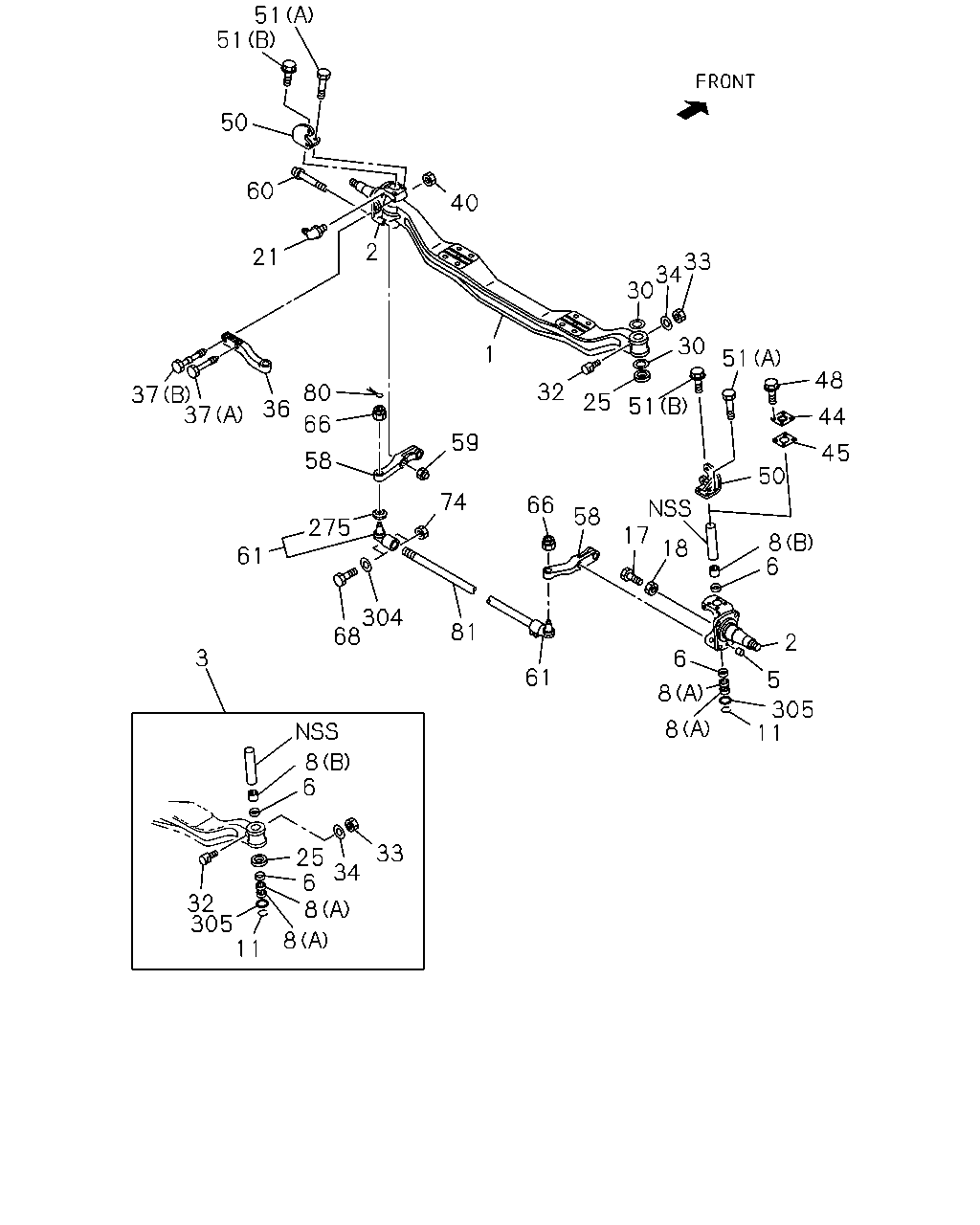

çizim 22195
45 44 48 51 30 33 34 30 51 25 32 1 40 2 21 60 50 51 51 58 59 74 66 58 17 18 6 8 2 5 305 11 8 8 6 61 81 304 68 61 37 37 80 66 36 3 33 25 34 6 8 8 11 305 32 6 8 50 275
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-107-5 01 1 0105- ● ●
2 KNUCKLE; FRT AXLE 1-43132-079-0 01 1 0105- ● ●
2 KNUCKLE; FRT AXLE 1-43131-079-0 01 1 0105- ● ●
3 KING PIN SET 1-87830-738-4 02 1 0105- ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 0105- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 0105- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0105- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0105- ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 0105- ● ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0105- ● ●
17 BOLT; STOPPER KNUCKLE
WHEEL 10STUD 9.00X22.5 168-14(NJT) M18X53 		1-09009-066-0 02 1 0105-0401 ●
17 BOLT; STOPPER KNUCKLE
RR TIRE 12.00-20<98X> M18X53 		1-09009-066-0 02 1 0105-0401 ●
17 BOLT; STOPPER KNUCKLE
WHEEL 10STUD 9.00X22.5 168-14(NJT) EXC. CHINA GB VAR2<JAY> M18X53 		1-09009-066-0 02 1 0402- ●
17 BOLT; STOPPER KNUCKLE
RR TIRE 12.00-20<98X> EXC. CHINA GB VAR2<JAY> M18X53 		1-09009-066-0 02 1 0402- ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 0105-0512 ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 0601- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0105-0512 ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0601- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0105- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0105- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0105- ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0105-0512 ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0105- ● ●
36 ARM; KNUCKLE 1-43133-063-3 01 1 0105- ● ●
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 0105- ● ●
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 0105- ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0105- ● ●
44 COVER; KING PIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43175-014-1 02 1 0105- ● ●
45 GASKET; KING PIN COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-42319-044-0 02 1 0105- ● ●
48 BOLT; COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE 		0-28081-216-0 08 1 0105-0512 ● ●
48 BOLT; COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE 		0-28051-216-0 08 1 0601- ● ●
50 BRACKET; POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43145-010-3 01 1 0105- ● ●
50 BRACKET; POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43145-009-3 01 1 0105- ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X60 FLANGE 		0-28081-260-0 02 1 0105-0512 ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0601- ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12X25 FLANGE 		0-28681-225-0 06 1 0105-0512 ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12X25 FLANGE 		0-28651-225-0 06 1 0601- ● ●
58 ARM; TIE ROD
EXC. RR TIRE 12.00-20<98X> 		1-43134-042-3 01 1 0105- ● ●
58 ARM; TIE ROD
EXC. RR TIRE 12.00-20<98X> 		1-43135-042-3 01 1 0105- ● ●
58 ARM; TIE ROD
RR TIRE 12.00-20<98X> 		1-43134-049-2 01 1 0105-0204 ● ●
58 ARM; TIE ROD
RR TIRE 12.00-20<98X> 		1-43134-049-4 01 1 0205- ●
58 ARM; TIE ROD
RR TIRE 12.00-20<98X> 		1-43135-049-2 01 1 0105-0204 ● ●
58 ARM; TIE ROD
RR TIRE 12.00-20<98X> 		1-43135-049-4 01 1 0205- ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0105- ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 04 1 0105- ● ●
61 ROD END; TIE ROD 1-43150-802-0 01 1 0105- ● ●
61 ROD END; TIE ROD 1-43150-801-0 01 1 0105- ● ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0105- ● ●
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0105- ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0105-0512 ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0105- ● ●
81 ROD; TIE 1-43151-118-0 01 1 0105- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0105- ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0105- ● ●
305 COVER; KNUCKLE 1-43175-021-0 02 1 0105- ● ●
