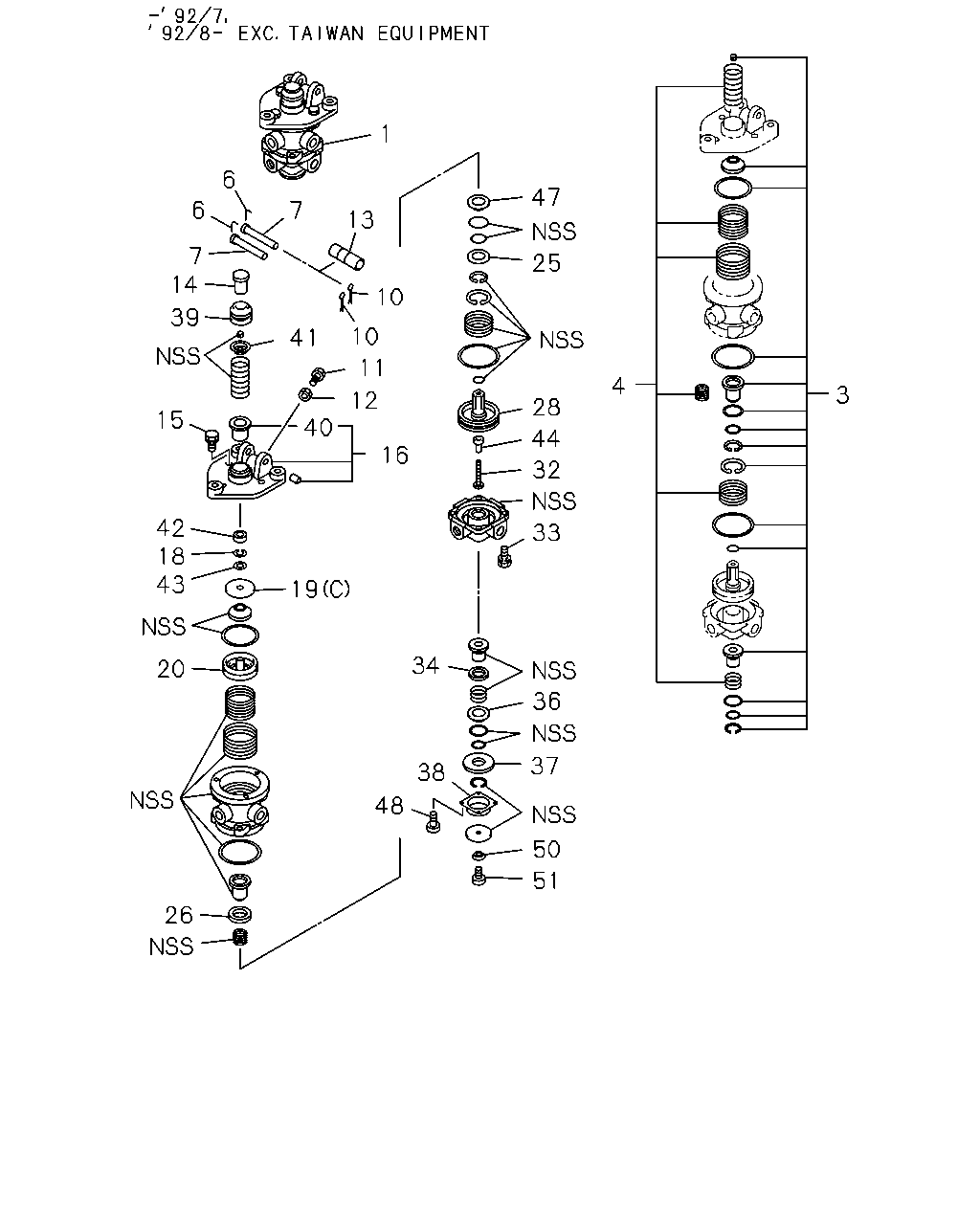

3-34 — BRAKE VALVE; AIR (#1253) — 131 parça

1 6 47 6 7 13 7 14 25 10 39 10 41 11 4 3 12 28 15 40 44 16 32 42 18 43 33 19 34 20 36 37 38 48 50 51 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK	1-48100-625-1	01	1	9202-9207	●	●
1	VALVE; BRK	1-48100-625-2	01	1	9208-	●
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-625-2	01	1	9208-		●
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-708-0	01	1	9208-		●
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-049-0	01	1	9202-9207	●	●
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-049-0	01	1	9208-	●
3	REPAIR KIT; RUBBER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-85576-049-0	01	1	9208-		●
3	REPAIR KIT; RUBBER,BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-143-0	01	1	9208-		●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-050-0	01	1	9202-9207	●	●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-050-0	01	1	9208-	●
4	REPAIR KIT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-85576-050-0	01	1	9208-		●
4	REPAIR KIT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-144-0	01	1	9208-		●
6	PIN; PEDAL,SIDE,BRK VLV	1-48119-083-0	02	1	9202-	●	●
7	PIN; PEDAL,BRK VLV	1-48119-082-0	02	1	9202-	●	●
10	PIN; SPLIT,BRK VLV	1-48119-087-0	02	1	9202-	●	●
11	SCREW; SET,BRK VLV	1-48119-088-0	01	1	9202-9207	●	●
11	SCREW; SET,BRK VLV	1-48119-088-0	01	1	9208-	●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9208-		●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-309-0	01	1	9208-		●
12	NUT; SCREW,PEDAL,BRK VLV	1-48119-089-0	01	1	9202-	●	●
13	ROLLER; PEDAL,BRK VLV	1-48119-257-0	01	1	9202-	●	●
14	PLUNGER; BRK VLV	1-48119-220-0	01	1	9202-9207	●	●
14	PLUNGER; BRK VLV	1-48119-316-0	01	1	9208-	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-316-0	01	1	9208-		●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-326-0	01	1	9208-		●
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9202-	●	●
16	PLATE; MTG,BRKT VLV	1-48119-261-2	01	1	9202-9207	●	●
16	PLATE; MTG,BRKT VLV	1-48119-261-2	01	1	9208-	●
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9208-		●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-325-0	01	1	9208-		●
18	WASHER; LK,SEAT,BRK VLV	1-48129-156-0	01	1	9202-	●	●
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9202-9207	●	●
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9208-	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) (C)	1-48129-172-0	01	1	9208-		●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48119-320-0	01	1	9208-		●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48119-321-0	01	1	9208-		●
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9202-9207	●	●
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9208-	●
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-263-0	01	1	9208-		●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-318-0	01	1	9208-		●
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9202-	●	●
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9202-	●	●
28	PISTON; LWR,BRK VLV	1-48123-050-0	01	1	9202-	●	●
32	SCREW; BRK VLV	1-48121-039-0	01	1	9202-9207	●	●
32	SCREW; BRK VLV	1-48121-039-0	01	1	9208-	●
32	SCREW; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48121-039-0	01	1	9208-		●
32	SCREW; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-323-0	01	1	9208-		●
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9202-	●	●
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9202-	●	●
36	RETAINER; GASKET,BRK VLV	1-48129-169-0	01	1	9202-	●	●
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9202-	●	●
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9202-	●	●
39	BOOT; PLUNGER,BRK VLV	1-48119-079-0	01	1	9202-	●	●
40	PIPE; PLATE,BRK VLV	1-48119-086-0	01	1	9202-	●	●
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9202-	●	●
42	NUT; SPR SEAT,BRK VLV	1-48129-157-0	01	1	9202-	●	●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9202-	●	●
44	SLEEVE; PISTON,BRK VLV	1-48129-171-0	01	1	9202-9207	●	●
44	SLEEVE; PISTON,BRK VLV	1-48129-171-0	01	1	9208-	●
44	SLEEVE; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-171-0	01	1	9208-		●
44	SLEEVE; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-322-0	01	1	9208-		●
47	RETAINER; GASKET,BRK VLV	1-48129-147-0	01	1	9202-	●	●
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9202-	●	●
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9202-	●	●
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9202-	●	●

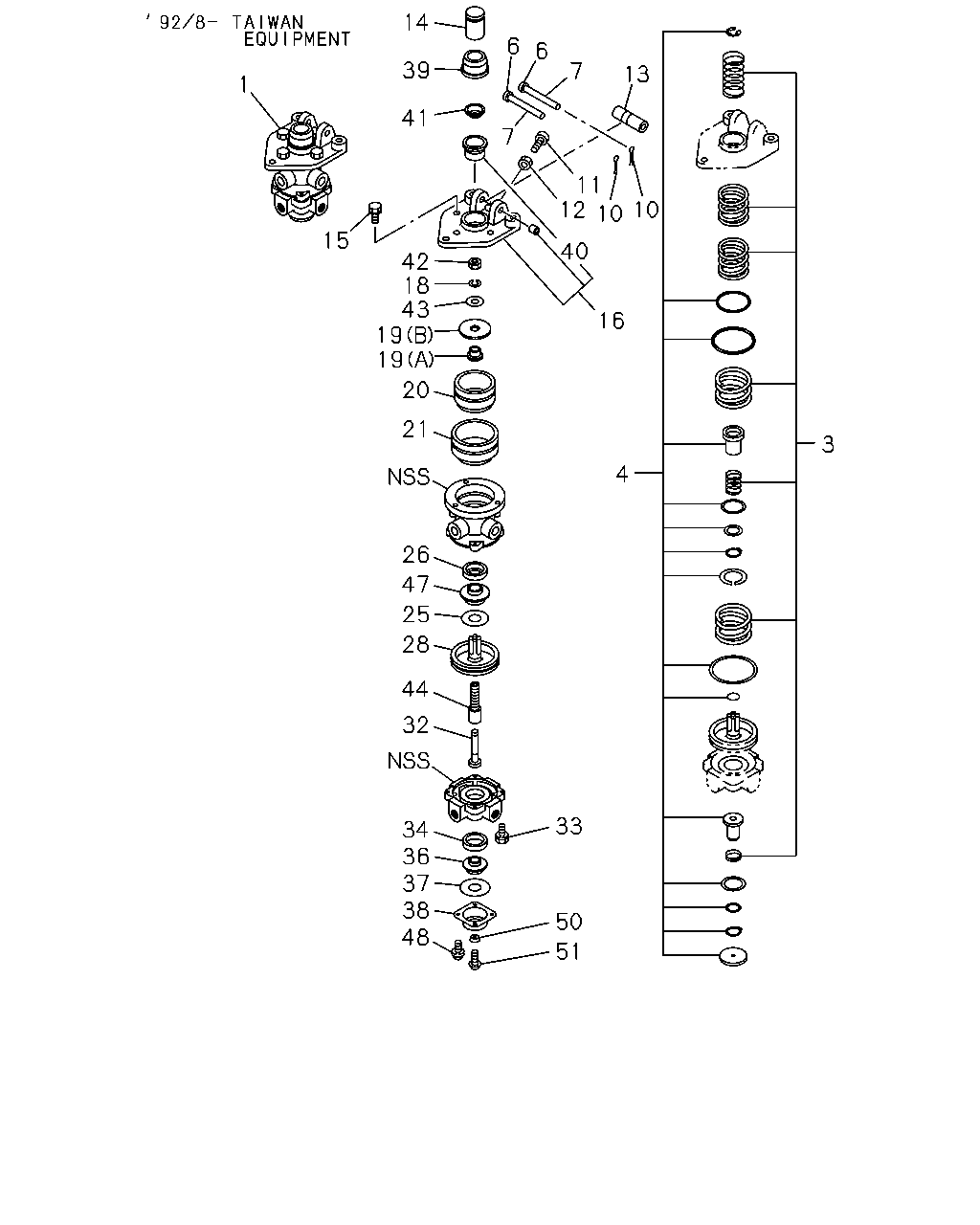

14 6 6 39 7 13 1 41 7 11 12 10 10 15 40 42 18 43 19 19 16 20 21 3 4 26 47 25 28 44 32 33 34 36 37 38 48 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK	1-48100-625-1	01	1	9202-9207	●	●
1	VALVE; BRK	1-48100-625-2	01	1	9208-	●
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-625-2	01	1	9208-		●
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-708-0	01	1	9208-		●
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-049-0	01	1	9202-9207	●	●
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-049-0	01	1	9208-	●
3	REPAIR KIT; RUBBER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-85576-049-0	01	1	9208-		●
3	REPAIR KIT; RUBBER,BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-143-0	01	1	9208-		●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-050-0	01	1	9202-9207	●	●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-050-0	01	1	9208-	●
4	REPAIR KIT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-85576-050-0	01	1	9208-		●
4	REPAIR KIT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-144-0	01	1	9208-		●
6	PIN; PEDAL,SIDE,BRK VLV	1-48119-083-0	02	1	9202-	●	●
7	PIN; PEDAL,BRK VLV	1-48119-082-0	02	1	9202-	●	●
10	PIN; SPLIT,BRK VLV	1-48119-087-0	02	1	9202-	●	●
11	SCREW; SET,BRK VLV	1-48119-088-0	01	1	9202-9207	●	●
11	SCREW; SET,BRK VLV	1-48119-088-0	01	1	9208-	●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9208-		●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-309-0	01	1	9208-		●
12	NUT; SCREW,PEDAL,BRK VLV	1-48119-089-0	01	1	9202-	●	●
13	ROLLER; PEDAL,BRK VLV	1-48119-257-0	01	1	9202-	●	●
14	PLUNGER; BRK VLV	1-48119-220-0	01	1	9202-9207	●	●
14	PLUNGER; BRK VLV	1-48119-316-0	01	1	9208-	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-316-0	01	1	9208-		●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-326-0	01	1	9208-		●
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9202-	●	●
16	PLATE; MTG,BRKT VLV	1-48119-261-2	01	1	9202-9207	●	●
16	PLATE; MTG,BRKT VLV	1-48119-261-2	01	1	9208-	●
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9208-		●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-325-0	01	1	9208-		●
18	WASHER; LK,SEAT,BRK VLV	1-48129-156-0	01	1	9202-	●	●
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9202-9207	●	●
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9208-	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) (C)	1-48129-172-0	01	1	9208-		●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48119-320-0	01	1	9208-		●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48119-321-0	01	1	9208-		●
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9202-9207	●	●
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9208-	●
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-263-0	01	1	9208-		●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-318-0	01	1	9208-		●
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5)	1-48119-317-0	01	1	9208-		●
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9202-	●	●
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9202-	●	●
28	PISTON; LWR,BRK VLV	1-48123-050-0	01	1	9202-	●	●
32	SCREW; BRK VLV	1-48121-039-0	01	1	9202-9207	●	●
32	SCREW; BRK VLV	1-48121-039-0	01	1	9208-	●
32	SCREW; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48121-039-0	01	1	9208-		●
32	SCREW; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-323-0	01	1	9208-		●
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9202-	●	●
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9202-	●	●
36	RETAINER; GASKET,BRK VLV	1-48129-169-0	01	1	9202-	●	●
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9202-	●	●
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9202-	●	●
39	BOOT; PLUNGER,BRK VLV	1-48119-079-0	01	1	9202-	●	●
40	PIPE; PLATE,BRK VLV	1-48119-086-0	01	1	9202-	●	●
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9202-	●	●
42	NUT; SPR SEAT,BRK VLV	1-48129-157-0	01	1	9202-	●	●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9202-	●	●
44	SLEEVE; PISTON,BRK VLV	1-48129-171-0	01	1	9202-9207	●	●
44	SLEEVE; PISTON,BRK VLV	1-48129-171-0	01	1	9208-	●
44	SLEEVE; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-171-0	01	1	9208-		●
44	SLEEVE; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-322-0	01	1	9208-		●
47	RETAINER; GASKET,BRK VLV	1-48129-147-0	01	1	9202-	●	●
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9202-	●	●
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9202-	●	●
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9202-	●	●
