Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10875 - CXZ LHD S-CAM BRAKE
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶

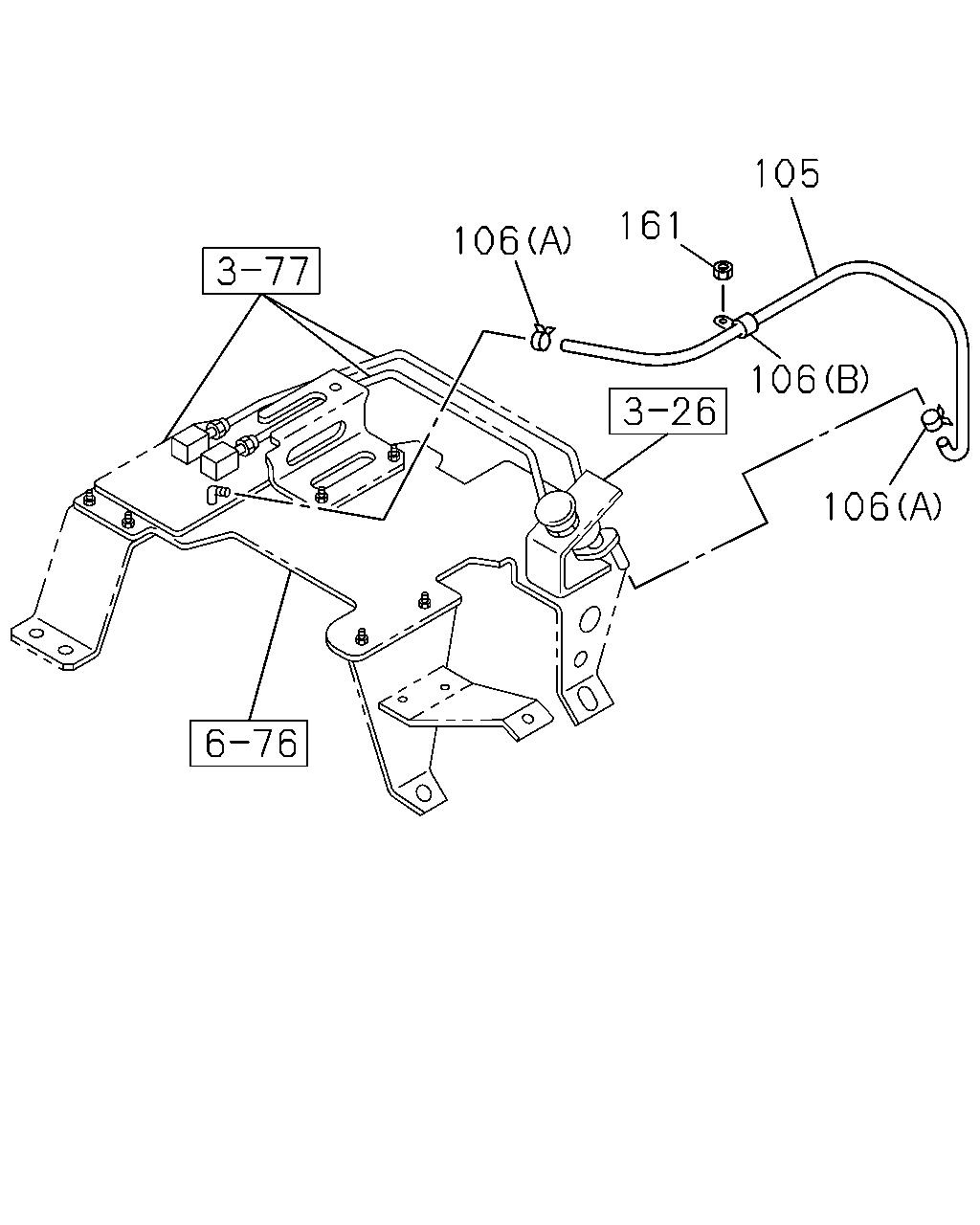

3-80 — BRAKE PIPING; TRAILER
(#12529) — 8 parça
Tümü
A - CXZ6MC
B - CXZ6MF
105
161
106
106
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=650 SERVICED BY L=10000
9-09914-701-0
01
1
0105-0111
●
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=650 SERVICED BY L=10000
9-09914-701-0
01
1
0112-
●
●
106
CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16 L=20
9-09525-536-0
01
1
0207-
●
●
106
CLIP; PIPE
SPRING BRAKE(SU9) (A) ID=14
8-94238-572-0
02
1
0105-0111
●
●
106
CLIP; PIPE
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14
8-94238-572-0
02
1
0306-
●
●
106
CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14
8-94238-572-0
02
1
0306-
●
●
161
NUT; CLIP,VINYL PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE
0-91150-108-0
01
1
0207-0602
●
●
161
NUT; CLIP,VINYL PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
