11 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
11 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0601- |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47477-743-0 |
04 |
1 |
0105-0206 |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
(A)
|
1-47477-743-0 |
02 |
1 |
0207- |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47477-743-0 |
02 |
1 |
0207- |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47477-744-0 |
02 |
1 |
0105-0206 |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
(B)
|
1-47477-744-0 |
01 |
1 |
0207- |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47477-744-0 |
01 |
1 |
0207- |
● |
● |
| |
16 |
BRACKET; PIPE CLIP
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
(C)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0105- |
|
● |
| |
16 |
BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
(C)
L=100 H=30
|
1-47477-645-2 |
03 |
1 |
0105- |
|
● |
| |
18 |
NUT; CLIP
PE-SERIES ENG<1A0>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105-0602 |
● |
● |
| |
18 |
NUT; CLIP
PE-SERIES ENG<1A0>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
21 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0105-0602 |
● |
● |
| |
21 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
| |
22 |
BRACKET; CLIP
CHINA GB VAR1<JAC>
(C)
|
1-46147-101-0 |
01 |
1 |
0303-0305 |
● |
● |
| |
22 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA GB VAR1<JAC>
(B)
L=150 H=30
|
1-47477-629-2 |
02 |
1 |
0303-0401 |
● |
● |
| |
22 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
(B)
L=150 H=30
|
1-47477-629-2 |
02 |
1 |
0402- |
● |
● |
| |
22 |
BRACKET; CLIP
(A)
L=125
|
1-47477-975-1 |
02 |
1 |
0105- |
● |
● |
| |
22 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=150 H=30
|
1-47477-629-2 |
02 |
1 |
0105-0302 |
● |
● |
| |
22 |
BRACKET; CLIP
CHINA GB VAR1<JAC>
(B)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0303-0401 |
● |
● |
| |
22 |
BRACKET; CLIP
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
(B)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0402- |
● |
● |
| |
24 |
CLIP; PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
ID=7 & 7 L=17.5 & 17.5
|
1-09700-745-0 |
01 |
1 |
0105- |
● |
● |
| |
24 |
CLIP; PIPE
MAL5T M/T(Y1K)
PE-SERIES ENG<1A0>
(A)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
0105- |
● |
● |
| |
24 |
CLIP; PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B),
MJD7SM/T(Y2Y)
PE-SERIES ENG<1A0>
(A)
ID=16 L=20
|
9-09525-535-0 |
02 |
1 |
0105- |
● |
● |
| |
24 |
CLIP; PIPE
TRANSMISSION-ZF 16S151 OD(Y2N)
PE-SERIES ENG<1A0>
(C)
ID=16 L=28
|
9-09525-556-0 |
01 |
1 |
0105- |
● |
● |
| |
24 |
CLIP; PIPE
FIRE ENGINE PACKAGE<WS2>
PE-SERIES ENG<1A0>
(D)
ID=18 L=50
|
1-09701-072-0 |
01 |
1 |
0105- |
|
● |
| |
60 |
BOLT; CLIP FIX
MAL5T M/T(Y1K)
PE-SERIES ENG<1A0>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0105-0512 |
● |
● |
| |
60 |
BOLT; CLIP FIX
MAL5T M/T(Y1K)
PE-SERIES ENG<1A0>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
| |
60 |
BOLT; CLIP FIX
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B),
MJD7SM/T(Y2Y)
PE-SERIES ENG<1A0>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
60 |
BOLT; CLIP FIX
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B),
MJD7SM/T(Y2Y)
PE-SERIES ENG<1A0>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
60 |
BOLT; CLIP FIX
TRANSMISSION-ZF 16S151 OD(Y2N)
PE-SERIES ENG<1A0>
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0105-0512 |
● |
● |
| |
60 |
BOLT; CLIP FIX
TRANSMISSION-ZF 16S151 OD(Y2N)
PE-SERIES ENG<1A0>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
● |
● |
| |
60 |
BOLT; CLIP FIX
FIRE ENGINE PACKAGE<WS2>
PE-SERIES ENG<1A0>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0105-0512 |
|
● |
| |
60 |
BOLT; CLIP FIX
FIRE ENGINE PACKAGE<WS2>
PE-SERIES ENG<1A0>
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
|
● |
| |
63 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
63 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
63 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0105-0512 |
● |
● |
| |
63 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
● |
● |
| |
76 |
CLIP; NYLON TUBE
(D)
ID=8.3 & 8.3
|
8-94426-175-0 |
01 |
1 |
0105-0109 |
● |
● |
| |
76 |
CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2>
(D)
ID=8.3 & 8.3
|
8-94426-175-0 |
01 |
1 |
0110-0112 |
● |
● |
| |
76 |
CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2>
(D)
ID=6 & 8.3
|
8-94167-742-0 |
01 |
1 |
0201- |
● |
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
08 |
1 |
0105- |
● |
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=350
|
8-94152-256-1 |
01 |
1 |
0105- |
● |
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
L=250
|
1-09707-126-0 |
02 |
1 |
0105- |
● |
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0105- |
● |
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
EXC. AIR DRYER<PS7>
(C)
ID=12-16 & 12-16
|
1-09709-191-0 |
01 |
1 |
0105-0201 |
● |
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
EXC. AIR DRYER<PS7>
(E)
ID=15 & 15
|
1-09709-282-1 |
01 |
1 |
0202- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
W-SERIES ENG<1A2>
(F)
ID=18 L=25 H=50
|
1-09701-096-0 |
01 |
1 |
0107- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
W-SERIES ENG<1A2>
(G)
ID=15 H=24 L=20
|
1-09700-606-0 |
01 |
1 |
0107-0107 |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
W-SERIES ENG<1A2>
(H)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
0107-0108 |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
W-SERIES ENG<1A2>
(H)
ID=16 L=20
|
9-09525-535-0 |
02 |
1 |
0109- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=16 & 13 L=18 & 17
|
1-09700-658-0 |
01 |
1 |
0105- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(B)
ID=16 & 13 L=21.5 & 21.5
|
1-09700-668-0 |
01 |
1 |
0105-0106 |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
ID=16 & 13 L=21.5 & 21.5
|
1-09700-668-0 |
01 |
1 |
0107- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(D)
ID=16 & 16 L=21.5 & 21.5
|
1-09700-674-0 |
01 |
1 |
0105- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(C)
ID=13 & 7 L=20 & 17
|
1-09700-692-0 |
01 |
1 |
0105-0106 |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
ID=13 & 7 L=20 & 17
|
1-09700-692-0 |
01 |
1 |
0107- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
POWER BRAKE LOCK SYSTEM(J50)
W-SERIES ENG<1A2>
(A)
ID=16 & 7 L=18 & 15
|
1-09700-661-0 |
01 |
1 |
0105- |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
(E)
ID=16 L=28
|
9-09525-556-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
(E)
ID=16 L=28
|
9-09525-556-0 |
01 |
1 |
0105-0106 |
● |
● |
| |
78 |
CLIP; AIR PIPE
W-SERIES ENG<1A2>
(E)
ID=16 L=28
|
9-09525-556-0 |
01 |
1 |
0105-0106 |
● |
● |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
(E)
ID=16 L=28
|
9-09525-556-0 |
01 |
1 |
0107- |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
0107-0512 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0105-0512 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0105-0512 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
POWER BRAKE LOCK SYSTEM(J50)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0105-0512 |
● |
|
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
POWER BRAKE LOCK SYSTEM(J50)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
|
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0105-0106 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0107-0512 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0105-0106 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
W-SERIES ENG<1A2>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0105-0106 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
W-SERIES ENG<1A2>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0512 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0512 |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
W-SERIES ENG<1A2>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PE-SERIES ENG<1A0>
EXC. AIR DRYER<PS7>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
| |
100 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47477-770-0 |
01 |
1 |
0105- |
● |
● |
| |
100 |
BRACKET; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47477-365-0 |
01 |
1 |
0105- |
● |
● |
| |
101 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0105-0602 |
● |
● |
| |
101 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
● |
● |
| |

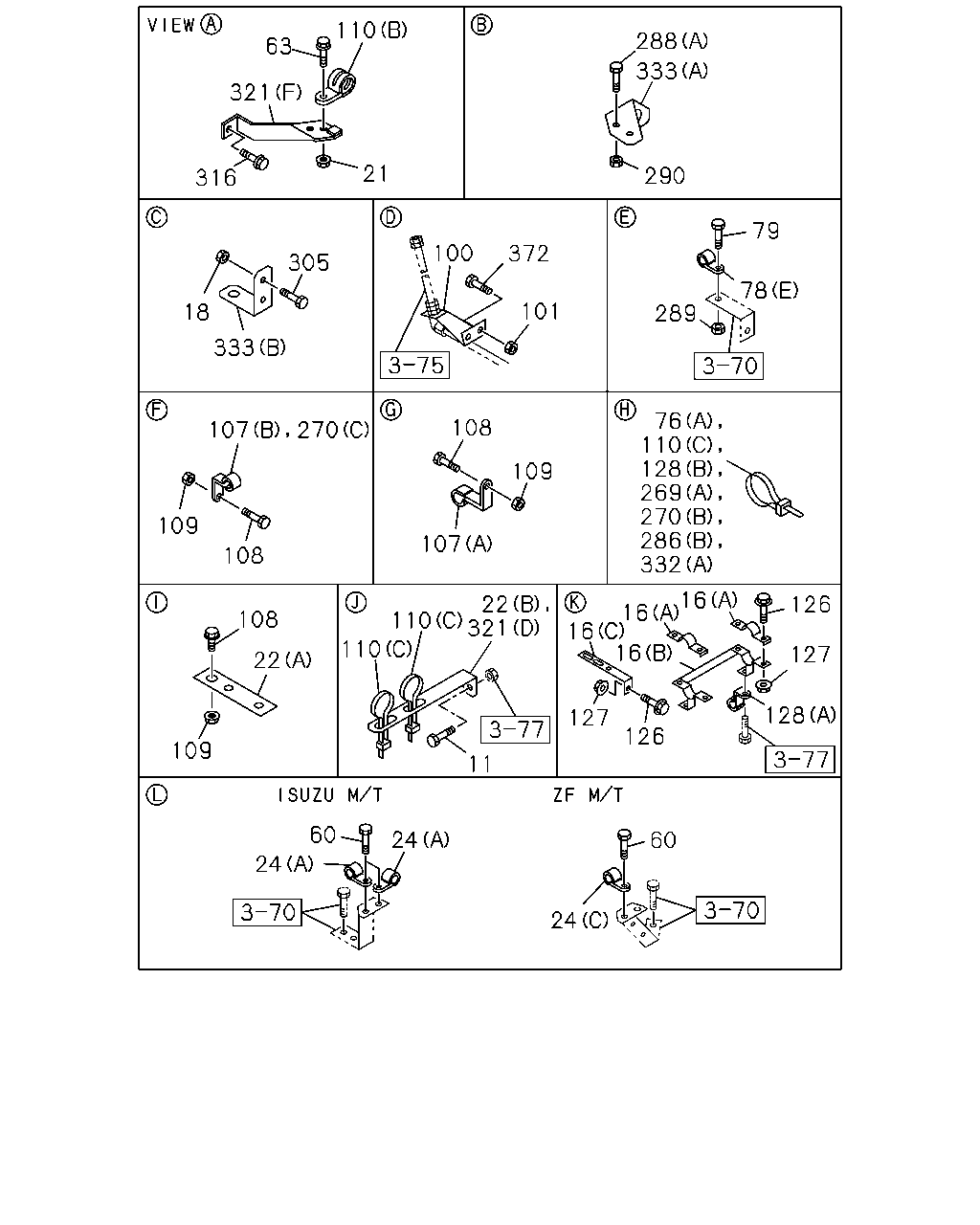

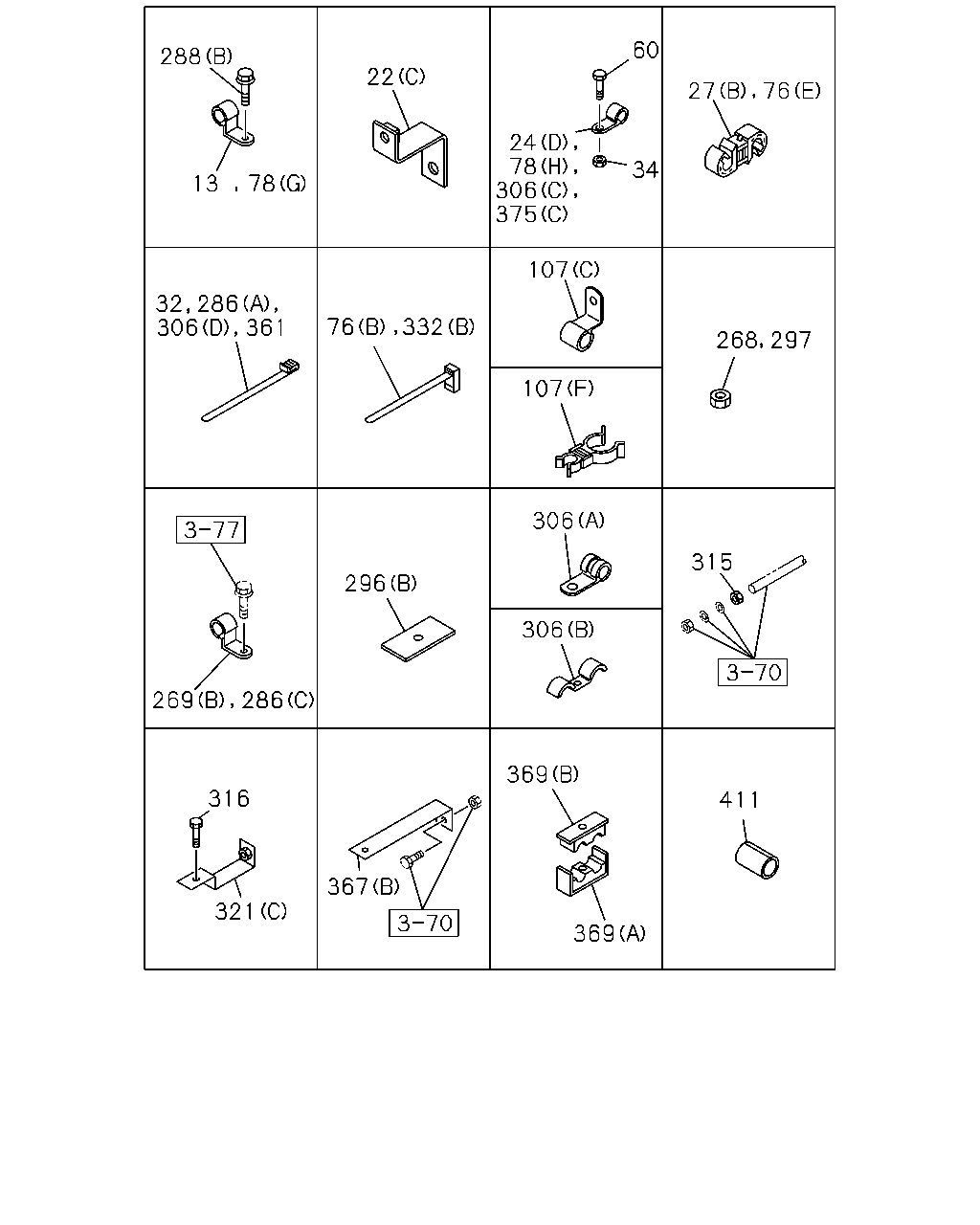

107 |
CLIP; NYLON TUBE
CAB UP +110MM<TGG>
(E)
ID=28 L=40
|
1-09700-995-1 |
01 |
1 |
0305- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
ID=12 & 12
|
1-09709-280-1 |
01 |
1 |
0202- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
(E)
ID=35 L=35
|
1-09700-895-0 |
01 |
1 |
0108-0110 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
ISUZU M/T<X9A>
(E)
ID=35 L=35
|
1-09700-895-0 |
01 |
1 |
0108-0110 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
(E)
ID=35 L=35
|
1-09700-895-0 |
01 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
ISUZU M/T<X9A>
(E)
ID=35 L=35
|
1-09700-895-0 |
01 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
EXC. DUAL AIR GAUGE<UG2>
(E)
ID=35 L=35
|
1-09700-895-0 |
01 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(E)
ID=29 L=35
|
5-09700-293-1 |
01 |
1 |
0108-0110 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2>
ISUZU M/T<X9A>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(E)
ID=29 L=35
|
5-09700-293-1 |
01 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
ID=12 H=24 L=20
|
1-09700-605-0 |
02 |
1 |
0105-0108 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. ELECTRICAL HORN(WB7)
(C)
ID=12 H=24 L=20
|
1-09700-605-0 |
02 |
1 |
0109- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
02 |

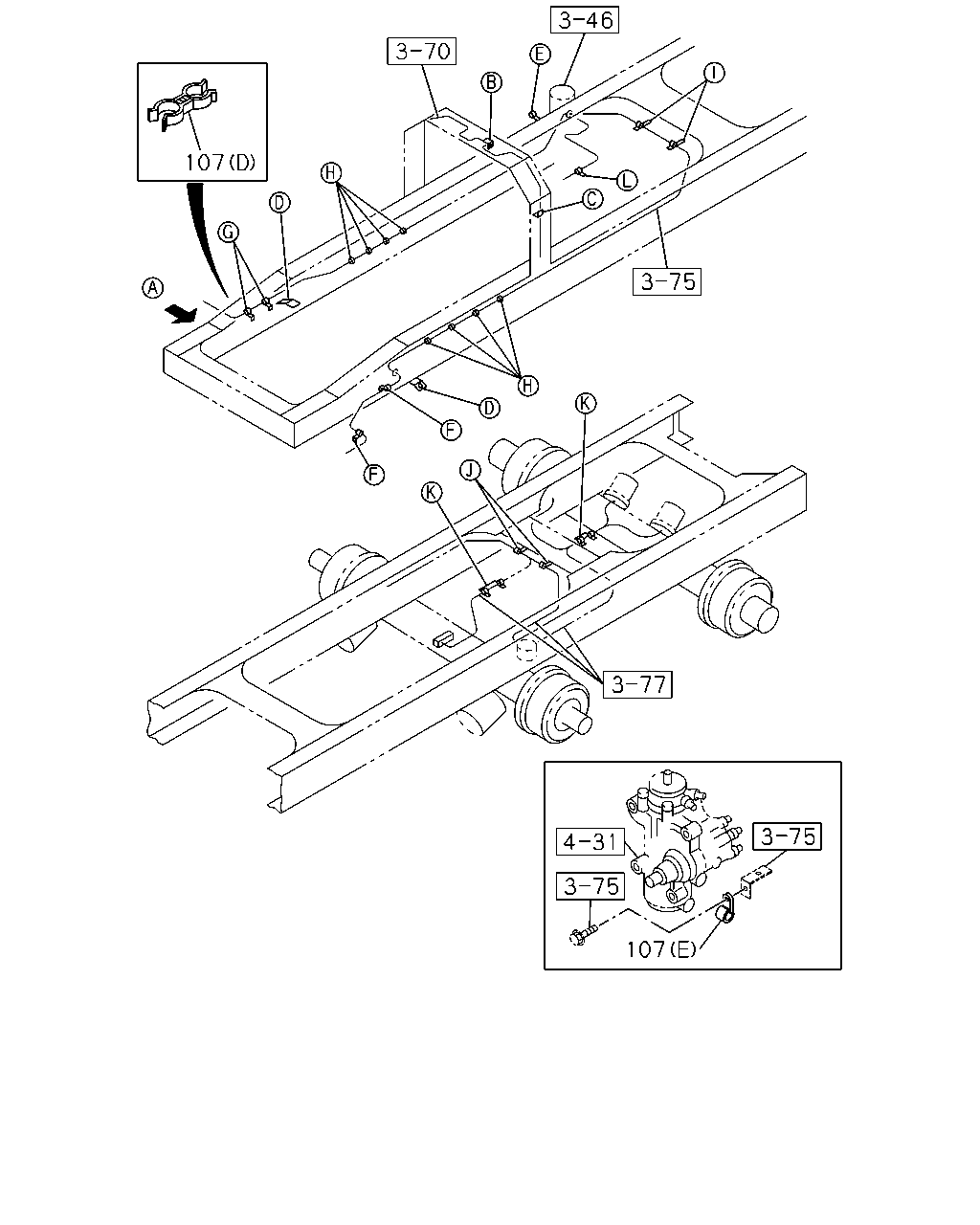

1 |
0105- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FULL FLOATING CAB(W16)
(D)
ID=11.8 & 7.5
|
1-09709-182-0 |
01 |
1 |
0105- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(B)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
03 |
1 |
0105-0107 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(B)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
02 |
1 |
0108-0110 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2>
ISUZU M/T<X9A>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(B)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
02 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
03 |
1 |
0105-0107 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
ISUZU M/T<X9A>
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
03 |
1 |
0105-0107 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
02 |
1 |
0108-0110 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
ISUZU M/T<X9A>
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
02 |
1 |
0108-0110 |
● |
● |
| |
107 |
CLIP; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
02 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
ISUZU M/T<X9A>
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
02 |
1 |
0111- |
● |
● |
| |
107 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
EXC. DUAL AIR GAUGE<UG2>
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
02 |
1 |
0111- |
● |
● |
| |
108 |
BOLT; TUBE CLIP
CAB UP +110MM<TGG>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
0305-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
CAB UP +110MM<TGG>
M8X20 FLANGE
|
0-28050-820-0 |
01 |
1 |
0601- |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
0105-0107 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
0108-0304 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
0305-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
0601- |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
0105-0107 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
0108-0108 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
0108-0108 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. ELECTRICAL HORN(WB7)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
0109-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
0109-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
0109-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. ELECTRICAL HORN(WB7)
M8X25 FLANGE
|
0-28050-825-0 |
02 |
1 |
0601- |
● |
● |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28050-825-0 |
02 |
1 |
0601- |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28050-825-0 |
02 |
1 |
0601- |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
● |
| |
109 |
NUT; TUBE CLIP
ZF M/T<X9E>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0106-0304 |
● |
● |
| |
109 |
NUT; TUBE CLIP
ZF M/T<X9E>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0305-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
CAB UP +110MM<TGG>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0305-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
ZF M/T<X9E>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
| |
109 |
NUT; TUBE CLIP
CAB UP +110MM<TGG>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105-0108 |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105-0108 |
● |
● |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. ELECTRICAL HORN(WB7)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0109-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0109-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0109-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. ELECTRICAL HORN(WB7)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0105-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
● |
| |

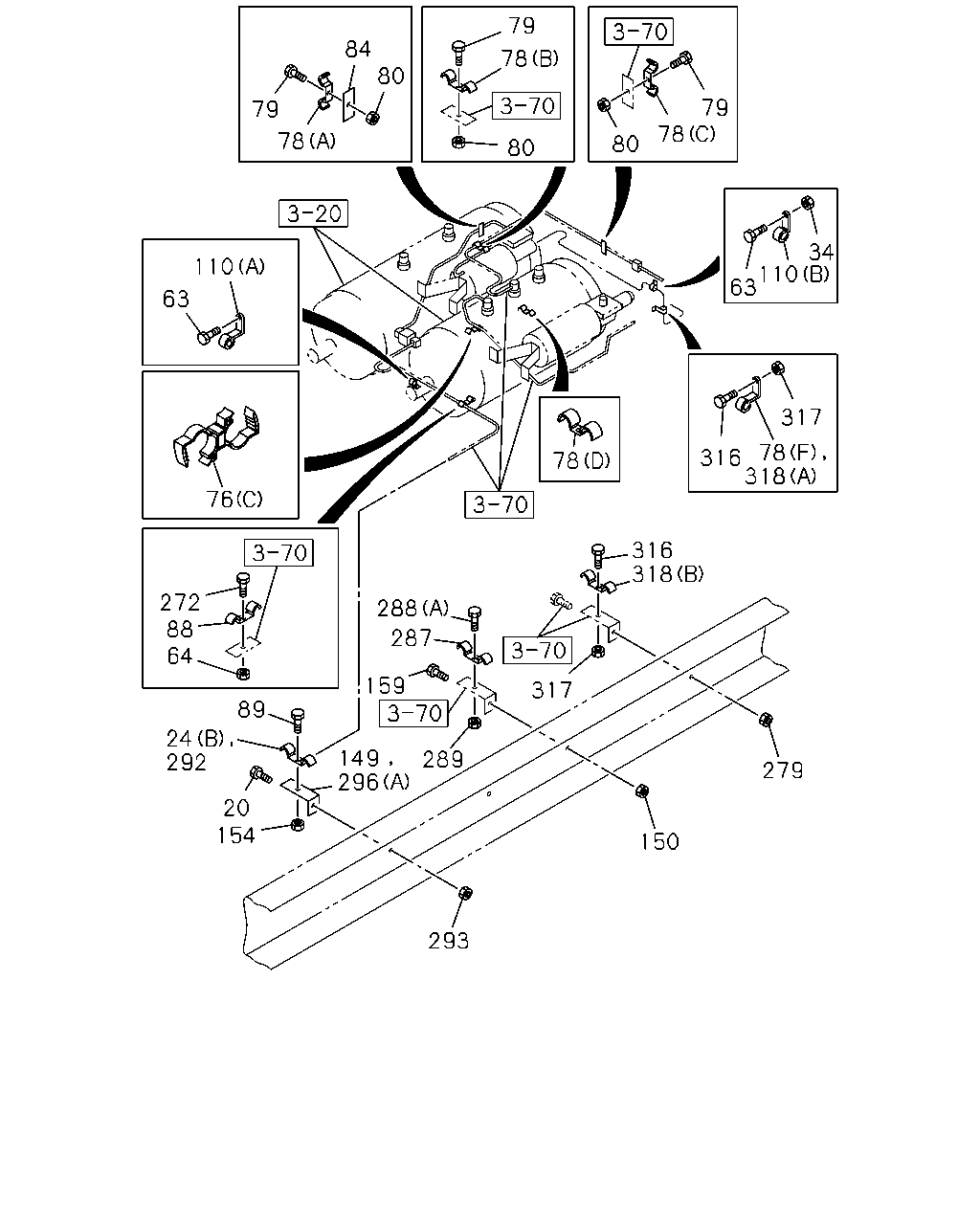

110 |
CLIP; BAND,NYLON TUBE
CHINA GB VAR1<JAC>
W-SERIES ENG<1A2>
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0307-0401 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
W-SERIES ENG<1A2>
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0402- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. ELECTRICAL HORN(WB7)
(C)
L=250
|
1-09707-126-0 |
10 |
1 |
0109- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. FULL FLOATING CAB(W16)
(C)
L=250
|
1-09707-126-0 |
10 |
1 |
0109- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=250
|
1-09707-126-0 |
02 |
1 |
0106- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=250
|
1-09707-126-0 |
04 |
1 |
0106- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
(C)
L=250
|
1-09707-126-0 |
19 |
1 |
0105-0105 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
(C)
L=250
|
1-09707-126-0 |
17 |
1 |
0106-0110 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
(C)
L=250
|
1-09707-126-0 |
19 |
1 |
0111- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
0105- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
ID=31 L=30
|
1-09700-969-0 |
01 |
1 |
0105- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=250
|
1-09707-126-0 |
10 |
1 |
0105-0108 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. FULL FLOATING CAB(W16)
(C)
L=250
|
1-09707-126-0 |
10 |
1 |
0105-0108 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
(C)
L=250
|
1-09707-126-0 |
06 |
1 |
0109- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=25 L=40
|
1-09700-215-1 |
01 |
1 |
0105-0204 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=28 L=40
|
1-09700-995-1 |
01 |
1 |
0205- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=250
|
1-09707-126-0 |
15 |
1 |
0105- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FULL FLOATING CAB(W16)
(C)
L=250
|
1-09707-126-0 |
09 |
1 |
0105- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
W-SERIES ENG<1A2>
(C)
L=250
|
1-09707-126-0 |
01 |
1 |
0105-0108 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
ZF M/T<X9E>
(C)
L=250
|
1-09707-126-0 |
01 |
1 |
0105-0108 |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
W-SERIES ENG<1A2>
(C)
L=250
|
1-09707-126-0 |
01 |
1 |
0109- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
(C)
L=250
|
1-09707-126-0 |
01 |
1 |
0109- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
ZF M/T<X9E>
(C)
L=250
|
1-09707-126-0 |
01 |
1 |
0109- |
● |
● |
| |
110 |
CLIP; BAND,NYLON TUBE
ZF M/T<X9E>
(C)
L=250
|
1-09707-126-0 |
01 |
1 |
0109- |
● |
● |
| |
126 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
08 |
1 |
0105-0206 |
● |
● |
| |
126 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0207-0512 |
● |
● |
| |
126 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0207-0512 |
● |
● |
| |
126 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
● |
● |
| |
126 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
● |
● |
| |
126 |
BOLT; CLIP BRKT
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8X40 FLANGE
|
0-28680-840-0 |
01 |
1 |
0105-0512 |
|
● |
| |
126 |
BOLT; CLIP BRKT
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8X40 FLANGE
|
0-28650-840-0 |
01 |
1 |
0601- |
|
● |
| |
126 |
BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8X40 FLANGE
|
0-28680-840-0 |
03 |
1 |
0105-0512 |
|
● |
| |
126 |
BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8X40 FLANGE
|
0-28650-840-0 |
03 |
1 |
0601- |
|
● |
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0105-0206 |
● |
● |
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0207-0602 |
● |
● |
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0207-0602 |
● |
● |
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
127 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
127 |
NUT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0105-0602 |
|
● |
| |
127 |
NUT; CLIP BRKT
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0105-0602 |
|
● |
| |
127 |
NUT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
| |
127 |
NUT; CLIP BRKT
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
08 |
1 |
0105- |
● |
● |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
(A)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
0105- |
● |
● |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
02 |
1 |
0105-0206 |
● |
● |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
02 |
1 |
0105-0206 |
● |
● |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
02 |
1 |
0207- |
● |
● |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER
CHAMBER BRAKE UPPERWARD<C1T>
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
02 |
1 |
0207- |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
L=350
|
1-09707-183-0 |
06 |
1 |
0408-0409 |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
L=350
|
1-09707-183-0 |
06 |
1 |
0410- |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
05 |
1 |
0408-0409 |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 5900MM(59W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
L=350
|
1-09707-183-0 |
05 |
1 |
0410- |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
14 |
1 |
0105- |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
13 |
1 |
0105- |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>
(B)
ID=35 H=45 L=33
|
1-09701-047-0 |
02 |
1 |
0105- |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 5900MM(59W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
15 |
1 |
0105- |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0105-0206 |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LOAD SENSING PROPORTIONING VALVE<JR7>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0207-0207 |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0207-0207 |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0208-0211 |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LOAD SENSING PROPORTIONING VALVE<JR7>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0208-0211 |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0208-0211 |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LOAD SENSING PROPORTIONING VALVE<JR7>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY VAR1<F03>
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
16 |
1 |
0105- |
|
● |
| |
270 |
CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
02 |
1 |
0105- |
● |
|
| |
270 |
CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
03 |
1 |
0105- |
● |
|
| |
270 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=28 L=32
|
1-09701-107-1 |
04 |
1 |
0105-0206 |
● |
● |
| |

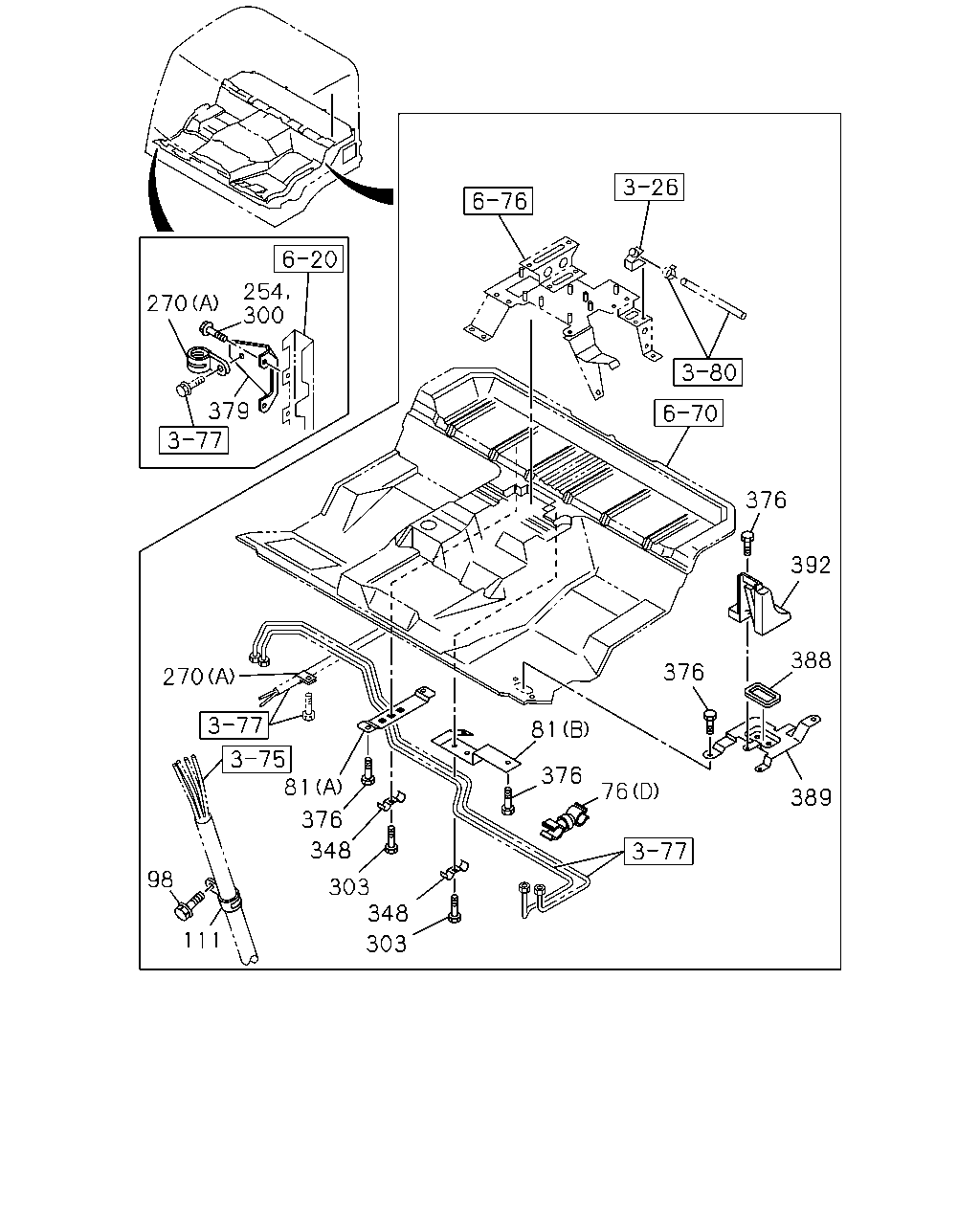

270 |
CLIP; NYLON TUBE
(A)
ID=28 L=32
|
1-09701-107-1 |
04 |
1 |
0207-0210 |
● |
● |
| |
270 |
CLIP; NYLON TUBE
SPRING BRAKE(SU9)
(A)
ID=28 L=32
|
1-09701-107-1 |
04 |
1 |
0211-0308 |
● |
● |
| |
270 |
CLIP; NYLON TUBE
SPRING BRAKE(SU9)
(A)
ID=28 L=32
|
1-09701-107-1 |
03 |
1 |
0309- |
● |
● |
| |
270 |
CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
05 |
1 |
0105- |
|
● |
| |
270 |
CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
06 |
1 |
0105- |
|
● |
| |
270 |
CLIP; NYLON TUBE
SPRING BRAKE(SU9)
(C)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
0309- |
● |
● |
| |
286 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0110- |
● |
● |
| |
286 |
CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM)
ZF M/T<X9E>
(C)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
0106- |
● |
● |
| |
286 |
CLIP; NYLON TUBE
ZF M/T<X9E>
EXC. PTO ZF TRANS RR(BDM)
(C)
ID=28 H=45 L=30
|
1-09700-948-0 |
01 |
1 |
0106- |
● |
● |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(A)
L=250
|
5-09707-030-1 |
01 |
1 |
0105-0109 |
● |
● |
| |
286 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
(A)
L=250
|
5-09707-030-1 |
01 |
1 |
0105-0109 |
● |
● |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(A)
L=250
|
5-09707-030-1 |
01 |
1 |
0110- |
● |
● |
| |
286 |
CLIP; NYLON TUBE
ZF M/T<X9E>
(B)
L=250
|
1-09707-126-0 |
05 |
1 |
0105- |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
PE-SERIES ENG<1A0>
(B)
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0105-0512 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
PE-SERIES ENG<1A0>
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0601- |
● |
● |
| |
289 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105-0602 |
● |
● |
| |
289 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
PE-SERIES ENG<1A0>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105-0602 |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
PE-SERIES ENG<1A0>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
305 |
BOLT; CLIP BRKT
PE-SERIES ENG<1A0>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
305 |
BOLT; CLIP BRKT
PE-SERIES ENG<1A0>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
316 |
BOLT; CLIP
CHINA GB VAR1<JAC>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0212-0302 |
● |
● |
| |
316 |
BOLT; CLIP
CHINA GB VAR1<JAC>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0303-0305 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0105-0512 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0601- |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0105-0512 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0106-0304 |
● |
● |
| |
316 |
BOLT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W),
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0106-0304 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0305-0512 |
● |
● |
| |
316 |
BOLT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W),
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0305-0512 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
● |
● |
| |
316 |
BOLT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W),
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X40 FLANGE
|
0-28680-840-0 |
01 |
1 |
0105-0512 |
● |
● |
| |
316 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X40 FLANGE
|
0-28650-840-0 |
01 |
1 |
0601- |
● |
● |
| |
321 |
BRACKET; CLIP
EXC. AIR DRYER<PS7>
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0105-0105 |
● |
● |
| |
321 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0105-0105 |
● |
● |
| |
321 |
BRACKET; CLIP
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0106-0407 |
● |
● |
| |
321 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W),
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0106-0407 |
● |
● |
| |
321 |
BRACKET; CLIP
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0408-0409 |
● |
● |
| |
321 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W),
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0408-0409 |
● |
● |
| |
321 |
BRACKET; CLIP
WHEEL BASE 5900MM(59W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0408-0409 |
● |
● |
| |
321 |
BRACKET; CLIP
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0410- |
● |
● |
| |
321 |
BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W),
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0410- |
● |
● |
| |
321 |
BRACKET; CLIP
WHEEL BASE 5900MM(59W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0410- |
● |
● |
| |
321 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
1-47477-632-0 |
01 |
1 |
0105- |
● |
● |
| |
321 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(F)
|
1-47477-746-0 |
01 |
1 |
0105- |
● |
● |
| |
321 |
BRACKET; CLIP
W-SERIES ENG<1A2>
EXC. CAB UP +110MM<TGG>
(E)
|
1-47477-386-2 |
01 |
1 |
0105- |
● |
● |
| |
321 |
BRACKET; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
CAB UP +110MM<TGG>
(E)
|
1-47477-472-1 |
01 |
1 |
0105- |
● |
● |
| |
321 |
BRACKET; CLIP
6WF1 TC-C(1B8)
(A)
|
1-47477-337-1 |
01 |
1 |
0105-0108 |
● |
● |
| |
321 |
BRACKET; CLIP
6WF1 TC-C(1B8)
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-337-1 |
01 |
1 |
0109- |
● |
● |
| |
321 |
BRACKET; CLIP
6WF1 TC-C(1B8)
(B)
L=75
|
1-47478-328-0 |
01 |
1 |
0105-0108 |
● |
● |
| |
321 |
BRACKET; CLIP
6WF1 TC-C(1B8)
EXC. MIXER TRUCK<RA2>
(B)
L=75
|
1-47478-328-0 |
01 |
1 |
0109- |
● |
● |
| |
332 |
CLIP; BAND
POWER BRAKE LOCK SYSTEM(J50)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0105- |
● |
● |
| |
332 |
CLIP; BAND
FIRE ENGINE PACKAGE<WS2>
PE-SERIES ENG<1A0>
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
0105- |
|
● |
| |
333 |
BRACKET; BRK AIR PIPE
PE-SERIES ENG<1A0>
(B)
|
1-47477-337-1 |
01 |
1 |
0105- |
● |
● |
| |
333 |
BRACKET; BRK AIR PIPE
PE-SERIES ENG<1A0>
(A)
|
1-47477-818-0 |
01 |
1 |
0105- |
● |
● |
| |
372 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0105-0512 |
● |
● |
| |
372 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
● |
● |
