Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#12527) — 136 parça

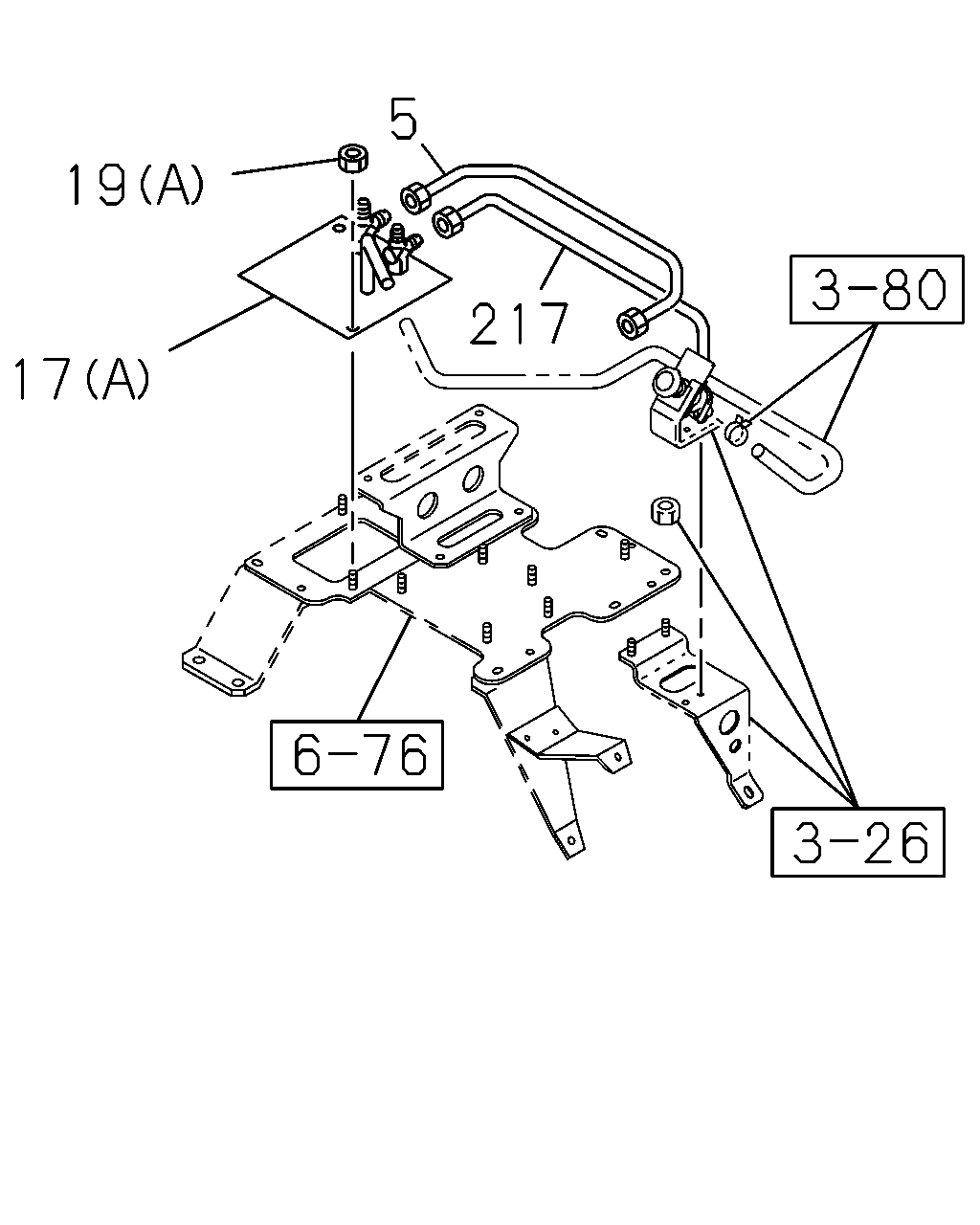

217 5 19 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV PARKING BRAKE VALVE LEVER TYPE<W48>	1-49118-158-0	01	1	0207-	●	●
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9)	1-49114-638-1	01	1	0105-0206	●	●
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	0207-	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	0105-0111	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	0105-	●	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47470-418-2	01	1	0112-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-408-0	01	1	0105-0203	●	●
19	NUT; PIPE UNION SPRING BRAKE(SU9) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0111	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0112-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION PARKING BRAKE VALVE LEVER TYPE<W48>	1-49118-159-0	01	1	0207-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9)	1-49114-639-0	01	1	0105-0206	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	0207-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-	●	●

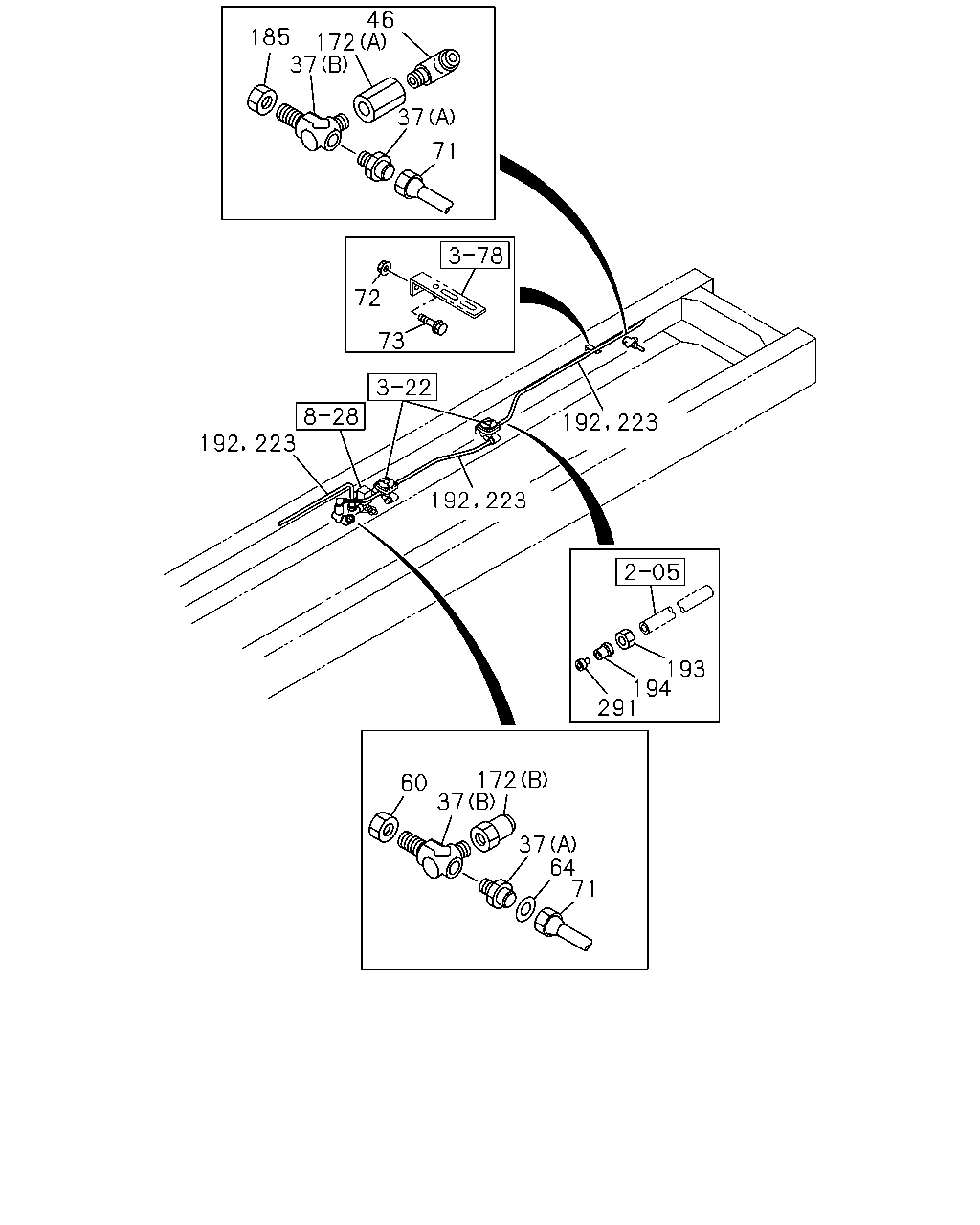

223 192 223 192 73 72 71 37 172 46 37 185 192 223 291 194 193 71 64 37 37 172 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0207-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>,PARKING BRAKE VALVE LEVER TYPE<W48> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0207-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0207-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>,PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09650-251-1	01	1	0207-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-0206	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0207-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0207-		●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	02	1	0105-0512	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> M20	0-91111-520-0	02	1	0601-	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> ID=17.5	9-09572-515-0	04	1	0105-	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> L=550	0-07909-550-0	02	1	0105-	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	0105-0206	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> M8X25 FLANGE	0-28680-825-0	02	1	0207-0512	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0207-0512	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
73	BOLT; CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28680-840-0	02	1	0105-0512		●
73	BOLT; CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-0206	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0207-	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0207-		●
185	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	01	1	0105-0512	●	●
185	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> M20	0-91111-520-0	01	1	0601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0305-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0408-	●	●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	0105-0105	●	●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0105-0105	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0512	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0303	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0512	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0303	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0304-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0304-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0601-	●	●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0105-0105	●	●

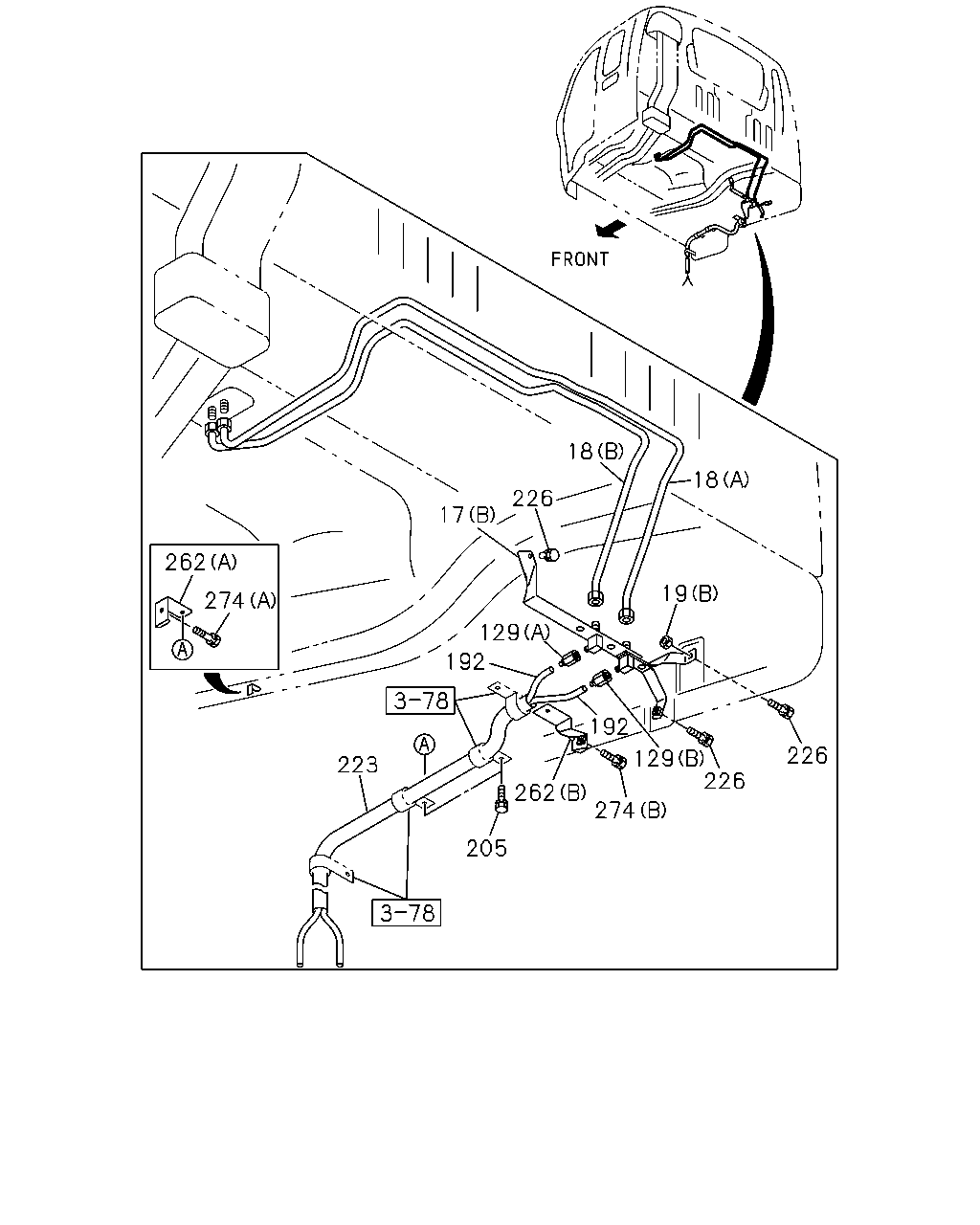

18 18 226 17 129 19 226 226 129 274 262 192 205 223 262 274 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	0105-0111	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	0105-	●	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47470-418-2	01	1	0112-	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	0105-0206	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	0207-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-408-0	01	1	0105-0203	●	●
19	NUT; PIPE UNION SPRING BRAKE(SU9) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0111	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0112-	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-	●	●
129	CONNECTOR; NYLON TUBE SPRING BRAKE(SU9) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-0206	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0207-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0305-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0408-	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M6X16 W/LK WASHER	0-50040-616-0	01	1	0105-0211	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0212-0312	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0401-0501	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0502-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0512	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0303	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0512	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0303	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0304-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0304-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0601-	●	●
226	BOLT; UNION SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-0203	●	●
226	BOLT; UNION SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0204-0206	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0207-	●	●
262	BRACKET SPRING BRAKE(SU9) (A)	1-79996-143-0	01	1	0105-	●	●
262	BRACKET SPRING BRAKE(SU9) (B)	1-79996-258-1	01	1	0105-	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-	●	●

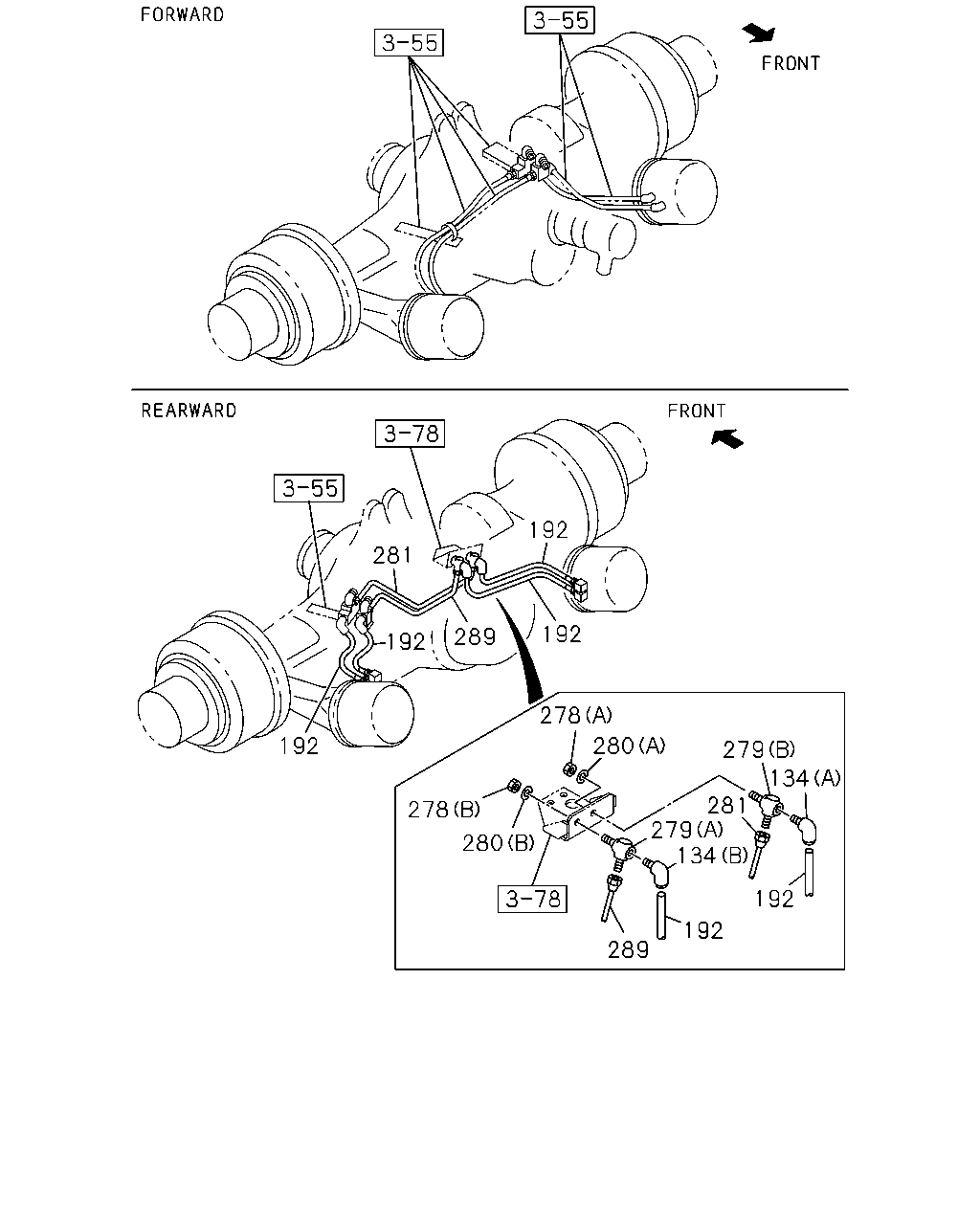

192 192 289 192 281 192 278 280 289 192 192 134 279 279 134 281 280 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0303	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0304-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0305-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0408-	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M16	9-99111-416-0	01	1	0105-0512	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M16	0-91111-516-0	01	1	0601-	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M20	9-99111-420-0	01	1	0105-0512	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M20	0-91111-520-0	01	1	0601-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M14X35	1-09650-272-2	01	1	0105-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0105-	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=16.2	9-09150-516-0	01	1	0105-	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=20.2	9-09150-520-0	01	1	0105-	●	●
281	PIPE; AIR,EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-109-0	01	1	0105-	●	●
289	PIPE; AIR,MODULATOR TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-108-0	01	1	0105-	●	●
