9-33 — REAR BODY; GATE AND SIDE GUARD (#125267) — 109 parça

40 70 37 40 37 37 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	1307-1411	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	1412-	●	●
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	1307-1411	●
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	1412-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1307-1411	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1412-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1307-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	1307-1411	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	1412-	●	●

108 1 1 108 11 341 20 74 259 229 2 4 23 26 76 228 12 9 22 210 14 40 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

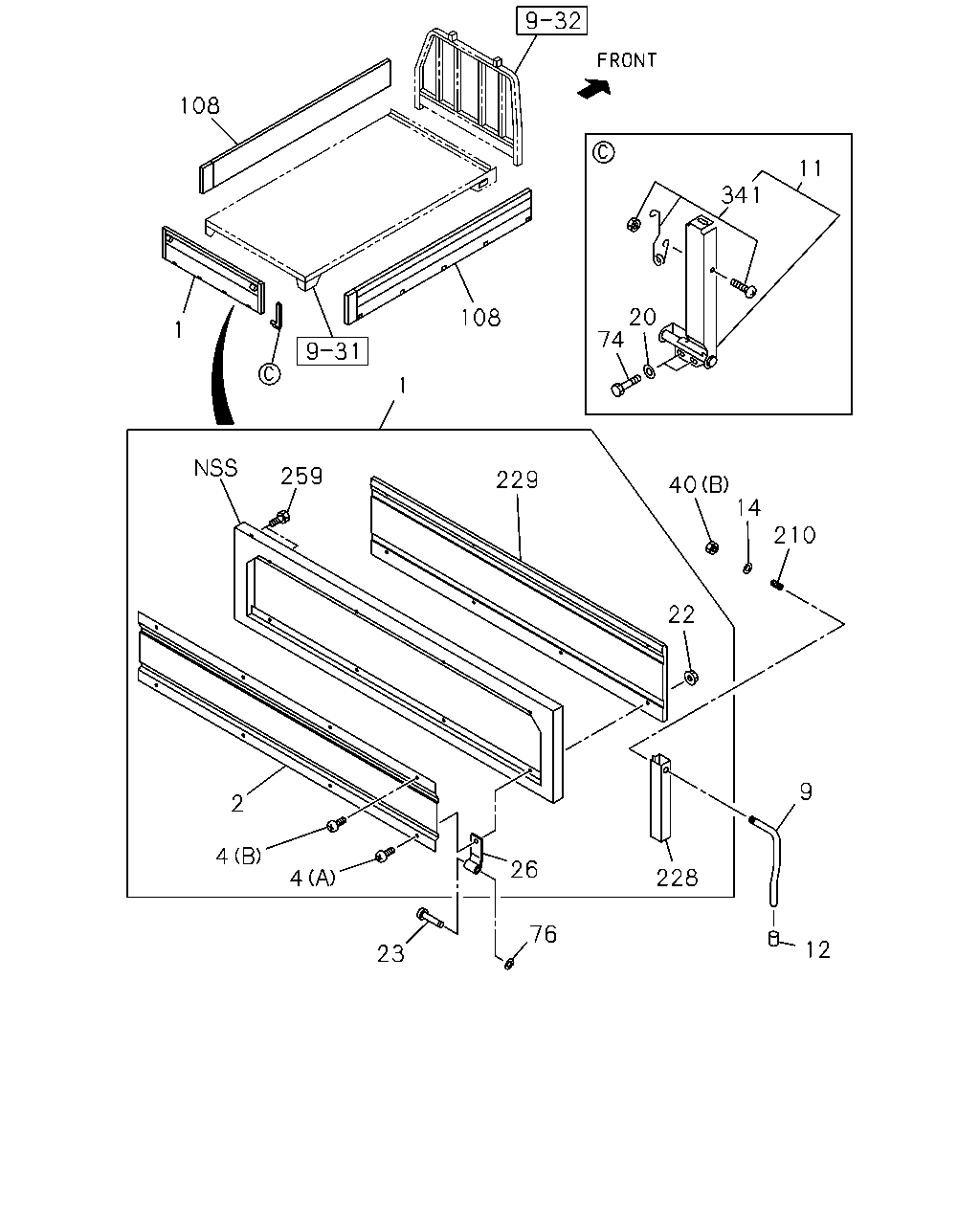

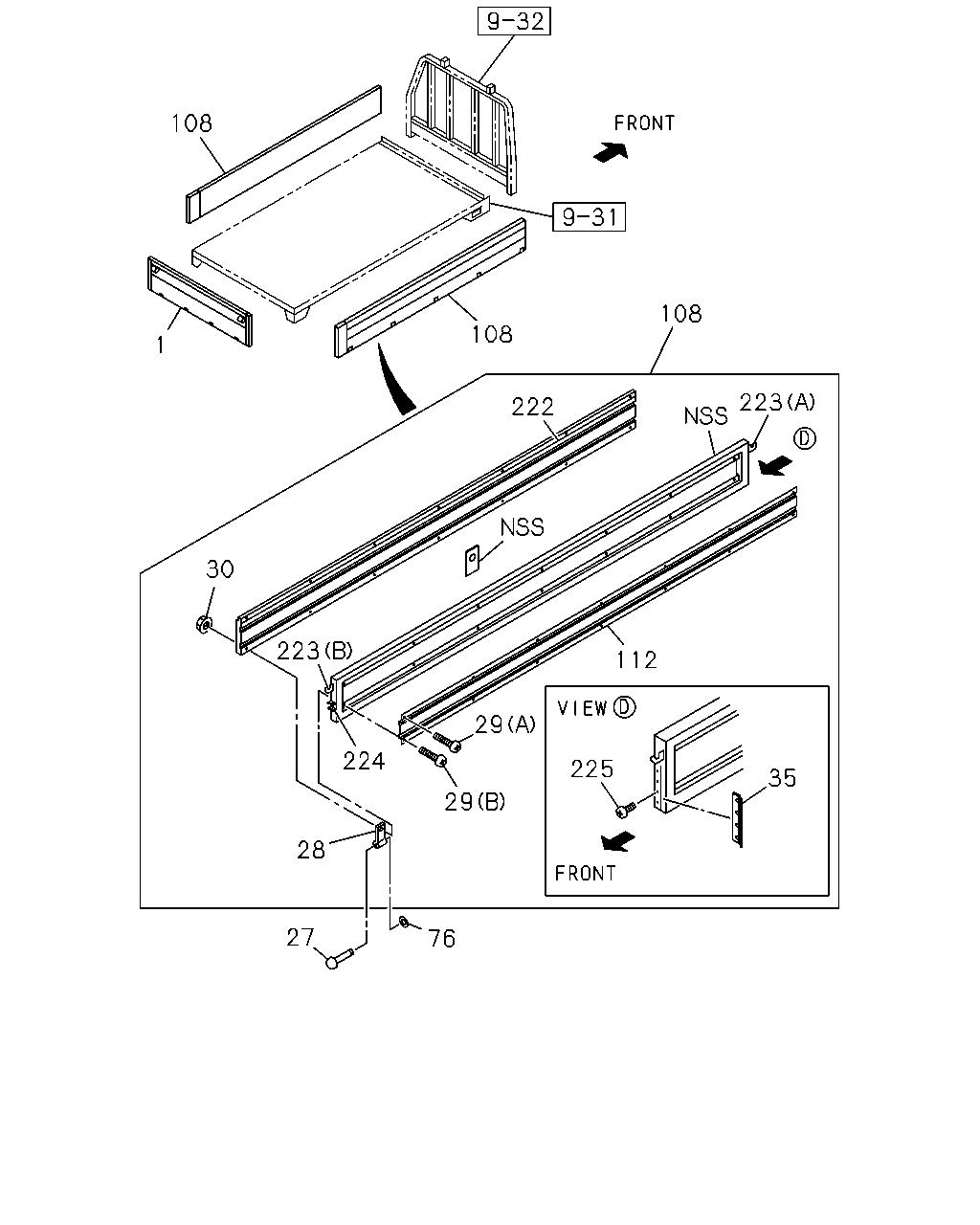

1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1307-1404	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-0	01	1	1405-1411	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1412-	●	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-081-0	01	1	1307-1411	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-081-0	01	1	1412-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	1307-1411	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	1412-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	1307-1411	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	1412-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	1307-1411	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	1412-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	1307-1411	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	1412-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	1307-1411	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	1412-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	1307-1411	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	1412-	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	1307-1411	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	1412-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	1307-1411	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	1412-	●	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED(RS6)	8-97565-055-0	04	1	1307-1411	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED(RS6)	8-97565-055-0	04	1	1412-	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1307-1411	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1412-	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	1307-1411	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	1412-	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	1307-1411	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	1412-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1307-1411	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1412-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1307-	●
74	17.490 SCREW; LOCK RR BODY FLAT BED(RS6)	8-97565-054-0	04	1	1307-1411	●
74	17.490 SCREW; LOCK RR BODY FLAT BED(RS6)	8-97565-054-0	04	1	1412-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1307-1411	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1412-	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	1412-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	1412-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	1307-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	1307-	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	1307-1411	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	1412-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	1307-1411	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	1412-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	1307-1411	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	1412-	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-242-0	01	1	1307-1404	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97565-792-0	01	1	1405-1411	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97565-792-1	01	1	1412-	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-97590-324-0	02	1	1307-1411	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-97590-324-0	02	1	1412-	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97590-325-0	02	1	1307-1411	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97590-325-0	02	1	1412-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	1307-1411	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	1412-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	1307-1411	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	1412-	●	●

108 108 108 222 30 223 223 112 29 224 29 28 27 76 225 35 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1307-1404	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-0	01	1	1405-1411	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1412-	●	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	1307-1411	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	1412-	●	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	1412-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	1307-1411	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	12	1	1412-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	14	1	1412-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	14	1	1412-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	14	1	1307-1411	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	12	1	1412-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	14	1	1307-1411	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	12	1	1412-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	28	1	1412-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	28	1	1307-1411	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	24	1	1412-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	1307-1411	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	1412-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1307-1411	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1412-	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	1412-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	1412-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	1307-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	1307-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-605-0	02	1	1412-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-607-0	02	1	1307-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-609-1	02	1	1412-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-611-1	02	1	1307-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-396-0	01	1	1307-1411	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-396-0	01	1	1412-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-397-0	01	1	1307-1411	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-397-0	01	1	1412-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-673-0	01	1	1307-1411	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-673-0	01	1	1412-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-674-0	01	1	1307-1411	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-674-0	01	1	1412-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	1307-1411	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	1412-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	1307-1411	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	1412-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	1307-1411	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	1412-	●	●
