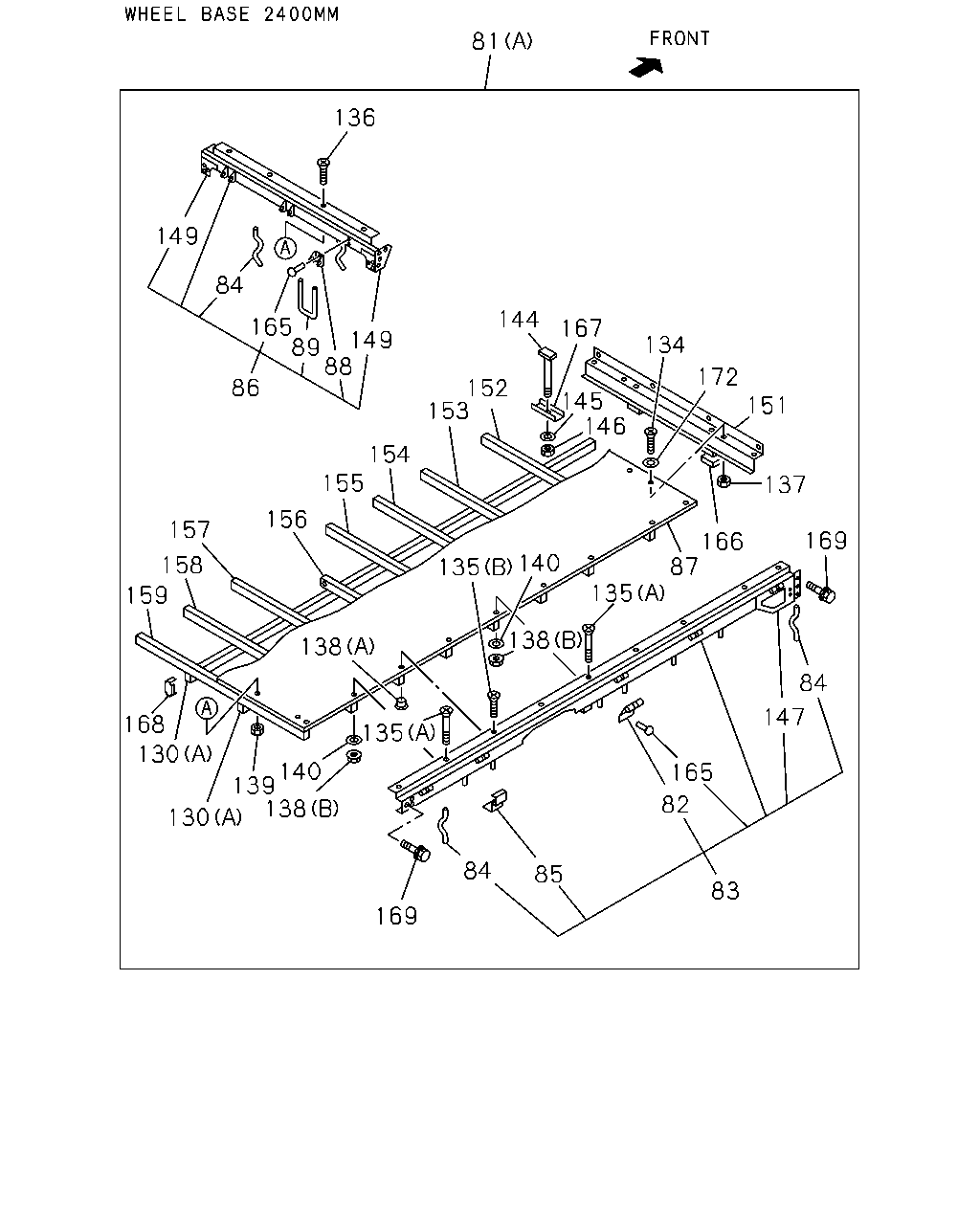

81 |
17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97565-425-2 |
01 |
1 |
1412- |
● |
|
| |

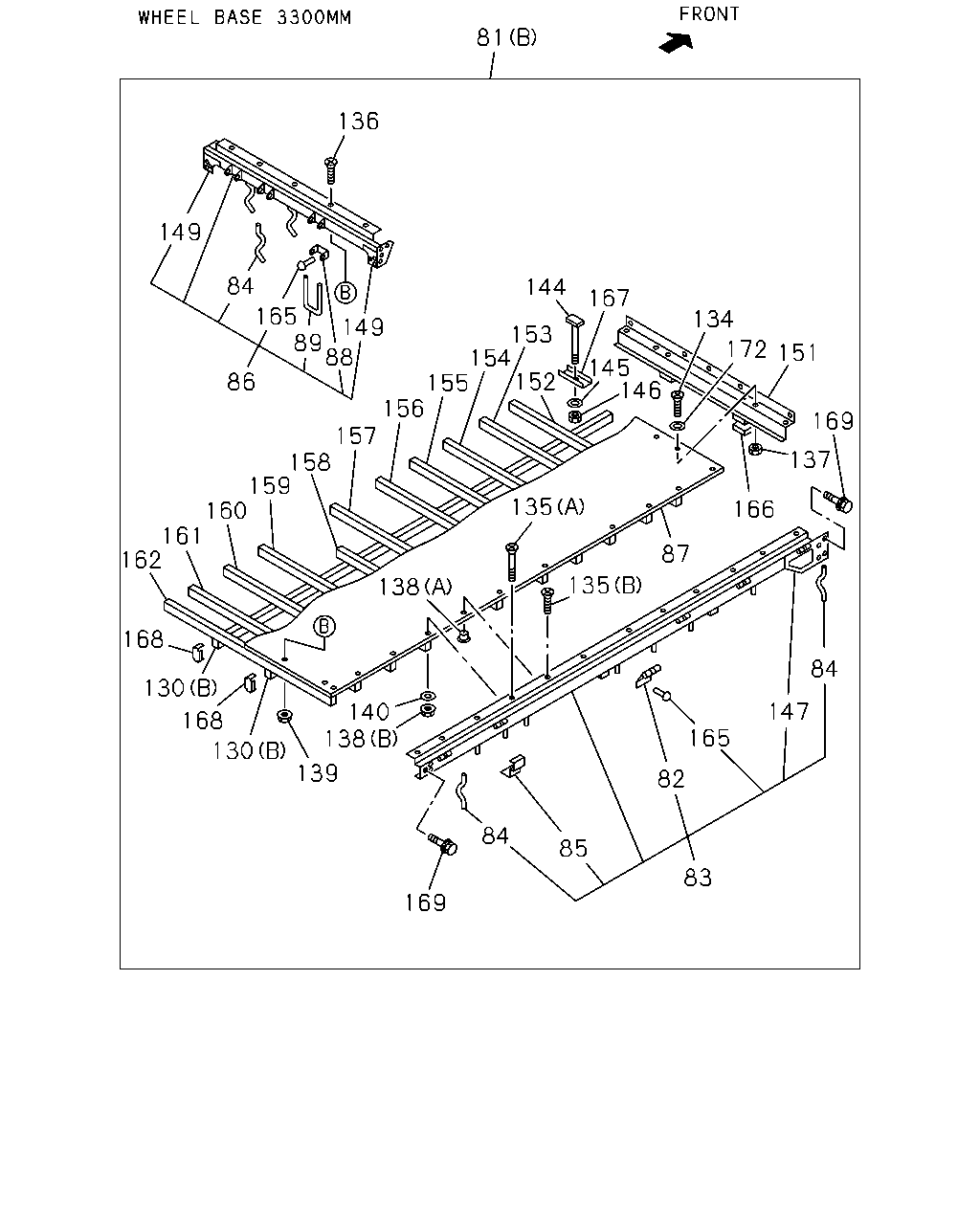

81 |
17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED(RS6)
(B)
TAKADA
|
8-97565-256-3 |
01 |
1 |
1307- |
|
● |
| |
82 |
17.510 HINGE; SIDE GATE,LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-219-0 |
14 |
1 |
1412- |
|
● |
| |
82 |
17.510 HINGE; SIDE GATE,LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-219-0 |
14 |
1 |
1307-1411 |
|
● |
| |
82 |
17.510 HINGE; SIDE GATE,LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-219-0 |
12 |
1 |
1412- |
● |
|
| |
83 |
08.309 FRAME; SIDE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-510-0 |
01 |
1 |
1412- |
● |
|
| |
83 |
08.309 FRAME; SIDE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-511-0 |
01 |
1 |
1412- |
● |
|
| |
83 |
08.309 FRAME; SIDE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-841-0 |
01 |
1 |
1307- |
|
● |
| |
83 |
08.309 FRAME; SIDE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-842-0 |
01 |
1 |
1307- |
|
● |
| |
84 |
08.820 HOOK; ROPE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-866-0 |
21 |
1 |
1412- |
|
● |
| |
84 |
08.820 HOOK; ROPE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-866-0 |
21 |
1 |
1307-1411 |
|
● |
| |
84 |
08.820 HOOK; ROPE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-866-0 |
15 |
1 |
1412- |
● |
|
| |
85 |
08.212 BRACKET; SIDE FRAME
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-865-0 |
06 |
1 |
1412- |
|
● |
| |
85 |
08.212 BRACKET; SIDE FRAME
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-865-0 |
06 |
1 |
1307-1411 |
|
● |
| |
85 |
08.212 BRACKET; SIDE FRAME
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-865-0 |
04 |
1 |
1412- |
● |
|
| |
86 |
17.202 FRAME; RR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-568-0 |
01 |
1 |
1412- |
● |
|
| |
86 |
17.202 FRAME; RR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-569-0 |
01 |
1 |
1307- |
|
● |
| |
87 |
17.400 BOARD; FLOOR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97565-203-1 |
01 |
1 |
1412- |
● |
|
| |
87 |
17.400 BOARD; FLOOR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97565-207-1 |
01 |
1 |
1307- |
|
● |
| |
88 |
17.208 HINGE; RR GATE,LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-251-0 |
04 |
1 |
1307-1411 |
|
● |
| |
88 |
17.208 HINGE; RR GATE,LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-251-0 |
04 |
1 |
1412- |
● |
● |
| |
89 |
17.400 STEP; RR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97592-957-0 |
01 |
1 |
1412- |
● |
|
| |
89 |
17.400 STEP; RR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-886-0 |
01 |
1 |
1307- |
|
● |
| |

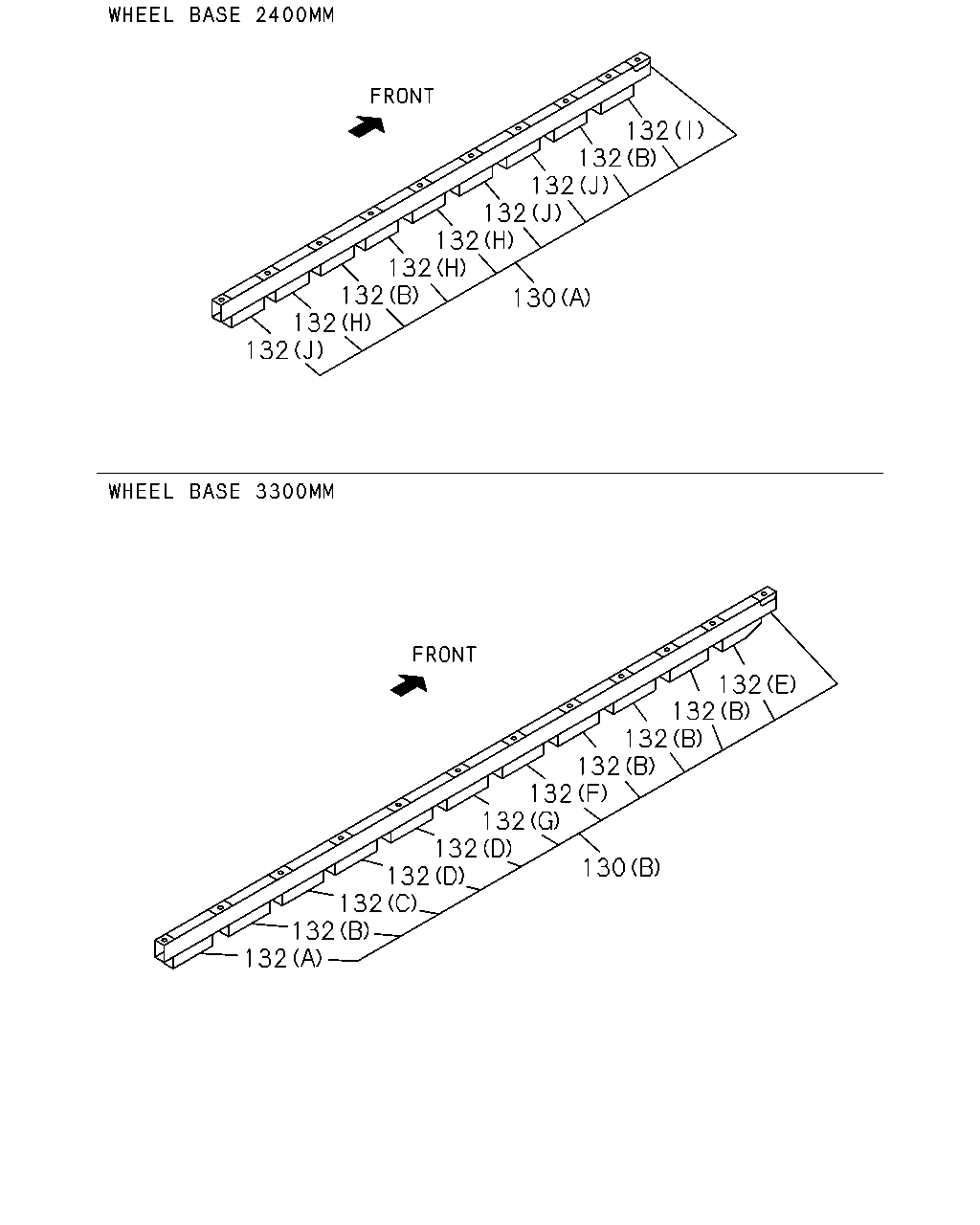

130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97565-432-0 |
01 |
1 |
1412- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97565-433-0 |
01 |
1 |
1412- |
● |
|
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED(RS6)
(B)
TAKADA
|
8-97565-262-1 |
01 |
1 |
1307- |
|
● |
| |
130 |
17.208 SILL ASM; RR BODY
RR BODY FLAT BED(RS6)
(B)
TAKADA
|
8-97565-263-1 |
01 |
1 |
1307- |
|
● |
| |
134 |
17.505 SCREW; BOARD,FRT
RR BODY FLAT BED(RS6)
17.455
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1307-1411 |
|
● |
| |
134 |
17.505 SCREW; BOARD,FRT
RR BODY FLAT BED(RS6)
17.455
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1412- |
● |
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED(RS6)
(A)
M8X99 TAKADA
|
8-97594-760-0 |
18 |
1 |
1412- |
|
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED(RS6)
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1307-1411 |
|
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED(RS6)
(B)
M8X16 TAKADA
|
8-94195-024-3 |
02 |
1 |
1412- |
● |
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED(RS6)
(A)
M8X99 TAKADA
|
8-97594-760-0 |
18 |
1 |
1307-1411 |
|
● |
| |
135 |
17.505 SCREW; BOARD,SIDE
RR BODY FLAT BED(RS6)
(A)
M8X99 TAKADA
|
8-97594-760-0 |
12 |
1 |
1412- |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
RR BODY FLAT BED(RS6)
M8X99 TAKADA
|
8-97594-760-0 |
02 |
1 |
1412- |
● |
|
| |
136 |
17.505 SCREW; BOARD,RR
RR BODY FLAT BED(RS6)
17.455
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1412- |
|
● |
| |
136 |
17.505 SCREW; BOARD,RR
RR BODY FLAT BED(RS6)
17.455
M8X30 TAKADA
|
8-94193-938-3 |
07 |
1 |
1307-1411 |
|
● |
| |
136 |
17.505 SCREW; BOARD,RR
RR BODY FLAT BED(RS6)
17.455
M8X30 TAKADA
|
8-94193-938-3 |
05 |
1 |
1412- |
● |
|
| |
137 |
17.447 NUT; BOARD,FRT
RR BODY FLAT BED(RS6)
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1307-1411 |
|
● |
| |
137 |
17.447 NUT; BOARD,FRT
RR BODY FLAT BED(RS6)
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1412- |
● |
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED(RS6)
(B)
M8 FLANGE
|
8-94193-939-2 |
18 |
1 |
1412- |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED(RS6)
(B)
M8 FLANGE
|
8-94193-939-2 |
18 |
1 |
1307-1411 |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED(RS6)
(B)
M8 FLANGE
|
8-94193-939-2 |
12 |
1 |
1412- |
● |
|
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED(RS6)
(A)
M8
|
8-97565-434-0 |
02 |
1 |
1307-1411 |
|
● |
| |
138 |
17.447 NUT; BOARD,SIDE
RR BODY FLAT BED(RS6)
(A)
M8
|
8-97565-434-0 |
02 |
1 |
1412- |
● |
● |
| |
139 |
17.447 NUT; BOARD,RR
RR BODY FLAT BED(RS6)
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1307-1411 |
|
● |
| |
139 |
17.447 NUT; BOARD,RR
RR BODY FLAT BED(RS6)
M8 FLANGE
|
8-94193-939-2 |
07 |
1 |
1412- |
● |
● |
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
RR BODY FLAT BED(RS6)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
12 |
1 |
1412- |
|
● |
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
RR BODY FLAT BED(RS6)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
12 |
1 |
1307-1411 |
|
● |
| |
140 |
17.447 WASHER; PL,BOARD,SIDE
RR BODY FLAT BED(RS6)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
08 |
1 |
1412- |
● |
|
| |
144 |
17.447 BOLT; BOLSTER TO SILL
RR BODY FLAT BED(RS6)
M10X202 TAKADA
|
8-97592-730-0 |
20 |
1 |
1412- |
|
● |
| |
144 |
17.447 BOLT; BOLSTER TO SILL
RR BODY FLAT BED(RS6)
M10X202 TAKADA
|
8-97592-730-0 |
20 |
1 |
1307-1411 |
|
● |
| |
144 |
17.447 BOLT; BOLSTER TO SILL
RR BODY FLAT BED(RS6)
M10X202 TAKADA
|
8-97592-730-0 |
14 |
1 |
1412- |
● |
|
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
RR BODY FLAT BED(RS6)
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
24 |
1 |
1412- |
|
● |
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
RR BODY FLAT BED(RS6)
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
24 |
1 |
1307-1411 |
|
● |
| |
145 |
17.447 WASHER; PL,BOLSTER TO SILL
RR BODY FLAT BED(RS6)
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
18 |
1 |
1412- |
● |
|
| |
146 |
17.447 NUT; BOLSTER TO SILL
RR BODY FLAT BED(RS6)
M10 TAKADA
|
8-97594-444-0 |
24 |
1 |
1412- |
|
● |
| |
146 |
17.447 NUT; BOLSTER TO SILL
RR BODY FLAT BED(RS6)
M10 TAKADA
|
8-97594-444-0 |
24 |
1 |
1307-1411 |
|
● |
| |
146 |
17.447 NUT; BOLSTER TO SILL
RR BODY FLAT BED(RS6)
M10 TAKADA
|
8-97594-444-0 |
18 |
1 |
1412- |
● |
|
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED(RS6)
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1307-1411 |
|
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED(RS6)
17.447
TAKADA
|
8-97593-174-0 |
01 |
1 |
1412- |
● |
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED(RS6)
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1307-1411 |
|
● |
| |
147 |
17.405 GUSSET; GUARD FRAME
RR BODY FLAT BED(RS6)
17.447
TAKADA
|
8-97593-175-0 |
01 |
1 |
1412- |
● |
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-186-0 |
01 |
1 |
1307-1411 |
|
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-186-0 |
01 |
1 |
1412- |
● |
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-187-0 |
01 |
1 |
1307-1411 |
|
● |
| |
149 |
17.455 CONNECTOR; RR CORNER
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-187-0 |
01 |
1 |
1412- |
● |
● |
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-426-0 |
01 |
1 |
1412- |
● |
|
| |
151 |
17.208 BOLSTER; NO 1,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-219-0 |
01 |
1 |
1307- |
|
● |
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-428-1 |
01 |
1 |
1412- |
● |
|
| |
152 |
17.208 BOLSTER; NO 2,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-114-1 |
01 |
1 |
1307- |
|
● |
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-428-1 |
01 |
1 |
1412- |
● |
|
| |
153 |
17.208 BOLSTER; NO 3,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-113-1 |
01 |
1 |
1307- |
|
● |
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-428-1 |
01 |
1 |
1412- |
● |
|
| |
154 |
17.208 BOLSTER; NO 4,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-113-1 |
01 |
1 |
1307- |
|
● |
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-429-1 |
01 |
1 |
1412- |
● |
|
| |
155 |
17.208 BOLSTER; NO 5,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-113-1 |
01 |
1 |
1307- |
|
● |
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
RR BODY FLAT BED(RS6)
L=850 TAKADA
|
8-97565-430-1 |
01 |
1 |
1412- |
● |
|
| |
156 |
17.208 BOLSTER; NO 6,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-114-1 |
01 |
1 |
1307- |
|
● |
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-429-1 |
01 |
1 |
1412- |
● |
|
| |
157 |
17.208 BOLSTER; NO 7,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-116-1 |
01 |
1 |
1307- |
|
● |
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-427-1 |
01 |
1 |
1412- |
● |
|
| |
158 |
17.208 BOLSTER; NO 8,RR BODY
RR BODY FLAT BED(RS6)
L=780 TAKADA
|
8-97594-117-1 |
01 |
1 |
1307- |
|
● |
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97565-431-0 |
01 |
1 |
1412- |
● |
|
| |
159 |
17.208 BOLSTER; NO 9,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-116-1 |
01 |
1 |
1307- |
|
● |
| |
160 |
17.208 BOLSTER; NO 10,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-113-1 |
01 |
1 |
1307- |
|
● |
| |
161 |
17.208 BOLSTER; NO 11,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-113-1 |
01 |
1 |
1307- |
|
● |
| |
162 |
17.208 BOLSTER; NO 12,RR BODY
RR BODY FLAT BED(RS6)
L=1768 TAKADA
|
8-97594-547-0 |
01 |
1 |
1307- |
|
● |
| |
165 |
17.447 RIVET; HINGE LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97592-609-0 |
36 |
1 |
1412- |
|
● |
| |
165 |
17.447 RIVET; HINGE LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97592-609-0 |
36 |
1 |
1307-1411 |
|
● |
| |
165 |
17.447 RIVET; HINGE LWR
RR BODY FLAT BED(RS6)
TAKADA
|
8-97592-609-0 |
32 |
1 |
1412- |
● |
|
| |
166 |
17.208 SPACER; BOLSTER,RR BODY
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-119-0 |
02 |
1 |
1307-1411 |
|
● |
| |
166 |
17.208 SPACER; BOLSTER,RR BODY
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-119-0 |
02 |
1 |
1412- |
● |
● |
| |
167 |
17.447 WASHER; BOLSTER,RR BODY
RR BODY FLAT BED(RS6)
L=110 TAKADA
|
8-97594-313-0 |
02 |
1 |
1412- |
● |
|
| |
167 |
17.447 WASHER; BOLSTER,RR BODY
RR BODY FLAT BED(RS6)
L=135 TAKADA
|
8-97594-314-0 |
20 |
1 |
1412- |
|
● |
| |
167 |
17.447 WASHER; BOLSTER,RR BODY
RR BODY FLAT BED(RS6)
L=135 TAKADA
|
8-97594-314-0 |
20 |
1 |
1307-1411 |
|
● |
| |
167 |
17.447 WASHER; BOLSTER,RR BODY
RR BODY FLAT BED(RS6)
L=135 TAKADA
|
8-97594-314-0 |
12 |
1 |
1412- |
● |
|
| |
168 |
08.212 COVER; SILL,RR BODY
RR BODY FLAT BED(RS6)
TAKADA
|
8-97565-106-0 |
02 |
1 |
1307-1411 |
|
● |
| |
168 |
08.212 COVER; SILL,RR BODY
RR BODY FLAT BED(RS6)
TAKADA
|
8-97565-106-0 |
02 |
1 |
1412- |
● |
● |
| |
169 |
17.447 BOLT; CONNECTOR,RR CORNER
RR BODY FLAT BED(RS6)
17.185
M8X25
|
8-94194-111-2 |
06 |
1 |
1307-1411 |
|
● |
| |
169 |
17.447 BOLT; CONNECTOR,RR CORNER
RR BODY FLAT BED(RS6)
17.185
M8X25
|
8-94194-111-2 |
06 |
1 |
1412- |
● |
● |
| |
172 |
17.447 WASHER; BOARD,RR BODY
RR BODY FLAT BED(RS6)
|
8-97565-435-0 |
05 |
1 |
1307-1411 |
|
● |
| |
172 |
17.447 WASHER; BOARD,RR BODY
RR BODY FLAT BED(RS6)
|
8-97565-435-0 |
05 |
1 |
1412- |
● |
● |
