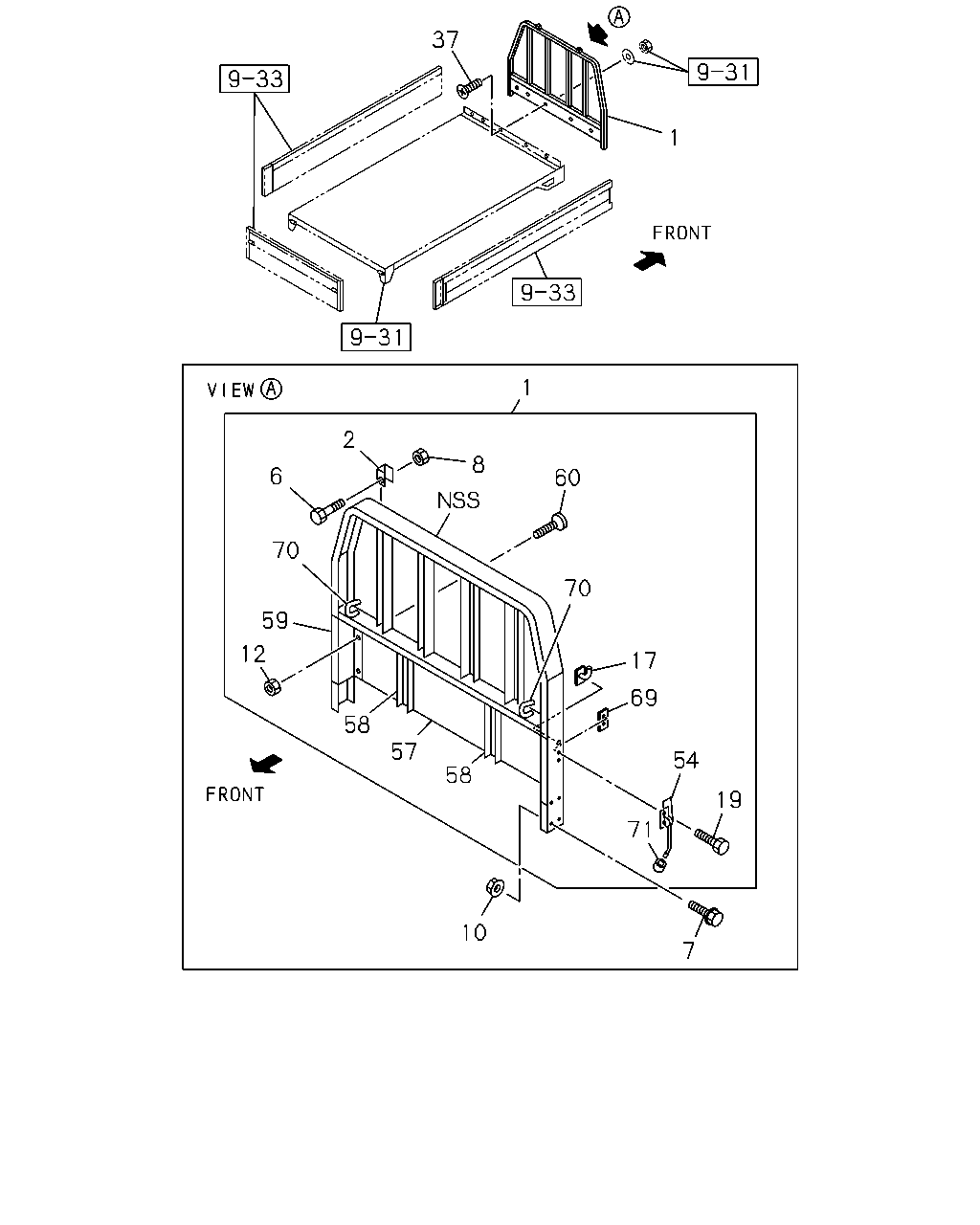

9-32 — REAR BODY; GUARD FRAME (#125262) — 38 parça

19 71 7 54 69 10 17 70 60 8 2 6 70 59 12 58 57 58 1 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-98071-453-2	01	1	1307-1411	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-98071-453-2	01	1	1412-	●	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-396-0	02	1	1307-1411	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-396-0	02	1	1412-	●	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-488-0	02	1	1307-1411	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6)	8-97590-488-0	02	1	1412-	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED(RS6) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1307-1411	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED(RS6) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	1412-	●	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) M10	8-97590-493-0	02	1	1307-1411	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) M10	8-97590-493-0	02	1	1412-	●	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	08	1	1307-1411	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	08	1	1412-	●	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 M8 FLANGE	8-94193-939-2	04	1	1307-1411	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 M8 FLANGE	8-94193-939-2	04	1	1412-	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-97593-683-0	02	1	1307-1411	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-97593-683-0	02	1	1412-	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED(RS6) M8X20	8-94193-942-2	04	1	1307-1411	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED(RS6) M8X20	8-94193-942-2	04	1	1412-	●	●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED(RS6) M8X26	8-97065-436-0	05	1	1307-1411	●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED(RS6) M8X26	8-97065-436-0	05	1	1412-	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) TAKADA	8-97593-639-1	02	1	1307-1411	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) TAKADA	8-97593-639-1	02	1	1412-	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) TAKADA	8-97594-738-1	01	1	1307-1411	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) TAKADA	8-97594-738-1	01	1	1412-	●	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-452-0	02	1	1307-1411	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-452-0	02	1	1412-	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-453-0	01	1	1307-1411	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-453-0	01	1	1412-	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-454-0	01	1	1307-1411	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-454-0	01	1	1412-	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-3	04	1	1307-1411	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-3	04	1	1412-	●	●
69	17.455 SETTING PLATE; LOCK HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97591-976-0	02	1	1307-1411	●
69	17.455 SETTING PLATE; LOCK HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97591-976-0	02	1	1412-	●	●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-97592-598-0	02	1	1307-1411	●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED(RS6) TAKADA	8-97592-598-0	02	1	1412-	●	●
71	17.204 PIECE; END,FRT HANDLE RR BODY FLAT BED(RS6) 17.615 ID=12	9-61203-650-0	02	1	1307-1411	●
71	17.204 PIECE; END,FRT HANDLE RR BODY FLAT BED(RS6) 17.615 ID=12	9-61203-650-0	02	1	1412-	●	●
