Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#12526) — 197 parça

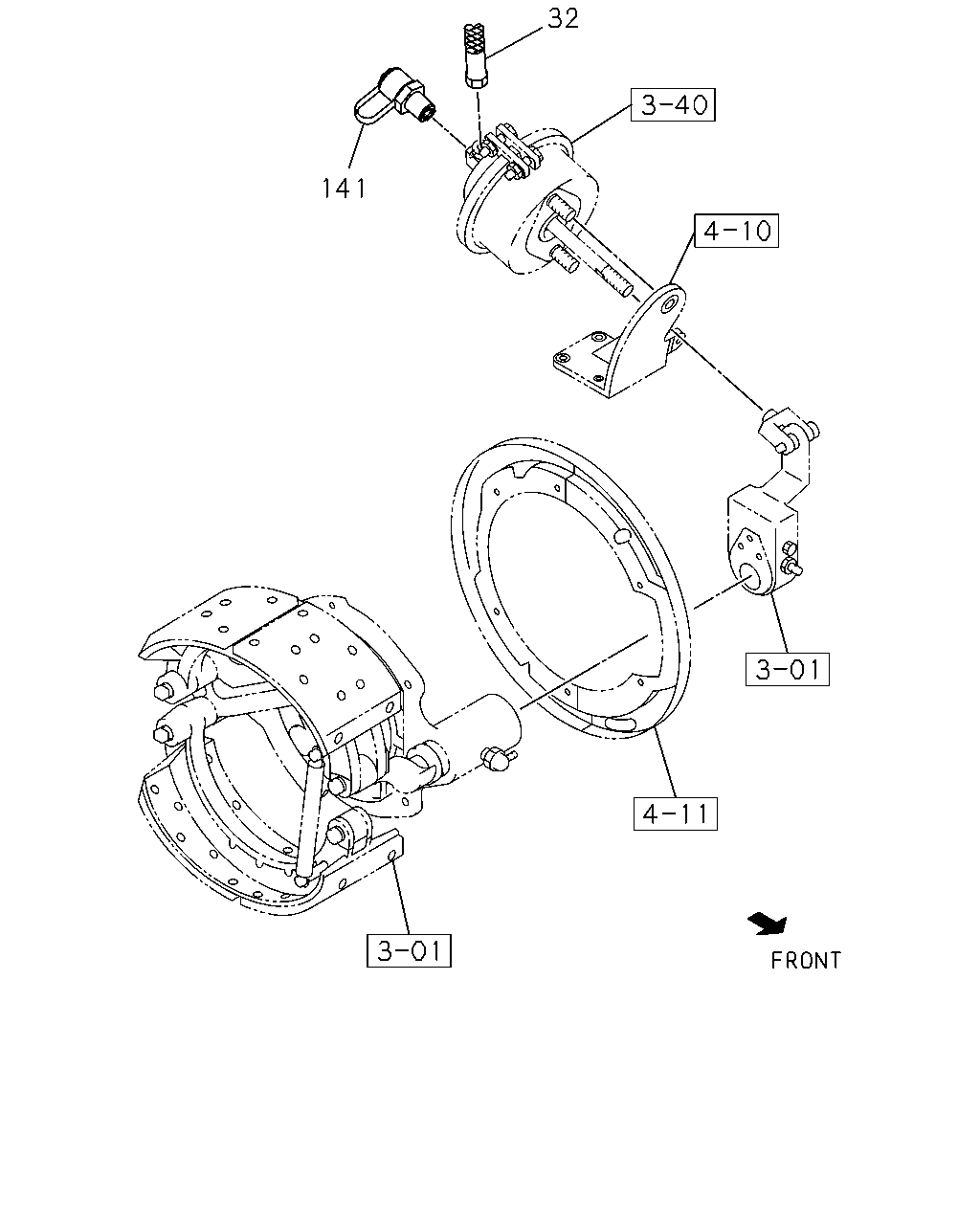

141 32

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	0105-	●	●
	141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV>	1-47459-013-0	01	1	0207-		●

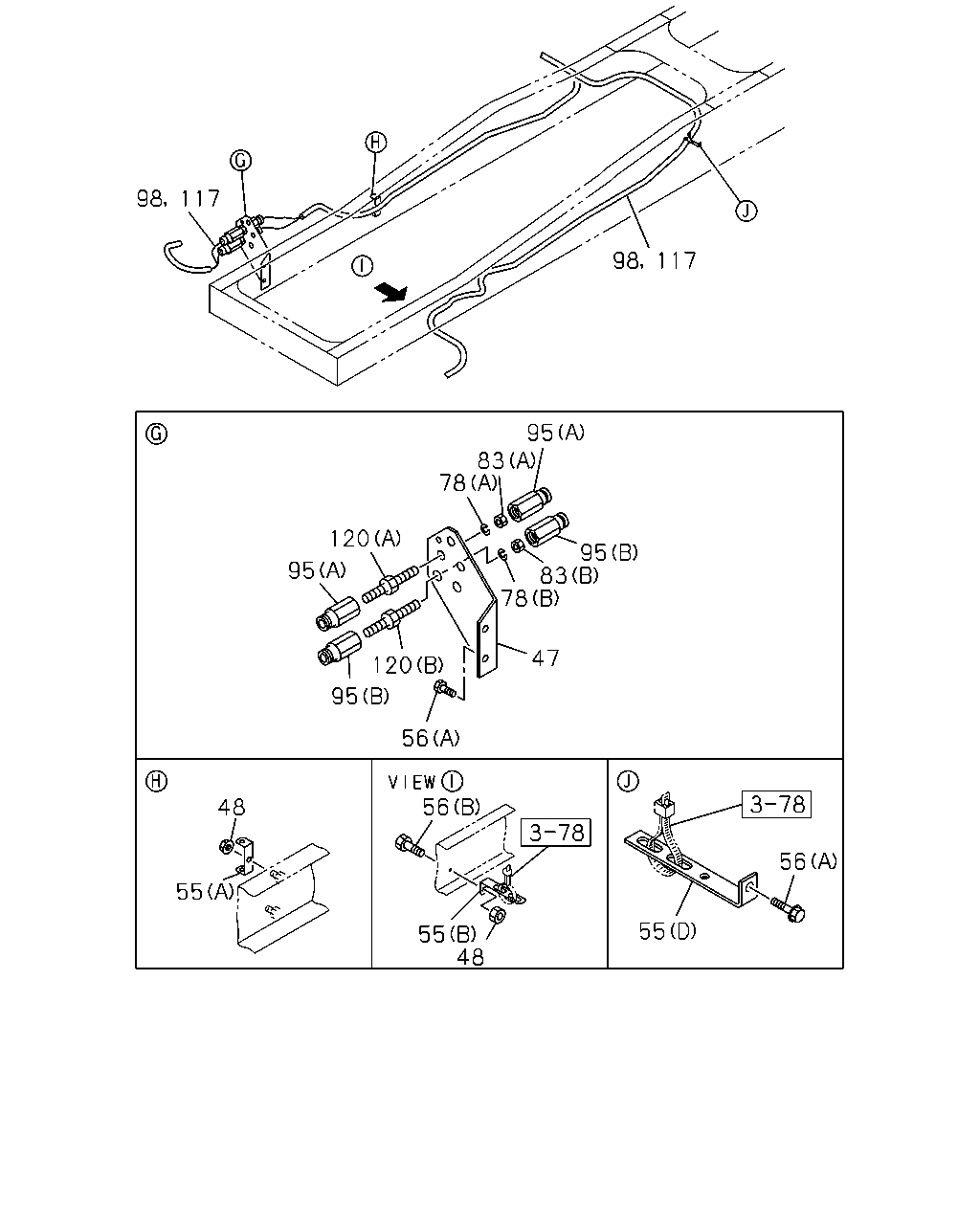

117 98 117 98 95 83 78 95 83 78 47 120 95 95 120 56 56 55 55 48 56 48 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-600-2	01	1	0105-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
55	BRACKET; TUBE UNION (E) L=115 B=25	1-47476-758-0	01	1	0108-	●	●
55	BRACKET; TUBE UNION (D)	1-47476-200-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-895-1	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (C) L=100 H=30	1-47477-645-2	01	1	0105-	●	●
56	BOLT; UNION BRKT (C) M8X20 FLANGE	0-28080-820-0	01	1	0108-0512	●	●
56	BOLT; UNION BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2	9-09150-514-0	01	1	0105-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2	9-09150-516-0	01	1	0105-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-99111-414-0	01	1	0105-0512	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	0-91111-514-0	01	1	0601-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	9-99111-416-0	01	1	0105-0512	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	0-91111-516-0	01	1	0601-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-0304	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0303	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0304-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0303	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0303	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0304	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0105-0304	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0305-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-09223-308-1	01	1	0105-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=74	9-09233-310-1	01	1	0105-	●	●

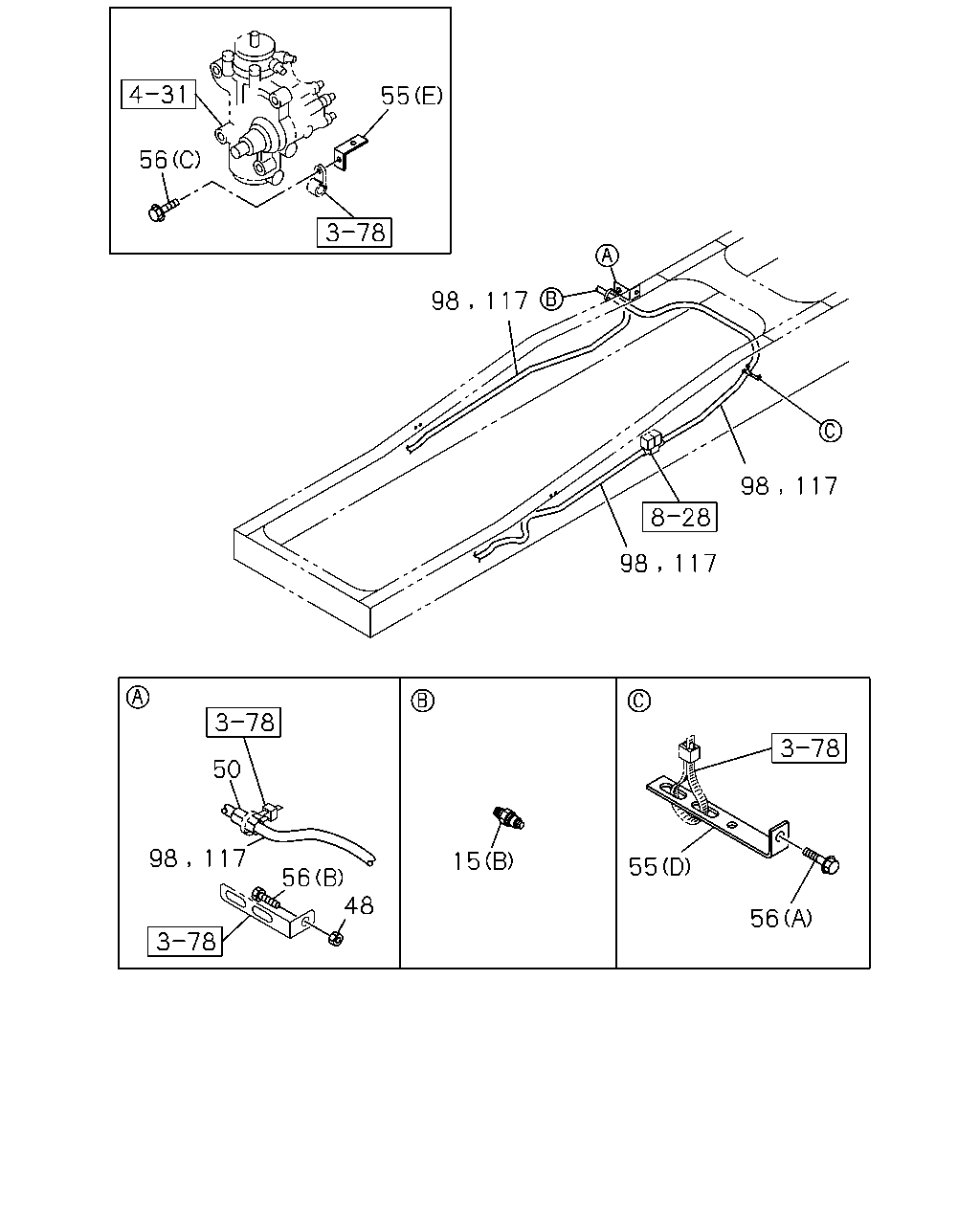

117 98 98 117 98 117 55 56 50 117 56 48 98 15 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●
15	CONNECTOR; AIR PIPE MUFFLER TWIN VERTICAL<NBS> (B) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	0105-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=50	1-09337-014-0	02	1	0105-	●	●
55	BRACKET; TUBE UNION (E) L=115 B=25	1-47476-758-0	01	1	0108-	●	●
55	BRACKET; TUBE UNION (D)	1-47476-200-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-895-1	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (C) L=100 H=30	1-47477-645-2	01	1	0105-	●	●
56	BOLT; UNION BRKT (C) M8X20 FLANGE	0-28080-820-0	01	1	0108-0512	●	●
56	BOLT; UNION BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-0304	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0303	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0304-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0303	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0303	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0304	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0105-0304	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0305-	●	●

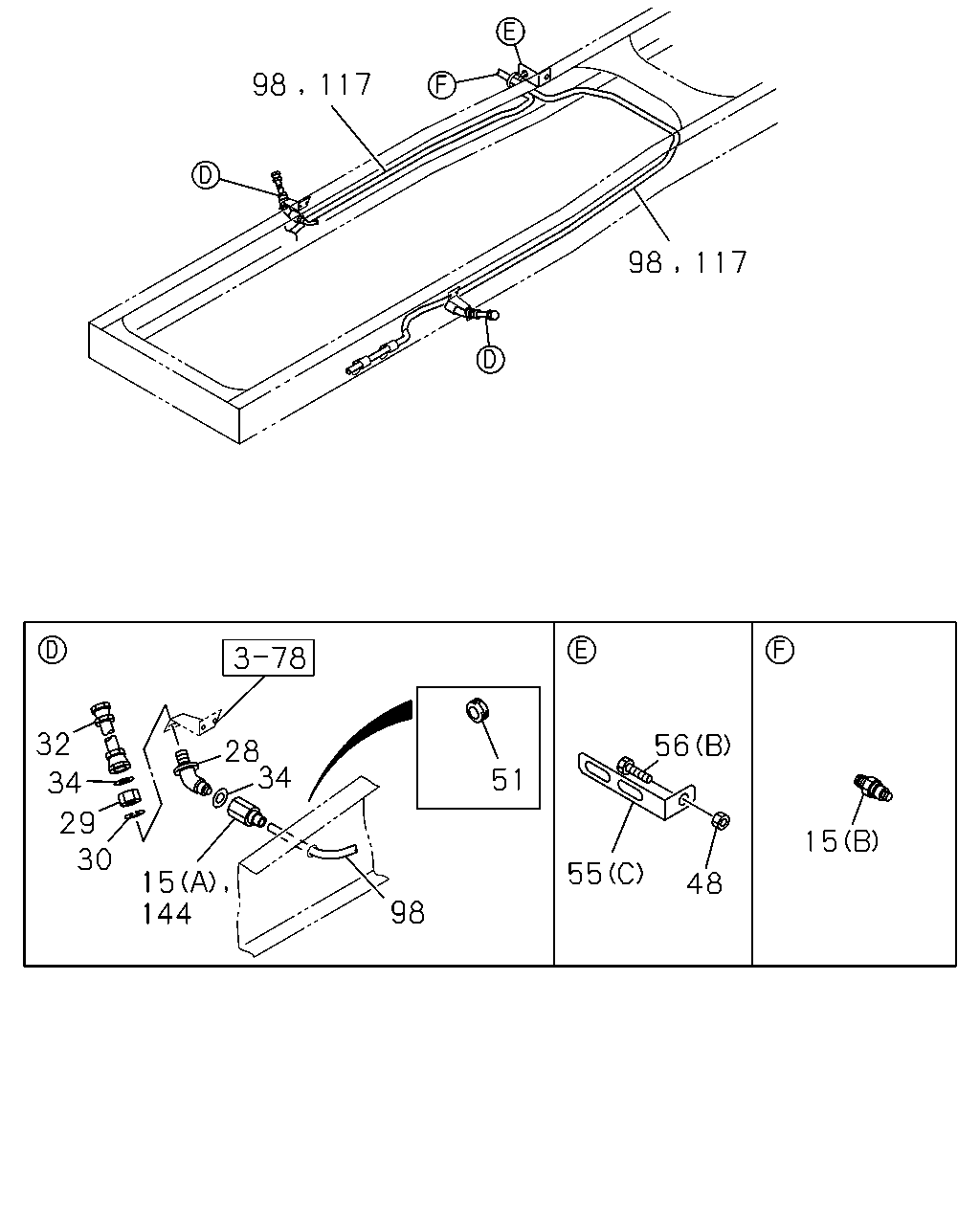

117 98 117 98 32 34 29 30 28 34 15 144 98 51 56 55 48 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●
15	CONNECTOR; AIR PIPE MUFFLER TWIN VERTICAL<NBS> (B) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	0105-	●	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	1-09654-199-2	02	1	0105-	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	0105-0512	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	0-91111-520-0	02	1	0601-	●	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	0105-	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	0105-	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	04	1	0105-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
51	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0105-	●	●
55	BRACKET; TUBE UNION (E) L=115 B=25	1-47476-758-0	01	1	0108-	●	●
55	BRACKET; TUBE UNION (D)	1-47476-200-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-895-1	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (C) L=100 H=30	1-47477-645-2	01	1	0105-	●	●
56	BOLT; UNION BRKT (C) M8X20 FLANGE	0-28080-820-0	01	1	0108-0512	●	●
56	BOLT; UNION BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-0304	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0303	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0105-0302	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0303-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0304-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0305-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0303	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0303	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0304	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0105-0304	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0302	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0303-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0305-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0305-	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
