Sayfa 8-60 - Isuzu EPC

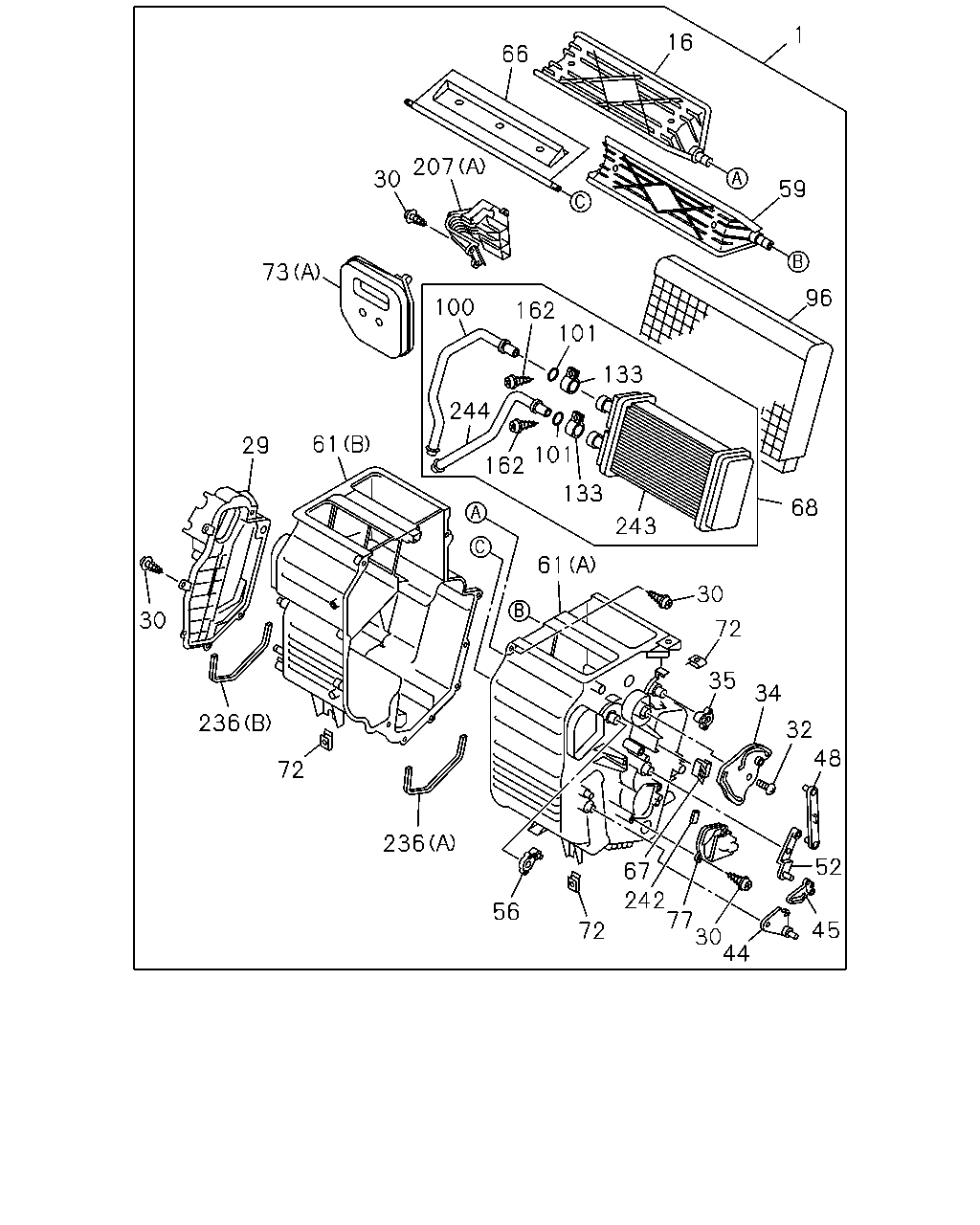

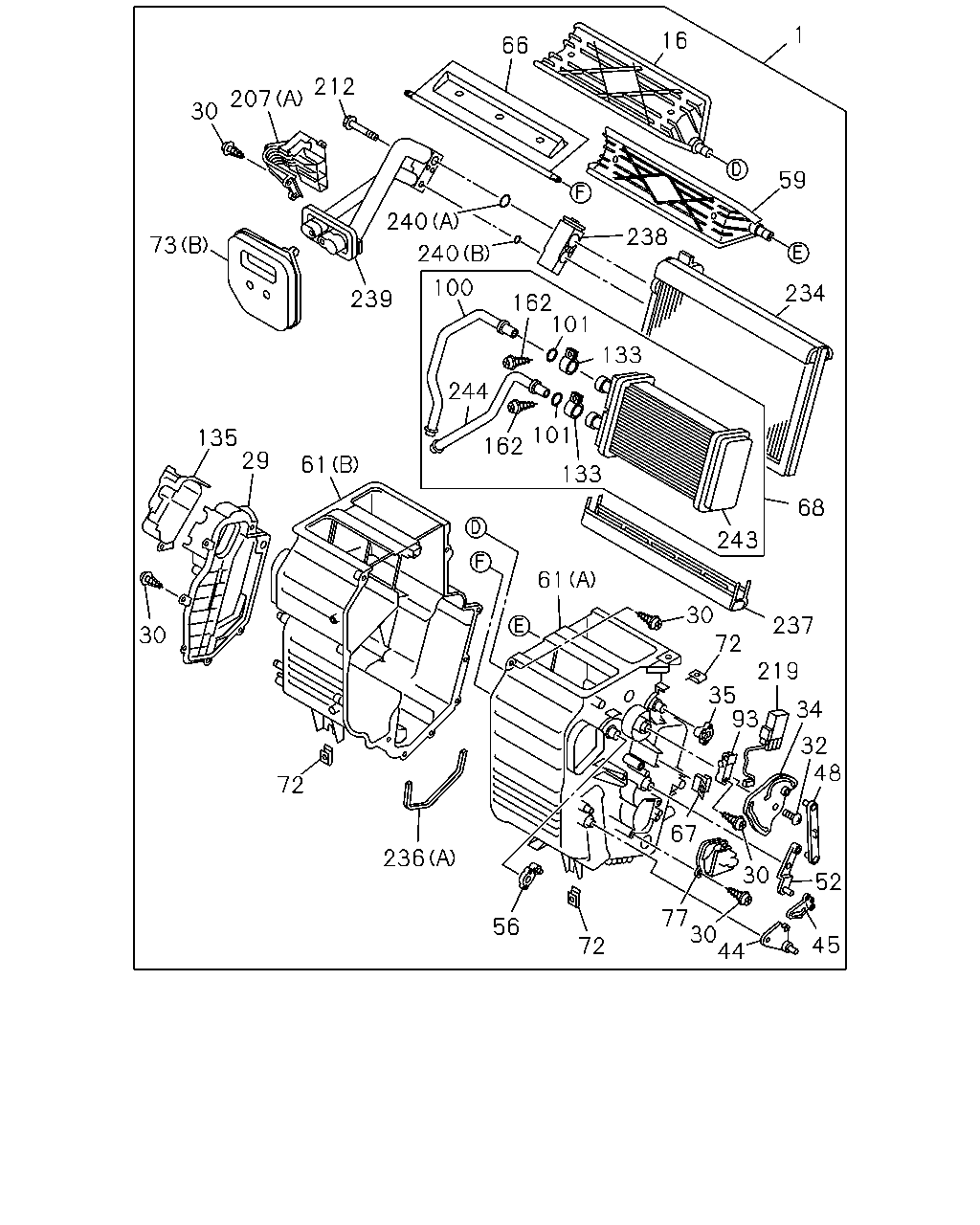

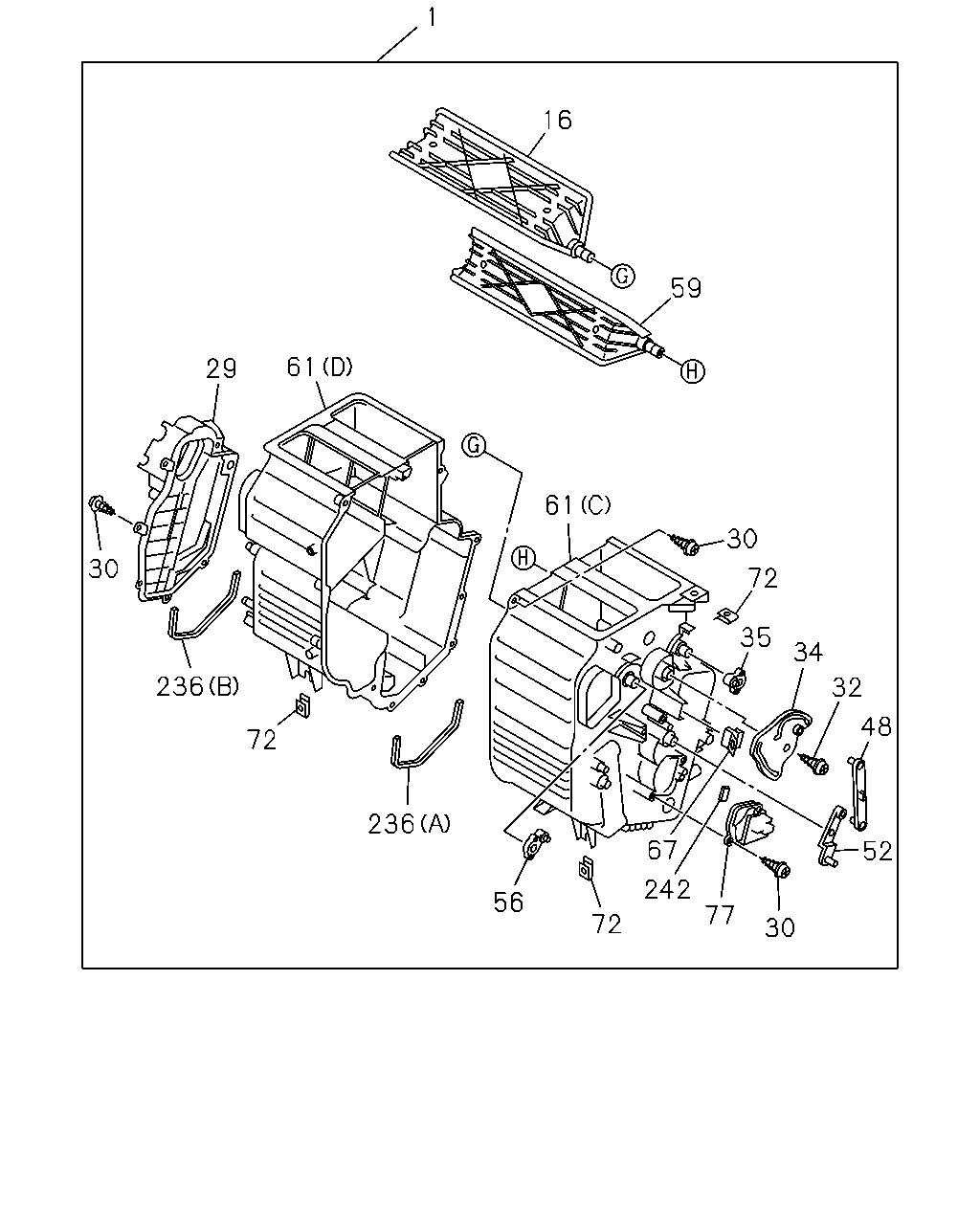

8-60 — HEATER UNIT; FRONT (#125252) — 135 parça

234 235 235 236 207 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1307-
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1307-
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1307-
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1307-
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1307-
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1307-

16 1 59 61 61 29 30 236 72 236 56 72 67 242 77 30 52 48 32 34 35 72 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39)	8-98214-401-1	01	1	1307-
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41)	8-98031-740-3	01	1	1307-
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98034-145-3	01	1	1307-
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1307-
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-368-0	01	1	1307-
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1307-
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1307-
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1307-
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1307-
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1307-
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1307-
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1307-
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1307-
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-499-0	01	1	1307-
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1307-
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1307-
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1307-
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1307-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-424-0	01	1	1307-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98077-425-0	01	1	1307-
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1307-
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1307-
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1307-
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1307-
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1307-
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1307-
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1307-1411
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1412-

30 73 207 212 239 240 66 240 16 1 238 59 234 100 101 162 244 162 101 133 68 243 135 30 29 61 72 61 236 56 72 30 72 35 237 219 34 93 48 32 52 30 45 44 30 77 67 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39)	8-98214-401-1	01	1	1307-
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41)	8-98031-740-3	01	1	1307-
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98034-145-3	01	1	1307-
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1307-
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-368-0	01	1	1307-
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1307-
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1307-
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1307-
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1307-
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1307-
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1307-
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1307-
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1307-
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1307-
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1307-
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-499-0	01	1	1307-
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1307-
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1307-
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1307-
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1307-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-424-0	01	1	1307-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98077-425-0	01	1	1307-
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1307-
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1307-
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1307-
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1307-
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1307-
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1307-
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1307-
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1307-
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-491-0	01	1	1307-
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1307-
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1307-
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1307-
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1307-
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1307-
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1307-
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1307-
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1307-
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1307-
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1307-
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1307-
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1307-
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1307-
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1307-
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1307-
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1307-
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1307-
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1307-
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1307-

30 236 72 236 56 72 67 242 77 30 44 52 45 48 32 34 35 72 30 61 61 29 73 30 207 66 16 1 59 96 68 243 133 162 101 244 100 101 133 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39)	8-98214-401-1	01	1	1307-
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41)	8-98031-740-3	01	1	1307-
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98034-145-3	01	1	1307-
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1307-
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-368-0	01	1	1307-
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1307-
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1307-
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1307-
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1307-
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1307-
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1307-
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1307-
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1307-
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1307-
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1307-
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-499-0	01	1	1307-
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1307-
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1307-
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1307-
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1307-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-424-0	01	1	1307-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98077-425-0	01	1	1307-
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1307-
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1307-
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1307-
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1307-
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1307-
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1307-
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1307-
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1307-
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-491-0	01	1	1307-
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1307-
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1307-
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1307-
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1307-
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1307-
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1307-
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1307-
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1307-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1307-
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1307-1411
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1412-
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1307-
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
