Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#125250) — 24 parça
◀
[850A] OTHER PARTS (6 parça)
[850A] BELT AND PULLEY (18 parça)
▶

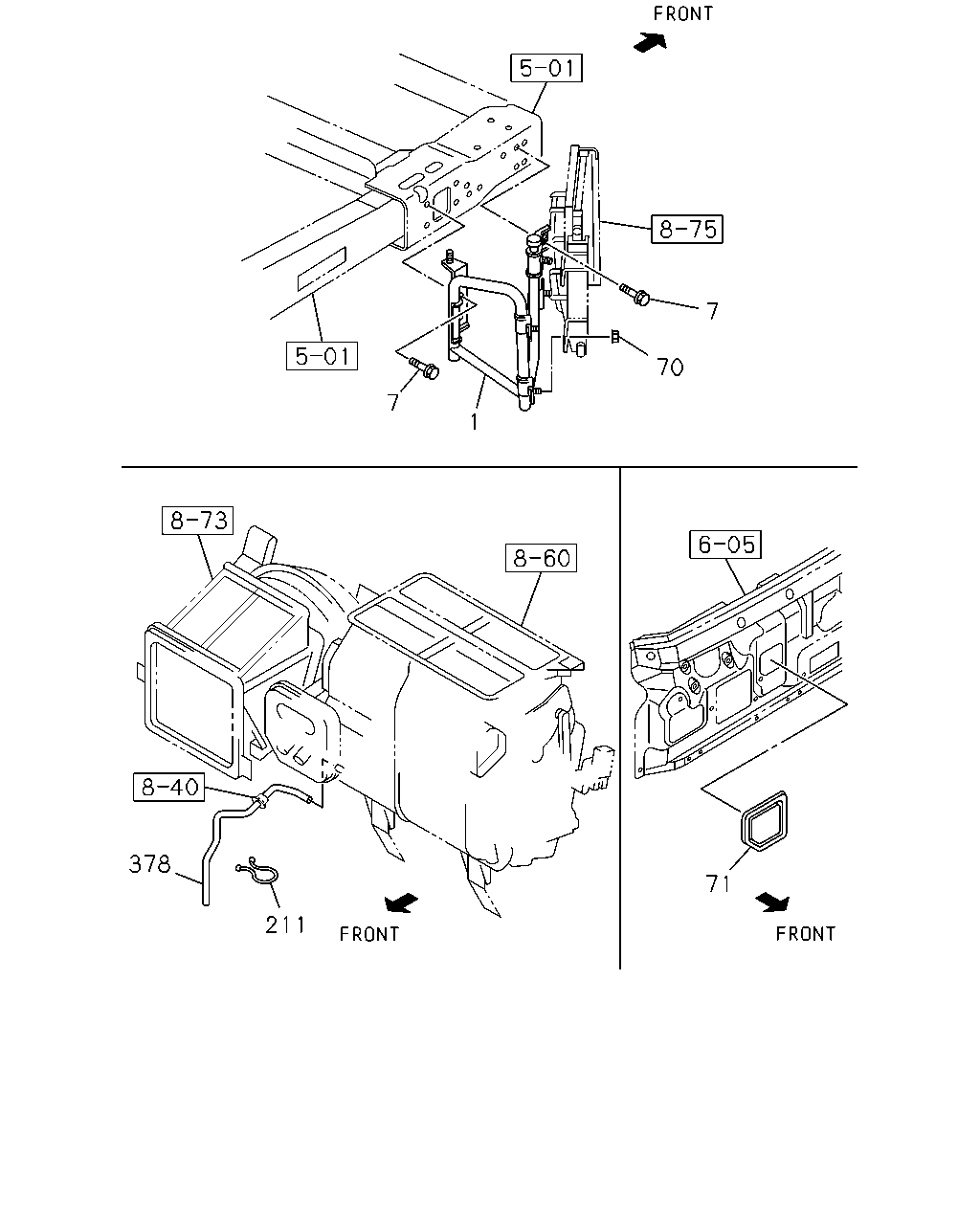

71
211
378
7
1
70
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98214-412-0
01
1
1307-
7
09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE
0-28651-230-0
04
1
1307-
70
09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE
0-91180-108-0
04
1
1307-
71
09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98017-235-1
01
1
1307-
211
09.190 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.278
8-94463-508-0
01
1
1307-
378
09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98006-239-3
01
1
1307-
210

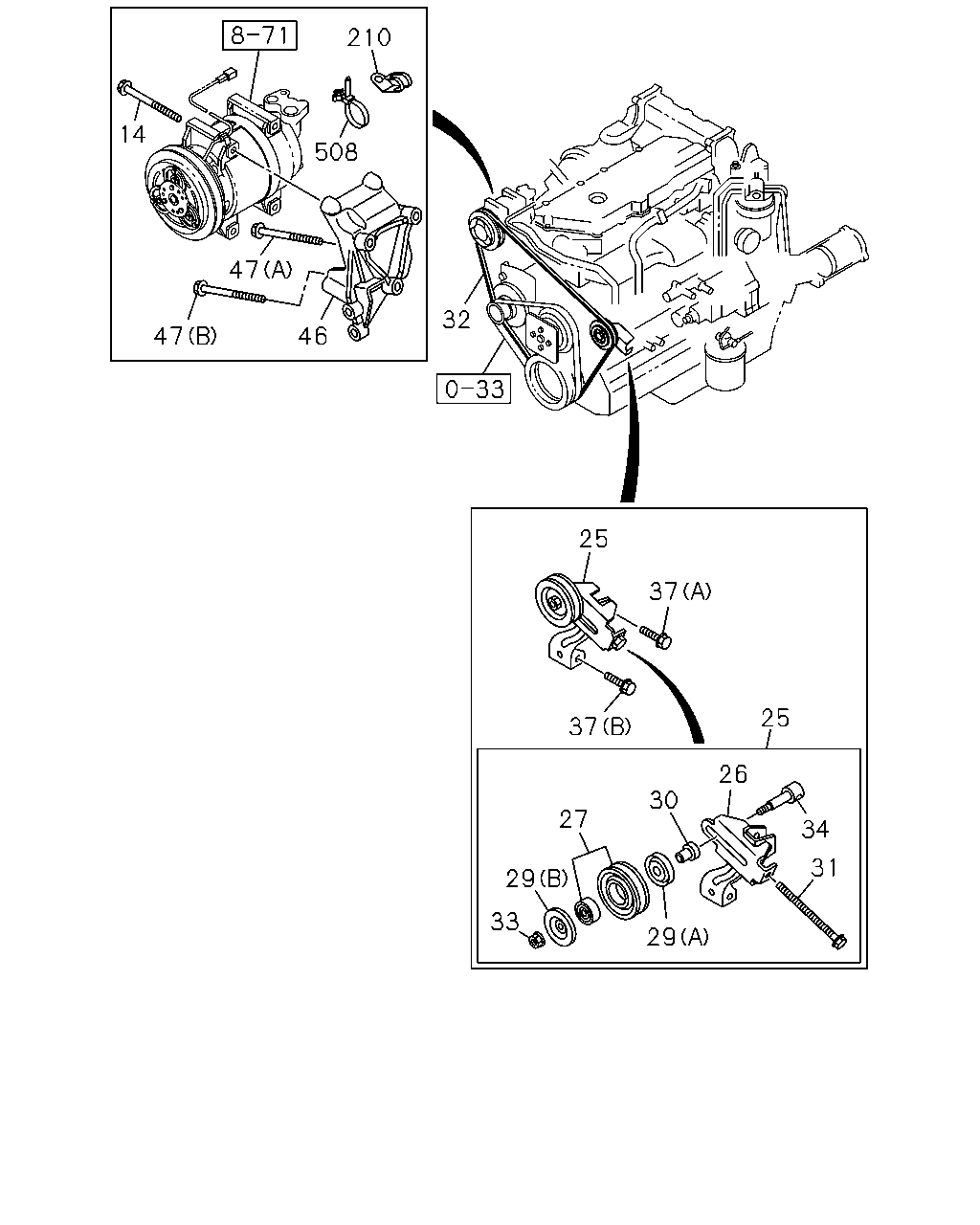

14
508
47
46
47
32
25
37
25
37
27
26
34
30
31
29
29
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE
0-28050-890-0
04
1
1307-
25
09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE
8-97161-198-1
01
1
1307-
26
09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97161-031-1
01
1
1307-
27
09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97386-869-0
01
1
1307-
29
09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B)
8-97384-114-0
01
1
1307-
29
09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A)
8-97384-115-0
01
1
1307-
30
09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-117-0
01
1
1307-
31
09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-113-0
01
1
1307-
32
01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1674
8-98010-841-1
01
1
1307-
33
09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-118-0
01
1
1307-
34
09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60)
8-97384-116-0
01
1
1307-
37
09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE
0-28050-850-0
01
1
1307-
37
09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE
8-94344-540-1
01
1
1307-
46
09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242
8-98006-515-3
01
1
1307-
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE
0-28151-090-0
02
1
1307-
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE
0-28156-012-0
01
1
1307-
210
09.242 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1307-
508
09.181 CLIP; HARNESS
02.559 L=170.3
1-09987-182-0
01
1
1307-
