◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#12525) — 1810 parça

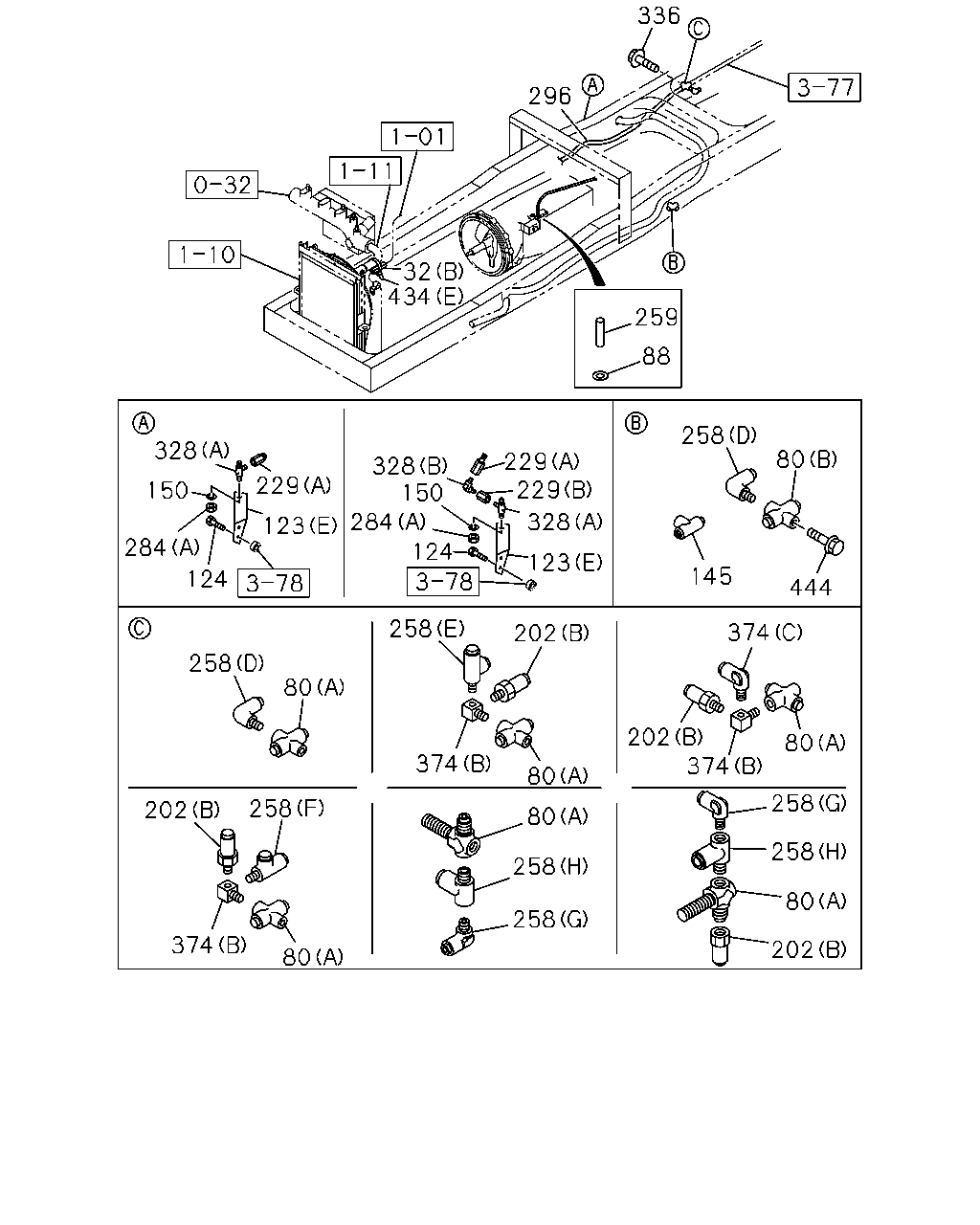

çizim 22817
336 296 259 88 32 434 328 150 284 124 123 229 328 229 229 328 123 124 284 150 258 80 145 444 374 80 374 202 258 258 80 202 258 258 80 80 374 202 258 258 80 258 202 374 80
BalonParca AdiParca NoAdetTipApplied Date A B
32 SLEEVE; RUBBER,AIR PIPE
PE-SERIES ENG<1A0> (B) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105-0105 ● ●
32 SLEEVE; RUBBER,AIR PIPE
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105-0105 ● ●
32 SLEEVE; RUBBER,AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105 ● ●
80 UNION; 3 WAY
ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-0105 ● ●
80 UNION; 3 WAY
ZF M/T<X9E> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0108 ● ●
80 UNION; 3 WAY
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0108 ● ●
80 UNION; 3 WAY
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0108 ● ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0108 ● ●
80 UNION; 3 WAY
ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0108 ● ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ● ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ● ●
80 UNION; 3 WAY
ZF M/T<X9E> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ● ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ● ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ● ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0109-0110 ●
80 UNION; 3 WAY
ZF M/T<X9E> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ● ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ● ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ● ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ● ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0111- ●
88 GASKET; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=11 OD=18 		9-09572-510-0 01 1 0105- ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 01 1 0109-0512 ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
124 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512 ● ●
124 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
124 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
124 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0108 ● ●
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0512 ● ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0109-0512 ●
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
145 UNION; NYLON TUBE
ZF M/T<X9E> 		1-09661-133-0 01 1 0106- ● ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105- ● ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105- ● ●
150 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> ID=12.2 		9-09150-512-0 02 1 0105- ● ●
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-0211 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0212-0305 ● ●
202 ADAPTER
CHINA GB VAR1<JAC> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0212-0305 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-0401 ● ●
202 ADAPTER
CHINA GB VAR1<JAC> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-0401 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0402- ● ●
202 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0402- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (A) 		1-09660-879-0 01 1 0105- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0108 ● ●
202 ADAPTER
ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0109- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0109- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105- ● ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105- ● ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0108 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ISUZU M/T<X9A> L=175 		1-09707-178-0 01 1 0109- ● ●
284 NUT; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (B) M12 		9-09840-280-0 01 1 0109- ●
284 NUT; UNION
(A) M12 		9-99111-412-0 01 1 0105-0512 ● ●
284 NUT; UNION
(A) M12 		0-91111-512-0 01 1 0601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0105- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0512 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301- ● ●
328 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 0105-0108 ● ●
328 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 2WAY 		1-09654-059-2 01 1 0109- ● ●
328 UNION; AIR PIPE
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 0109- ●
328 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ● ●
328 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ●
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512 ● ●
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
374 CONNECTOR
ZF M/T<X9E> (B) 		1-09656-420-2 01 1 0109- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0108 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0109-0404 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405- ● ●
374 CONNECTOR
ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
374 CONNECTOR
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) 		1-09654-203-1 01 1 0105- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (F) ID=17 		1-09987-105-1 01 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (G) 		8-94297-486-0 01 1 0110- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 05 1 0105-0108 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 06 1 0109-0205 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 07 1 0206- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108- ● ●
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-0109 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (B) ID=10 & 10 		1-09709-221-0 01 1 0110- ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105 ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) D=24 L=21 		1-09700-380-0 01 1 0105- ● ●
434 CLIP
6WF1 TC-C(1B8) (D) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0105 ● ●
434 CLIP
6WF1 TC-C(1B8) (D) D=24 L=21 		1-09700-380-0 02 1 0105- ● ●
444 BOLT; UNION
ZF M/T<X9E> M8X25 FLANGE 		0-28080-825-0 01 1 0105-0512 ● ●
444 BOLT; UNION
ZF M/T<X9E> M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●

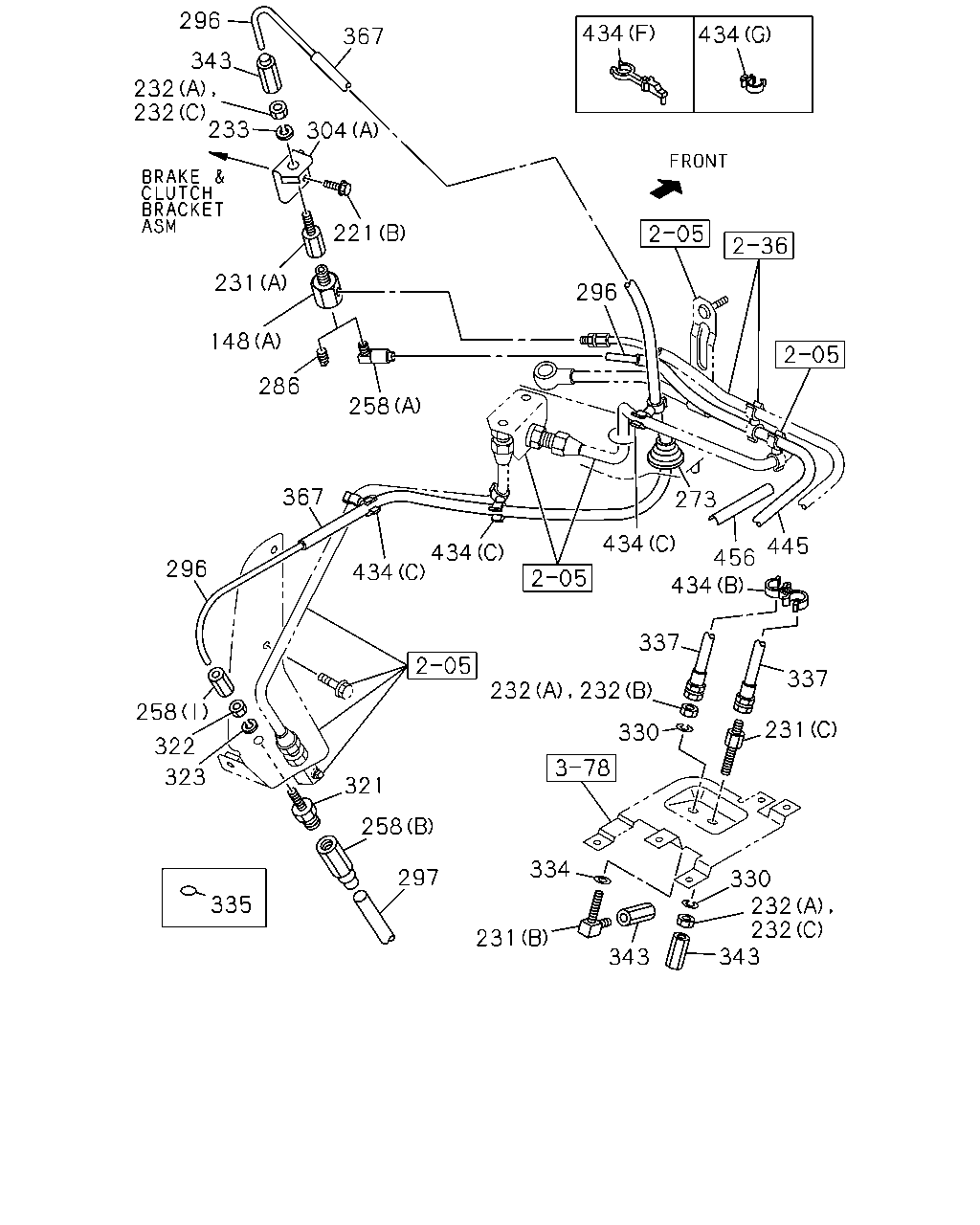

çizim 23258
434 434 367 296 343 232 232 304 233 221 231 148 286 258 367 296 434 434 434 273 445 456 434 337 231 330 232 232 321 258 297 334 231 343 343 232 232 330 337 296 323 322 258 335
BalonParca AdiParca NoAdetTipApplied Date A B

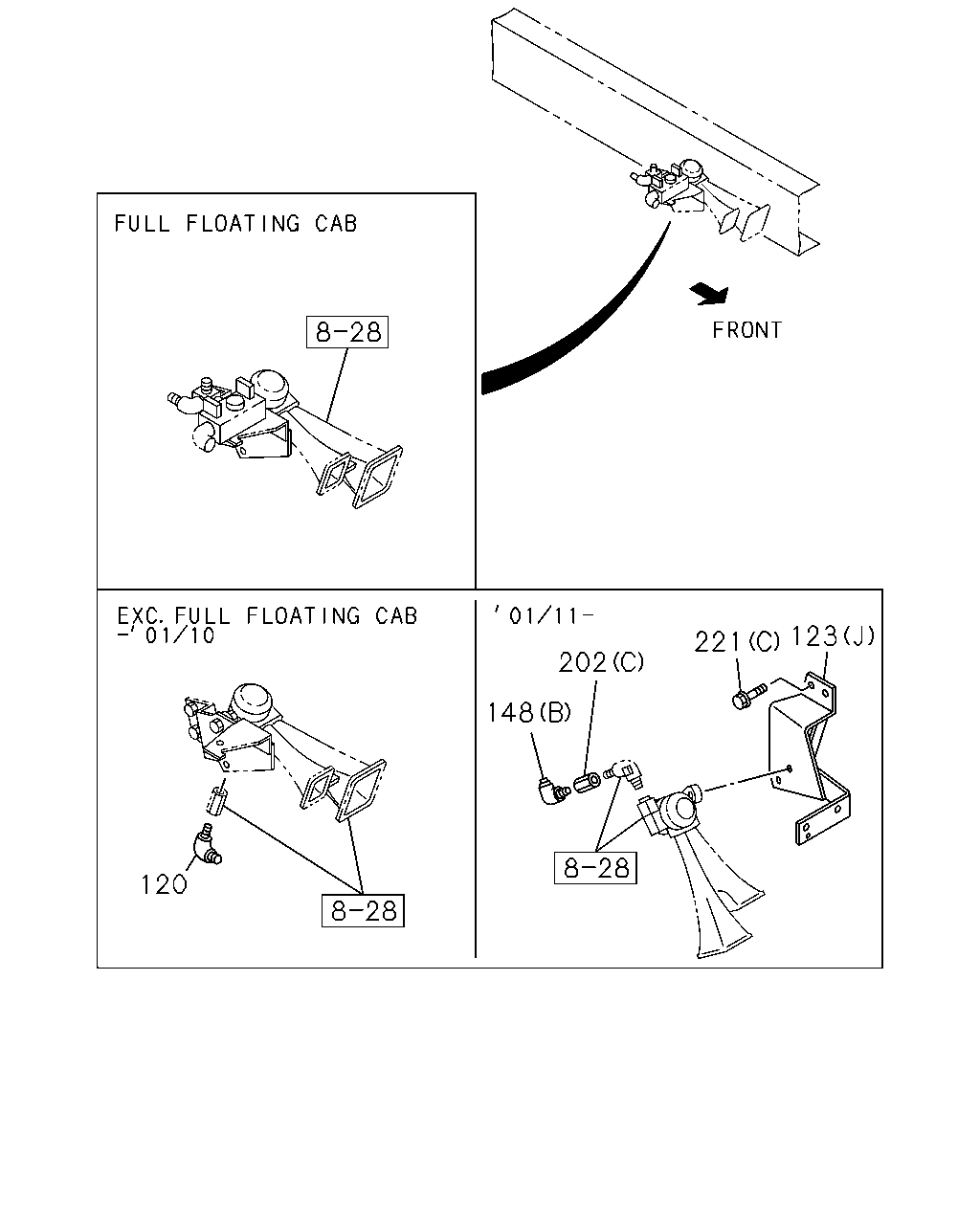

148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111-0211 ● ●
148 CONNECTOR; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0212-0401 ● ●
148 CONNECTOR; UNION
CHINA GB VAR1<JAC> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0212-0401 ● ●
148 CONNECTOR; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0402- ● ●
148 CONNECTOR; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0402- ● ●
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		8-94338-417-0 01 1 0105- ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512 ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0109 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0110-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0106 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
231 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-347-0 01 1 0110- ● ●
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0105-0109 ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 ELBOW 		1-09654-186-2 01 1 0110- ● ●
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0105-0109 ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT 		1-09654-361-0 01 1 0110- ● ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-0109 ● ●
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-0109 ● ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0110- ● ●
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A) 		1-09656-713-2 01 1 0110- ● ●
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 02 1 0105-0109 ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 H=8 		1-09400-029-0 02 1 0110-0312 ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 		9-09110-410-0 01 1 0401-0512 ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 		0-91110-510-0 01 1 0601- ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0109 ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0109 ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0110-0312 ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A) M10 H=8 		1-09400-029-0 01 1 0110-0312 ● ●
232 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) M10 H=8 		1-09400-029-0 01 1 0110-0312 ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8 		1-09400-029-0 01 1 0401- ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C) M10 H=8 		1-09400-029-0 01 1 0401- ● ●
232 NUT; UNION,AIR PIPE
(C) M10 H=8 		1-09400-029-0 01 1 0401- ● ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0109 ● ●
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0109 ● ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0110- ● ●
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0110- ● ●
233 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0108 ● ●
273 GROMMET
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-0109 ● ●
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-0109 ● ●
273 GROMMET
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0110- ● ●
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> 		1-09332-102-0 01 1 0110- ● ●
273 GROMMET
EXC. DUAL AIR GAUGE<UG2> 		1-09332-102-0 01 1 0110- ● ●
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0105- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0512 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-0109 ● ●
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-0109 ● ●
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0110- ● ●
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M12 L=66.5 		9-09223-306-1 01 1 0110- ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M12 L=66.5 		9-09223-306-1 01 1 0110- ● ●
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302- ● ●
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 0302- ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 0302- ● ●
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0105-0301 ● ●
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 0105-0301 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 0105-0301 ● ●
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0109 ● ●
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0109 ● ●
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0110- ● ●
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0110- ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0110- ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0105-0109 ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 0110- ● ●
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0105-0109 ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0110- ● ●
335 SEAL; UNION
ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-0109 ● ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0110- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 0110- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0105-0109 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 0110- ● ●
343 UNION; NYLON TUBE 1-09660-796-0 02 1 0105-0109 ● ●
343 UNION; NYLON TUBE
DUAL AIR GAUGE<UG2> 		1-09660-796-1 02 1 0110- ● ●
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-0 01 1 0105-0109 ● ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-0 01 1 0105-0109 ● ●
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0110- ● ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> 		1-09660-796-1 01 1 0110- ● ●
343 UNION; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> 		1-09660-796-1 01 1 0110- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87410-089-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-0512 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0601- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (F) ID=17 		1-09987-105-1 01 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (G) 		8-94297-486-0 01 1 0110- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 05 1 0105-0108 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 06 1 0109-0205 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 07 1 0206- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108- ● ●
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-0109 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (B) ID=10 & 10 		1-09709-221-0 01 1 0110- ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105 ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) D=24 L=21 		1-09700-380-0 01 1 0105- ● ●
434 CLIP
6WF1 TC-C(1B8) (D) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0105 ● ●
434 CLIP
6WF1 TC-C(1B8) (D) D=24 L=21 		1-09700-380-0 02 1 0105- ● ●
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) L=800 		1-83129-031-1 01 1 0105- ● ●
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) L=800 		1-83129-031-1 01 1 0105- ● ●
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 0105- ● ●
çizim 23807
202 221 123 148 120
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111-0211 ● ●
148 CONNECTOR; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0212-0401 ● ●
148 CONNECTOR; UNION
CHINA GB VAR1<JAC> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0212-0401 ● ●
148 CONNECTOR; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0402- ● ●
148 CONNECTOR; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0402- ● ●
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		8-94338-417-0 01 1 0105- ● ●
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-0211 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0212-0305 ● ●
202 ADAPTER
CHINA GB VAR1<JAC> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0212-0305 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-0401 ● ●
202 ADAPTER
CHINA GB VAR1<JAC> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-0401 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0402- ● ●
202 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0402- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (A) 		1-09660-879-0 01 1 0105- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0108 ● ●
202 ADAPTER
ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0109- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0109- ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512 ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0109 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0110-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0106 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●

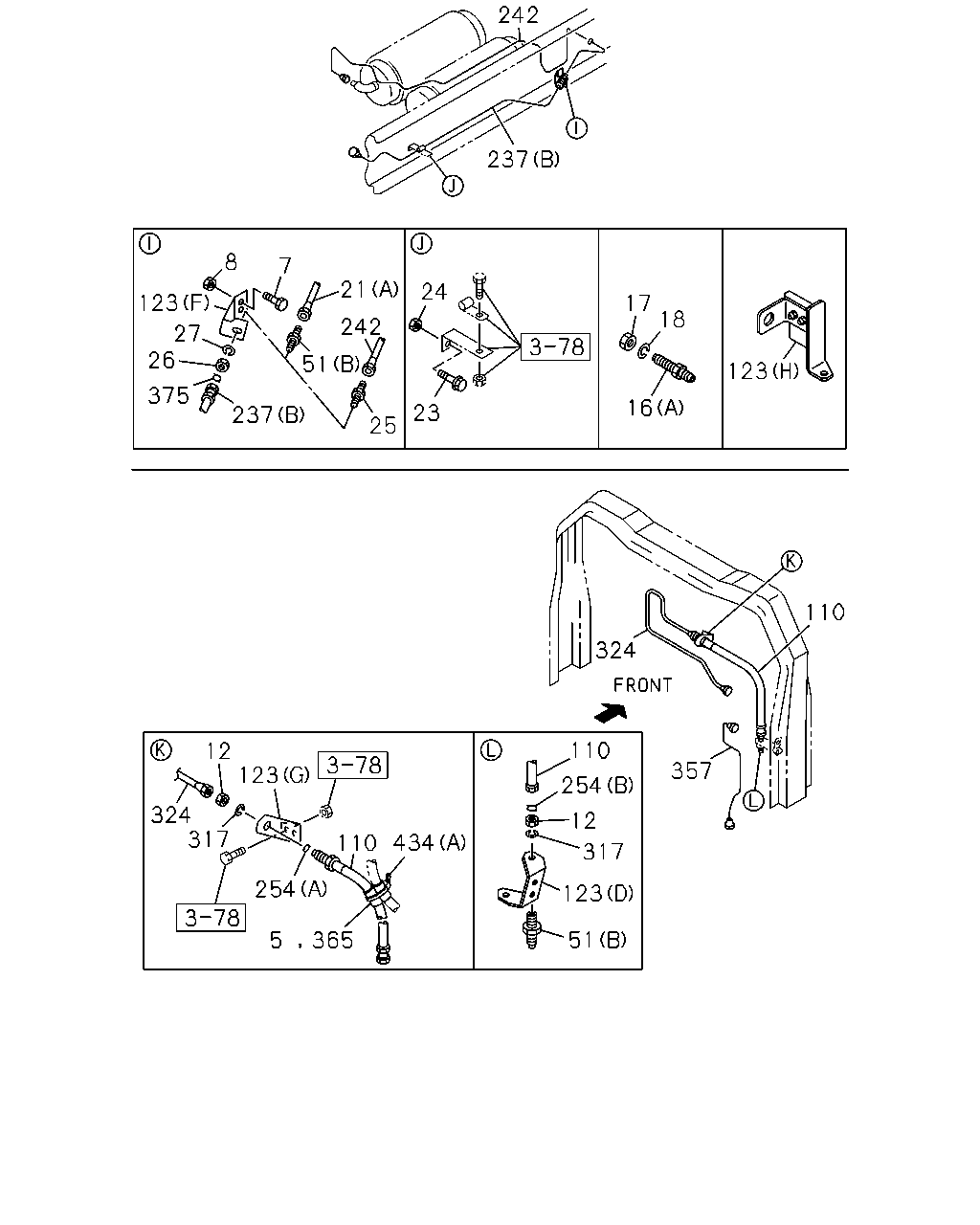

çizim 23911
123 18 17 16 24 23 25 51 242 21 7 8 123 26 27 375 237 242 237 324 110 357 254 12 110 317 123 51 365 5 254 434 110 123 12 324 317
BalonParca AdiParca NoAdetTipApplied Date A B
5 SLEEVE; FLEX HOSE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ●
12 NUT; UNION
PE-SERIES ENG<1A0> M12 		9-09840-280-0 01 1 0105- ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		9-99111-414-0 01 1 0105-0512 ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		0-91111-514-0 01 1 0601- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> W-SERIES ENG<1A2> (B) M22 		9-09233-015-1 01 1 0107- ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0105-0108 ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> (A) M22 		9-09233-315-1 01 1 0105-0108 ●
16 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0109-0109 ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0110- ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0110- ●
17 NUT; UNION
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0105-0108 ● ●
17 NUT; UNION
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> M22 		9-09111-422-0 01 1 0105-0108 ●
17 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0109-0109 ● ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0109-0109 ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0109-0109 ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0110-0512 ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0110-0512 ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		0-91111-522-0 01 1 0601- ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ●
18 WASHER; LK,UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
18 WASHER; LK,UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ●
18 WASHER; LK,UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> ID=14.2 		9-09150-514-0 01 1 0105- ● ●
18 WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-149-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-178-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-403-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49122-714-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-924-0 01 1 0105-0105 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-148-0 01 1 0106-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-177-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-402-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-49116-281-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49116-272-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-184-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-200-0 01 1 0107- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-183-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-199-0 01 1 0108- ● ●
23 BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512 ● ●
23 BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
23 BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M8X30 FLANGE 		0-28080-830-0 01 1 0105-0512 ●
23 BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M8X30 FLANGE 		0-28050-830-0 01 1 0601- ●
24 NUT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M8 		9-09110-508-0 01 1 0105-0512 ●
24 NUT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M8 		0-91110-508-0 01 1 0601- ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-042-1 01 1 0105-0410 ● ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-057-0 01 1 0411- ● ●
25 VALVE; CHECK
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-48410-138-2 01 1 0105- ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		9-09111-422-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		0-91111-522-0 01 1 0601- ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		0-91111-520-0 01 1 0601- ● ●
27 WASHER; LK,CHECK VLV
W-SERIES ENG<1A2> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
27 WASHER; LK,CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
51 UNION
AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
51 UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ●
51 UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) 		1-09654-173-1 01 1 0105- ●
110 HOSE; AIR
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> L=450 		0-07806-450-1 01 1 0105- ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-175-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-400-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-176-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-401-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-180-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-196-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-327-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-182-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-198-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-329-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-370-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=495 		1-49117-170-0 01 1 0105- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) L=751 		1-49116-511-0 01 1 0105- ●
242 PIPE; AIR,AIR TANK TO UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-49116-513-0 01 1 0105- ●
254 GASKET; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) ID=24.5 OD=32 		9-09571-424-0 02 1 0105- ●
254 GASKET; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) ID=11 OD=18 		9-09572-510-0 01 1 0105- ●
317 WASHER; LK,FLEX HOSE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 02 1 0105- ●
324 PIPE; AIR
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-974-0 01 1 0105- ●
357 PIPE; AIR,UNION TO UNION
10PE1S(60L),10PE1N(61L),10PE1H(68L) FIRE ENGINE PACKAGE<WS2> 		1-49116-515-0 01 1 0105- ●
365 SLEEVE; RUBBER,FLEX HOSE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=12.5 OD=15.5 L=30 		9-09714-002-0 01 1 0105- ●
375 GASKET
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=11 OD=18 		9-09572-510-0 01 1 0105- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (F) ID=17 		1-09987-105-1 01 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (G) 		8-94297-486-0 01 1 0110- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 05 1 0105-0108 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 06 1 0109-0205 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 07 1 0206- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108- ● ●
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-0109 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (B) ID=10 & 10 		1-09709-221-0 01 1 0110- ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105 ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) D=24 L=21 		1-09700-380-0 01 1 0105- ● ●
434 CLIP
6WF1 TC-C(1B8) (D) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0105 ● ●
434 CLIP
6WF1 TC-C(1B8) (D) D=24 L=21 		1-09700-380-0 02 1 0105- ● ●
çizim 77086
4 6 51 7 4 21 2 3 8 374 3 2 21 7 6 1 4 12 18 123 123 98 98 421 376 179 180 304 72 258 21 8 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0111-0211 ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=980 		1-09363-872-0 01 1 0105-0107 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-765-0 01 1 0108- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-893-0 01 1 0105-0109 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-897-0 01 1 0110- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=440 		0-07846-440-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=580 		0-07846-580-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=660 		1-09363-766-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=720 		1-09363-894-0 01 1 0106-0110 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0111-0211 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) L=1000 		1-09363-794-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1000 		1-09363-794-0 01 1 0106- ● ●
2 NUT; FLEX HOSE,AIR TANK
AIR DRYER<PS7> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
AIR DRYER<PS7> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
AIR DRYER<PS7> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
4 GASKET; FLEX HOSE
PE-SERIES ENG<1A0> ID=11 OD=18 		9-09572-510-0 03 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0105-0109 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0110- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 		1-47477-661-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (A) 		1-47477-232-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0105-0105 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0106-0109 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ●
12 NUT; UNION
PE-SERIES ENG<1A0> M12 		9-09840-280-0 01 1 0105- ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		9-99111-414-0 01 1 0105-0512 ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		0-91111-514-0 01 1 0601- ● ●
18 WASHER; LK,UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
18 WASHER; LK,UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ●
18 WASHER; LK,UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> ID=14.2 		9-09150-514-0 01 1 0105- ● ●
18 WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-149-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-178-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-403-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49122-714-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-924-0 01 1 0105-0105 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-148-0 01 1 0106-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-177-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-402-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-49116-281-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49116-272-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-184-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-200-0 01 1 0107- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-183-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-199-0 01 1 0108- ● ●
51 UNION
AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
51 UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ●
51 UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) 		1-09654-173-1 01 1 0105- ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-318-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-097-1 01 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (A) 		1-09654-097-1 01 1 0105- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=55 		1-47475-304-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (A) 		1-47477-840-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MJD7SM/T(Y2Y) PE-SERIES ENG<1A0> (A) 		1-47477-840-0 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) (E) L=50 		1-47475-299-2 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (E) L=50 		1-47475-299-2 01 1 0105- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (B) 		1-47477-902-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-47477-471-0 01 1 0105- ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		0-91111-522-0 01 1 0601- ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=12.2 		9-09150-512-0 01 1 0105- ● ●
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=22.5 		9-09150-522-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0108 ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
374 CONNECTOR
ZF M/T<X9E> (B) 		1-09656-420-2 01 1 0109- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0108 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0109-0404 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405- ● ●
374 CONNECTOR
ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
374 CONNECTOR
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) 		1-09654-203-1 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAG6 M/T<X9T> PE-SERIES ENG<1A0> L=685 		1-49112-569-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=519 		1-49118-232-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=778 		1-49112-564-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=643 		1-49112-568-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=476 		1-49112-572-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=639 		1-49112-566-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741 		1-49112-563-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> L=552 		1-49117-764-0 01 1 0105- ● ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
çizim 80169
262 217 217 287 184 184 193 55 55 98 186 185 124 224 12 180 72 177 296 296 32 345 304 428 377 175 296 296 175 202 291 150 345 177 215 214 217 262 248 249 428 247 177 213 123 124 200 123 124 150 284 328 184
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ●
12 NUT; UNION
PE-SERIES ENG<1A0> M12 		9-09840-280-0 01 1 0105- ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		9-99111-414-0 01 1 0105-0512 ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		0-91111-514-0 01 1 0601- ● ●
32 SLEEVE; RUBBER,AIR PIPE
PE-SERIES ENG<1A0> (B) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105-0105 ● ●
32 SLEEVE; RUBBER,AIR PIPE
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105-0105 ● ●
32 SLEEVE; RUBBER,AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105 ● ●
55 GASKET; AIR PIPE
PE-SERIES ENG<1A0> ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-318-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-097-1 01 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (A) 		1-09654-097-1 01 1 0105- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=55 		1-47475-304-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (A) 		1-47477-840-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MJD7SM/T(Y2Y) PE-SERIES ENG<1A0> (A) 		1-47477-840-0 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) (E) L=50 		1-47475-299-2 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (E) L=50 		1-47475-299-2 01 1 0105- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (B) 		1-47477-902-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-47477-471-0 01 1 0105- ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X20 FLANGE 		0-28680-820-0 01 1 0109-0512 ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
124 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512 ● ●
124 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
124 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
124 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0108 ● ●
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0512 ● ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28680-825-0 01 1 0109-0512 ●
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
124 BOLT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105- ● ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105- ● ●
150 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> ID=12.2 		9-09150-512-0 02 1 0105- ● ●
175 CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105- ● ●
175 CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0105- ● ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A) L=855 		1-49122-237-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (A) L=803 		1-49122-235-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=803 		1-49122-235-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-935-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (B) L=540 		1-49122-246-0 01 1 0105- ● ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=548 		1-49122-243-0 01 1 0105- ● ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (B) L=548 		1-49122-243-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=12.2 		9-09150-512-0 01 1 0105- ● ●
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=22.5 		9-09150-522-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
184 HOSE; FLEX,AIR GOV
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (A) L=350 		1-09363-877-0 01 1 0109- ●
184 HOSE; FLEX,AIR GOV
PE-SERIES ENG<1A0> (B) L=370 		0-07532-370-1 01 1 0105- ● ●
184 HOSE; FLEX,AIR GOV
6WF1 TC-C(1B8) (A) L=780 		1-09363-620-0 01 1 0105-0108 ● ●
184 HOSE; FLEX,AIR GOV
6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (A) L=780 		1-09363-620-0 01 1 0109- ● ●
185 NUT; FLEX HOSE,AIR GOV
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M12 		9-09840-280-0 01 1 0105- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=12.2 		9-09150-512-0 01 1 0105- ● ●
193 BOLT; EYE,FLEX HOSE,GOV LINE
PE-SERIES ENG<1A0> M14X27 FLANGE 		1-09675-086-0 01 1 0105- ● ●
200 NUT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 02 1 0109-0602 ●
200 NUT; BRKT
6WF1 TC-C(1B8) MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-0211 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0212-0305 ● ●
202 ADAPTER
CHINA GB VAR1<JAC> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0212-0305 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-0401 ● ●
202 ADAPTER
CHINA GB VAR1<JAC> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-0401 ● ●
202 ADAPTER
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0402- ● ●
202 ADAPTER
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0402- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (A) 		1-09660-879-0 01 1 0105- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0108 ● ●
202 ADAPTER
ZF M/T<X9E> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0109- ● ●
202 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0109- ● ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) PE-SERIES ENG<1A0> M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) W-SERIES ENG<1A2> M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0105- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0105- ● ●
217 PIPE; VAC,UNION TO MAG VLV
PE-SERIES ENG<1A0> (A) L=620 		1-49121-778-0 01 1 0105- ● ●
217 PIPE; VAC,UNION TO MAG VLV
PE-SERIES ENG<1A0> (B) L=552 		1-49121-876-0 01 1 0105- ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
PE-SERIES ENG<1A0> L=494 SERVICED BY L=500 		1-47428-807-0 01 1 0105- ● ●
247 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40 		9-09223-006-1 01 1 0105- ● ●
247 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 		1-09654-087-1 01 1 0105- ● ●
247 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12 L=66.5 		9-09223-306-1 01 1 0105-0108 ● ●
247 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12 L=66.5 		9-09223-306-1 01 1 0109- ● ●
247 UNION; AIR PIPE
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (B) M12 L=66.5 		9-09223-306-1 01 1 0109- ●
247 UNION; AIR PIPE
6WF1 TC-C(1B8) (B) M12 ELBOW 		9-09225-206-1 01 1 0105-0108 ● ●
247 UNION; AIR PIPE
6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (B) M12 ELBOW 		9-09225-206-1 01 1 0109- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0105- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0105- ● ●
262 PIPE; AIR,UNION TO FLEX
6WF1 TC-C(1B8) MIXER TRUCK<RA2> 		1-49123-307-0 01 1 0109-0110 ●
262 PIPE; AIR,UNION TO FLEX
6WF1 TC-C(1B8) MIXER TRUCK<RA2> 		1-49123-376-0 01 1 0111- ●
262 PIPE; AIR,UNION TO FLEX
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=896 		1-49121-787-0 01 1 0105- ● ●
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> 		1-49121-783-0 01 1 0105- ● ●
284 NUT; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (B) M12 		9-09840-280-0 01 1 0109- ●
284 NUT; UNION
(A) M12 		9-99111-412-0 01 1 0105-0512 ● ●
284 NUT; UNION
(A) M12 		0-91111-512-0 01 1 0601- ● ●
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) CAB UP +110MM<TGG> 		1-49122-364-0 01 1 0105-0202 ● ●
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) CAB UP +110MM<TGG> L=1314 SERVICED BY L=1370 		1-47428-818-0 01 1 0203- ● ●
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> L=1220 		1-49121-788-0 01 1 0105- ● ●
287 PIPE; AIR,MAG VLV
6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> 		1-49122-365-0 01 1 0105-0202 ● ●
287 PIPE; AIR,MAG VLV
6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203- ● ●
291 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0105- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0512 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301- ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
328 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 0105-0108 ● ●
328 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 2WAY 		1-09654-059-2 01 1 0109- ● ●
328 UNION; AIR PIPE
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 0109- ●
328 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ● ●
328 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ●
345 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) M12 2WAY 		1-09654-257-1 01 1 0105- ●
345 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
345 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (A) M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
345 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (A) M12 ELBOW 		9-09225-206-1 01 1 0105- ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
377 BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M12X16 		0-28181-216-0 01 1 0105-0512 ● ●
377 BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M12X16 		0-28151-216-0 01 1 0601- ● ●
428 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
428 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
çizim 80783
367 296 296 296 367 367 296 296 21 21 21 171 163 34 92 434 201 98 163 114 92 403 177 176 153 156 166 98 23 163 247 98
BalonParca AdiParca NoAdetTipApplied Date A B
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-149-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-178-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-403-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49122-714-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-924-0 01 1 0105-0105 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-148-0 01 1 0106-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-177-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-402-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-49116-281-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49116-272-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-184-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-200-0 01 1 0107- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-183-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-199-0 01 1 0108- ● ●
23 BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512 ● ●
23 BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
23 BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M8X30 FLANGE 		0-28080-830-0 01 1 0105-0512 ●
23 BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M8X30 FLANGE 		0-28050-830-0 01 1 0601- ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> L=1065 		1-49121-551-0 01 1 0105-0106 ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1065 		1-49121-551-0 01 1 0107- ● ●
92 PIPE; AIR,AIR TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=541 		1-47492-107-0 01 1 0105- ● ●
92 PIPE; AIR,AIR TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 		1-49122-521-0 01 1 0105- ● ●
92 PIPE; AIR,AIR TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) L=1509 		1-49116-233-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=55 		1-47475-304-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (A) 		1-47477-840-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MJD7SM/T(Y2Y) PE-SERIES ENG<1A0> (A) 		1-47477-840-0 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) (E) L=50 		1-47475-299-2 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (E) L=50 		1-47475-299-2 01 1 0105- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (B) 		1-47477-902-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-47477-471-0 01 1 0105- ● ●
114 PIPE; AIR,UNION TO AIR MASTER
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> 		1-49122-520-0 01 1 0105- ● ●
114 PIPE; AIR,UNION TO AIR MASTER
POWER BRAKE LOCK SYSTEM(J50) W-SERIES ENG<1A2> 		1-49121-628-0 01 1 0105- ● ●
153 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1007 		1-49122-280-0 01 1 0105- ● ●
156 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40 		9-09223-006-1 01 1 0105- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) L=75 		1-47478-323-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 01 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 03 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=50 		1-47475-299-2 02 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-47479-290-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0110- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0110- ● ●
166 PIPE; AIR,UNION TO GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=464 		1-49119-765-0 01 1 0105- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=667 		1-49119-766-0 01 1 0105- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1138 		1-49117-410-0 01 1 0105- ● ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A) L=855 		1-49122-237-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (A) L=803 		1-49122-235-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=803 		1-49122-235-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-935-0 01 1 0105- ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (B) L=540 		1-49122-246-0 01 1 0105- ● ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=548 		1-49122-243-0 01 1 0105- ● ●
177 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (B) L=548 		1-49122-243-0 01 1 0105- ● ●
201 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=15 OD=19 L=50 		1-09337-014-0 04 1 0105-0108 ● ●
201 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=15 OD=19 L=50 		1-09337-014-0 05 1 0109- ● ●
247 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40 		9-09223-006-1 01 1 0105- ● ●
247 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 		1-09654-087-1 01 1 0105- ● ●
247 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12 L=66.5 		9-09223-306-1 01 1 0105-0108 ● ●
247 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12 L=66.5 		9-09223-306-1 01 1 0109- ● ●
247 UNION; AIR PIPE
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (B) M12 L=66.5 		9-09223-306-1 01 1 0109- ●
247 UNION; AIR PIPE
6WF1 TC-C(1B8) (B) M12 ELBOW 		9-09225-206-1 01 1 0105-0108 ● ●
247 UNION; AIR PIPE
6WF1 TC-C(1B8) EXC. MIXER TRUCK<RA2> (B) M12 ELBOW 		9-09225-206-1 01 1 0109- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0105- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0512 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87410-089-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0105- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-0512 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0601- ● ●
403 PIPE; AIR,AIR TANK TO MAG VLV
POWER BRAKE LOCK SYSTEM(J50) 		1-49121-627-0 01 1 0105-0105 ● ●
403 PIPE; AIR,AIR TANK TO MAG VLV
POWER BRAKE LOCK SYSTEM(J50) 		1-49123-192-0 01 1 0106- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (F) ID=17 		1-09987-105-1 01 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (G) 		8-94297-486-0 01 1 0110- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 05 1 0105-0108 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 06 1 0109-0205 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 07 1 0206- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108- ● ●
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-0109 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (B) ID=10 & 10 		1-09709-221-0 01 1 0110- ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105 ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) D=24 L=21 		1-09700-380-0 01 1 0105- ● ●
434 CLIP
6WF1 TC-C(1B8) (D) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0105 ● ●
434 CLIP
6WF1 TC-C(1B8) (D) D=24 L=21 		1-09700-380-0 02 1 0105- ● ●
çizim 80919
237 7 52 21 26 27 6 25 1 434 435 436 149 72 179 180 1 421 304 237 21 52 16 16 1 21 258 163
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0111-0211 ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=980 		1-09363-872-0 01 1 0105-0107 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-765-0 01 1 0108- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-893-0 01 1 0105-0109 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-897-0 01 1 0110- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=440 		0-07846-440-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=580 		0-07846-580-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=660 		1-09363-766-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=720 		1-09363-894-0 01 1 0106-0110 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0111-0211 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) L=1000 		1-09363-794-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1000 		1-09363-794-0 01 1 0106- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0105-0109 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0110- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 		1-47477-661-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (A) 		1-47477-232-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0105-0105 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0106-0109 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> W-SERIES ENG<1A2> (B) M22 		9-09233-015-1 01 1 0107- ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0105-0108 ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> (A) M22 		9-09233-315-1 01 1 0105-0108 ●
16 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0109-0109 ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0110- ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0110- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-149-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-178-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-403-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49122-714-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-924-0 01 1 0105-0105 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-148-0 01 1 0106-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-177-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-402-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-49116-281-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49116-272-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-184-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-200-0 01 1 0107- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-183-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-199-0 01 1 0108- ● ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-042-1 01 1 0105-0410 ● ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-057-0 01 1 0411- ● ●
25 VALVE; CHECK
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-48410-138-2 01 1 0105- ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		9-09111-422-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		0-91111-522-0 01 1 0601- ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		0-91111-520-0 01 1 0601- ● ●
27 WASHER; LK,CHECK VLV
W-SERIES ENG<1A2> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
27 WASHER; LK,CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
52 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49122-928-0 01 1 0105-0111 ● ●
52 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> 		1-49122-928-0 01 1 0105-0111 ●
52 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49122-928-0 01 1 0105-0111 ●
52 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49123-372-0 01 1 0112- ● ●
52 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> 		1-49123-372-0 01 1 0112- ●
52 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49123-372-0 01 1 0112- ●
52 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49122-927-0 01 1 0105-0111 ● ●
52 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49122-927-0 01 1 0105-0111 ●
52 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49123-371-0 01 1 0112- ● ●
52 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. AIR DRYER<PS7> 		1-49123-371-0 01 1 0112- ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-318-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-097-1 01 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (A) 		1-09654-097-1 01 1 0105- ● ●
149 BOLT; TUBE CLIP
ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512 ● ●
149 BOLT; TUBE CLIP
ZF M/T<X9E> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) L=75 		1-47478-323-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 01 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 03 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=50 		1-47475-299-2 02 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-47479-290-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0110- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0110- ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		0-91111-522-0 01 1 0601- ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=12.2 		9-09150-512-0 01 1 0105- ● ●
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=22.5 		9-09150-522-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-175-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-400-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-176-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-401-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-180-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-196-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-327-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-182-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-198-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-329-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-370-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=495 		1-49117-170-0 01 1 0105- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) L=751 		1-49116-511-0 01 1 0105- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0108 ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (F) ID=17 		1-09987-105-1 01 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (G) 		8-94297-486-0 01 1 0110- ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 05 1 0105-0108 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 06 1 0109-0205 ● ●
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250 		1-09707-126-0 07 1 0206- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108- ● ●
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-0109 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (B) ID=10 & 10 		1-09709-221-0 01 1 0110- ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=300 		1-09707-001-1 01 1 0105-0504 ● ●
434 CLIP
PE-SERIES ENG<1A0> (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (E) L=350 		1-09707-183-0 01 1 0505- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0110- ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0109 ● ●
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0110- ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105 ● ●
434 CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (D) D=24 L=21 		1-09700-380-0 01 1 0105- ● ●
434 CLIP
6WF1 TC-C(1B8) (D) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0105 ● ●
434 CLIP
6WF1 TC-C(1B8) (D) D=24 L=21 		1-09700-380-0 02 1 0105- ● ●
435 BOLT; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105 ● ●
435 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0105 ● ●
436 NUT; CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0105-0107 ● ●
436 NUT; CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0108-0602 ● ●
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-0602 ● ●
436 NUT; CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8 FLANGE 		0-91150-108-0 01 1 0105-0107 ● ●
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0108-0602 ● ●
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
çizim 80949
16 17 33 8 237 7 6 25 27 26 1 4 12 18 123 98 98 123 376 179 180 374 304 72 421 258 33 221 35 163
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0111-0211 ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=980 		1-09363-872-0 01 1 0105-0107 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-765-0 01 1 0108- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-893-0 01 1 0105-0109 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-897-0 01 1 0110- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=440 		0-07846-440-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=580 		0-07846-580-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=660 		1-09363-766-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=720 		1-09363-894-0 01 1 0106-0110 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0111-0211 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) L=1000 		1-09363-794-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1000 		1-09363-794-0 01 1 0106- ● ●
4 GASKET; FLEX HOSE
PE-SERIES ENG<1A0> ID=11 OD=18 		9-09572-510-0 03 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0105-0109 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0110- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 		1-47477-661-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (A) 		1-47477-232-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0105-0105 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0106-0109 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ●
12 NUT; UNION
PE-SERIES ENG<1A0> M12 		9-09840-280-0 01 1 0105- ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		9-99111-414-0 01 1 0105-0512 ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		0-91111-514-0 01 1 0601- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> W-SERIES ENG<1A2> (B) M22 		9-09233-015-1 01 1 0107- ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0105-0108 ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> (A) M22 		9-09233-315-1 01 1 0105-0108 ●
16 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0109-0109 ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0110- ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0110- ●
17 NUT; UNION
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0105-0108 ● ●
17 NUT; UNION
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> M22 		9-09111-422-0 01 1 0105-0108 ●
17 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0109-0109 ● ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0109-0109 ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0109-0109 ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0110-0512 ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0110-0512 ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		0-91111-522-0 01 1 0601- ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ●
18 WASHER; LK,UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
18 WASHER; LK,UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ●
18 WASHER; LK,UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> ID=14.2 		9-09150-514-0 01 1 0105- ● ●
18 WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-042-1 01 1 0105-0410 ● ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-057-0 01 1 0411- ● ●
25 VALVE; CHECK
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-48410-138-2 01 1 0105- ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		9-09111-422-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		0-91111-522-0 01 1 0601- ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		0-91111-520-0 01 1 0601- ● ●
27 WASHER; LK,CHECK VLV
W-SERIES ENG<1A2> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
27 WASHER; LK,CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. AIR DRYER<PS7> 		1-49123-436-0 01 1 0204- ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49123-435-0 01 1 0204- ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0107-0109 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0110-0602 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-318-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-097-1 01 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (A) 		1-09654-097-1 01 1 0105- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=55 		1-47475-304-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (A) 		1-47477-840-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MJD7SM/T(Y2Y) PE-SERIES ENG<1A0> (A) 		1-47477-840-0 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) (E) L=50 		1-47475-299-2 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (E) L=50 		1-47475-299-2 01 1 0105- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (B) 		1-47477-902-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-47477-471-0 01 1 0105- ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) L=75 		1-47478-323-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 01 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 03 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=50 		1-47475-299-2 02 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-47479-290-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0110- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0110- ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		0-91111-522-0 01 1 0601- ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=12.2 		9-09150-512-0 01 1 0105- ● ●
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=22.5 		9-09150-522-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512 ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0109 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0110-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0106 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-175-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-400-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-176-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-401-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-180-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-196-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-327-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-182-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-198-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-329-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-370-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=495 		1-49117-170-0 01 1 0105- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) L=751 		1-49116-511-0 01 1 0105- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-0109 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (I) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0110- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0105-0110 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0111- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-0108 ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0110 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0111- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0108 ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
374 CONNECTOR
ZF M/T<X9E> (B) 		1-09656-420-2 01 1 0109- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0108 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0109-0404 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405- ● ●
374 CONNECTOR
ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
374 CONNECTOR
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) 		1-09654-203-1 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAG6 M/T<X9T> PE-SERIES ENG<1A0> L=685 		1-49112-569-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=519 		1-49118-232-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=778 		1-49112-564-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=643 		1-49112-568-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=476 		1-49112-572-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=639 		1-49112-566-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741 		1-49112-563-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> L=552 		1-49117-764-0 01 1 0105- ● ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
çizim 81361
4 6 51 7 4 2 3 21 8 51 7 6 1 4 2 3 21 374 377 123 421 98 72 304 180 179 12 18 376 8 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0111-0211 ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=980 		1-09363-872-0 01 1 0105-0107 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-765-0 01 1 0108- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-893-0 01 1 0105-0109 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-897-0 01 1 0110- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=440 		0-07846-440-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=580 		0-07846-580-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=660 		1-09363-766-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=720 		1-09363-894-0 01 1 0106-0110 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0111-0211 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) L=1000 		1-09363-794-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1000 		1-09363-794-0 01 1 0106- ● ●
2 NUT; FLEX HOSE,AIR TANK
AIR DRYER<PS7> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
AIR DRYER<PS7> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
AIR DRYER<PS7> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
4 GASKET; FLEX HOSE
PE-SERIES ENG<1A0> ID=11 OD=18 		9-09572-510-0 03 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0105-0109 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0110- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 		1-47477-661-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (A) 		1-47477-232-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0105-0105 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0106-0109 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ●
12 NUT; UNION
PE-SERIES ENG<1A0> M12 		9-09840-280-0 01 1 0105- ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		9-99111-414-0 01 1 0105-0512 ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		0-91111-514-0 01 1 0601- ● ●
18 WASHER; LK,UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
18 WASHER; LK,UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ●
18 WASHER; LK,UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> ID=14.2 		9-09150-514-0 01 1 0105- ● ●
18 WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-149-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-178-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-403-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49122-714-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-924-0 01 1 0105-0105 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-49123-148-0 01 1 0106-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-177-0 01 1 0107-0112 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-402-0 01 1 0201- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-49116-281-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) 		1-49116-272-0 01 1 0105- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) 		1-49122-926-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-184-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-200-0 01 1 0107- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) 		1-49122-925-0 01 1 0105-0106 ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-183-0 01 1 0107-0107 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-199-0 01 1 0108- ● ●
51 UNION
AIR DRYER<PS7> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
51 UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ●
51 UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) 		1-09654-173-1 01 1 0105- ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-318-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-097-1 01 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (A) 		1-09654-097-1 01 1 0105- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=55 		1-47475-304-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (A) 		1-47477-840-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MJD7SM/T(Y2Y) PE-SERIES ENG<1A0> (A) 		1-47477-840-0 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) (E) L=50 		1-47475-299-2 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (E) L=50 		1-47475-299-2 01 1 0105- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (B) 		1-47477-902-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-47477-471-0 01 1 0105- ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		0-91111-522-0 01 1 0601- ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=12.2 		9-09150-512-0 01 1 0105- ● ●
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=22.5 		9-09150-522-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
374 CONNECTOR
ZF M/T<X9E> (B) 		1-09656-420-2 01 1 0109- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0108 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0109-0404 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405- ● ●
374 CONNECTOR
ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
374 CONNECTOR
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) 		1-09654-203-1 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAG6 M/T<X9T> PE-SERIES ENG<1A0> L=685 		1-49112-569-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=519 		1-49118-232-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=778 		1-49112-564-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=643 		1-49112-568-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=476 		1-49112-572-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=639 		1-49112-566-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741 		1-49112-563-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> L=552 		1-49117-764-0 01 1 0105- ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
377 BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M12X16 		0-28181-216-0 01 1 0105-0512 ● ●
377 BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M12X16 		0-28151-216-0 01 1 0601- ● ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
çizim 81616
7 6 237 16 17 33 8 25 27 26 18 12 376 179 180 304 72 421 123 374 4 1 377 98 221 33 35 163
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0111-0211 ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=660 		1-09363-766-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=980 		1-09363-872-0 01 1 0105-0107 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-765-0 01 1 0108- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-893-0 01 1 0105-0109 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-897-0 01 1 0110- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=440 		0-07846-440-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=580 		0-07846-580-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MAL5 M/T<X9F> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=530 		0-07846-530-1 01 1 0105- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=660 		1-09363-766-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=720 		1-09363-894-0 01 1 0106-0110 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0111-0211 ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=720 		1-09363-894-0 01 1 0212- ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) L=1000 		1-09363-794-0 01 1 0105-0105 ● ●
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1000 		1-09363-794-0 01 1 0106- ● ●
4 GASKET; FLEX HOSE
PE-SERIES ENG<1A0> ID=11 OD=18 		9-09572-510-0 03 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0105-0109 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-719-1 01 1 0110- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 		1-47477-661-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (A) 		1-47477-232-0 01 1 0105- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0105-0105 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> (C) 		1-47478-720-0 01 1 0106-0109 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		9-99111-420-0 01 1 0105-0512 ●
12 NUT; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ● ●
12 NUT; UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M20 		0-91111-520-0 01 1 0601- ●
12 NUT; UNION
PE-SERIES ENG<1A0> M12 		9-09840-280-0 01 1 0105- ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		9-99111-414-0 01 1 0105-0512 ● ●
12 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M14 		0-91111-514-0 01 1 0601- ● ●
16 UNION; AIR PIPE
AIR DRYER<PS7> W-SERIES ENG<1A2> (B) M22 		9-09233-015-1 01 1 0107- ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0105-0108 ● ●
16 UNION; AIR PIPE
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> (A) M22 		9-09233-315-1 01 1 0105-0108 ●
16 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0109-0109 ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0109-0109 ●
16 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 		9-09233-315-1 01 1 0110- ● ●
16 UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (A) M22 		9-09233-315-1 01 1 0110- ●
17 NUT; UNION
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0105-0108 ● ●
17 NUT; UNION
PE-SERIES ENG<1A0> FIRE ENGINE PACKAGE<WS2> M22 		9-09111-422-0 01 1 0105-0108 ●
17 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0109-0109 ● ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0109-0109 ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0109-0109 ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 0110-0512 ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0110-0512 ●
17 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		0-91111-522-0 01 1 0601- ● ●
17 NUT; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ●
18 WASHER; LK,UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
18 WASHER; LK,UNION
AIR DRYER<PS7> FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=20.2 		9-09150-520-0 01 1 0105- ●
18 WASHER; LK,UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> ID=14.2 		9-09150-514-0 01 1 0105- ● ●
18 WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-042-1 01 1 0105-0410 ● ●
25 VALVE; CHECK
W-SERIES ENG<1A2> 		1-48320-057-0 01 1 0411- ● ●
25 VALVE; CHECK
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-48410-138-2 01 1 0105- ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		9-09111-422-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
W-SERIES ENG<1A2> M22 		0-91111-522-0 01 1 0601- ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0105-0512 ● ●
26 NUT; CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M20 		0-91111-520-0 01 1 0601- ● ●
27 WASHER; LK,CHECK VLV
W-SERIES ENG<1A2> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
27 WASHER; LK,CHECK VLV
PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0105- ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. AIR DRYER<PS7> 		1-49122-445-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. AIR DRYER<PS7> 		1-49123-436-0 01 1 0204- ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0105-0108 ● ●
33 PIPE; AIR,UNION TO AIR TANK
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0109-0109 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49122-444-0 01 1 0110-0203 ● ●
33 PIPE; AIR,UNION TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,AIR DRYER<PS7> 		1-49123-435-0 01 1 0204- ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0107-0109 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0110-0602 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ● ●
35 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (B) M12 3WAY 		9-09228-906-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-318-1 01 1 0105- ● ●
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09654-097-1 01 1 0105- ● ●
72 UNION; AIR PIPE
PE-SERIES ENG<1A0> (A) 		1-09654-097-1 01 1 0105- ● ●
98 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=55 		1-47475-304-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (A) 		1-47477-840-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MJD7SM/T(Y2Y) PE-SERIES ENG<1A0> (A) 		1-47477-840-0 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) (E) L=50 		1-47475-299-2 02 1 0105- ● ●
98 BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> (E) L=50 		1-47475-299-2 01 1 0105- ● ●
98 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (B) 		1-47477-902-0 01 1 0105- ● ●
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-47477-471-0 01 1 0105- ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC> (J) 		1-53457-110-0 01 1 0212-0401 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,FULL FLOATING CAB(W16) (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (J) 		1-53457-110-0 01 1 0402- ● ●
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0111-0211 ● ●
123 BRACKET; UNION
EXC. CHINA GB VAR1<JAC>,FULL FLOATING CAB(W16) (J) 		1-53458-742-1 01 1 0212-0212 ● ●
123 BRACKET; UNION
6WF1 TC-C(1B8) MIXER TRUCK<RA2> (I) 		1-82569-345-0 01 1 0109- ●
123 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105- ● ●
123 BRACKET; UNION
(E) 		1-47477-654-1 01 1 0105- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C) 		1-47477-188-1 01 1 0105- ● ●
123 BRACKET; UNION
MAL5 M/T<X9F> PE-SERIES ENG<1A0> (B) 		1-47477-189-0 01 1 0105- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> (B) 		1-47477-187-0 01 1 0105- ● ●
123 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> (A) 		1-47477-588-0 01 1 0105- ● ●
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (H) 		1-47477-532-0 01 1 0105- ●
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (G) 		1-47477-660-0 01 1 0105- ●
123 BRACKET; UNION
FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (F) 		1-47477-432-0 01 1 0105- ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (B) L=75 		1-47478-323-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 01 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50 		1-47475-299-2 03 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=50 		1-47475-299-2 02 1 0105-0106 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-47479-290-0 01 1 0107- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0105-0109 ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0110- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=55 		1-47475-304-0 01 1 0110- ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		9-09111-422-0 01 1 0105-0512 ● ●
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M22 		0-91111-522-0 01 1 0601- ● ●
179 NUT; UNION
PE-SERIES ENG<1A0> M22 		0-91111-522-0 01 1 0601- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=12.2 		9-09150-512-0 01 1 0105- ● ●
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=22.5 		9-09150-522-0 01 1 0105- ● ●
180 WASHER; LK,UNION
PE-SERIES ENG<1A0> ID=22.5 		9-09150-522-0 01 1 0105- ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512 ● ●
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0109 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0110-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0106 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0107-0107 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512 ● ●
221 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> (A) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0109 ● ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0110- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-175-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-400-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-176-0 01 1 0107-0112 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-401-0 01 1 0201- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-179-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-195-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-326-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> (C) 		1-49123-367-0 01 1 0112- ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-181-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-197-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-328-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> W-SERIES ENG<1A2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (C) 		1-49123-369-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-180-0 01 1 0107-0107 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-196-0 01 1 0107-0109 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-327-0 01 1 0110-0111 ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) 		1-49123-368-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-182-0 01 1 0107-0107 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-198-0 01 1 0107-0109 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-329-0 01 1 0110-0111 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (C) 		1-49123-370-0 01 1 0112- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. AIR DRYER<PS7> (A) L=495 		1-49117-170-0 01 1 0105- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> (B) L=751 		1-49116-511-0 01 1 0105- ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (C) 		1-47477-184-1 01 1 0105- ●
304 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-556-0 01 1 0105- ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0109 ● ●
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-71117-210-0 01 1 0110- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (D) 		1-47477-183-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,CLUTCH 15.5" TWIN PLATE STRAPDRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 0105- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0105-0105 ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ZF M/T<X9E> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
ZF M/T<X9E> PE-SERIES ENG<1A0> (D) 		1-47477-757-1 01 1 0106- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) FIRE TRUCK<RA9> MAP5 M/T<Y9F> (D) 		1-47478-723-0 01 1 0105- ●
374 CONNECTOR
ZF M/T<X9E> (B) 		1-09656-420-2 01 1 0109- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0108 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0109-0404 ● ●
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405- ● ●
374 CONNECTOR
ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0105- ● ●
374 CONNECTOR
ZF M/T<X9E> PE-SERIES ENG<1A0> (A) 		1-09654-203-1 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAG6 M/T<X9T> PE-SERIES ENG<1A0> L=685 		1-49112-569-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAL5 M/T<X9F> PE-SERIES ENG<1A0> L=519 		1-49118-232-0 01 1 0105- ●
376 PIPE; AIR,FLEX HOSE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=778 		1-49112-564-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=643 		1-49112-568-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MAL5 M/T<X9F> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=476 		1-49112-572-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=639 		1-49112-566-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
MJD7 M/T<X9J> PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=741 		1-49112-563-0 01 1 0105- ● ●
376 PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> L=552 		1-49117-764-0 01 1 0105- ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512 ● ●
377 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
377 BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M12X16 		0-28181-216-0 01 1 0105-0512 ● ●
377 BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> M12X16 		0-28151-216-0 01 1 0601- ● ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
