Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#125244) — 14 parça
◀

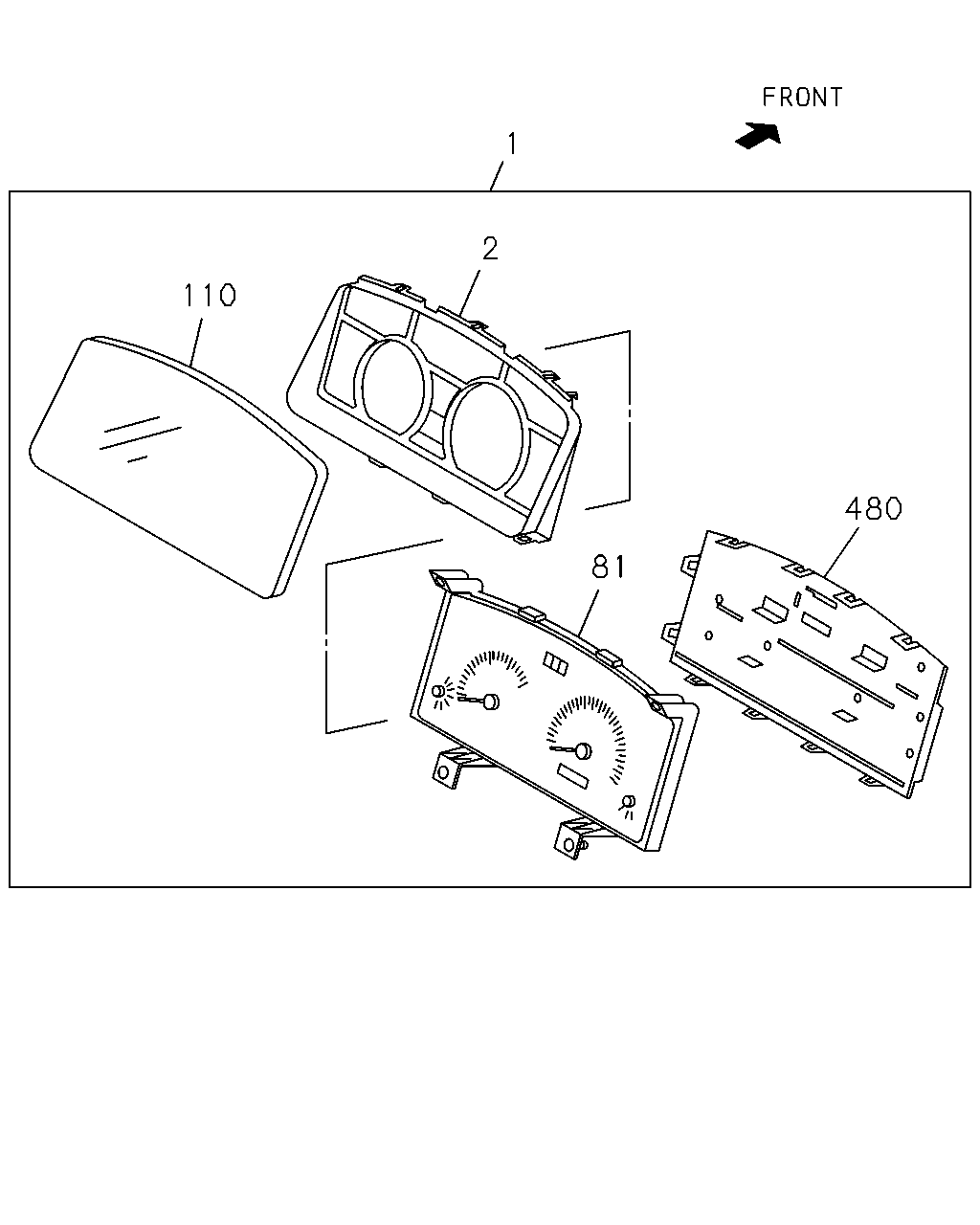

[821A] NO.2 (5 parça)
[821A] NO.1 (9 parça)
▶
480
2
1
110
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-98171-928-1
01
1
1307-
2
09.735 PANEL; CLUSTER
8-98054-432-0
01
1
1307-
81
09.735 METER SUB ASM
8-98183-880-0
01
1
1307-
110
09.748 GLASS; CLUSTER METER
8-98054-431-0
01
1
1307-
480
09.748 COVER; METER
BLACK
8-98054-433-0
01
1
1307-
31
1
151
151
482
151
11

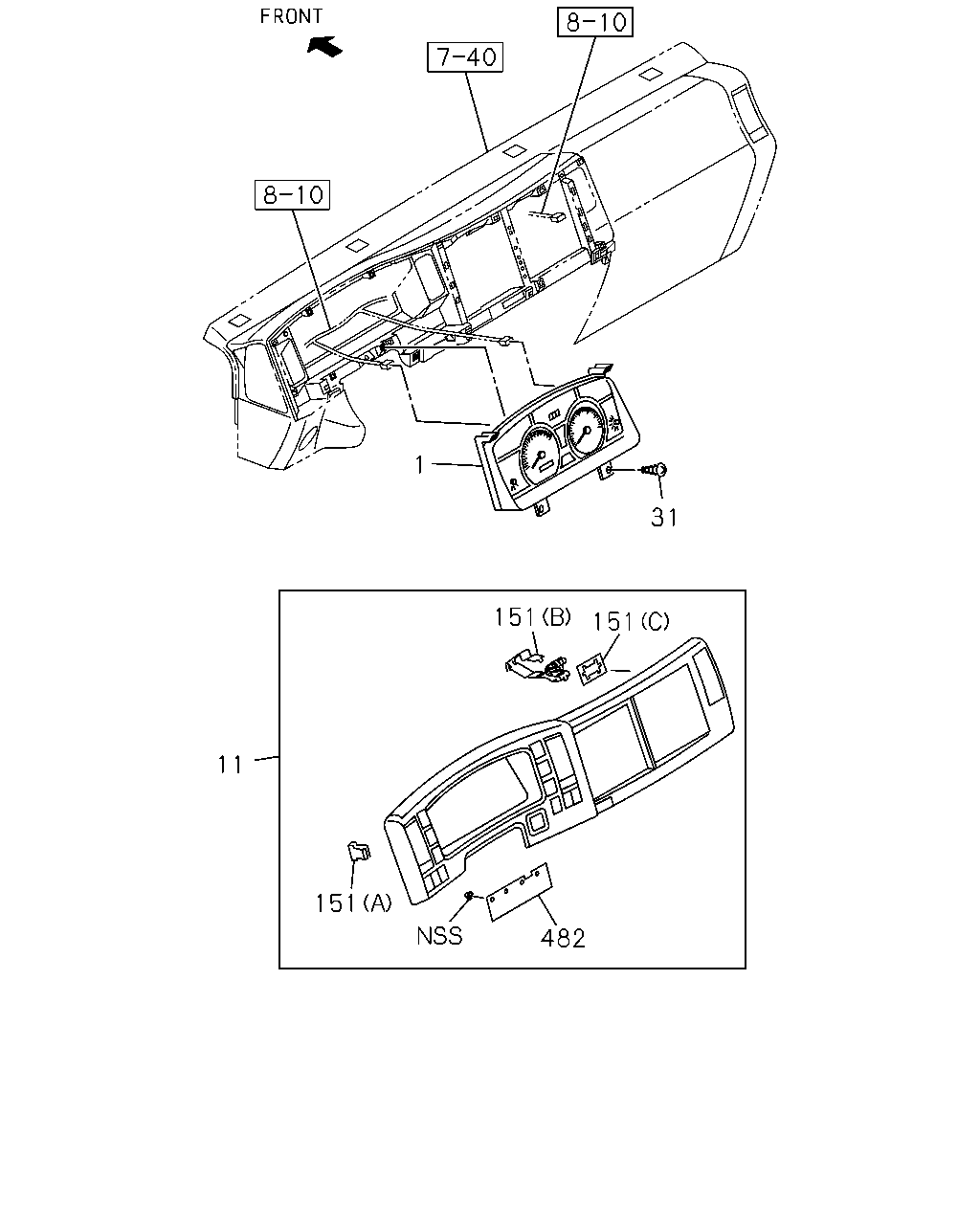

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-98171-928-1
01
1
1307-
11
09.743 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY
8-97418-534-1
01
1
1307-
11
09.743 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY
8-97406-005-6
01
1
1307-
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1307-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.085 (A)
8-98021-271-0
12
1
1307-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (B)
8-98152-030-0
01
1
1307-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (C)
8-98152-031-0
01
1
1307-
151
09.747 CLIP; METER CLUSTER
EXC. ECE R29<EFE> 16.085 (A)
8-98021-271-0
13
1
1307-
482
09.772 SEAL; CLUSTER METER
8-98116-843-0
01
1
1307-
