8-75 — CONDENSER (#125240) — 12 parça

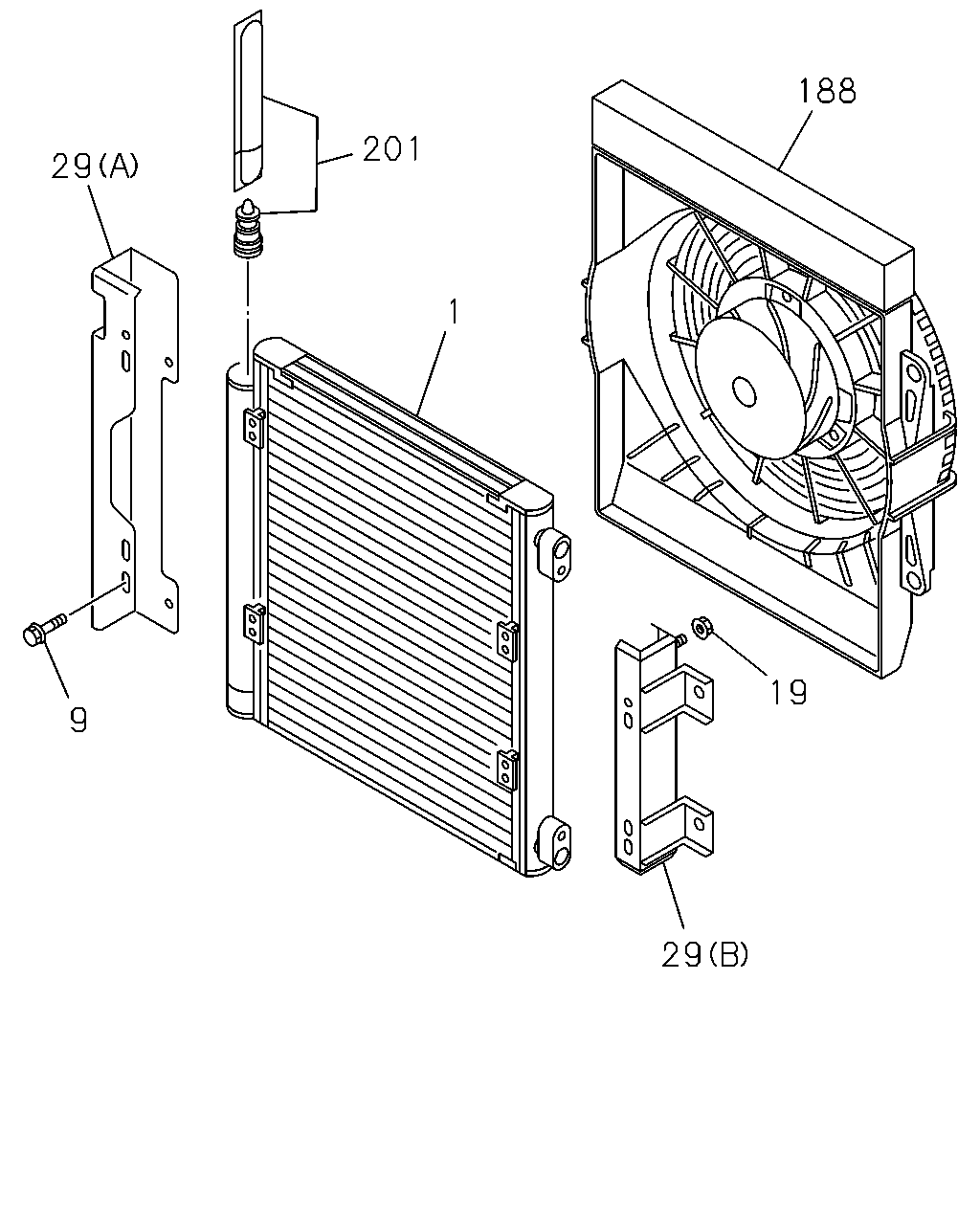

çizim 364100
19 188 201 29 9 29 1
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-456-1 01 1 1306-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X14 		1-83539-382-0 08 1 1306-
19 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		1-83539-354-0 04 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98042-466-0 01 1 1306-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98042-467-0 01 1 1306-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-461-0 01 1 1306-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		1-83535-097-0 01 1 1306-1409
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98282-482-0 01 1 1410-

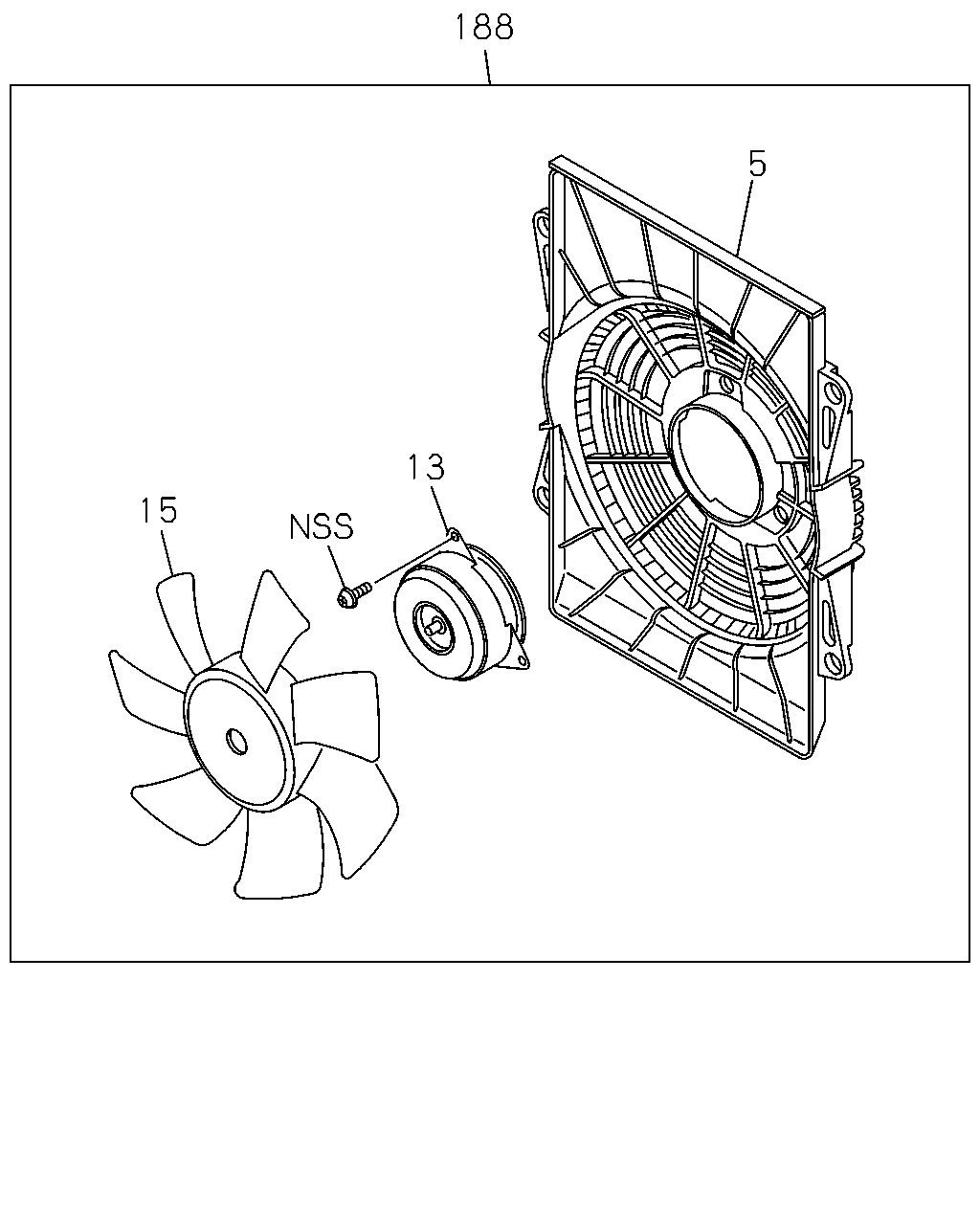

çizim 365537
5 188 13 15
BalonParca AdiParca NoAdetTipApplied Date
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98152-866-0 01 1 1306-
13 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98157-045-0 01 1 1306-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98152-861-0 01 1 1306-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-461-0 01 1 1306-
