8-65 — CONTROL LEVER; HEATER AND AIR CON (#125237) — 16 parça

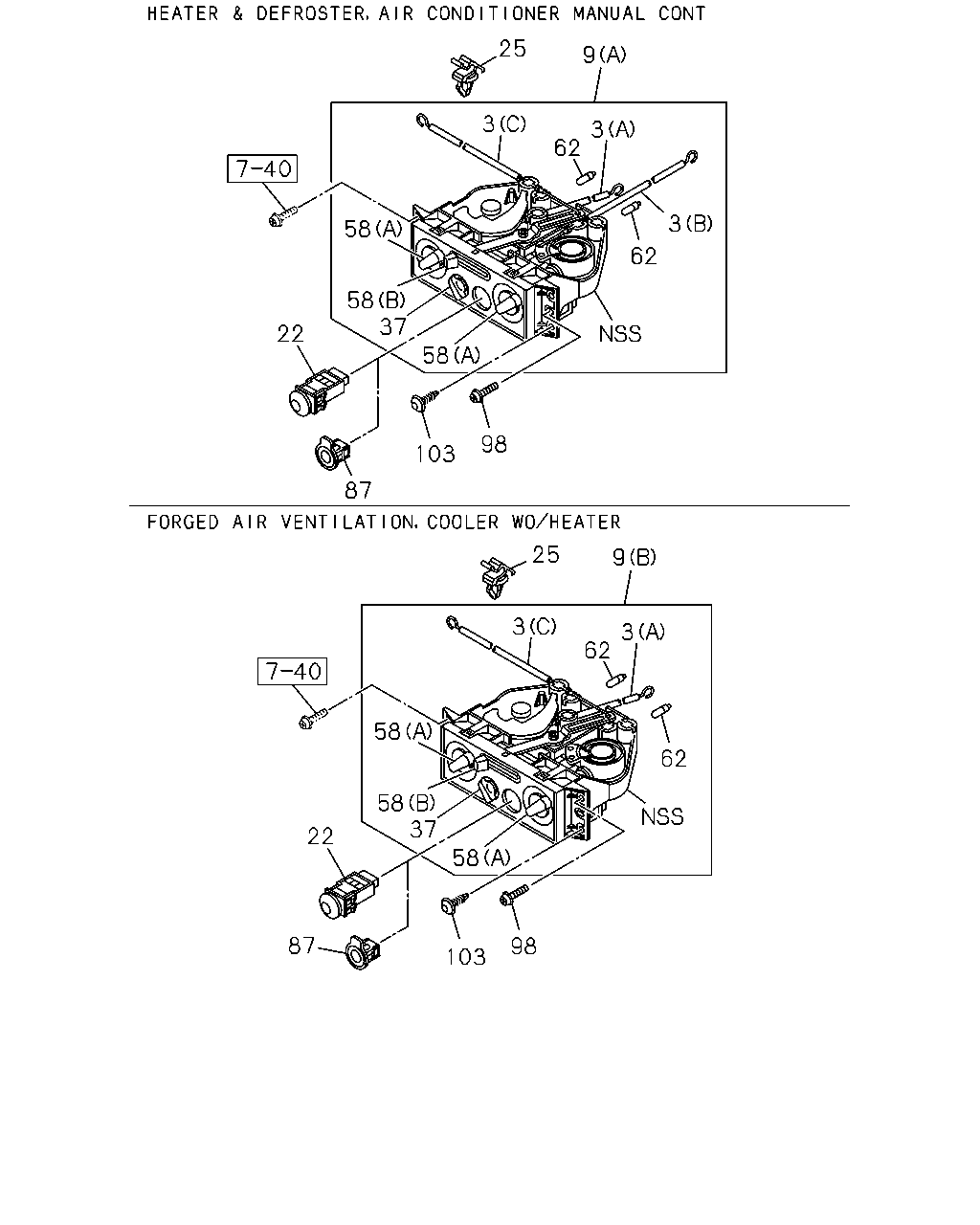

çizim 364205
25 3 3 9 62 62 3 58 58 37 22 58 87 103 98 25 9 3 62 3 58 58 22 87 103 58 37 98 62
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE MAL 		8-98039-250-0 01 1 1306-
3 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) FRESH MAL 		8-98039-253-2 01 1 1306-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1306-
9 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-98066-001-1 01 1 1306-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-363-2 01 1 1306-
9 LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER(C65) (B) 		8-98066-000-1 01 1 1306-
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98021-982-0 01 1 1306-
25 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=4.8 MAL 		8-94128-483-0 01 1 1306-
37 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98037-368-0 01 1 1306-
58 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) MAL 		8-98037-369-0 01 1 1306-
58 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98037-370-0 01 1 1306-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98037-369-0 02 1 1306-
62 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 1.1W MAL 		8-98037-371-0 02 1 1306-
87 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1306-
98 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1306-
103 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1306-
